1-41 — FUEL PIPING; CHASSIS (#19662) — 102 parça

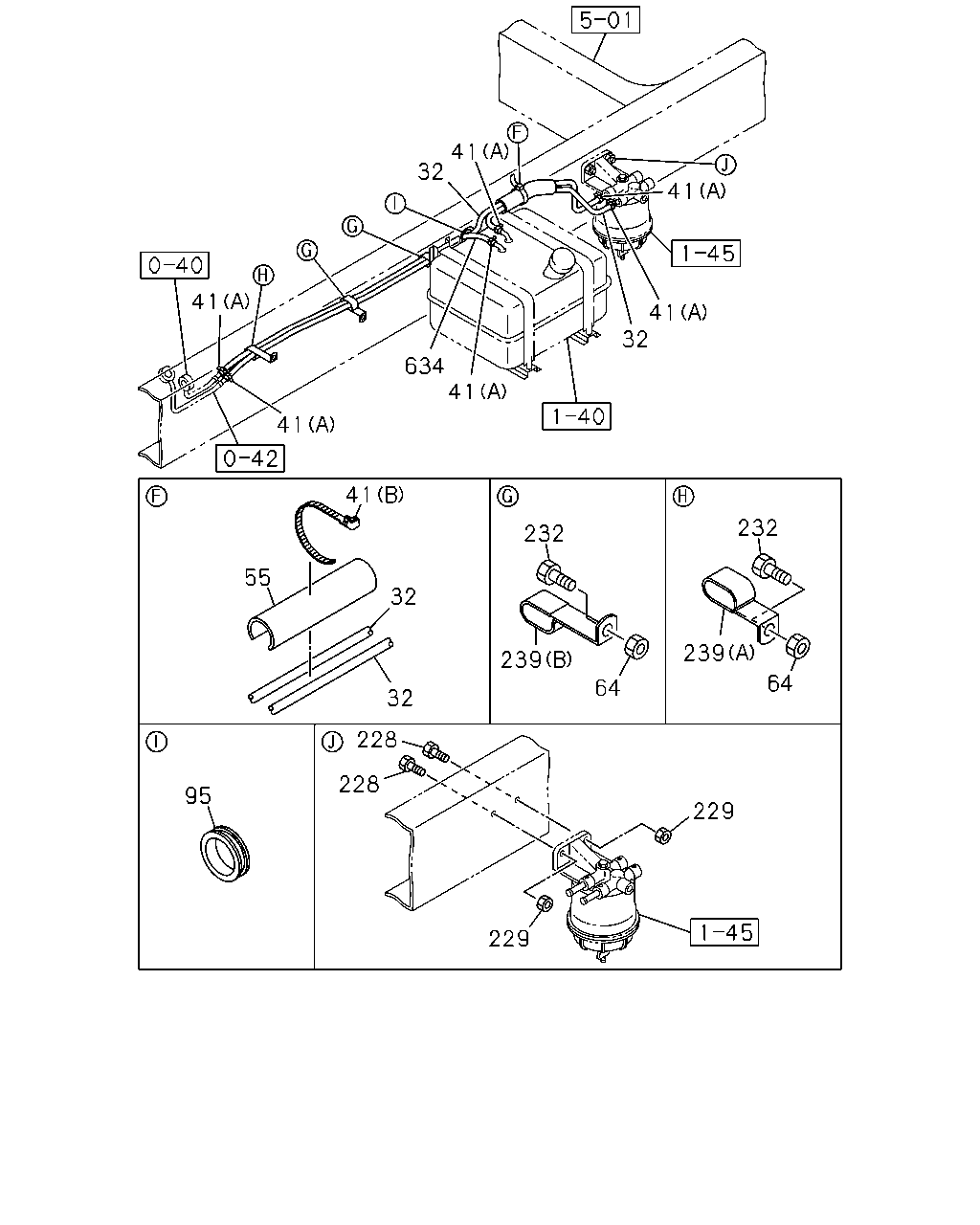

41 32 41 41 41 32 634 41 41 41 232 232 55 32 239 239 64 64 32 228 228 95 229 229

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK L=1050 SERVICED BY L=3000	0-01260-300-0	02	1	9510-9606	●
32	PIPE; DELIVERY,FUEL TANK EXC. FUEL TANK 140L FRAME SIDE<N19> L=1050 SERVICED BY L=3000	0-01260-300-0	02	1	9607-9612	●
32	PIPE; DELIVERY,FUEL TANK EXC. FUEL TANK 140L FRAME SIDE<N19> L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	9701-9802	●
32	PIPE; DELIVERY,FUEL TANK EXC. FUEL TANK 140L FRAME SIDE<N19> L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	9701-9802	●
32	PIPE; DELIVERY,FUEL TANK L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	9803-0106	●
32	PIPE; DELIVERY,FUEL TANK L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	9803-0106	●
32	PIPE; DELIVERY,FUEL TANK L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0107-	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 140L FRAME SIDE<N19> L=540 SERVICED BY L=3000	0-01260-300-0	01	1	9607-9802	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 140L FRAME SIDE<N19> L=1550 SERVICED BY L=3000	0-01260-300-0	01	1	9607-9802	●
32	PIPE; DELIVERY,FUEL TANK L=980 SERVICED BY L=3000	0-01260-300-0	01	1	0107-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	9510-0004	●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	0005-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	9510-0004	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	0005-	●	●
55	COVER; PIPE,FUEL TANK L=500 SERVICED BY L=1300	1-09360-677-1	01	1	9510-9606	●
55	COVER; PIPE,FUEL TANK EXC. FUEL TANK 140L FRAME SIDE<N19> L=500 SERVICED BY L=1300	1-09360-677-1	01	1	9607-9802	●
55	COVER; PIPE,FUEL TANK FUEL TANK 140L FRAME SIDE<N19> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9607-9802	●
55	COVER; PIPE,FUEL TANK L=500 SERVICED BY L=1300	1-09360-677-1	01	1	9803-	●	●
64	NUT; CLIP M8	9-09110-408-0	02	1	9510-9606	●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	9607-0004	●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0005-0602	●	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
64	NUT; CLIP FUEL TANK 140L FRAME SIDE<N19> M8 FLANGE	0-91150-108-0	01	1	9607-9802	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-1	01	1	9510-0004	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	0005-	●	●
228	BOLT; BRKT,SEDIMENTER M10X35 FLANGE	0-28081-035-0	02	1	9510-9606	●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28681-040-0	02	1	9607-0004	●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28681-040-0	02	1	0005-0512	●	●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28651-040-0	02	1	0601-	●	●
229	NUT; BRKT,FUEL FILTER M10	9-09110-510-0	02	1	9510-9606	●
229	NUT; BRKT,FUEL FILTER EXC. FUEL TANK 140L FRAME SIDE<N19> M10 FLANGE	0-91150-210-0	02	1	9607-9802	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9803-0602	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
232	BOLT; CLIP,PIPE M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	02	1	9607-0004	●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	02	1	0005-0512	●	●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
232	BOLT; CLIP,PIPE FUEL TANK 140L FRAME SIDE<N19> M8X30 FLANGE	0-28680-830-0	01	1	9607-9802	●
239	CLIP; FUEL PIPE (A) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9510-9907	●
239	CLIP; FUEL PIPE (A) M13X2 H=20 L=60	1-09701-280-0	01	1	9908-0004	●
239	CLIP; FUEL PIPE (A) M13X2 H=20 L=60	1-09701-280-0	01	1	0005-	●	●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	01	1	9510-9606	●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	01	1	9607-9802	●
239	CLIP; FUEL PIPE FUEL TANK 140L FRAME SIDE<N19> (B) ID=14X29 H=30 L=25	1-09701-101-0	01	1	9607-9802	●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	01	1	9803-0004	●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0005-	●	●
634	HOSE; RUBBER RETURN L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	9510-9606	●
634	HOSE; RUBBER RETURN EXC. FUEL TANK 140L FRAME SIDE<N19> L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	9607-9802	●
634	HOSE; RUBBER RETURN FUEL TANK 140L FRAME SIDE<N19> L=1250 SERVICED BY L=3000	0-01260-300-0	01	1	9607-9802	●
634	HOSE; RUBBER RETURN L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	9803-0004	●
634	HOSE; RUBBER RETURN L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	0005-	●	●

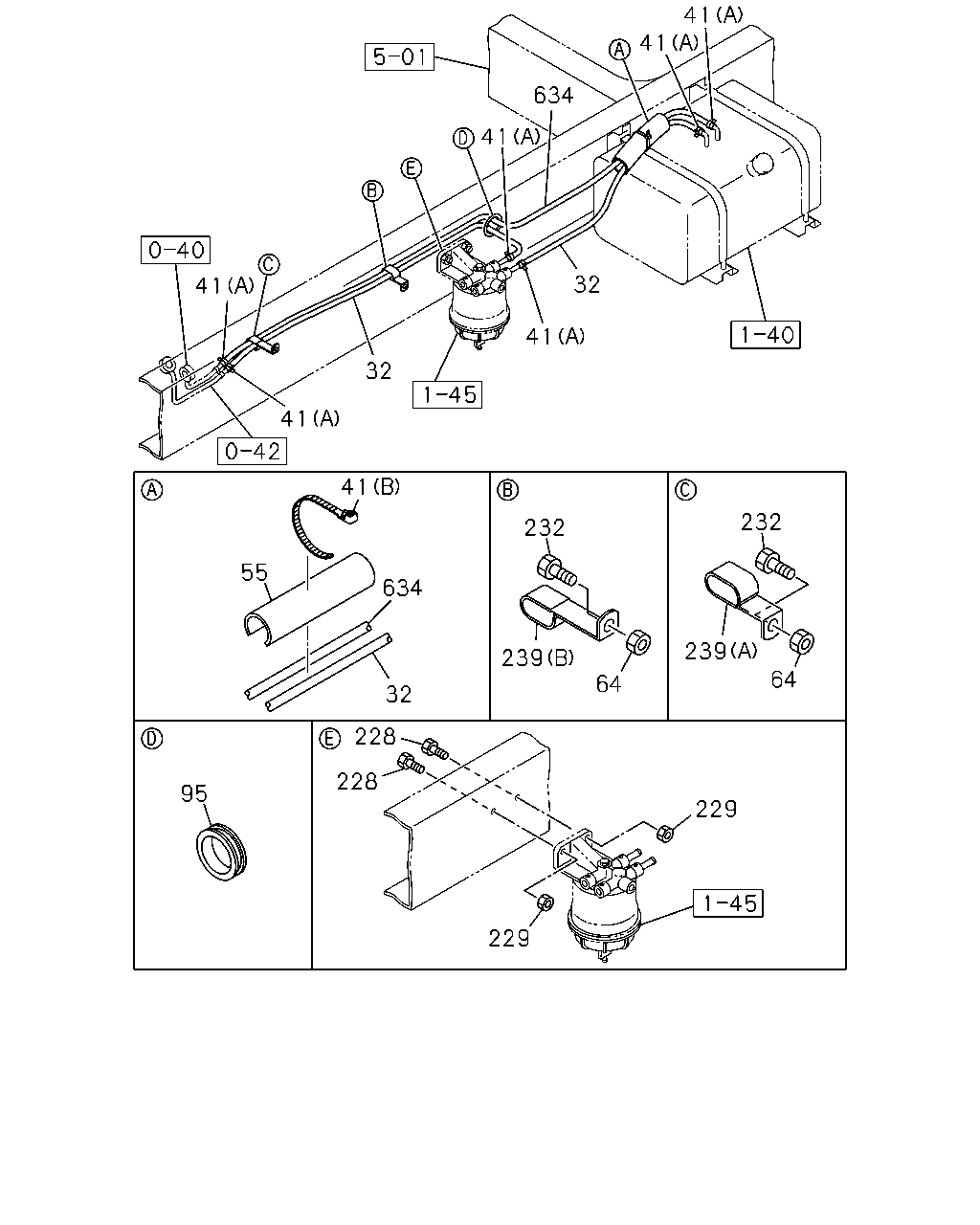

41 41 634 41 32 41 41 32 41 41 232 232 55 634 239 239 64 64 32 228 228 95 229 229

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK L=1050 SERVICED BY L=3000	0-01260-300-0	02	1	9510-9606	●
32	PIPE; DELIVERY,FUEL TANK EXC. FUEL TANK 140L FRAME SIDE<N19> L=1050 SERVICED BY L=3000	0-01260-300-0	02	1	9607-9612	●
32	PIPE; DELIVERY,FUEL TANK EXC. FUEL TANK 140L FRAME SIDE<N19> L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	9701-9802	●
32	PIPE; DELIVERY,FUEL TANK EXC. FUEL TANK 140L FRAME SIDE<N19> L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	9701-9802	●
32	PIPE; DELIVERY,FUEL TANK L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	9803-0106	●
32	PIPE; DELIVERY,FUEL TANK L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	9803-0106	●
32	PIPE; DELIVERY,FUEL TANK L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0107-	●	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 140L FRAME SIDE<N19> L=540 SERVICED BY L=3000	0-01260-300-0	01	1	9607-9802	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 140L FRAME SIDE<N19> L=1550 SERVICED BY L=3000	0-01260-300-0	01	1	9607-9802	●
32	PIPE; DELIVERY,FUEL TANK L=980 SERVICED BY L=3000	0-01260-300-0	01	1	0107-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	9510-0004	●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	0005-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	9510-0004	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	0005-	●	●
55	COVER; PIPE,FUEL TANK L=500 SERVICED BY L=1300	1-09360-677-1	01	1	9510-9606	●
55	COVER; PIPE,FUEL TANK EXC. FUEL TANK 140L FRAME SIDE<N19> L=500 SERVICED BY L=1300	1-09360-677-1	01	1	9607-9802	●
55	COVER; PIPE,FUEL TANK FUEL TANK 140L FRAME SIDE<N19> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9607-9802	●
55	COVER; PIPE,FUEL TANK L=500 SERVICED BY L=1300	1-09360-677-1	01	1	9803-	●	●
64	NUT; CLIP M8	9-09110-408-0	02	1	9510-9606	●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	9607-0004	●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0005-0602	●	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
64	NUT; CLIP FUEL TANK 140L FRAME SIDE<N19> M8 FLANGE	0-91150-108-0	01	1	9607-9802	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-1	01	1	9510-0004	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	0005-	●	●
228	BOLT; BRKT,SEDIMENTER M10X35 FLANGE	0-28081-035-0	02	1	9510-9606	●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28681-040-0	02	1	9607-0004	●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28681-040-0	02	1	0005-0512	●	●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28651-040-0	02	1	0601-	●	●
229	NUT; BRKT,FUEL FILTER M10	9-09110-510-0	02	1	9510-9606	●
229	NUT; BRKT,FUEL FILTER EXC. FUEL TANK 140L FRAME SIDE<N19> M10 FLANGE	0-91150-210-0	02	1	9607-9802	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9803-0602	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91180-210-0	02	1	0603-	●	●
232	BOLT; CLIP,PIPE M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	02	1	9607-0004	●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	02	1	0005-0512	●	●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
232	BOLT; CLIP,PIPE FUEL TANK 140L FRAME SIDE<N19> M8X30 FLANGE	0-28680-830-0	01	1	9607-9802	●
239	CLIP; FUEL PIPE (A) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9510-9907	●
239	CLIP; FUEL PIPE (A) M13X2 H=20 L=60	1-09701-280-0	01	1	9908-0004	●
239	CLIP; FUEL PIPE (A) M13X2 H=20 L=60	1-09701-280-0	01	1	0005-	●	●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	01	1	9510-9606	●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	01	1	9607-9802	●
239	CLIP; FUEL PIPE FUEL TANK 140L FRAME SIDE<N19> (B) ID=14X29 H=30 L=25	1-09701-101-0	01	1	9607-9802	●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	01	1	9803-0004	●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0005-	●	●
634	HOSE; RUBBER RETURN L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	9510-9606	●
634	HOSE; RUBBER RETURN EXC. FUEL TANK 140L FRAME SIDE<N19> L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	9607-9802	●
634	HOSE; RUBBER RETURN FUEL TANK 140L FRAME SIDE<N19> L=1250 SERVICED BY L=3000	0-01260-300-0	01	1	9607-9802	●
634	HOSE; RUBBER RETURN L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	9803-0004	●
634	HOSE; RUBBER RETURN L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	0005-	●	●
