1 |

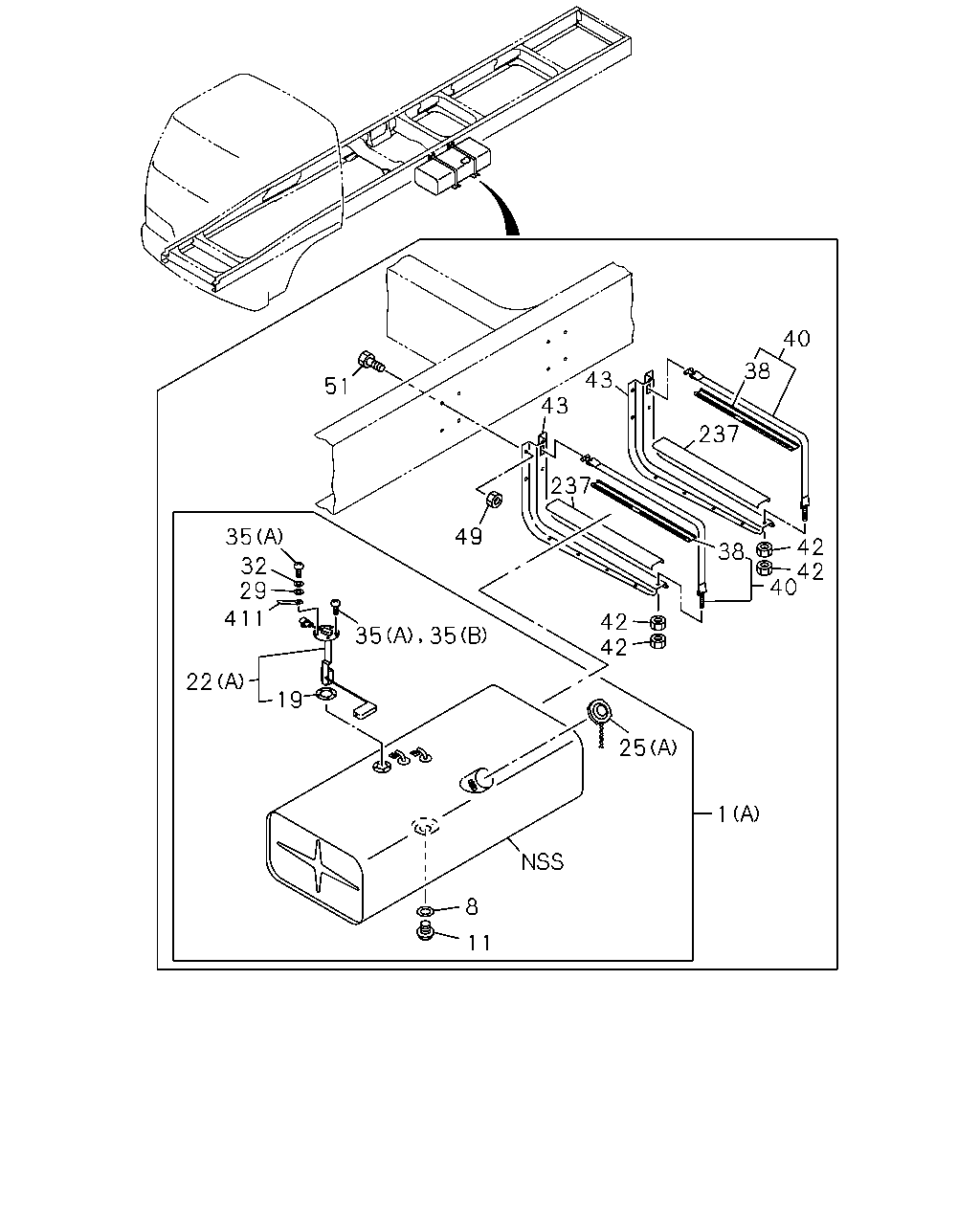

TANK; FUEL
(A)
1220X533X323 200L
|
1-22400-995-0 |
01 |
1 |
9510-9606 |
● |
|
| |
1 |
TANK; FUEL
FUEL TANK 200L FRAME SIDE<N20>
(A)
1220X533X323 200L
|
1-22400-995-0 |
01 |
1 |
9607-9802 |
● |
|
| |
1 |
TANK; FUEL
(A)
1220X533X323 200L
|
1-22400-995-0 |
01 |
1 |
9803-0004 |
● |
|
| |
1 |
TANK; FUEL
(A)
1220X533X323 200L
|
1-22400-995-2 |
01 |
1 |
0005- |
● |
● |
| |
1 |
TANK; FUEL

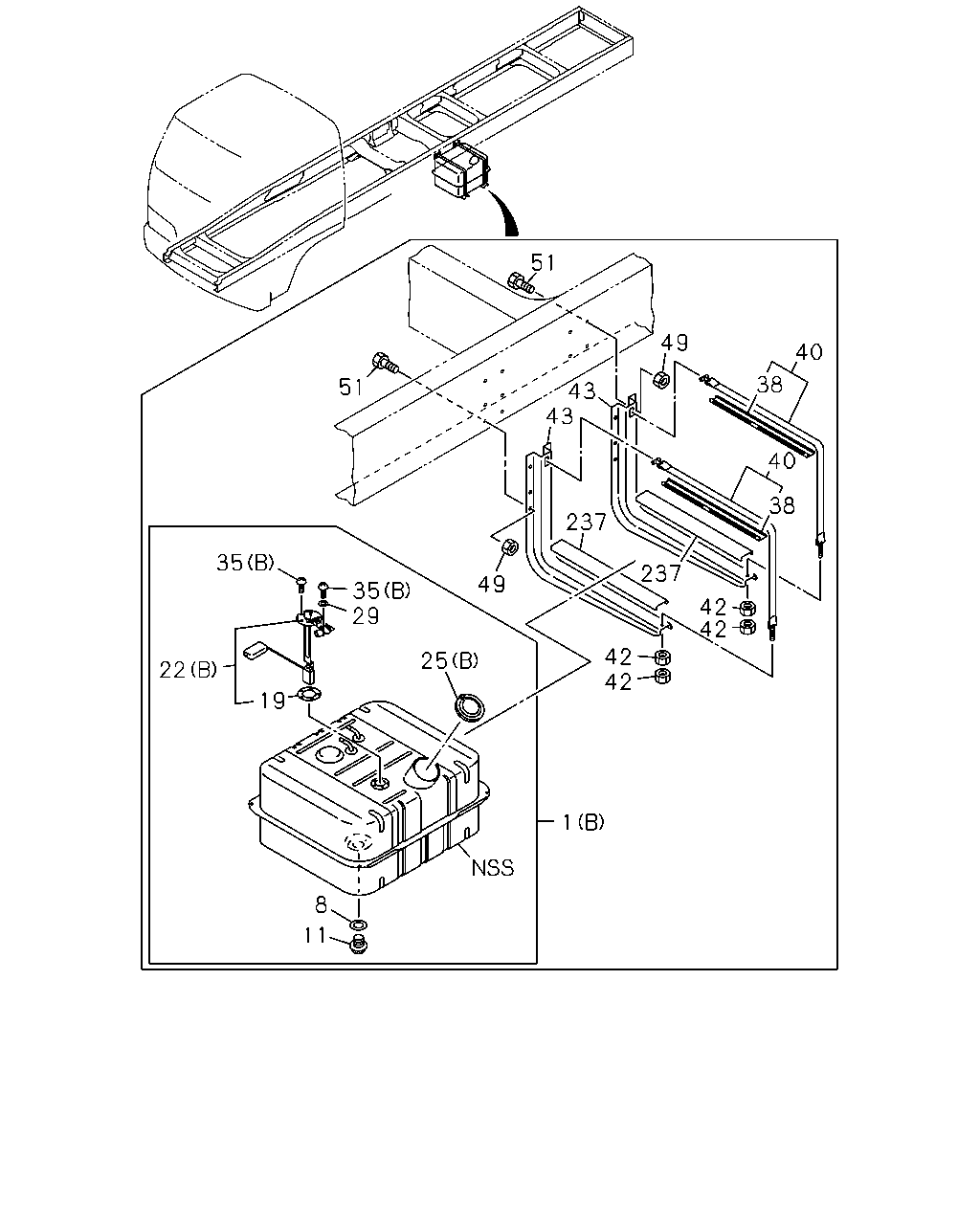

FUEL TANK 140L FRAME SIDE<N19>
(B)
720X610X353 140L
|
1-22401-043-0 |
01 |
1 |
9607-9802 |
● |
|
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
T=2.0
|
9-09923-030-0 |
01 |
1 |
9510-0004 |
● |
|
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
T=2.0
|
9-09923-030-0 |
01 |
1 |
0005-0509 |
● |
● |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
T=2.0
|
8-98030-375-0 |
01 |
1 |
0510- |
● |
● |
| |
11 |
PLUG; DRAIN,FUEL TANK
M36
|
1-09604-052-0 |
01 |
1 |
9510-0004 |
● |
|
| |
11 |
PLUG; DRAIN,FUEL TANK
M36
|
1-09604-052-0 |
01 |
1 |
0005-0005 |
● |
● |
| |
11 |
PLUG; DRAIN,FUEL TANK
M36
|
1-09604-052-0 |
01 |
1 |
0006- |
● |
● |
| |
19 |
GASKET; FUEL TANK UNIT
ID=42 OD=71
|
5-83148-001-0 |
01 |
1 |
9510-0004 |
● |
|
| |
19 |
GASKET; FUEL TANK UNIT
ID=42 OD=71
|
5-83148-001-0 |
01 |
1 |
0005- |
● |
● |
| |
19 |
GASKET; FUEL TANK UNIT
ID=42
|
9-83135-011-0 |
01 |
1 |
9510-0004 |
● |
|
| |
19 |
GASKET; FUEL TANK UNIT
ID=42
|
9-83135-011-0 |
01 |
1 |
0005- |
● |
● |
| |
22 |
UNIT; FUEL TANK
(A)
|
1-83141-084-1 |
01 |
1 |
9510-9606 |
● |
|
| |
22 |
UNIT; FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
(A)
|
1-83141-084-1 |
01 |
1 |
9607-9802 |
● |
|
| |
22 |
UNIT; FUEL TANK
(A)
|
1-83141-084-1 |
01 |
1 |
9803-0004 |
● |
|
| |
22 |
UNIT; FUEL TANK
(A)
|
1-83141-084-1 |
01 |
1 |
0005- |
● |
● |
| |
22 |
UNIT; FUEL TANK
FUEL TANK 140L FRAME SIDE<N19>
(B)
|
1-83141-123-0 |
01 |
1 |
9607-9802 |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
(A)
|
1-22440-028-0 |
01 |
1 |
9510-9606 |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
(A)
|
1-22440-028-0 |
01 |
1 |
9607-9802 |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
(A)
|
1-22440-028-0 |
01 |
1 |
9803-0004 |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
(A)
|
1-22440-028-0 |
01 |
1 |
0005- |
● |
● |
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 140L FRAME SIDE<N19>
(B)
|
1-22440-033-2 |
01 |
1 |
9607-9802 |
● |
|
| |
29 |
WASHER; PL,FUEL TANK UNIT
ID=5.3
|
9-09160-505-0 |
01 |
1 |
9510-0004 |
● |
|
| |
29 |
WASHER; PL,FUEL TANK UNIT
ID=5.3
|
9-09160-505-0 |
01 |
1 |
0005-0605 |
● |
● |
| |
29 |
WASHER; PL,FUEL TANK UNIT
ID=5.3
|
0-91610-505-0 |
01 |
1 |
0606- |
● |
● |
| |
32 |
WASHER; LK,FUEL TANK UNIT
ID=5.1
|
9-09150-505-0 |
01 |
1 |
9510-9606 |
● |
|
| |
32 |
WASHER; LK,FUEL TANK UNIT
FUEL TANK 200L FRAME SIDE<N20>
ID=5.1
|
9-09150-505-0 |
01 |
1 |
9607-9802 |
● |
|
| |
32 |
WASHER; LK,FUEL TANK UNIT
ID=5.1
|
9-09150-505-0 |
01 |
1 |
9803-0004 |
● |
|
| |
32 |
WASHER; LK,FUEL TANK UNIT
ID=5.1
|
9-09150-505-0 |
01 |
1 |
0005-0501 |
● |
● |
| |
35 |
SCREW; FUEL TANK UNIT
(A)
M5X10
|
9-93497-510-0 |
05 |
1 |
9510-9606 |
● |
|
| |
35 |
SCREW; FUEL TANK UNIT
FUEL TANK 200L FRAME SIDE<N20>
(A)
M5X10
|
9-93497-510-0 |
05 |
1 |
9607-9802 |
● |
|
| |
35 |
SCREW; FUEL TANK UNIT
(A)
M5X10
|
9-93497-510-0 |
05 |
1 |
9803-0004 |
● |
|
| |
35 |
SCREW; FUEL TANK UNIT
(A)
M5X10
|
9-93497-510-0 |
05 |
1 |
0005-0501 |
● |
● |
| |
35 |
SCREW; FUEL TANK UNIT
(B)
M5X10 W/LK WASHER
|
9-03910-510-0 |
05 |
1 |
0502-0604 |
● |
● |
| |
35 |
SCREW; FUEL TANK UNIT
(B)
M5X10 W/LK WASHER
|
0-36220-510-0 |
05 |
1 |
0605- |
● |
● |
| |
35 |
SCREW; FUEL TANK UNIT
FUEL TANK 140L FRAME SIDE<N19>
(B)
M5X10 W/LK WASHER
|
9-03910-510-0 |
05 |
1 |
9607-9802 |
● |
|
| |
38 |
INSULATION; SUPPORT BELT
L=540
|
1-22553-014-2 |
02 |
1 |
0802- |
● |
● |
| |
38 |
INSULATION; SUPPORT BELT
L=540
|
1-22553-014-2 |
02 |
1 |
9510-9606 |
● |
|
| |
38 |
INSULATION; SUPPORT BELT
FUEL TANK 200L FRAME SIDE<N20>
L=540
|
1-22553-014-2 |
02 |
1 |
9607-9802 |
● |
|
| |
38 |
INSULATION; SUPPORT BELT
L=540
|
1-22553-014-2 |
02 |
1 |
9803-0004 |
● |
|
| |
38 |
INSULATION; SUPPORT BELT
L=540
|
1-22553-014-2 |
02 |
1 |
0005-0112 |
● |
● |
| |
38 |
INSULATION; SUPPORT BELT
FUEL TANK 140L FRAME SIDE<N19>
L=650
|
1-22553-022-1 |
02 |
1 |
9607-9802 |
● |
|
| |
40 |
BELT; SUPPORT,FUEL TANK
L=775
|
1-22550-211-1 |
02 |
1 |
9510-9606 |
● |
|
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
L=775
|
1-22550-211-1 |
02 |
1 |
9607-9802 |
● |
|
| |
40 |
BELT; SUPPORT,FUEL TANK
L=775
|
1-22550-211-1 |
02 |
1 |
9803-0004 |
● |
|
| |
40 |
BELT; SUPPORT,FUEL TANK
L=775
|
1-22550-211-2 |
02 |
1 |
0005-0112 |
● |
● |
| |
40 |
BELT; SUPPORT,FUEL TANK
L=790
|
1-22550-186-2 |
02 |
1 |
0201- |
● |
● |
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 140L FRAME SIDE<N19>
L=905
|
1-22550-183-2 |
02 |
1 |
9607-9802 |
● |
|
| |
42 |
NUT; SUPPORT BELT
M10
|
9-09110-510-0 |
04 |
1 |
9510-0004 |
● |
|
| |
42 |
NUT; SUPPORT BELT
M10
|
9-09110-510-0 |
04 |
1 |
0005-0512 |
● |
● |
| |
42 |
NUT; SUPPORT BELT
M10
|
0-91110-510-0 |
04 |
1 |
0601- |
● |
● |
| |
43 |
BRACKET; FUEL TANK
|
1-53461-206-1 |
02 |
1 |
9510-9606 |
● |
|
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
|
1-53461-206-1 |
02 |
1 |
9607-9802 |
● |
|
| |
43 |
BRACKET; FUEL TANK
|
1-53461-206-1 |
02 |
1 |
9803-0004 |
● |
|
| |
43 |
BRACKET; FUEL TANK
|
1-53461-206-1 |
02 |
1 |
0005- |
● |
● |
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 140L FRAME SIDE<N19>
|
1-53461-401-1 |
02 |
1 |
9607-9802 |
● |
|
| |
49 |
NUT; BRKT
M12
|
9-99110-512-0 |
12 |
1 |
9510-9606 |
● |
|
| |
49 |
NUT; BRKT
FUEL TANK 200L FRAME SIDE<N20>
M12
|
9-99110-512-0 |
12 |
1 |
9607-9702 |
● |
|
| |
49 |
NUT; BRKT
FUEL TANK 200L FRAME SIDE<N20>
M12 FLANGE
|
0-91150-212-0 |
12 |
1 |
9703-9802 |
● |
|
| |
49 |
NUT; BRKT
M12 FLANGE
|
0-91150-212-0 |
12 |
1 |
9803-0004 |
● |
|
| |
49 |
NUT; BRKT
M12 FLANGE
|
0-91150-212-0 |
12 |
1 |
0005-0602 |
● |
● |
| |
49 |
NUT; BRKT
M12 FLANGE
|
0-91180-212-0 |
12 |
1 |
0603- |
● |
● |
| |
49 |
NUT; BRKT
FUEL TANK 140L FRAME SIDE<N19>
M12
|
9-99110-512-0 |
08 |
1 |
9607-9702 |
● |
|
| |
49 |
NUT; BRKT
FUEL TANK 140L FRAME SIDE<N19>
M12 FLANGE
|
0-91150-212-0 |
08 |
1 |
9703-9802 |
● |
|
| |
51 |
BOLT; BRKT TO FRAME
M12X30 FLANGE
|
0-28081-230-0 |
12 |
1 |
9510-9606 |
● |
|
| |
51 |
BOLT; BRKT TO FRAME
FUEL TANK 200L FRAME SIDE<N20>
M12X35 FLANGE
|
0-28681-235-0 |
12 |
1 |
9607-9802 |
● |
|
| |
51 |
BOLT; BRKT TO FRAME
M12X35 FLANGE
|
0-28681-235-0 |
12 |
1 |
9803-0004 |
● |
|
| |
51 |
BOLT; BRKT TO FRAME
M12X35 FLANGE
|
0-28681-235-0 |
12 |
1 |
0005-0512 |
● |
● |
| |
51 |
BOLT; BRKT TO FRAME
M12X35 FLANGE
|
0-28651-235-0 |
12 |
1 |
0601- |
● |
● |
| |
51 |
BOLT; BRKT TO FRAME
FUEL TANK 140L FRAME SIDE<N19>
M12X40 FLANGE
|
0-28681-240-0 |
08 |
1 |
9607-9802 |
● |
|
| |
237 |
GASKET; BRKT TO FUEL TANK
L=480
|
1-22553-002-0 |
02 |
1 |
9510-9606 |
● |
|
| |
237 |
GASKET; BRKT TO FUEL TANK
FUEL TANK 200L FRAME SIDE<N20>
L=480
|
1-22553-002-0 |
02 |
1 |
9607-9802 |
● |
|
| |
237 |
GASKET; BRKT TO FUEL TANK
L=480
|
1-22553-002-0 |
02 |
1 |
9803-0004 |
● |
|
| |
237 |
GASKET; BRKT TO FUEL TANK
L=480
|
1-22553-002-0 |
02 |
1 |
0005- |
● |
● |
| |
237 |
GASKET; BRKT TO FUEL TANK
FUEL TANK 140L FRAME SIDE<N19>
L=580
|
1-22553-003-0 |
02 |
1 |
9607-9802 |
● |
|
| |
411 |
CLIP; FUEL TANK UNIT HARNESS
L=50
|
1-09700-416-0 |
01 |
1 |
9510-9606 |
● |
|
| |
411 |
CLIP; FUEL TANK UNIT HARNESS
FUEL TANK 200L FRAME SIDE<N20>
L=50
|
1-09700-416-0 |
01 |
1 |
9607-9802 |
● |
|
| |
411 |
CLIP; FUEL TANK UNIT HARNESS
L=50
|
1-09700-416-0 |
01 |
1 |
9803-0004 |
● |
|
| |
411 |
CLIP; FUEL TANK UNIT HARNESS
L=50
|
1-09700-416-0 |
01 |
1 |
0005- |
● |
● |
