◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11339 - FSR(MIDDLE EAST) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#19660) — 57 parça

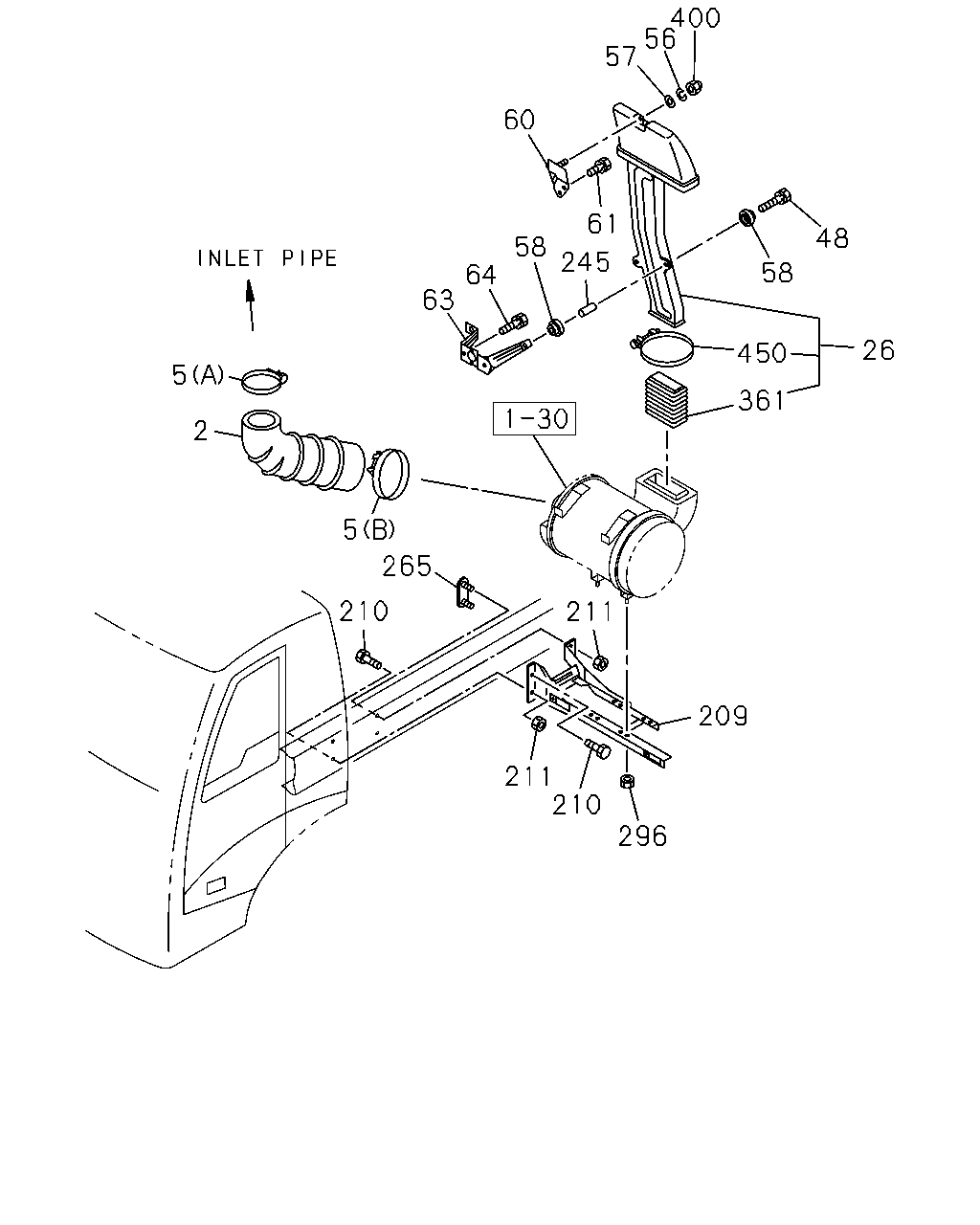

çizim 64951
400 56 57 60 61 48 58 245 58 64 63 26 450 5 361 2 5 265 210 211 209 211 210 296
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOSE; ACL 1-14231-857-0 01 1 9510-0210 ●
2 HOSE; ACL 1-14231-919-1 01 1 0211- ●
5 CLIP; AIR DUCT
(A) ID=87-116 		1-09707-144-0 01 1 9510-9802 ●
5 CLIP; AIR DUCT
(A) ID=87-116 		1-09707-144-0 01 1 9803-0212 ● ●
5 CLIP; AIR DUCT
(A) ID=87-113 		1-09707-199-0 01 1 0301-0811 ● ●
5 CLIP; AIR DUCT
(A) ID=90-110 		8-98133-365-0 01 1 0812-1001 ● ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=90-110 		8-98133-365-0 01 1 1002- ● ●
5 CLIP; AIR DUCT
(B) ID=104-142 		1-09707-155-0 01 1 9510-9802 ●
5 CLIP; AIR DUCT
(B) ID=104-142 		1-09707-155-0 01 1 9803-0212 ● ●
5 CLIP; AIR DUCT
(B) ID=104-139 		1-09707-200-0 01 1 0301-0812 ● ●
5 CLIP; AIR DUCT
(B) ID=110-130 		8-98133-359-0 01 1 0901-1001 ● ●
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (B) ID=110-130 		8-98133-359-0 01 1 1002- ● ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=87-116 		1-09707-138-0 01 1 1002- ● ●
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (B) ID=104-142 		1-09707-139-0 01 1 1002- ● ●
26 DUCT; AIR INT 1-14230-126-4 01 1 9510-9610 ●
26 DUCT; AIR INT 1-14230-153-0 01 1 9611-9712 ●
26 DUCT; AIR INT 1-14230-176-0 01 1 9801-9802 ●
26 DUCT; AIR INT 1-14230-176-0 01 1 9803-0210 ● ●
26 DUCT; AIR INT 1-14230-221-2 01 1 0211- ● ●
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 9510-0004 ●
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 0005- ● ●
56 WASHER; LK,AIR INT DUCT
M10 		1-09500-046-0 01 1 9510-0004 ●
56 WASHER; LK,AIR INT DUCT
M10 		1-09500-046-0 01 1 0005- ● ●
57 WASHER; PL,AIR INT DUCT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 9510-0004 ●
57 WASHER; PL,AIR INT DUCT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0005- ● ●
58 SUPPORT; AIR INL DUCT
OD=40 T=18.5 		1-14119-267-0 04 1 9510-0004 ●
58 SUPPORT; AIR INL DUCT
OD=40 T=18.5 		1-14119-267-0 04 1 0005- ● ●
60 BRACKET; AIR DUCT,UPR 1-79998-748-2 01 1 9510-0004 ●
60 BRACKET; AIR DUCT,UPR 1-79998-748-2 01 1 0005- ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 W/LK&PL WASHER 		1-09980-526-0 02 1 9510-0004 ●
61 BOLT; BRKT,AIR DUCT
M8X25 W/LK&PL WASHER 		1-09980-526-0 02 1 0005- ● ●
63 BRACKET; AIR DUCT,LWR 1-79998-749-3 01 1 9510-0004 ●
63 BRACKET; AIR DUCT,LWR 1-79998-749-3 01 1 0005- ● ●
64 BOLT; BRKT,AIR DUCT
M8X25 W/LK&PL WASHER 		1-09980-526-0 02 1 9510-0004 ●
64 BOLT; BRKT,AIR DUCT
M8X25 W/LK&PL WASHER 		1-09980-526-0 02 1 0005- ● ●
209 BRACKET; ACL 1-53497-508-2 01 1 9510-0004 ●
209 BRACKET; ACL 1-53497-508-2 01 1 0005- ● ●
210 BOLT; ACL BRKT
M12X35 FLANGE 		0-28081-235-0 02 1 9510-9606 ●
210 BOLT; ACL BRKT
M12X40 FLANGE 		0-28681-240-0 02 1 9607-0004 ●
210 BOLT; ACL BRKT
M12X40 FLANGE 		0-28681-240-0 02 1 0005-0512 ● ●
210 BOLT; ACL BRKT
M12X40 FLANGE 		0-28651-240-0 02 1 0601- ● ●
211 NUT; BRKT
M12 FLANGE 		0-91150-112-0 03 1 9510-9606 ● ●
211 NUT; BRKT
M12 FLANGE 		0-91150-212-0 03 1 9607-0602 ● ●
211 NUT; BRKT
M12 FLANGE 		0-91180-212-0 03 1 0603- ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 9510-0004 ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 0005- ● ●
265 BRACKET; STUD,ACL 1-53497-397-0 01 1 9510-0004 ●
265 BRACKET; STUD,ACL 1-53497-397-0 01 1 0005- ● ●
296 NUT; ACL
M8 FLANGE 		0-91150-108-0 04 1 9510-0004 ●
296 NUT; ACL
M8 FLANGE 		0-91150-108-0 04 1 0005-0602 ● ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
361 RUBBER; CUSHION,AIR DUCT 1-14231-973-0 01 1 9611-9712 ●
361 RUBBER; CUSHION,AIR DUCT 1-14231-973-1 01 1 9909- ● ●
400 NUT; CAP,AIR DUCT
M10 		1-09984-145-0 01 1 9510-0004 ●
400 NUT; CAP,AIR DUCT
M10 		1-09984-145-0 01 1 0005- ● ●
450 CLAMP; HOSE 9-09915-504-1 01 1 9611-9712 ●
450 CLAMP; HOSE 9-09915-504-1 01 1 9909- ● ●
