◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11339 - FSR(MIDDLE EAST) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#19657) — 107 parça

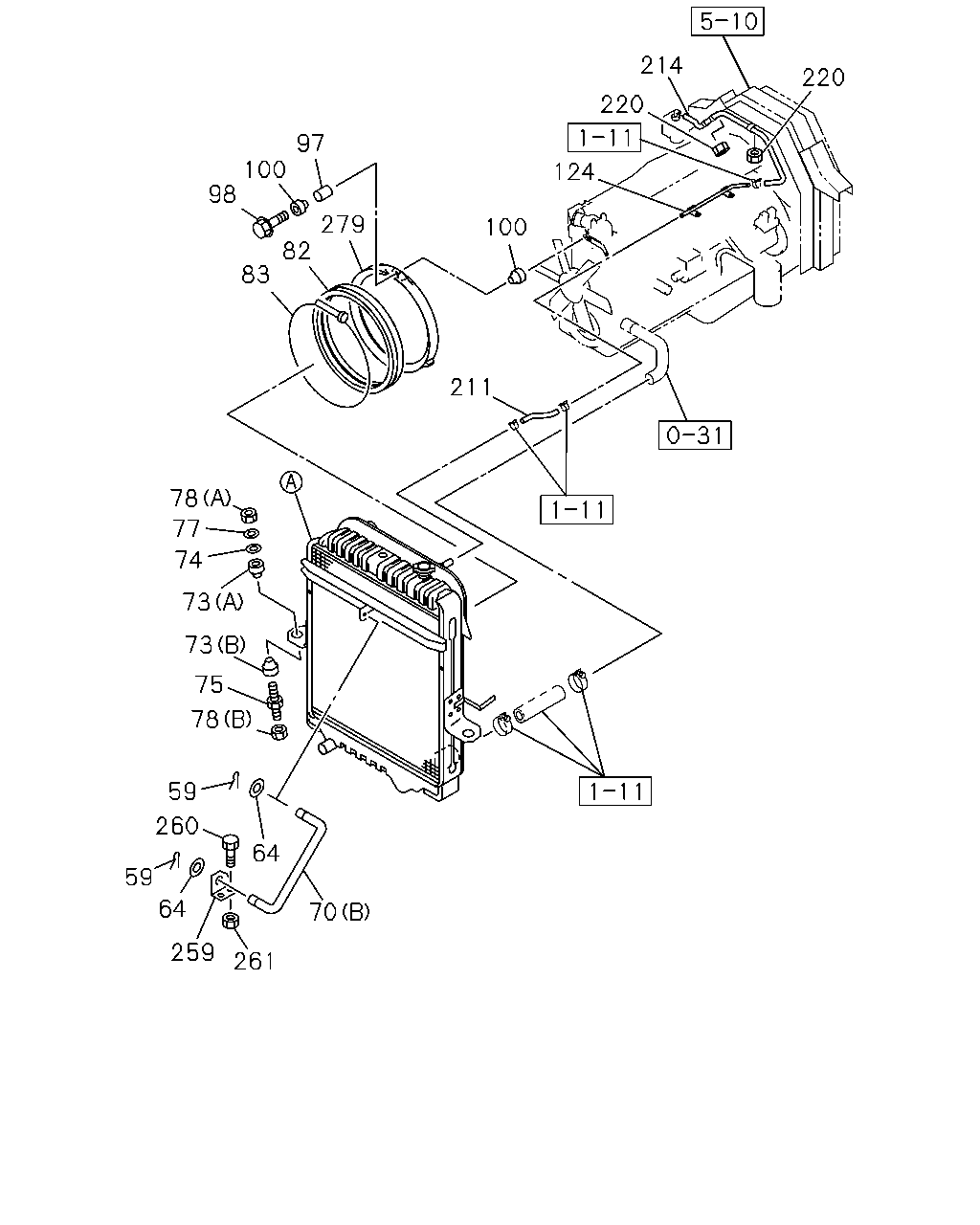

çizim 63937
214 220 220 97 100 98 124 279 82 100 83 211 78 77 74 73 73 75 78 59 260 64 59 64 70 259 261
BalonParca AdiParca NoAdetTipApplied Date A B
59 PIN; SNAP,STAY 1-09987-158-1 02 1 9510-0004 ●
59 PIN; SNAP,STAY 1-09987-158-1 02 1 0005- ● ●
64 WASHER; STAY TO RAD
ID=12.5 		9-09160-512-0 02 1 9510-0004 ●
64 WASHER; STAY TO RAD
ID=12.5 		9-09160-512-0 02 1 0005-0605 ● ●
64 WASHER; STAY TO RAD
ID=12.5 OD=22 		0-91610-512-0 02 1 0606- ● ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 9510- ● ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 9510-0004 ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 0005- ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 9510-0004 ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0005- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 9510-0004 ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0005- ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-1 02 1 9510-9604 ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 9605-9802 ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 9803-0004 ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 0005- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-2 02 1 9510-0004 ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0005- ● ●
77 WASHER; LK,CUSHION RUBBER
ID=12.2 		9-09150-512-0 02 1 9510-9702 ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 9510-0004 ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 0005- ● ●
78 NUT; CUSHION RUBBER
(B) M12 		9-99110-512-0 02 1 9510-9702 ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 9703-0004 ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 0005-0602 ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0603- ● ●
82 COVER; FAN,RAD 1-21559-340-0 01 1 9510-9802 ●
82 COVER; FAN,RAD 1-21559-340-0 01 1 9803-0212 ● ●
82 COVER; FAN,RAD 1-21559-211-0 01 1 0301- ● ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 9510-0004 ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 0005- ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 9604-9802 ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 9803-0004 ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0005- ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28080-830-0 03 1 9911-0001 ●
98 BOLT; RAD FAN GUIDE
M8X25 FLANGE 		0-28080-825-0 03 1 9510-9606 ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 9607-0004 ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 0005-0512 ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28650-830-0 03 1 0601- ● ●
100 RUBBER; MTG 1-09337-027-0 06 1 9510-9603 ●
100 RUBBER; MTG
OD=32 		8-94395-766-0 06 1 9604-9802 ● ●
100 RUBBER; MTG
OD=32 		8-94395-766-0 06 1 9803-0004 ●
100 RUBBER; MTG
OD=32 		8-94395-766-0 06 1 0005- ● ●
124 PIPE; WATER,TANK TO RAD 8-94396-222-1 01 1 9510-0210 ●
124 PIPE; WATER,TANK TO RAD 8-94394-461-4 01 1 0211- ●
211 HOSE; RAD TO PIPE
L=290 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-0109 ●
211 HOSE; RAD TO PIPE
L=290 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-0210 ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03557-300-0 01 1 0211- ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION RIGID<W71> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-9603 ●
214 HOSE; PIPE TO RESERVE TANK
L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9604-0109 ●
214 HOSE; PIPE TO RESERVE TANK
L=1300 SERVICED BY L=3000 		0-03557-300-0 01 1 0110-0210 ●
214 HOSE; PIPE TO RESERVE TANK
L=1350 SERVICED BY L=3000 		0-03557-300-0 01 1 0211- ●
214 HOSE; PIPE TO RESERVE TANK
CAB SUSPENSION SEMI FLOATING<SDK> L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 9510-9603 ●
220 NUT; CLIP
CAB SUSPENSION RIGID<W71> M8 		9-09110-408-0 02 1 9510-9603 ● ●
220 NUT; CLIP
CAB SUSPENSION SEMI FLOATING<SDK> M8 		9-09110-408-0 03 1 9510-9603 ● ●
220 NUT; CLIP
M8 		9-09110-408-0 02 1 9604-9606 ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9607-0602 ● ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
259 BRACKET; RAD STAY 1-21523-024-0 01 1 9510-0004 ●
259 BRACKET; RAD STAY 1-21523-024-0 01 1 0005- ● ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9510-9606 ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 9607-0004 ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0512 ● ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
261 NUT; BRKT
M8 		9-09110-408-0 02 1 9510-9606 ●
261 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-0004 ●
261 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ● ●
261 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
279 BELL MOUTH 8-94394-808-2 01 1 9510-9802 ●
279 BELL MOUTH 8-94394-808-2 01 1 9803-0212 ● ●
279 BELL MOUTH 8-94394-174-1 01 1 0301- ● ●

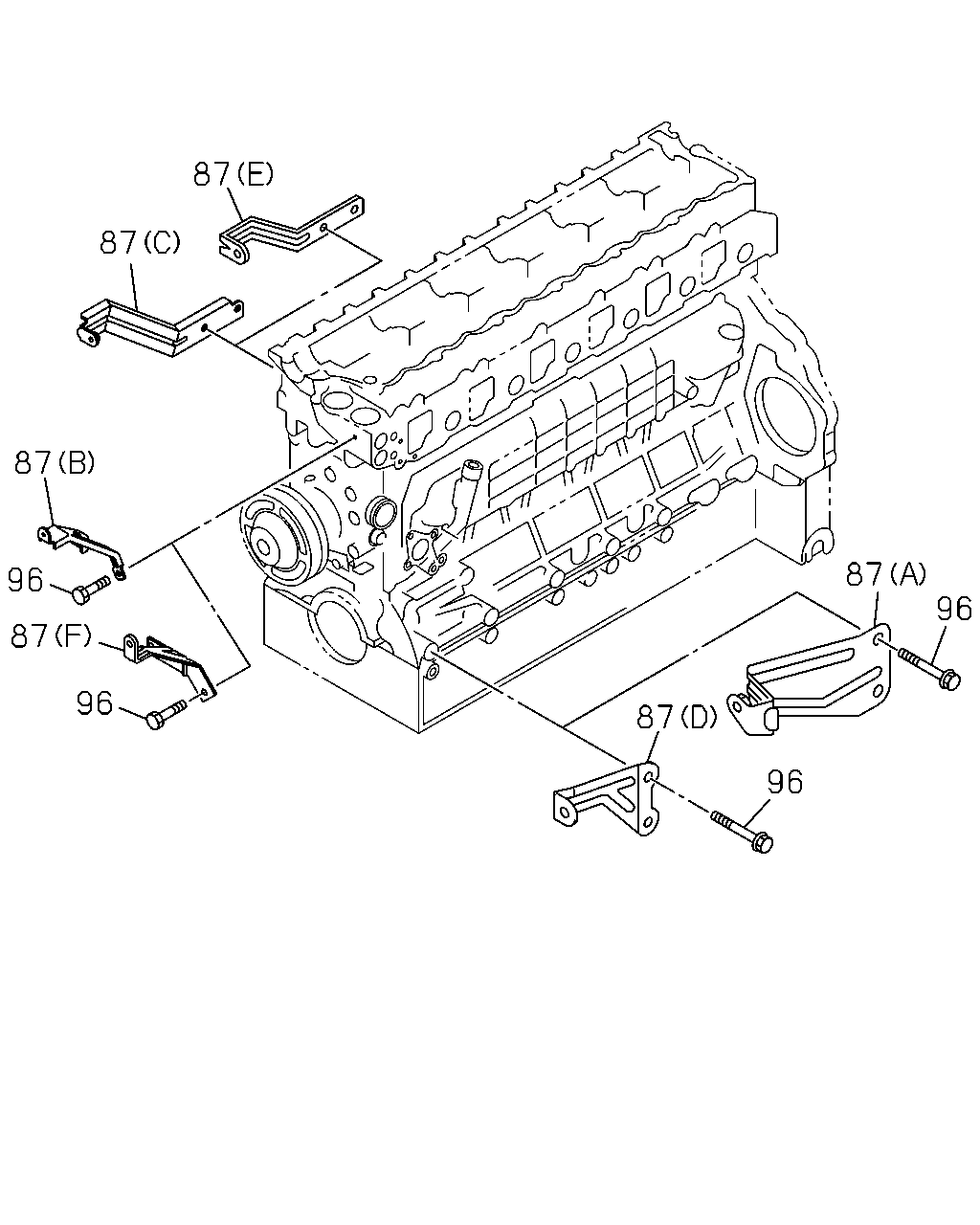

çizim 64817
87 87 87 87 96 96 87 96 87 96
BalonParca AdiParca NoAdetTipApplied Date A B
87 STAY; FAN GUIDE
(E) 		8-94394-775-0 01 1 9510-0210 ●
87 STAY; FAN GUIDE
HEATER & DEFROSTER(C41) (E) 		8-94394-775-0 01 1 0211- ●
87 STAY; FAN GUIDE
(F) 		8-94396-496-1 01 1 9510-0210 ●
87 STAY; FAN GUIDE
HEATER & DEFROSTER(C41) (F) 		8-94396-496-1 01 1 0211- ●
87 STAY; FAN GUIDE
(D) 		8-94397-395-1 01 1 9510-0210 ●
87 STAY; FAN GUIDE
HEATER & DEFROSTER(C41) (D) 		8-94397-395-1 01 1 0211- ●
87 STAY; FAN GUIDE
EXC. HEATER & DEFROSTER(C41) (C) 		8-94393-119-2 01 1 0211- ●
87 STAY; FAN GUIDE
EXC. HEATER & DEFROSTER(C41) (B) 		8-94393-726-0 01 1 0211- ●
87 STAY; FAN GUIDE
EXC. HEATER & DEFROSTER(C41) (A) 		8-97601-016-0 01 1 0211- ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28181-016-0 02 1 9510-0210 ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28181-016-0 02 1 0211-0512 ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28151-016-0 02 1 0601- ●

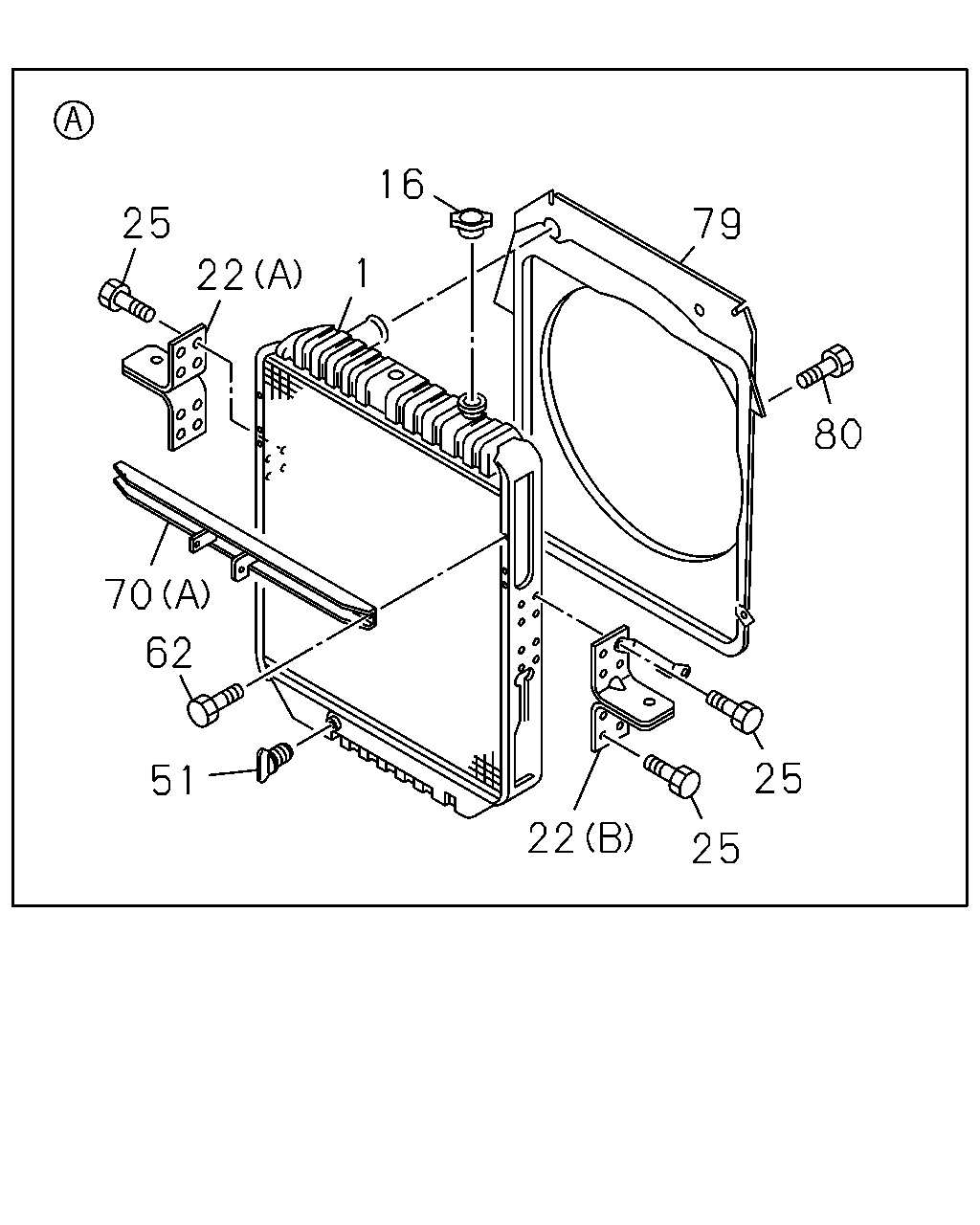

çizim 65006
16 25 79 1 22 80 70 62 25 51 22 25
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM 1-21410-674-1 01 1 9510-0010 ● ●
1 RADIATOR ASM
EXC. RADIATOR HEAVY DUTY<V05> 		1-21410-674-1 01 1 0011- ● ●
1 RADIATOR ASM
RADIATOR HEAVY DUTY<V05> 		1-21410-675-1 01 1 0011- ● ●
16 CAP; RAD 1-21450-053-2 01 1 9510-0305 ● ●
16 CAP; RAD
RADIATOR HEAVY DUTY<V05> 		1-21450-053-1 01 1 0306-0308 ● ●
16 CAP; RAD
EXC. RADIATOR HEAVY DUTY<V05>,CAUTIONS ARABIAN<WJ7> 		1-21450-053-1 01 1 0306-0308 ● ●
16 CAP; RAD
RADIATOR HEAVY DUTY<V05> 		1-21450-053-2 01 1 0309-0311 ● ●
16 CAP; RAD
CAUTIONS ARABIAN<WJ7> EXC. RADIATOR HEAVY DUTY<V05> 		1-21450-142-0 01 1 0306-0308 ● ●
16 CAP; RAD
EXC. RADIATOR HEAVY DUTY<V05> 		1-21450-142-0 01 1 0309-0311 ● ●
16 CAP; RAD 1-21450-142-0 01 1 0312- ● ●
22 BRACKET; RAD MTG
(A) 		1-21464-361-0 01 1 9510- ● ●
22 BRACKET; RAD MTG
(B) 		1-21464-362-2 01 1 9510-9704 ● ●
22 BRACKET; RAD MTG
(B) 		1-21464-544-0 01 1 9705-0004 ● ●
22 BRACKET; RAD MTG
(B) 		1-21464-548-0 01 1 0005-0010 ● ●
22 BRACKET; RAD MTG
EXC. RADIATOR HEAVY DUTY<V05> (B) 		1-21464-548-0 01 1 0011- ● ●
22 BRACKET; RAD MTG
RADIATOR HEAVY DUTY<V05> (B) 		1-21464-544-0 01 1 0011- ● ●
25 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 15 1 9510- ● ●
25 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 9510- ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9510- ● ●
62 BOLT; STAY
M8X12 FLANGE 		0-28080-812-0 02 1 9510- ● ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 9510- ● ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 9510-0004 ●
70 STAY; RAD
(B) 		1-21522-069-0 01 1 0005- ● ●
79 GUIDE; FAN,RAD 1-21551-374-4 01 1 9510- ● ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 9510- ● ●
