Isuzu WW
▶
TRUCKS
▶
FSR
▶
11339 - FSR(MIDDLE EAST)
▶
0 - Engine, Emission, Engine Electrical
▶
0-87 - COUPLING; INJECTION PUMP
▶

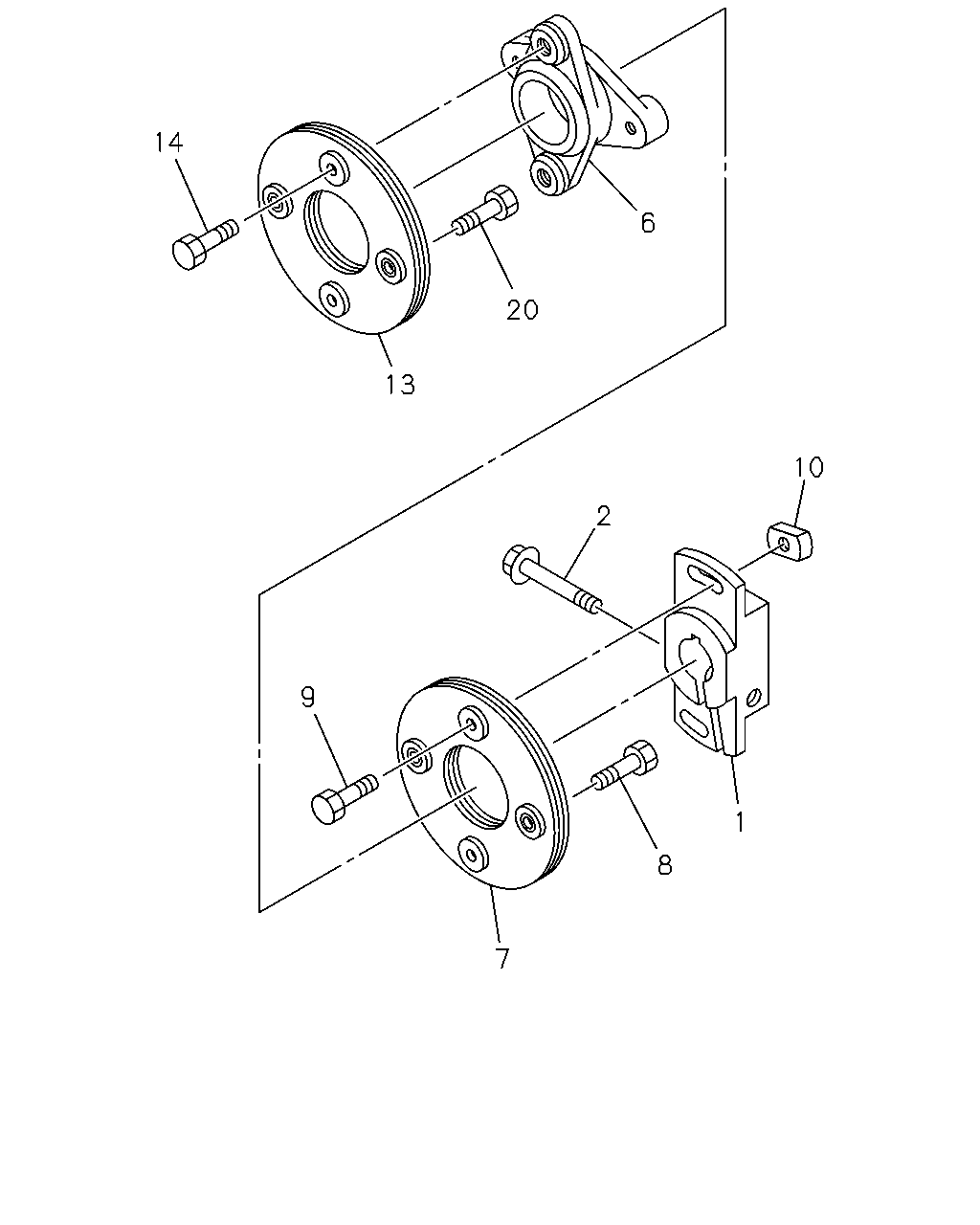

0-87 — COUPLING; INJECTION PUMP
(#19655) — 20 parça
Tümü
A - 6HH1 N ENG
B - 6HH1 STD ENG
14
6
20
13
10
2
9
1
8
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
COUPLING; INJ PUMP DRIVE
1-15782-014-0
01
1
9510-0210
●
1
COUPLING; INJ PUMP DRIVE
1-15782-019-0
01
1
0211-
●
2
BOLT; COUPLING FIX,INJ PUMP
1-15789-010-0
01
1
9510-0210
●
2
BOLT; COUPLING FIX,INJ PUMP
1-15789-170-0
01
1
0211-
●
6
COUPLING; CROSS,INJ PUMP DRIVE
1-15789-155-0
01
1
9510-0210
●
6
COUPLING; CROSS,INJ PUMP DRIVE
1-15789-184-0
01
1
0211-
●
7
PLATE; COUPLING,COUPLING SIDE
1-15789-194-0
01
1
9510-0210
●
7
PLATE; COUPLING,COUPLING SIDE
1-15789-199-0
01
1
0211-
●
8
BOLT; PLATE TO CROSS COUPLING
1-15749-501-0
02
1
9510-0210
●
8
BOLT; PLATE TO CROSS COUPLING
1-15789-183-0
02
1
0211-
●
9
BOLT; PLATE TO COUPLING,INJ PUMP
1-15789-122-0
02
1
9510-0210
●
9
BOLT; PLATE TO COUPLING,INJ PUMP
1-15789-182-0
02
1
0211-
●
10
NUT; PLATE TO COUPLING,INJ PUMP
1-15789-066-0
02
1
9510-0210
●
10
NUT; PLATE TO COUPLING,INJ PUMP
1-15789-167-0
02
1
0211-
●
13
PLATE; COUPLING,TIMER SIDE,INJ PUMP
1-15789-194-0
01
1
9510-0210
●
13
PLATE; COUPLING,TIMER SIDE,INJ PUMP
1-15789-199-0
01
1
0211-
●
14
BOLT; PLATE TO CROSS COUPLING,TIMER SI
1-15789-120-0
02
1
9510-0210
●
14
BOLT; PLATE TO CROSS COUPLING,TIMER SI
1-15789-183-0
02
1
0211-
●
20
BOLT; COUPLING TO INJ PUMP
1-15789-119-0
02
1
9510-0210
●
20
BOLT; COUPLING TO INJ PUMP
1-15789-183-0
02
1
0211-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
