Sayfa 0-60 - Isuzu EPC

0-60 — ENGINE ELECTRICAL CONTROL PARTS (#19646) — 95 parça

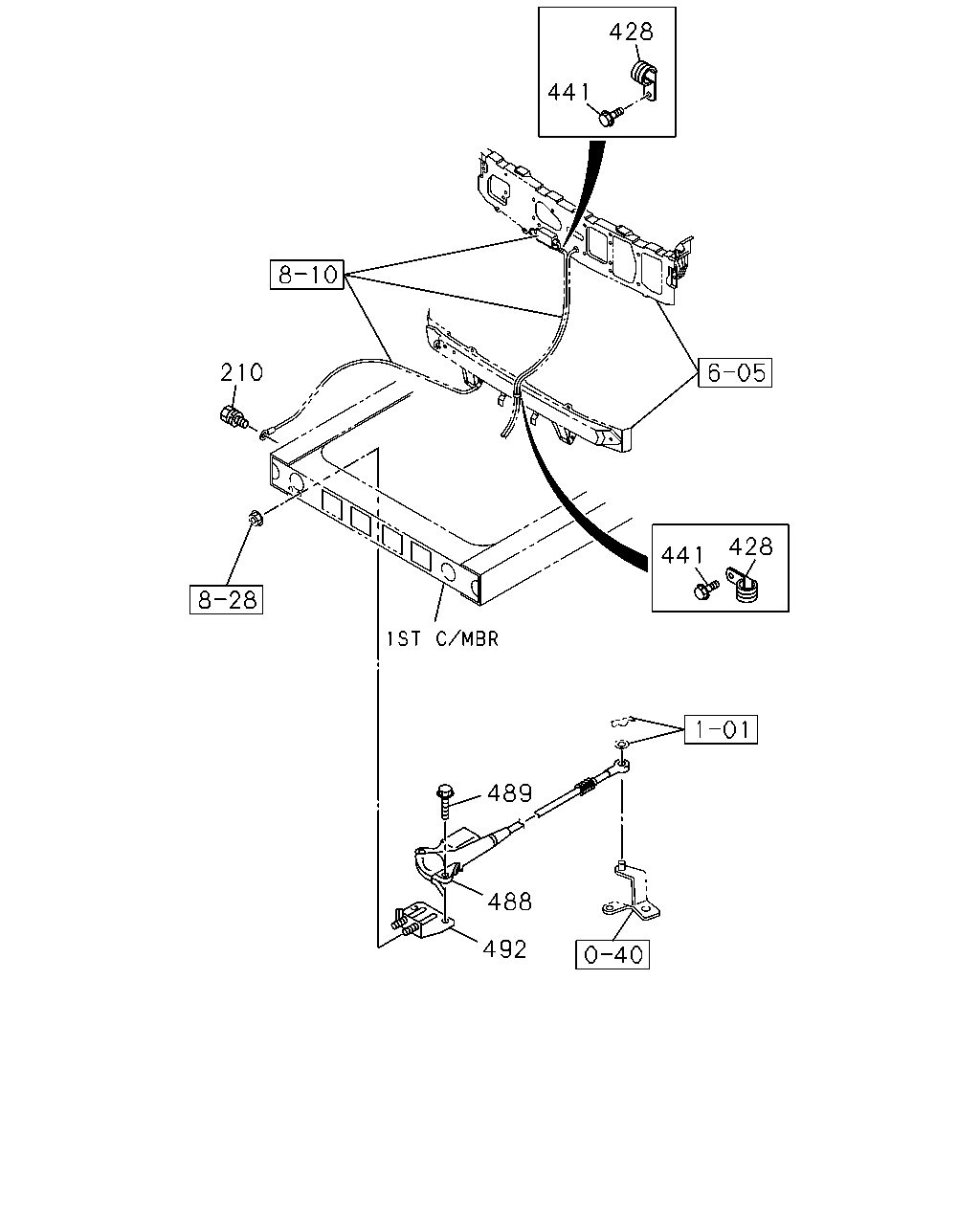

428 441 210 428 441 489 488 492

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
210	BOLT; CABLE FIX M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9510-9907	●
210	BOLT; CABLE FIX M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	9908-0004	●
210	BOLT; CABLE FIX M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0005-1201	●	●
210	BOLT; CABLE FIX M8X14 W/PL WASHER	8-98164-837-0	01	1	1202-	●	●
428	CLIP; HARNESS ID=35 L=50	1-09701-214-0	02	1	9510-0004	●
428	CLIP; HARNESS ID=35 L=50	1-09701-214-0	02	1	0005-	●	●
441	BOLT; HARNESS TO FRAME M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●
441	BOLT; HARNESS TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	9607-0004	●
441	BOLT; HARNESS TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	0005-0512	●	●
441	BOLT; HARNESS TO FRAME M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
488	STOPPER; ENG	1-82840-128-1	01	1	9510-9802	●
488	STOPPER; ENG	1-82840-128-3	01	1	9803-	●	●
489	BOLT; ENG STOPPER M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9510-0004	●
489	BOLT; ENG STOPPER M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	0005-0512	●	●
489	BOLT; ENG STOPPER M8X25 W/LK&PL WASHER	0-50640-825-0	02	1	0601-	●	●
492	BRACKET; ENG STOPPER	1-82849-067-0	01	1	9510-0004	●
492	BRACKET; ENG STOPPER	1-82849-067-0	01	1	0005-	●	●

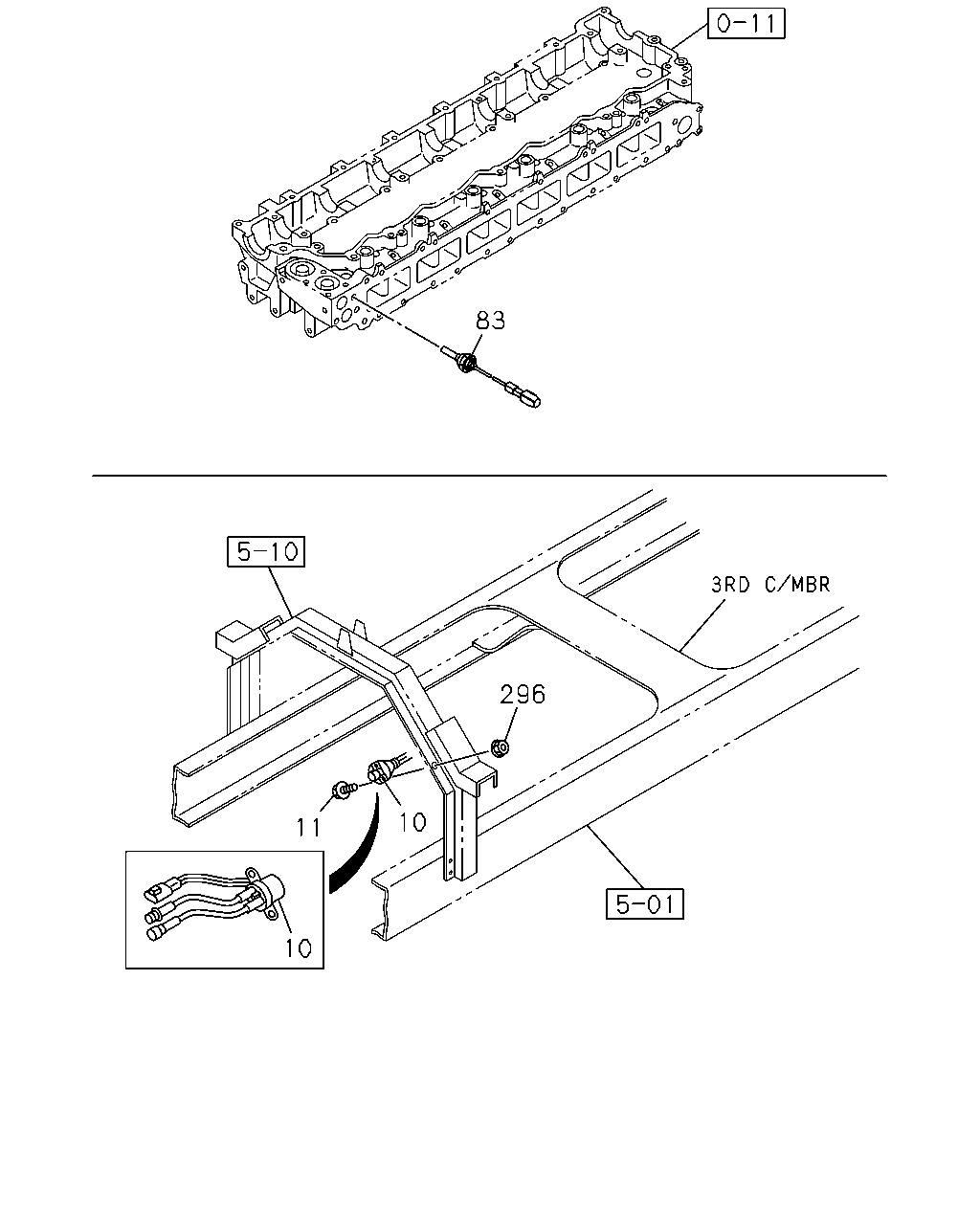

83 296 10 11 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	RELAY; STARTER NIKKO	1-81171-067-0	01	1	9510-9608	●	●
10	RELAY; STARTER NIKKO	1-81171-075-0	01	1	9609-0004	●	●
10	RELAY; STARTER HITACHI	1-81171-087-0	01	1	0005-0303	●	●
10	RELAY; STARTER NIKKO	1-81171-075-1	01	1	0304-	●	●
10	RELAY; STARTER HITACHI	1-81171-087-0	01	1	9904-9907	●	●
10	RELAY; STARTER EXC. NIKKO<Y70> HITACHI	1-81171-087-0	01	1	9908-0004	●	●
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●
11	BOLT; RELAY STARTER M8X25 FLANGE	0-28680-825-0	02	1	9607-9801	●
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28680-820-0	02	1	9802-0004	●
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28680-820-0	02	1	0005-0512	●	●
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
83	THERMOMETER UNIT	1-83161-031-1	01	1	9510-0210	●
83	THERMOMETER UNIT	1-83161-031-1	01	1	0211-		●
296	NUT; RELAY,STARTER M8	9-09110-408-0	02	1	9510-9606	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91150-108-0	02	1	9607-0004	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91150-108-0	02	1	0005-0602	●	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91180-108-0	02	1	0603-	●	●

430 38 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	RESISTOR; CONT,GLOW PLUG	1-81402-008-0	01	1	9510-0004	●
38	RESISTOR; CONT,GLOW PLUG	1-81402-008-0	01	1	0005-	●	●
46	RELAY; GLOW PLUG	8-94258-014-0	01	1	9510-0004	●
46	RELAY; GLOW PLUG	8-94258-014-0	01	1	0005-	●	●
430	NUT; RELAY FIX M6 FLANGE	0-91150-106-0	02	1	9510-9601	●	●
430	NUT; RELAY FIX M6 FLANGE	0-91150-106-0	01	1	9602-0602	●	●
430	NUT; RELAY FIX M6 FLANGE	0-91180-106-0	01	1	0603-	●	●

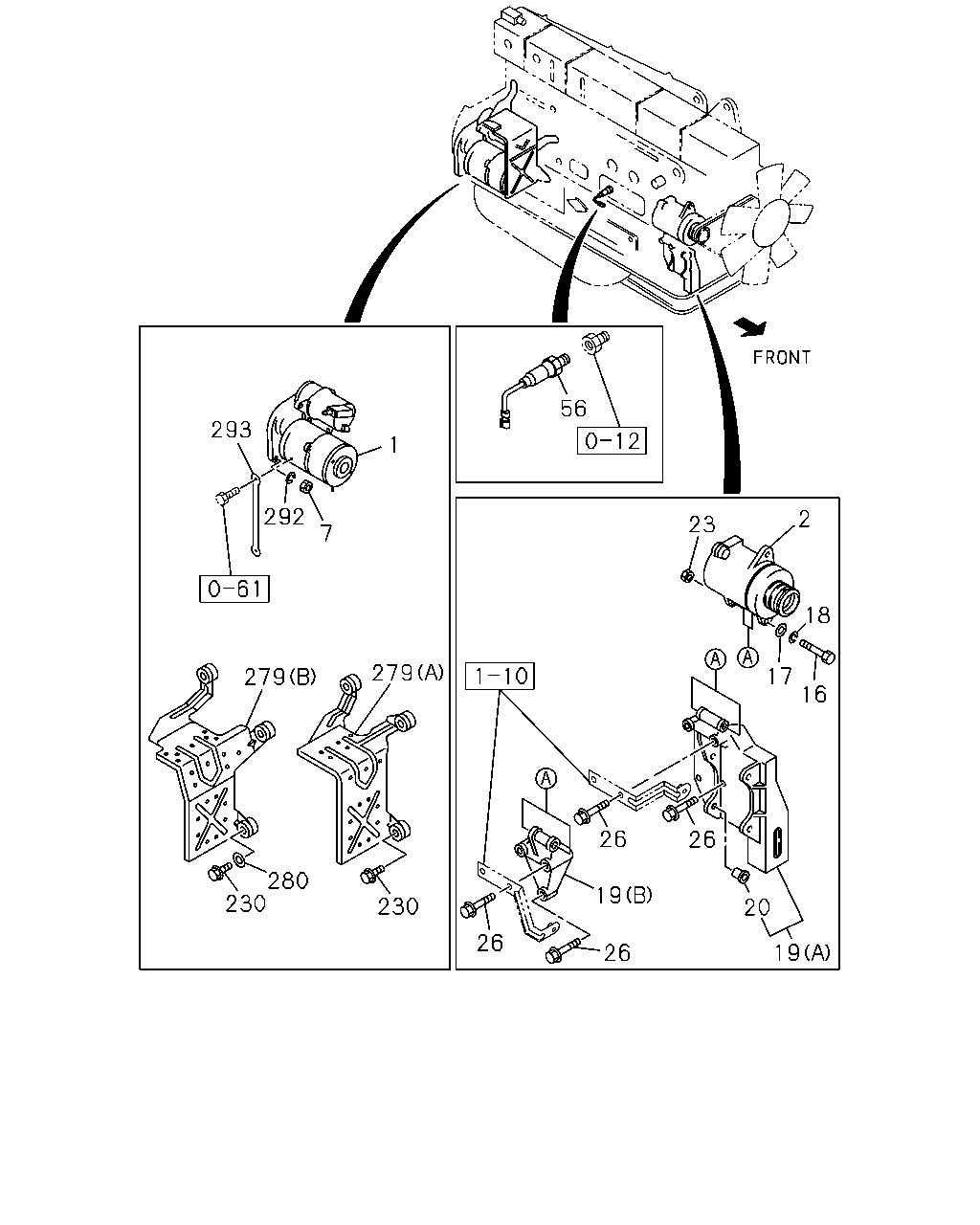

56 293 1 292 2 23 7 18 279 17 279 16 26 26 280 230 19 230 20 26 19 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO	1-81100-307-0	01	1	9510-9708	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO	1-81100-323-0	01	1	9709-0210	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO	1-81100-323-1	01	1	0211-		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO	8-94399-159-4	01	1	9905-9907	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO	1-81200-416-4	01	1	9510-0210	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO	1-81200-416-5	01	1	0211-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI	1-81200-521-0	01	1	9904-9905	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI	1-81200-577-0	01	1	9906-9907	●
7	NUT; STARTER M14	9-99110-414-0	02	1	9510-0210	●
7	NUT; STARTER M14	9-99110-414-0	02	1	0211-0512		●
7	NUT; STARTER M14	0-91110-514-0	02	1	0601-		●
16	BOLT; GEN M14X135	1-09000-133-1	01	1	9510-0210	●
16	BOLT; GEN M14X135	1-09000-133-1	01	1	0211-		●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	9510-0210	●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	0211-0605		●
17	WASHER; PL,GEN ID=15	0-91610-514-0	01	1	0606-		●
18	WASHER; LK,GEN ID=14.2	9-09150-514-0	01	1	9510-0210	●
18	WASHER; LK,GEN ID=14.2	9-09150-514-0	01	1	0211-0603		●
18	WASHER; LK,GEN ID=14.2	0-91510-514-0	01	1	0604-		●
19	BRACKET; GEN (B)	8-94396-297-0	01	1	9510-0010	●
19	BRACKET; GEN EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94396-297-0	01	1	0011-0112	●
19	BRACKET; GEN EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97602-318-0	01	1	0201-0210	●
19	BRACKET; GEN EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97602-318-0	01	1	0211-		●
19	BRACKET; GEN AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94395-470-2	01	1	0011-0210	●
19	BRACKET; GEN AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94395-470-5	01	1	0211-		●
20	COLLAR; BRKT,GEN AIR CONDITIONER MANUAL CONTROL(C60)	8-94201-057-1	02	1	0011-0210	●
20	COLLAR; BRKT,GEN AIR CONDITIONER MANUAL CONTROL(C60)	8-94201-057-1	02	1	0211-1302		●
23	NUT; GEN M14	9-99110-414-0	01	1	9510-0210	●
23	NUT; GEN M14	9-99110-414-0	01	1	0211-0512		●
23	NUT; GEN M14	0-91110-514-0	01	1	0601-		●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28181-040-0	01	1	9510-0010	●
26	BOLT; GEN BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE	0-28181-040-0	01	1	0011-0210	●
26	BOLT; GEN BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE	0-28181-040-0	01	1	0211-0512		●
26	BOLT; GEN BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE	0-28151-040-0	01	1	0601-		●
26	BOLT; GEN BRKT M10X80 FLANGE	0-28181-080-0	02	1	9510-0210	●
26	BOLT; GEN BRKT M10X80 FLANGE	0-28181-080-0	02	1	0211-0512		●
26	BOLT; GEN BRKT M10X80 FLANGE	0-28151-080-0	02	1	0601-		●
26	BOLT; GEN BRKT AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE	0-28181-040-0	02	1	0011-0210	●
26	BOLT; GEN BRKT AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE	0-28181-040-0	02	1	0211-0512		●
26	BOLT; GEN BRKT AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE	0-28151-040-0	02	1	0601-		●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-0	01	1	9510-0210	●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-1	01	1	0211-		●
230	BOLT; HEAT PROTECTOR M8X28 FLANGE	0-28080-828-0	01	1	9510-0210	●
230	BOLT; HEAT PROTECTOR M8X14	0-20800-814-0	03	1	0211-		●
230	BOLT; HEAT PROTECTOR M10X30 FLANGE	0-28181-030-0	01	1	9510-0210	●
279	PROTECTOR; STARTER (A)	8-94394-952-1	01	1	9510-0210	●
279	PROTECTOR; STARTER (B)	8-94394-435-2	01	1	0211-		●
280	WASHER; PL,HEAT PROTECTOR ID=8.4 OD=18	9-09160-608-0	03	1	0211-0605		●
280	WASHER; PL,HEAT PROTECTOR ID=8.4 OD=18	0-91610-608-0	03	1	0606-		●
292	WASHER; LK,STARTER ID=14.2	9-09150-514-0	02	1	9510-0210	●
292	WASHER; LK,STARTER ID=14.2	9-09150-514-0	02	1	0211-0603		●
292	WASHER; LK,STARTER ID=14.2	0-91510-514-0	02	1	0604-		●
293	CABLE; STARTER EARTH L=360	1-82650-230-1	01	1	9510-0210	●
293	CABLE; STARTER EARTH L=360	1-82650-230-1	01	1	0211-		●
