0-52 — OIL AND VACUUM PIPING; ENGINE (#19645) — 26 parça

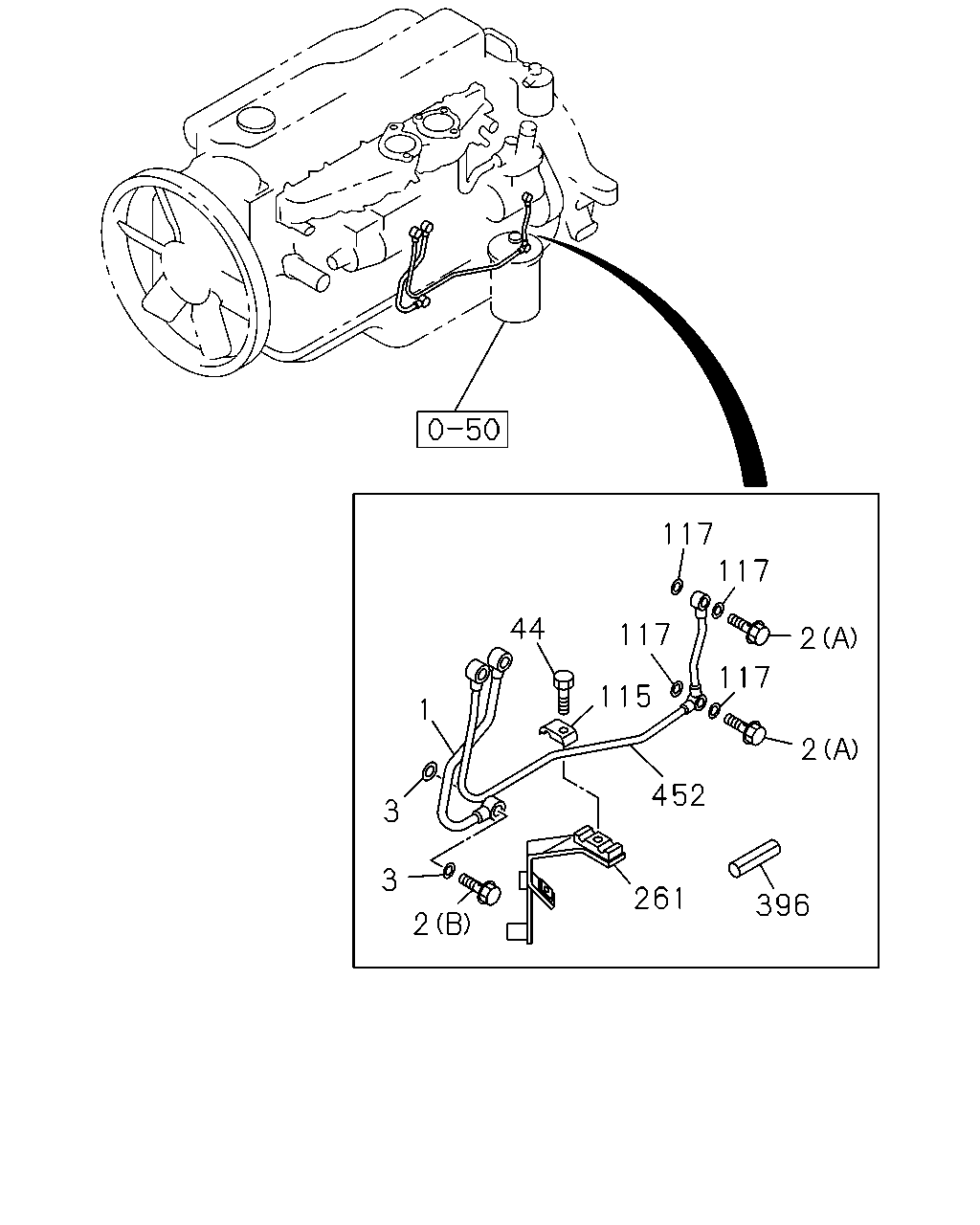

çizim 64080
117 117 44 117 2 117 115 1 2 452 3 3 261 396 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 9510-0210 ●
1 PIPE; OIL,INJ PUMP TO C/BL 8-94394-276-0 01 1 0211- ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 9510-0210 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		1-09675-077-0 02 1 0211-0805 ●
2 BOLT; EYE,OIL PIPE
(A) M10X21 FLANGE 		8-97372-238-0 02 1 0806- ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 9510-0210 ●
2 BOLT; EYE,OIL PIPE
(B) M12X27 FLANGE 		1-09675-085-0 01 1 0211- ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 02 1 9510-0210 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 02 1 0211-1312 ●
3 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		8-98251-344-0 02 1 1401- ●
44 BOLT; CLIP,OIL PIPE
M6X22 FLANGE 		0-28080-622-0 01 1 9510-0210 ●
44 BOLT; CLIP,OIL PIPE
M6X22 FLANGE 		0-28080-622-0 01 1 0211- ●
115 CLIP; PIPE,INJ PUMP 1-09701-091-0 01 1 9510-0210 ●
115 CLIP; PIPE,INJ PUMP 1-09701-091-0 01 1 0211- ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 9510-0210 ●
117 GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 04 1 0211- ●
261 BRACKET; CLIP,OIL PIPE 8-94394-410-3 01 1 9510-0210 ●
261 BRACKET; CLIP,OIL PIPE 8-94394-410-3 01 1 0211- ●
396 SLEEVE; RUBBER,OIL PIPE
ID=10 OD=14 L=30 		9-09956-682-0 01 1 0002-0210 ●
396 SLEEVE; RUBBER,OIL PIPE
ID=10 OD=14 L=30 		9-09956-682-0 01 1 0211- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-94390-073-0 01 1 9510-9510 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-94390-073-0 01 1 9511-9906 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> 		8-97600-569-0 01 1 9907-0210 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR 8-97600-569-0 01 1 0211- ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-94395-595-1 01 1 9511-9906 ●
452 PIPE; OIL,OIL FILTER TO AIR CMPR
PARTIAL OIL FILTER ELEMENT TYPE<KC1> 		8-97600-573-0 01 1 9907-0210 ●
