0-40 — FUEL INJECTION SYSTEM (#19640) — 106 parça

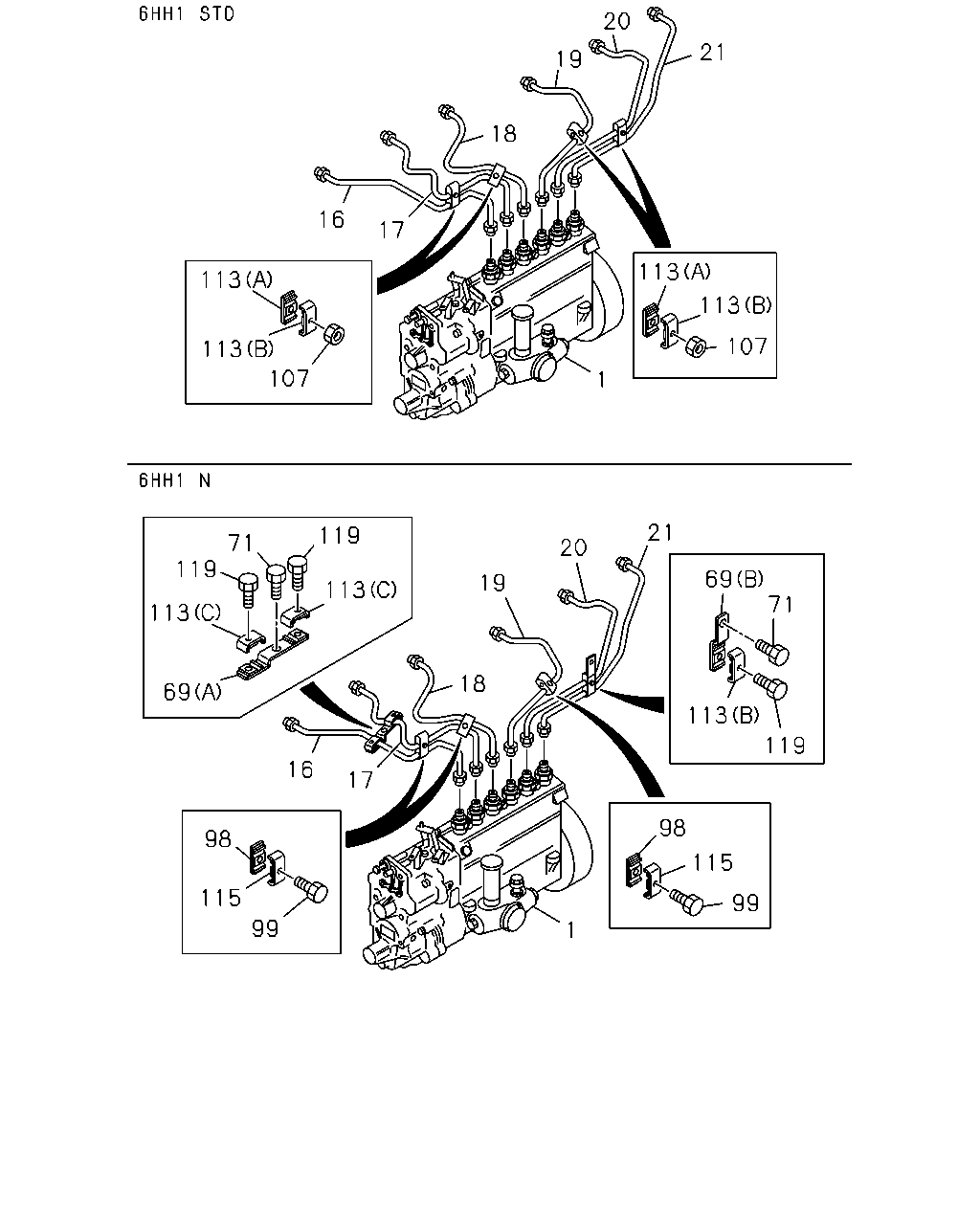

çizim 15765
20 21 19 18 16 17 113 113 113 107 113 107 1 21 119 71 20 119 69 71 19 113 113 18 69 113 119 16 17 98 98 115 115 99 99 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		8-94395-812-1 01 1 9510-0210 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94390-081-1 01 1 0211- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		8-94395-902-2 01 1 9510-0210 ●
16 PIPE; INJ NO.1 8-94396-007-2 01 1 9510-0210 ●
16 PIPE; INJ NO.1 8-94394-546-0 01 1 0211- ●
17 PIPE; INJ NO.2 8-94396-008-3 01 1 9510-0210 ●
17 PIPE; INJ NO.2 8-94394-547-0 01 1 0211- ●
18 PIPE; INJ NO.3 8-94396-009-3 01 1 9510-0210 ●
18 PIPE; INJ NO.3 8-94394-548-0 01 1 0211- ●
19 PIPE; INJ NO.4 8-94396-010-4 01 1 9510-0210 ●
19 PIPE; INJ NO.4 8-94394-549-0 01 1 0211- ●
20 PIPE; INJ NO.5 8-94396-011-2 01 1 9510-0210 ●
20 PIPE; INJ NO.5 8-94394-550-0 01 1 0211- ●
21 PIPE; INJ NO.6 8-94396-494-3 01 1 9510-0210 ●
21 PIPE; INJ NO.6 8-94394-551-0 01 1 0211- ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-94396-086-0 01 1 9510-0210 ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-94396-087-0 01 1 9510-0210 ●
71 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 02 1 9510-0210 ●
98 CLIP; "A",INJ PIPE 8-94397-445-0 03 1 9510-0210 ●
99 BOLT; CLIP,INJ,PIPE 8-94365-129-0 03 1 9510-0210 ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91150-106-0 04 1 0211-0602 ●
107 NUT; INJ PIPE CLIP
M6 FLANGE 		0-91180-106-0 04 1 0603- ●
113 CLIP; INJ PIPE
(C) 		1-09701-091-0 02 1 9510-0210 ●
113 CLIP; INJ PIPE
(A) 		8-94396-793-0 04 1 0211- ●
113 CLIP; INJ PIPE
(B) 		8-94397-444-0 01 1 9510-0210 ●
113 CLIP; INJ PIPE
(B) 		8-94397-444-0 04 1 0211- ●
115 CLIP; "B",INJ PIPE 8-94397-444-0 03 1 9510-0210 ●
119 BOLT; CLIP,INJ PIPE
M6X22 FLANGE 		0-28080-622-0 03 1 9510-0210 ●
çizim 16360
37 38 31 39 32 44 45 33 35
BalonParca AdiParca NoAdetTipApplied Date A B
31 NOZZLE ASM; INJ 8-94395-511-2 06 1 9510-0210 ●
31 NOZZLE ASM; INJ 8-94395-498-2 06 1 0211- ●
32 HOLDER ASM; NOZZLE 8-94390-384-0 06 1 9510-0210 ●
32 HOLDER ASM; NOZZLE 8-94390-384-0 06 1 0211- ●
33 NOZZLE; INJ 8-94390-383-0 06 1 9510-0210 ●
33 NOZZLE; INJ 8-94390-382-0 06 1 0211- ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 1-15349-135-0 06 1 9510-0210 ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 1-15349-135-0 06 1 0211- ●
37 NUT; CAP,NOZZLE HOLDER 1-15349-136-0 06 1 9510-0210 ●
37 NUT; CAP,NOZZLE HOLDER 1-15349-136-0 06 1 0211- ●
38 GASKET; CAP NUT,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENGINE). 		5-15339-060-0 06 1 9510-0210 ●
38 GASKET; CAP NUT,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENGINE). 		5-15339-060-0 06 1 0211- ●
39 SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER 8-94169-503-0 06 1 9510-0210 ●
39 SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER 8-94169-503-0 06 1 0211- ●
44 SPRING; NOZZLE,NOZZLE HOLDER 5-15343-005-0 06 1 9510-0210 ●
44 SPRING; NOZZLE,NOZZLE HOLDER 5-15343-005-0 06 1 0211- ●
45 ROD; PUSH,NOZZLE HOLDER 8-94169-502-0 06 1 9510-0210 ●
45 ROD; PUSH,NOZZLE HOLDER 8-94169-502-0 06 1 0211- ●

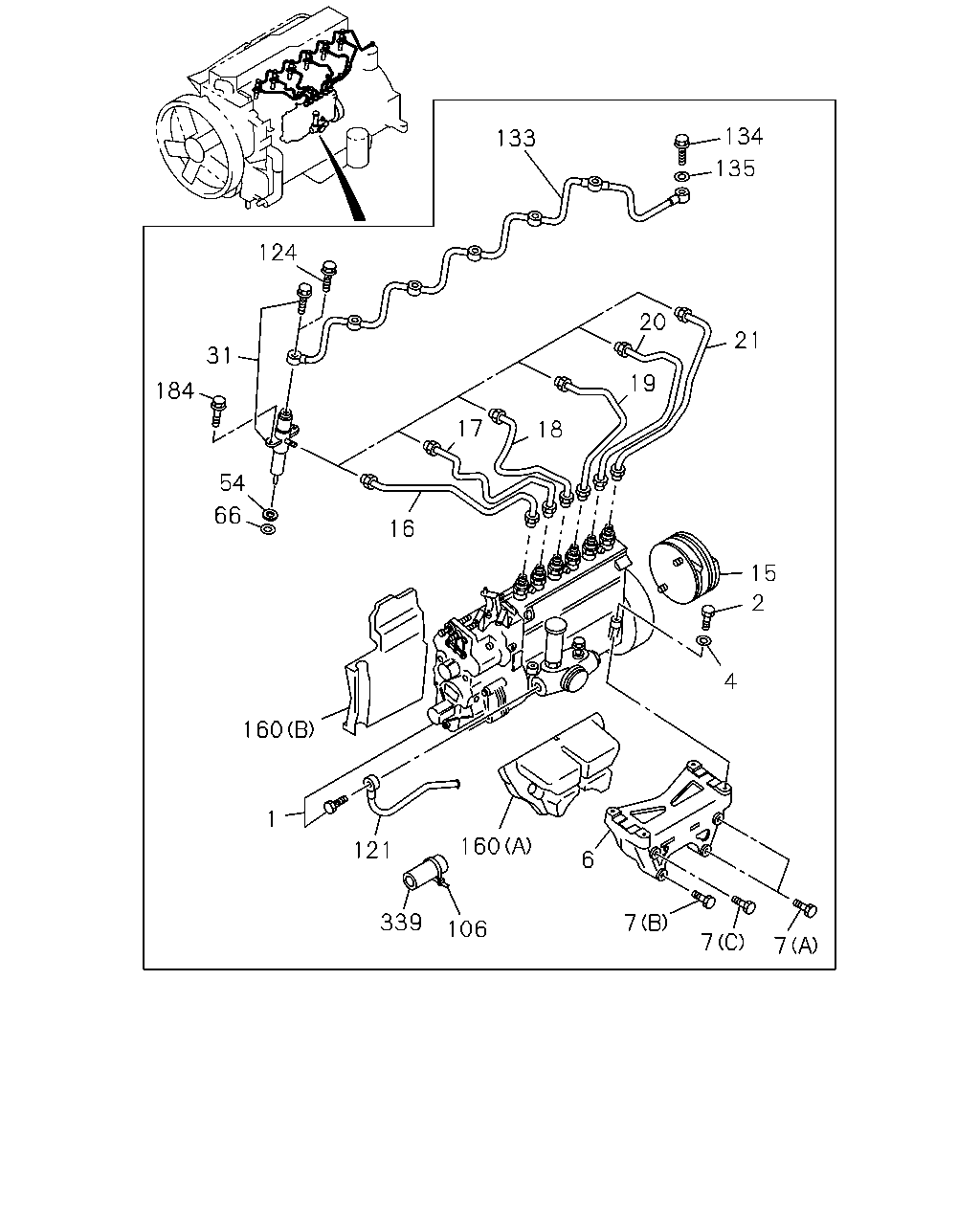

çizim 64215
134 133 135 124 20 21 31 19 184 17 18 54 66 16 15 2 4 160 1 160 121 6 339 7 106 7 7
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		8-94395-812-1 01 1 9510-0210 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-94390-081-1 01 1 0211- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) 		8-94395-902-2 01 1 9510-0210 ●
2 BOLT; INJ PUMP
M8X75 		0-10810-875-0 04 1 9510-0210 ●
2 BOLT; INJ PUMP
M8X75 		0-10810-875-0 04 1 0211- ●
4 WASHER; INJ PUMP
OR ID=8.5 MITSUBISHI 		9-09851-934-0 04 1 9510-0210 ●
4 WASHER; INJ PUMP
OR ID=8.5 MITSUBISHI 		9-09851-934-0 04 1 0211- ●
4 WASHER; INJ PUMP
ID=8.5 KAWASAKI 		9-09851-983-0 04 1 9510-0210 ●
4 WASHER; INJ PUMP
ID=8.5 KAWASAKI 		9-09851-983-0 04 1 0211- ●
6 BRACKET; INJ PUMP TO C/BL 8-94393-689-2 01 1 9510-0210 ●
6 BRACKET; INJ PUMP TO C/BL 8-94393-689-2 01 1 0211- ●
7 BOLT; INJ PUMP BRKT
(A) M10X80 FLANGE 		0-28181-080-0 02 1 9510-0210 ●
7 BOLT; INJ PUMP BRKT
(A) M10X80 FLANGE 		0-28181-080-0 02 1 0211-0512 ●
7 BOLT; INJ PUMP BRKT
(A) M10X80 FLANGE 		0-28151-080-0 02 1 0601- ●
7 BOLT; INJ PUMP BRKT
(B) M10X75 FLANGE 		8-94399-669-1 01 1 9510-0210 ●
7 BOLT; INJ PUMP BRKT
(B) M10X75 FLANGE 		8-94399-669-1 01 1 0211- ●
7 BOLT; INJ PUMP BRKT
(C) M10X55 FLANGE 		8-94399-863-1 01 1 9510-0210 ●
7 BOLT; INJ PUMP BRKT
(C) M10X55 FLANGE 		8-94399-863-1 01 1 0211-0805 ●
7 BOLT; INJ PUMP BRKT
(C) M10X55 FLANGE 		8-97365-449-0 01 1 0806- ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94395-308-0 01 1 9510-0210 ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94393-962-2 01 1 0211- ●
16 PIPE; INJ NO.1 8-94396-007-2 01 1 9510-0210 ●
16 PIPE; INJ NO.1 8-94394-546-0 01 1 0211- ●
17 PIPE; INJ NO.2 8-94396-008-3 01 1 9510-0210 ●
17 PIPE; INJ NO.2 8-94394-547-0 01 1 0211- ●
18 PIPE; INJ NO.3 8-94396-009-3 01 1 9510-0210 ●
18 PIPE; INJ NO.3 8-94394-548-0 01 1 0211- ●
19 PIPE; INJ NO.4 8-94396-010-4 01 1 9510-0210 ●
19 PIPE; INJ NO.4 8-94394-549-0 01 1 0211- ●
20 PIPE; INJ NO.5 8-94396-011-2 01 1 9510-0210 ●
20 PIPE; INJ NO.5 8-94394-550-0 01 1 0211- ●
21 PIPE; INJ NO.6 8-94396-494-3 01 1 9510-0210 ●
21 PIPE; INJ NO.6 8-94394-551-0 01 1 0211- ●
31 NOZZLE ASM; INJ 8-94395-511-2 06 1 9510-0210 ●
31 NOZZLE ASM; INJ 8-94395-498-2 06 1 0211- ●
54 COVER; DUST,NOZZLE HOLDER 9-15339-051-0 06 1 9510-0210 ●
54 COVER; DUST,NOZZLE HOLDER 9-15339-051-0 06 1 0211- ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		1-15315-013-1 06 1 9510-0006 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-97601-447-2 06 1 0007-0210 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-97601-447-2 06 1 0211-0909 ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-98079-248-0 06 1 0910- ●
106 CLIP; INJ PIPE
L=140 		5-09707-031-1 01 1 0002-0106 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94394-408-0 01 1 9510-0210 ●
121 PIPE; FUEL,FEED PUMP,SUCTION 8-94394-408-0 01 1 0211- ●
124 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 06 1 0005-0210 ●
124 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 06 1 0211- ●
133 PIPE; INJ NOZZLE LEAK OFF 8-94395-805-0 01 1 9510-0210 ●
133 PIPE; INJ NOZZLE LEAK OFF 8-94395-805-0 01 1 0211- ●
134 BOLT; JOINT,LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 01 1 9510-0210 ●
134 BOLT; JOINT,LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 01 1 0211- ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 02 1 9510-0004 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 14 1 0005-0210 ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 14 1 0211- ●
160 SPACER; INJ PUMP
(B) 		8-94390-169-0 01 1 0211- ●
160 SPACER; INJ PUMP
(A) 		8-94395-673-1 01 1 0211- ●
184 BOLT; NOZZLE HOLDER
M8X40 FLANGE 		0-28080-840-0 12 1 9510-0210 ●
184 BOLT; NOZZLE HOLDER
M8X40 FLANGE 		0-28080-840-0 12 1 0211-0512 ●
184 BOLT; NOZZLE HOLDER
M8X40 FLANGE 		0-28050-840-0 12 1 0601- ●
339 RUBBER; COVER
ID=6 OD=10 L=70 		1-09376-512-0 01 1 0002-0210 ●
339 RUBBER; COVER
ID=6 OD=10 L=70 		1-09376-512-0 01 1 0211- ●
