◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10635 - FSS/FTS-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#1964) — 24 parça

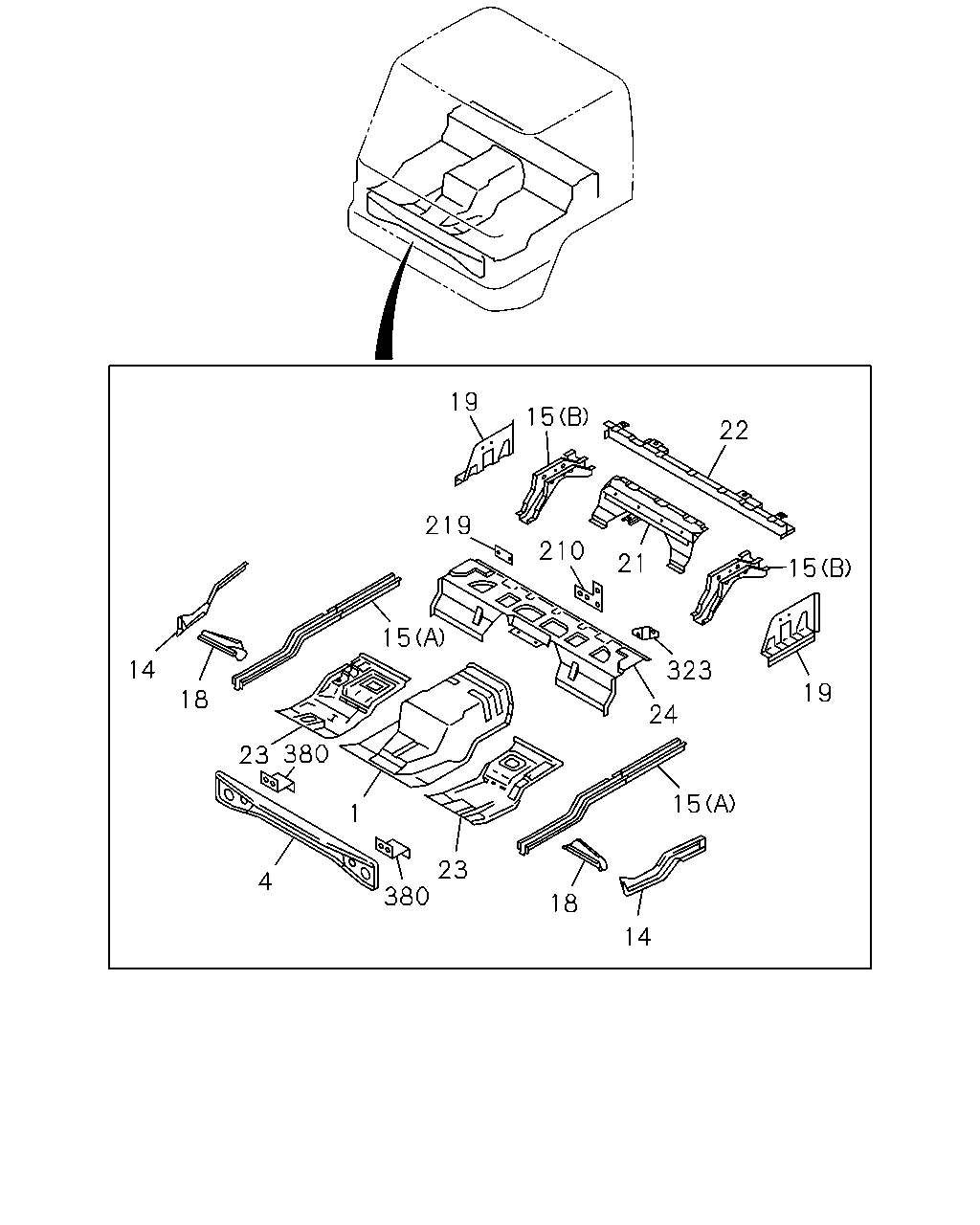

çizim 94972
19 15 22 219 210 21 15 15 14 323 19 18 24 380 23 15 1 23 380 4 18 14
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PANEL; FLOOR 1-62182-735-2 01 1 9207- ● ● ● ●
4 FRAME; FLOOR,FRT 1-62482-936-0 01 1 9207- ● ● ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-657-1 01 1 9207- ● ● ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-656-1 01 1 9207- ● ● ● ●
15 FRAME; UNDER
(B) 		1-62482-207-3 01 1 9207- ● ● ● ●
15 FRAME; UNDER
(B) 		1-62482-208-3 01 1 9207- ● ● ● ●
15 FRAME; UNDER
(A) 		1-62482-099-8 01 1 9207- ● ● ● ●
15 FRAME; UNDER
(A) 		1-62482-326-6 01 1 9207- ● ● ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-078-4 01 1 9207- ● ● ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-077-4 01 1 9207- ● ● ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-661-0 01 1 9207- ● ● ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-660-0 01 1 9207- ● ● ● ●
21 FRAME; FLOOR CENTER 1-62482-780-1 01 1 9207- ● ● ● ●
22 FRAME; FLOOR REAR 1-62482-066-5 01 1 9207- ● ● ● ●
23 PANEL; FLOOR,SIDE 1-62182-064-9 01 1 9207- ● ● ● ●
23 PANEL; FLOOR,SIDE
DUMP CONTROL LEVER<RC4> 		1-62182-065-9 01 1 9207- ● ●
23 PANEL; FLOOR,SIDE
EXC. DUMP CONTROL LEVER<RC4> 		1-62182-305-8 01 1 9207- ● ●
23 PANEL; FLOOR,SIDE 1-62182-305-8 01 1 9207- ● ●
24 PANEL; BED PAN 1-62182-685-4 01 1 9207- ● ● ● ●
210 PANEL; HAND BRAKE LEVER BRKT 1-62182-415-0 01 1 9207- ● ● ● ●
219 PATCH; AIR DUCT LWR 1-62182-197-0 01 1 9207- ● ● ● ●
323 PATCH; HAND LEVER 1-62182-085-0 01 1 9207- ● ● ● ●
380 BRACKET; HEAD LAMP 1-62482-788-0 01 1 9207- ● ● ● ●
380 BRACKET; HEAD LAMP 1-62482-789-0 01 1 9207- ● ● ● ●
