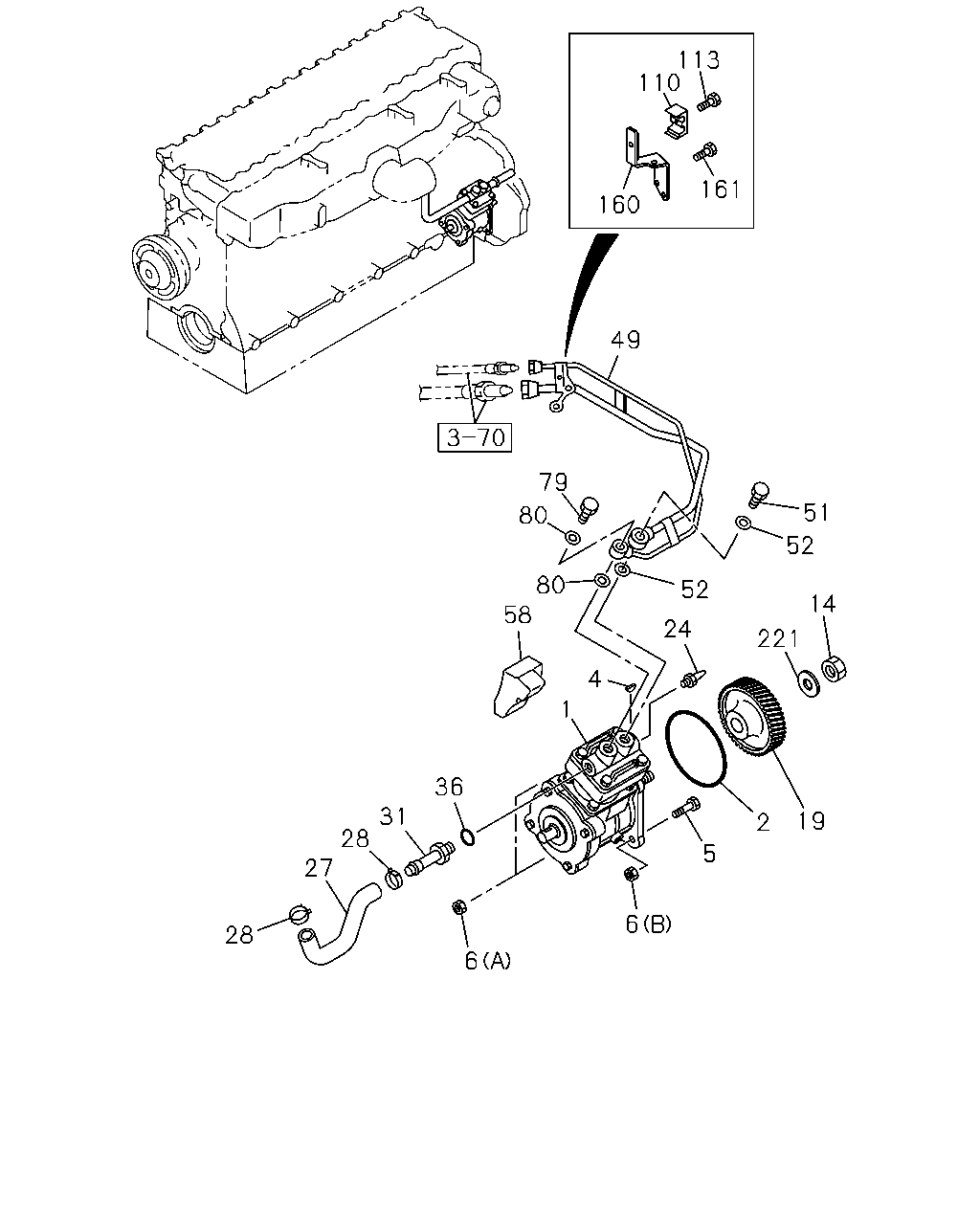

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#19638) — 73 parça

113 110 161 160 49 79 51 80 52 80 58 52 14 24 221 4 1 36 31 28 27 19 2 5 6 28 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-892-8	01	1	9510-0210	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-4	01	1	9510-0210	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-891-4	01	1	0211-1107		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-309-1	01	1	1108-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9510-0210	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0211-		●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9510-0210	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	0211-		●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	9510-0210	●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	0211-		●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	9510-0210	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0211-0602		●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91180-110-0	02	1	0603-		●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	9510-0210	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0211-0602		●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91180-112-0	01	1	0603-		●
14	NUT; GEAR M20	9-99110-520-0	01	1	9510-0210	●
14	NUT; GEAR M20	9-99110-520-0	01	1	0211-0512		●
14	NUT; GEAR M20	0-91110-520-0	01	1	0601-		●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9510-0210	●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	0211-		●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9510-0210	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0211-		●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94395-083-0	01	1	9510-0210	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94395-082-0	01	1	9510-0210	●
27	HOSE; AIR CMPR,SUCTION	8-94394-809-1	01	1	0211-		●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9510-0210	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0211-		●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94399-954-0	01	1	9510-0210	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94399-942-1	01	1	9510-0210	●
31	PIPE; AIR,AIR CMPR SUCTION	8-94399-942-1	01	1	0211-		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	01	1	9510-0210	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	01	1	0211-		●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94395-087-2	01	1	9510-0210	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-063-1	01	1	9510-0112	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94394-275-1	01	1	0201-0210	●
49	PIPE; AIR,CHARGE	8-94394-275-1	01	1	0211-		●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-0	01	1	9510-0210	●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	9510-0210	●
51	BOLT; EYE,AIR PIPE TO CMPR M20X38	1-09675-133-1	01	1	0211-		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	02	1	9510-0210	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=20.5 OD=28.0	9-09571-420-0	02	1	9510-0210	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0	9-09571-420-0	02	1	0211-		●
58	SPACER; AIR CMPR	8-94395-675-1	01	1	0211-		●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	9510-0210	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	9510-0210	●
79	BOLT; EYE,AIR PIPE TO CMPR M18X33	1-09675-058-0	01	1	0211-		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2	1-09630-085-0	02	1	9510-0210	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	9510-0210	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4	1-09630-087-0	02	1	0211-		●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	9510-0210	●
110	CLIP; AIR PIPE	8-94393-037-0	01	1	0211-		●
113	BOLT; CLIP,AIR PIPE M6X40 W/LK&PL WASHER	0-50140-640-0	01	1	9510-9709	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	9710-0210	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0211-0512		●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-		●
160	BRACKET; AIR PIPE	8-94394-569-0	01	1	9510-0210	●
160	BRACKET; AIR PIPE	8-94394-569-0	01	1	0211-		●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	9510-0210	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0211-0512		●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9510-0210	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0211-0605		●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0606-		●

216 190 217 215 218 190 220 220 166 190 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B

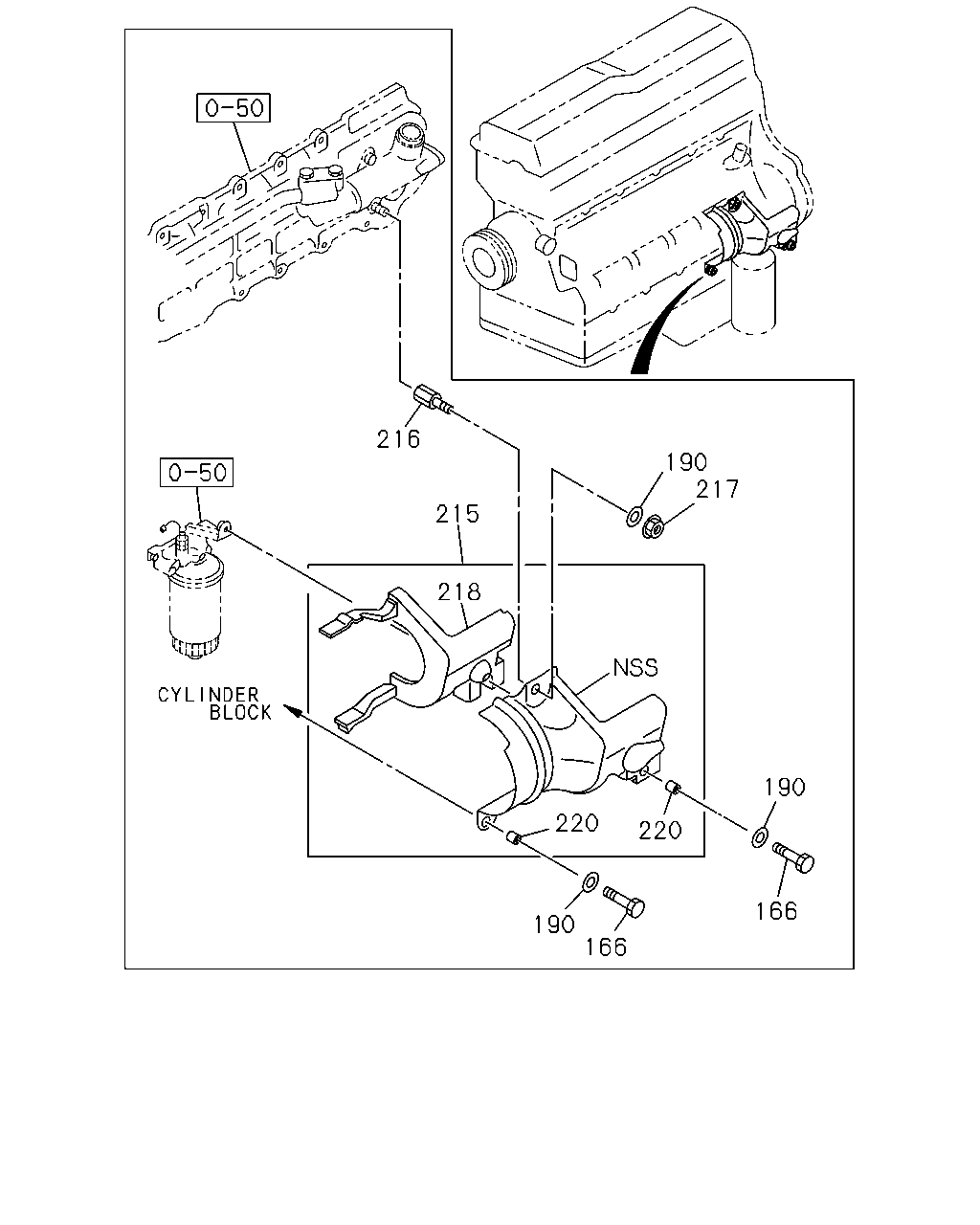

166	BOLT; COVER FIX M10X25 FLANGE	0-28781-025-0	02	1	0211-0512	●
166	BOLT; COVER FIX M10X25 FLANGE	0-28751-025-0	02	1	0601-	●
190	WASHER; PL,COVER ID=10.5 OD=26	9-09160-710-0	03	1	0211-	●
215	COVER; AIR CMPR	8-94390-408-0	01	1	0211-	●
216	SPACER; COVER	8-94394-990-1	01	1	0211-	●
217	NUT; COVER M10	9-09110-410-0	01	1	0211-0512	●
217	NUT; COVER M10	0-91110-510-0	01	1	0601-	●
218	INSULATOR; COVER	8-94394-995-2	01	1	0211-	●
220	TUBE; DIST OD=13 T=9.5	8-94140-427-1	03	1	0211-	●
