0-32 — WATER PIPING; ENGINE (#19635) — 45 parça

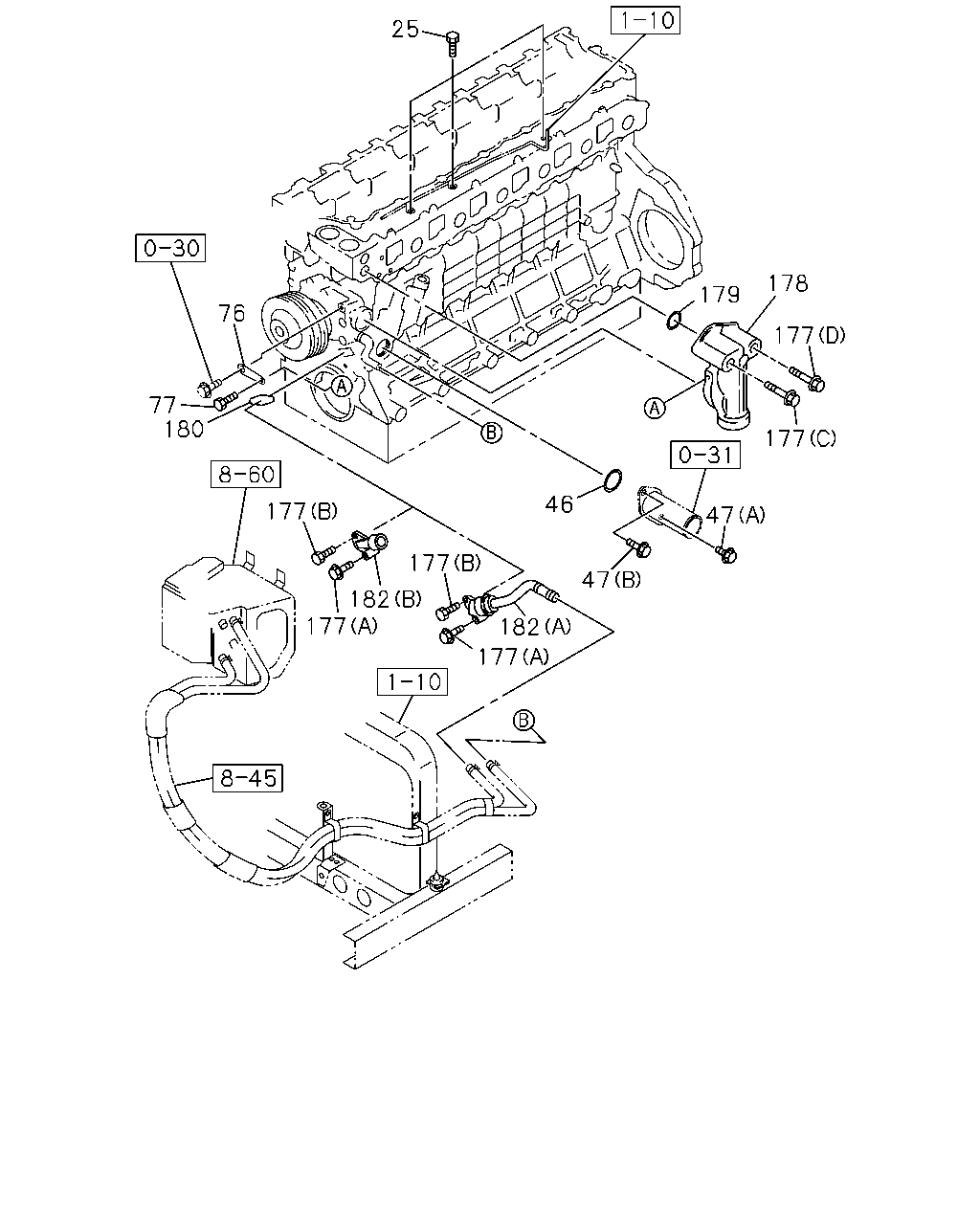

çizim 64966
25 178 179 76 177 77 180 177 46 177 47 177 47 182 177 182 177
BalonParca AdiParca NoAdetTipApplied Date A B
25 BOLT; WATER PIPE
M8X12 FLANGE 		0-28080-812-0 03 1 9510-0210 ●
25 BOLT; WATER PIPE
M8X12 FLANGE 		0-28080-812-0 03 1 0211-0512 ●
25 BOLT; WATER PIPE
M8X12 FLANGE 		0-28050-812-0 03 1 0601- ●
46 GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3 		8-94396-680-2 01 1 9510-0210 ●
46 GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3 		8-94396-680-2 01 1 0211- ●
47 BOLT; DUCT,TO OIL COOLER
(B) M8X16 FLANGE 		0-28080-816-0 01 1 9510-9611 ●
47 BOLT; DUCT,TO OIL COOLER
(B) M8X45 FLANGE 		0-28080-845-0 01 1 9612-0210 ●
47 BOLT; DUCT,TO OIL COOLER
(B) M8X45 FLANGE 		0-28080-845-0 01 1 0211-0512 ●
47 BOLT; DUCT,TO OIL COOLER
(B) M8X45 FLANGE 		0-28050-845-0 01 1 0601- ●
47 BOLT; DUCT,TO OIL COOLER
(A) M8X40 FLANGE 		0-28080-840-0 01 1 9510-9611 ●
47 BOLT; DUCT,TO OIL COOLER
(A) M8X25 FLANGE 		0-28680-825-0 01 1 9612-0210 ●
47 BOLT; DUCT,TO OIL COOLER
(A) M8X25 FLANGE 		0-28680-825-0 01 1 0211-0512 ●
47 BOLT; DUCT,TO OIL COOLER
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
76 BRACKET; WATER DUCT,PUMP 8-94394-784-0 01 1 9510-0210 ●
76 BRACKET; WATER DUCT,PUMP 8-94394-784-0 01 1 0211- ●
77 BOLT; BRKT,WATER DUCT
M8X50 FLANGE 		0-28080-850-0 01 1 9510-0210 ●
77 BOLT; BRKT,WATER DUCT
M8X50 FLANGE 		0-28080-850-0 01 1 0211-0512 ●
77 BOLT; BRKT,WATER DUCT
M8X50 FLANGE 		0-28050-850-0 01 1 0601- ●
177 BOLT; WATER DUCT
(B) M8X22 FLANGE 		0-28080-822-0 01 1 9510-9709 ●
177 BOLT; WATER DUCT
(B) M8X25 FLANGE 		0-28680-825-0 01 1 9710-0210 ●
177 BOLT; WATER DUCT
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0211-0512 ●
177 BOLT; WATER DUCT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ●
177 BOLT; WATER DUCT
(A) M8X65 FLANGE 		1-09044-072-1 01 1 9510-0210 ●
177 BOLT; WATER DUCT
(A) M8X65 FLANGE 		1-09044-072-1 01 1 0211- ●
177 BOLT; WATER DUCT
(C) M8X79 FLANGE 		8-94311-617-1 01 1 9510-9611 ●
177 BOLT; WATER DUCT
(C) M8X80 FLANGE 		0-28080-880-0 01 1 9612-0210 ●
177 BOLT; WATER DUCT
(C) M8X80 FLANGE 		0-28080-880-0 01 1 0211-0512 ●
177 BOLT; WATER DUCT
(C) M8X80 FLANGE 		0-28050-880-0 01 1 0601- ●
177 BOLT; WATER DUCT
(D) M16X75 FLANGE 		8-94397-360-1 01 1 9510-0210 ●
177 BOLT; WATER DUCT
(D) M16X75 FLANGE 		8-94397-360-1 01 1 0211- ●
178 DUCT; WATER,BYPASS 8-94396-627-2 01 1 9510-0210 ●
178 DUCT; WATER,BYPASS 8-94396-627-3 01 1 0211- ●
179 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2 		8-94396-679-0 01 1 9510-0210 ●
179 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2 		8-94396-679-0 01 1 0211-1408 ●
179 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2 		8-98276-756-0 01 1 1409- ●
180 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94396-720-1 01 1 9510-0210 ●
180 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94396-720-1 01 1 0211- ●
182 DUCT; WATER,HTR
HEATER & DEFROSTER(C41) (A) 		8-94396-724-4 01 1 9510-0210 ●
182 DUCT; WATER,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-94396-724-4 01 1 0211- ●
182 DUCT; WATER,HTR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94390-283-0 01 1 9511-0210 ●
182 DUCT; WATER,HTR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94390-283-0 01 1 0211- ●

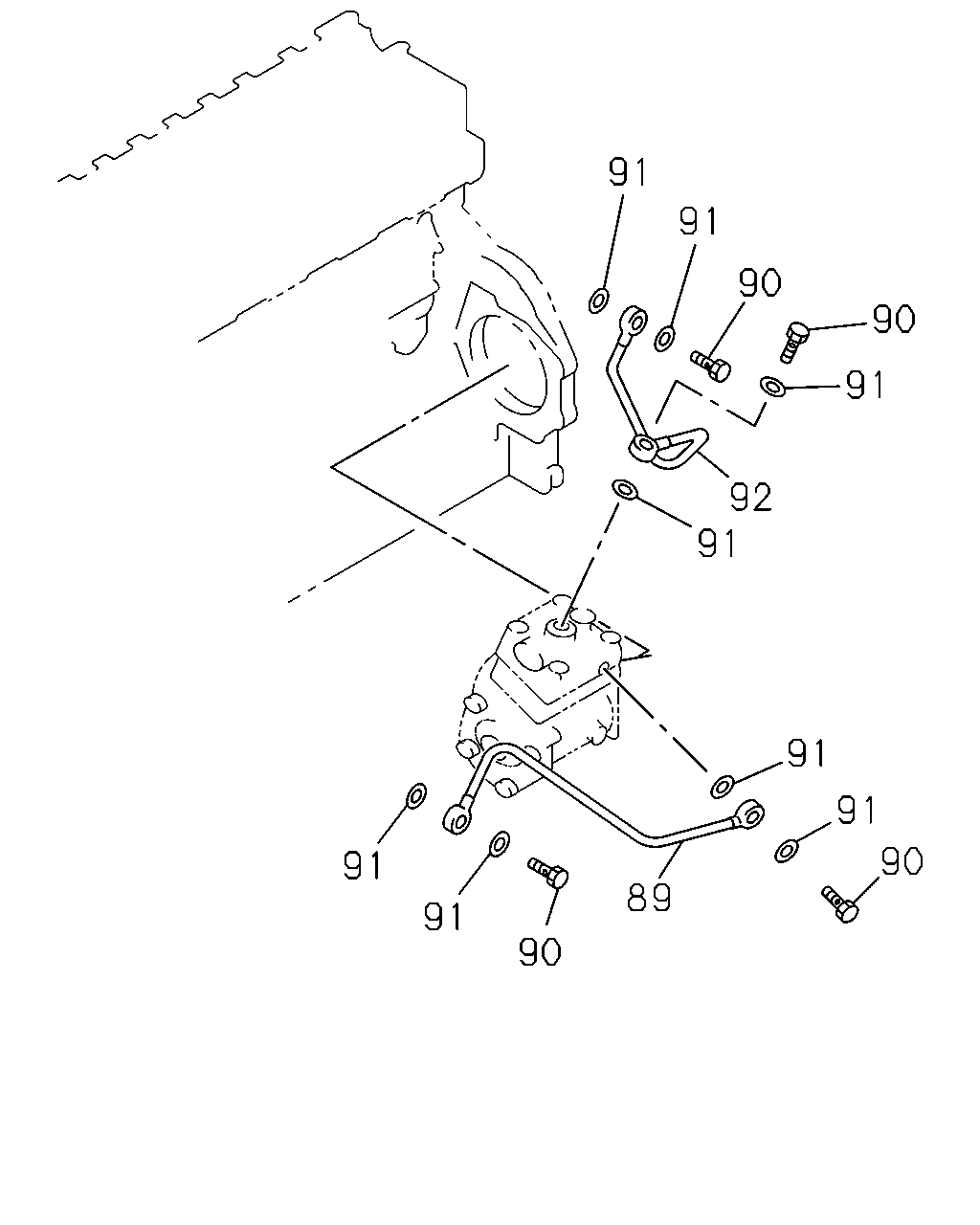

çizim 65349
91 91 90 90 91 92 91 91 91 90 91 89 91 90
BalonParca AdiParca NoAdetTipApplied Date A B
89 PIPE; WATER,AIR CMPR,IN
AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94395-178-1 01 1 9510-0210 ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 EYE-BOLT 		1-09675-193-0 04 1 9510-0210 ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=19.2 		1-09630-085-0 08 1 9510-0210 ●
92 PIPE; WATER,AIR CMPR,OUT
AIR COMPRESSOR HEAVY DUTY(E1Q) 		8-94395-742-1 01 1 9510-0210 ●
