◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11339 - FSR(MIDDLE EAST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-30 - WATER PUMP AND CORROSION RESISTOR ▶
0-30 — WATER PUMP AND CORROSION RESISTOR (#19633) — 100 parça

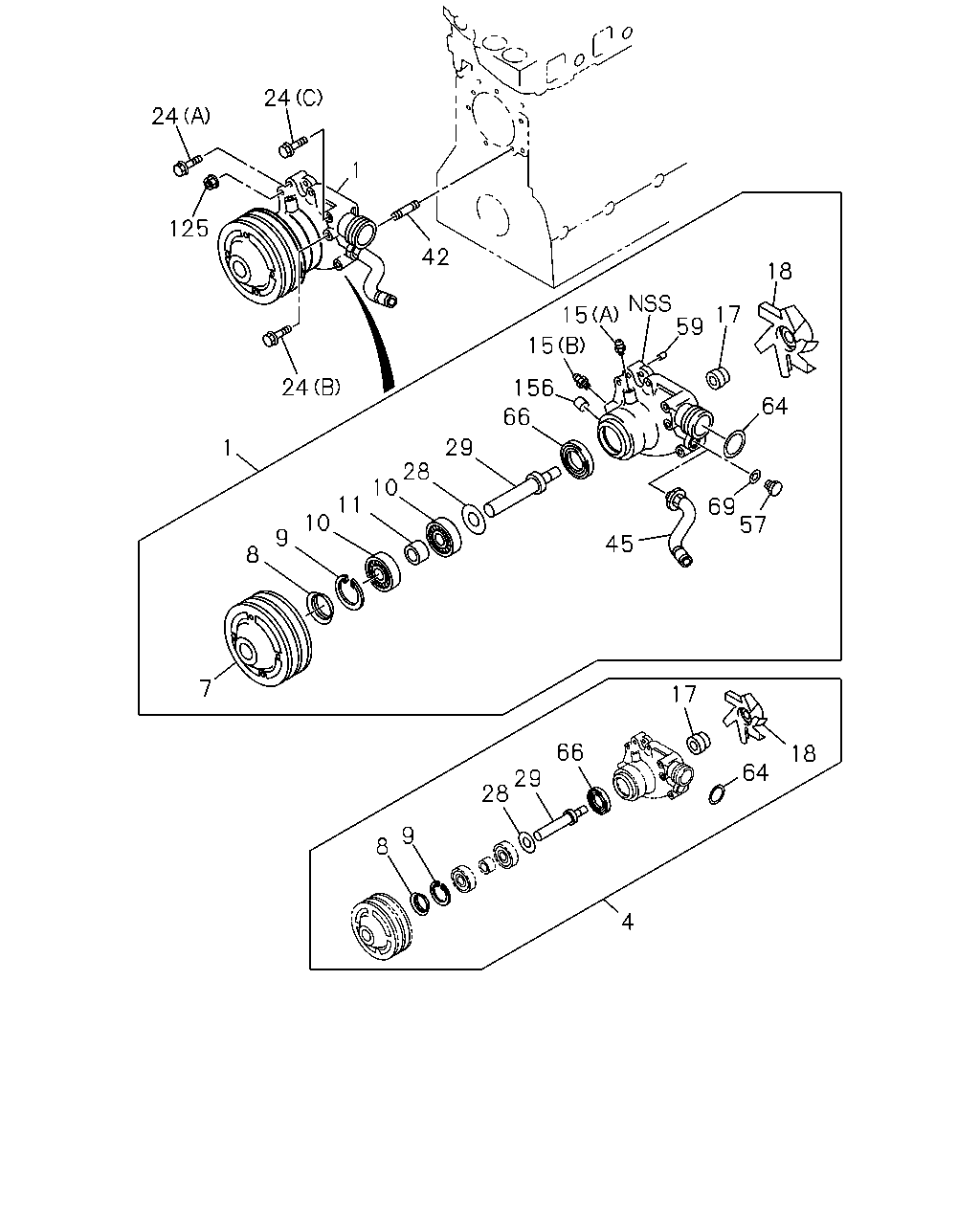

çizim 16068
24 24 1 125 42 18 59 17 15 15 24 156 64 66 29 1 28 10 11 10 69 57 9 45 8 7 17 66 18 64 29 28 9 8 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41) 		8-94395-657-6 01 1 9510-0210 ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41) 		8-94395-657-6 01 1 0211-0301 ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41) 		8-97602-775-0 01 1 0302-0801 ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41) 		8-97627-357-1 01 1 0802-1208 ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41) 		1-87310-842-0 01 1 1209-1312 ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41) 		1-87310-916-0 01 1 1401-1405 ●
1 PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41) 		1-87310-988-0 01 1 1406- ●
1 PUMP ASM; WATER,W/GASKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94390-601-5 01 1 9510-0210 ●
1 PUMP ASM; WATER,W/GASKET
EXC. HEATER & DEFROSTER(C41) 		8-97602-781-2 01 1 0302-1208 ●
1 PUMP ASM; WATER,W/GASKET
EXC. HEATER & DEFROSTER(C41) 		1-87310-839-0 01 1 1209-1312 ●
1 PUMP ASM; WATER,W/GASKET
EXC. HEATER & DEFROSTER(C41) 		1-87310-911-0 01 1 1401-1405 ●
1 PUMP ASM; WATER,W/GASKET
EXC. HEATER & DEFROSTER(C41) 		1-87310-983-0 01 1 1406- ●
1 PUMP ASM; WATER,W/GASKET
AIR CONDITIONER MANUAL CONTROL(C60) 		8-94395-656-6 01 1 0211-0301 ●
1 PUMP ASM; WATER,W/GASKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94390-599-5 01 1 0211-0301 ●
4 REPAIR KIT; WATER PUMP 1-87811-051-0 01 1 9510-9911 ●
4 REPAIR KIT; WATER PUMP 1-87812-027-0 01 1 9912-0210 ●
4 REPAIR KIT; WATER PUMP
HEATER & DEFROSTER(C41) 		1-87812-027-1 01 1 0211-0801 ●
4 REPAIR KIT; WATER PUMP
HEATER & DEFROSTER(C41) 		1-87813-363-0 01 1 0802-1208 ●
4 REPAIR KIT; WATER PUMP
HEATER & DEFROSTER(C41) 		1-87813-948-0 01 1 1209-1312 ●
4 REPAIR KIT; WATER PUMP
HEATER & DEFROSTER(C41) 		1-87814-173-0 01 1 1401-1405 ●
4 REPAIR KIT; WATER PUMP
HEATER & DEFROSTER(C41) 		1-87814-613-0 01 1 1406- ●
4 REPAIR KIT; WATER PUMP
EXC. HEATER & DEFROSTER(C41) 		1-87812-029-0 01 1 0211-0301 ●
4 REPAIR KIT; WATER PUMP
EXC. HEATER & DEFROSTER(C41) 		1-87812-028-1 01 1 0302-1208 ●
4 REPAIR KIT; WATER PUMP
EXC. HEATER & DEFROSTER(C41) 		1-87813-946-0 01 1 1209-1312 ●
4 REPAIR KIT; WATER PUMP
EXC. HEATER & DEFROSTER(C41) 		1-87814-172-0 01 1 1401-1405 ●
4 REPAIR KIT; WATER PUMP
EXC. HEATER & DEFROSTER(C41) 		1-87814-612-0 01 1 1406- ●
7 PULLEY; WATER PUMP
2-GROOVE 		8-94394-826-0 01 1 9510-0210 ●
7 PULLEY; WATER PUMP
2-GROOVE 		8-94394-826-0 01 1 0211-0301 ●
7 PULLEY; WATER PUMP
HEATER & DEFROSTER(C41) 2-GROOVE 		8-94394-826-0 01 1 0302- ●
7 PULLEY; WATER PUMP
EXC. HEATER & DEFROSTER(C41) 4-GROOVE 		8-94394-927-0 01 1 0211- ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 9510-0210 ●
8 THROWER; DUST,WATER PUMP
HEATER & DEFROSTER(C41) 		8-94399-457-0 01 1 0211-0301 ●
8 THROWER; DUST,WATER PUMP 8-94399-457-0 01 1 0302- ●
8 THROWER; DUST,WATER PUMP
EXC. HEATER & DEFROSTER(C41) 		8-94399-457-0 02 1 0211-0301 ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 9510-0210 ●
9 RING; SNAP,WATER PUMP
HEATER & DEFROSTER(C41) ID=57.9 		9-09180-162-0 01 1 0211-0301 ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 0302- ●
9 RING; SNAP,WATER PUMP
EXC. HEATER & DEFROSTER(C41) ID=57.9 		9-09180-162-0 02 1 0211-0301 ●
10 BEARING; WATER PUMP 1-09800-011-0 02 1 9510-0210 ●
10 BEARING; WATER PUMP 1-09800-011-0 02 1 0211-0301 ●
10 BEARING; WATER PUMP
HEATER & DEFROSTER(C41) 		1-09800-011-0 02 1 0302- ●
11 SPACER; BRG,WATER PUMP 1-13634-025-0 01 1 9510-0210 ●
11 SPACER; BRG,WATER PUMP 1-13634-025-0 01 1 0211-0301 ●
11 SPACER; BRG,WATER PUMP
HEATER & DEFROSTER(C41) 		1-13634-025-0 01 1 0302- ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 9510-0210 ●
15 NIPPLE; GREASE,WATER PUMP
HEATER & DEFROSTER(C41) (A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 0211-0301 ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 0302- ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9510-0210 ●
15 NIPPLE; GREASE,WATER PUMP
HEATER & DEFROSTER(C41) (B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0211-0301 ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0302-0512 ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
17 SEAL UNIT; WATER PUMP 8-94395-036-0 01 1 9510-9912 ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0001-0210 ●
17 SEAL UNIT; WATER PUMP
HEATER & DEFROSTER(C41) 		8-94392-090-0 01 1 0211-0301 ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 0302-1208 ●
17 SEAL UNIT; WATER PUMP 8-98221-159-0 01 1 1209-1312 ●
17 SEAL UNIT; WATER PUMP 8-94392-090-0 01 1 1401-1405 ●
17 SEAL UNIT; WATER PUMP 8-98272-791-0 01 1 1406- ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 9510-0210 ●
18 IMPELLER; WATER PUMP 8-94397-375-0 01 1 0211- ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 9510-0210 ●
24 BOLT; WATER PUMP
(A) M8X58 FLANGE 		8-94130-055-1 03 1 0211- ●
24 BOLT; WATER PUMP
(B) M8X79 FLANGE 		8-94311-617-1 01 1 9510-9611 ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28080-880-0 01 1 9612-0210 ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28080-880-0 01 1 0211-0512 ●
24 BOLT; WATER PUMP
(B) M8X80 FLANGE 		0-28050-880-0 01 1 0601- ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 9510-0210 ●
24 BOLT; WATER PUMP
(C) M10X85 FLANGE 		8-94397-359-1 01 1 0211- ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 9510-0210 ●
28 WASHER; WATER PUMP
HEATER & DEFROSTER(C41) ID=25.5 OD=50 		8-94397-097-0 01 1 0211-0301 ●
28 WASHER; WATER PUMP
ID=25.5 OD=50 		8-94397-097-0 01 1 0302- ●
29 SHAFT; WATER PUMP 8-94397-374-0 01 1 9510-0210 ●
29 SHAFT; WATER PUMP 8-94397-374-0 01 1 0211-0301 ●
29 SHAFT; WATER PUMP
HEATER & DEFROSTER(C41) 		8-94397-374-0 01 1 0302- ●
42 STUD; WATER PUMP
M8X30 L=46 		9-04010-830-0 01 1 9510-0210 ●
42 STUD; WATER PUMP
M8X30 L=46 		9-04010-830-0 01 1 0211-0604 ●
42 STUD; WATER PUMP
M8X30 L=46 		0-40110-830-0 01 1 0605- ●
45 JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER(C41) 		8-94397-377-2 01 1 9510-0210 ●
45 JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-94397-377-2 01 1 0211-0301 ●
45 JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER(C41) 		8-94397-377-2 01 1 0302- ●
57 PLUG; HTR,WATER PUMP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M20 		9-99202-320-0 01 1 9510-9510 ●
57 PLUG; HTR,WATER PUMP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M20 		9-99202-320-0 01 1 0302- ●
59 DOWEL; WATER PUMP 9-13119-022-0 02 1 9510-0210 ●
59 DOWEL; WATER PUMP 9-13119-022-0 02 1 0211-0301 ●
59 DOWEL; WATER PUMP
HEATER & DEFROSTER(C41) 		9-13119-022-0 02 1 0302-0801 ●
59 DOWEL; WATER PUMP
OD=12 L=9 		1-13119-003-0 02 1 0802- ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 9510-0210 ●
64 GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7 		1-09623-383-0 01 1 0211- ●
66 SEAL; SECONDARY 1-09625-437-0 01 1 9510-0210 ●
66 SEAL; SECONDARY 1-09625-437-0 01 1 0211-0301 ●
66 SEAL; SECONDARY
HEATER & DEFROSTER(C41) 		1-09625-437-0 01 1 0302-0801 ●
66 SEAL; SECONDARY
HEATER & DEFROSTER(C41) 		8-98084-780-0 01 1 0802- ●
69 GASKET; PLUG,HTR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=20.5 OD=28.0 		9-09571-420-0 01 1 9510-9510 ●
69 GASKET; PLUG,HTR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=20.5 OD=28.0 		9-09571-420-0 01 1 0302- ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91150-108-0 04 1 9510-0210 ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91150-108-0 04 1 0211-0602 ●
125 NUT; WATER PUMP
M8 FLANGE 		0-91180-108-0 04 1 0603- ●
156 CUP; SEALING
OD=25 		1-09600-016-0 01 1 0004-0210 ●
156 CUP; SEALING
HEATER & DEFROSTER(C41) OD=25 		1-09600-016-0 01 1 0211-0301 ●
156 CUP; SEALING
OD=25 		1-09600-016-0 01 1 0302- ●
