Isuzu WW
▶
TRUCKS
▶
FSR
▶
11339 - FSR(MIDDLE EAST)
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶

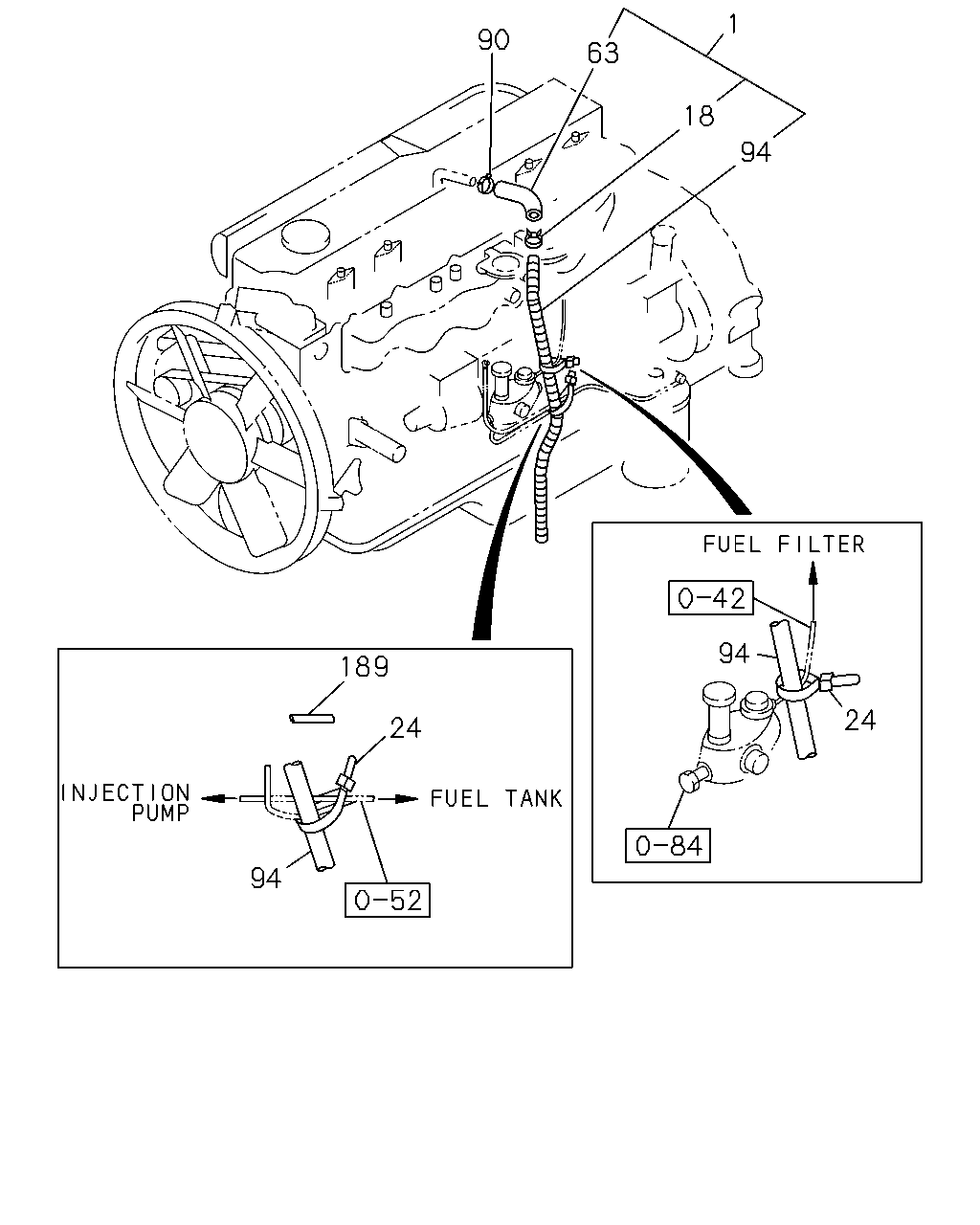

0-28 — VENTILATION SYSTEM
(#19632) — 16 parça
Tümü
A - 6HH1 N ENG
B - 6HH1 STD ENG
1
90
63
18
94
94
189
24
24
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BREATHER; AIR
8-94394-859-1
01
1
9510-0210
●
1
BREATHER; AIR
8-94394-859-4
01
1
0211-
●
18
CLIP; RUBBER HOSE,AIR BREATHER
ID=33.6
8-94362-518-0
01
1
9510-0210
●
18
CLIP; RUBBER HOSE,AIR BREATHER
ID=33.6
8-94362-518-0
01
1
0211-
●
24
CLIP; RUBBER HOSE,VENTILATOR
L=250
5-09707-030-1
02
1
9510-0210
●
24
CLIP; RUBBER HOSE,VENTILATOR
L=250
5-09707-030-1
02
1
0211-1205
●
24
CLIP; RUBBER HOSE,VENTILATOR
L=250
8-98216-430-0
02
1
1206-
●
63
HOSE; RUBBER,AIR BREATHER
L=70
0-02728-070-0
01
1
9510-9809
●
63
HOSE; RUBBER,AIR BREATHER
L=70
0-02828-070-0
01
1
0704-1005
●
63
HOSE; RUBBER,AIR BREATHER
L=70
0-02728-070-0
01
1
1006-
●
90
CLIP; RUBBER HOSE
ID=33.6
8-94362-518-0
01
1
9510-0210
●
90
CLIP; RUBBER HOSE
ID=33.6
8-94362-518-0
01
1
0211-
●
94
HOSE; BREATHER TO PIPE
L=1100
8-94394-785-0
01
1
9510-0210
●
94
HOSE; BREATHER TO PIPE
L=1100
8-94394-785-1
01
1
0211-
●
189
SLEEVE; RUBBER
ID=10 OD=14 L=30
9-09956-682-0
02
1
0002-0210
●
189
SLEEVE; RUBBER
ID=10 OD=14 L=30
9-09956-682-0
02
1
0211-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
