0-22 — ENGINE MOUNTING (#19629) — 50 parça

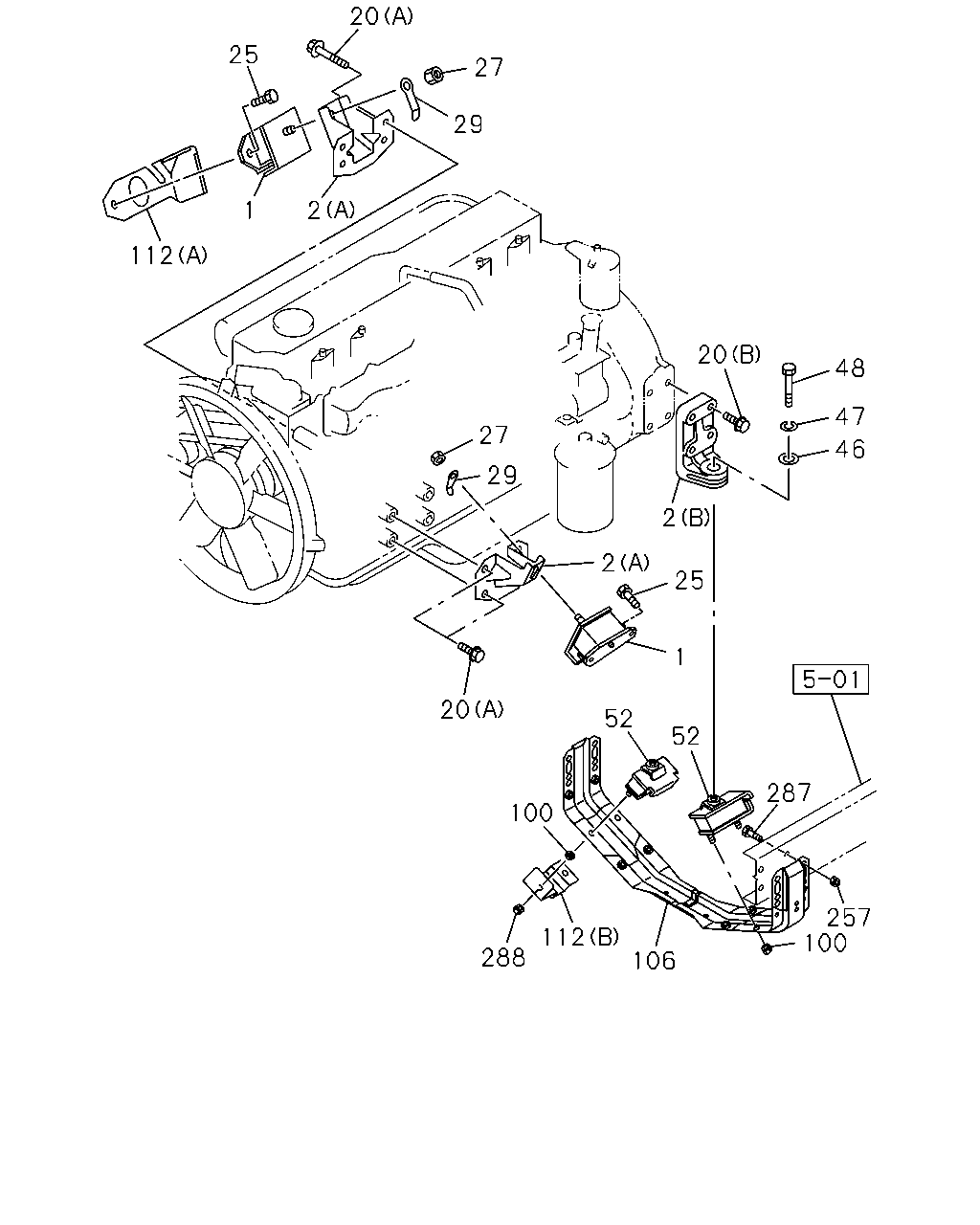

çizim 66534
20 25 27 29 2 1 112 20 48 47 27 46 29 2 2 25 1 20 52 52 287 100 257 100 112 288 106
BalonParca AdiParca NoAdetTipApplied Date A B
1 RUBBER; ENG FOOT,FRT
WHEEL BASE 3700MM(37W),WHEEL BASE 4200MM(42W) 		1-53215-173-0 02 1 9510- ● ●
1 RUBBER; ENG FOOT,FRT
WHEEL BASE 4800MM(48W) 		1-53215-172-0 02 1 9510- ● ●
2 FOOT; ENG
(A) 		8-94393-491-0 02 1 9510-0210 ●
2 FOOT; ENG
(A) 		8-94393-491-1 02 1 0211- ●
2 FOOT; ENG
(B) 		8-94395-738-0 01 1 9510-0210 ●
2 FOOT; ENG
(B) 		8-94395-738-0 01 1 0211- ●
2 FOOT; ENG
(B) 		8-94395-739-0 01 1 9510-0210 ●
2 FOOT; ENG
(B) 		8-94395-739-0 01 1 0211- ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 9510-0210 ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		8-94395-721-0 08 1 0211- ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 9510-0210 ●
20 BOLT; ENG FOOT
(B) M12X55 		8-94399-884-1 08 1 0211- ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X30 FLANGE 		0-28081-230-0 04 1 9510-9606 ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28681-235-0 04 1 9607-0004 ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28681-235-0 04 1 0005-0512 ● ●
25 BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 0601- ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 		9-99110-512-0 02 1 9510-9606 ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91150-212-0 02 1 9607-0004 ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91150-212-0 02 1 0005-0602 ● ●
27 NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE 		0-91180-212-0 02 1 0603- ● ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-052-1 02 1 9510-0004 ●
29 PLATE; LK,CUSHION RUBBER,FRT 1-53229-052-1 02 1 0005- ● ●
46 WASHER; PL,CUSHION TO ENG,RR
ID=17 		9-09164-516-0 02 1 0010- ● ●
47 WASHER; LK,CUSHION RUBBER
ID=16.2 		9-09150-616-0 02 1 9510-0004 ●
47 WASHER; LK,CUSHION RUBBER
ID=16.2 		9-09150-616-0 02 1 0005-0009 ● ●
48 BOLT; CUSHION RUBBER TO ENG
M16X60 		9-91066-660-0 02 1 9510-0004 ●
48 BOLT; CUSHION RUBBER TO ENG
M16X60 		9-91066-660-0 02 1 0005-0512 ● ●
48 BOLT; CUSHION RUBBER TO ENG
M16X60 		0-10956-660-0 02 1 0601- ● ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-278-4 01 1 9510- ● ●
52 RUBBER; CUSHION,ENG MTG,RR 1-53225-277-4 01 1 9510- ● ●
100 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 04 1 9510-0004 ●
100 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 04 1 0005-0602 ● ●
100 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 04 1 0603- ● ●
106 MEMBER; MTG,RR 1-53221-191-0 01 1 9510-0004 ●
106 MEMBER; MTG,RR 1-53221-191-0 01 1 0005- ● ●
112 PROTECTOR; HEAT
(A) 		1-53219-629-4 01 1 9510-0004 ●
112 PROTECTOR; HEAT
(A) 		1-53219-629-4 01 1 0005- ● ●
112 PROTECTOR; HEAT
(B) 		1-53219-638-0 01 1 9510-0004 ●
112 PROTECTOR; HEAT
(B) 		1-53219-638-0 01 1 0005- ● ●
257 NUT; MEMBER
M12 		9-99110-512-0 08 1 9510-9606 ●
257 NUT; MEMBER
M12 FLANGE 		0-91150-212-0 08 1 9607-0004 ●
257 NUT; MEMBER
M12 FLANGE 		0-91150-212-0 08 1 0005-0602 ● ●
257 NUT; MEMBER
M12 FLANGE 		0-91180-212-0 08 1 0603- ● ●
287 BOLT; MEMBER
M12X35 FLANGE 		0-28081-235-0 08 1 9510-9606 ●
287 BOLT; MEMBER
M12X40 FLANGE 		0-28681-240-0 08 1 9607-0004 ●
287 BOLT; MEMBER
M12X40 FLANGE 		0-28681-240-0 08 1 0005-0512 ● ●
287 BOLT; MEMBER
M12X40 FLANGE 		0-28651-240-0 08 1 0601- ● ●
288 NUT; HEAT PROTECTOR
M12 FLANGE 		0-91150-212-0 02 1 9510-0004 ●
288 NUT; HEAT PROTECTOR
M12 FLANGE 		0-91150-212-0 02 1 0005-0602 ● ●
288 NUT; HEAT PROTECTOR
M12 FLANGE 		0-91180-212-0 02 1 0603- ● ●
