0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#19628) — 113 parça

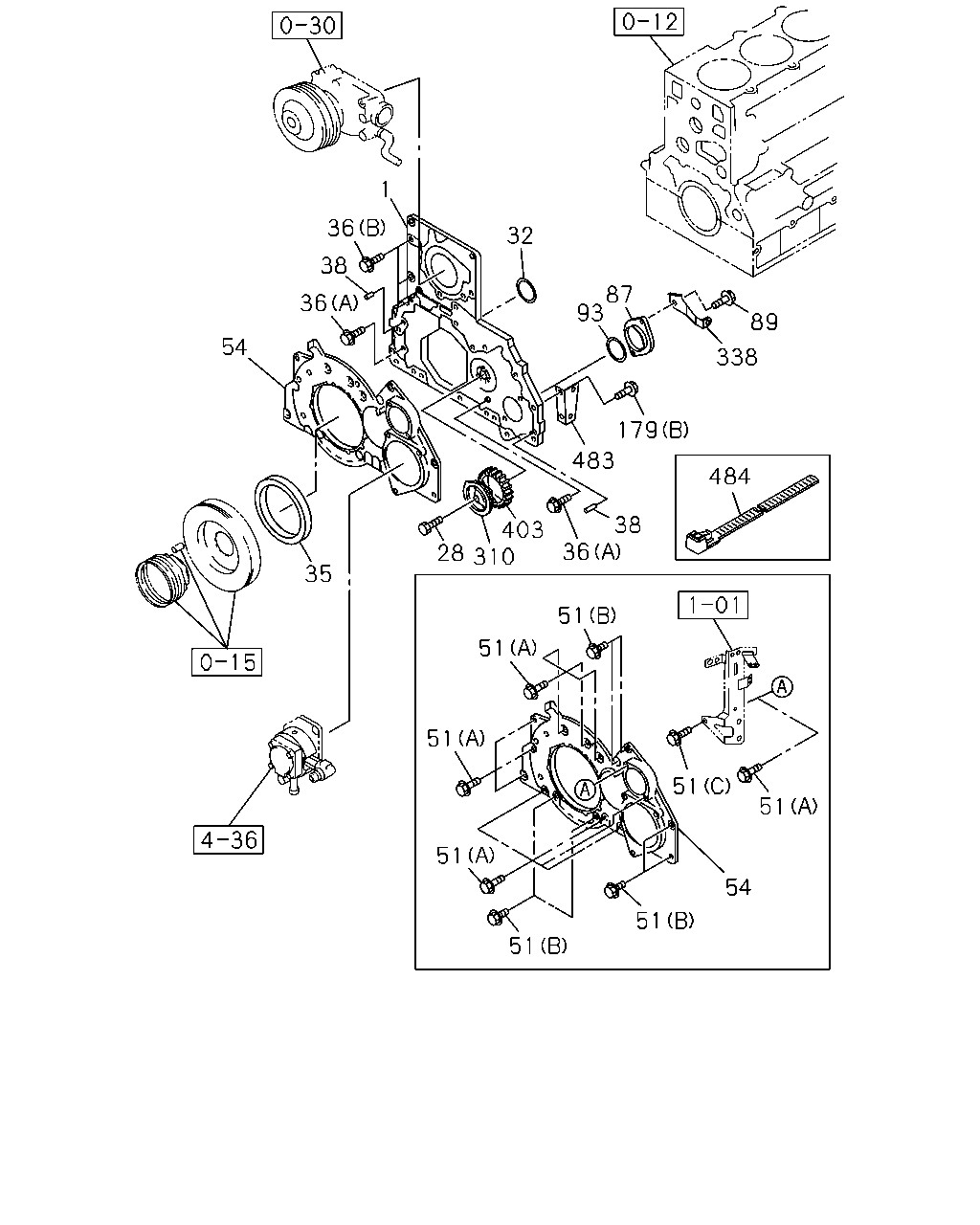

54 36 38 36 1 32 93 179 483 403 28 310 35 51 51 51 51 51 51 51 54 51 36 38 484 338 89 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CASE; TIMING GEAR	8-94393-110-2	01	1	9510-9802	●
1	CASE; TIMING GEAR	8-94396-434-6	01	1	9803-0210	●
1	CASE; TIMING GEAR	8-94396-434-6	01	1	0211-		●
28	BOLT; DRIVE GEAR M8X28	8-94399-256-0	03	1	9510-0210	●
28	BOLT; DRIVE GEAR M8X28	8-94399-256-0	03	1	0211-		●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2	8-94397-364-0	01	1	9510-9805	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1	8-97028-748-1	01	1	9806-0210	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1	8-97028-748-1	01	1	0211-		●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-94396-199-1	01	1	9510-0112	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-97602-378-0	01	1	0201-0210	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=137	8-97602-378-3	01	1	0211-		●
36	BOLT; GEAR CASE (A) M8X28 FLANGE	0-28080-828-0	02	1	9510-0210	●
36	BOLT; GEAR CASE (A) M8X28 FLANGE	0-28080-828-0	02	1	0211-0801		●
36	BOLT; GEAR CASE (A) M8X30 FLANGE	0-28650-830-0	02	1	0802-		●
36	BOLT; GEAR CASE (B) M8X32 FLANGE	0-28080-832-0	04	1	9510-0210	●
36	BOLT; GEAR CASE (B) M8X32 FLANGE	0-28080-832-0	04	1	0211-0801		●
36	BOLT; GEAR CASE (B) M8X35 FLANGE	0-28050-835-0	04	1	0802-		●
38	PIN; GEAR CASE COVER L=22	8-94483-674-0	02	1	9510-0210	●
38	PIN; GEAR CASE COVER L=22	8-94483-674-0	02	1	0211-		●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	10	1	9510-0210	●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28080-840-0	10	1	0211-0512		●
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28050-840-0	10	1	0601-		●
51	BOLT; GEAR CASE COVER (C) M8X45 FLANGE	0-28080-845-0	01	1	9510-0210	●
51	BOLT; GEAR CASE COVER (C) M8X45 FLANGE	0-28080-845-0	01	1	0211-0512		●
51	BOLT; GEAR CASE COVER (C) M8X45 FLANGE	0-28050-845-0	01	1	0601-		●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28680-820-0	06	1	9510-0210	●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28680-820-0	06	1	0211-0512		●
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28650-820-0	06	1	0601-		●
54	COVER; GEAR CASE	8-94393-304-1	01	1	9510-0210	●
54	COVER; GEAR CASE	8-94393-304-1	01	1	0211-		●
87	COVER; TACHOMETER DRIVE	8-94396-370-0	01	1	9510-0210	●
87	COVER; TACHOMETER DRIVE	8-94396-370-0	01	1	0211-		●
89	BOLT; ELBOW M8X18 FLANGE	0-28080-818-0	02	1	9510-0210	●
89	BOLT; ELBOW M8X18 FLANGE	0-28080-818-0	02	1	0211-		●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7	1-09623-180-0	01	1	9510-0210	●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). OD=54.7	1-09623-180-0	01	1	0211-		●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9510-0210	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0211-0512		●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-		●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	9510-0210	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	0211-0512		●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28050-820-0	02	1	0601-		●
310	SHAFT; IDLE GEAR	8-94394-806-0	01	1	9510-0210	●
310	SHAFT; IDLE GEAR	8-94394-806-0	01	1	0211-		●
338	BRACKET; CLIP,HARNESS	1-82699-889-0	01	1	9510-0210	●
338	BRACKET; CLIP,HARNESS	1-82699-889-0	01	1	0211-		●
403	GEAR; IDLE,FRONT Z=33	8-94395-943-1	01	1	9510-0210	●
403	GEAR; IDLE,FRONT Z=33	8-94395-943-1	01	1	0211-		●
483	BRACKET; WATER DUCT	8-94394-405-1	01	1	9510-0210	●
483	BRACKET; WATER DUCT	8-94394-405-1	01	1	0211-		●
484	CLIP; BAND TACHOMETER<UD7> L=250	5-09707-030-1	01	1	1201-1205		●
484	CLIP; BAND TACHOMETER<UD7> L=250	8-98216-430-0	01	1	1206-		●

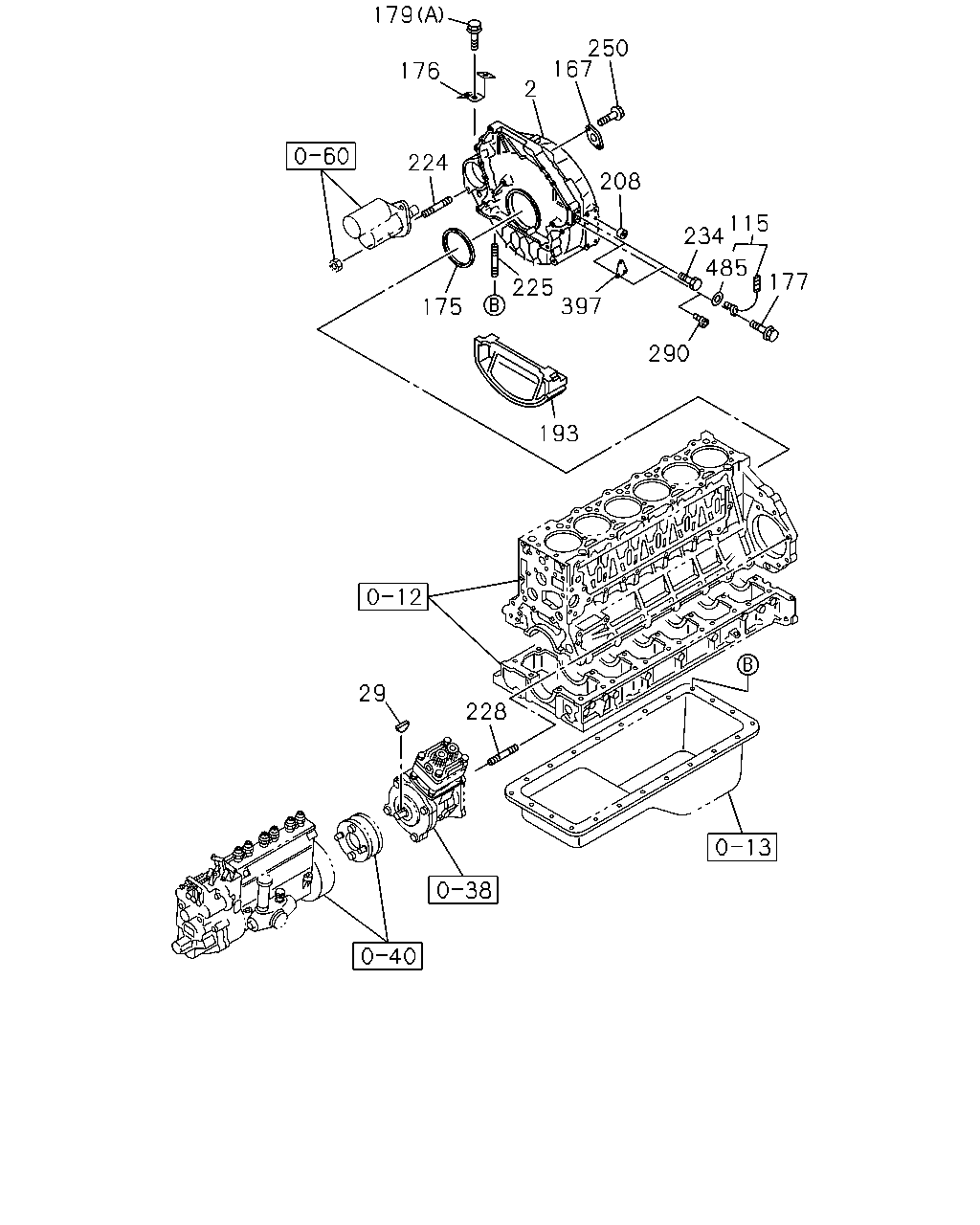

179 250 167 176 2 224 208 115 234 485 177 225 397 175 290 193 29 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; FLYWHEEL	8-94394-757-4	01	1	9510-0210	●
2	HOUSING; FLYWHEEL	8-94394-757-8	01	1	0211-		●
29	KEY; COUPLING	9-08055-416-0	01	1	9510-0210	●
29	KEY; COUPLING	9-08055-416-0	01	1	0211-		●
115	SENSOR; REVOLUTION,ENG SPD TACHOMETER<UD7>	1-81510-561-0	01	1	9510-0210	●
115	SENSOR; REVOLUTION,ENG SPD TACHOMETER<UD7>	1-81510-561-0	01	1	0211-		●
167	COVER; OIL	1-11219-163-0	01	1	9510-0210	●
167	COVER; OIL	1-11219-163-0	01	1	0211-		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-94370-637-0	01	1	9510-0112	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-97602-379-0	01	1	0201-0210	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-97602-379-0	01	1	0211-		●
176	BRACKET; HARNESS	1-82699-412-1	01	1	9510-0210	●
176	BRACKET; HARNESS	1-82699-412-1	01	1	0211-		●
177	BOLT; SENSOR M6X16 FLANGE	0-28080-616-0	01	1	9510-0210	●
177	BOLT; SENSOR M6X16 FLANGE	0-28080-616-0	01	1	0211-0512		●
177	BOLT; SENSOR M6X16 FLANGE	0-28050-616-0	01	1	0601-		●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9510-0210	●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	0211-0512		●
179	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	0601-		●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	9510-0210	●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28080-820-0	02	1	0211-0512		●
179	BOLT; BRKT (B) M8X20 FLANGE	0-28050-820-0	02	1	0601-		●
193	SPACER; STAY TO OIL,PAN	8-94395-674-0	01	1	0211-0504		●
193	SPACER; STAY TO OIL,PAN HEATER & DEFROSTER(C41)	8-94395-674-0	01	1	0505-		●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	9510-0210	●
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	0211-		●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	9510-0210	●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	02	1	0211-0604		●
224	STUD; STARTER M14X35 L=56	0-44011-435-0	02	1	0605-		●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	9510-0210	●
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	0211-		●
228	STUD; AIR CMPR M12X60 L=78	9-94411-260-0	01	1	9510-0210	●
228	STUD; AIR CMPR M12X60 L=78	9-94411-260-0	01	1	0211-0604		●
228	STUD; AIR CMPR M12X60 L=78	0-44011-260-0	01	1	0605-		●
234	BOLT; BRKT TACHOMETER<UD7> M8X12 FLANGE	0-28080-812-0	02	1	9510-0210	●
234	BOLT; BRKT TACHOMETER<UD7> M8X12 FLANGE	0-28080-812-0	02	1	0211-0512		●
234	BOLT; BRKT TACHOMETER<UD7> M8X12 FLANGE	0-28050-812-0	02	1	0601-		●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	9510-0210	●
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	0211-		●
290	PLUG; SENSOR HOLE EXC. TACHOMETER<UD7>	1-11349-157-0	01	1	9510-0205	●
290	PLUG; SENSOR HOLE EXC. TACHOMETER<UD7>	8-97101-974-0	01	1	0206-0210	●
290	PLUG; SENSOR HOLE EXC. TACHOMETER<UD7>	8-97101-974-0	01	1	0211-		●
397	BRACKET; CONNECTOR TACHOMETER<UD7>	8-94394-411-1	01	1	9510-0210	●
397	BRACKET; CONNECTOR TACHOMETER<UD7>	8-94394-411-1	01	1	0211-		●
485	GASKET; SENSOR TACHOMETER<UD7>	9-09565-212-0	01	1	9510-0210	●
485	GASKET; SENSOR TACHOMETER<UD7>	9-09565-212-0	01	1	0211-		●

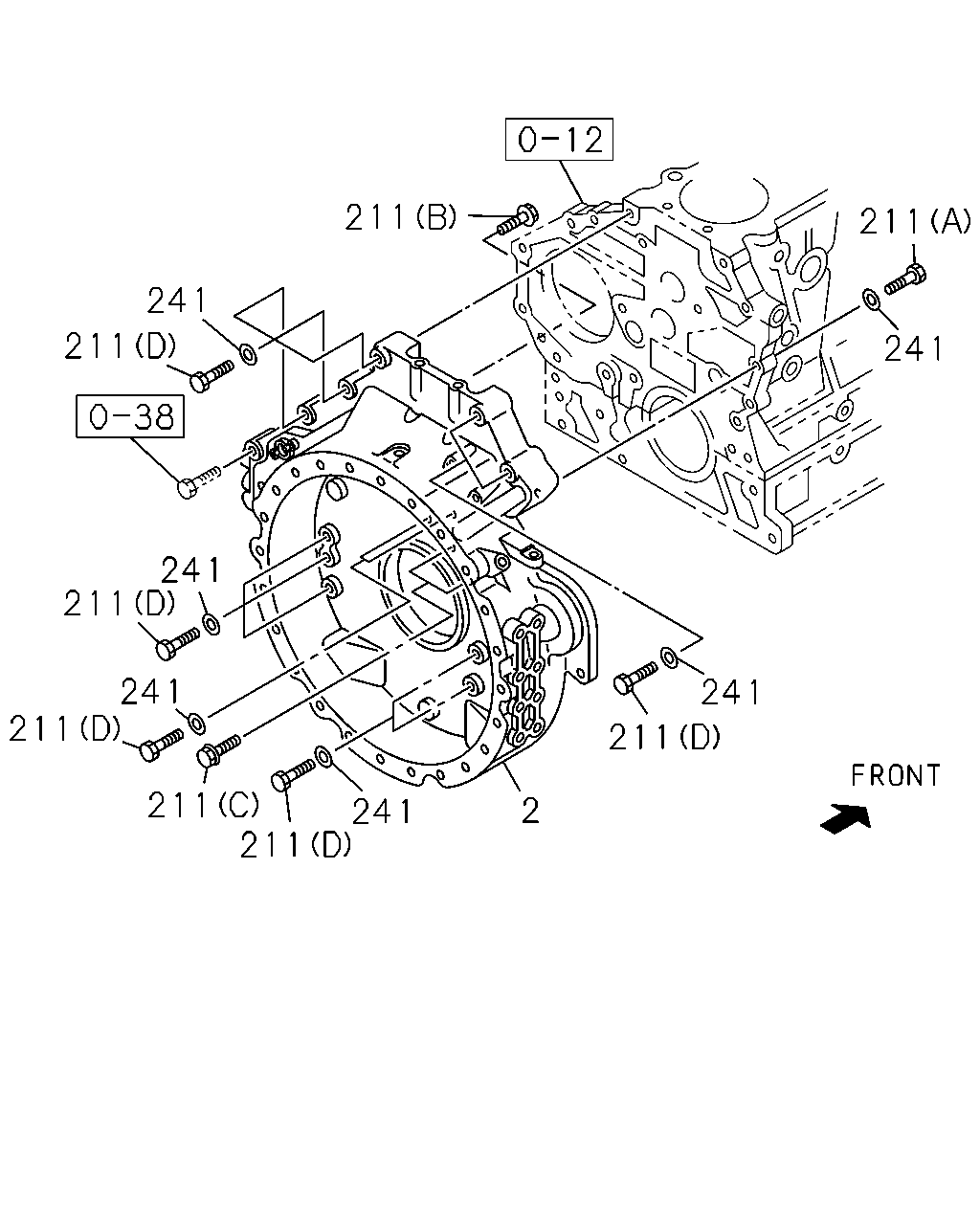

211 211 241 211 241 241 211 241 211 241 211 211 241 211 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; FLYWHEEL	8-94394-757-4	01	1	9510-0210	●
2	HOUSING; FLYWHEEL	8-94394-757-8	01	1	0211-		●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	9510-0210	●
211	BOLT; HSG (A) M12X60	0-16806-260-0	01	1	0211-0512		●
211	BOLT; HSG (A) M12X60	0-16856-260-0	01	1	0601-		●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	9510-0210	●
211	BOLT; HSG (B) M10X50 FLANGE	0-28181-050-0	01	1	0211-0512		●
211	BOLT; HSG (B) M10X50 FLANGE	0-28151-050-0	01	1	0601-		●
211	BOLT; HSG (C) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	9510-0210	●
211	BOLT; HSG (C) M14X70 FLANGE W/PL WASHER	8-94396-095-0	02	1	0211-		●
211	BOLT; HSG (D) M12X70	9-01666-270-0	12	1	9510-0210	●
211	BOLT; HSG (D) M12X70	9-01666-270-0	12	1	0211-0512		●
211	BOLT; HSG (D) M12X70	0-16956-270-0	12	1	0601-		●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	13	1	9510-0210	●
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	13	1	0211-		●
