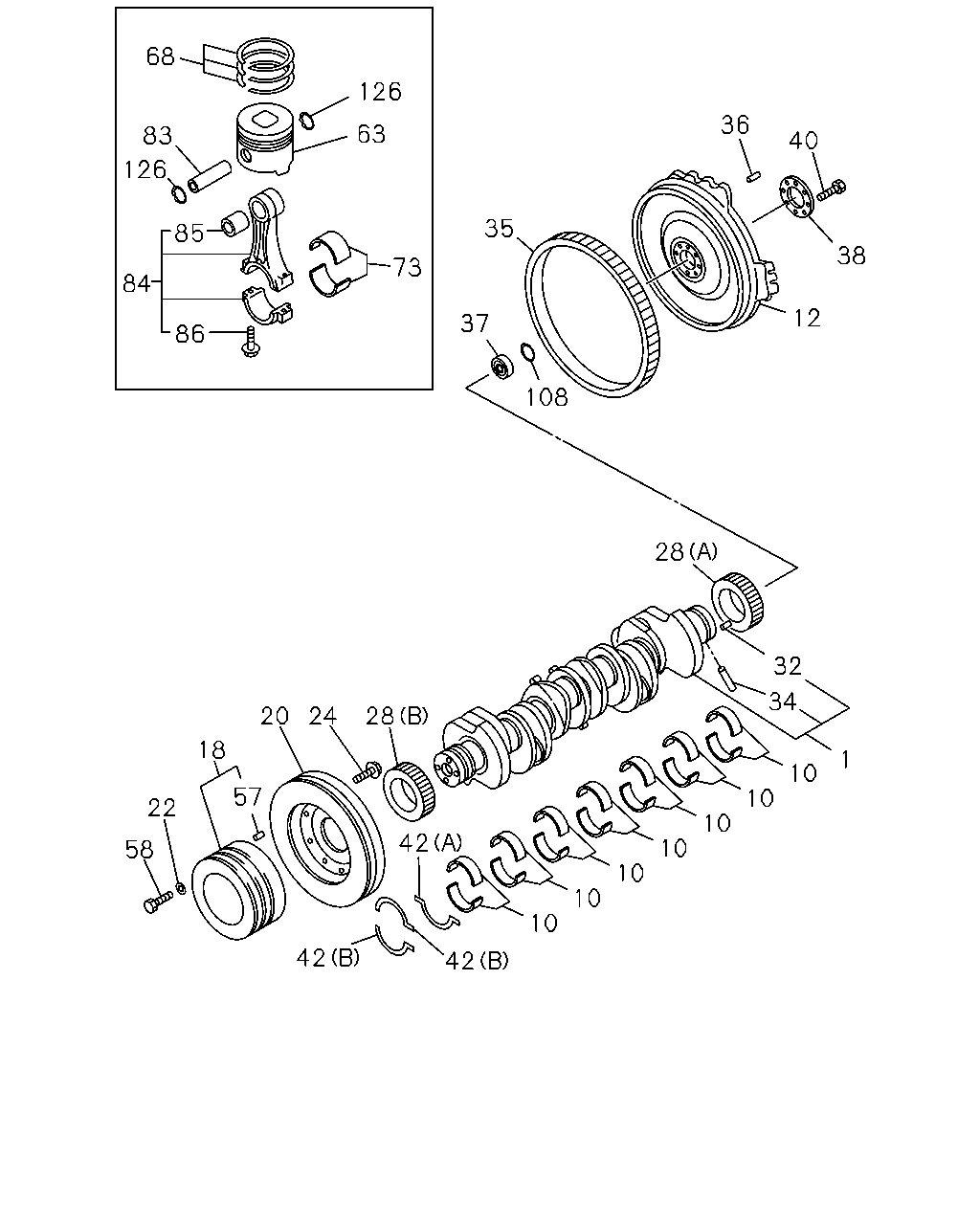

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#19627) — 78 parça

126 63 73 86 84 85 126 83 68 37 108 35 12 38 40 36 28 32 34 1 10 10 10 10 10 10 10 42 42 42 28 24 20 57 18 22 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CRANKSHAFT	8-94393-291-4	01	1	9510-0210	●
1	CRANKSHAFT	8-94393-291-4	01	1	0211-0305		●
1	CRANKSHAFT	8-97603-003-1	01	1	0306-		●
10	METAL SET; CRANKSHAFT,STANDARD PINK	8-94391-514-0	07	1	9510-0308		●
10	METAL SET; CRANKSHAFT,STANDARD GREEN	8-94391-515-0	07	1	9510-0308		●
10	METAL SET; CRANKSHAFT,STANDARD YELLOW	8-94391-516-0	07	1	9510-0308		●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	0309-		●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	0309-		●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	0309-		●
12	FLYWHEEL	8-94395-604-1	01	1	9510-9608	●
12	FLYWHEEL	8-94390-131-0	01	1	9609-0210	●
12	FLYWHEEL	8-94390-131-1	01	1	0211-		●
18	PULLEY; CR/SHF 3-GROOVE	8-94395-286-3	01	1	9510-0210	●
18	PULLEY; CR/SHF 3-GROOVE	8-94394-296-3	01	1	0211-		●
20	DAMPER; CR/SHF	8-94395-314-2	01	1	9510-0210	●
20	DAMPER; CR/SHF	8-94394-354-7	01	1	0211-1110		●
20	DAMPER; CR/SHF	8-94392-276-3	01	1	1111-		●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	9510-0210	●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0211-		●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	9510-0210	●
24	BOLT; DAMPER M10X16 FLANGE	0-28181-016-0	06	1	0211-0512		●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	0601-		●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	9510-0210	●
28	GEAR; CR/SHF (A) Z=42	8-94394-342-4	01	1	0211-		●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	9510-0210	●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	0211-		●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	9510-0210	●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	0211-		●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9510-0210	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0211-		●
35	GEAR; RING ID=361 Z=129	8-94393-132-0	01	1	9510-0210	●
35	GEAR; RING ID=361 Z=129	8-94393-132-0	01	1	0211-		●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	9510-0210	●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	0211-		●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-214-0	01	1	9510-9901	●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	9902-0210	●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	0211-		●
37	BEARING; PILOT,TOP GEAR SHAFT BEST VALUE PARTS	1-87610-157-0	01	1	0005-0210	●
37	BEARING; PILOT,TOP GEAR SHAFT BEST VALUE PARTS	1-87610-157-0	01	1	0211-		●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	9510-0210	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0211-		●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	9510-0210	●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	0211-		●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	9510-0210	●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0211-0703		●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0704-		●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	9510-0210	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0211-0703		●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0704-		●
57	PIN; PULLEY OD=8 L=16	9-08150-816-0	01	1	9510-9612	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	9701-0210	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	0211-		●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	9510-0210	●
58	BOLT; CR/SHF PULLEY M16X50	9-92061-650-0	04	1	0211-0512		●
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	0601-		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-599-0	06	1	9510-9608	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-606-1	06	1	9609-0210	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-94391-606-1	06	1	0211-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94395-468-2	06	1	9510-9606	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94390-799-2	06	1	9607-0210	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94390-799-2	06	1	0211-		●
73	METAL SET; CONN ROD,STANDARD	8-94393-328-0	06	1	9710-0210	●
73	METAL SET; CONN ROD,STANDARD	8-94393-328-0	06	1	0211-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	06	1	9510-0210	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	06	1	0211-		●
84	ROD ASM; CONN	8-94396-394-3	06	1	9510-0210	●
84	ROD ASM; CONN	8-94396-394-8	06	1	0211-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	06	1	9510-0210	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	06	1	0211-0805		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98075-233-0	06	1	0806-0905		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98121-309-0	06	1	0906-		●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	9510-0210	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0211-1004		●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1005-		●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	9510-0210	●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	0211-		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	12	1	9510-0210	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	12	1	0211-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
