◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11339 - FSR(MIDDLE EAST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-12 - CYLINDER BLOCK ▶
0-12 — CYLINDER BLOCK (#19624) — 136 parça

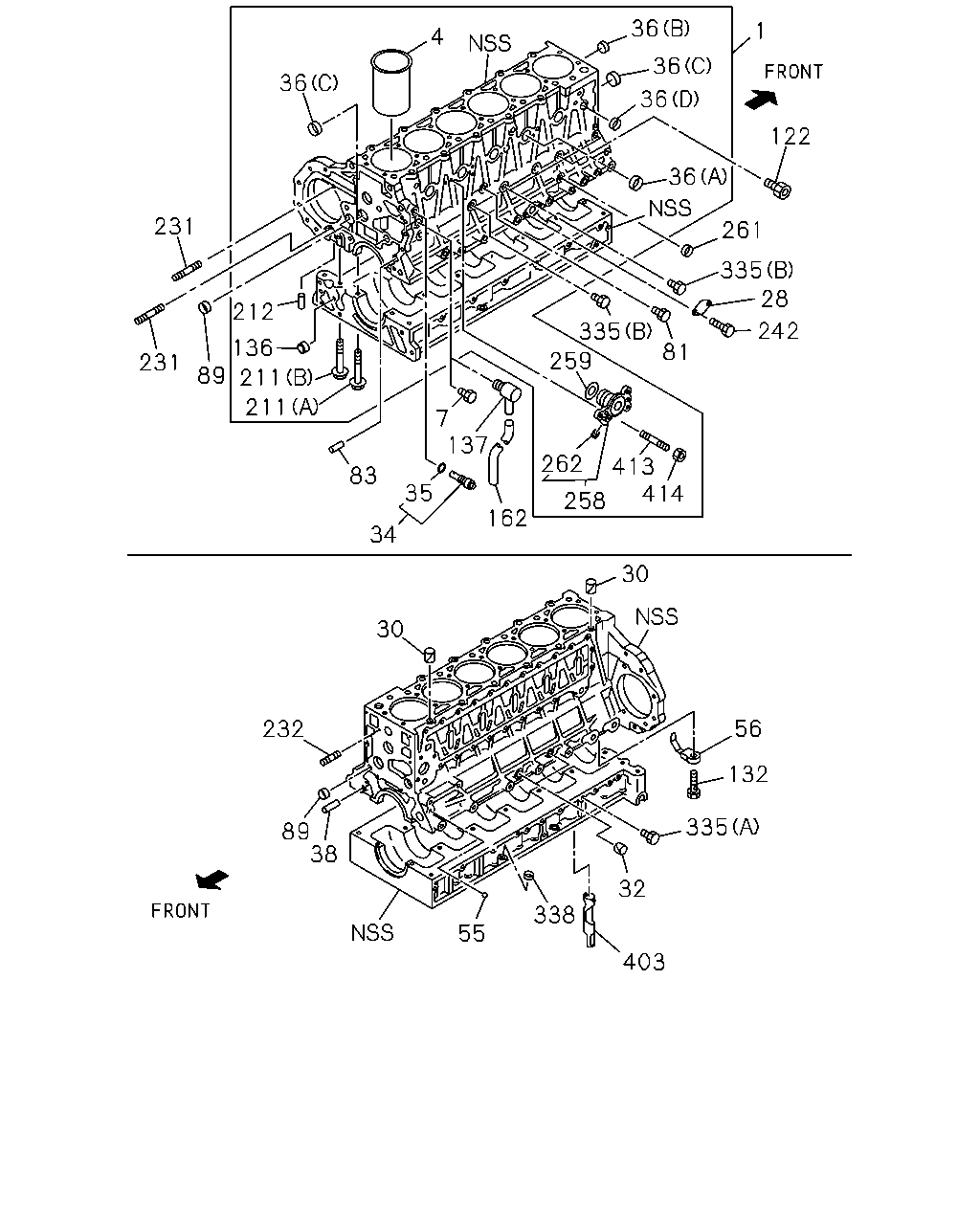

çizim 15598
36 1 4 36 36 36 122 36 231 261 335 28 212 242 335 136 89 81 259 231 211 211 7 137 262 413 414 83 35 258 162 34 30 30 56 232 132 335 89 38 32 338 55 403
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOCK ASM; CYL 8-94394-057-9 01 1 9510-9807 ●
1 BLOCK ASM; CYL 8-94392-491-3 01 1 9808-0210 ●
1 BLOCK ASM; CYL 8-97600-415-2 01 1 0211-0504 ●
1 BLOCK ASM; CYL 8-98005-414-2 01 1 0505-1012 ●
1 BLOCK ASM; CYL 8-98180-710-0 01 1 1101-1209 ●
1 BLOCK ASM; CYL 8-98206-961-0 01 1 1210- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-94391-602-0 06 1 9510-0210 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-94391-602-1 06 1 0211- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-94391-603-0 06 1 9510-0210 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-94391-603-1 06 1 0211- ●
7 PLUG; WATER DRAIN
PT3/8 		8-94397-338-0 01 1 1101- ●
28 COVER; OIL PORT 1-11219-163-0 01 1 9510-0210 ●
28 COVER; OIL PORT 1-11219-163-0 01 1 0211- ●
30 PIN; CYL HD GASKET SETTING
OD=18.15 		8-94399-688-1 02 1 9510-0210 ●
30 PIN; CYL HD GASKET SETTING
OD=18.15 		8-94399-688-1 02 1 0211- ●
32 PIN; INJ PUMP BRKT
OD=14 		8-94453-344-0 02 1 9510-0210 ●
32 PIN; INJ PUMP BRKT
OD=14 		8-94453-344-0 02 1 0211- ●
34 VALVE; OIL RELIEF 8-94393-077-1 01 1 9510-0210 ●
34 VALVE; OIL RELIEF 8-94393-077-1 01 1 0211- ●
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		5-09623-035-0 01 1 9510-0210 ●
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		5-09623-035-0 01 1 0211- ●
36 CUP; SEALING,WATER JACKET
(A) OD=45 		1-09600-005-1 05 1 9510-0210 ●
36 CUP; SEALING,WATER JACKET
(A) OD=45 		1-09600-005-2 05 1 0211- ●
36 CUP; SEALING,WATER JACKET
(D) OD=25 		1-09600-016-0 01 1 9510-0210 ●
36 CUP; SEALING,WATER JACKET
(D) OD=25 		1-09600-016-0 01 1 0211- ●
36 CUP; SEALING,WATER JACKET
(B) OD=25 		8-94399-005-0 01 1 9510-0210 ●
36 CUP; SEALING,WATER JACKET
(B) OD=25 		8-94399-005-0 01 1 0211- ●
36 CUP; SEALING,WATER JACKET
(C) OD=40 		8-94399-639-0 04 1 9510-0210 ●
36 CUP; SEALING,WATER JACKET
(C) OD=40 		8-94399-639-0 04 1 0211-0502 ●
36 CUP; SEALING,WATER JACKET
(C) OD=40 		8-97096-824-0 04 1 0503- ●
38 PIN; TIMING GEAR CASE
L=22 		8-94483-674-0 02 1 9510-0210 ●
38 PIN; TIMING GEAR CASE
L=22 		8-94483-674-0 02 1 0211- ●
55 PLUG; OIL GALLERY
3/8" BALL 		9-00097-011-0 02 1 9510-0210 ●
55 PLUG; OIL GALLERY
3/8" BALL 		9-00097-011-0 02 1 0211- ●
56 JET; OIL,PISTON COOLING 8-94399-187-0 06 1 9510-0210 ●
56 JET; OIL,PISTON COOLING 8-94399-187-1 06 1 0211- ●
81 PLUG; WATER JACKET
M14 		8-94399-225-0 01 1 9510-0210 ●
81 PLUG; WATER JACKET
M14 		8-94399-225-0 01 1 0211-0703 ●
81 PLUG; WATER JACKET
M14X16.5 		8-97329-617-0 01 1 0704- ●
83 PIN; FLYWHEEL HSG
L=22 		8-94483-674-0 02 1 9510-0210 ●
83 PIN; FLYWHEEL HSG
L=22 		8-94483-674-0 02 1 0211-0306 ●
83 PIN; FLYWHEEL HSG
OD=10 L=20 		8-97135-423-0 02 1 0307-0307 ●
83 PIN; FLYWHEEL HSG
L=22 		8-94483-674-0 02 1 0308- ●
89 CUP; SEALING,OIL GALLERY
OD=20 		9-11219-192-0 03 1 9510-0210 ●
89 CUP; SEALING,OIL GALLERY
OD=20 		9-11219-192-0 03 1 0211-0908 ●
89 CUP; SEALING,OIL GALLERY
OD=20 		9-11129-128-0 03 1 0909- ●
122 ADAPTER; OIL PRESSURE SWITCH 8-94399-858-2 01 1 9510-0210 ●
122 ADAPTER; OIL PRESSURE SWITCH 8-94399-858-2 01 1 0211- ●
132 VALVE; CHECK,OIL
M10X18.5 		1-13161-012-0 06 1 9510-0210 ●
132 VALVE; CHECK,OIL
M10X18.5 		1-13161-012-0 06 1 0211-0704 ●
132 VALVE; CHECK,OIL
M10X18.5 		8-97329-618-0 06 1 0705- ●
136 BUSHING; DRIVE SHAFT,OIL PUMP 8-94393-596-0 02 1 9510-0210 ●
136 BUSHING; DRIVE SHAFT,OIL PUMP 8-94393-596-1 02 1 0211-0812 ●
136 BUSHING; DRIVE SHAFT,OIL PUMP 8-98091-566-0 02 1 0901- ●
137 COCK; DRAIN,WATER 1-09680-024-0 01 1 9510-0210 ●
137 COCK; DRAIN,WATER 1-09680-024-0 01 1 0211-1012 ●
162 HOSE; WATER DRAIN,C/BL
L=310 SERVICED BY L=3000 		0-03259-300-0 01 1 9510-0206 ●
162 HOSE; WATER DRAIN,C/BL
L=310 SERVICED BY L=3000 		0-03559-300-0 01 1 0207-0210 ●
162 HOSE; WATER DRAIN,C/BL
L=310 SERVICED BY L=3000 		0-03559-300-0 01 1 0211-1012 ●
211 BOLT; CRANKCASE
(A) M14X115 W/FLANGE 		8-94396-207-3 14 1 9510-0210 ●
211 BOLT; CRANKCASE
(A) M14X115 W/FLANGE 		8-94396-207-3 14 1 0211-0905 ●
211 BOLT; CRANKCASE
(A) M14X115 W/FLANGE 		8-97077-638-0 14 1 0906- ●
211 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 25 1 9510-0210 ●
211 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 25 1 0211- ●
212 PIN; CRANKCASE
L=22 		8-94483-674-0 02 1 9510-0210 ●
212 PIN; CRANKCASE
L=22 		8-94483-674-0 02 1 0211-0306 ●
212 PIN; CRANKCASE
OD=10 L=20 		8-97135-423-0 02 1 0307- ●
231 STUD; AIR CMPR
M10X36.5 L=48.5 		8-94396-145-0 02 1 9510-0210 ●
231 STUD; AIR CMPR
M10X36.5 L=48.5 		8-94396-145-0 02 1 0211-0301 ●
231 STUD; AIR CMPR
M10X25 L=40 		0-49841-025-0 02 1 0302-0512 ●
231 STUD; AIR CMPR
M10X25 L=48.5 		0-49241-025-0 02 1 0601- ●
232 STUD; WATER PUMP
M8X55 L=67 		9-04110-855-0 03 1 9510-0210 ●
232 STUD; WATER PUMP
M8X55 L=67 		9-04110-855-0 03 1 0211-0604 ●
232 STUD; WATER PUMP
M8X55 L=67 		0-41010-855-0 03 1 0605- ●
242 BOLT; COVER,OIL PORT
M8X16 FLANGE 		0-28080-816-0 02 1 9510-0210 ●
242 BOLT; COVER,OIL PORT
M8X16 FLANGE 		0-28080-816-0 02 1 0211-0512 ●
242 BOLT; COVER,OIL PORT
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ●
258 ADAPTER; BLOCK HTR 8-94395-868-0 01 1 0505-0507 ●
259 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7 		1-09623-184-0 01 1 0505-0507 ●
261 PLUG; OIL PRESS UNIT
OD=12.3 		5-09600-013-0 01 1 9510-0210 ●
261 PLUG; OIL PRESS UNIT
OD=12.3 		5-09600-013-0 01 1 0211-0307 ●
262 PLUG; ADAPTER 1-13163-002-0 01 1 0505-0507 ●
335 PLUG; C/BL,SIDE
(B) M14 		8-94399-225-0 04 1 9510-0210 ●
335 PLUG; C/BL,SIDE
(B) M14 		8-94399-225-0 04 1 0211-0703 ●
335 PLUG; C/BL,SIDE
(B) M14X16.5 		8-97329-617-0 04 1 0704- ●
335 PLUG; C/BL,SIDE
(A) M8X6 		8-94399-421-0 01 1 9510-9510 ●
335 PLUG; C/BL,SIDE
PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (A) M8X6 		8-94399-421-0 01 1 9511-0210 ●
335 PLUG; C/BL,SIDE
(A) M8X6 		8-94399-421-0 01 1 0211-0501 ●
335 PLUG; C/BL,SIDE
(A) M8X10 		8-98003-416-0 01 1 0502- ●
338 CUP; SEALING,GUIDE TUBE HOLE
OD=15.6 		5-11129-003-0 01 1 9510-0210 ●
338 CUP; SEALING,GUIDE TUBE HOLE
OD=15.6 		5-11129-003-0 01 1 0211-0607 ●
338 CUP; SEALING,GUIDE TUBE HOLE
OD=15.6 		5-11129-003-0 02 1 0608- ●
403 GUIDE; GALLERY 8-94395-351-1 01 1 9510-0210 ●
403 GUIDE; GALLERY 8-94395-351-1 01 1 0211- ●
413 STUD; ADAPTER
M8X30 L=41 		9-04110-830-0 02 1 0505-0507 ●
414 NUT; ADAPTER
M8 FLANGE 		0-91150-208-0 02 1 0505-0507 ●
çizim 17592
343 308 343 2 4
BalonParca AdiParca NoAdetTipApplied Date A B
2 LINER SET; ENG CYL
GRADE=1X 		1-87811-436-0 06 1 9510-9608 ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87811-665-4 06 1 9609-0210 ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87811-665-9 06 1 0211- ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87811-437-0 06 1 9510-9608 ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87811-666-4 06 1 9609-0210 ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87811-666-9 06 1 0211- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-94391-602-0 06 1 9510-0210 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-94391-602-1 06 1 0211- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-94391-603-0 06 1 9510-0210 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-94391-603-1 06 1 0211- ●
308 PROTECTOR; HEAT,HD COVER 8-94395-205-0 01 1 9510-9603 ●
308 PROTECTOR; HEAT,HD COVER 8-94390-548-0 01 1 9604-9901 ●
308 PROTECTOR; HEAT,HD COVER 8-94391-759-2 01 1 9902-0210 ●
308 PROTECTOR; HEAT,HD COVER 8-94391-759-2 01 1 0211-1005 ●
308 PROTECTOR; HEAT,HD COVER
EXC. HEATER & DEFROSTER(C41) 		8-94391-759-2 01 1 1006- ●
308 PROTECTOR; HEAT,HD COVER
HEATER & DEFROSTER(C41) 		8-98171-339-0 01 1 1006- ●
343 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28080-812-0 05 1 9510-0210 ●
343 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28080-812-0 05 1 0211-0512 ●
343 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28050-812-0 05 1 0601- ●

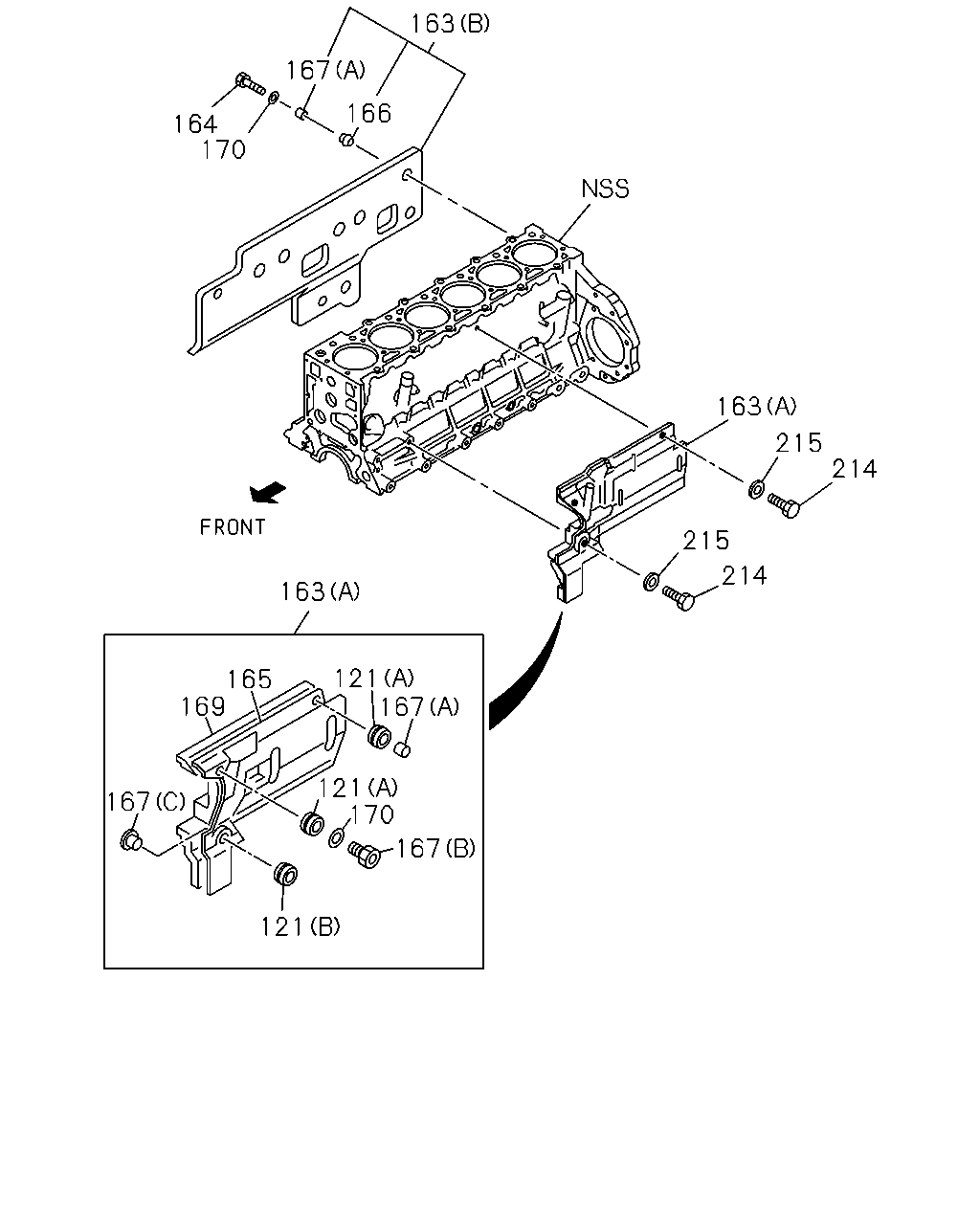

çizim 66755
163 167 166 164 170 163 215 214 215 214 163 121 167 165 169 121 170 167 167 121
BalonParca AdiParca NoAdetTipApplied Date A B
121 RUBBER; MTG,COVER
(A) OD=22 		8-94140-428-1 02 1 0211- ●
121 RUBBER; MTG,COVER
(B) OD=32 		8-94396-221-0 01 1 0211- ●
163 COVER ASM; C/BL SKIRT
(A) 		8-94390-172-0 01 1 0211- ●
163 COVER ASM; C/BL SKIRT
(B) 		8-94395-894-0 01 1 0211- ●
164 BOLT; COVER BLOCK SKIRT
M8X25 FLANGE 		0-28680-825-0 04 1 0211-0512 ●
164 BOLT; COVER BLOCK SKIRT
M8X25 FLANGE 		0-28650-825-0 04 1 0601- ●
165 COVER; C/BL SKIRT 8-94395-694-1 01 1 0211- ●
166 MOUNT; COVER BLOCK SKIRT
OD=22 		8-94140-428-1 04 1 0211- ●
167 TUBE; DIST,SIDE COVER
(A) OD=13 T=9.5 		8-94140-427-1 05 1 0211- ●
167 TUBE; DIST,SIDE COVER
(B) M10 		8-94393-791-2 01 1 0211- ●
167 TUBE; DIST,SIDE COVER
(C) OD=32 W/FLANGE 		8-94397-356-1 01 1 0211- ●
169 INSULATOR; SIDE COVER 8-94390-173-0 01 1 0211- ●
170 WASHER; COVER
ID=8.4 OD=22 		9-09160-708-0 04 1 0211-0605 ●
170 WASHER; COVER
ID=8.4 OD=22 		0-91610-708-0 04 1 0606- ●
170 WASHER; COVER
ID=14 OD=22 		9-47515-014-0 01 1 0211- ●
214 BOLT; NOISE COVER
M10X25 FLANGE 		0-28181-025-0 02 1 0211-0512 ●
214 BOLT; NOISE COVER
M10X25 FLANGE 		0-28151-025-0 02 1 0601- ●
215 WASHER; PL,NOISE COVER
ID=10.5 OD=22 		9-09164-610-0 01 1 0211-0605 ●
215 WASHER; PL,NOISE COVER
ID=10.5 OD=22 		0-91614-610-0 01 1 0606- ●
215 WASHER; PL,NOISE COVER
ID=10.5 OD=32 		9-09164-810-0 01 1 0211-0605 ●
215 WASHER; PL,NOISE COVER
ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ●
