◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11393 - FVZ(INDONESIA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-40 - FUEL TANK ▶

1-40 — FUEL TANK (#19616) — 165 parça

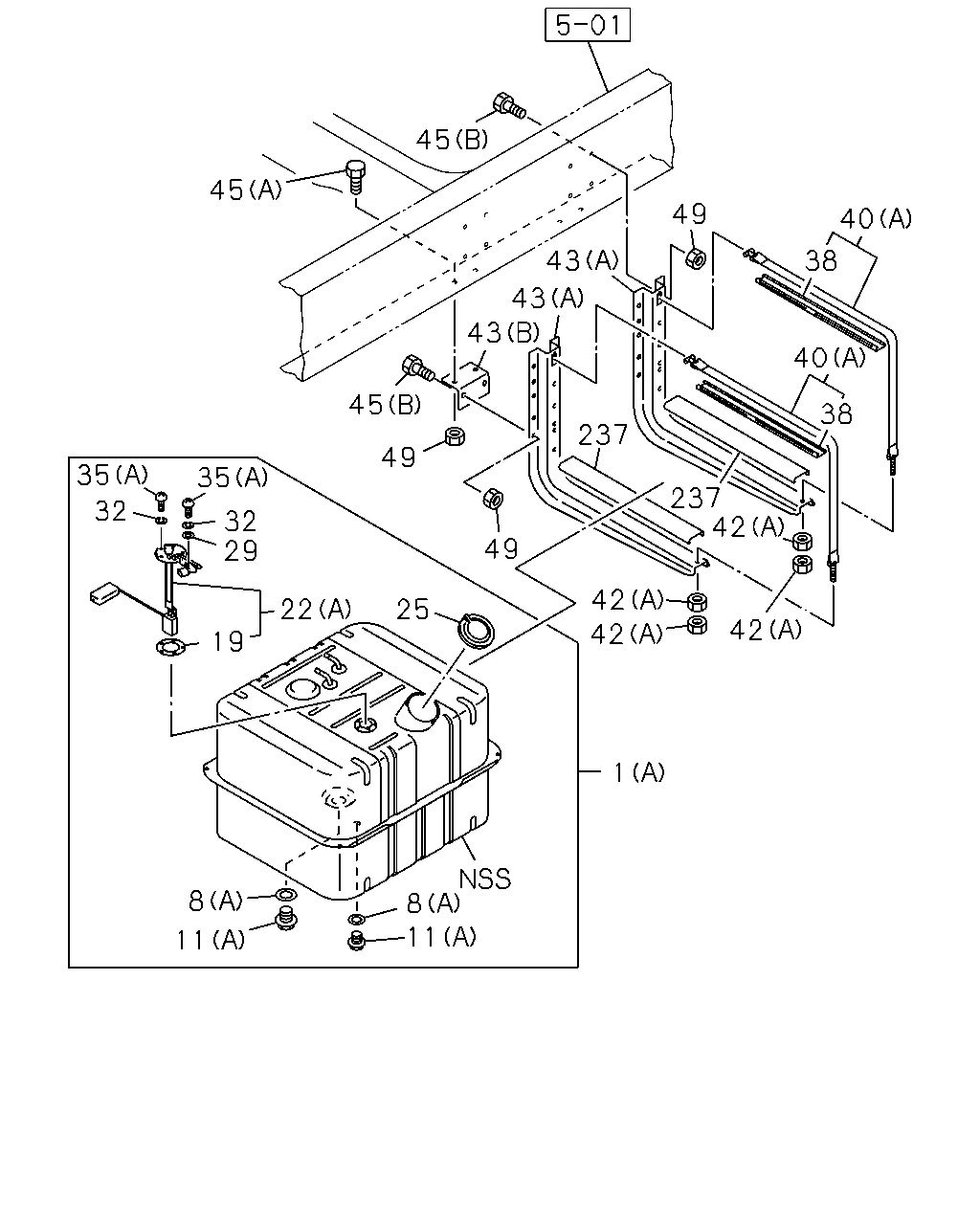

1 11 8 11 8 25 22 19 29 32 35 32 35 45 45 42 42 42 49 237 237 42 38 40 38 40 49 43 43 43 45 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL LOCALLY SUPPLIED PARTS<TKH> (B) 1345X532X322 200L IDN	8-98122-992-3	01	1	1201-
1	TANK; FUEL (A) 720X610X496 200L	8-98182-507-0	01	1	1104-1112
1	TANK; FUEL EXC. LOCALLY SUPPLIED PARTS<TKH> (A) 720X610X496 200L	8-98182-507-0	01	1	1201-1505
1	TANK; FUEL EXC. LOCALLY SUPPLIED PARTS<TKH> (A) 720X610X496 200L	8-98299-286-0	01	1	1506-
8	GASKET; DRAIN PLUG,FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (B) ID=30 IDN	8-98067-041-0	01	1	1201-
8	GASKET; DRAIN PLUG,FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (C) ID=18.2 OD=26.0 IDN	9-09571-418-0	01	1	1201-
8	GASKET; DRAIN PLUG,FUEL TANK (A) ID=14.2 OD=23.0 IDN	9-09572-014-0	02	1	1104-1112
8	GASKET; DRAIN PLUG,FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (A) ID=14.2 OD=23.0 IDN	9-09572-014-0	02	1	1201-
11	PLUG; DRAIN,FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (C) M18X12 IDN	0-92002-418-0	01	1	1201-1504
11	PLUG; DRAIN,FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (C) M18 IDN	8-98068-006-0	01	1	1505-
11	PLUG; DRAIN,FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (B) M30 IDN	8-98067-038-0	01	1	1201-
11	PLUG; DRAIN,FUEL TANK (A) M14X14 IDN	9-09862-156-0	02	1	1104-1112
11	PLUG; DRAIN,FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (A) M14X14 IDN	9-09862-156-0	02	1	1201-
19	GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	1104-
22	UNIT; FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (B) IDN	8-98099-320-0	01	1	1201-
22	UNIT; FUEL TANK (A)	1-83141-124-0	01	1	1104-1112
22	UNIT; FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (A)	1-83141-124-0	01	1	1201-1505
22	UNIT; FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (A)	8-98296-671-0	01	1	1506-
25	CAP; FILLER,FUEL TANK	1-22440-046-1	01	1	1104-1112
25	CAP; FILLER,FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH>	1-22440-046-1	01	1	1201-
29	WASHER; PL,FUEL TANK UNIT ID=5.3	0-91610-505-0	01	1	1104-1112
29	WASHER; PL,FUEL TANK UNIT EXC. LOCALLY SUPPLIED PARTS<TKH> ID=5.3	0-91610-505-0	01	1	1201-
32	WASHER; LK,FUEL TANK UNIT ID=5.1	0-91510-505-0	05	1	1104-1112
32	WASHER; LK,FUEL TANK UNIT EXC. LOCALLY SUPPLIED PARTS<TKH> ID=5.1	0-91510-505-0	05	1	1201-
35	SCREW; FUEL TANK UNIT LOCALLY SUPPLIED PARTS<TKH> (B) M5X12 W/LK WASHER	0-36220-512-0	05	1	1201-
35	SCREW; FUEL TANK UNIT (A) M5X10	0-34218-510-0	05	1	1104-1112
35	SCREW; FUEL TANK UNIT EXC. LOCALLY SUPPLIED PARTS<TKH> (A) M5X10	0-34218-510-0	05	1	1201-
38	INSULATION; SUPPORT BELT L=650	1-22553-022-1	02	1	1104-1112
38	INSULATION; SUPPORT BELT EXC. LOCALLY SUPPLIED PARTS<TKH> L=650	1-22553-022-1	02	1	1201-
40	BELT; SUPPORT,FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (B) L=880 IDN	8-98042-715-1	02	1	1201-
40	BELT; SUPPORT,FUEL TANK (A) L=1030	1-22550-204-2	02	1	1104-1112
40	BELT; SUPPORT,FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (A) L=1030	1-22550-204-2	02	1	1201-
42	NUT; SUPPORT BELT LOCALLY SUPPLIED PARTS<TKH> (B) M12	0-91110-512-0	04	1	1201-
42	NUT; SUPPORT BELT (A) M10	0-91110-510-0	04	1	1104-1112
42	NUT; SUPPORT BELT EXC. LOCALLY SUPPLIED PARTS<TKH> (A) M10	0-91110-510-0	04	1	1201-
43	BRACKET; FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (D) IDN	8-98122-883-0	01	1	1201-
43	BRACKET; FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (A)	8-98202-542-0	02	1	1201-1202
43	BRACKET; FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (A)	8-98185-667-0	02	1	1203-
43	BRACKET; FUEL TANK (B) FRONT	8-98182-492-0	01	1	1104-1112
43	BRACKET; FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (B) FRONT	8-98182-492-0	01	1	1201-
43	BRACKET; FUEL TANK (B) REAR	8-98182-493-0	01	1	1104-1112
43	BRACKET; FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (B) REAR	8-98182-493-0	01	1	1201-
43	BRACKET; FUEL TANK (A)	8-98185-667-0	02	1	1104-1112
43	BRACKET; FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (C) IDN	8-98088-123-0	01	1	1201-
45	BOLT; BRKT,FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (A) M12X40 FLANGE	0-28651-240-0	08	1	1201-
45	BOLT; BRKT,FUEL TANK (A) M12X50 FLANGE	0-28051-250-0	04	1	1104-1112
45	BOLT; BRKT,FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (A) M12X50 FLANGE	0-28051-250-0	04	1	1201-
45	BOLT; BRKT,FUEL TANK (B) M12X35 FLANGE	0-28651-235-0	12	1	1104-1112
45	BOLT; BRKT,FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (B) M12X35 FLANGE	0-28651-235-0	12	1	1201-
49	NUT; BRKT EXC. LOCALLY SUPPLIED PARTS<TKH> M12 FLANGE	0-91180-212-0	16	1	1201-
49	NUT; BRKT M12 FLANGE	0-91180-212-0	16	1	1104-1112
49	NUT; BRKT LOCALLY SUPPLIED PARTS<TKH> M12 FLANGE	0-91180-212-0	08	1	1201-
237	GASKET; BRKT TO FUEL TANK L=580	1-22553-003-0	02	1	1104-1112
237	GASKET; BRKT TO FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> L=580	1-22553-003-0	02	1	1201-

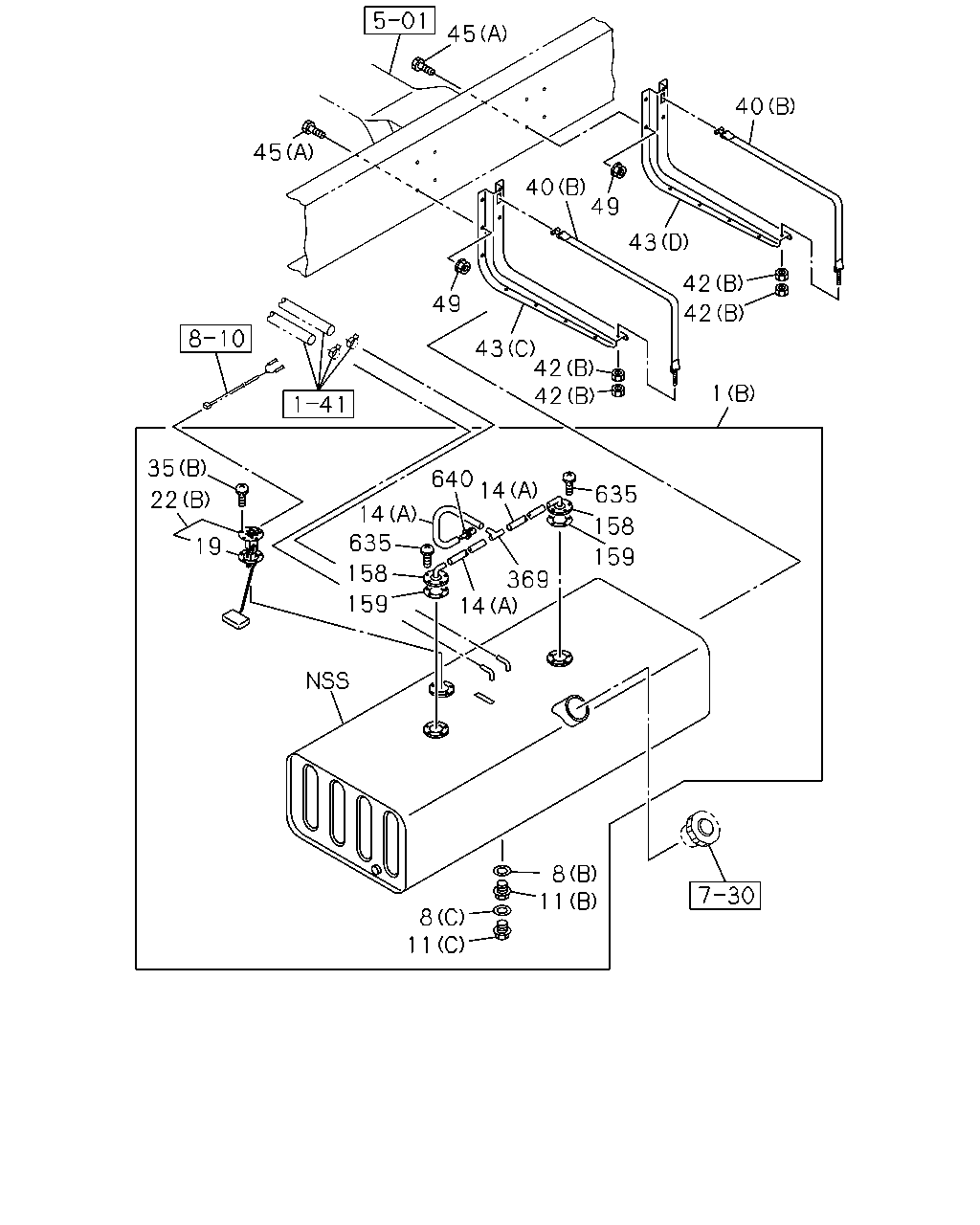

45 45 49 40 43 42 42 1 42 42 43 49 40 640 14 635 158 159 14 369 14 19 22 35 635 159 8 11 158 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL LOCALLY SUPPLIED PARTS<TKH> (B) 1345X532X322 200L IDN	8-98122-992-3	01	1	1201-
1	TANK; FUEL (A) 720X610X496 200L	8-98182-507-0	01	1	1104-1112
1	TANK; FUEL EXC. LOCALLY SUPPLIED PARTS<TKH> (A) 720X610X496 200L	8-98182-507-0	01	1	1201-1505
1	TANK; FUEL EXC. LOCALLY SUPPLIED PARTS<TKH> (A) 720X610X496 200L	8-98299-286-0	01	1	1506-
8	GASKET; DRAIN PLUG,FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (B) ID=30 IDN	8-98067-041-0	01	1	1201-
8	GASKET; DRAIN PLUG,FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (C) ID=18.2 OD=26.0 IDN	9-09571-418-0	01	1	1201-
8	GASKET; DRAIN PLUG,FUEL TANK (A) ID=14.2 OD=23.0 IDN	9-09572-014-0	02	1	1104-1112
8	GASKET; DRAIN PLUG,FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (A) ID=14.2 OD=23.0 IDN	9-09572-014-0	02	1	1201-
11	PLUG; DRAIN,FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (C) M18X12 IDN	0-92002-418-0	01	1	1201-1504
11	PLUG; DRAIN,FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (C) M18 IDN	8-98068-006-0	01	1	1505-
11	PLUG; DRAIN,FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (B) M30 IDN	8-98067-038-0	01	1	1201-
11	PLUG; DRAIN,FUEL TANK (A) M14X14 IDN	9-09862-156-0	02	1	1104-1112
11	PLUG; DRAIN,FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (A) M14X14 IDN	9-09862-156-0	02	1	1201-
14	HOSE; BREATHER,OUTLET LOCALLY SUPPLIED PARTS<TKH> (A) L=90 SERVICED BY L=3000	0-01256-300-0	01	1	1201-1504
14	HOSE; BREATHER,OUTLET LOCALLY SUPPLIED PARTS<TKH> (B) L=430 IDN	8-98131-037-0	01	1	1505-
14	HOSE; BREATHER,OUTLET LOCALLY SUPPLIED PARTS<TKH> (A) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	1201-1504
14	HOSE; BREATHER,OUTLET LOCALLY SUPPLIED PARTS<TKH> (D) L=460 IDN	8-98304-414-0	01	1	1505-
14	HOSE; BREATHER,OUTLET LOCALLY SUPPLIED PARTS<TKH> (A) L=450 SERVICED BY L=3000	0-01256-300-0	01	1	1201-1504
14	HOSE; BREATHER,OUTLET LOCALLY SUPPLIED PARTS<TKH> (C) L=90 IDN	8-98304-415-0	01	1	1505-
19	GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	1104-
22	UNIT; FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (B) IDN	8-98099-320-0	01	1	1201-
22	UNIT; FUEL TANK (A)	1-83141-124-0	01	1	1104-1112
22	UNIT; FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (A)	1-83141-124-0	01	1	1201-1505
22	UNIT; FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (A)	8-98296-671-0	01	1	1506-
35	SCREW; FUEL TANK UNIT LOCALLY SUPPLIED PARTS<TKH> (B) M5X12 W/LK WASHER	0-36220-512-0	05	1	1201-
35	SCREW; FUEL TANK UNIT (A) M5X10	0-34218-510-0	05	1	1104-1112
35	SCREW; FUEL TANK UNIT EXC. LOCALLY SUPPLIED PARTS<TKH> (A) M5X10	0-34218-510-0	05	1	1201-
40	BELT; SUPPORT,FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (B) L=880 IDN	8-98042-715-1	02	1	1201-
40	BELT; SUPPORT,FUEL TANK (A) L=1030	1-22550-204-2	02	1	1104-1112
40	BELT; SUPPORT,FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (A) L=1030	1-22550-204-2	02	1	1201-
42	NUT; SUPPORT BELT LOCALLY SUPPLIED PARTS<TKH> (B) M12	0-91110-512-0	04	1	1201-
42	NUT; SUPPORT BELT (A) M10	0-91110-510-0	04	1	1104-1112
42	NUT; SUPPORT BELT EXC. LOCALLY SUPPLIED PARTS<TKH> (A) M10	0-91110-510-0	04	1	1201-
43	BRACKET; FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (D) IDN	8-98122-883-0	01	1	1201-
43	BRACKET; FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (A)	8-98202-542-0	02	1	1201-1202
43	BRACKET; FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (A)	8-98185-667-0	02	1	1203-
43	BRACKET; FUEL TANK (B) FRONT	8-98182-492-0	01	1	1104-1112
43	BRACKET; FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (B) FRONT	8-98182-492-0	01	1	1201-
43	BRACKET; FUEL TANK (B) REAR	8-98182-493-0	01	1	1104-1112
43	BRACKET; FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (B) REAR	8-98182-493-0	01	1	1201-
43	BRACKET; FUEL TANK (A)	8-98185-667-0	02	1	1104-1112
43	BRACKET; FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (C) IDN	8-98088-123-0	01	1	1201-
45	BOLT; BRKT,FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (A) M12X40 FLANGE	0-28651-240-0	08	1	1201-
45	BOLT; BRKT,FUEL TANK (A) M12X50 FLANGE	0-28051-250-0	04	1	1104-1112
45	BOLT; BRKT,FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (A) M12X50 FLANGE	0-28051-250-0	04	1	1201-
45	BOLT; BRKT,FUEL TANK (B) M12X35 FLANGE	0-28651-235-0	12	1	1104-1112
45	BOLT; BRKT,FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (B) M12X35 FLANGE	0-28651-235-0	12	1	1201-
49	NUT; BRKT EXC. LOCALLY SUPPLIED PARTS<TKH> M12 FLANGE	0-91180-212-0	16	1	1201-
49	NUT; BRKT M12 FLANGE	0-91180-212-0	16	1	1104-1112
49	NUT; BRKT LOCALLY SUPPLIED PARTS<TKH> M12 FLANGE	0-91180-212-0	08	1	1201-
158	VALVE; ROLL OVER & FLOAT LOCALLY SUPPLIED PARTS<TKH> IDN	8-98067-039-0	02	1	1201-
159	SEAL; ROLL OVER & FLOAT VALVE LOCALLY SUPPLIED PARTS<TKH> ID=45 OD=67 IDN	1-83149-003-0	02	1	1201-
369	JOINT; HOSE LOCALLY SUPPLIED PARTS<TKH> IDN	8-98067-080-0	01	1	1201-
635	SCREW; ROLL OVER & FLOAT VALVE LOCALLY SUPPLIED PARTS<TKH> M5X12 W/LK WASHER	0-36220-512-0	10	1	1201-
640	VENTILATOR; HOSE,BREATHER LOCALLY SUPPLIED PARTS<TKH> IDN	8-98092-398-0	01	1	1201-

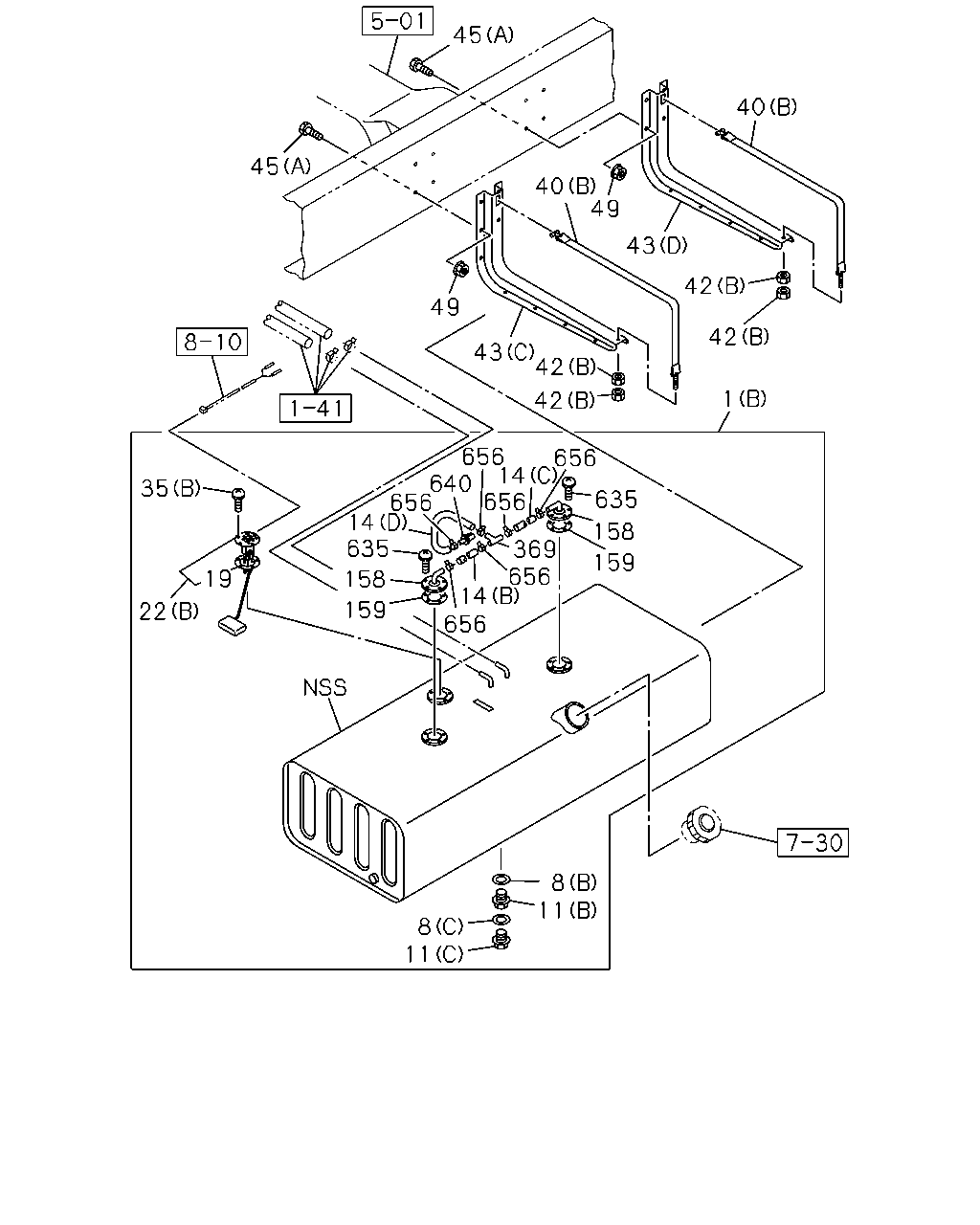

45 40 43 49 42 42 1 42 42 43 49 45 35 22 40 19 8 11 11 159 8 656 158 14 635 656 14 369 656 640 656 656 14 635 656 158 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL LOCALLY SUPPLIED PARTS<TKH> (B) 1345X532X322 200L IDN	8-98122-992-3	01	1	1201-
1	TANK; FUEL (A) 720X610X496 200L	8-98182-507-0	01	1	1104-1112
1	TANK; FUEL EXC. LOCALLY SUPPLIED PARTS<TKH> (A) 720X610X496 200L	8-98182-507-0	01	1	1201-1505
1	TANK; FUEL EXC. LOCALLY SUPPLIED PARTS<TKH> (A) 720X610X496 200L	8-98299-286-0	01	1	1506-
8	GASKET; DRAIN PLUG,FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (B) ID=30 IDN	8-98067-041-0	01	1	1201-
8	GASKET; DRAIN PLUG,FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (C) ID=18.2 OD=26.0 IDN	9-09571-418-0	01	1	1201-
8	GASKET; DRAIN PLUG,FUEL TANK (A) ID=14.2 OD=23.0 IDN	9-09572-014-0	02	1	1104-1112
8	GASKET; DRAIN PLUG,FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (A) ID=14.2 OD=23.0 IDN	9-09572-014-0	02	1	1201-
11	PLUG; DRAIN,FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (C) M18X12 IDN	0-92002-418-0	01	1	1201-1504
11	PLUG; DRAIN,FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (C) M18 IDN	8-98068-006-0	01	1	1505-
11	PLUG; DRAIN,FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (B) M30 IDN	8-98067-038-0	01	1	1201-
11	PLUG; DRAIN,FUEL TANK (A) M14X14 IDN	9-09862-156-0	02	1	1104-1112
11	PLUG; DRAIN,FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (A) M14X14 IDN	9-09862-156-0	02	1	1201-
14	HOSE; BREATHER,OUTLET LOCALLY SUPPLIED PARTS<TKH> (A) L=90 SERVICED BY L=3000	0-01256-300-0	01	1	1201-1504
14	HOSE; BREATHER,OUTLET LOCALLY SUPPLIED PARTS<TKH> (B) L=430 IDN	8-98131-037-0	01	1	1505-
14	HOSE; BREATHER,OUTLET LOCALLY SUPPLIED PARTS<TKH> (A) L=440 SERVICED BY L=3000	0-01256-300-0	01	1	1201-1504
14	HOSE; BREATHER,OUTLET LOCALLY SUPPLIED PARTS<TKH> (D) L=460 IDN	8-98304-414-0	01	1	1505-
14	HOSE; BREATHER,OUTLET LOCALLY SUPPLIED PARTS<TKH> (A) L=450 SERVICED BY L=3000	0-01256-300-0	01	1	1201-1504
14	HOSE; BREATHER,OUTLET LOCALLY SUPPLIED PARTS<TKH> (C) L=90 IDN	8-98304-415-0	01	1	1505-
19	GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	1104-
22	UNIT; FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (B) IDN	8-98099-320-0	01	1	1201-
22	UNIT; FUEL TANK (A)	1-83141-124-0	01	1	1104-1112
22	UNIT; FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (A)	1-83141-124-0	01	1	1201-1505
22	UNIT; FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (A)	8-98296-671-0	01	1	1506-
35	SCREW; FUEL TANK UNIT LOCALLY SUPPLIED PARTS<TKH> (B) M5X12 W/LK WASHER	0-36220-512-0	05	1	1201-
35	SCREW; FUEL TANK UNIT (A) M5X10	0-34218-510-0	05	1	1104-1112
35	SCREW; FUEL TANK UNIT EXC. LOCALLY SUPPLIED PARTS<TKH> (A) M5X10	0-34218-510-0	05	1	1201-
40	BELT; SUPPORT,FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (B) L=880 IDN	8-98042-715-1	02	1	1201-
40	BELT; SUPPORT,FUEL TANK (A) L=1030	1-22550-204-2	02	1	1104-1112
40	BELT; SUPPORT,FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (A) L=1030	1-22550-204-2	02	1	1201-
42	NUT; SUPPORT BELT LOCALLY SUPPLIED PARTS<TKH> (B) M12	0-91110-512-0	04	1	1201-
42	NUT; SUPPORT BELT (A) M10	0-91110-510-0	04	1	1104-1112
42	NUT; SUPPORT BELT EXC. LOCALLY SUPPLIED PARTS<TKH> (A) M10	0-91110-510-0	04	1	1201-
43	BRACKET; FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (D) IDN	8-98122-883-0	01	1	1201-
43	BRACKET; FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (A)	8-98202-542-0	02	1	1201-1202
43	BRACKET; FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (A)	8-98185-667-0	02	1	1203-
43	BRACKET; FUEL TANK (B) FRONT	8-98182-492-0	01	1	1104-1112
43	BRACKET; FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (B) FRONT	8-98182-492-0	01	1	1201-
43	BRACKET; FUEL TANK (B) REAR	8-98182-493-0	01	1	1104-1112
43	BRACKET; FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (B) REAR	8-98182-493-0	01	1	1201-
43	BRACKET; FUEL TANK (A)	8-98185-667-0	02	1	1104-1112
43	BRACKET; FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (C) IDN	8-98088-123-0	01	1	1201-
45	BOLT; BRKT,FUEL TANK LOCALLY SUPPLIED PARTS<TKH> (A) M12X40 FLANGE	0-28651-240-0	08	1	1201-
45	BOLT; BRKT,FUEL TANK (A) M12X50 FLANGE	0-28051-250-0	04	1	1104-1112
45	BOLT; BRKT,FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (A) M12X50 FLANGE	0-28051-250-0	04	1	1201-
45	BOLT; BRKT,FUEL TANK (B) M12X35 FLANGE	0-28651-235-0	12	1	1104-1112
45	BOLT; BRKT,FUEL TANK EXC. LOCALLY SUPPLIED PARTS<TKH> (B) M12X35 FLANGE	0-28651-235-0	12	1	1201-
49	NUT; BRKT EXC. LOCALLY SUPPLIED PARTS<TKH> M12 FLANGE	0-91180-212-0	16	1	1201-
49	NUT; BRKT M12 FLANGE	0-91180-212-0	16	1	1104-1112
49	NUT; BRKT LOCALLY SUPPLIED PARTS<TKH> M12 FLANGE	0-91180-212-0	08	1	1201-
158	VALVE; ROLL OVER & FLOAT LOCALLY SUPPLIED PARTS<TKH> IDN	8-98067-039-0	02	1	1201-
159	SEAL; ROLL OVER & FLOAT VALVE LOCALLY SUPPLIED PARTS<TKH> ID=45 OD=67 IDN	1-83149-003-0	02	1	1201-
369	JOINT; HOSE LOCALLY SUPPLIED PARTS<TKH> IDN	8-98067-080-0	01	1	1201-
635	SCREW; ROLL OVER & FLOAT VALVE LOCALLY SUPPLIED PARTS<TKH> M5X12 W/LK WASHER	0-36220-512-0	10	1	1201-
640	VENTILATOR; HOSE,BREATHER LOCALLY SUPPLIED PARTS<TKH> IDN	8-98092-398-0	01	1	1201-
656	CLAMP; FUEL TANK LOCALLY SUPPLIED PARTS<TKH> IDN	8-98304-416-0	06	1	1505-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
