◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11330 - CYZ MIDDLE EAST WITH 2STEPS ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#19614) — 111 parça

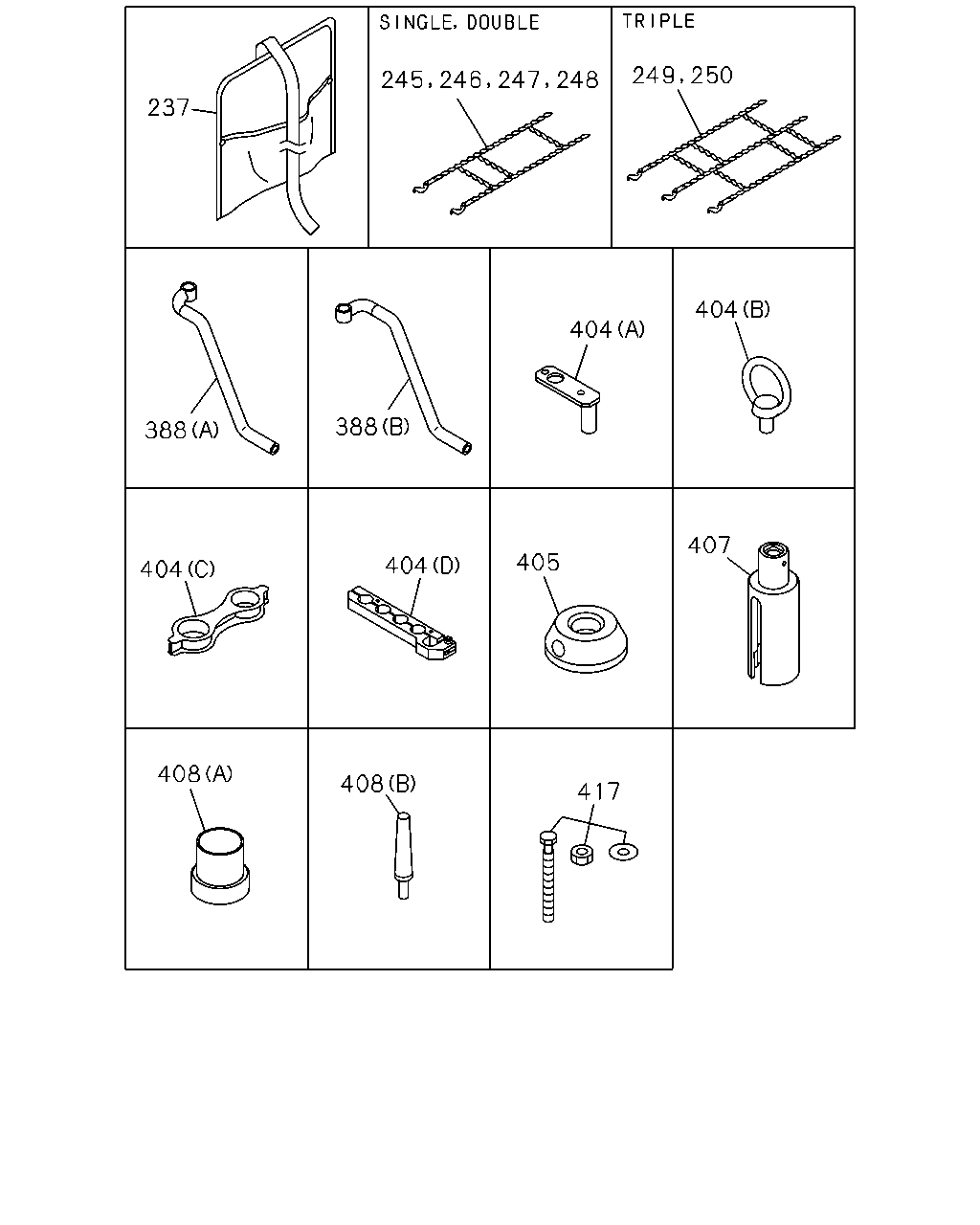

çizim 134521
237 404 404 388 388 407 405 404 404 408 408 417 245 246 247 248 249 250
BalonParca AdiParca NoAdetTipApplied Date A B
237 BAG; TOOL
TOOL B KIT<SL1> 		8-97130-902-1 01 1 0706- ● ●
245 CHAIN; TIRE,SINGLE
9.00-20 SINGLE TYPE 		9-85591-254-0 AR 1 0706- ● ●
246 CHAIN; TIRE,1000-20,SINGLE
10.00-20 SINGLE TYPE 		9-85591-239-0 AR 1 0706- ● ●
246 CHAIN; TIRE,1000-20,SINGLE
11.00-20 SINGLE TYPE 		9-85591-259-0 AR 1 0706- ● ●
247 CHAIN; TIRE,750-20,DOUBLE
9.00-20 DOUBLE TYPE 		9-85591-255-0 AR 1 0706- ● ●
248 CHAIN; TIRE,1000-20,DOUBLE
10.00-20 DOUBLE TYPE 		9-85591-240-0 AR 1 0706- ● ●
248 CHAIN; TIRE,1000-20,DOUBLE
11.00-20 DOUBLE TYPE 		9-85591-260-0 AR 1 0706- ● ●
249 CHAIN; TIRE,TRIPLE
9.00-20 TRIPLE TYPE 		9-85591-256-0 AR 1 0706- ● ●
250 CHAIN; TIRE,1000-20,TRIPLE
10.00-20 TRIPLE TYPE 		9-85591-241-0 AR 1 0706- ● ●
250 CHAIN; TIRE,1000-20,TRIPLE
11.00-20 TRIPLE TYPE 		9-85591-261-0 AR 1 0706- ● ●
388 WRENCH; U-BOLT
(A) 		9-85111-954-0 01 1 0706- ● ●
388 WRENCH; U-BOLT
(B) 		9-85111-955-0 01 1 0706- ● ●
404 TOOL; SETTING,MAIN COUNTER
MJT7 M/T<Y9E> (A) 		1-85221-257-0 01 1 0902- ●
404 TOOL; SETTING,MAIN COUNTER
MJT7 M/T<Y9E> (C) 		1-85221-259-0 01 1 0902- ●
404 TOOL; SETTING,MAIN COUNTER
MJT7 M/T<Y9E> (D) 		1-85221-260-0 01 1 0902- ●
404 TOOL; SETTING,MAIN COUNTER
MJT7 M/T<Y9E> (B) 		1-85221-262-0 02 1 0902- ●
405 GUIDE; COUNTER
MJT7 M/T<Y9E> 		1-85221-264-0 01 1 0902- ●
407 SOCKET; SW
MJT7 M/T<Y9E> 		1-85221-267-1 01 1 0902- ●
408 TOOL; SETTING,SHIFT ASSISTER
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-85221-268-0 01 1 0812- ● ●
408 TOOL; SETTING,SHIFT ASSISTER
ASSISTOR SHIFT CONTROL<WX8> (B) 		1-85221-269-0 01 1 0812- ● ●
417 BOLT; CHAMBER RELEASE
1/2-13 UNC L=124 4-SETS 		1-85576-331-1 01 1 0706- ● ●

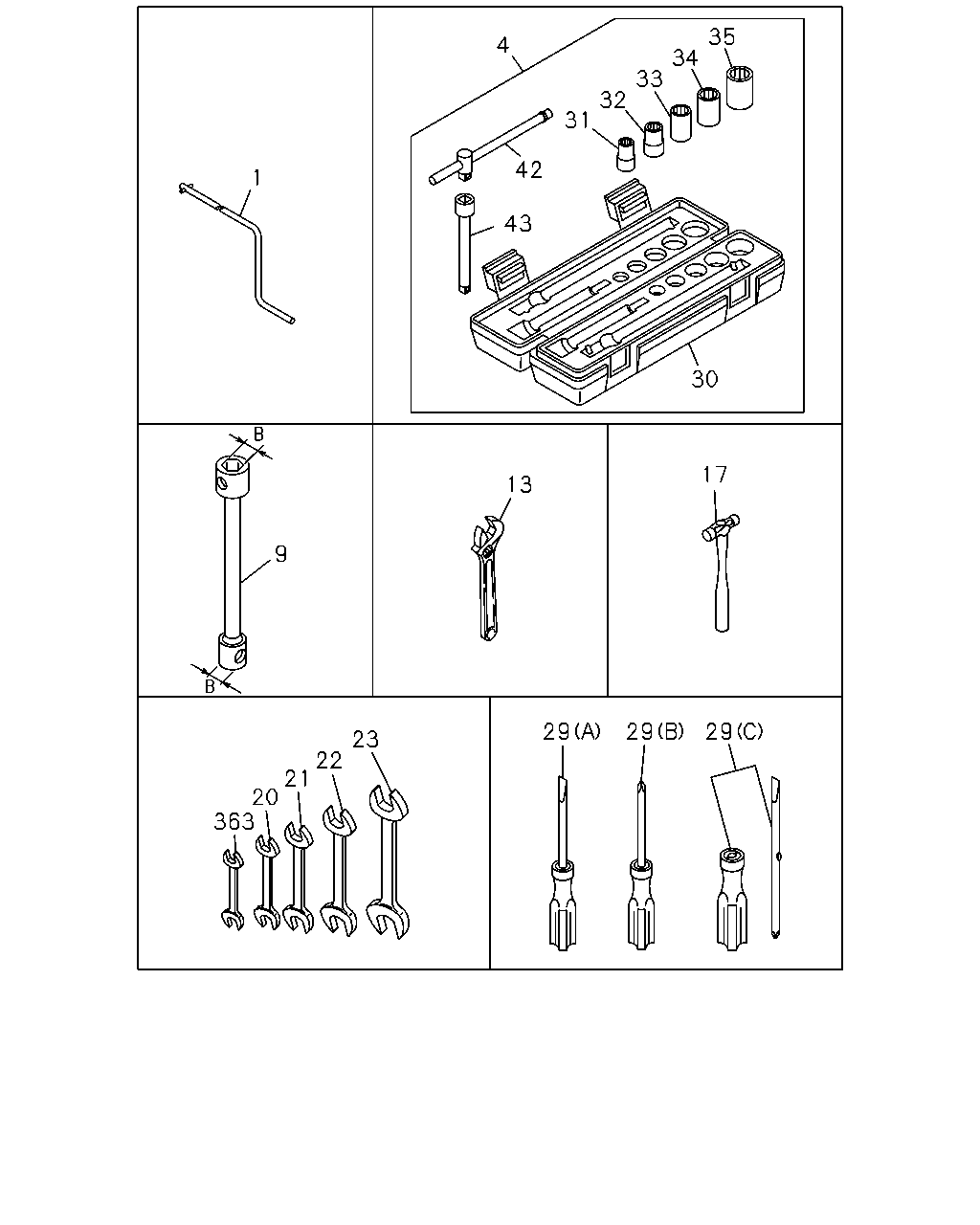

çizim 134523
35 34 33 32 4 31 42 1 43 30 17 13 9 29 29 29 23 22 21 20 363
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		9-23110-018-0 01 1 0706-0708 ●
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10> 		9-23110-018-0 01 1 0706-0708 ●
1 HANDLE; SPARE TIRE CARRIER 9-23110-018-0 01 1 0709-0810 ●
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10> 		9-23110-018-0 01 1 0709-0810 ●
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		9-23110-018-0 01 1 0811- ●
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10> 		9-23110-018-0 01 1 0811- ●
4 WRENCH KIT; SOCKET
TOOL B KIT<SL1> 		1-85000-491-0 01 1 0706- ● ●
9 WRENCH; WHEEL PIN
TOOL B KIT<SL1> B=33X30 L=450 		1-85111-033-1 01 1 0706- ● ●
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=255 		1-85117-002-1 01 1 0706-0907 ● ●
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=247 		1-85117-006-0 01 1 0908-1407 ● ●
13 WRENCH; MONKEY
TOOL B KIT<SL1> L=255 		8-98270-303-0 01 1 1408- ● ●
17 HAMMER
TOOL B KIT<SL1> 		9-85121-406-0 01 1 0706- ● ●
20 WRENCH; 10X12
TOOL B KIT<SL1> 10X12 		0-95902-510-0 01 1 0706- ● ●
21 WRENCH; 14X17
TOOL B KIT<SL1> 14X17 		0-95902-514-0 01 1 0706- ● ●
22 WRENCH; 19X22
TOOL B KIT<SL1> 19X22 		0-95902-519-0 01 1 0706- ● ●
23 WRENCH; 24X27
TOOL B KIT<SL1> 24X27 		0-95902-524-0 01 1 0706- ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (A) <-> L=285 		1-85151-004-0 01 1 0706- ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (C) <+>,<-> L=160 		8-94242-798-1 01 1 0706- ● ●
29 DRIVER; SCREW
TOOL B KIT<SL1> (B) <+> L=275 		9-09595-023-0 01 1 0706- ● ●
30 BOX; SOCKET WRENCH
TOOL B KIT<SL1> 		1-85000-492-0 01 1 0706- ● ●
31 WRENCH; 12
TOOL B KIT<SL1> 		1-85000-495-0 01 1 0706- ● ●
32 WRENCH; 14
TOOL B KIT<SL1> 		1-85000-496-0 01 1 0706- ● ●
33 WRENCH; 17
TOOL B KIT<SL1> 		1-85000-497-0 01 1 0706- ● ●
34 WRENCH; 19
TOOL B KIT<SL1> 		1-85000-498-0 01 1 0706- ● ●
35 WRENCH; 22
TOOL B KIT<SL1> 		1-85000-499-0 01 1 0706- ● ●
42 HANDLE; SLIDING
TOOL B KIT<SL1> 		1-85000-500-0 01 1 0706- ● ●
43 BAR; EXTENSION,SOCKET WRENCH
TOOL B KIT<SL1> 		1-85000-501-0 01 1 0706- ● ●
363 WRENCH; OPEN END 8X10
TOOL B KIT<SL1> 8X10 		0-95902-508-0 01 1 0706- ● ●

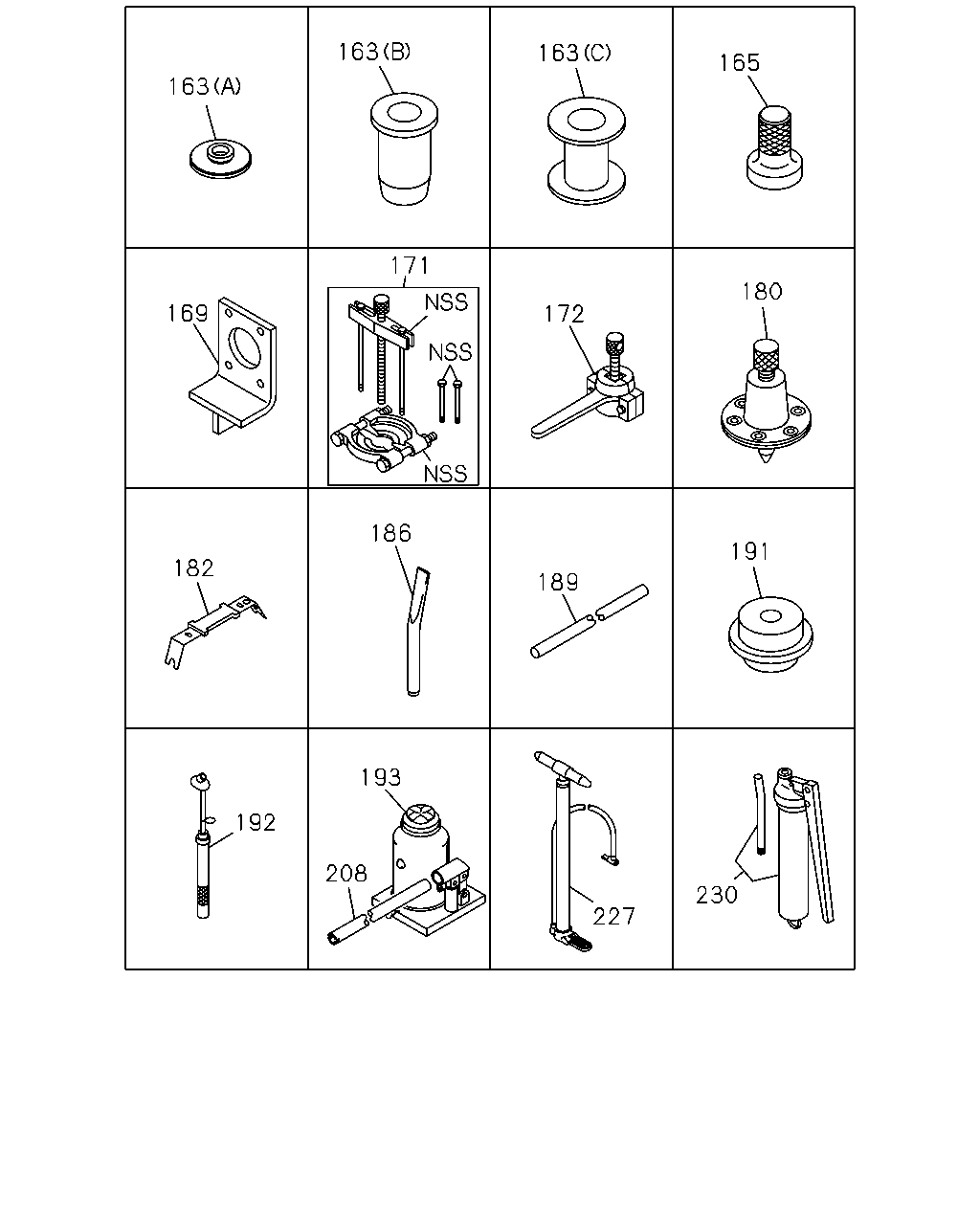

çizim 134528
163 163 163 165 169 171 172 180 191 189 186 182 192 193 208 227 230
BalonParca AdiParca NoAdetTipApplied Date A B
163 TOOL; SETTING
(B) L=195 		1-85221-162-1 01 1 0706- ● ●
163 TOOL; SETTING
(C) L=150 		1-85221-163-0 01 1 0706- ● ●
163 TOOL; SETTING
MJT7 M/T<Y9E> (A) OD=150 		1-85221-167-0 01 1 0902- ●
165 SETTING TOOL; PTO
MJT7 M/T<Y9E> TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-85221-177-0 01 1 0902- ●
169 BRACKET; SPLINE YOKE 1-85221-317-0 01 1 0706- ● ●
171 PULLER ASM; PINION BRG 9-85210-152-0 01 1 0706- ● ●
172 PULLER ASM; BRG DIFF PILOT 9-85210-182-0 01 1 0706- ● ●
180 PULLER; FRT & RR HUB 1-85210-002-0 01 1 0706- ● ●
182 REMOVER ASM 1-85239-008-0 01 1 0706- ● ●
186 ADJUSTER; BRAKE 1-85269-008-0 01 1 0706- ● ●
189 TUBE; AIR BREATHER
TOOL B KIT<SL1> L=460 		9-85291-414-0 01 1 0706- ● ●
191 ADAPTER 1-85216-009-0 01 1 0706- ● ●
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 0706- ● ●
193 JACK ASM
TOOL B KIT<SL1> 15TON 		1-85510-019-2 01 1 0706- ● ●
208 HANDLE; JACK
L=600 		1-85515-009-0 01 1 0706-1107 ● ●
208 HANDLE; JACK
L=600 		8-98181-437-0 01 1 1108- ● ●
227 PUMP ASM; TIRE 9-85521-132-0 01 1 0706- ● ●
230 PUMP; GREASE
TOOL B KIT<SL1> 		1-85556-007-5 01 1 0706- ● ●
çizim 134531
162 162 161 160 153 154 156 158 151 146 145 144 12 141 130 135 143
BalonParca AdiParca NoAdetTipApplied Date A B
12 HANDLE; WRENCH,WHEEL PIN
TOOL B KIT<SL1> OD=25 L=480 		1-85116-011-0 01 1 0706-1501 ● ●
12 HANDLE; WRENCH,WHEEL PIN
TOOL B KIT<SL1> OD=25 L=480 		8-98257-407-0 01 1 1502- ● ●
130 WRENCH; BOX
B=63 		9-85111-368-0 01 1 0706- ● ●
135 COVER; ENG MTG,FRT 9-85595-016-0 02 1 0706- ● ●
141 HANDLE; WRENCH
OD=25 L=480 		1-85116-011-0 01 1 0706-1501 ● ●
141 HANDLE; WRENCH
OD=25 L=480 		8-98257-407-0 01 1 1502- ● ●
141 HANDLE; WRENCH
OD=16 L=200 		9-85111-934-0 01 1 0706- ● ●
143 GUIDE; BOOT,TIE ROD END 1-85229-013-0 01 1 0706- ● ●
144 BASE; BOOT GUIDE,TIE ROD END 1-85229-009-0 01 1 0706- ● ●
145 REPLACER ASM; BUSHING 1-85230-008-0 01 1 0706- ● ●
146 REPLACER KIT; LEAF SPR 9-85231-556-0 01 1 0706- ● ●
151 REMOVER; OIL BRK,FRT RETURN SPR
ID=16 		1-85237-002-0 01 1 0706- ● ●
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 0706- ● ●
154 SLEEPER; KING PIN 1-85238-003-0 01 1 0706- ● ●
156 PULLER; ANCHOR PIN 1-85210-025-0 01 1 0706- ● ●
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 0706- ● ●
160 REMOVER; NEEDLE BRG
L=220 		1-85238-001-0 01 1 0706- ● ●
161 REMOVER; TIE ROD ARM 1-85176-001-0 01 1 0706- ● ●
162 SETTING TOOL; NEEDLE BRG
(A) L=181 		1-85238-008-0 01 1 0706- ● ●
162 SETTING TOOL; NEEDLE BRG
(B) L=213 		1-85238-009-0 01 1 0706- ● ●

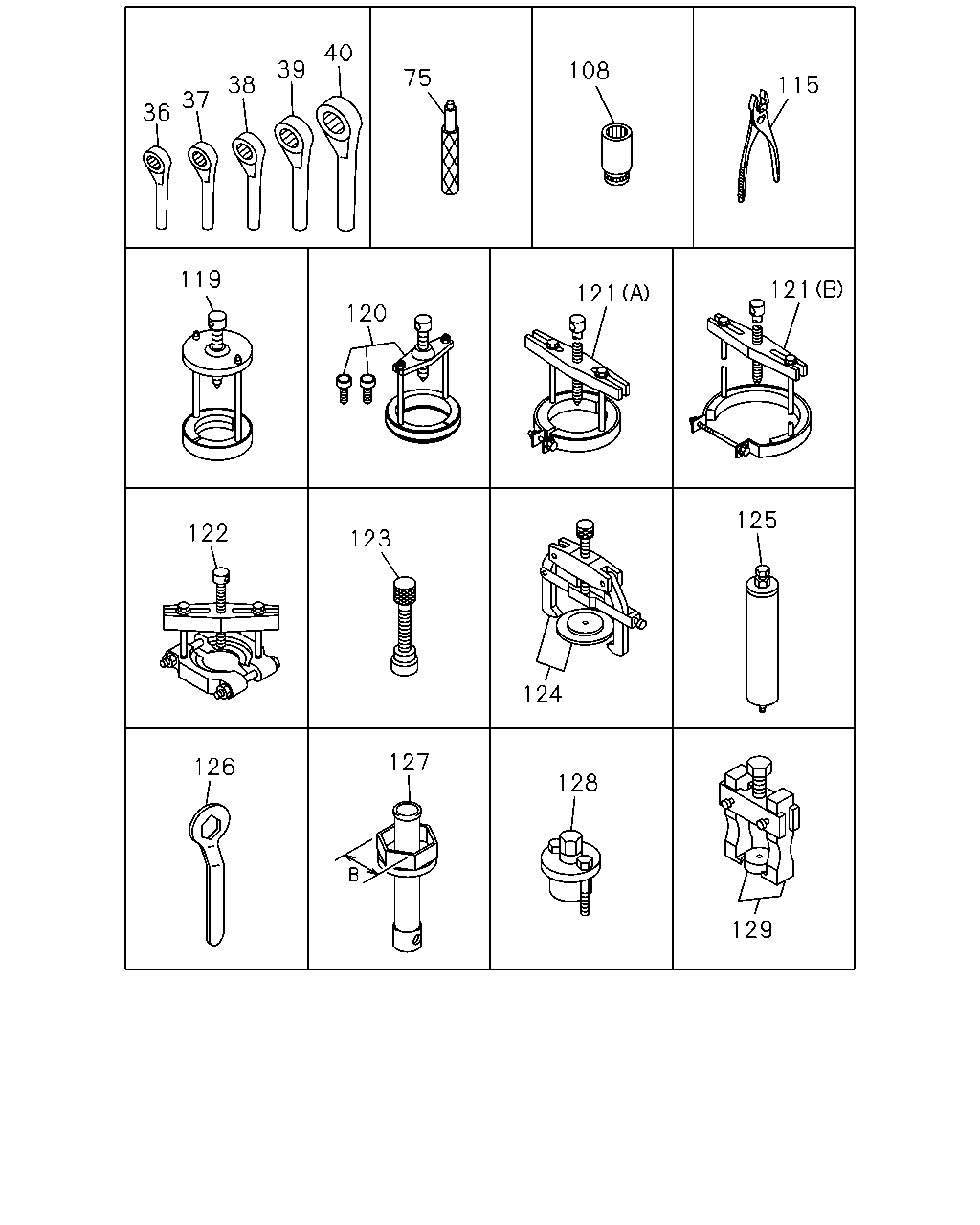

çizim 134544
40 39 108 75 38 115 37 36 119 121 121 120 125 122 123 124 127 126 128 129
BalonParca AdiParca NoAdetTipApplied Date A B
36 WRENCH; 24 9-85111-377-0 01 1 0706- ● ●
37 WRENCH; 27 9-85111-375-0 01 1 0706- ● ●
38 WRENCH; 32 9-85111-358-0 01 1 0706- ● ●
39 WRENCH; 36 9-85111-374-0 01 1 0706- ● ●
40 WRENCH; 41 9-85111-356-0 01 1 0706- ● ●
75 TOOL; SETTING,OIL SEAL 1-85221-096-0 01 1 0706- ● ●
108 WRENCH; SOCKET 9-85113-132-0 01 1 0706- ● ●
115 PLIER
TOOL B KIT<SL1> 		5-85171-002-0 01 1 0706-1410 ● ●
115 PLIER
TOOL B KIT<SL1> 		8-98282-845-0 01 1 1411- ● ●
119 PULLER ASM; TOP GEAR BRG
L=235 		9-85210-190-0 01 1 0706-0901 ● ●
119 PULLER ASM; TOP GEAR BRG
MAL6 M/T<X9G> L=235 		9-85210-190-0 01 1 0902- ●
119 PULLER ASM; TOP GEAR BRG
L=235 		9-85210-190-0 01 1 0902- ●
120 PULLER ASM; MAIN REAR BRG
L=285 		9-85210-184-0 01 1 0706- ● ●
121 PULLER ASM; COUNTER REAR
MJT7 M/T<Y9E> (B) 		1-85210-069-0 01 1 0902- ●
121 PULLER ASM; COUNTER REAR
MJT7 M/T<Y9E> (A) OD=146 		1-85210-074-0 01 1 0902- ●
122 PULLER ASM; COUNTER FRT 9-85210-195-0 01 1 0706- ● ●
123 PULLER; SPEEDOMETER BUSHING 9-85210-091-0 01 1 0706- ● ●
124 PULLER ASM; BRG DIFF 9-85210-131-0 01 1 0706- ● ●
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 0706- ● ●
126 WRENCH; FRT HUB BRG NUT
L=350 B=75 		1-85110-002-1 01 1 0706- ● ●
127 WRENCH ASM; HUB BRG NUT
L=400 B=116 		9-85113-524-0 01 1 0706-0808 ● ●
127 WRENCH ASM; HUB BRG NUT
L=400 B=116 		8-98119-000-1 01 1 0809- ● ●
128 PULLER ASM; STRG WHEEL 1-85210-078-0 01 1 0706- ● ●
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 0706- ● ●
