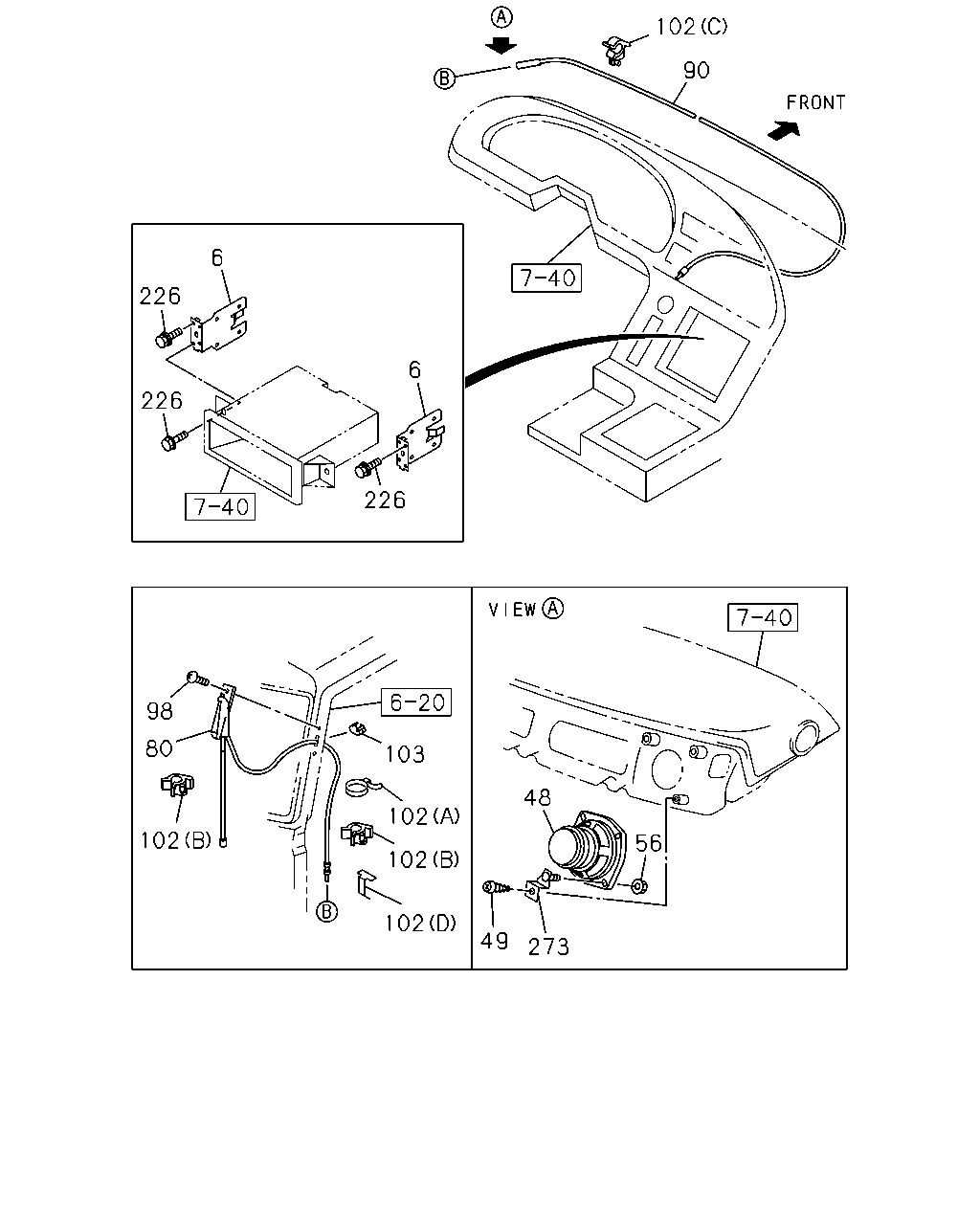

8-90 — RADIO AND TV (#19613) — 16 parça

226 6 6 226 226 98 80 102 102 102 102 103 48 56 49 273 102 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	BRACKET; RADIO TO PANEL	1-65671-822-1	02	1	0706-	●	●
48	SPEAKER; AUDIO SPEAKER SYSTEM FRT 2 SPEAKERS<UX6>	1-84114-073-0	02	1	0706-0905	●	●
48	SPEAKER; AUDIO SPEAKER SYSTEM FRT 2 SPEAKERS<UX6>	8-98140-326-1	02	1	0906-	●	●
49	SCREW; SPEAKER M5X14	8-94279-325-0	06	1	0706-	●	●
56	NUT; SPEAKER,RADIO OR STEREO SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE	1-09984-170-0	02	1	0706-	●	●
80	ANTENNA ANTENNA RADIO<U73>	1-84115-055-2	01	1	0706-1203	●	●
80	ANTENNA ANTENNA RADIO<U73>	8-98210-874-1	01	1	1204-	●	●
90	CABLE; ANTENNA,FEEDER ANTENNA RADIO<U73>	1-84113-011-2	01	1	0706-	●	●
98	SCREW; TAP,ANTENNA M5X11	1-09981-536-1	02	1	0706-	●	●
102	CLIP; CABLE ANTENNA RADIO<U73> (D) L=20 SET=10 PIECE	1-09987-246-2	01	1	1410-	●	●
102	CLIP; CABLE ANTENNA RADIO<U73> (B) W/PACKING ID=4.8	1-73907-618-0	05	1	0706-	●	●
102	CLIP; CABLE ANTENNA RADIO<U73> (A) L=140	5-09707-031-1	01	1	0706-	●	●
102	CLIP; CABLE ANTENNA RADIO<U73> (C) WO/PACKING ID=4.8	8-94128-483-0	02	1	0706-	●	●
103	GROMMET; ANTENNA HOLE,FRT ANTENNA RADIO<U73>	8-97027-381-0	01	1	0706-	●	●
226	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0706-	●	●
273	BRACKET; SPEAKER	1-65671-788-0	02	1	0706-	●	●
