6-47 — MUD GUARD AND INSULATOR (#1961) — 94 parça

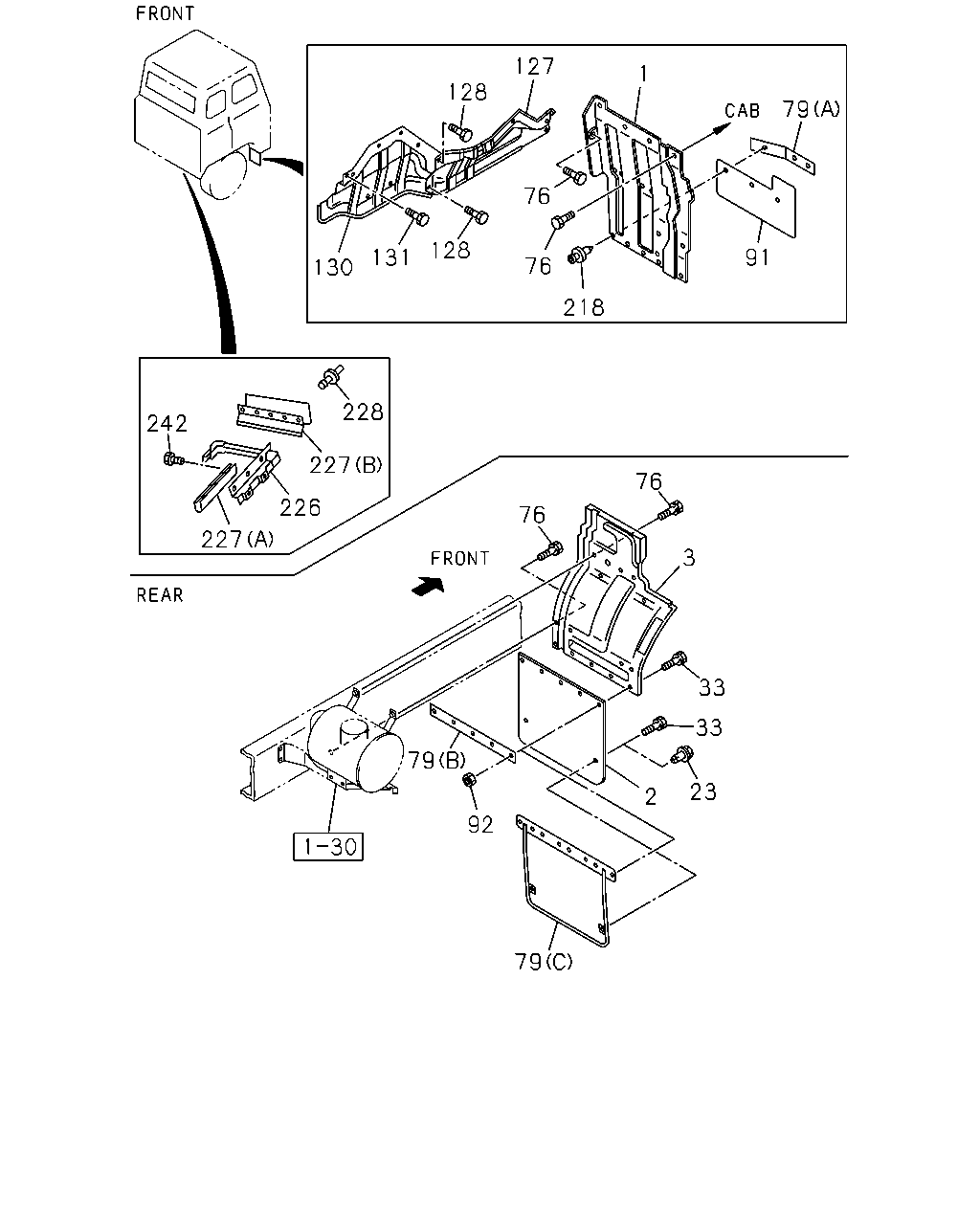

çizim 94047
127 1 128 79 76 128 131 91 76 130 218 228 242 227 76 226 76 227 3 33 33 79 23 2 92 79
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GUARD; MUD,FRT 1-79938-687-2 01 1 9207- ● ●
1 GUARD; MUD,FRT 1-79938-686-2 01 1 9207- ● ●
1 GUARD; MUD,FRT 1-79938-630-4 01 1 9207- ● ●
1 GUARD; MUD,FRT 1-79938-629-4 01 1 9207- ● ●
2 COVER; MUD,TIRE RR
L=510 		1-79930-631-1 01 1 9207- ● ●
2 COVER; MUD,TIRE RR
L=568 		1-79930-486-2 01 1 9207- ● ●
2 COVER; MUD,TIRE RR
L=514 		1-79930-584-2 01 1 9207- ● ●
2 COVER; MUD,TIRE RR
L=568 		1-79930-530-2 01 1 9207- ● ●
3 GUARD; MUD,RR 1-79938-707-3 01 1 9207- ● ● ● ●
3 GUARD; MUD,RR 1-79938-714-0 01 1 9207- ● ● ● ●
23 FASTENER; MUD COVER 1-09470-001-0 02 1 9308-9401 ● ●
33 BOLT; MUD COVER
M6X16 W/LK&PL WASHER 		1-09980-492-0 10 1 9207- ● ●
33 BOLT; MUD COVER
M6X16 W/LK&PL WASHER 		1-09980-492-0 07 1 9207- ● ●
33 BOLT; MUD COVER
M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 9207-9411 ● ●
33 BOLT; MUD COVER
M6X16 W/LK&PL WASHER 		1-09980-492-0 05 1 9412- ● ●
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-027-0 04 1 9207- ● ● ● ●
76 BOLT; MUD GUARD
M8X24 W/LK&PL WASHER 		1-09030-083-0 10 1 9207- ● ● ● ●
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		1-09980-495-0 03 1 9207- ● ● ● ●
79 RETAINER; MUD COVER
(A) FRONT 		1-79930-619-0 02 1 9207- ● ●
79 RETAINER; MUD COVER
(B) REAR 		1-79930-520-1 01 1 9207- ● ●
79 RETAINER; MUD COVER
(B) REAR 		1-79930-488-2 01 1 9207- ● ●
79 RETAINER; MUD COVER
(A) FRONT 		1-79930-501-1 02 1 9207- ● ●
79 RETAINER; MUD COVER
(C) REAR 		1-79930-651-1 01 1 9207- ● ●
79 RETAINER; MUD COVER
(C) REAR 		1-79930-521-0 01 1 9207-9307 ● ●
79 RETAINER; MUD COVER
(C) REAR 		1-79930-986-0 01 1 9308-9401 ● ●
79 RETAINER; MUD COVER
(C) REAR 		1-79931-131-0 01 1 9402- ● ●
91 COVER; MUD,FRT
160X280 		1-79930-618-0 02 1 9207- ● ●
91 COVER; MUD,FRT
160X350 		1-79930-503-1 02 1 9207- ● ●
92 NUT; MUD COVER
M6 		9-09110-406-0 10 1 9207- ● ●
92 NUT; MUD COVER
M6 		9-09110-406-0 05 1 9207- ● ●
127 APRON; FRT 1-79938-623-3 01 1 9207- ● ● ● ●
127 APRON; FRT 1-79938-621-3 01 1 9207- ● ● ● ●
128 BOLT; APRON,FRT
M8X24 W/LK&PL WASHER 		1-09030-083-0 10 1 9207- ● ● ● ●
130 PANEL; SHUTTER NOISE 1-79938-627-5 01 1 9207- ● ● ● ●
130 PANEL; SHUTTER NOISE 1-79938-625-5 01 1 9207- ● ● ● ●
131 BOLT; PANEL
M6X20 W/LK&PL WASHER 		1-09980-495-0 08 1 9207- ● ● ● ●
218 FASTENER; RUBBER 1-09470-001-0 06 1 9207- ● ●
218 FASTENER; RUBBER 1-09470-001-0 08 1 9207- ● ●
226 SUPPORT; SEAL,MUD GUARD 1-79938-768-1 01 1 9207- ● ● ● ●
227 SEAL; MUD GUARD
(A) 		1-79938-675-1 01 1 9207- ● ● ● ●
227 SEAL; MUD GUARD
(B) L=342 		1-79938-765-0 01 1 9207- ● ● ● ●
228 FASTENER; MUD GUARD SEAL 5-09989-002-0 07 1 9207- ● ● ● ●
242 BOLT; SUPPORT MUD GUARD
M6X20 W/LK&PL WASHER 		1-09980-495-0 02 1 9207- ● ● ● ●

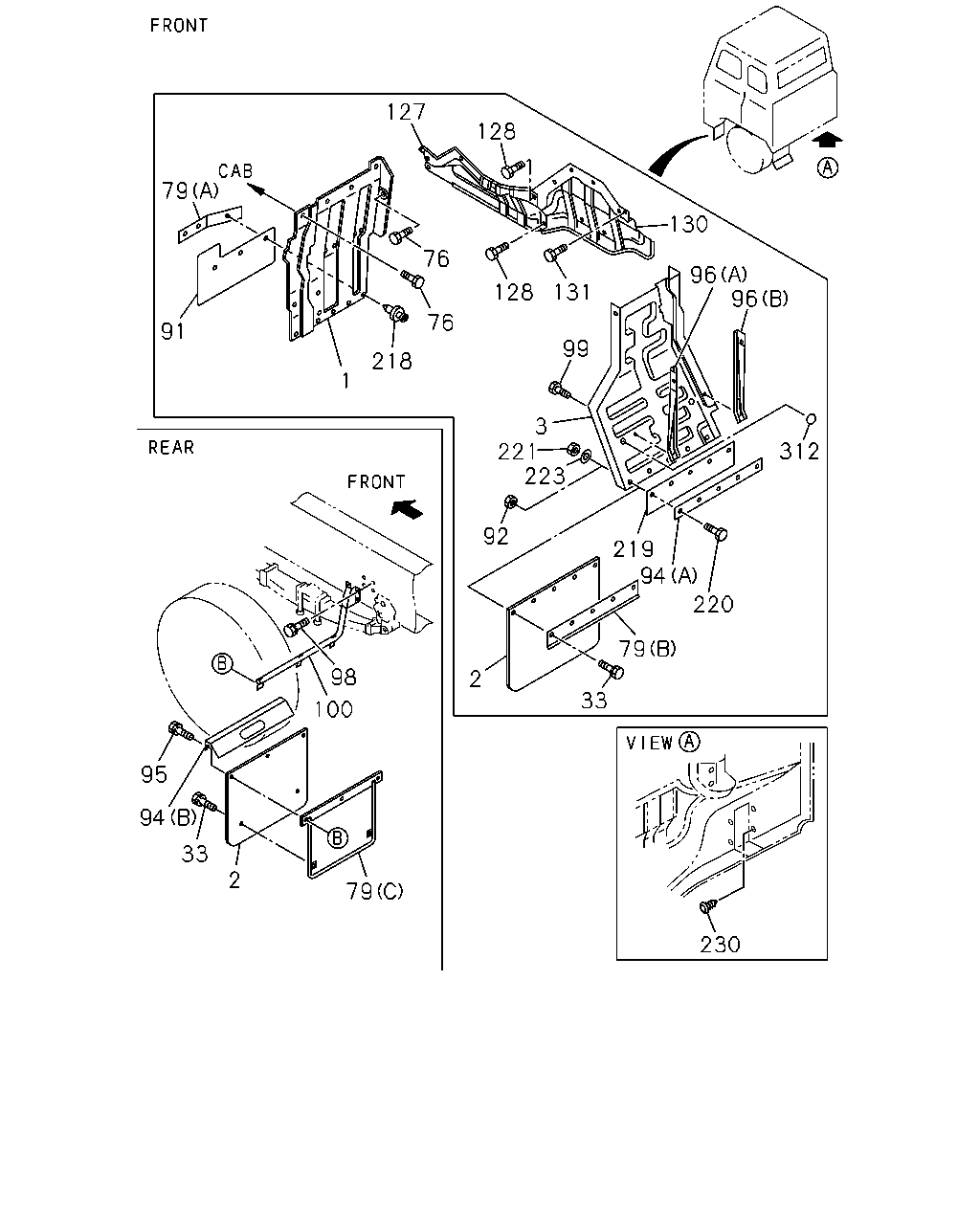

çizim 94080
127 128 79 130 76 96 96 128 131 76 91 99 218 1 3 221 223 312 92 219 94 220 79 98 2 33 100 95 94 3 2 79 230
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GUARD; MUD,FRT 1-79938-687-2 01 1 9207- ● ●
1 GUARD; MUD,FRT 1-79938-686-2 01 1 9207- ● ●
1 GUARD; MUD,FRT 1-79938-630-4 01 1 9207- ● ●
1 GUARD; MUD,FRT 1-79938-629-4 01 1 9207- ● ●
2 COVER; MUD,TIRE RR
L=510 		1-79930-631-1 01 1 9207- ● ●
2 COVER; MUD,TIRE RR
L=568 		1-79930-486-2 01 1 9207- ● ●
2 COVER; MUD,TIRE RR
L=514 		1-79930-584-2 01 1 9207- ● ●
2 COVER; MUD,TIRE RR
L=568 		1-79930-530-2 01 1 9207- ● ●
3 GUARD; MUD,RR 1-79938-707-3 01 1 9207- ● ● ● ●
3 GUARD; MUD,RR 1-79938-714-0 01 1 9207- ● ● ● ●
33 BOLT; MUD COVER
M6X16 W/LK&PL WASHER 		1-09980-492-0 10 1 9207- ● ●
33 BOLT; MUD COVER
M6X16 W/LK&PL WASHER 		1-09980-492-0 07 1 9207- ● ●
33 BOLT; MUD COVER
M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 9207-9411 ● ●
33 BOLT; MUD COVER
M6X16 W/LK&PL WASHER 		1-09980-492-0 05 1 9412- ● ●
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-027-0 04 1 9207- ● ● ● ●
76 BOLT; MUD GUARD
M8X24 W/LK&PL WASHER 		1-09030-083-0 10 1 9207- ● ● ● ●
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		1-09980-495-0 03 1 9207- ● ● ● ●
79 RETAINER; MUD COVER
(A) FRONT 		1-79930-619-0 02 1 9207- ● ●
79 RETAINER; MUD COVER
(B) REAR 		1-79930-520-1 01 1 9207- ● ●
79 RETAINER; MUD COVER
(B) REAR 		1-79930-488-2 01 1 9207- ● ●
79 RETAINER; MUD COVER
(A) FRONT 		1-79930-501-1 02 1 9207- ● ●
79 RETAINER; MUD COVER
(C) REAR 		1-79930-651-1 01 1 9207- ● ●
79 RETAINER; MUD COVER
(C) REAR 		1-79930-521-0 01 1 9207-9307 ● ●
79 RETAINER; MUD COVER
(C) REAR 		1-79930-986-0 01 1 9308-9401 ● ●
79 RETAINER; MUD COVER
(C) REAR 		1-79931-131-0 01 1 9402- ● ●
91 COVER; MUD,FRT
160X280 		1-79930-618-0 02 1 9207- ● ●
91 COVER; MUD,FRT
160X350 		1-79930-503-1 02 1 9207- ● ●
92 NUT; MUD COVER
M6 		9-09110-406-0 10 1 9207- ● ●
92 NUT; MUD COVER
M6 		9-09110-406-0 05 1 9207- ● ●
94 RETAINER; FLAP RUBBER
(A) 		1-79930-586-0 01 1 9207- ● ●
94 RETAINER; FLAP RUBBER
(B) 		1-79930-649-1 01 1 9207- ● ●
95 BOLT; STAY TO RET
M6X16 W/LK WASHER 		0-50040-616-0 03 1 9207- ● ●
96 STAY; MUD GUARD
(A) 		1-79938-643-1 01 1 9207- ● ● ● ●
96 STAY; MUD GUARD
(B) 		1-79938-645-1 01 1 9207- ● ● ● ●
98 BOLT; STAY TO BRKT
M8X25 FLANGE 		0-28080-825-0 04 1 9207- ● ●
99 BOLT; STAY TO MUD GUARD
M6X20 W/LK&PL WASHER 		1-09980-495-0 04 1 9207- ● ● ● ●
100 STAY; UPR,MUD GUARD 1-53497-293-1 01 1 9207- ● ●
127 APRON; FRT 1-79938-623-3 01 1 9207- ● ● ● ●
127 APRON; FRT 1-79938-621-3 01 1 9207- ● ● ● ●
128 BOLT; APRON,FRT
M8X24 W/LK&PL WASHER 		1-09030-083-0 10 1 9207- ● ● ● ●
130 PANEL; SHUTTER NOISE 1-79938-627-5 01 1 9207- ● ● ● ●
130 PANEL; SHUTTER NOISE 1-79938-625-5 01 1 9207- ● ● ● ●
131 BOLT; PANEL
M6X20 W/LK&PL WASHER 		1-09980-495-0 08 1 9207- ● ● ● ●
218 FASTENER; RUBBER 1-09470-001-0 06 1 9207- ● ●
218 FASTENER; RUBBER 1-09470-001-0 08 1 9207- ● ●
219 FLAP; MUD GUARD 1-79930-650-0 01 1 9207- ● ●
220 BOLT; RET,MUD GUARD
M6X16 W/LK WASHER 		0-50080-616-0 05 1 9207- ● ●
221 NUT; COVER,MUD GUARD RR 8-94238-948-0 05 1 9207- ● ●
223 WASHER; PL,RET 8-94238-949-0 05 1 9207- ● ●
230 PLUG; MUD GUARD
D4.7X11 		1-76378-154-0 09 1 9207- ● ● ● ●
312 SEAL; DUMMY HOLE
OD=36 		5-76777-035-0 02 1 9207- ● ● ● ●
