Sayfa 8-73 - Isuzu EPC

8-73 — BLOWER UNIT (#19609) — 190 parça

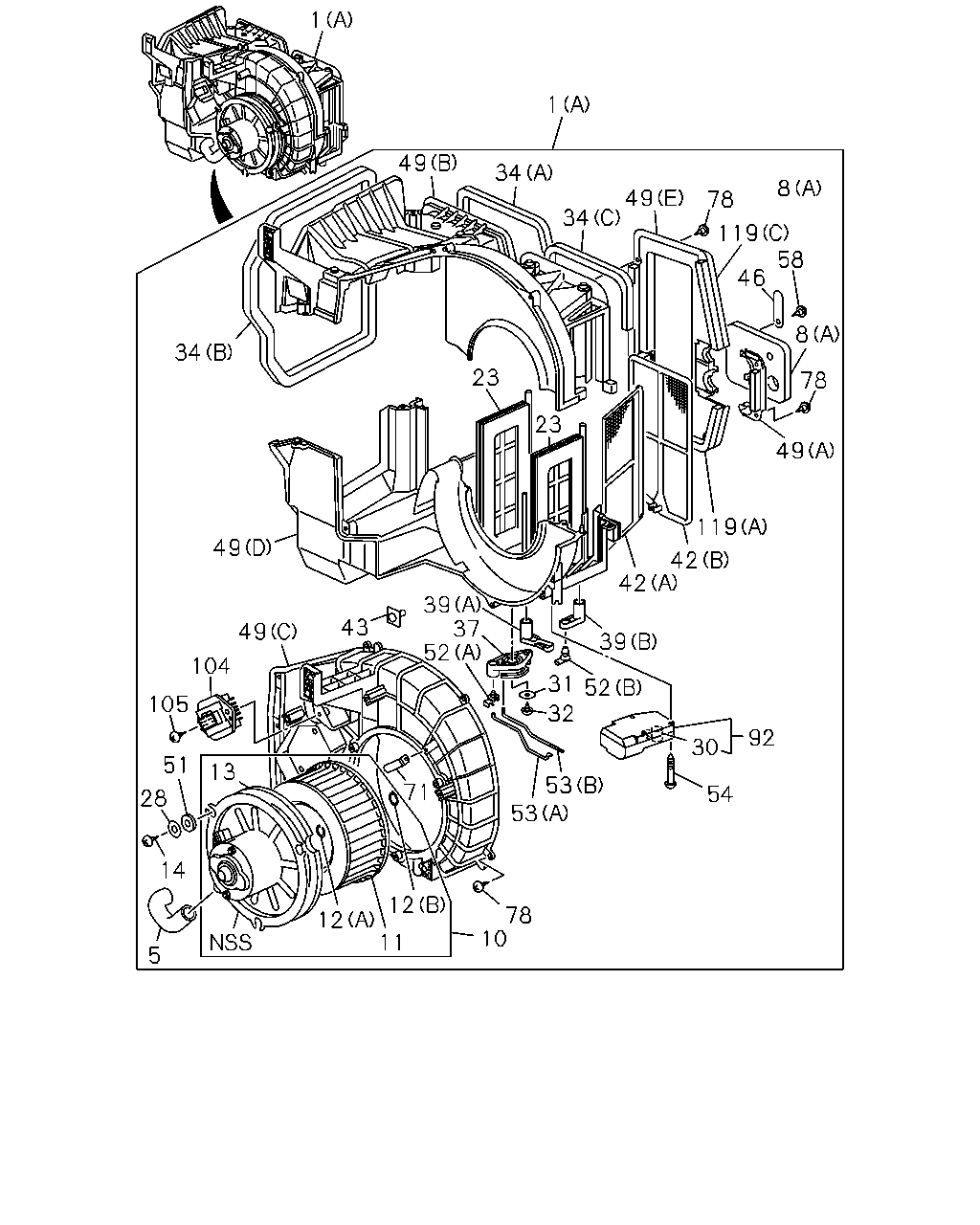

1 1 49 34 8 49 34 78 119 58 46 8 34 23 78 23 49 119 49 42 42 39 37 52 43 49 39 104 31 52 105 32 92 30 51 13 53 53 71 54 28 14 12 78 10 12 11 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOWER ASM (B)	1-83561-183-2	01	1	0706-0708	●	●
1	BLOWER ASM AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83561-183-2	01	1	0709-	●	●
1	BLOWER ASM HEATER & DEFROSTER(C41) (A)	1-83561-181-2	01	1	0709-	●	●
5	HOSE; AIR	1-83563-147-0	01	1	0706-0708	●	●
5	HOSE; AIR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83563-147-0	01	1	0709-	●	●
8	SEAL; BLOWER UNIT (B)	1-83539-261-1	01	1	0706-0708	●	●
8	SEAL; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-261-1	01	1	0709-	●	●
8	SEAL; BLOWER UNIT HEATER & DEFROSTER(C41) (A)	1-83579-801-1	01	1	0709-	●	●
10	MOTOR ASM; FAN,BLOWER UNIT	1-83561-164-0	01	1	0706-0708	●	●
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-164-0	01	1	0709-	●	●
11	IMPELLER; FAN MOTOR	1-83579-796-0	01	1	0706-0708	●	●
11	IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-796-0	01	1	0709-	●	●
12	RING; SNAP,FAN MOTOR (A)	5-83569-088-0	01	1	0706-0708	●	●
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	5-83569-088-0	01	1	0709-	●	●
12	RING; SNAP,FAN MOTOR (B)	8-94243-962-0	01	1	0706-0708	●	●
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94243-962-0	01	1	0709-	●	●
13	LINING; BLOWER UNIT	1-83579-636-0	01	1	0706-0708	●	●
13	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-636-0	01	1	0709-	●	●
14	SCREW; COVER TO CASE M5X20	9-09829-324-1	03	1	0706-0708	●	●
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	03	1	0709-	●	●
23	SHUTTER; BLOWER UNIT	1-83579-797-0	02	1	0706-0708	●	●
23	SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-797-0	02	1	0709-	●	●
28	WASHER; PL,FAN MOTOR	1-83579-170-0	03	1	0706-0708	●	●
28	WASHER; PL,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-170-0	03	1	0709-	●	●
30	LEVER; ACTUATOR	1-83564-345-1	01	1	0706-0708	●	●
30	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-345-1	01	1	0709-	●	●
31	WASHER; LEVER	1-83579-095-0	01	1	0706-0708	●	●
31	WASHER; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-095-0	01	1	0709-	●	●
32	SCREW; LEVER M5X20	9-09829-324-1	01	1	0706-0708	●	●
32	SCREW; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	01	1	0709-	●	●
34	LINING; BLOWER UNIT (A)	1-83579-633-2	01	1	0706-0708	●	●
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-633-2	01	1	0709-	●	●
34	LINING; BLOWER UNIT (C)	1-83579-634-2	01	1	0706-0708	●	●
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-634-2	01	1	0709-	●	●
34	LINING; BLOWER UNIT (B)	1-83579-644-0	01	1	0706-0708	●	●
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-644-0	01	1	0709-	●	●
37	LEVER; MODE LEVER	1-83564-375-0	01	1	0706-0708	●	●
37	LEVER; MODE LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-375-0	01	1	0709-	●	●
39	LEVER; SHUTTER,BLOWER UNIT (A)	1-83564-373-0	01	1	0706-0708	●	●
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-373-0	01	1	0709-	●	●
39	LEVER; SHUTTER,BLOWER UNIT (B)	1-83564-374-0	01	1	0706-0708	●	●
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-374-0	01	1	0709-	●	●
42	FILTER; BLOWER UNIT (B)	1-83579-800-1	01	1	0706-0708	●	●
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-800-1	01	1	0709-	●	●
42	FILTER; BLOWER UNIT (A)	1-83579-993-0	02	1	0706-0708	●	●
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-993-0	02	1	0709-	●	●
43	BOLT; CASE	1-83579-657-2	04	1	0706-0708	●	●
43	BOLT; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-657-2	04	1	0709-	●	●
46	PLATE; BLOWER UNIT HEATER & DEFROSTER(C41)	1-83571-870-1	01	1	0709-	●	●
49	CASE; BLOWER UNIT (B)	1-83564-368-0	01	1	0706-0708	●	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-368-0	01	1	0709-	●	●
49	CASE; BLOWER UNIT (C)	1-83564-370-0	01	1	0706-0708	●	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83564-370-0	01	1	0709-	●	●
49	CASE; BLOWER UNIT (E)	1-83564-371-0	01	1	0706-0708	●	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-83564-371-0	01	1	0709-	●	●
49	CASE; BLOWER UNIT (A)	1-83564-372-0	01	1	0706-0708	●	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-372-0	01	1	0709-	●	●
49	CASE; BLOWER UNIT (D)	1-83564-378-0	01	1	0706-0708	●	●
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83564-378-0	01	1	0709-	●	●
49	CASE; BLOWER UNIT (F)	8-97500-034-0	01	1	0706-0708	●	●
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (F)	8-97500-034-0	01	1	0709-	●	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41) (D)	1-83564-369-0	01	1	0709-	●	●
51	ISOLATOR; BLOWER UNIT	1-83579-496-0	03	1	0706-0708	●	●
51	ISOLATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-496-0	03	1	0709-	●	●
52	CLIP; LEVER TO CASE (A)	1-83574-136-0	01	1	0706-0708	●	●
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83574-136-0	01	1	0709-	●	●
52	CLIP; LEVER TO CASE (B)	8-94248-794-0	01	1	0706-0708	●	●
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94248-794-0	01	1	0709-	●	●
53	ROD; ACTUATOR,BLOWER UNIT (B)	1-83579-639-0	01	1	0706-0708	●	●
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-639-0	01	1	0709-	●	●
53	ROD; ACTUATOR,BLOWER UNIT (A)	1-83579-799-0	01	1	0706-0708	●	●
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-799-0	01	1	0709-	●	●
54	SCREW; ACTUATOR TO CASE	8-94348-809-0	02	1	0706-0708	●	●
54	SCREW; ACTUATOR TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94348-809-0	02	1	0709-	●	●
58	SCREW; PLATE TO CASE HEATER & DEFROSTER(C41) M4X16	8-94324-850-0	01	1	0709-	●	●
71	CLIP; HARNESS	8-97096-145-0	01	1	0706-0708	●	●
71	CLIP; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-97096-145-0	01	1	0709-	●	●
78	SCREW; CASE TO CASE M4X16	8-94324-850-0	18	1	0706-0708	●	●
78	SCREW; CASE TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-94324-850-0	18	1	0709-	●	●
92	ACTUATOR; BLOWER UNIT	1-83579-798-1	01	1	0706-0708	●	●
92	ACTUATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-798-1	01	1	0709-	●	●
104	RESISTOR; BLOWER UNIT	1-83519-093-0	01	1	0706-0708	●	●
104	RESISTOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83519-093-0	01	1	0709-	●	●
105	SCREW; RESISTOR M4X16	8-94324-850-0	02	1	0706-0708	●	●
105	SCREW; RESISTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-94324-850-0	02	1	0709-	●	●
119	LINING; CASE (C)	1-83579-670-1	01	1	0706-0708	●	●
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-670-1	01	1	0709-	●	●
119	LINING; CASE (A)	1-83579-671-1	01	1	0706-0708	●	●
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-671-1	01	1	0709-	●	●
119	LINING; CASE (B)	1-83579-672-0	01	1	0706-0708	●	●
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-672-0	01	1	0709-	●	●
119	LINING; CASE (D)	1-83579-795-0	01	1	0706-0708	●	●
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83579-795-0	01	1	0709-	●	●

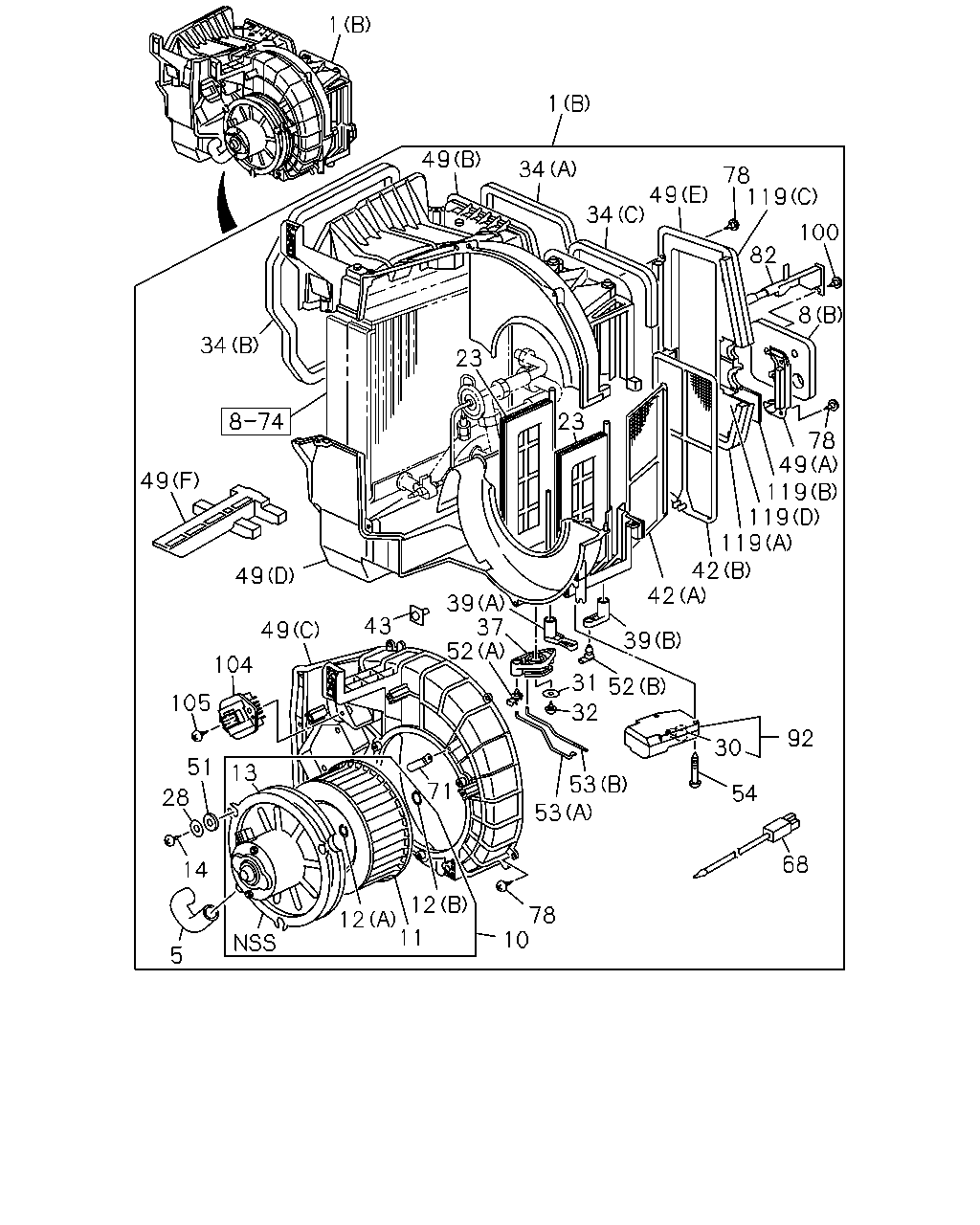

1 1 49 34 78 119 49 34 100 82 8 34 23 23 78 49 119 119 119 42 42 49 49 39 37 52 43 49 39 104 31 52 105 32 92 30 51 13 53 53 71 54 28 68 14 12 78 10 12 11 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOWER ASM (B)	1-83561-183-2	01	1	0706-0708	●	●
1	BLOWER ASM AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83561-183-2	01	1	0709-	●	●
1	BLOWER ASM HEATER & DEFROSTER(C41) (A)	1-83561-181-2	01	1	0709-	●	●
5	HOSE; AIR	1-83563-147-0	01	1	0706-0708	●	●
5	HOSE; AIR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83563-147-0	01	1	0709-	●	●
8	SEAL; BLOWER UNIT (B)	1-83539-261-1	01	1	0706-0708	●	●
8	SEAL; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-261-1	01	1	0709-	●	●
8	SEAL; BLOWER UNIT HEATER & DEFROSTER(C41) (A)	1-83579-801-1	01	1	0709-	●	●
10	MOTOR ASM; FAN,BLOWER UNIT	1-83561-164-0	01	1	0706-0708	●	●
10	MOTOR ASM; FAN,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83561-164-0	01	1	0709-	●	●
11	IMPELLER; FAN MOTOR	1-83579-796-0	01	1	0706-0708	●	●
11	IMPELLER; FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-796-0	01	1	0709-	●	●
12	RING; SNAP,FAN MOTOR (A)	5-83569-088-0	01	1	0706-0708	●	●
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	5-83569-088-0	01	1	0709-	●	●
12	RING; SNAP,FAN MOTOR (B)	8-94243-962-0	01	1	0706-0708	●	●
12	RING; SNAP,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94243-962-0	01	1	0709-	●	●
13	LINING; BLOWER UNIT	1-83579-636-0	01	1	0706-0708	●	●
13	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-636-0	01	1	0709-	●	●
14	SCREW; COVER TO CASE M5X20	9-09829-324-1	03	1	0706-0708	●	●
14	SCREW; COVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	03	1	0709-	●	●
23	SHUTTER; BLOWER UNIT	1-83579-797-0	02	1	0706-0708	●	●
23	SHUTTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-797-0	02	1	0709-	●	●
28	WASHER; PL,FAN MOTOR	1-83579-170-0	03	1	0706-0708	●	●
28	WASHER; PL,FAN MOTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-170-0	03	1	0709-	●	●
30	LEVER; ACTUATOR	1-83564-345-1	01	1	0706-0708	●	●
30	LEVER; ACTUATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-345-1	01	1	0709-	●	●
31	WASHER; LEVER	1-83579-095-0	01	1	0706-0708	●	●
31	WASHER; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-095-0	01	1	0709-	●	●
32	SCREW; LEVER M5X20	9-09829-324-1	01	1	0706-0708	●	●
32	SCREW; LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20	9-09829-324-1	01	1	0709-	●	●
34	LINING; BLOWER UNIT (A)	1-83579-633-2	01	1	0706-0708	●	●
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-633-2	01	1	0709-	●	●
34	LINING; BLOWER UNIT (C)	1-83579-634-2	01	1	0706-0708	●	●
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-634-2	01	1	0709-	●	●
34	LINING; BLOWER UNIT (B)	1-83579-644-0	01	1	0706-0708	●	●
34	LINING; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-644-0	01	1	0709-	●	●
37	LEVER; MODE LEVER	1-83564-375-0	01	1	0706-0708	●	●
37	LEVER; MODE LEVER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-375-0	01	1	0709-	●	●
39	LEVER; SHUTTER,BLOWER UNIT (A)	1-83564-373-0	01	1	0706-0708	●	●
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-373-0	01	1	0709-	●	●
39	LEVER; SHUTTER,BLOWER UNIT (B)	1-83564-374-0	01	1	0706-0708	●	●
39	LEVER; SHUTTER,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-374-0	01	1	0709-	●	●
42	FILTER; BLOWER UNIT (B)	1-83579-800-1	01	1	0706-0708	●	●
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-800-1	01	1	0709-	●	●
42	FILTER; BLOWER UNIT (A)	1-83579-993-0	02	1	0706-0708	●	●
42	FILTER; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-993-0	02	1	0709-	●	●
43	BOLT; CASE	1-83579-657-2	04	1	0706-0708	●	●
43	BOLT; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-657-2	04	1	0709-	●	●
49	CASE; BLOWER UNIT (B)	1-83564-368-0	01	1	0706-0708	●	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83564-368-0	01	1	0709-	●	●
49	CASE; BLOWER UNIT (C)	1-83564-370-0	01	1	0706-0708	●	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83564-370-0	01	1	0709-	●	●
49	CASE; BLOWER UNIT (E)	1-83564-371-0	01	1	0706-0708	●	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-83564-371-0	01	1	0709-	●	●
49	CASE; BLOWER UNIT (A)	1-83564-372-0	01	1	0706-0708	●	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83564-372-0	01	1	0709-	●	●
49	CASE; BLOWER UNIT (D)	1-83564-378-0	01	1	0706-0708	●	●
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83564-378-0	01	1	0709-	●	●
49	CASE; BLOWER UNIT (F)	8-97500-034-0	01	1	0706-0708	●	●
49	CASE; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (F)	8-97500-034-0	01	1	0709-	●	●
49	CASE; BLOWER UNIT HEATER & DEFROSTER(C41) (D)	1-83564-369-0	01	1	0709-	●	●
51	ISOLATOR; BLOWER UNIT	1-83579-496-0	03	1	0706-0708	●	●
51	ISOLATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-496-0	03	1	0709-	●	●
52	CLIP; LEVER TO CASE (A)	1-83574-136-0	01	1	0706-0708	●	●
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83574-136-0	01	1	0709-	●	●
52	CLIP; LEVER TO CASE (B)	8-94248-794-0	01	1	0706-0708	●	●
52	CLIP; LEVER TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94248-794-0	01	1	0709-	●	●
53	ROD; ACTUATOR,BLOWER UNIT (B)	1-83579-639-0	01	1	0706-0708	●	●
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-639-0	01	1	0709-	●	●
53	ROD; ACTUATOR,BLOWER UNIT (A)	1-83579-799-0	01	1	0706-0708	●	●
53	ROD; ACTUATOR,BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-799-0	01	1	0709-	●	●
54	SCREW; ACTUATOR TO CASE	8-94348-809-0	02	1	0706-0708	●	●
54	SCREW; ACTUATOR TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-94348-809-0	02	1	0709-	●	●
68	THERMOSTAT; BLOWER UNIT	1-83544-026-1	01	1	0706-0708	●	●
68	THERMOSTAT; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83544-026-1	01	1	0709-	●	●
71	CLIP; HARNESS	8-97096-145-0	01	1	0706-0708	●	●
71	CLIP; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-97096-145-0	01	1	0709-	●	●
78	SCREW; CASE TO CASE M4X16	8-94324-850-0	18	1	0706-0708	●	●
78	SCREW; CASE TO CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-94324-850-0	18	1	0709-	●	●
82	BRACKET; BLOWER UNIT	1-83571-932-0	01	1	0706-0708	●	●
82	BRACKET; BLOWER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-932-0	01	1	0709-	●	●
92	ACTUATOR; BLOWER UNIT	1-83579-798-1	01	1	0706-0708	●	●
92	ACTUATOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83579-798-1	01	1	0709-	●	●
100	SCREW; BRKT M4X16	8-94324-850-0	01	1	0706-0708	●	●
100	SCREW; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-94324-850-0	01	1	0709-	●	●
104	RESISTOR; BLOWER UNIT	1-83519-093-0	01	1	0706-0708	●	●
104	RESISTOR; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83519-093-0	01	1	0709-	●	●
105	SCREW; RESISTOR M4X16	8-94324-850-0	02	1	0706-0708	●	●
105	SCREW; RESISTOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-94324-850-0	02	1	0709-	●	●
119	LINING; CASE (C)	1-83579-670-1	01	1	0706-0708	●	●
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83579-670-1	01	1	0709-	●	●
119	LINING; CASE (A)	1-83579-671-1	01	1	0706-0708	●	●
119	LINING; CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83579-671-1	01	1	0709-	●	●
119	LINING; CASE (B)	1-83579-672-0	01	1	0706-0708	●	●
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83579-672-0	01	1	0709-	●	●
119	LINING; CASE (D)	1-83579-795-0	01	1	0706-0708	●	●
119	LINING; CASE AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83579-795-0	01	1	0709-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
