8-52 — PIPING; AIR CONDITIONING (#19606) — 101 parça

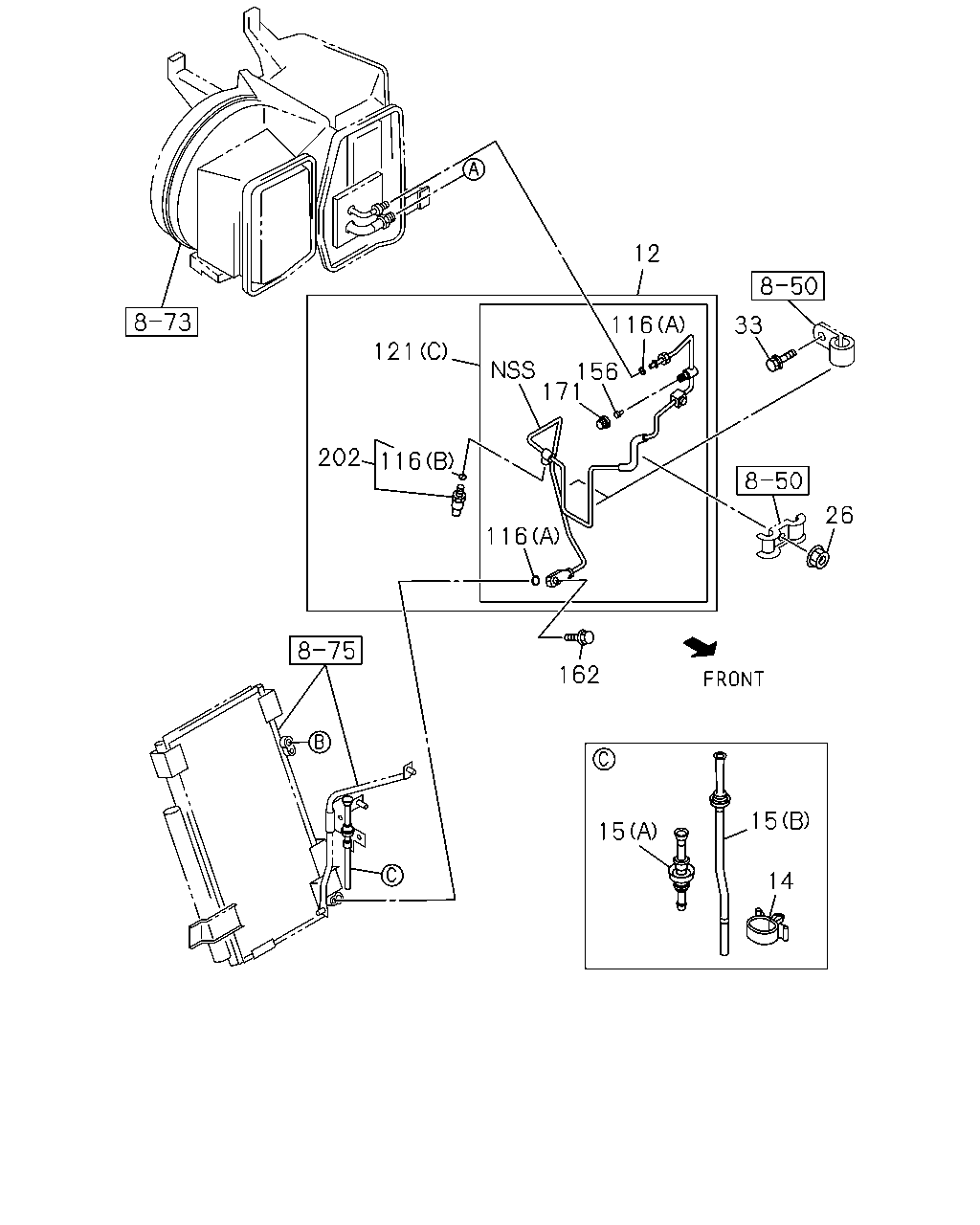

çizim 134537
12 116 33 121 156 171 202 116 26 116 162 15 15 14
BalonParca AdiParca NoAdetTipApplied Date A B
12 PIPE; COOLER,EVAP TO TANK 1-83567-718-3 01 1 0706-0708 ● ●
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83567-718-3 01 1 0709- ● ●
14 CLIP; BAND,EVAP DRAIN HOSE
ID=20 		8-94410-200-0 01 1 0706-0708 ● ●
14 CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		8-94410-200-0 01 1 0709- ● ●
15 HOSE; DRAIN
(B) 		1-83572-635-0 01 1 0706-0708 ● ●
15 HOSE; DRAIN
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83572-635-0 01 1 0709- ● ●
15 HOSE; DRAIN
HEATER & DEFROSTER(C41) (A) 		1-83572-412-0 01 1 0709- ● ●
26 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0706-0708 ● ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 01 1 0709- ● ●
26 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 03 1 0706-0708 ● ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 03 1 0709- ● ●
33 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0706-0708 ● ●
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0709-0904 ● ●
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ● ●
116 GASKET; PIPE
(A) ID=7.4 		8-97095-906-0 02 1 0706-0708 ● ●
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4 		8-97095-906-0 02 1 0709- ● ●
116 GASKET; PIPE
(B) 		8-97178-772-0 01 1 0706-0708 ● ●
116 GASKET; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97178-772-0 01 1 0709- ● ●
121 HOSE; COOLER
(C) 		1-83567-795-0 01 1 0706-0708 ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83567-795-0 01 1 0709- ● ●
121 HOSE; COOLER
(D) 		1-83572-801-1 01 1 0706-0708 ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-801-1 01 1 0709- ● ●
121 HOSE; COOLER
(E) 		1-83572-802-1 01 1 0706-0708 ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83572-802-1 01 1 0709- ● ●
121 HOSE; COOLER
(A) 		1-83577-066-0 01 1 0706-0708 ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83577-066-0 01 1 0709- ● ●
121 HOSE; COOLER
(B) 		1-83577-067-0 01 1 0706-0708 ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83577-067-0 01 1 0709- ● ●
156 VALVE; PIPE 8-97095-909-0 01 1 0706-0708 ● ●
156 VALVE; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97095-909-0 01 1 0709- ● ●
162 BOLT; FLEX HOSE
M6X25 FLANGE 		0-28050-625-0 02 1 0706-0708 ● ●
162 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE 		0-28050-625-0 02 1 0709- ● ●
171 CAP; PIPE
CAP MARK H 		8-97095-911-0 01 1 0706-0708 ● ●
171 CAP; PIPE
AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H 		8-97095-911-0 01 1 0709- ● ●
202 SWITCH; PRESSURE 1-83564-392-1 01 1 0706-0708 ● ●
202 SWITCH; PRESSURE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83564-392-1 01 1 0709- ● ●

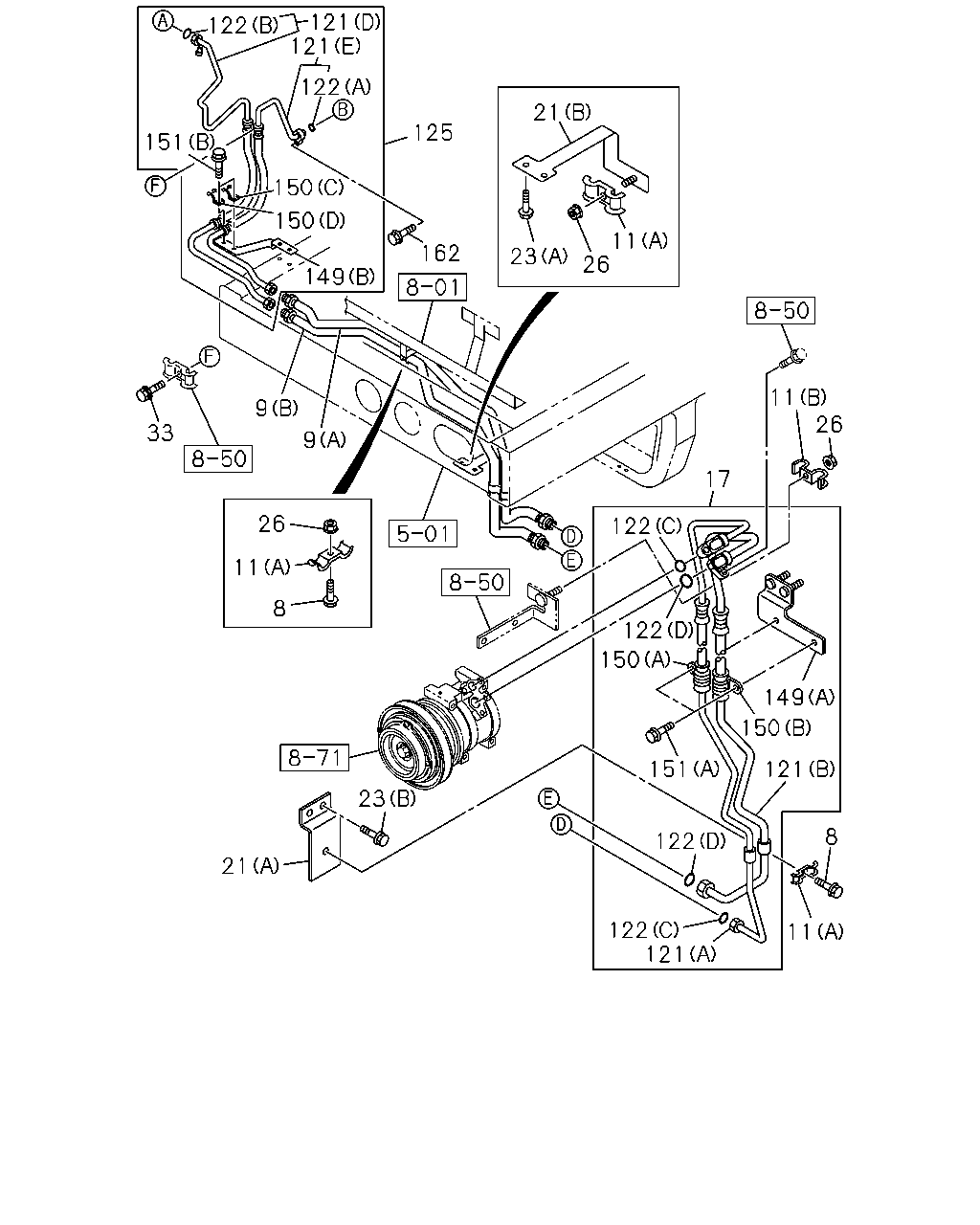

çizim 134545
121 121 122 122 21 125 151 150 150 11 26 149 162 23 11 26 9 33 9 17 26 122 11 8 122 150 149 150 151 121 23 8 122 21 122 121 11
BalonParca AdiParca NoAdetTipApplied Date A B
8 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 0706-0708 ● ●
8 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28650-820-0 03 1 0709- ● ●
9 PIPE; COOLER,HOSE TO HOSE
(A) 		1-83577-059-0 01 1 0706-0708 ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83577-059-0 01 1 0709- ● ●
9 PIPE; COOLER,HOSE TO HOSE
(B) 		1-83577-060-0 01 1 0706-0708 ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83577-060-0 01 1 0709- ● ●
11 CLIP; COOLER PIPE
(A) ID=20 & 20 		1-83574-195-1 03 1 0706-0708 ● ●
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 & 20 		1-83574-195-1 03 1 0709- ● ●
11 CLIP; COOLER PIPE
(B) ID=12 & 14.5 		1-83574-257-0 01 1 0706-0708 ● ●
11 CLIP; COOLER PIPE
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=12 & 14.5 		1-83574-257-0 01 1 0709- ● ●
17 HOSE; FLEX,CMPR TO PIPE 1-83577-058-1 01 1 0706-0708 ● ●
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83577-058-1 01 1 0709- ● ●
21 BRACKET; COOLER HOSE
(B) 		1-83573-202-0 01 1 0706-0708 ● ●
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-202-0 01 1 0709- ● ●
21 BRACKET; COOLER HOSE
(A) 		1-83573-295-0 01 1 0706-0708 ● ●
21 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-295-0 01 1 0709- ● ●
23 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 02 1 0706-0708 ● ●
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE 		0-28050-820-0 02 1 0709- ● ●
23 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0706-0708 ● ●
23 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE 		0-28650-825-0 02 1 0709- ● ●
26 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0706-0708 ● ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 01 1 0709- ● ●
26 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 03 1 0706-0708 ● ●
26 NUT; PIPE CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 03 1 0709- ● ●
33 BOLT; CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0706-0708 ● ●
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0709-0904 ● ●
33 BOLT; CLIP
AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905- ● ●
121 HOSE; COOLER
(C) 		1-83567-795-0 01 1 0706-0708 ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83567-795-0 01 1 0709- ● ●
121 HOSE; COOLER
(D) 		1-83572-801-1 01 1 0706-0708 ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83572-801-1 01 1 0709- ● ●
121 HOSE; COOLER
(E) 		1-83572-802-1 01 1 0706-0708 ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (E) 		1-83572-802-1 01 1 0709- ● ●
121 HOSE; COOLER
(A) 		1-83577-066-0 01 1 0706-0708 ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83577-066-0 01 1 0709- ● ●
121 HOSE; COOLER
(B) 		1-83577-067-0 01 1 0706-0708 ● ●
121 HOSE; COOLER
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83577-067-0 01 1 0709- ● ●
122 GASKET
(A) ID=11.7 		1-83539-317-0 02 1 0706-0708 ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7 		1-83539-317-0 02 1 0709- ● ●
122 GASKET
(B) ID=14.5 		1-83539-324-0 02 1 0706-0708 ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5 		1-83539-324-0 02 1 0709- ● ●
122 GASKET
(C) ID=11.7 		8-97095-907-0 02 1 0706-0708 ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.7 		8-97095-907-0 02 1 0709- ● ●
122 GASKET
(D) ID=14.5 		8-97095-908-0 02 1 0706-0708 ● ●
122 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=14.5 		8-97095-908-0 02 1 0709- ● ●
125 HOSE; FLEX,UNIT TO CMPR 1-83572-704-2 01 1 0706-0708 ● ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83572-704-2 01 1 0709- ● ●
149 BRACKET; COOLER HOSE
(B) 		1-83573-206-1 01 1 0706-0708 ● ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83573-206-1 01 1 0709- ● ●
149 BRACKET; COOLER HOSE
(A) 		1-83573-255-0 01 1 0706-0708 ● ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83573-255-0 01 1 0709- ● ●
150 CLIP; HOSE
(A) 		1-83574-249-0 01 1 0706-0708 ● ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83574-249-0 01 1 0709- ● ●
150 CLIP; HOSE
(C) 		1-83574-254-0 01 1 0706-0708 ● ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (C) 		1-83574-254-0 01 1 0709- ● ●
150 CLIP; HOSE
(D) 		1-83574-255-0 01 1 0706-0708 ● ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (D) 		1-83574-255-0 01 1 0709- ● ●
150 CLIP; HOSE
(B) 		1-83574-264-0 01 1 0706-0708 ● ●
150 CLIP; HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83574-264-0 01 1 0709- ● ●
151 BOLT; CLIP FIX,COOLER HOSE
(B) 		1-83539-336-0 02 1 0706-0708 ● ●
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83539-336-0 02 1 0709- ● ●
151 BOLT; CLIP FIX,COOLER HOSE
(A) 		1-83578-098-0 02 1 0706-0708 ● ●
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83578-098-0 02 1 0709- ● ●
162 BOLT; FLEX HOSE
M6X25 FLANGE 		0-28050-625-0 02 1 0706-0708 ● ●
162 BOLT; FLEX HOSE
AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE 		0-28050-625-0 02 1 0709- ● ●
