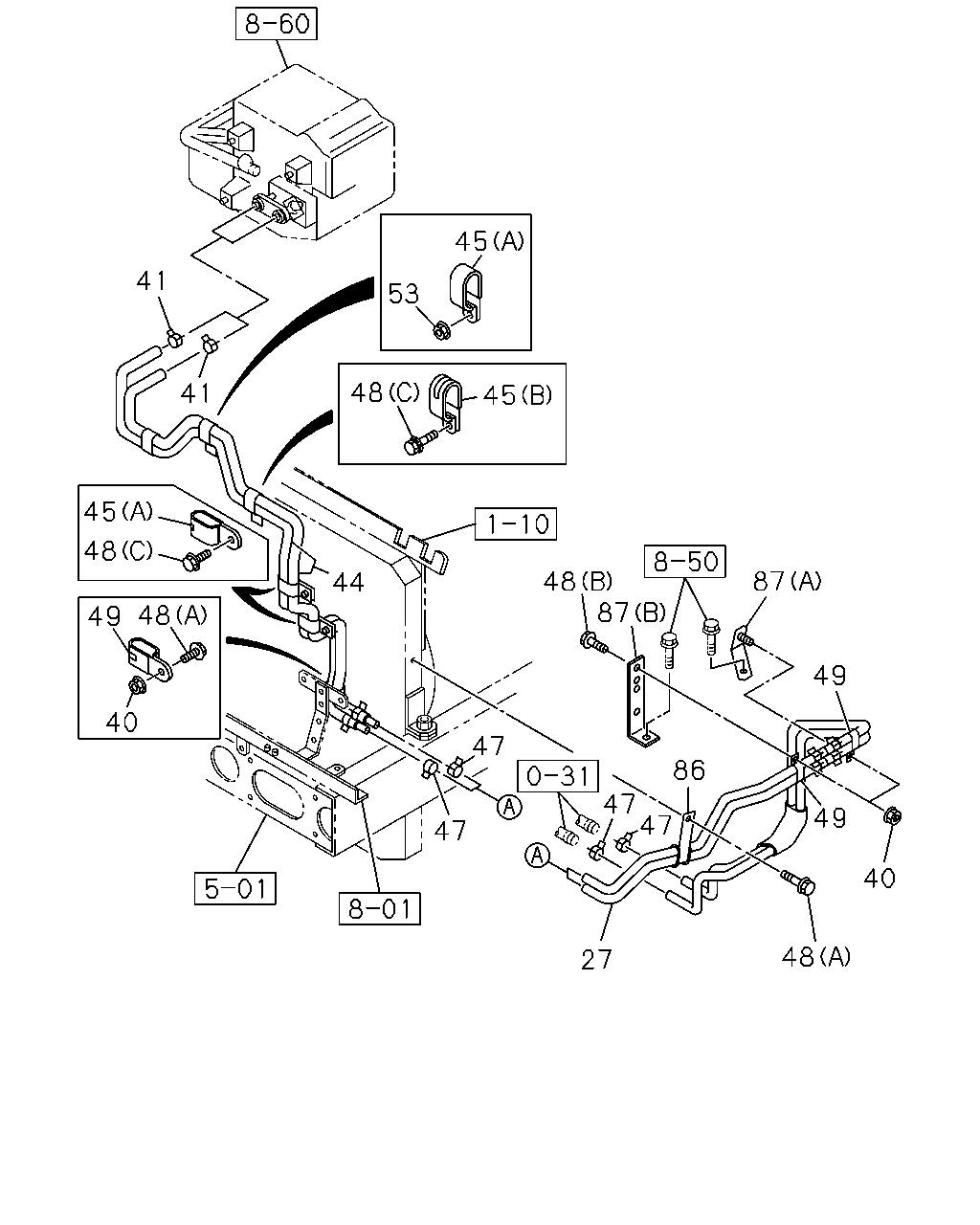

8-45 — HEATER PIPING (#19604) — 32 parça

45 41 53 48 41 45 45 48 87 48 87 44 48 49 49 40 47 86 47 47 49 47 40 48 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	HOSE; WATER,HTR UNIT TO WATER PIPE	1-83565-802-3	01	1	0706-0708	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83565-802-3	01	1	0709-	●	●
40	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0706-0708	●	●
40	NUT; CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	03	1	0709-	●	●
41	CLAMP; WATER HOSE,HTR ID=22	8-97359-141-0	02	1	0706-0708	●	●
41	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-97359-141-0	02	1	0709-	●	●
44	HOSE; WATER,HTR,INL	8-98052-676-2	01	1	0706-0708	●	●
44	HOSE; WATER,HTR,INL HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98052-676-2	01	1	0709-	●	●
45	CLIP; WATER PIPE (B) WO/SCREW	1-09701-143-1	01	1	0706-0708	●	●
45	CLIP; WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) WO/SCREW	1-09701-143-1	01	1	0709-	●	●
45	CLIP; WATER PIPE (A)	1-09701-238-0	02	1	0706-0708	●	●
45	CLIP; WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-09701-238-0	02	1	0709-	●	●
47	CLAMP; WATER HOSE,HTR ID=22	8-97359-141-0	04	1	0706-0708	●	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-97359-141-0	04	1	0709-	●	●
48	BOLT; CLIP FIX (A) M8X20 FLANGE	0-28650-820-0	02	1	0706-0708	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X20 FLANGE	0-28650-820-0	02	1	0709-	●	●
48	BOLT; CLIP FIX (B) M8X25 FLANGE	0-28650-825-0	01	1	0706-0708	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE	0-28650-825-0	01	1	0709-	●	●
48	BOLT; CLIP FIX (C) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0706-0708		●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0709-0808		●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0809-	●	●
49	CLIP; WATER HOSE,HTR ID=24X2 L=25	1-09700-710-0	03	1	0706-0708	●	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	03	1	0709-	●	●
53	NUT; HOSE CLIP M8 FLANGE	0-91180-108-0	01	1	0706-0708	●	●
53	NUT; HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	0709-	●	●
86	CLIP; HTR HOSE	1-83573-076-0	01	1	0706-0708	●	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83573-076-0	01	1	0709-	●	●
87	BRACKET; HTR HOSE CLIP (B)	1-82699-208-1	01	1	0706-0708	●	●
87	BRACKET; HTR HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82699-208-1	01	1	0709-0905	●	●
87	BRACKET; HTR HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82698-358-0	01	1	0906-	●	●
87	BRACKET; HTR HOSE CLIP (A)	1-83573-251-1	01	1	0706-0708	●	●
87	BRACKET; HTR HOSE CLIP HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-251-1	01	1	0709-	●	●
