8-40 — HEATER SYSTEM (#19603) — 51 parça

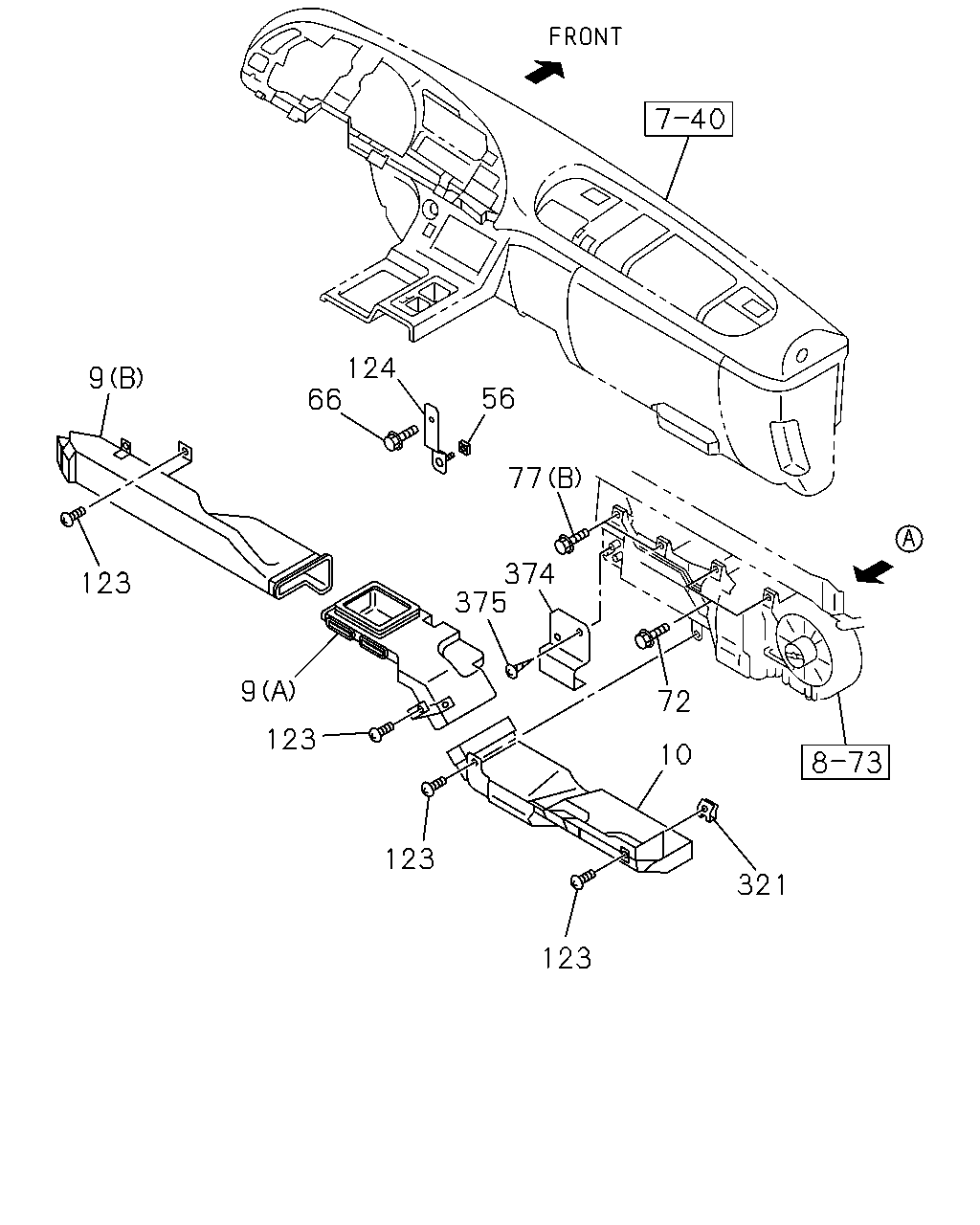

çizim 134511
124 66 9 56 77 374 375 123 9 72 123 10 123 321 123
BalonParca AdiParca NoAdetTipApplied Date A B
9 DUCT; HTR AIR,FOOT CENTER
(B) 		1-76377-199-1 01 1 0706-0708 ● ●
9 DUCT; HTR AIR,FOOT CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-76377-199-1 01 1 0709- ● ●
9 DUCT; HTR AIR,FOOT CENTER
(A) 		1-76377-228-2 01 1 0706-0708 ● ●
9 DUCT; HTR AIR,FOOT CENTER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-76377-228-2 01 1 0709- ● ●
10 DUCT; HTR AIR,ASSIST FOOT 1-76377-200-1 01 1 0706-0708 ● ●
10 DUCT; HTR AIR,ASSIST FOOT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-76377-200-1 01 1 0709- ● ●
56 NUT; INL DUCT
M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 0706-0708 ● ●
56 NUT; INL DUCT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6 FLANGE W/RUBBER 		1-09984-180-0 01 1 0709- ● ●
66 BOLT; DUCT
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0706-0708 ● ●
66 BOLT; DUCT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0709- ● ●
72 BOLT; BLOWER UNIT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0706- ● ●
77 BOLT; HTR UNIT
(A) M6X16 		1-09980-598-1 02 1 0706- ● ●
77 BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0706- ● ●
123 SCREW; DUCT
M5X14 		8-94279-325-0 08 1 0706- ● ●
123 SCREW; DUCT
M5X14 		8-94279-325-0 03 1 0706-0708 ● ●
123 SCREW; DUCT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14 		8-94279-325-0 03 1 0709- ● ●
124 BRACKET ASM; VENT DUCT 1-79738-186-1 01 1 0706-0708 ● ●
124 BRACKET ASM; VENT DUCT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-79738-186-1 01 1 0709- ● ●
321 NUT; DUCT FIX
M5 		1-09984-196-0 01 1 0706-0708 ● ●
321 NUT; DUCT FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5 		1-09984-196-0 01 1 0709- ● ●
374 HOLDER; DUCT 1-76398-012-1 01 1 0706-0708 ● ●
374 HOLDER; DUCT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-76398-012-1 01 1 0709- ● ●
375 SCREW; HOLDER
M5X14 		8-94279-325-0 02 1 0706-0708 ● ●
375 SCREW; HOLDER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14 		8-94279-325-0 02 1 0709- ● ●

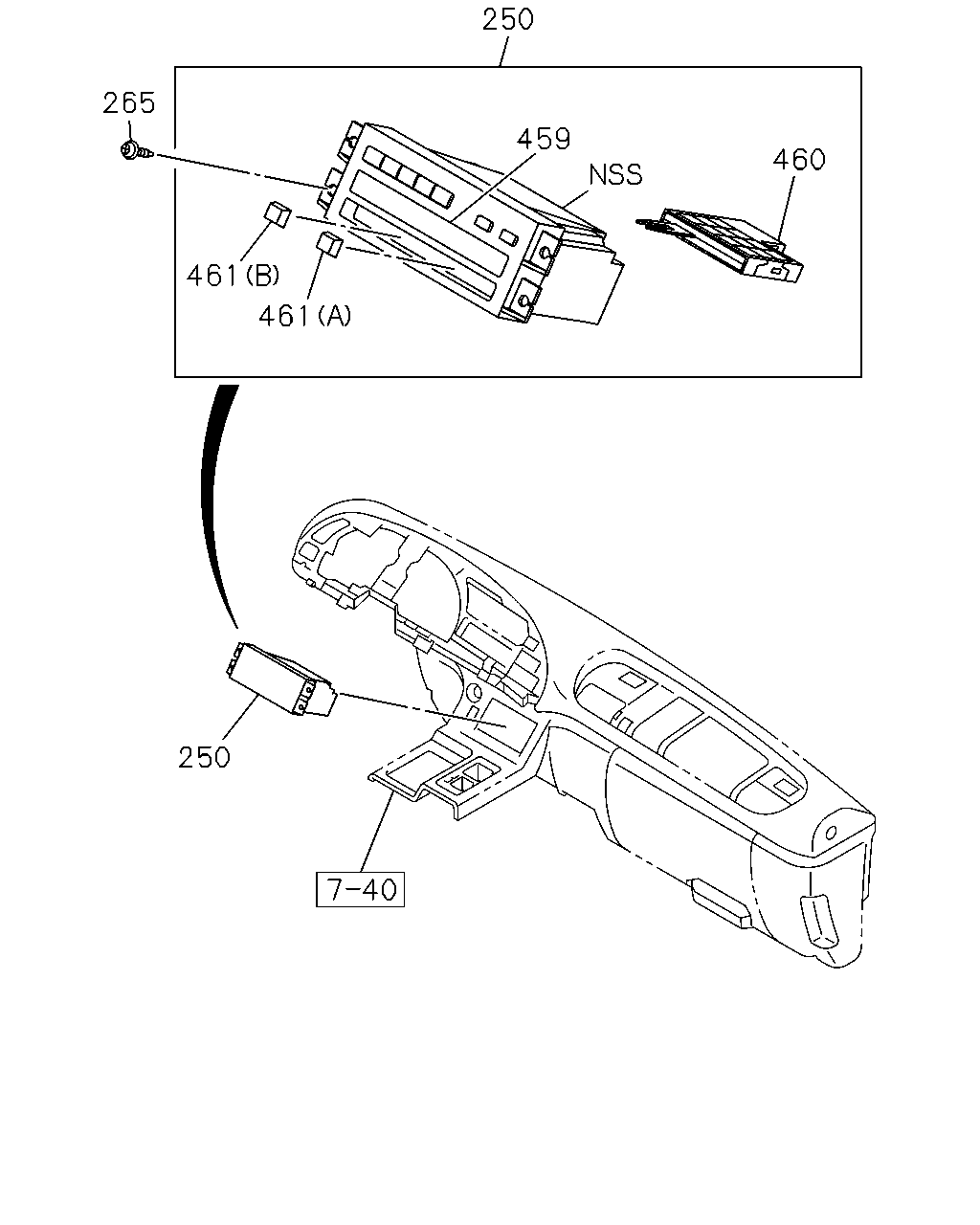

çizim 134512
71 26 457 77
BalonParca AdiParca NoAdetTipApplied Date A B
26 NUT; HTR
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0706- ● ●
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0706- ● ●
77 BOLT; HTR UNIT
(A) M6X16 		1-09980-598-1 02 1 0706- ● ●
77 BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0706- ● ●
457 BRACKET; SENSOR 1-71907-603-1 01 1 0706- ● ●
çizim 134524
250 265 459 460 461 461 250
BalonParca AdiParca NoAdetTipApplied Date A B
250 CONTROL ASM; A/C 8-98034-326-0 01 1 0706-0708 ● ●
250 CONTROL ASM; A/C
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98034-326-0 01 1 0709- ● ●
265 SCREW; A/C CONT UNIT
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0706- ● ●
459 PANEL; CONTROL ASM,A/C 1-83549-013-0 01 1 0706-0708 ● ●
459 PANEL; CONTROL ASM,A/C
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-83549-013-0 01 1 0709- ● ●
460 SWITCH; CONTROL ASM,A/C 1-82489-006-0 01 1 0706-0708 ● ●
460 SWITCH; CONTROL ASM,A/C
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		1-82489-006-0 01 1 0709- ● ●
461 KNOB; CONTROL ASM,A/C
(B) 		1-83549-015-0 01 1 0706-0708 ● ●
461 KNOB; CONTROL ASM,A/C
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83549-015-0 01 1 0709- ● ●
461 KNOB; CONTROL ASM,A/C
(A) 		1-83549-016-0 01 1 0706-0708 ● ●
461 KNOB; CONTROL ASM,A/C
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83549-016-0 01 1 0709- ● ●

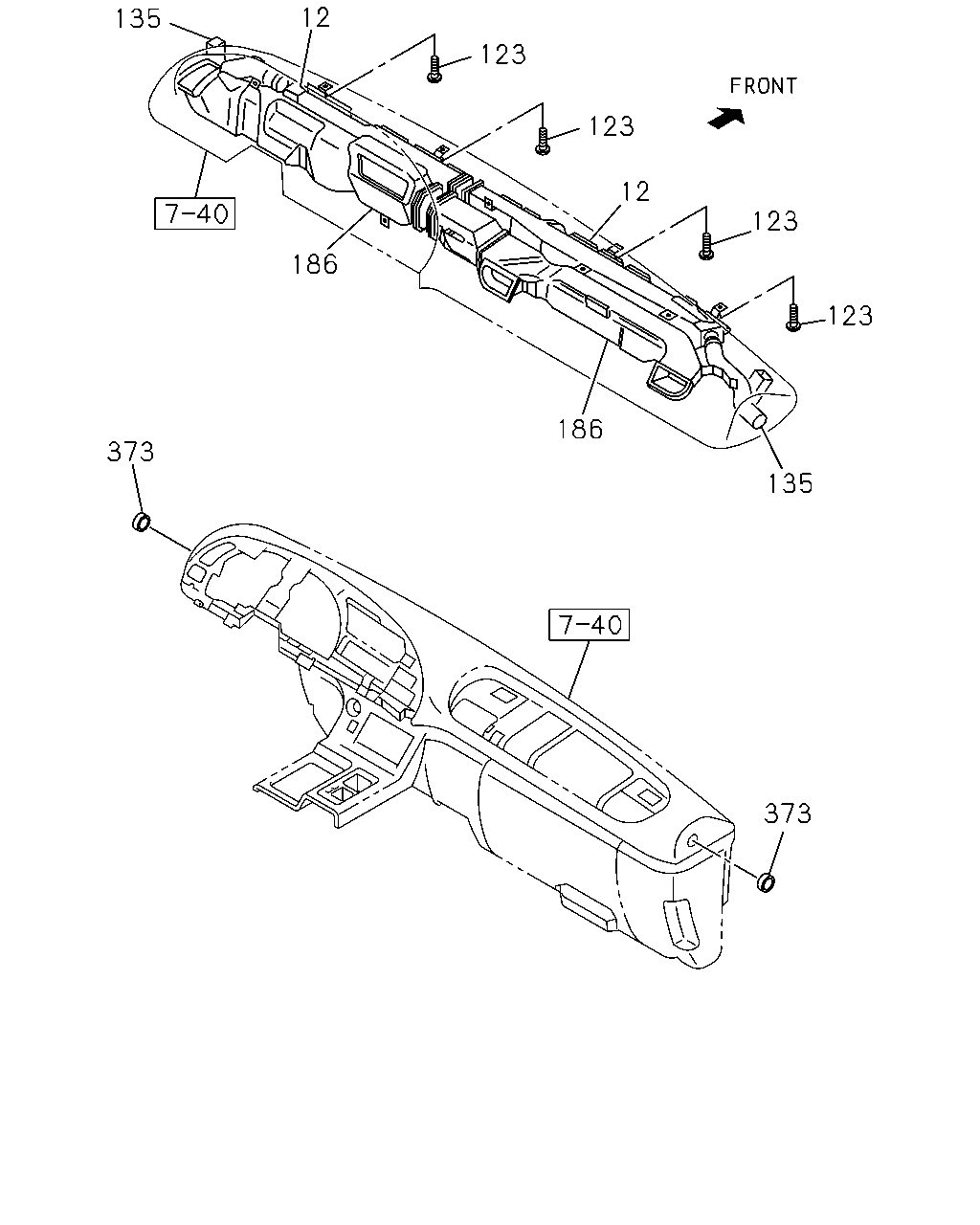

çizim 134529
12 135 123 123 12 123 186 123 186 373 135 373
BalonParca AdiParca NoAdetTipApplied Date A B
12 NOZZLE; DEFROSTER 1-76378-360-2 01 1 0706- ● ●
12 NOZZLE; DEFROSTER 1-76377-196-1 01 1 0706- ● ●
123 SCREW; DUCT
M5X14 		8-94279-325-0 08 1 0706- ● ●
123 SCREW; DUCT
M5X14 		8-94279-325-0 03 1 0706-0708 ● ●
123 SCREW; DUCT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X14 		8-94279-325-0 03 1 0709- ● ●
135 HOSE; DEFROSTER 1-76378-364-3 01 1 0706- ● ●
135 HOSE; DEFROSTER 1-76377-231-0 01 1 0706- ● ●
186 DUCT; VENTILATOR 1-76378-362-4 01 1 0706- ● ●
186 DUCT; VENTILATOR 1-76377-197-2 01 1 0706- ● ●
373 RUBBER; JOINT 1-76378-291-0 02 1 0706- ● ●

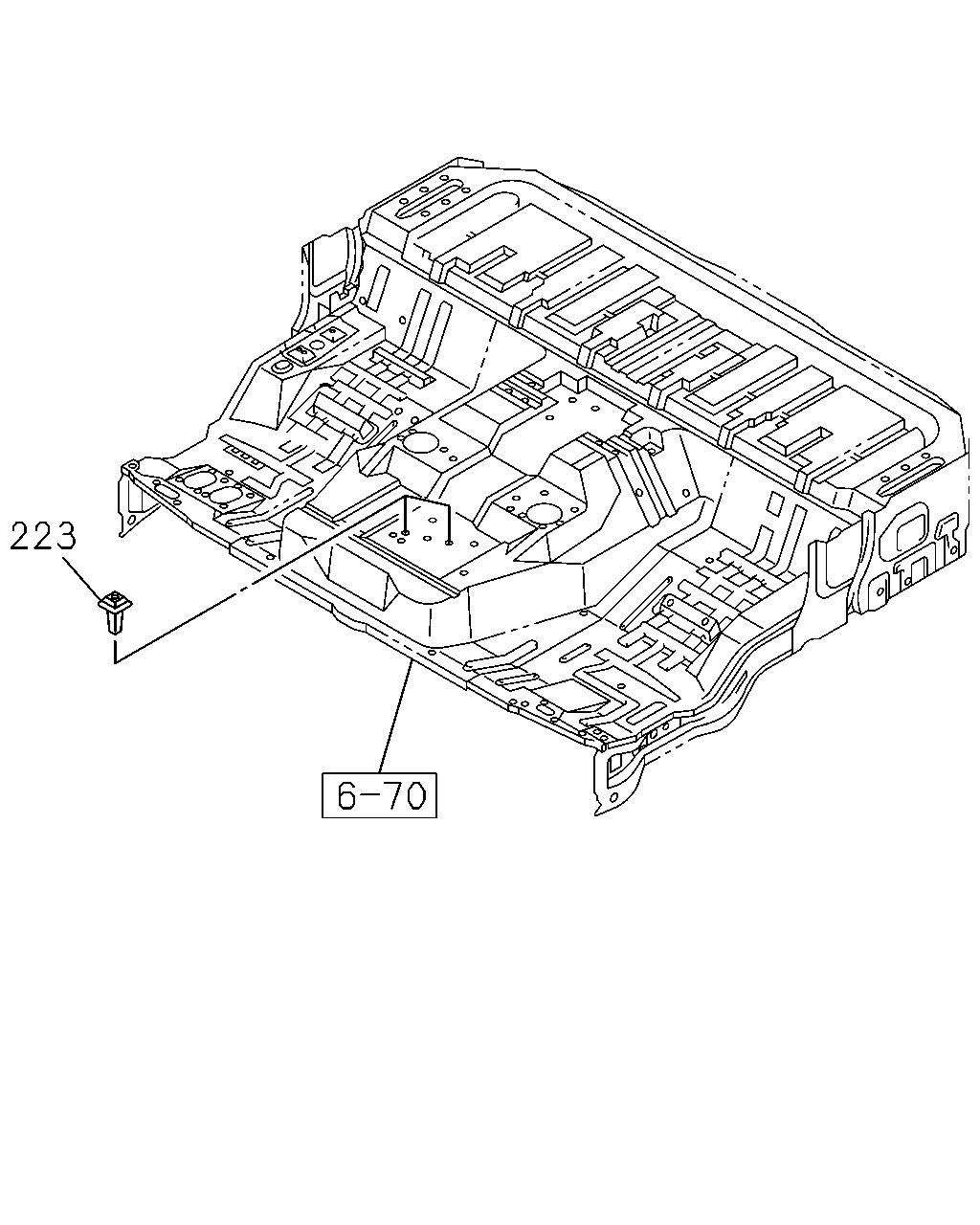

çizim 134530
223
BalonParca AdiParca NoAdetTipApplied Date A B
223 GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0706- ● ●
