8-28 — CHASSIS ELECTRICAL (#19602) — 110 parça

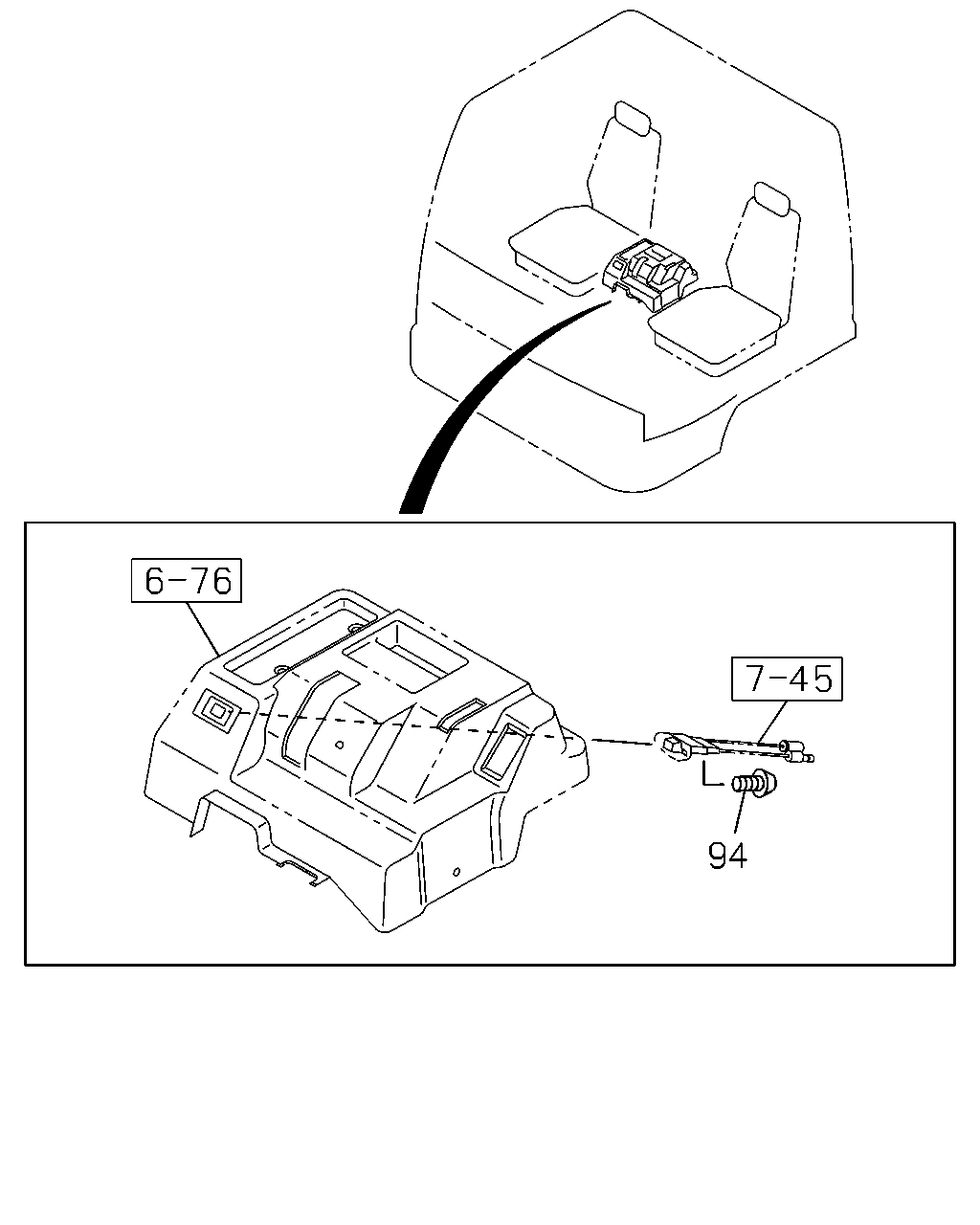

çizim 134504
94
BalonParca AdiParca NoAdetTipApplied Date A B
94 SCREW; CONSENT TO BLIND PNL
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 02 1 0706-0708 ● ●

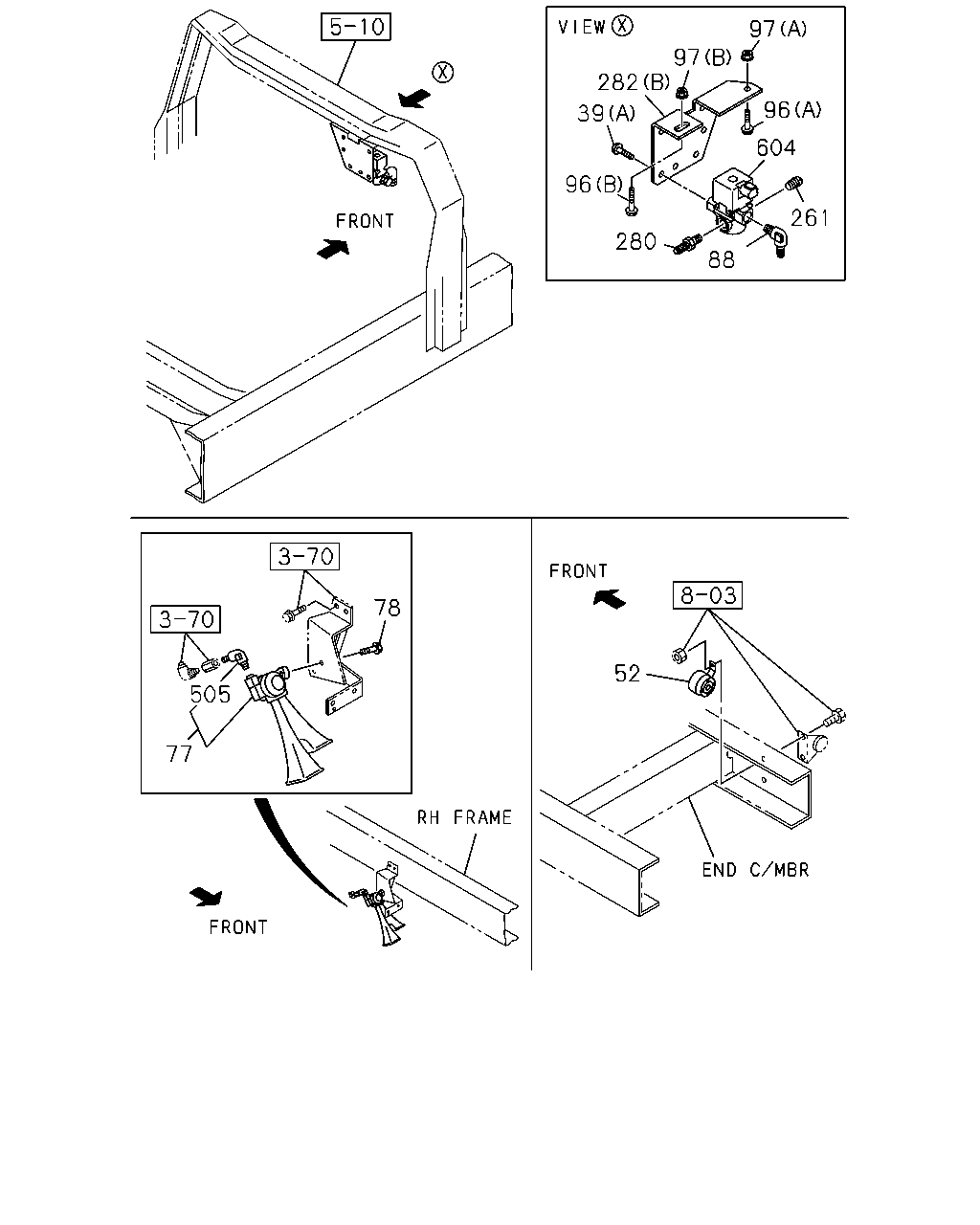

çizim 134514
97 97 282 96 39 604 96 261 280 88 78 52 505 77
BalonParca AdiParca NoAdetTipApplied Date A B
39 BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0706- ● ●
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE 		0-28650-835-0 02 1 0706-0708 ● ●
39 BOLT; BRKT,MAG VLV
(B) M8X35 FLANGE 		0-28650-835-0 02 1 0709-0810 ●
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE 		0-28650-835-0 02 1 0709-0810 ●
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE 		0-28650-835-0 02 1 0811- ● ●
52 BUZZER; BACK
METRO DENSO 		8-98069-861-0 01 1 0706-0708 ● ●
77 HORN ASM 1-83430-041-2 01 1 0706- ● ●
78 BOLT; AIR HORN
M8X20 FLANGE 		0-28650-820-0 02 1 0706- ● ●
88 CONNECTOR; MAG VLV
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0706- ● ●
96 BOLT; BRKT FIX
(A) M8X25 FLANGE 		0-28650-825-0 05 1 0706- ● ●
96 BOLT; BRKT FIX
(B) M10X25 FLANGE 		0-28651-025-0 01 1 0706- ● ●
97 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 05 1 0706- ● ●
97 NUT; BRKT FIX
(B) M10 FLANGE 		0-91180-110-0 01 1 0706- ● ●
97 NUT; BRKT FIX
(C) M10 FLANGE 		0-91180-210-0 01 1 0706- ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0706-0708 ● ●
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4 		9-99204-513-0 01 1 0706-0708 ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0706-0708 ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0709-0810 ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0709-0810 ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0709-0810 ●
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4 		9-99204-513-0 01 1 0709-0810 ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0811- ● ●
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4 		9-99204-513-0 01 1 0811- ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0811- ● ●
280 CONNECTOR; IN,MAG VLV
M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0706- ● ●
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		1-47471-175-0 01 1 0706-0708 ●
282 BRACKET; MAG VLV
(C) 		1-47471-175-0 01 1 0709-0810 ●
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		1-47471-175-0 01 1 0811- ●
282 BRACKET; MAG VLV
(B) 		1-82569-277-2 01 1 0706- ● ●
282 BRACKET; MAG VLV
(A) 		1-82569-421-0 01 1 0706- ● ●
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) 		1-47479-364-1 01 1 0706- ●
505 JOINT; AIR HORN 1-83439-006-0 01 1 0706- ● ●
604 VALVE; MAG,ENG CONT 1-82563-871-2 01 1 0706- ● ●

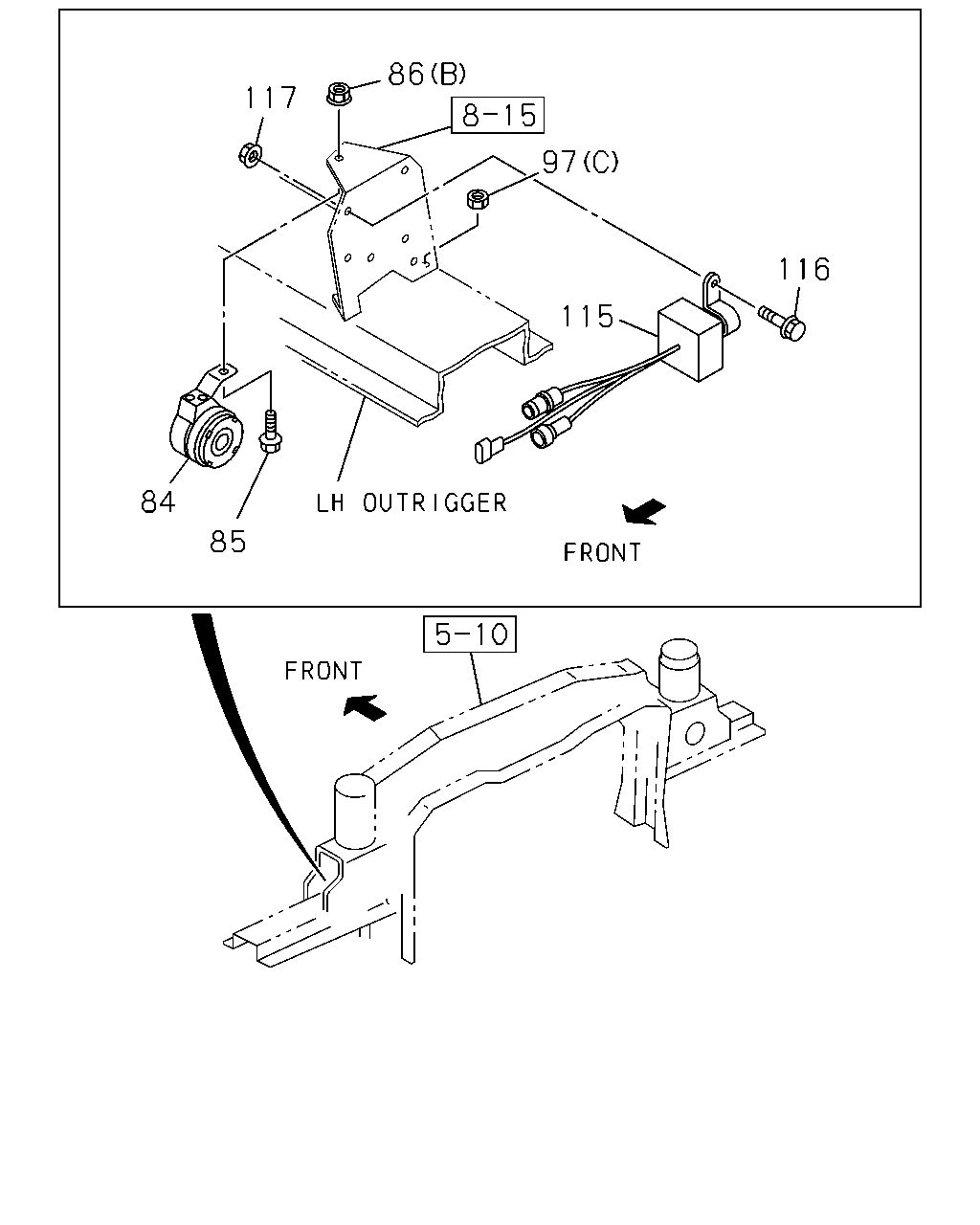

çizim 134515
86 117 97 116 115 84 85
BalonParca AdiParca NoAdetTipApplied Date A B
84 BUZZER; POWER CAB TILT
METRO DENSO 		8-98069-860-0 01 1 0706- ● ●
85 BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE 		0-28650-820-0 01 1 0706- ● ●
86 NUT; BUZZER
(A) M6 FLANGE 		0-91180-106-0 01 1 0706- ● ●
86 NUT; BUZZER
(B) M8 FLANGE 		0-91180-108-0 01 1 0706- ● ●
97 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 05 1 0706- ● ●
97 NUT; BRKT FIX
(B) M10 FLANGE 		0-91180-110-0 01 1 0706- ● ●
97 NUT; BRKT FIX
(C) M10 FLANGE 		0-91180-210-0 01 1 0706- ● ●
115 RELAY; POWER CAB TILT UNIT
NIKKO 		1-81171-075-1 01 1 0706- ● ●
116 BOLT; RELAY FIX
M8X16 FLANGE 		0-28050-816-0 02 1 0706- ● ●
117 NUT; RELAY FIX
M8 FLANGE 		0-91180-108-0 02 1 0706- ● ●

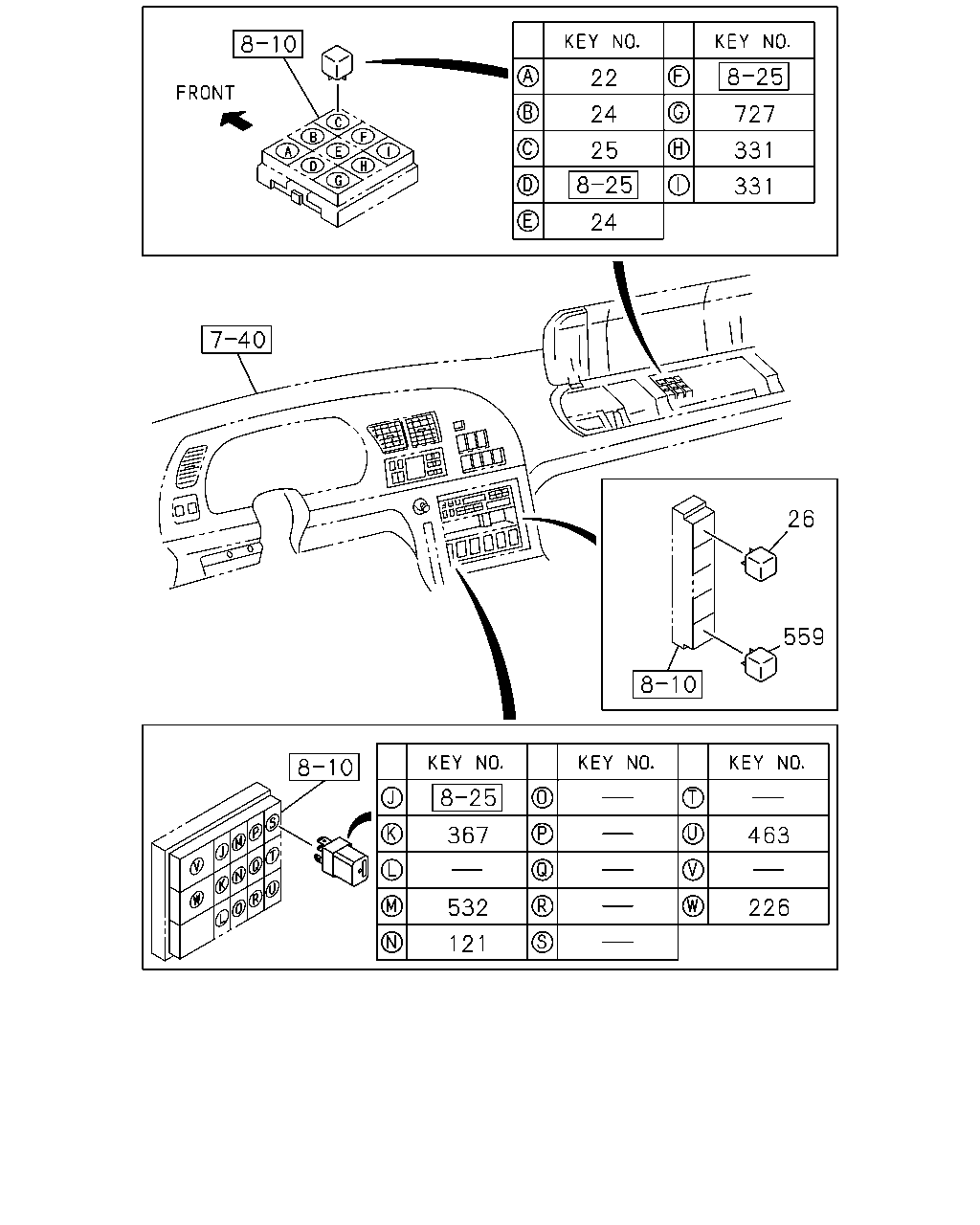

çizim 134534
22 24 727 25 331 331 24 26 559 367 463 226 532 121
BalonParca AdiParca NoAdetTipApplied Date A B
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0706- ● ●
24 RELAY; LIGHTING
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0706- ● ●
25 RELAY; TAIL LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0706- ● ●
26 RELAY; CONSENT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0706- ● ●
121 RELAY; PARKING BRK
24V 10A PANASONIC 		8-97173-035-1 01 1 0706- ● ●
226 RELAY; EXH BRK
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0706- ● ●
331 RELAY; A/C
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0706-0708 ● ●
331 RELAY; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0709- ● ●
367 RELAY; NEUTRAL
24V 10A PANASONIC 		8-97173-035-1 01 1 0706- ● ●
463 RELAY; ABS SIGNAL
24V 10A PANASONIC 		8-97173-035-1 01 1 0706- ● ●
532 RELAY; SEAT BELT WARNING
24V 10A PANASONIC 		8-97173-035-1 01 1 0709- ● ●
559 RELAY; MAG VLV
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0706- ● ●
727 RELAY; START CUT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0706- ● ●

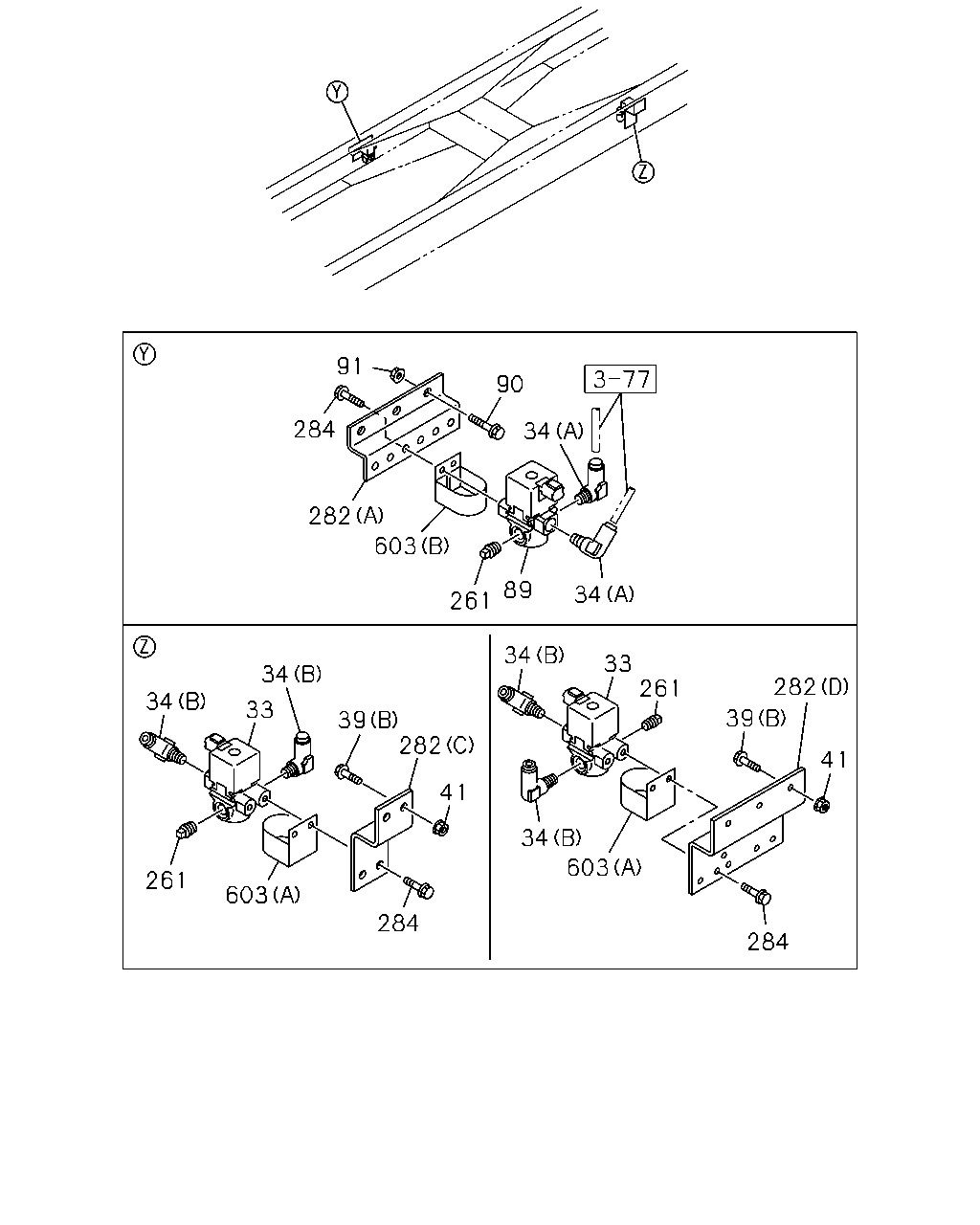

çizim 134541
91 90 284 34 282 603 89 34 261 34 33 261 34 282 34 33 39 39 282 41 41 34 603 261 603 284 284
BalonParca AdiParca NoAdetTipApplied Date A B
33 VALVE; MAG,PTO CONT
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82563-871-2 01 1 0706-0708 ● ●
33 VALVE; MAG,PTO CONT 1-82563-871-2 01 1 0709-0810 ●
33 VALVE; MAG,PTO CONT
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82563-871-2 01 1 0709-0810 ●
33 VALVE; MAG,PTO CONT
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82563-871-2 01 1 0811- ● ●
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0706- ● ●
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 02 1 0706-0708 ● ●
34 CONNECTOR; MAG VLV,INL PORT
(B) DIN6 & R1/4 ELBOW 		1-09661-067-0 02 1 0709-0810 ●
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 02 1 0709-0810 ●
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 02 1 0811- ● ●
39 BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0706- ● ●
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE 		0-28650-835-0 02 1 0706-0708 ● ●
39 BOLT; BRKT,MAG VLV
(B) M8X35 FLANGE 		0-28650-835-0 02 1 0709-0810 ●
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE 		0-28650-835-0 02 1 0709-0810 ●
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE 		0-28650-835-0 02 1 0811- ● ●
41 NUT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 02 1 0706-0708 ● ●
41 NUT; BRKT,MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0709-0810 ●
41 NUT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 02 1 0709-0810 ●
41 NUT; BRKT,MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 02 1 0811- ● ●
89 VALVE; MAG,DIFF LOCK 1-82563-871-2 01 1 0706-1205 ● ●
89 VALVE; MAG,DIFF LOCK 8-97641-594-0 01 1 1206- ● ●
90 BOLT; MAG VLV
M8X40 FLANGE 		0-28650-840-0 02 1 0706- ● ●
91 NUT; MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0706- ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0706-0708 ● ●
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4 		9-99204-513-0 01 1 0706-0708 ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0706-0708 ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0709-0810 ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0709-0810 ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0709-0810 ●
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4 		9-99204-513-0 01 1 0709-0810 ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0811- ● ●
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4 		9-99204-513-0 01 1 0811- ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0811- ● ●
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		1-47471-175-0 01 1 0706-0708 ●
282 BRACKET; MAG VLV
(C) 		1-47471-175-0 01 1 0709-0810 ●
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) 		1-47471-175-0 01 1 0811- ●
282 BRACKET; MAG VLV
(B) 		1-82569-277-2 01 1 0706- ● ●
282 BRACKET; MAG VLV
(A) 		1-82569-421-0 01 1 0706- ● ●
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) 		1-47479-364-1 01 1 0706- ●
284 BOLT; MAG VLV
M8X20 FLANGE 		0-28650-820-0 02 1 0706- ● ●
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28650-820-0 02 1 0706- ● ●
603 PROTECTOR; MAG VLV
(B) 		1-47471-044-0 01 1 0706-0706 ● ●
603 PROTECTOR; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-47471-046-0 01 1 0706-0706 ● ●
603 PROTECTOR; MAG VLV
(A) 		1-47471-046-0 01 1 0707- ● ●
603 PROTECTOR; MAG VLV
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-47471-046-0 01 1 0707- ● ●

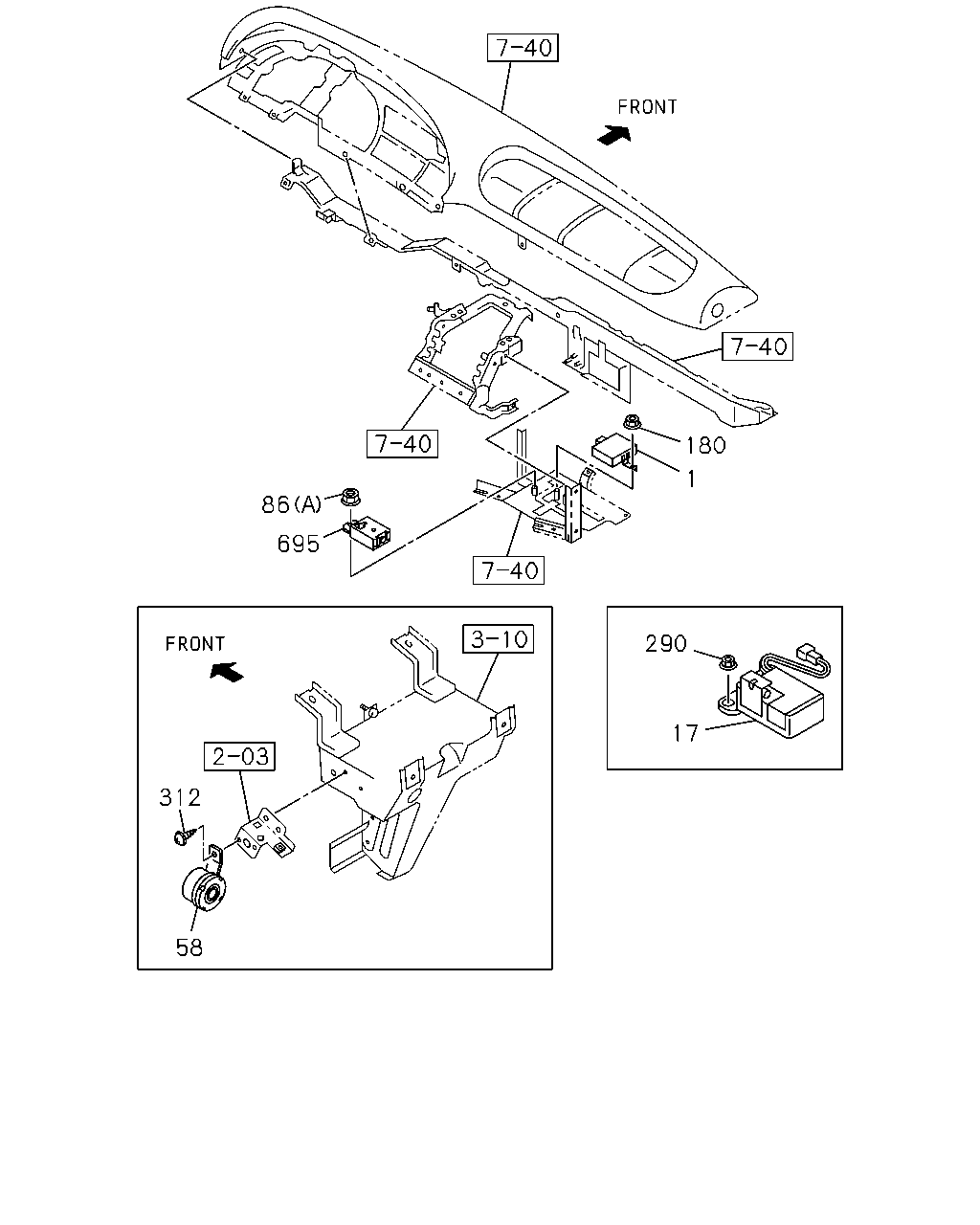

çizim 134546
180 1 86 695 290 17 312 58
BalonParca AdiParca NoAdetTipApplied Date A B
1 UNIT; FLASHER 1-83470-060-1 01 1 0706- ● ●
17 TIMER; SEAT BELT 1-82550-183-1 01 1 0709- ● ●
58 BUZZER; AIR PRESSURE WARNING
METRO DENSO 		8-98069-859-0 01 1 0706- ● ●
86 NUT; BUZZER
(A) M6 FLANGE 		0-91180-106-0 01 1 0706- ● ●
86 NUT; BUZZER
(B) M8 FLANGE 		0-91180-108-0 01 1 0706- ● ●
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91180-106-0 01 1 0706- ● ●
290 NUT
M6 FLANGE 		0-91180-106-0 02 1 0709- ● ●
312 BOLT; BUZZER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0706- ● ●
695 ALARM; OVER HEAT 1-83460-051-1 01 1 0706- ● ●
