◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11330 - CYZ MIDDLE EAST WITH 2STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#19601) — 39 parça

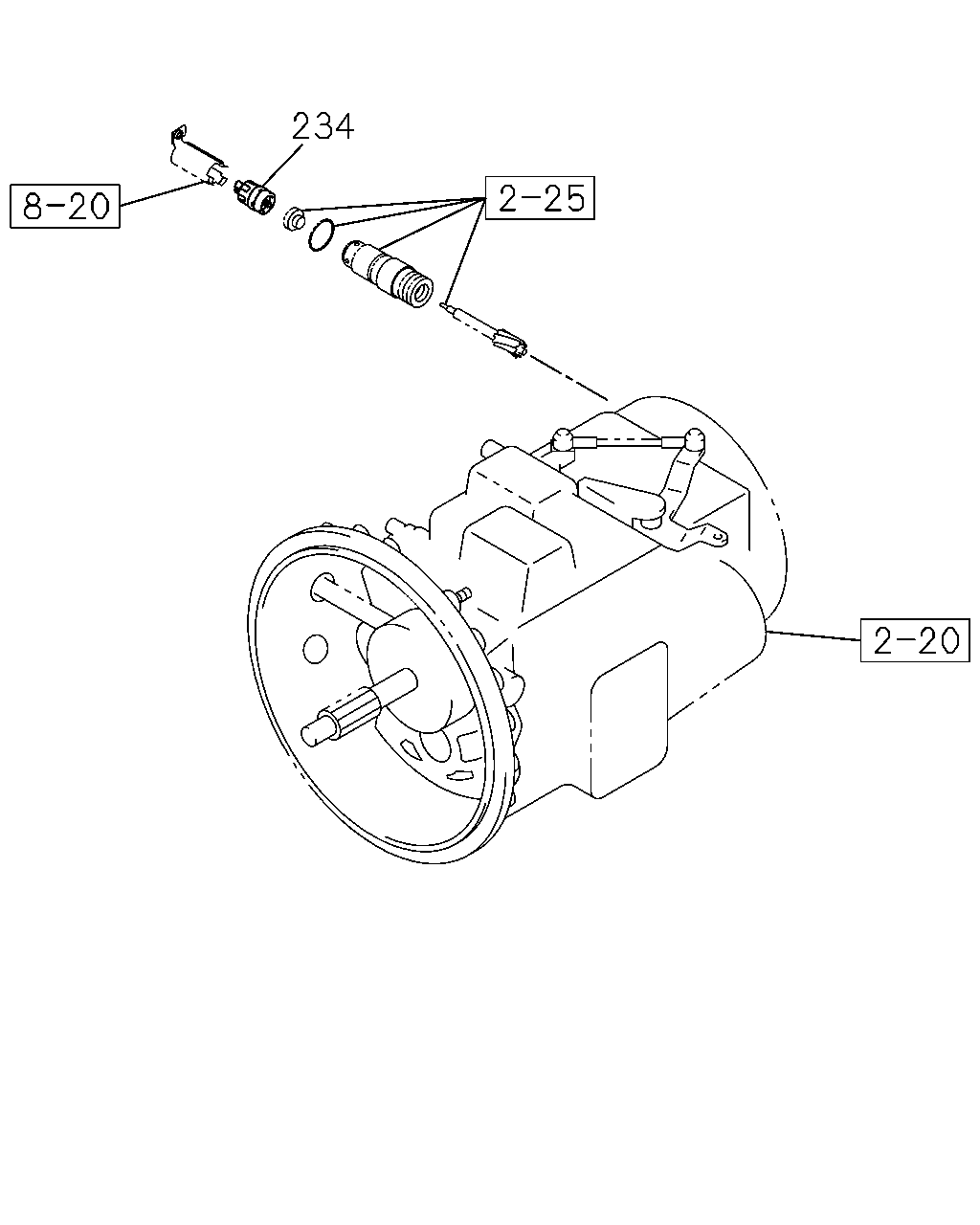

çizim 134506
234
BalonParca AdiParca NoAdetTipApplied Date A B
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 0706- ● ●

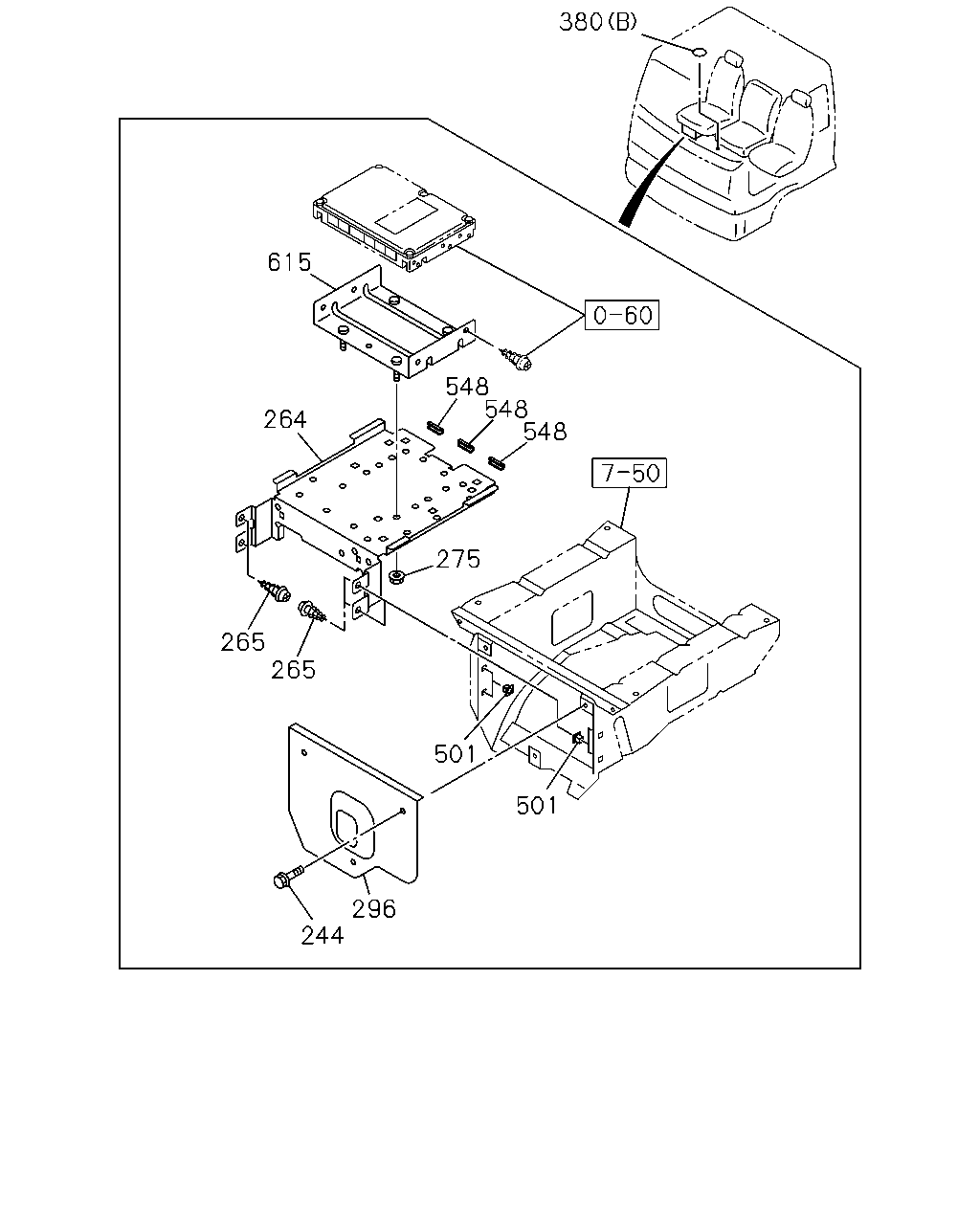

çizim 134507
380 615 548 548 548 264 275 265 265 501 501 296 244
BalonParca AdiParca NoAdetTipApplied Date A B
244 BOLT; COVER
M6X16 		0-52000-616-0 03 1 0706- ● ●
264 BRACKET; CONT UNIT 8-97589-038-5 01 1 0706- ● ●
265 SCREW; BRKT,CONT UNIT
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0706- ● ●
275 NUT; BRKT
M6 FLANGE 		0-91180-106-0 04 1 0706- ● ●
296 COVER; CONT UNIT
MEMORY SYSTEM RUNNING CONDITION,WO/ECU<EAG>, MEMORYSYSTEM RUNNING CONDITION<NCR> 		8-97589-674-1 01 1 0706-1112 ● ●
296 COVER; CONT UNIT
MEMORY SYSTEM RUNNING CONDITION,WO/ECU<EAG>, MEMORYSYSTEM RUNNING CONDITION<NCR> 		8-98151-570-0 01 1 1201- ● ●
296 COVER; CONT UNIT
EXC. MEMORY SYSTEM RUNNING CONDITION,WO/ECU<EAG>, MEMORY SYSTEM RUNNING CONDITION<NCR> 		1-75558-535-3 01 1 0706- ● ●
380 SEAL
(A) 450X350 		1-76770-008-0 01 1 0706- ● ●
380 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0706-1210 ● ●
380 SEAL
(B) OD=25 BLACK 		1-76798-019-0 02 1 1211- ● ●
501 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0706- ● ●
548 SEAL; NOISE
30X30 		1-74998-128-1 03 1 0706-0908 ● ●
548 SEAL; NOISE
30X30 		8-98142-344-0 03 1 0909-1305 ● ●
548 SEAL; NOISE
30X30 		8-98142-344-0 01 1 1306- ● ●
615 BRACKET; ECU,SEAT STAND 8-97375-194-2 01 1 0706- ● ●

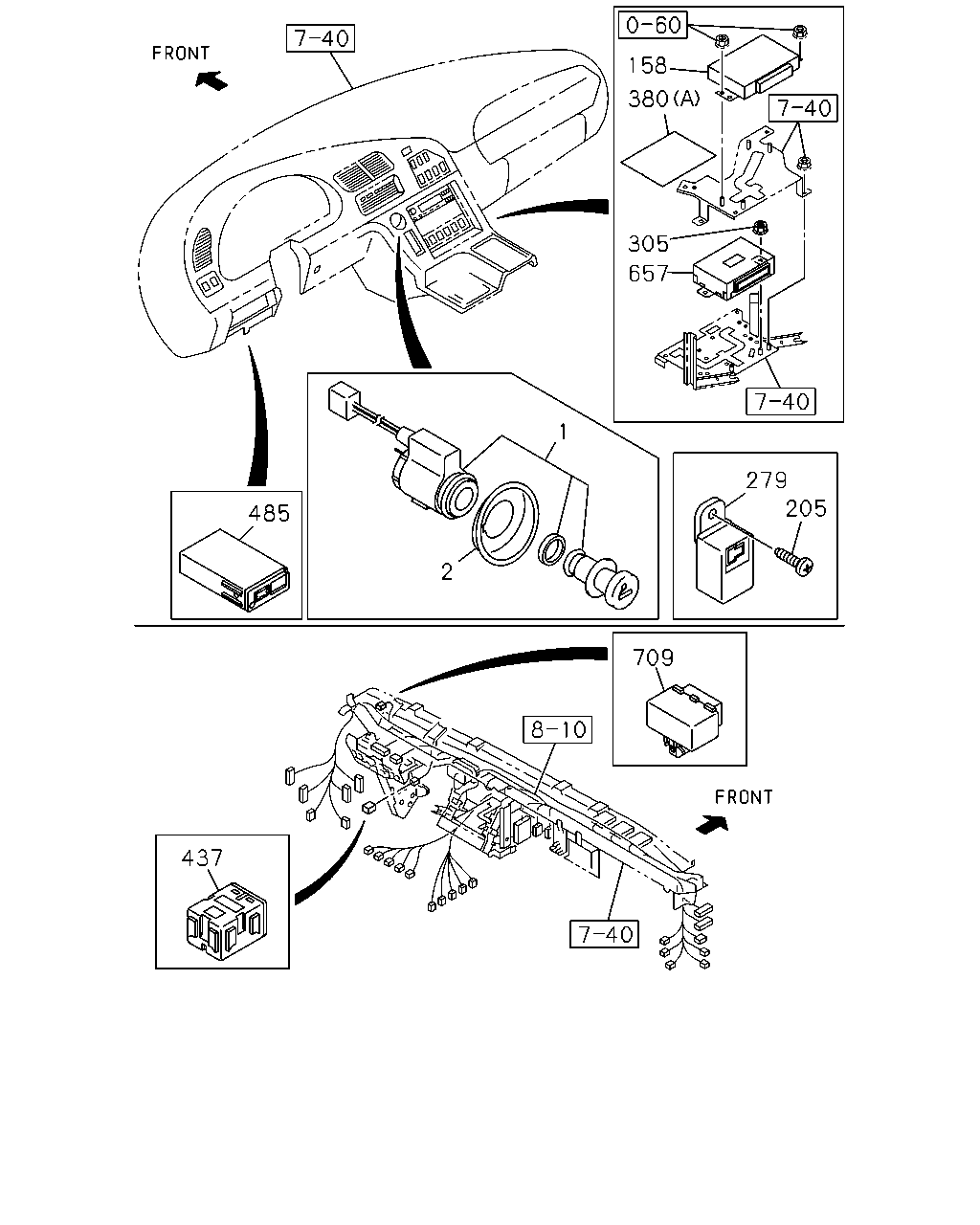

çizim 134518
158 380 305 657 1 279 205 485 2 709 437
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0706- ● ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 0706- ● ●
158 CONTROLLER; ABS
TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) 		1-80119-244-1 01 1 0712-1201 ● ●
158 CONTROLLER; ABS
TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) 		8-98196-720-0 01 1 1202- ● ●
205 SCREW; BUZZER
M5X14 		8-94279-325-0 01 1 0709- ● ●
279 BUZZER ASM; SEAT BELT WARNING
12V 		5-83460-004-1 01 1 0709- ● ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 0706- ● ●
305 NUT; CONT UNIT
MEMORY SYSTEM RUNNING CONDITION<NCR> M6 FLANGE 		0-91180-106-0 02 1 0706- ● ●
380 SEAL
(A) 450X350 		1-76770-008-0 01 1 0706- ● ●
380 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0706-1210 ● ●
380 SEAL
(B) OD=25 BLACK 		1-76798-019-0 02 1 1211- ● ●
437 CONVERTER; DC
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> KOITO 		8-97359-129-0 01 1 0706-0708 ● ●
437 CONVERTER; DC
KOITO 		8-97359-129-0 01 1 0709- ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-158-0 01 1 0706- ● ●
657 CONTROL UNIT; MIMAMORI
MEMORY SYSTEM RUNNING CONDITION<NCR> 		1-80190-179-0 01 1 0706-1112 ● ●
657 CONTROL UNIT; MIMAMORI
MEMORY SYSTEM RUNNING CONDITION<NCR> 		1-80190-175-0 01 1 1201- ● ●
709 RESISTOR; HD LAMP LEVELING
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		8-97359-130-1 01 1 0706-0708 ● ●
709 RESISTOR; HD LAMP LEVELING 8-97359-130-1 01 1 0709- ● ●
çizim 134519
25 24 328 328 497 497
BalonParca AdiParca NoAdetTipApplied Date A B
24 BOX; SW,CAB TILT 1-82389-007-1 01 1 0706- ● ●
25 BOLT; SW BOX
M6X16 FLANGE 		0-28050-616-0 02 1 0706- ● ●
328 NUT
M16 		0-91111-516-0 02 1 0706- ● ●
497 SWITCH; CAB TILT
(A) STAMP NC 		1-82380-125-1 01 1 0706- ● ●
497 SWITCH; CAB TILT
(B) 		1-82380-128-1 01 1 0706- ● ●
