◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11330 - CYZ MIDDLE EAST WITH 2STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#19600) — 63 parça

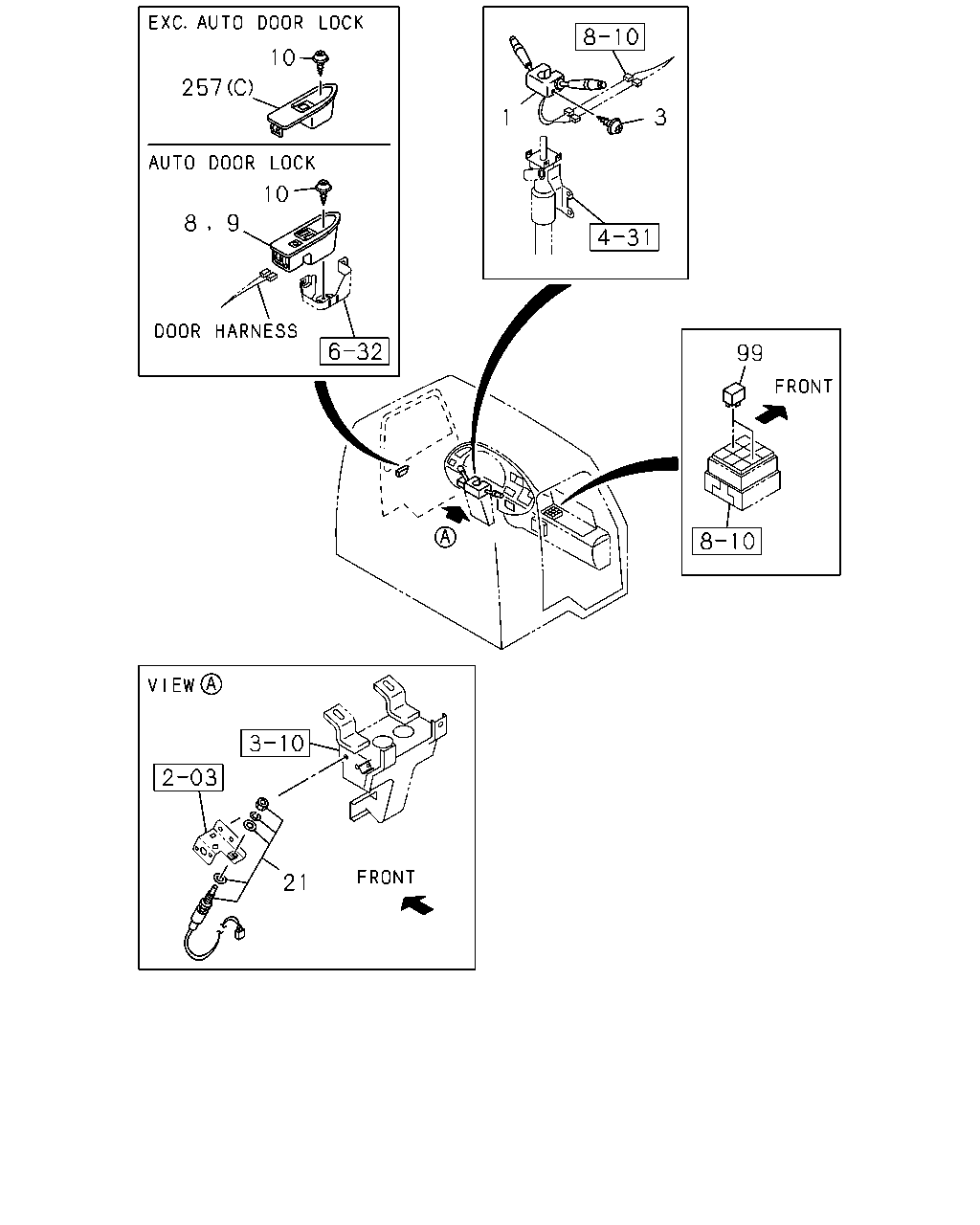

çizim 134501
10 257 3 1 10 8 9 99 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB 1-82360-734-0 01 1 0706- ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74165-512-0 04 1 0706- ● ●
8 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> DRIVER SIDE 		1-82380-157-3 01 1 0706-0708 ● ●
8 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> DRIVER SIDE 		1-82380-174-1 01 1 0709- ● ●
9 SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> PASSENGER SIDE 		1-82380-158-3 01 1 0706- ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0706- ● ●
21 SWITCH; CLU 1-82380-114-3 01 1 0706- ● ●
99 RELAY; FOG LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0706- ● ●
257 COVER; HOLE,SW
(A) 		1-82389-008-0 01 1 0706- ● ●
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 0706- ● ●
257 COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C) 		1-82389-011-2 01 1 0706- ● ●
257 COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C) 		1-82389-012-2 01 1 0706- ● ●

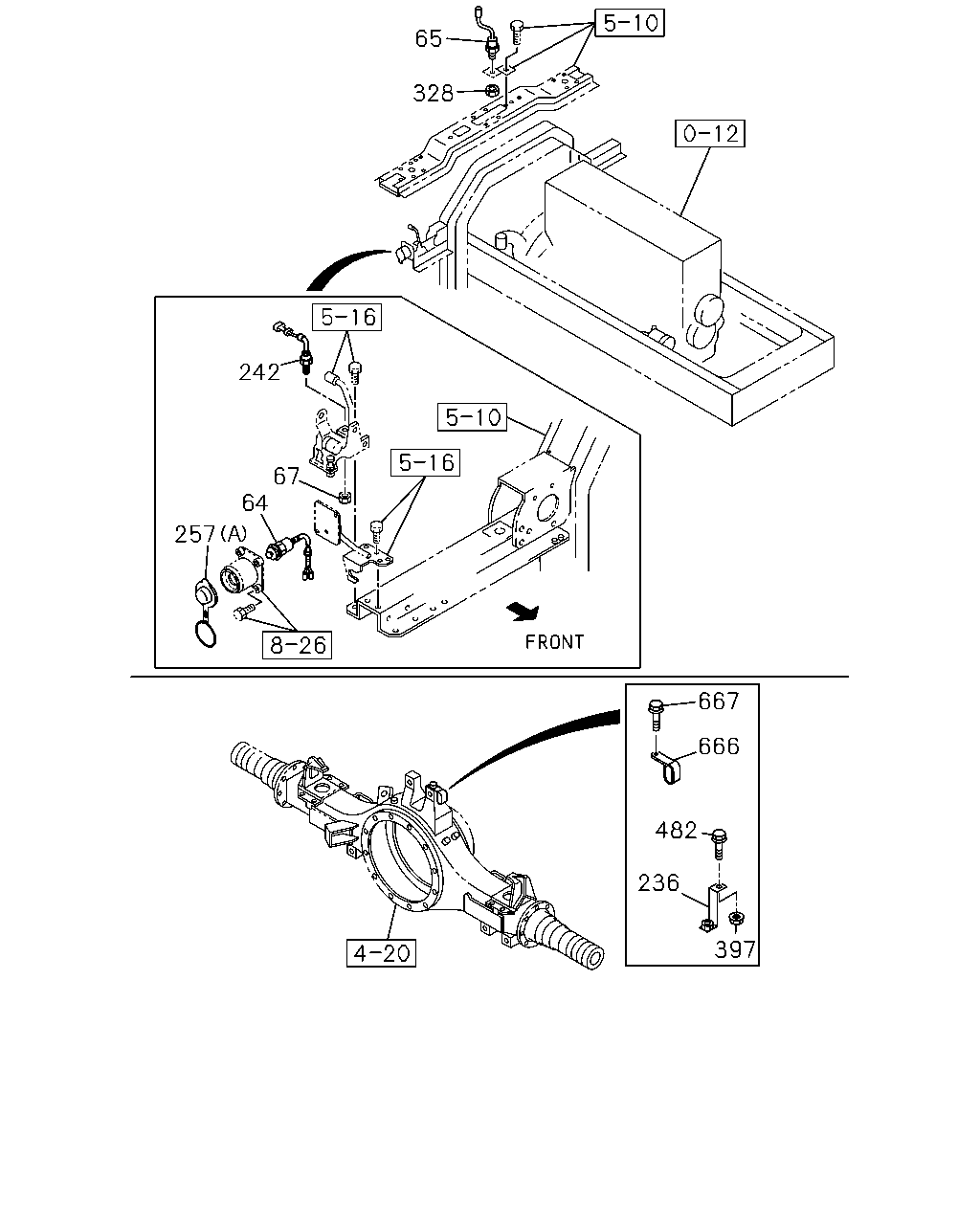

çizim 134517
65 328 242 67 64 257 667 666 482 236 397
BalonParca AdiParca NoAdetTipApplied Date A B
64 SWITCH; CAB TILT MAIN 1-82380-108-0 01 1 0706- ● ●
65 SWITCH; CAB TILT LK
STAMP NC 		1-82380-125-1 01 1 0706- ● ●
67 NUT; SW,CAB TILT
M16 H=18.5 		1-09409-013-0 01 1 0706- ● ●
236 BRACKET; AXLE HARNESS,RR 1-47476-200-0 01 1 0706-0708 ●
236 BRACKET; AXLE HARNESS,RR
WHEEL BASE 6600MM(66W) 		1-47476-200-0 01 1 0706-0708 ●
236 BRACKET; AXLE HARNESS,RR 1-47476-200-0 01 1 0709- ●
236 BRACKET; AXLE HARNESS,RR
WHEEL BASE 5900MM(59W) 		1-46147-101-0 02 1 0706-0708 ●
236 BRACKET; AXLE HARNESS,RR 1-46147-101-0 02 1 0709- ●
242 SWITCH
STAMP NO 		1-82380-126-0 01 1 0706- ● ●
257 COVER; HOLE,SW
(A) 		1-82389-008-0 01 1 0706- ● ●
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 0706- ● ●
257 COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C) 		1-82389-011-2 01 1 0706- ● ●
257 COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C) 		1-82389-012-2 01 1 0706- ● ●
328 NUT; SW
M16 		0-91110-516-0 01 1 0706- ● ●
397 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 01 1 0706-0708 ●
397 NUT; BRKT FIX
WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 01 1 0706-0708 ●
397 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 01 1 0709- ●
397 NUT; BRKT FIX
WHEEL BASE 5900MM(59W) M8 FLANGE 		0-91180-108-0 02 1 0706-0708 ●
397 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 02 1 0709- ●
482 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0706-0708 ●
482 BOLT; BRKT
WHEEL BASE 6600MM(66W) M8X30 FLANGE 		0-28650-830-0 01 1 0706-0708 ●
482 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0709- ●
482 BOLT; BRKT
WHEEL BASE 5900MM(59W) M8X35 FLANGE 		0-28650-835-0 02 1 0706-0708 ●
482 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 0709-1109 ●
482 BOLT; BRKT
M8X40 FLANGE 		0-28650-840-0 02 1 1110- ●
666 CLIP; AXLE HARNESS
ID=11X2 L=20 		1-09700-871-0 04 1 0706- ● ●
667 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 0706- ● ●

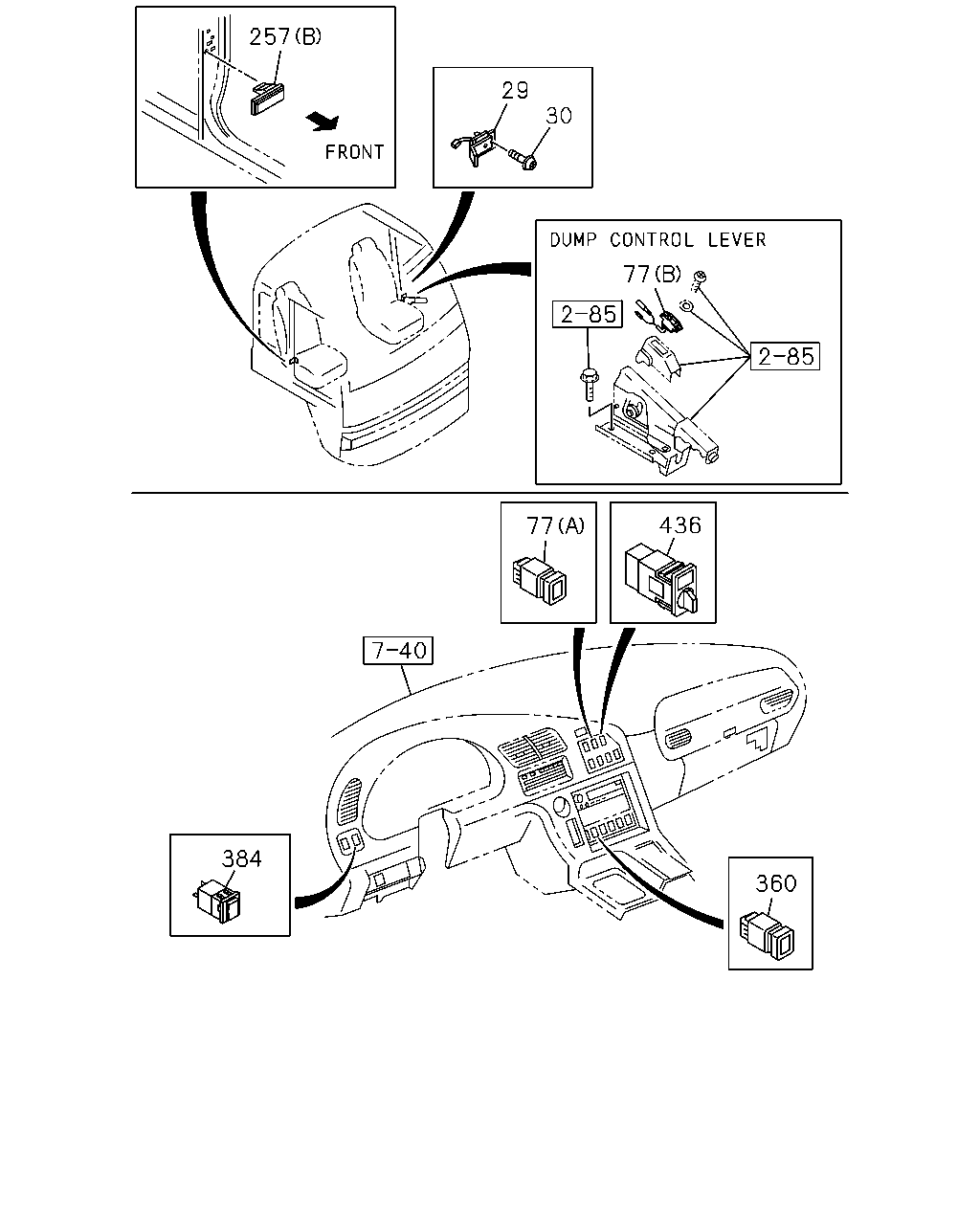

çizim 134527
257 29 30 77 436 77 384 360
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR 8-97855-032-3 01 1 0706- ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 0706- ● ●
77 SWITCH; PTO
MIXER TRUCK<RA2> PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-82340-413-0 01 1 0706-0708 ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (A) 		1-82340-413-0 01 1 0706-0708 ●
77 SWITCH; PTO
CONCRETE PUMP<RA5> (A) 		1-82340-413-0 01 1 0706-0708 ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-82340-413-0 01 1 0706-0708 ●
77 SWITCH; PTO
CONCRETE PUMP<RA5> (A) 		1-82340-413-0 01 1 0709-0810 ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-82340-413-0 01 1 0709-0810 ●
77 SWITCH; PTO
MIXER TRUCK<RA2> PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-82340-413-0 01 1 0811- ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (A) 		1-82340-413-0 01 1 0811- ●
77 SWITCH; PTO
CONCRETE PUMP<RA5> (A) 		1-82340-413-0 01 1 0811- ●
77 SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-82340-413-0 01 1 0811- ●
77 SWITCH; PTO
DUMP CONTROL LEVER<RC4> (B) 		1-82380-112-0 01 1 0706-0708 ● ●
77 SWITCH; PTO
(B) 		1-82380-112-0 01 1 0709-0810 ●
77 SWITCH; PTO
DUMP CONTROL LEVER<RC4> (B) 		1-82380-112-0 01 1 0709-0810 ●
77 SWITCH; PTO
DUMP CONTROL LEVER<RC4> (B) 		1-82380-112-0 01 1 0811- ● ●
257 COVER; HOLE,SW
(A) 		1-82389-008-0 01 1 0706- ● ●
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 0706- ● ●
257 COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C) 		1-82389-011-2 01 1 0706- ● ●
257 COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C) 		1-82389-012-2 01 1 0706- ● ●
360 SWITCH ASM; DIFF LK 1-82340-677-0 01 1 0706- ● ●
384 SWITCH; IDLING CONT,ELEC 1-82350-213-1 01 1 0706- ● ●
436 SWITCH; HEADLAMP LEVELING
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82330-043-0 01 1 0706-0708 ● ●
436 SWITCH; HEADLAMP LEVELING 1-82330-043-0 01 1 0709- ● ●
