◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10625 - FSR-LHD ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#196) — 39 parça

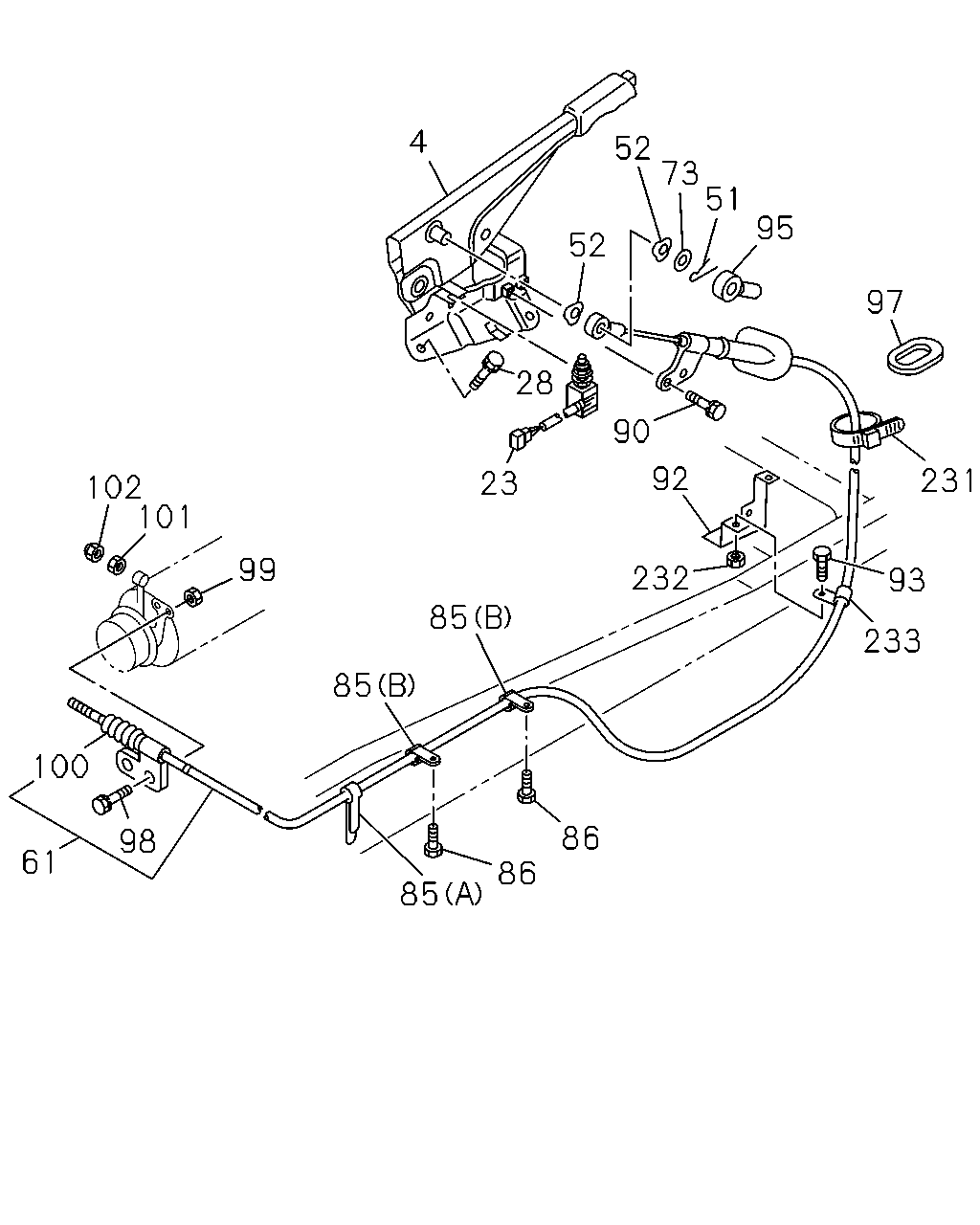

çizim 92527
4 52 73 51 95 52 97 28 90 92 231 23 102 101 99 232 93 85 233 85 100 86 98 61 86 85
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79998-644-2 01 1 9212-9305 ● ● ● ●
4 STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46120-062-5 01 1 9306- ● ● ● ●
23 SWITCH; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) CONNECTOR 6PIN 		1-82440-028-0 01 1 9212- ● ● ● ●
28 BOLT; HAND BRK LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/LK&PL WASHER 		0-50140-825-0 03 1 9212- ● ● ● ●
51 PIN; JOINT,RELAY LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=3.7 L=28 		9-08114-028-0 01 1 9212- ● ● ● ●
52 WASHER; CURVED RELAY LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=19 		8-94206-429-1 02 1 9212- ● ● ● ●
61 CABLE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4400 		1-46151-589-3 01 1 9212-9412 ● ●
61 CABLE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4410 		1-79996-145-0 01 1 9501- ● ●
61 CABLE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4500 		1-46151-592-3 01 1 9212-9412 ● ●
61 CABLE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4510 		1-79996-148-0 01 1 9501- ● ●
73 WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=17 		9-09160-516-0 01 1 9212- ● ● ● ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=15 L=65 		1-09700-466-0 01 1 9212- ● ● ● ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=15 L=65 		1-09700-466-0 01 1 9212- ● ●
85 CLIP; BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=24 L=40 		1-09701-139-0 02 1 9212- ● ● ● ●
86 BOLT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE 		0-28080-816-0 01 1 9212- ● ● ● ●
86 BOLT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE 		0-28080-825-0 02 1 9212- ● ● ● ●
90 BOLT; CABLE TO BRKT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 9212- ● ● ● ●
92 BRACKET; UPR MEMBER 1-31429-203-4 01 1 9212- ● ● ● ●
93 BOLT; BRKT,UPR MEMBER
M8X20 FLANGE 		0-28080-820-0 02 1 9212- ● ● ● ●
95 CAP; CABLE,PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-79997-140-2 01 1 9212- ● ● ● ●
97 GROMMET; PARKING BRK CABLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09983-078-0 01 1 9212- ● ● ● ●
98 BOLT; RR COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 W/LK WASHER 		0-50041-030-0 02 1 9212- ● ● ● ●
99 NUT; CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 		9-09110-510-0 02 1 9212- ● ● ● ●
100 BELLOWS; CONT WIRE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-46159-004-0 01 1 9212- ● ● ● ●
101 NUT; CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		9-46259-016-0 01 1 9212- ● ● ● ●
102 NUT; LK,CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 		9-09110-408-0 01 1 9212- ● ● ● ●
231 CLIP; BAND,BRK CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=140 		5-09707-031-0 01 1 9212- ● ● ● ●
232 NUT; BRKT,UPR MEMBER
M8 		9-09110-408-0 02 1 9212- ● ● ● ●
233 CLIP; BRKT UPR MEMBER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.5 L=20 		1-09701-012-0 01 1 9212- ● ● ● ●
çizim 92698
67 45 46 46 298 45 299
BalonParca AdiParca NoAdetTipApplied Date A B C D
45 BOLT; CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 9212- ● ● ● ●
46 CLIP; FRT CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=13 L=20 		9-09525-236-0 01 1 9212- ● ● ● ●
46 CLIP; FRT CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=16 L=20 		9-09525-532-0 01 1 9212- ● ● ● ●
46 CLIP; FRT CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=19 H=50 L=25 		9-09916-622-0 01 1 9212- ● ● ● ●
46 CLIP; FRT CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=15.5 		9-09916-962-0 01 1 9212-9302 ● ● ● ●
46 CLIP; FRT CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=16 H=24 L=20 		9-09527-015-0 01 1 9303- ● ● ● ●
67 PLUG; UNDER FRAME
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) D4.7X11 		1-76378-154-0 02 1 9212- ● ● ● ●
67 PLUG; UNDER FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) D4.7X11 		1-76378-154-0 04 1 9212- ● ● ● ●
298 GROMMET; RR,AIR PIPE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=32 T=5 		5-09983-018-0 01 1 9212- ● ● ● ●
299 PLUG; RR PARTS
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) D4.7X11 		1-76378-154-0 07 1 9212- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
