◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11330 - CYZ MIDDLE EAST WITH 2STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#19597) — 372 parça

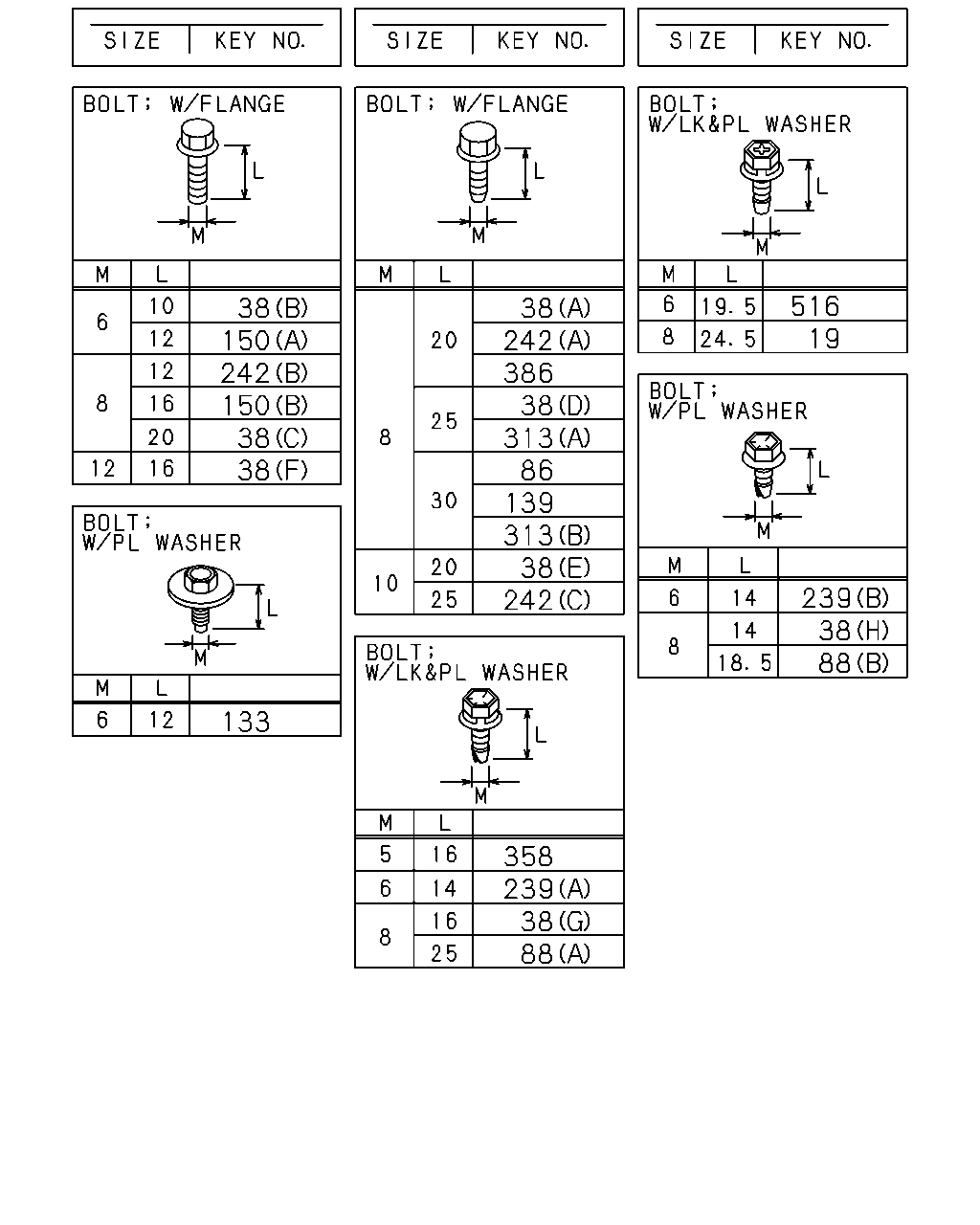

çizim 134495
516 19 38 150 242 150 38 38 38 242 386 38 313 86 139 313 38 242 239 38 88 133 358 239 38 88
BalonParca AdiParca NoAdetTipApplied Date A B
19 BOLT; PROTECTOR
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0706-0904 ● ●
19 BOLT; PROTECTOR
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ● ●
38 BOLT; CLIP,HARNESS
MJT7 M/T<Y9E> (A) M8X20 FLANGE 		0-28650-820-0 04 1 0902- ●
38 BOLT; CLIP,HARNESS
(B) M6X10 FLANGE 		0-28050-610-0 01 1 0706- ● ●
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28050-820-0 01 1 0706- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0706- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 06 1 0706-0806 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 05 1 0807- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0706-0901 ● ●
38 BOLT; CLIP,HARNESS
MAL6 M/T<X9G> (A) M8X20 FLANGE 		0-28650-820-0 03 1 0902- ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0902- ●
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 02 1 0706- ● ●
38 BOLT; CLIP,HARNESS
(E) M10X20 FLANGE 		0-28751-020-0 01 1 0706- ● ●
38 BOLT; CLIP,HARNESS
(F) M12X16 FLANGE 		1-09044-079-0 01 1 0706-1105 ● ●
38 BOLT; CLIP,HARNESS
(F) M12X16 FLANGE 		0-28051-216-0 01 1 1106- ● ●
38 BOLT; CLIP,HARNESS
(G) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0706-1201 ● ●
38 BOLT; CLIP,HARNESS
(H) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202- ● ●
86 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0706- ● ●
88 BOLT; DOOR HARNESS EARTH
AUTO DOOR LOCK<AU4> (A) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0706-1007 ● ●
88 BOLT; DOOR HARNESS EARTH
AUTO DOOR LOCK<AU4> (B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1008- ● ●
88 BOLT; DOOR HARNESS EARTH
EXC. AUTO DOOR LOCK<AU4> (A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0706-1007 ● ●
88 BOLT; DOOR HARNESS EARTH
EXC. AUTO DOOR LOCK<AU4> (B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1008- ● ●
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 0706- ● ●
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 06 1 0706- ● ●
150 BOLT; CLIP
(A) M6X12 FLANGE 		0-28050-612-0 02 1 0706- ● ●
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 04 1 0706-1208 ● ●
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 03 1 1209- ● ●
239 BOLT; GRAND
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0706-1007 ● ●
239 BOLT; GRAND
(B) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008- ● ●
242 BOLT; BRKT,HARNESS
(B) M8X12 FLANGE 		0-28050-812-0 01 1 0706- ● ●
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0706- ● ●
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0706- ●
242 BOLT; BRKT,HARNESS
(C) M10X25 FLANGE 		0-28651-025-0 02 1 0706- ● ●
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 04 1 0706- ● ●
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0706- ● ●
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0706- ●
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0706- ● ●
386 BOLT; GRAND HARNESS
M8X20 FLANGE 		0-28650-820-0 01 1 0706- ● ●
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0706- ● ●
çizim 134496
53 53 27 53 312 324 211 312 334 335 324 342 375
BalonParca AdiParca NoAdetTipApplied Date A B
27 PROTECTOR; EDGE 8-97618-028-0 01 1 0706- ● ●
53 BRACKET; HARNESS
(A) 		1-47479-537-0 08 1 0706- ● ●
53 BRACKET; HARNESS
(B) 		1-82698-382-0 01 1 0706-0806 ● ●
53 BRACKET; HARNESS
(C) 		8-98124-778-0 01 1 0807- ● ●
211 BRACKET; AXLE HARNESS
L=95 		1-82699-085-0 02 1 0706- ● ●
312 BRACKET; CLIP HARNESS
(A) 		1-47476-932-0 01 1 0706-0901 ● ●
312 BRACKET; CLIP HARNESS
MAL6 M/T<X9G> (A) 		1-47476-932-0 01 1 0902- ●
312 BRACKET; CLIP HARNESS
(A) 		1-47476-932-0 01 1 0902- ●
312 BRACKET; CLIP HARNESS
(B) 		1-82698-479-0 01 1 0706- ● ●
324 BRACKET; CLIP
(A) 		1-47477-077-1 01 1 0706- ●
324 BRACKET; CLIP
(B) 		1-47478-659-0 01 1 0706- ●
334 BRACKET 1-53458-709-1 01 1 0706- ● ●
335 BRACKET; CONNECTOR 1-82699-425-0 01 1 0706-0901 ● ●
335 BRACKET; CONNECTOR
MAL6 M/T<X9G> 		1-82699-425-0 01 1 0902- ●
335 BRACKET; CONNECTOR 1-82699-425-0 01 1 0902- ●
342 BRACKET; HARNESS CAB MTG 1-82699-625-0 01 1 0706- ● ●
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 0706- ● ●
çizim 134497
119 64 524 24 219 294 340 515 294 515 423
BalonParca AdiParca NoAdetTipApplied Date A B
24 NUT; HARNESS
M8 FLANGE 		0-91180-108-0 01 1 0706- ● ●
64 SCREW; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 02 1 0706-1202 ● ●
119 SCREW; DOOR HARNESS EARTH
AUTO DOOR LOCK<AU4> M5X14 W/PL WASHER 		8-94447-551-0 02 1 0706- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0706- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0706- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0706- ●
219 NUT
M8 FLANGE 		0-91180-108-0 15 1 0706-0806 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 14 1 0807- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0706- ● ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 0706-0901 ● ●
294 NUT
MAL6 M/T<X9G> (B) M10 FLANGE 		0-91180-210-0 02 1 0902- ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 0902- ●
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0706- ● ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 04 1 0706- ● ●
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 0706- ● ●
515 NUT; BRKT
(B) M10 FLANGE 		0-91180-110-0 02 1 0706- ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 02 1 0706- ● ●

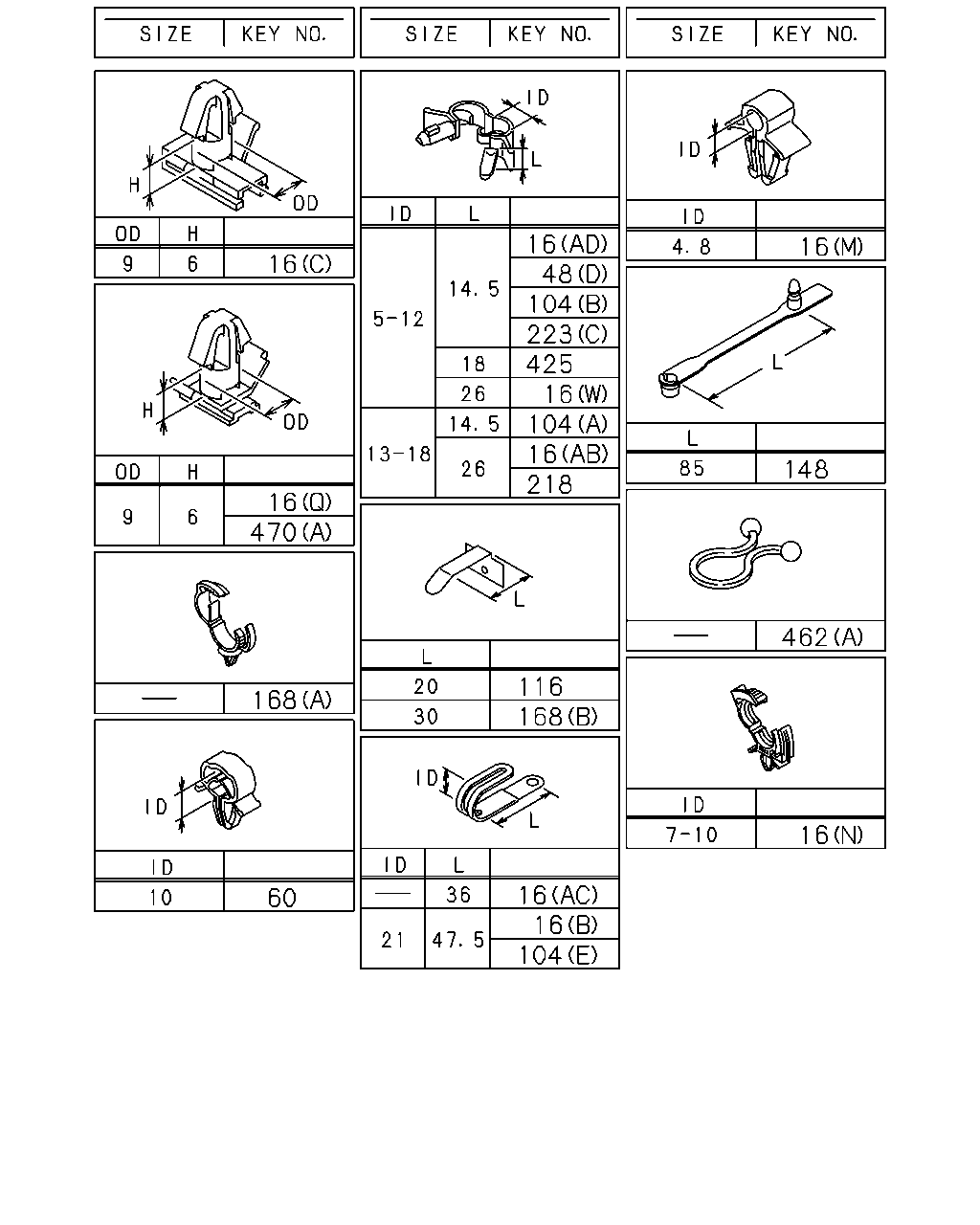

çizim 134503
16 48 104 223 425 16 104 16 218 16 16 148 16 470 462 116 168 168 16 16 16 104 60
BalonParca AdiParca NoAdetTipApplied Date A B

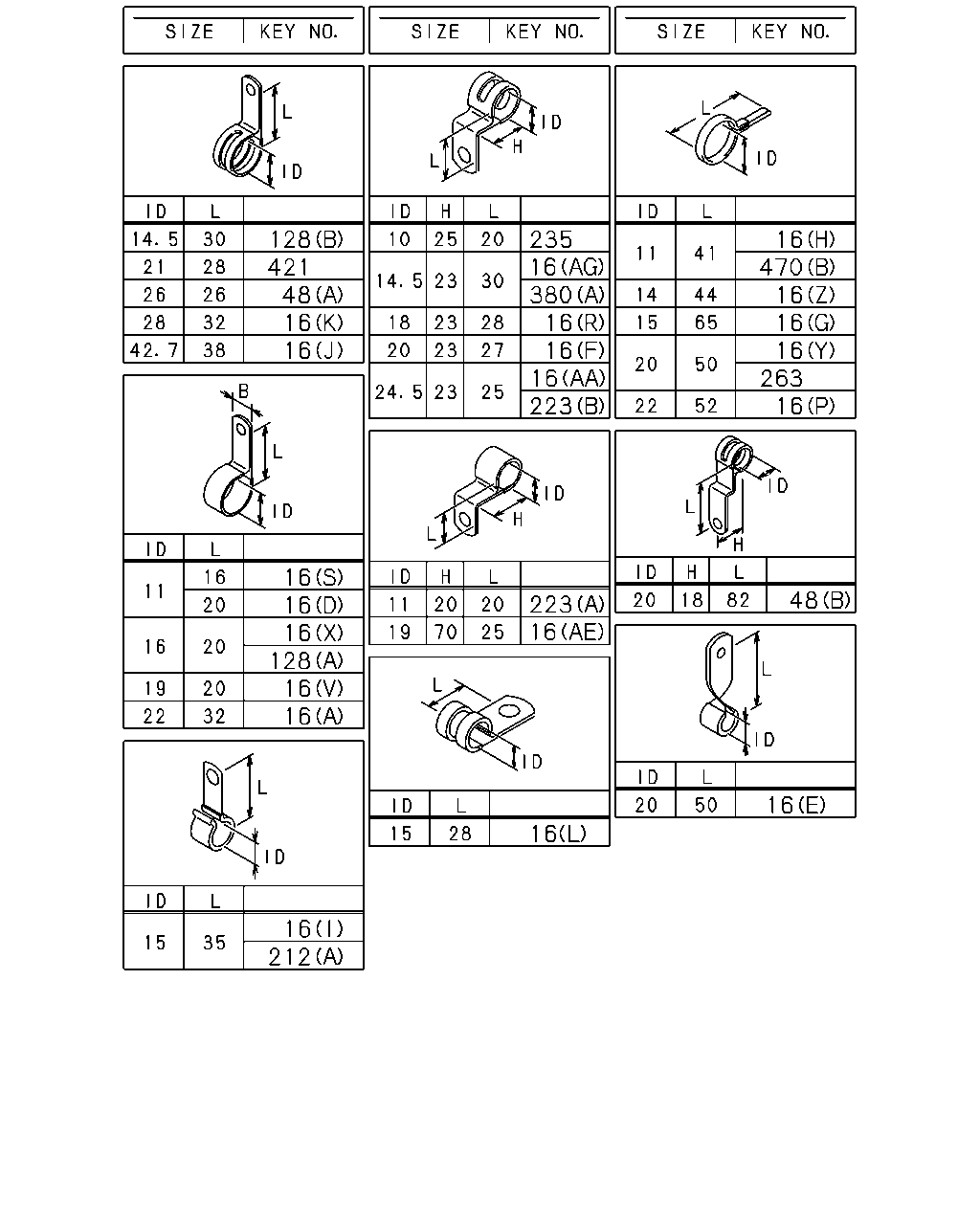

16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 05 1 0706- ●
16 CLIP; HARNESS
(AB) ID=13-18 L=26 		1-09709-293-0 02 1 0706- ●
16 CLIP; HARNESS
MJT7 M/T<Y9E> (AG) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0902- ●
16 CLIP; HARNESS
(S) ID=11 L=16 		0-95235-025-0 02 1 0706- ● ●
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		0-95235-032-0 01 1 0706- ● ●
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 03 1 0706-1208 ● ●
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1209- ● ●
16 CLIP; HARNESS
(X) ID=16 L=20 		0-95235-535-0 01 1 0706- ● ●
16 CLIP; HARNESS
(V) ID=19 L=20 		0-95235-832-0 01 1 0706- ● ●
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 0706- ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 05 1 0706- ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 07 1 0706- ● ●
16 CLIP; HARNESS
(I) ID=15 L=35 		1-09700-507-0 01 1 0706- ● ●
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 0706- ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0706- ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0706- ● ●
16 CLIP; HARNESS
(AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0706- ● ●
16 CLIP; HARNESS
(R) ID=18 H=23 L=28 		1-09701-070-0 02 1 0706-0901 ● ●
16 CLIP; HARNESS
MAL6 M/T<X9G> (R) ID=18 H=23 L=28 		1-09701-070-0 02 1 0902- ●
16 CLIP; HARNESS
(R) ID=18 H=23 L=28 		1-09701-070-0 02 1 0902- ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 0706-1002 ● ●
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 0706- ● ●
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0706- ● ●
16 CLIP; HARNESS
(J) ID=42.7 L=38 		1-09701-313-0 01 1 0706- ● ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 02 1 0706- ● ●
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 0706- ● ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 07 1 0706- ● ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 02 1 0706- ● ●
16 CLIP; HARNESS
(W) ID=5-12 L=26 		1-09709-289-0 01 1 0706-0708 ● ●
16 CLIP; HARNESS
(W) ID=5-12 L=26 		1-09709-289-0 01 1 0706-0708 ● ●
16 CLIP; HARNESS
(W) ID=5-12 L=26 		1-09709-289-0 01 1 0709- ● ●
16 CLIP; HARNESS
(W) ID=5-12 L=26 		1-09709-289-0 01 1 0709- ●
16 CLIP; HARNESS
(AD) ID=5-12 L=14.5 		1-09987-221-0 01 1 0706- ● ●

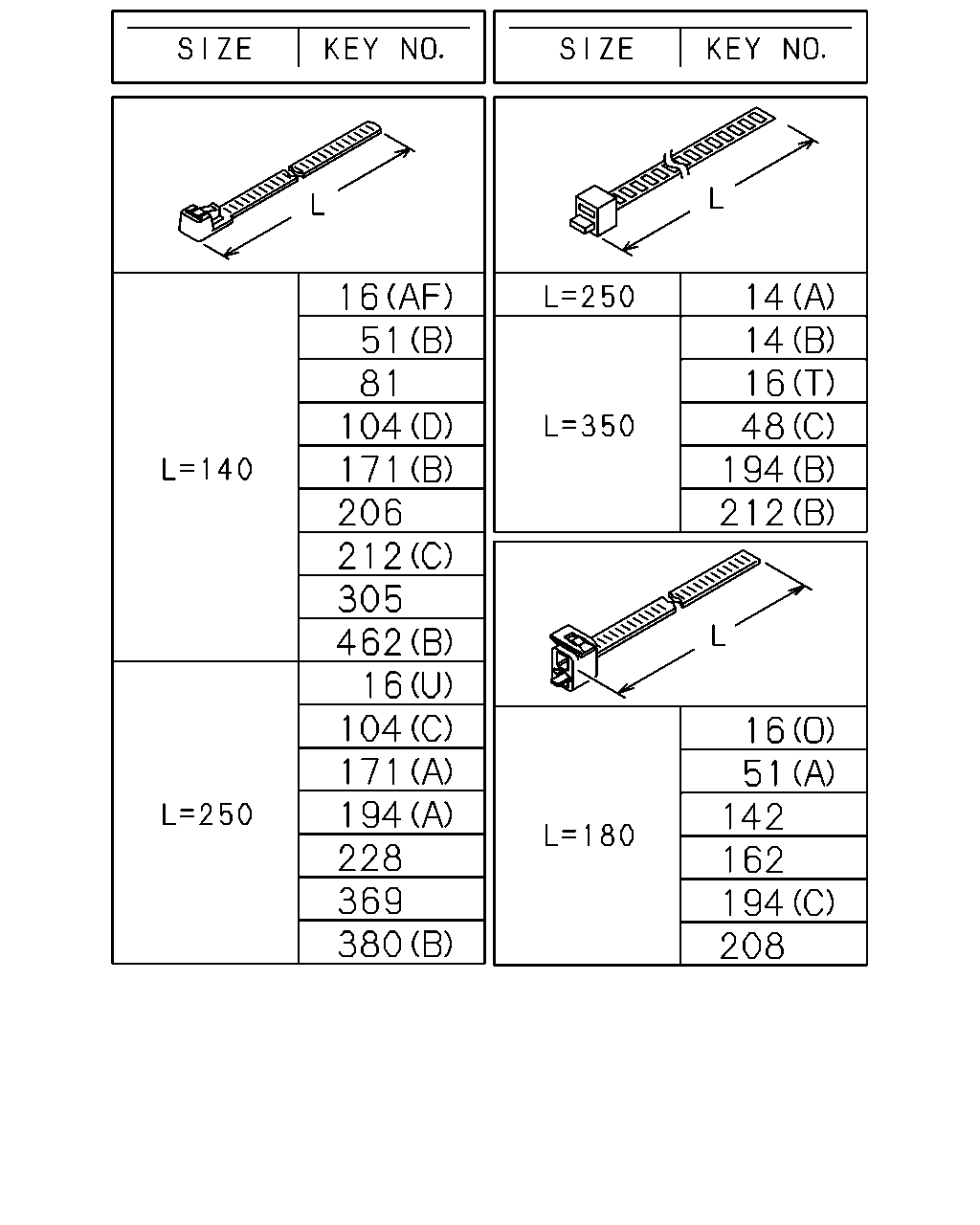

16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 05 1 0706- ● ●
16 CLIP; HARNESS
(AF) L=140 		5-09707-031-1 01 1 0706- ● ●
16 CLIP; HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 02 1 0706- ● ●
16 CLIP; HARNESS
(AC) L=36 		8-94224-891-1 02 1 0706-0901 ● ●
16 CLIP; HARNESS
MAL6 M/T<X9G> (AC) L=36 		8-94224-891-1 02 1 0902- ●
16 CLIP; HARNESS
(AC) L=36 		8-94224-891-1 02 1 0902- ●
16 CLIP; HARNESS
(N) ID=7-10 		8-94472-578-0 01 1 0706- ● ●
16 CLIP; HARNESS
(AE) ID=19 H=70 L=25 		8-97360-209-0 01 1 0706- ● ●
16 CLIP; HARNESS
(C) OD=9 H=6 		8-97368-793-0 01 1 0706- ● ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 0706- ● ●
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 12 1 0706- ● ●
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 02 1 0706- ● ●
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 03 1 0706- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250 		5-09707-030-1 01 1 0706-0708 ● ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 0709-0810 ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250 		5-09707-030-1 01 1 0709-0810 ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250 		5-09707-030-1 01 1 0811- ● ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 06 1 0706- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (G) ID=15 L=65 		1-09700-466-0 01 1 0706-0708 ●
16 CLIP; HARNESS
(G) ID=15 L=65 		1-09700-466-0 01 1 0709- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (W) ID=5-12 L=26 		1-09709-289-0 02 1 0706-0708 ●
16 CLIP; HARNESS
(W) ID=5-12 L=26 		1-09709-289-0 02 1 0709- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (AB) ID=13-18 L=26 		1-09709-293-0 03 1 0706-0708 ●
16 CLIP; HARNESS
(AB) ID=13-18 L=26 		1-09709-293-0 03 1 0709- ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (AB) ID=13-18 L=26 		1-09709-293-0 08 1 0706-0708 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4500MM(45W) (D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0706-0901 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0902- ●
48 CLIP; FRAME HARNESS
(A) ID=26 L=26 		1-09701-236-0 01 1 0706- ● ●
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 0706- ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 08 1 0706- ● ●
60 CLIP; CONSOLE HARNESS,SW PTO
DUMP CONTROL LEVER<RC4> ID=10 		8-94450-392-0 01 1 0706-0708 ● ●
60 CLIP; CONSOLE HARNESS,SW PTO
ID=10 		8-94450-392-0 01 1 0709-0810 ●
60 CLIP; CONSOLE HARNESS,SW PTO
DUMP CONTROL LEVER<RC4> ID=10 		8-94450-392-0 01 1 0709-0810 ●
60 CLIP; CONSOLE HARNESS,SW PTO
DUMP CONTROL LEVER<RC4> ID=10 		8-94450-392-0 01 1 0811- ● ●
104 CLIP; HEADLAMP HARNESS
(A) ID=13-18 L=14.5 		1-09709-290-0 06 1 0706- ● ●
104 CLIP; HEADLAMP HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 04 1 0706- ● ●
104 CLIP; HEADLAMP HARNESS
(C) L=250 		5-09707-030-1 02 1 0706- ● ●
104 CLIP; HEADLAMP HARNESS
(D) L=140 		5-09707-031-1 06 1 0706- ● ●
104 CLIP; HEADLAMP HARNESS
(E) ID=21 L=47.5 		8-94178-108-0 02 1 0706-0710 ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 0706-1409 ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410- ● ●
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 01 1 0706- ● ●
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 02 1 0706- ● ●
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 SET=10 PIECE 		1-09987-265-0 01 1 0709- ● ●
218 CLIP; BAND,RR COMB
WHEEL BASE 4500MM(45W) DUMP TRUCK<RA1> ID=13-18 L=26 		1-09709-293-0 08 1 0706-0708 ●
218 CLIP; BAND,RR COMB
WHEEL BASE 4500MM(45W) ID=13-18 L=26 		1-09709-293-0 08 1 0709-0810 ●
218 CLIP; BAND,RR COMB
WHEEL BASE 4500MM(45W) DUMP TRUCK<RA1> ID=13-18 L=26 		1-09709-293-0 08 1 0811- ●
218 CLIP; BAND,RR COMB
WHEEL BASE 4500MM(45W) MIXER TRUCK<RA2> ID=13-18 L=26 		1-09709-293-0 06 1 0706-0708 ●
218 CLIP; BAND,RR COMB
WHEEL BASE 5900MM(59W),WHEEL BASE 6600MM(66W) ID=13-18 L=26 		1-09709-293-0 06 1 0706-0708 ●
218 CLIP; BAND,RR COMB
ID=13-18 L=26 		1-09709-293-0 06 1 0709-0804 ●
218 CLIP; BAND,RR COMB
WHEEL BASE 5900MM(59W) ID=13-18 L=26 		1-09709-293-0 06 1 0805-0810 ●
218 CLIP; BAND,RR COMB
WHEEL BASE 4500MM(45W) MIXER TRUCK<RA2> ID=13-18 L=26 		1-09709-293-0 06 1 0811-0901 ●
218 CLIP; BAND,RR COMB
WHEEL BASE 5900MM(59W) ID=13-18 L=26 		1-09709-293-0 06 1 0811-0901 ●
218 CLIP; BAND,RR COMB
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) MIXER TRUCK<RA2> ID=13-18 L=26 		1-09709-293-0 06 1 0902- ●
218 CLIP; BAND,RR COMB
WHEEL BASE 5900MM(59W) ID=13-18 L=26 		1-09709-293-0 06 1 0902- ●
223 CLIP; AIR TANK HARNESS
(C) ID=5-12 L=14.5 		1-09987-221-0 01 1 0706- ●
223 CLIP; AIR TANK HARNESS
(B) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0706- ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		5-09700-351-0 04 1 0706-0707 ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 04 1 0708- ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=5-12 L=14.5 		1-09987-221-0 03 1 0706- ●
425 CLIP; MODULATOR
ID=5-12 L=18 		1-09709-287-0 01 1 0706- ● ●
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 		1-09709-068-0 01 1 0709- ● ●
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0709- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 0706- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0706- ● ●
çizim 134513
5 224 1 1 178 178 178 178 178 178 178 510 530 292
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
(B) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0706- ● ●
1 SLEEVE; RUBBER
(A) ID=38.1 L=25 		1-09337-052-0 01 1 0706-0708 ● ●
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=38.1 L=25 		1-09337-052-0 01 1 0709- ● ●
5 GUIDE; HARNESS
L=360 		1-82699-476-1 01 1 0706- ● ●
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0706- ● ●
178 GROMMET; HARNESS
(B) W/SLIT ID=24 OD=30 T=22 		1-09332-104-0 01 1 0706- ● ●
178 GROMMET; HARNESS
(D) ID=32 OD=40 T=23 		1-09332-112-0 01 1 0706- ● ●
178 GROMMET; HARNESS
(B) WO/SLIT ID=24 OD=30 T=22 		1-09332-126-0 02 1 0706- ● ●
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 0706-0801 ● ●
178 GROMMET; HARNESS
(G) ID=15 OD=20 T=26 		1-09332-132-0 01 1 0802- ● ●
178 GROMMET; HARNESS
(E) 		1-82699-891-0 01 1 0706- ● ●
178 GROMMET; HARNESS
(F) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0706- ● ●
224 SLEEVE; RUBBER,HARNESS
ID=6 L=30 		5-09360-352-0 01 1 0706- ● ●
292 CAP; RUBBER 1-82691-239-0 02 1 0706- ● ●
510 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 02 1 0706-1202 ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 04 1 0706- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 08 1 0706- ● ●
530 SEAL; HARNESS
100X40 		1-72498-022-1 01 1 0706- ● ●
çizim 134516
128 421 48 16 16 235 16 380 16 16 16 223 16 470 16 16 16 263 16 16 16 16 128 16 16 48 223 16 16 16 16 212
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 05 1 0706- ●
16 CLIP; HARNESS
(AB) ID=13-18 L=26 		1-09709-293-0 02 1 0706- ●
16 CLIP; HARNESS
MJT7 M/T<Y9E> (AG) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0902- ●
16 CLIP; HARNESS
(S) ID=11 L=16 		0-95235-025-0 02 1 0706- ● ●
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		0-95235-032-0 01 1 0706- ● ●
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 03 1 0706-1208 ● ●
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1209- ● ●
16 CLIP; HARNESS
(X) ID=16 L=20 		0-95235-535-0 01 1 0706- ● ●
16 CLIP; HARNESS
(V) ID=19 L=20 		0-95235-832-0 01 1 0706- ● ●
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 0706- ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 05 1 0706- ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 07 1 0706- ● ●
16 CLIP; HARNESS
(I) ID=15 L=35 		1-09700-507-0 01 1 0706- ● ●
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 0706- ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0706- ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0706- ● ●
16 CLIP; HARNESS
(AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0706- ● ●
16 CLIP; HARNESS
(R) ID=18 H=23 L=28 		1-09701-070-0 02 1 0706-0901 ● ●
16 CLIP; HARNESS
MAL6 M/T<X9G> (R) ID=18 H=23 L=28 		1-09701-070-0 02 1 0902- ●
16 CLIP; HARNESS
(R) ID=18 H=23 L=28 		1-09701-070-0 02 1 0902- ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 0706-1002 ● ●
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 0706- ● ●
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0706- ● ●
16 CLIP; HARNESS
(J) ID=42.7 L=38 		1-09701-313-0 01 1 0706- ● ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 02 1 0706- ● ●
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 0706- ● ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 07 1 0706- ● ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 02 1 0706- ● ●
16 CLIP; HARNESS
(W) ID=5-12 L=26 		1-09709-289-0 01 1 0706-0708 ● ●
16 CLIP; HARNESS
(W) ID=5-12 L=26 		1-09709-289-0 01 1 0706-0708 ● ●
16 CLIP; HARNESS
(W) ID=5-12 L=26 		1-09709-289-0 01 1 0709- ● ●
16 CLIP; HARNESS
(W) ID=5-12 L=26 		1-09709-289-0 01 1 0709- ●
16 CLIP; HARNESS
(AD) ID=5-12 L=14.5 		1-09987-221-0 01 1 0706- ● ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 05 1 0706- ● ●
16 CLIP; HARNESS
(AF) L=140 		5-09707-031-1 01 1 0706- ● ●
16 CLIP; HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 02 1 0706- ● ●
16 CLIP; HARNESS
(AC) L=36 		8-94224-891-1 02 1 0706-0901 ● ●
16 CLIP; HARNESS
MAL6 M/T<X9G> (AC) L=36 		8-94224-891-1 02 1 0902- ●
16 CLIP; HARNESS
(AC) L=36 		8-94224-891-1 02 1 0902- ●
16 CLIP; HARNESS
(N) ID=7-10 		8-94472-578-0 01 1 0706- ● ●
16 CLIP; HARNESS
(AE) ID=19 H=70 L=25 		8-97360-209-0 01 1 0706- ● ●
16 CLIP; HARNESS
(C) OD=9 H=6 		8-97368-793-0 01 1 0706- ● ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 0706- ● ●
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 12 1 0706- ● ●
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 02 1 0706- ● ●
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 03 1 0706- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250 		5-09707-030-1 01 1 0706-0708 ● ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 0709-0810 ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250 		5-09707-030-1 01 1 0709-0810 ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250 		5-09707-030-1 01 1 0811- ● ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 06 1 0706- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (G) ID=15 L=65 		1-09700-466-0 01 1 0706-0708 ●
16 CLIP; HARNESS
(G) ID=15 L=65 		1-09700-466-0 01 1 0709- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (W) ID=5-12 L=26 		1-09709-289-0 02 1 0706-0708 ●
16 CLIP; HARNESS
(W) ID=5-12 L=26 		1-09709-289-0 02 1 0709- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (AB) ID=13-18 L=26 		1-09709-293-0 03 1 0706-0708 ●
16 CLIP; HARNESS
(AB) ID=13-18 L=26 		1-09709-293-0 03 1 0709- ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (AB) ID=13-18 L=26 		1-09709-293-0 08 1 0706-0708 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4500MM(45W) (D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0706-0901 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0902- ●
48 CLIP; FRAME HARNESS
(A) ID=26 L=26 		1-09701-236-0 01 1 0706- ● ●
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 0706- ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 08 1 0706- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0706- ● ●
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0706- ● ●
212 CLIP; HORN HARNESS
(A) ID=15 L=35 		1-09700-507-0 01 1 0706-0806 ● ●
212 CLIP; HORN HARNESS
(B) L=350 		1-09707-183-0 01 1 0706- ● ●
212 CLIP; HORN HARNESS
(C) L=140 		5-09707-031-1 01 1 0706- ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=5-12 L=14.5 		1-09987-221-0 01 1 0706- ●
223 CLIP; AIR TANK HARNESS
(B) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0706- ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		5-09700-351-0 04 1 0706-0707 ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 04 1 0708- ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=5-12 L=14.5 		1-09987-221-0 03 1 0706- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=10 H=25 L=20 		1-09700-519-0 01 1 0706- ● ●
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 02 1 0706- ● ●
380 CLIP; EARTH HARNESS
(A) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0706- ● ●
380 CLIP; EARTH HARNESS
(B) L=250 		5-09707-030-1 03 1 0706- ● ●
421 CLIP; FLOOR HARNESS
ID=21 L=28 		1-09700-673-1 02 1 0706-1202 ● ●
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 0706- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0706- ● ●
çizim 134538
16 51 81 104 171 206 212 305 462 16 104 171 194 228 369 380 14 14 16 48 194 212 16 51 142 162 194 208
BalonParca AdiParca NoAdetTipApplied Date A B
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 02 1 0706- ● ●
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 0706- ● ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 05 1 0706- ●
16 CLIP; HARNESS
(AB) ID=13-18 L=26 		1-09709-293-0 02 1 0706- ●
16 CLIP; HARNESS
MJT7 M/T<Y9E> (AG) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0902- ●
16 CLIP; HARNESS
(S) ID=11 L=16 		0-95235-025-0 02 1 0706- ● ●
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		0-95235-032-0 01 1 0706- ● ●
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 03 1 0706-1208 ● ●
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 1209- ● ●
16 CLIP; HARNESS
(X) ID=16 L=20 		0-95235-535-0 01 1 0706- ● ●
16 CLIP; HARNESS
(V) ID=19 L=20 		0-95235-832-0 01 1 0706- ● ●
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 0706- ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 05 1 0706- ● ●
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 07 1 0706- ● ●
16 CLIP; HARNESS
(I) ID=15 L=35 		1-09700-507-0 01 1 0706- ● ●
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 0706- ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0706- ● ●
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0706- ● ●
16 CLIP; HARNESS
(AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0706- ● ●
16 CLIP; HARNESS
(R) ID=18 H=23 L=28 		1-09701-070-0 02 1 0706-0901 ● ●
16 CLIP; HARNESS
MAL6 M/T<X9G> (R) ID=18 H=23 L=28 		1-09701-070-0 02 1 0902- ●
16 CLIP; HARNESS
(R) ID=18 H=23 L=28 		1-09701-070-0 02 1 0902- ●
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 0706-1002 ● ●
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 0706- ● ●
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0706- ● ●
16 CLIP; HARNESS
(J) ID=42.7 L=38 		1-09701-313-0 01 1 0706- ● ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 02 1 0706- ● ●
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 0706- ● ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 07 1 0706- ● ●
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 02 1 0706- ● ●
16 CLIP; HARNESS
(W) ID=5-12 L=26 		1-09709-289-0 01 1 0706-0708 ● ●
16 CLIP; HARNESS
(W) ID=5-12 L=26 		1-09709-289-0 01 1 0706-0708 ● ●
16 CLIP; HARNESS
(W) ID=5-12 L=26 		1-09709-289-0 01 1 0709- ● ●
16 CLIP; HARNESS
(W) ID=5-12 L=26 		1-09709-289-0 01 1 0709- ●
16 CLIP; HARNESS
(AD) ID=5-12 L=14.5 		1-09987-221-0 01 1 0706- ● ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 05 1 0706- ● ●
16 CLIP; HARNESS
(AF) L=140 		5-09707-031-1 01 1 0706- ● ●
16 CLIP; HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 02 1 0706- ● ●
16 CLIP; HARNESS
(AC) L=36 		8-94224-891-1 02 1 0706-0901 ● ●
16 CLIP; HARNESS
MAL6 M/T<X9G> (AC) L=36 		8-94224-891-1 02 1 0902- ●
16 CLIP; HARNESS
(AC) L=36 		8-94224-891-1 02 1 0902- ●
16 CLIP; HARNESS
(N) ID=7-10 		8-94472-578-0 01 1 0706- ● ●
16 CLIP; HARNESS
(AE) ID=19 H=70 L=25 		8-97360-209-0 01 1 0706- ● ●
16 CLIP; HARNESS
(C) OD=9 H=6 		8-97368-793-0 01 1 0706- ● ●
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 03 1 0706- ● ●
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 12 1 0706- ● ●
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 02 1 0706- ● ●
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 03 1 0706- ● ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250 		5-09707-030-1 01 1 0706-0708 ● ●
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 0709-0810 ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250 		5-09707-030-1 01 1 0709-0810 ●
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250 		5-09707-030-1 01 1 0811- ● ●
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 06 1 0706- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (G) ID=15 L=65 		1-09700-466-0 01 1 0706-0708 ●
16 CLIP; HARNESS
(G) ID=15 L=65 		1-09700-466-0 01 1 0709- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (W) ID=5-12 L=26 		1-09709-289-0 02 1 0706-0708 ●
16 CLIP; HARNESS
(W) ID=5-12 L=26 		1-09709-289-0 02 1 0709- ●
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (AB) ID=13-18 L=26 		1-09709-293-0 03 1 0706-0708 ●
16 CLIP; HARNESS
(AB) ID=13-18 L=26 		1-09709-293-0 03 1 0709- ●
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (AB) ID=13-18 L=26 		1-09709-293-0 08 1 0706-0708 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4500MM(45W) (D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0706-0901 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0902- ●
48 CLIP; FRAME HARNESS
(A) ID=26 L=26 		1-09701-236-0 01 1 0706- ● ●
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 0706- ● ●
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 08 1 0706- ● ●
51 CLIP; COOLER CMPR
(A) L=180 		1-09707-162-1 01 1 0706-0708 ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180 		1-09707-162-1 01 1 0709- ● ●
51 CLIP; COOLER CMPR
(B) L=140 		5-09707-031-1 01 1 0706-0708 ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0709- ● ●
81 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 0706- ● ●
104 CLIP; HEADLAMP HARNESS
(A) ID=13-18 L=14.5 		1-09709-290-0 06 1 0706- ● ●
104 CLIP; HEADLAMP HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 04 1 0706- ● ●
104 CLIP; HEADLAMP HARNESS
(C) L=250 		5-09707-030-1 02 1 0706- ● ●
104 CLIP; HEADLAMP HARNESS
(D) L=140 		5-09707-031-1 06 1 0706- ● ●
104 CLIP; HEADLAMP HARNESS
(E) ID=21 L=47.5 		8-94178-108-0 02 1 0706-0710 ● ●
142 CLIP; HARNESS,ENG
L=180 		1-09707-162-1 02 1 0706-1207 ● ●
142 CLIP; HARNESS,ENG
L=180 		8-98216-427-0 02 1 1208- ● ●
162 CLIP; SW HARNESS
L=180 		1-09707-162-1 01 1 0706- ● ●
171 CLIP; STARTER HARNESS
(A) L=250 		5-09707-030-1 03 1 0706- ● ●
171 CLIP; STARTER HARNESS
(B) L=140 		5-09707-031-1 06 1 0706- ● ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 07 1 0706-0804 ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 09 1 0805-1202 ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 10 1 1203- ●
194 CLIP; BAND
(C) L=180 		1-09707-162-1 01 1 0706-1001 ● ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 02 1 0706- ● ●
194 CLIP; BAND
(A) L=250 		5-09707-030-1 01 1 0706- ● ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 09 1 0706-0804 ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 10 1 0805-1202 ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 11 1 1203- ●
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0706- ● ●
208 CLIP; HARNESS,MAG VLV
PTO CONTROL OPERATION CAB BACK<TBZ> L=180 		1-09707-162-1 01 1 0706- ● ●
212 CLIP; HORN HARNESS
(A) ID=15 L=35 		1-09700-507-0 01 1 0706-0806 ● ●
212 CLIP; HORN HARNESS
(B) L=350 		1-09707-183-0 01 1 0706- ● ●
212 CLIP; HORN HARNESS
(C) L=140 		5-09707-031-1 01 1 0706- ● ●
228 CLIP; COOLER HARNESS
L=250 		5-09707-030-1 02 1 0706-0708 ● ●
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) L=250 		5-09707-030-1 02 1 0709-1112 ● ●
228 CLIP; COOLER HARNESS
L=250 		5-09707-030-1 02 1 1201- ● ●
305 CLIP; ENG HARNESS
L=140 		5-09707-031-1 01 1 0706- ● ●
369 CLIP; BAND EDS HARNESS
L=250 		5-09707-030-1 01 1 0706- ● ●
380 CLIP; EARTH HARNESS
(A) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0706- ● ●
380 CLIP; EARTH HARNESS
(B) L=250 		5-09707-030-1 03 1 0706- ● ●
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 		1-09709-068-0 01 1 0709- ● ●
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0709- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
