8-10 — WIRING HARNESS AND FUSE (#19596) — 130 parça

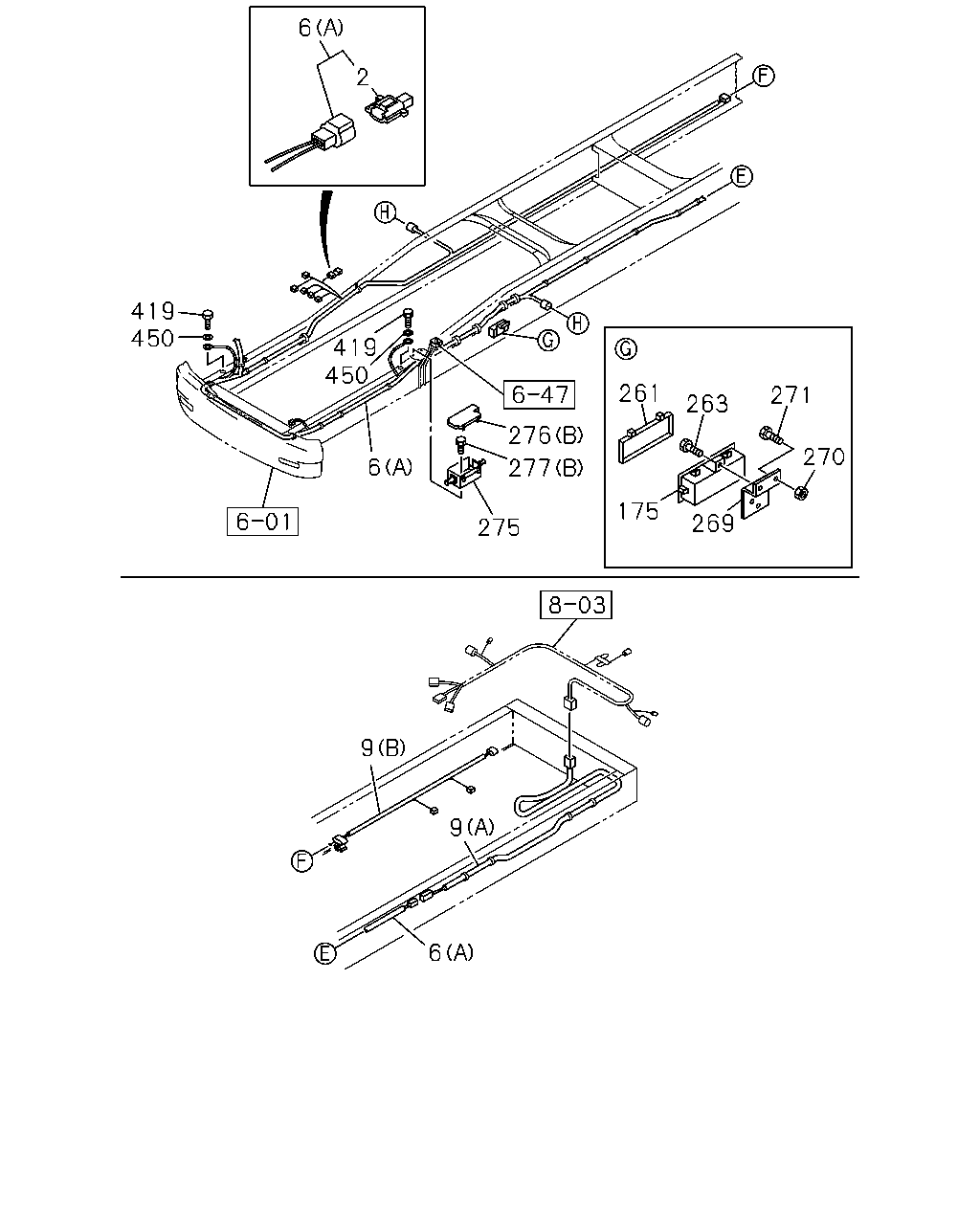

çizim 134487
6 2 419 450 419 450 261 271 263 276 270 6 277 175 269 275 9 9 6
BalonParca AdiParca NoAdetTipApplied Date A B
2 DIODE; CABLE HARNESS
GRAY 2P-1.3A 		1-81514-015-0 01 1 0706- ● ●
6 HARNESS; FRAME
(A) 		1-82678-198-1 01 1 0706-0805 ●
6 HARNESS; FRAME
(A) 		8-97625-926-0 01 1 0806-0806 ●
6 HARNESS; FRAME
(A) 		1-82678-198-2 01 1 0807- ●
6 HARNESS; FRAME
(B) 		1-82677-378-3 01 1 0706- ● ●
6 HARNESS; FRAME
(A) 		1-82678-199-0 01 1 0706-0708 ●
6 HARNESS; FRAME
(A) 		8-98096-276-0 01 1 0709-0805 ●
6 HARNESS; FRAME
(A) 		8-97625-927-0 01 1 0806-0806 ●
6 HARNESS; FRAME
(A) 		8-98096-276-1 01 1 0807- ●
9 HARNESS; FRAME,RR
(A) 		1-82678-200-1 01 1 0706-0805 ●
9 HARNESS; FRAME,RR
WHEEL BASE 4500MM(45W) (A) 		8-97625-930-0 01 1 0806- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4500MM(45W) (B) 		1-82678-203-0 01 1 0706- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) (B) 		8-97621-927-0 01 1 0902- ●
9 HARNESS; FRAME,RR
WHEEL BASE 4900MM(49W) (A) 		8-97625-931-0 01 1 0902- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5900MM(59W) (A) 		1-82678-201-0 01 1 0706-0708 ●
9 HARNESS; FRAME,RR
(A) 		1-82678-201-0 01 1 0709-0804 ●
9 HARNESS; FRAME,RR
WHEEL BASE 5900MM(59W) (A) 		1-82678-201-0 01 1 0805-0805 ●
9 HARNESS; FRAME,RR
(A) 		8-97625-932-0 01 1 0806- ●
9 HARNESS; FRAME,RR
WHEEL BASE 5900MM(59W) (B) 		1-82678-204-0 01 1 0706-0708 ●
9 HARNESS; FRAME,RR
(B) 		1-82678-204-0 01 1 0709- ●
9 HARNESS; FRAME,RR
WHEEL BASE 6600MM(66W) (A) 		1-82678-202-0 01 1 0706-0708 ●
9 HARNESS; FRAME,RR
WHEEL BASE 6600MM(66W) (B) 		1-82678-205-0 01 1 0706-0708 ●
175 BOX; CONNECTOR 1-82699-467-0 01 1 0706- ● ●
261 COVER; CONNECTOR BOX 1-82699-320-0 01 1 0706- ● ●
263 BOLT; CONNECTOR BOX
M8X30 W/LK&PL WASHER 		8-94279-144-0 01 1 0706- ● ●
269 BRACKET; CONNECTOR BOX 1-82698-424-0 01 1 0706- ● ●
270 NUT; BRKT,CONNECTOR BOX
M8 FLANGE 		0-91180-108-0 02 1 0706- ● ●
271 BOLT; BRKT CONNECTOR BOX
M8X40 FLANGE 		0-28650-840-0 02 1 1110- ●
271 BOLT; BRKT CONNECTOR BOX
M8X35 FLANGE 		0-28650-835-0 02 1 0706-1109 ● ●
271 BOLT; BRKT CONNECTOR BOX
M8X35 FLANGE 		0-28650-835-0 02 1 1110- ●
275 BOX ASM; FRAME HARNESS 1-82699-474-2 01 1 0706- ● ●
276 COVER; BOX,FRAME HARNESS
(B) 		1-82699-475-2 01 1 0706- ● ●
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-892-1 01 1 0706- ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 0706- ● ●
277 BOLT; BOX ASM FIX
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0706- ● ●
419 BOLT; CAB EARTH
M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202- ● ●
419 BOLT; CAB EARTH
M8X16 W/LK&PL WASHER 		8-97087-055-0 07 1 0706-1201 ● ●
419 BOLT; CAB EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202- ● ●
419 BOLT; CAB EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0706-1201 ● ●
419 BOLT; CAB EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202- ● ●
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 03 1 0706- ● ●

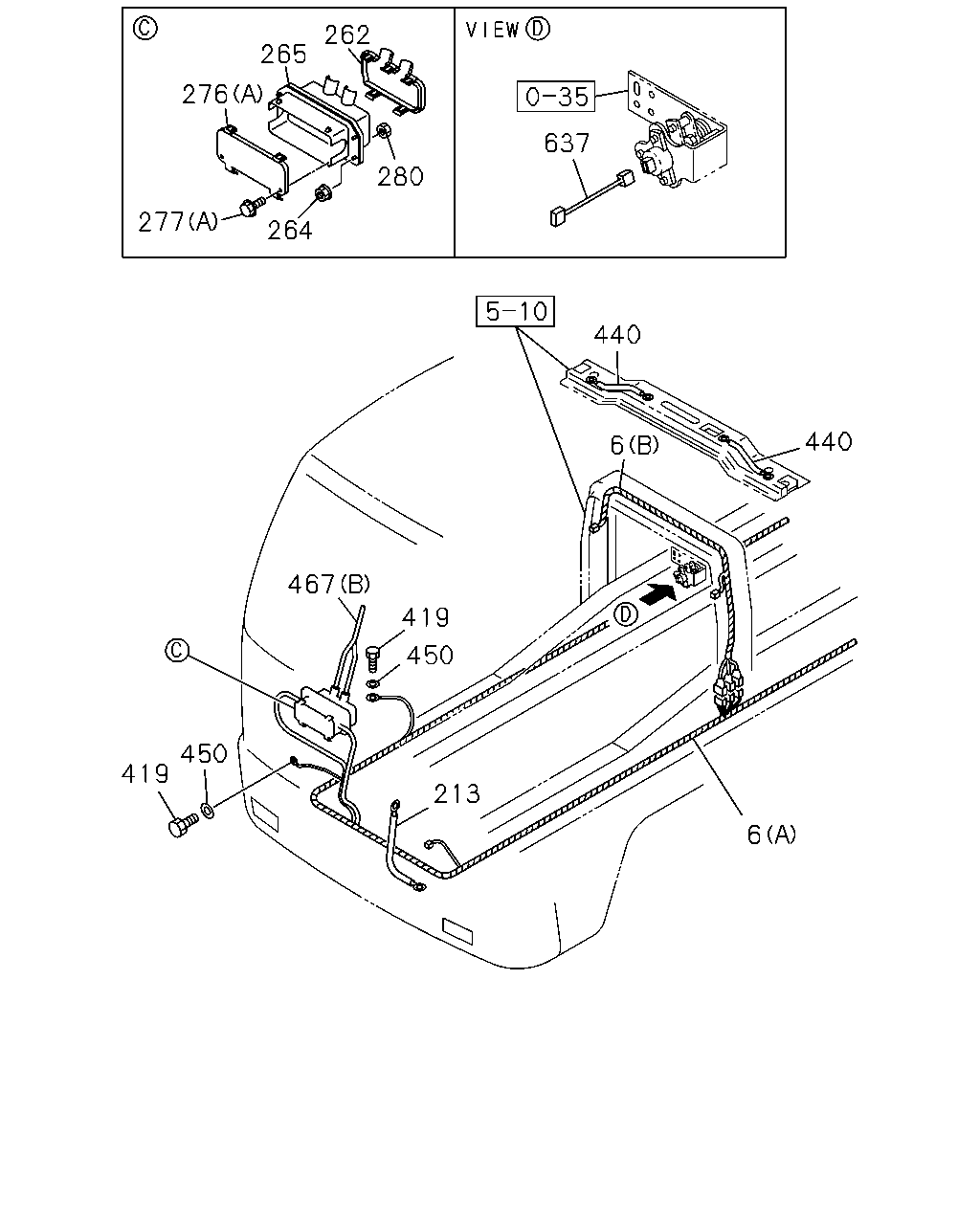

çizim 134488
262 265 276 637 280 277 264 440 440 6 467 419 450 450 419 213 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
(A) 		1-82678-198-1 01 1 0706-0805 ●
6 HARNESS; FRAME
(A) 		8-97625-926-0 01 1 0806-0806 ●
6 HARNESS; FRAME
(A) 		1-82678-198-2 01 1 0807- ●
6 HARNESS; FRAME
(B) 		1-82677-378-3 01 1 0706- ● ●
6 HARNESS; FRAME
(A) 		1-82678-199-0 01 1 0706-0708 ●
6 HARNESS; FRAME
(A) 		8-98096-276-0 01 1 0709-0805 ●
6 HARNESS; FRAME
(A) 		8-97625-927-0 01 1 0806-0806 ●
6 HARNESS; FRAME
(A) 		8-98096-276-1 01 1 0807- ●
213 CABLE; EARTH,CAB TO FRAME 1-82677-900-1 01 1 0706- ● ●
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-605-1 01 1 0706- ● ●
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0706- ● ●
264 NUT; CONNECTOR BOX
M8 FLANGE 		0-91180-108-0 01 1 0911- ● ●
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 0706- ● ●
276 COVER; BOX,FRAME HARNESS
(B) 		1-82699-475-2 01 1 0706- ● ●
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-892-1 01 1 0706- ● ●
277 BOLT; BOX ASM FIX
(A) M6X25 W/LK&PL WASHER 		0-50640-625-0 02 1 0706- ● ●
277 BOLT; BOX ASM FIX
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 0706- ● ●
280 NUT; BOX ASM FIX
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0706- ● ●
419 BOLT; CAB EARTH
M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202- ● ●
419 BOLT; CAB EARTH
M8X16 W/LK&PL WASHER 		8-97087-055-0 07 1 0706-1201 ● ●
419 BOLT; CAB EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202- ● ●
419 BOLT; CAB EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0706-1201 ● ●
419 BOLT; CAB EARTH
M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202- ● ●
440 CABLE; EARTH 1-82678-273-0 02 1 0706- ● ●
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 03 1 0706- ● ●
467 HARNESS; FACIA
(A) 		1-82662-742-1 01 1 0706- ● ●
467 HARNESS; FACIA
(B) 		1-82662-743-3 01 1 0706-0708 ● ●
467 HARNESS; FACIA
(B) 		8-98094-269-0 01 1 0709-0907 ● ●
467 HARNESS; FACIA
(B) 		8-98142-966-2 01 1 0908- ● ●
637 HARNESS; EXT,S/SENSOR
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-82675-934-0 01 1 0706- ● ●

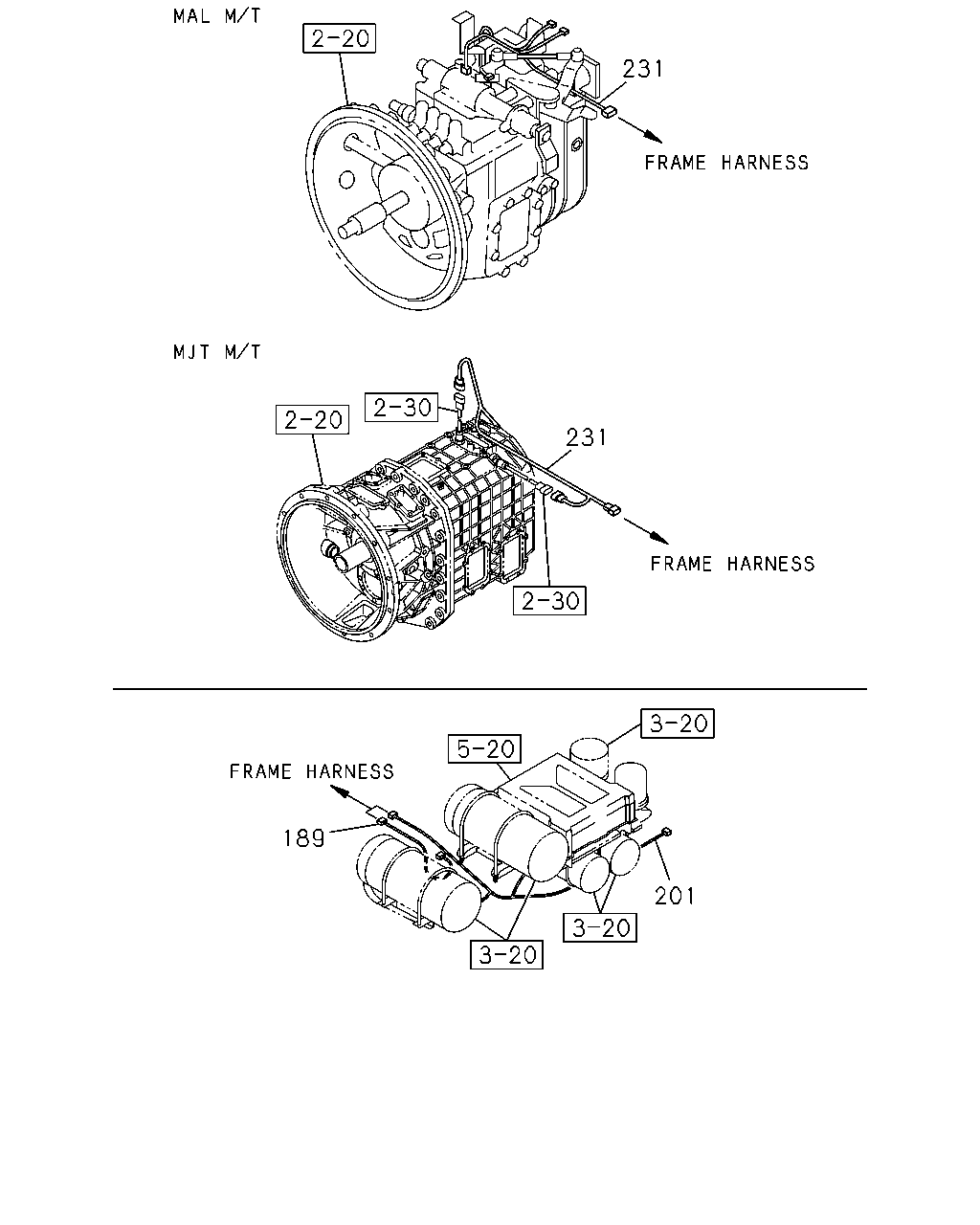

çizim 134490
201 189 231 231
BalonParca AdiParca NoAdetTipApplied Date A B
189 HARNESS; EXT 1-82671-596-0 01 1 0706- ●
201 HARNESS; AIR TANK 1-82678-222-1 01 1 0706- ● ●
231 HARNESS; TRANS
MJT7 M/T<Y9E> 		8-97615-725-1 01 1 0902- ●
231 HARNESS; TRANS 1-82676-855-5 01 1 0706-0901 ● ●
231 HARNESS; TRANS
MAL6 M/T<X9G> 		1-82676-855-5 01 1 0902- ●
231 HARNESS; TRANS 1-82676-855-5 01 1 0902- ●

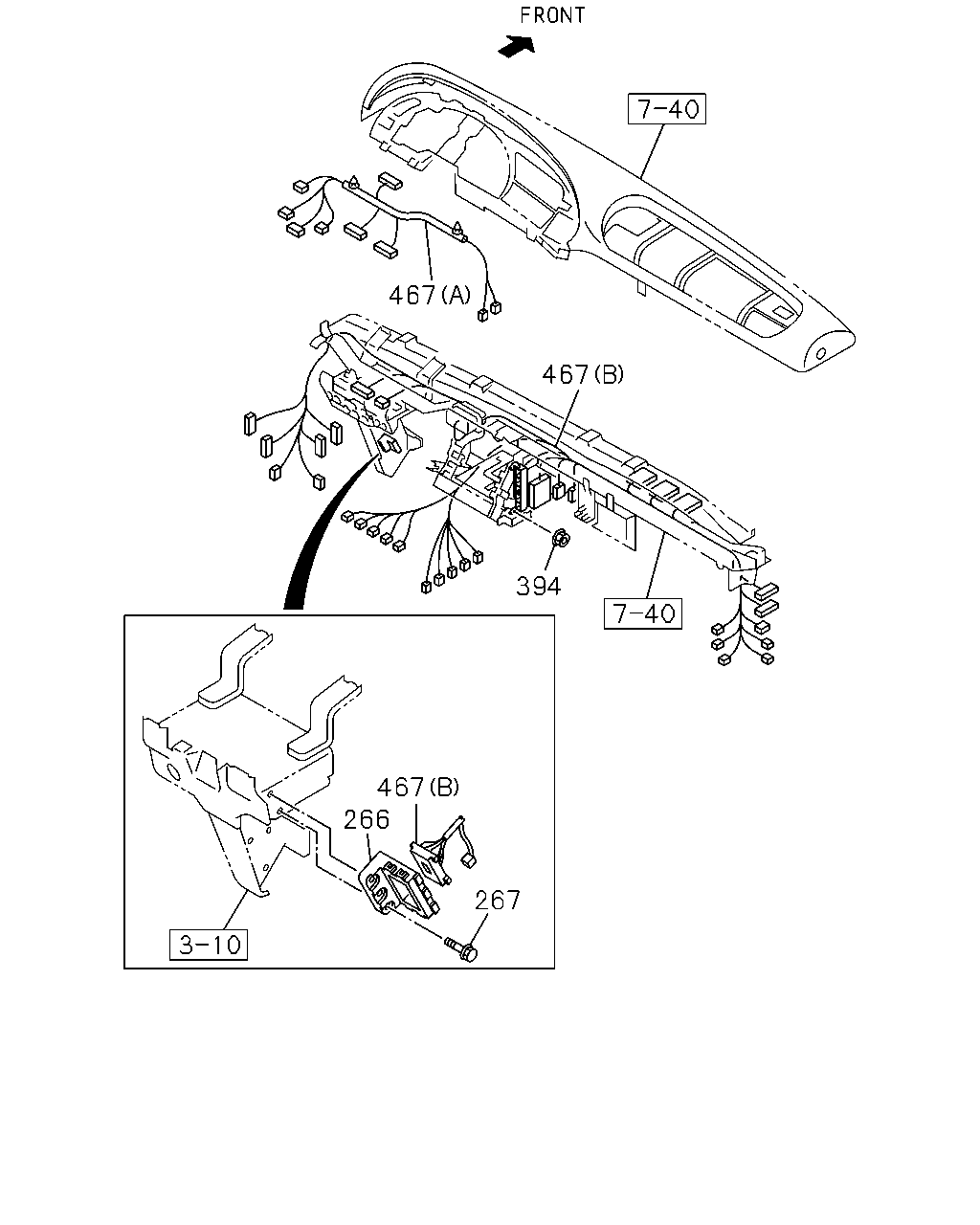

çizim 134491
467 467 394 467 266 267
BalonParca AdiParca NoAdetTipApplied Date A B
266 BRACKET; CONN BOX 1-82699-580-0 01 1 0706- ● ●
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 0706- ● ●
394 NUT; RELAY BOX TO BODY
M6 FLANGE 		0-91180-106-0 01 1 0706- ● ●
467 HARNESS; FACIA
(A) 		1-82662-742-1 01 1 0706- ● ●
467 HARNESS; FACIA
(B) 		1-82662-743-3 01 1 0706-0708 ● ●
467 HARNESS; FACIA
(B) 		8-98094-269-0 01 1 0709-0907 ● ●
467 HARNESS; FACIA
(B) 		8-98142-966-2 01 1 0908- ● ●

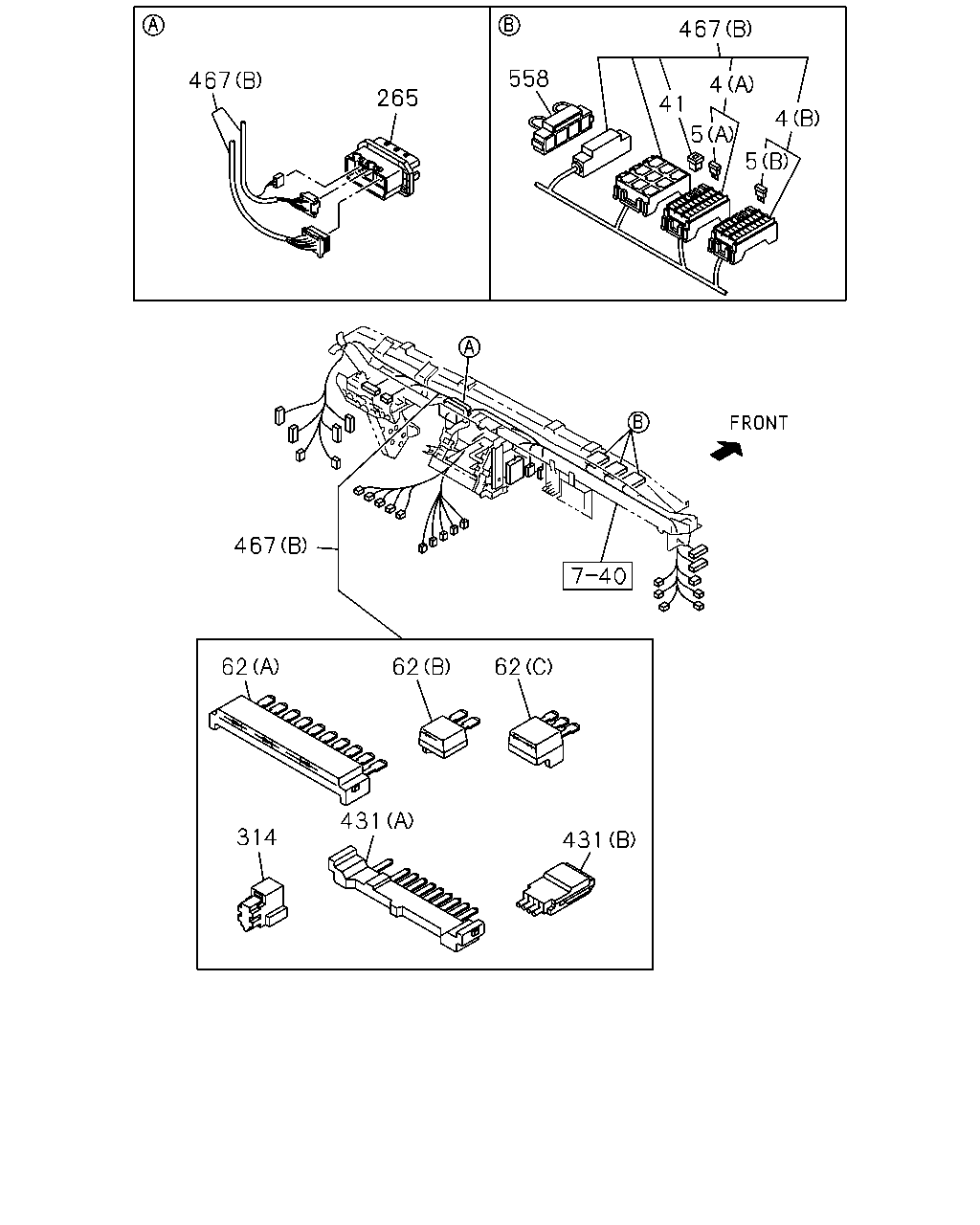

çizim 134499
467 558 467 4 265 41 4 5 5 467 62 62 62 431 314 431
BalonParca AdiParca NoAdetTipApplied Date A B
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX21 		1-82510-420-0 01 1 0706- ● ●
4 BOX ASM; FUSE,HARNESS
(B) 15AX21 25AX2 		1-82510-513-0 01 1 0706- ● ●
5 FUSE; FACIA HARNESS
(B) 15A BLUE 		5-82516-003-0 21 1 0706- ● ●
5 FUSE; FACIA HARNESS
(B) 25A CLEAR 		5-82516-005-0 02 1 0706- ● ●
5 FUSE; FACIA HARNESS
(A) 7.5A BROWN 		8-94159-007-0 21 1 0706- ● ●
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 0706- ● ●
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 02 1 0706- ● ●
62 DIODE; HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 04 1 0706- ● ●
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 03 1 0706-0907 ● ●
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 06 1 0908- ● ●
265 BOX; CONN,FRT PNL 1-82699-538-3 01 1 0706- ● ●
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 0706- ● ●
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 02 1 0706- ● ●
431 CONNECTOR; JOINT
(B) 4P 		8-97376-776-0 02 1 0706-0708 ● ●
431 CONNECTOR; JOINT
(B) 4P 		8-97376-776-0 03 1 0908- ● ●
467 HARNESS; FACIA
(A) 		1-82662-742-1 01 1 0706- ● ●
467 HARNESS; FACIA
(B) 		1-82662-743-3 01 1 0706-0708 ● ●
467 HARNESS; FACIA
(B) 		8-98094-269-0 01 1 0709-0907 ● ●
467 HARNESS; FACIA
(B) 		8-98142-966-2 01 1 0908- ● ●
558 CONNECTOR; HARNESS
4P 		1-82629-690-0 01 1 0706- ● ●

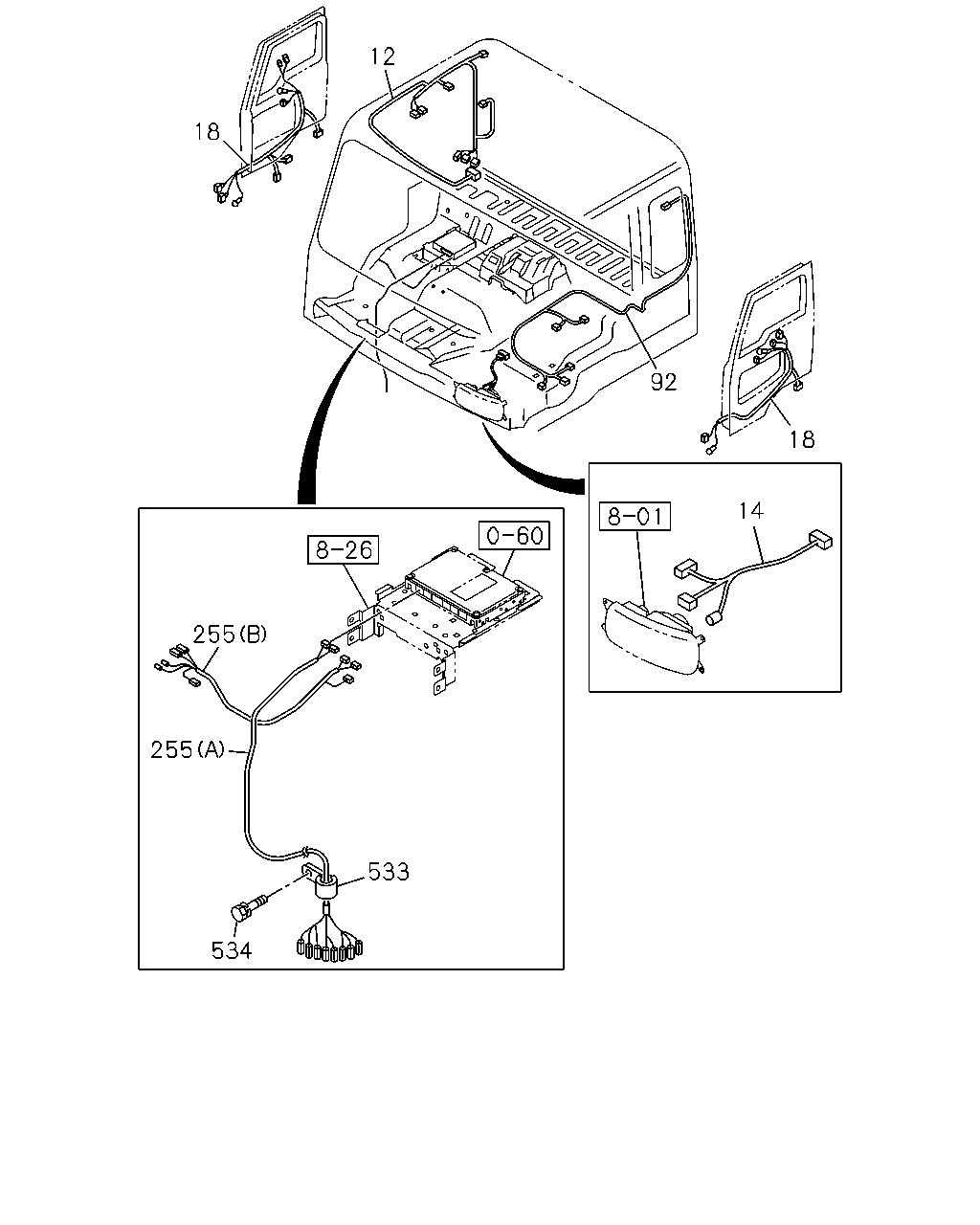

çizim 134500
12 18 92 18 14 255 255 533 534
BalonParca AdiParca NoAdetTipApplied Date A B
12 HARNESS; ROOF 1-82629-921-2 01 1 0706- ● ●
14 HARNESS; HEADLAMP 1-82677-628-3 02 1 0706- ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> 		1-82628-582-0 01 1 0706- ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> 		1-82628-584-0 01 1 0706- ● ●
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-82662-032-0 01 1 0706- ● ●
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4> 		1-82662-037-0 01 1 0706- ● ●
92 HARNESS; FLOOR 1-82662-036-1 01 1 0706-0708 ● ●
92 HARNESS; FLOOR 8-98093-664-0 01 1 0709- ● ●
255 HARNESS; ELEC GOV
(A) 		1-82662-241-2 01 1 0706-1202 ● ●
255 HARNESS; ELEC GOV
(A) 		8-97642-187-1 01 1 1203- ● ●
255 HARNESS; ELEC GOV
(B) 		1-82662-741-1 01 1 0706-1202 ● ●
255 HARNESS; ELEC GOV
(B) 		8-97641-997-0 01 1 1203- ● ●
533 CLIP
ID=26 L=26 		1-09701-236-0 02 1 0706-0907 ● ●
533 CLIP
ID=25 L=40 		1-09700-215-1 02 1 0908- ● ●
534 BOLT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0706- ● ●

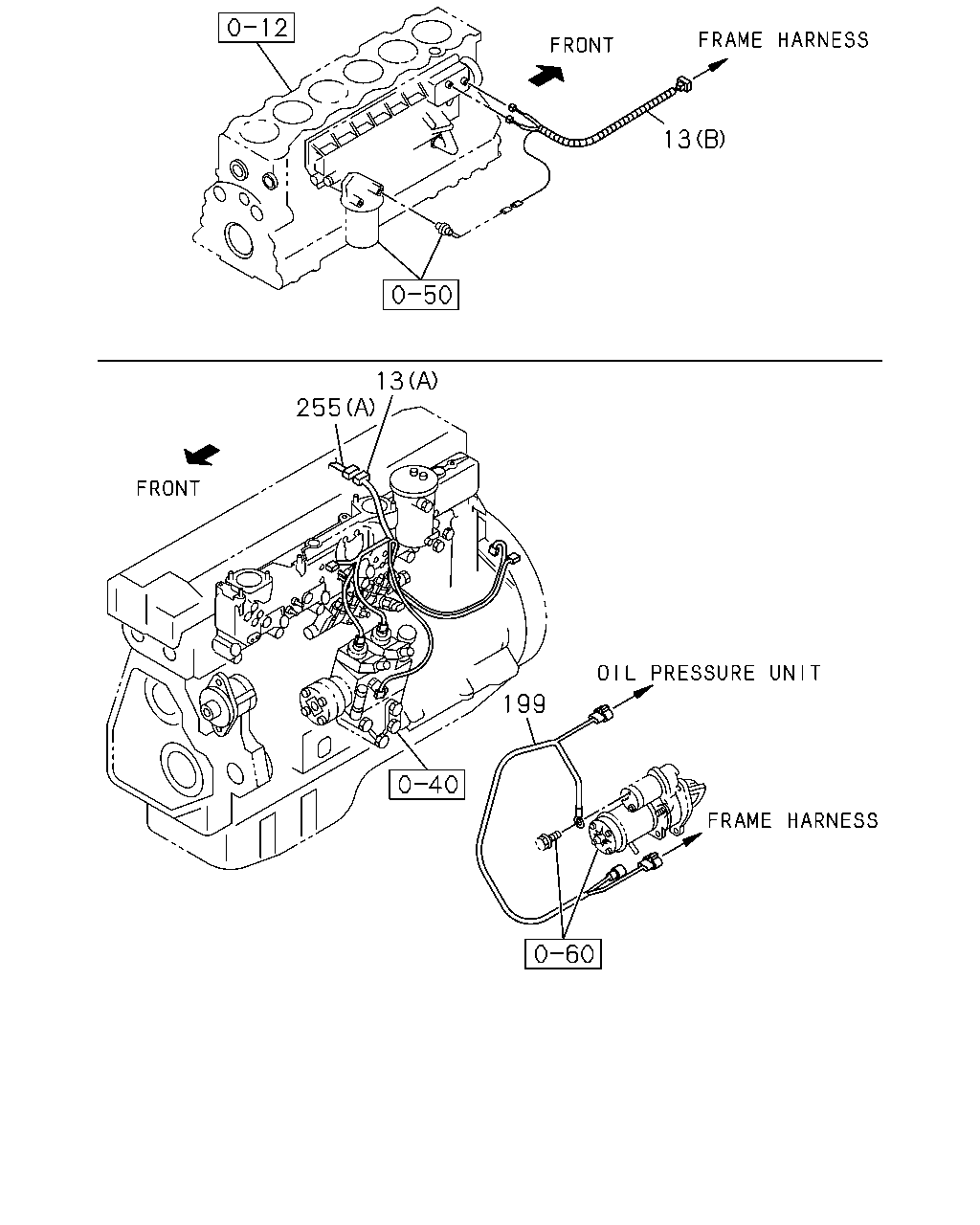

çizim 134509
255 13 199 13
BalonParca AdiParca NoAdetTipApplied Date A B
13 HARNESS; ENG
(A) 		8-97617-395-0 01 1 0706-1004 ● ●
13 HARNESS; ENG
(A) 		8-98169-641-0 01 1 1005- ● ●
13 HARNESS; ENG
(B) 		1-82640-553-4 01 1 0706- ● ●
199 HARNESS; STARTER
CONCRETE PUMP<RA5> 		8-98209-247-0 01 1 1204- ●
199 HARNESS; STARTER 1-82641-329-3 01 1 0706-1203 ● ●
199 HARNESS; STARTER 1-82641-329-3 01 1 1204- ●
199 HARNESS; STARTER
EXC. CONCRETE PUMP<RA5> 		1-82641-329-3 01 1 1204- ●
255 HARNESS; ELEC GOV
(A) 		1-82662-241-2 01 1 0706-1202 ● ●
255 HARNESS; ELEC GOV
(A) 		8-97642-187-1 01 1 1203- ● ●
255 HARNESS; ELEC GOV
(B) 		1-82662-741-1 01 1 0706-1202 ● ●
255 HARNESS; ELEC GOV
(B) 		8-97641-997-0 01 1 1203- ● ●
