◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11330 - CYZ MIDDLE EAST WITH 2STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#19594) — 63 parça

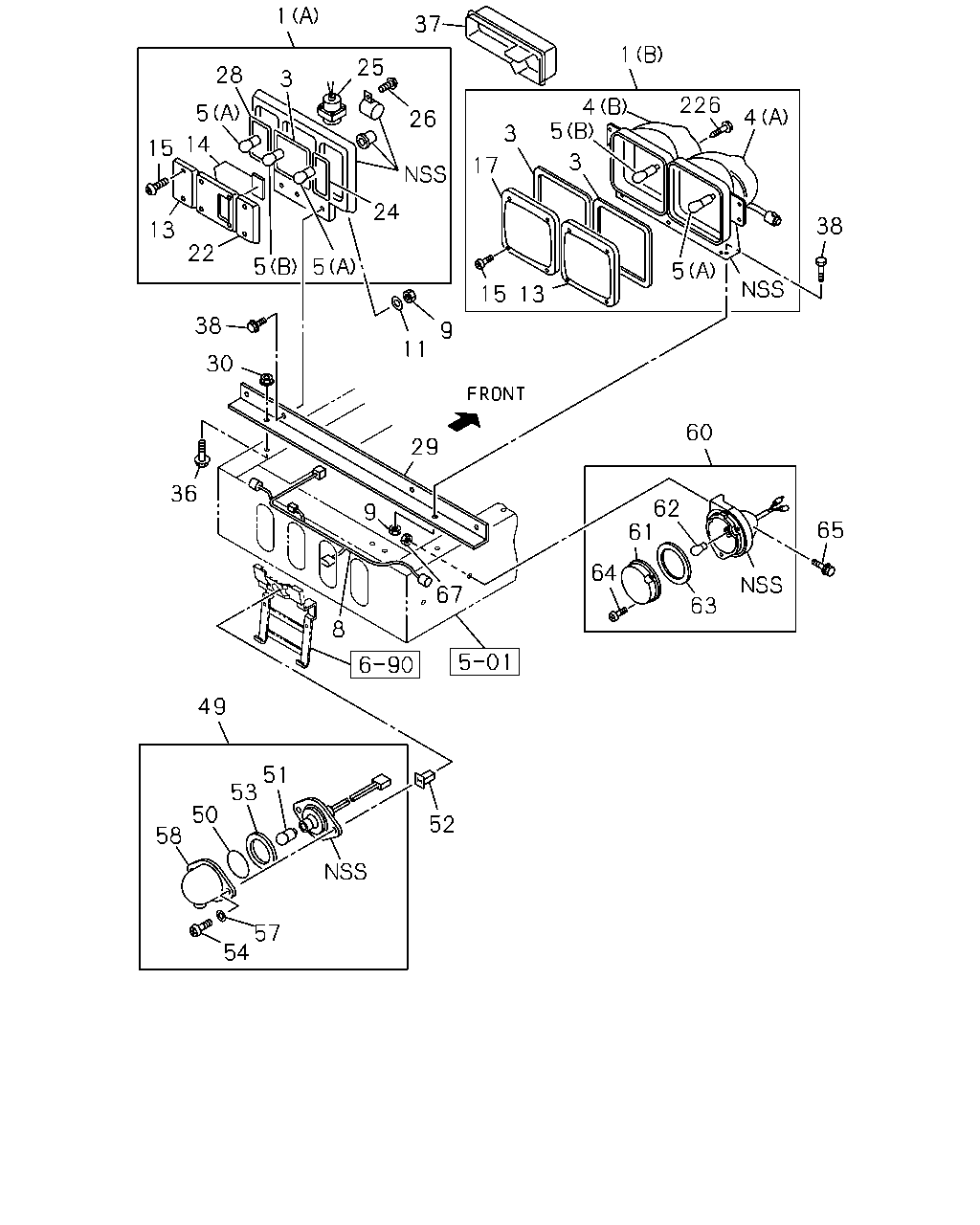

çizim 134508
1 37 1 25 28 3 226 4 5 5 4 26 3 14 15 3 17 24 38 13 22 5 5 5 15 13 38 9 11 30 60 29 36 62 61 9 65 67 64 63 8 49 51 53 50 52 58 57 54
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; RR COMB
(B) 		1-82230-160-2 01 1 0706-0708 ● ●
1 LAMP ASM; RR COMB
(A) 		8-97213-370-0 01 1 0709-0712 ● ●
1 LAMP ASM; RR COMB
(A) 		1-82230-209-0 01 1 0801- ● ●
1 LAMP ASM; RR COMB
(B) 		1-82230-159-2 01 1 0706-0708 ● ●
1 LAMP ASM; RR COMB
(A) 		8-97213-369-0 01 1 0709-0712 ● ●
1 LAMP ASM; RR COMB
(A) 		1-82230-208-0 01 1 0801- ● ●
3 GASKET; RR COMB LAMP 1-82236-003-0 04 1 0706-0708 ● ●
3 GASKET; RR COMB LAMP 8-94257-505-0 01 1 0709- ● ●
3 GASKET; RR COMB LAMP 8-94257-505-0 01 1 0709- ● ●
4 COVER; RR,RR COMB LAMP
(A) 		1-82239-033-0 02 1 0706-0708 ● ●
4 COVER; RR,RR COMB LAMP
(B) 		1-82239-034-0 02 1 0706-0708 ● ●
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-036-0 02 1 0706-0708 ● ●
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-036-0 02 1 0709- ● ●
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-036-0 02 1 0709- ● ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-038-0 02 1 0706-0708 ● ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-038-0 01 1 0709- ● ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-038-0 01 1 0709- ● ●
8 HARNESS; RR COMB LAMP 1-82677-374-2 01 1 0706- ●
8 HARNESS; RR COMB LAMP 1-82677-375-2 01 1 0706- ●
9 NUT; LAMP,RR COMB
M8 FLANGE 		0-91180-108-0 02 1 0706-0708 ● ●
9 NUT; LAMP,RR COMB
M6 		0-91110-506-0 04 1 0709- ● ●
11 WASHER; PL,LAMP,RR COMB
ID=6.4 OD=18 		0-91610-706-0 04 1 0709- ● ●
13 LENS; TURN SIGNAL 1-82235-016-0 02 1 0706-0708 ● ●
13 LENS; TURN SIGNAL 8-94174-638-0 01 1 0709- ● ●
13 LENS; TURN SIGNAL 8-94174-639-0 01 1 0709- ● ●
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-625-0 01 1 0709- ● ●
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-624-0 01 1 0709- ● ●
15 SCREW; RR COMB LAMP 1-82239-019-0 16 1 0706-0708 ● ●
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0709- ● ●
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0709- ● ●
17 LENS; STOP,RR COMB LAMP 1-82235-002-0 02 1 0706-0708 ● ●
22 LENS; BACKUP,RR COMB LAMP 8-94257-512-1 01 1 0709- ● ●
22 LENS; BACKUP,RR COMB LAMP 8-94257-512-1 01 1 0709- ● ●
24 GASKET; BACK,LAMP 8-94257-506-0 01 1 0709- ● ●
24 GASKET; BACK,LAMP 8-94257-506-0 01 1 0709- ● ●
25 HORN ASM; BACK 8-94257-518-0 01 1 0709- ● ●
26 SCREW; BACK HORN
M4X14 TAPPING 		9-07076-414-0 01 1 0709- ● ●
26 SCREW; BACK HORN
M4X12 TAPPING 		9-07076-412-0 02 1 0709- ● ●
28 GASKET; TURN,LAMP 8-94257-507-0 01 1 0709- ● ●
28 GASKET; TURN,LAMP 8-94257-507-0 01 1 0709- ● ●
29 BRACKET; LAMP,RR COMB 1-53487-021-1 01 1 0706- ● ●
30 NUT; BRKT,RR COMB
M10 FLANGE 		0-91180-210-0 02 1 0706- ● ●
36 BOLT; BRKT,RR COMB
M10X45 FLANGE 		0-28051-045-0 02 1 0706- ● ●
37 COVER; RR COMB LAMP 1-82239-008-0 01 1 0709- ● ●
37 COVER; RR COMB LAMP 1-82239-007-0 01 1 0709- ● ●
38 BOLT; LAMP,RR COMB
M8X40 W/LK&PL WASHER 		0-50640-840-0 02 1 0706-0708 ● ●
38 BOLT; LAMP,RR COMB
M6X30 W/LK&PL WASHER 		0-50640-630-0 04 1 0709- ● ●
49 LAMP; LICENSE PLATE
24V 10W 		1-82120-024-1 01 1 0706- ● ●
50 LENS; LICENSE PLATE LAMP 1-82235-006-0 01 1 0706- ● ●
51 BULB; LICENSE PLATE LAMP
24V 10W 		1-82194-037-0 01 1 0706- ● ●
52 GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 0706- ● ●
53 GASKET; LICENSE LAMP 1-82126-005-0 01 1 0706- ● ●
54 SCREW; LICENSE PLATE LAMP
M5X20 		1-82129-007-0 02 1 0706- ● ●
57 WASHER; PL,LICENSE PLATE LAMP 1-82129-008-0 02 1 0706- ● ●
58 COVER; LICENSE PLATE LAMP 1-82129-005-0 01 1 0706- ● ●
60 LAMP; BACKUP 1-82130-023-1 01 1 0706-0708 ● ●
61 LENS; BACKUP LAMP 1-82135-003-0 01 1 0706-0708 ● ●
62 BULB; BACKUP LAMP
24V 21W 		1-82194-036-0 01 1 0706-0708 ● ●
63 GASKET; BACKUP LAMP 1-82136-002-0 01 1 0706-0708 ● ●
64 SCREW; BACKUP LAMP 1-82139-002-0 03 1 0706-0708 ● ●
65 BOLT; LAMP,BACKUP
M10X35 W/LK&PL WASHER 		0-50641-035-0 02 1 0706-0708 ● ●
67 NUT; FLANGE
M10 FLANGE 		0-91180-210-0 02 1 0706-0708 ● ●
226 SCREW; PROTECTOR 1-82239-032-0 08 1 0706-0708 ● ●
