◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11330 - CYZ MIDDLE EAST WITH 2STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#19593) — 138 parça
çizim 134474
1 12 340 5 14 23 202 202 18 339 338 13 211 13 13 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82110-455-2 01 1 0706-0708 ● ●
1 LAMP ASM; HEAD 1-82110-455-2 01 1 0709-0711 ● ●
1 LAMP ASM; HEAD 8-98097-192-0 01 1 0712-0712 ● ●
1 LAMP ASM; HEAD 8-98097-190-1 01 1 0801- ● ●
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82110-456-2 01 1 0706-0708 ● ●
1 LAMP ASM; HEAD 1-82110-456-2 01 1 0709-0711 ● ●
1 LAMP ASM; HEAD 8-98097-193-0 01 1 0712-0712 ● ●
1 LAMP ASM; HEAD 8-98097-191-1 01 1 0801- ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82110-393-2 01 1 0706-0708 ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82110-394-2 01 1 0706-0708 ● ●
4 HEADLAMP UNIT
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82119-212-0 01 1 0706-0708 ● ●
4 HEADLAMP UNIT 1-82119-212-0 01 1 0709- ● ●
4 HEADLAMP UNIT
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82119-213-0 01 1 0706-0708 ● ●
4 HEADLAMP UNIT 1-82119-213-0 01 1 0709- ● ●
4 HEADLAMP UNIT
EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82119-175-0 01 1 0706-0708 ● ●
4 HEADLAMP UNIT
EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82119-176-0 01 1 0706-0708 ● ●
5 BULB; HEADLAMP
24V 75/70W 		8-94405-657-0 02 1 0706- ● ●
12 HARNESS; HEADLAMP 1-82118-014-0 02 1 0706- ● ●
13 CLIP; HEADLAMP
(B) 		8-94381-588-0 14 1 0706- ● ●
13 CLIP; HEADLAMP
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> (A) 		1-82119-084-0 02 1 0706-0708 ● ●
13 CLIP; HEADLAMP
(A) 		1-82119-084-0 02 1 0709- ● ●
13 CLIP; HEADLAMP
EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> (A) 		1-82119-084-0 04 1 0706-0708 ● ●
14 CAP; BULB,LAMP 1-86830-148-0 02 1 0706- ● ●
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 0706- ● ●
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 0706- ● ●
202 GEAR UNIT; HEADLAMP 1-86830-139-0 04 1 0706- ● ●
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 0706-0711 ● ●
211 TUBE; HEADLAMP
(B) 		8-98101-137-0 01 1 0712- ● ●
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 0706-0711 ● ●
211 TUBE; HEADLAMP
(B) 		8-98101-138-0 01 1 0712- ● ●
211 TUBE; HEADLAMP
(A) 		8-97025-128-0 02 1 0706-0906 ● ●
338 LEVELING; HEADLAMP
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		8-98010-256-0 02 1 0706-0708 ● ●
338 LEVELING; HEADLAMP 8-98010-256-0 02 1 0709- ● ●
339 GASKET; LEVELING
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-86830-158-0 02 1 0706-0708 ● ●
339 GASKET; LEVELING 1-86830-158-0 02 1 0709- ● ●
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 0706- ● ●

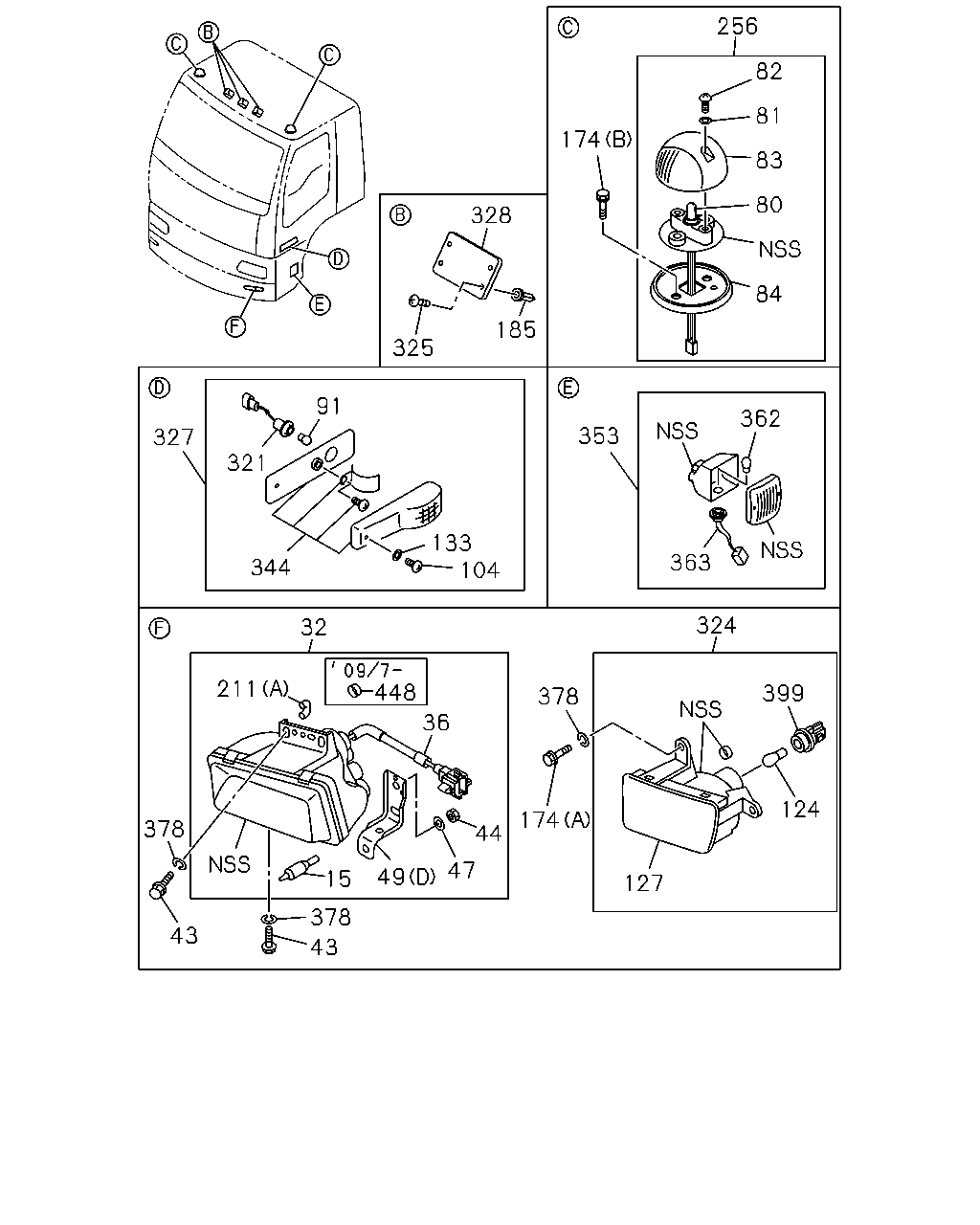

çizim 134482
256 174 82 83 81 80 84 91 327 133 104 344 321 353 362 363 32 211 448 36 44 47 49 15 378 43 43 378 328 185 325 378 174 127 124 399 324
BalonParca AdiParca NoAdetTipApplied Date A B
15 BULB; FOG LAMP
24V 70W 		1-82194-106-0 02 1 0706- ● ●
32 LAMP ASM; FOG 1-82110-454-0 01 1 0706-0712 ● ●
32 LAMP ASM; FOG 1-82110-476-0 01 1 0801-0906 ● ●
32 LAMP ASM; FOG 8-98149-150-1 01 1 0907-1301 ● ●
32 LAMP ASM; FOG 8-98232-065-1 01 1 1302- ● ●
32 LAMP ASM; FOG 1-82110-453-0 01 1 0706-0712 ● ●
32 LAMP ASM; FOG 1-82110-475-0 01 1 0801-0906 ● ●
32 LAMP ASM; FOG 8-98149-149-1 01 1 0907-1301 ● ●
32 LAMP ASM; FOG 8-98232-064-1 01 1 1302- ● ●
36 CORD; FOG LAMP 1-82118-016-0 01 1 0706- ● ●
36 CORD; FOG LAMP 1-82118-015-0 01 1 0706- ● ●
43 BOLT; FOG LAMP
M6X20 FLANGE 		0-28650-620-0 06 1 0706- ● ●
44 NUT; FOG LAMP
M6 		8-98217-430-0 02 1 1205- ● ●
47 WASHER; PL,FOG LAMP 8-98217-429-0 02 1 1205- ● ●
49 BRACKET; LAMP
(A) 		1-82117-100-0 02 1 0706- ● ●
49 BRACKET; LAMP
(B) 		1-82117-101-1 01 1 0706- ● ●
49 BRACKET; LAMP
(B) 		1-82117-102-1 01 1 0706- ● ●
49 BRACKET; LAMP
(C) 		1-82117-176-0 01 1 0706- ● ●
49 BRACKET; LAMP
(C) 		1-82117-177-0 01 1 0706- ● ●
49 BRACKET; LAMP
(D) 		8-98051-437-0 01 1 0706- ● ●
49 BRACKET; LAMP
(D) 		8-98051-438-0 01 1 0706- ● ●
80 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 02 1 0706- ● ●
81 SEAT; SCREW 1-82219-012-0 04 1 0706- ● ●
82 SCREW; MARKER LAMP 1-82219-011-0 04 1 0706- ● ●
83 LENS; MARKER LAMP 1-82215-046-0 02 1 0706- ● ●
84 GASKET; MARKER LAMP 1-86830-288-0 02 1 0706- ● ●
91 BULB; SIDE TURN SIGNAL
24V 12W 		1-82194-030-0 02 1 0706-0708 ● ●
91 BULB; SIDE TURN SIGNAL
24V 21W 		1-82194-036-0 02 1 0709- ● ●
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0706- ● ●
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-105-0 02 1 0706- ● ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-074-0 01 1 0706- ● ●
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-073-0 01 1 0706- ● ●
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 0709- ● ●
174 BOLT
(A) M6X20 FLANGE 		0-28650-620-0 04 1 0706- ● ●
174 BOLT
(B) M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 0706- ● ●
185 GROMMET; SCREW
M5 SCREW GROMMET 		1-09983-131-0 12 1 0706- ● ●
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 0706-0711 ● ●
211 TUBE; HEADLAMP
(B) 		8-98101-137-0 01 1 0712- ● ●
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 0706-0711 ● ●
211 TUBE; HEADLAMP
(B) 		8-98101-138-0 01 1 0712- ● ●
211 TUBE; HEADLAMP
(A) 		8-97025-128-0 02 1 0706-0906 ● ●
256 LAMP; MARKER 1-86830-242-3 02 1 0706- ● ●
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 0706-0708 ● ●
321 HARNESS; SIDE FLASHER LAMP 1-82218-002-0 02 1 0709- ● ●
324 LAMP; FRT FLASHER 1-82210-260-1 01 1 0706- ● ●
324 LAMP; FRT FLASHER 1-82210-259-1 01 1 0706- ● ●
325 SCREW; SPD INDICATOR LAMP
M5X14 TAPPING 		0-71040-514-0 12 1 0706- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-011-6 01 1 0706-0708 ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-82210-228-2 01 1 0709- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-86830-007-6 01 1 0706-0708 ● ●
327 LAMP ASM; SIDE TURN SIGNAL 1-82210-227-2 01 1 0709- ● ●
328 COVER; LAMP 1-76217-122-1 03 1 0706- ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-241-1 01 1 0706-0708 ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-82213-021-0 01 1 0709- ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-86830-240-1 01 1 0706-0708 ● ●
344 LAMP UNIT; SIDE TURN SIGNAL 1-82213-020-0 01 1 0709- ● ●
353 LAMP ASM; STEP
24V 5W 		1-86830-248-2 01 1 0706-0708 ● ●
362 BULB; STEP LAMP
24V 5W 		1-82194-042-0 01 1 0706-0708 ● ●
363 HARNESS; STEP LAMP 1-86830-296-0 01 1 0706-0708 ● ●
378 WASHER; PL
ID=6.4 		0-91610-606-0 04 1 0706- ● ●
378 WASHER; PL
ID=6.4 		0-91610-606-0 06 1 0706- ● ●
399 SOCKET; TURN SIGNAL 1-82219-038-0 02 1 0706- ● ●
448 CAP ASM; LAMP 8-97378-874-0 02 1 0907- ● ●

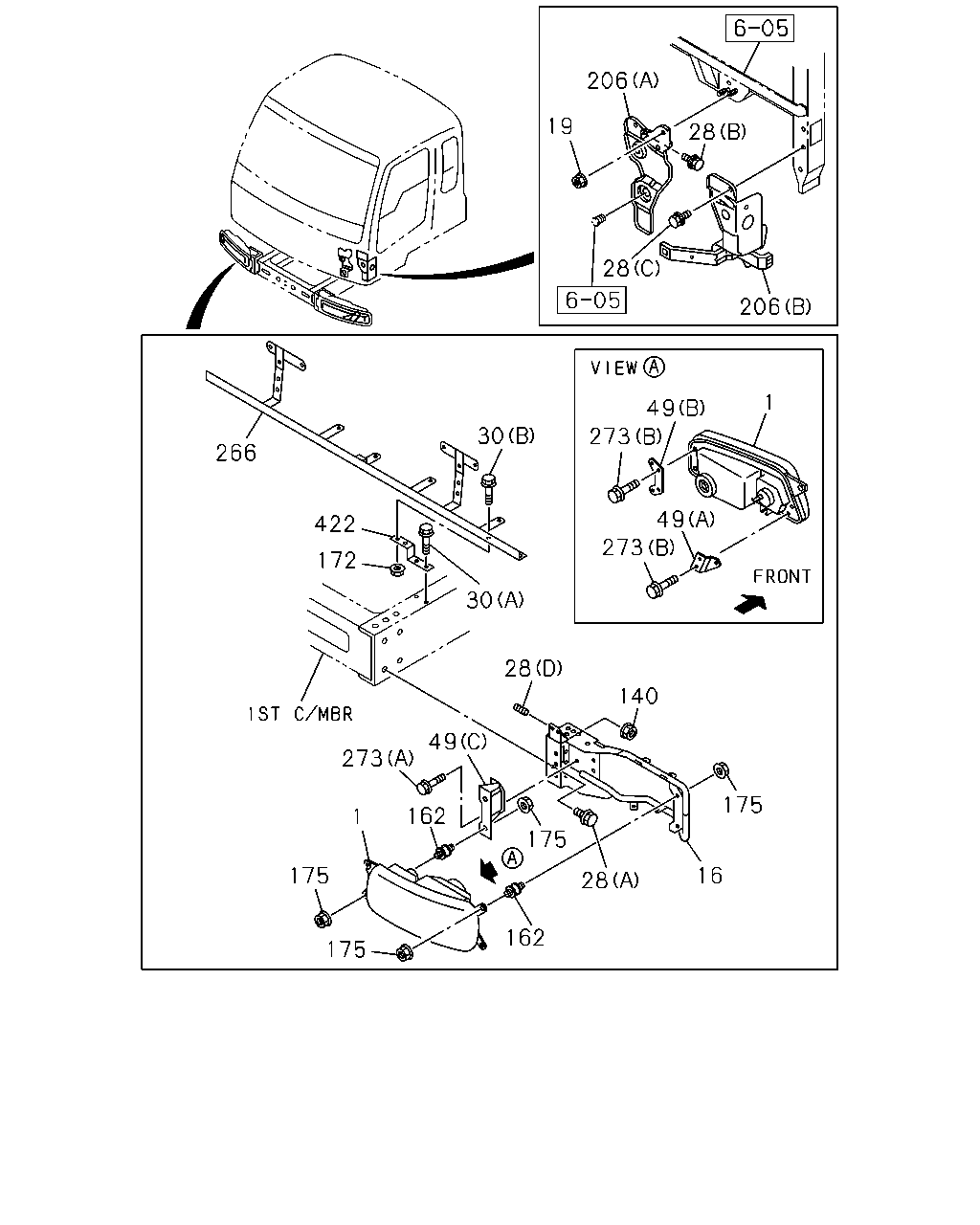

çizim 134492
206 19 28 28 206 1 49 30 266 49 422 172 30 28 140 49 273 175 12 1 175 175 16 28 162 175 273 273
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82110-455-2 01 1 0706-0708 ● ●
1 LAMP ASM; HEAD 1-82110-455-2 01 1 0709-0711 ● ●
1 LAMP ASM; HEAD 8-98097-192-0 01 1 0712-0712 ● ●
1 LAMP ASM; HEAD 8-98097-190-1 01 1 0801- ● ●
1 LAMP ASM; HEAD
HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82110-456-2 01 1 0706-0708 ● ●
1 LAMP ASM; HEAD 1-82110-456-2 01 1 0709-0711 ● ●
1 LAMP ASM; HEAD 8-98097-193-0 01 1 0712-0712 ● ●
1 LAMP ASM; HEAD 8-98097-191-1 01 1 0801- ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82110-393-2 01 1 0706-0708 ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82110-394-2 01 1 0706-0708 ● ●
12 HARNESS; HEADLAMP 1-82118-014-0 02 1 0706- ● ●
16 BRACKET; HEADLAMP 8-97608-505-1 01 1 0706- ● ●
16 BRACKET; HEADLAMP 8-97608-506-2 01 1 0706- ● ●
19 NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0706- ● ●
28 BOLT; HEADLAMP
(A) M10X30 FLANGE 		0-28651-030-0 06 1 0706- ● ●
28 BOLT; HEADLAMP
(D) M10X28,M10X15 L=50 		5-09300-050-0 02 1 0706- ● ●
28 BOLT; HEADLAMP
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0706- ● ●
28 BOLT; HEADLAMP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0706- ● ●
30 BOLT; STAY
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0706- ● ●
30 BOLT; STAY
(A) M10X25 FLANGE 		0-28651-025-0 04 1 0706- ● ●
49 BRACKET; LAMP
(A) 		1-82117-100-0 02 1 0706- ● ●
49 BRACKET; LAMP
(B) 		1-82117-101-1 01 1 0706- ● ●
49 BRACKET; LAMP
(B) 		1-82117-102-1 01 1 0706- ● ●
49 BRACKET; LAMP
(C) 		1-82117-176-0 01 1 0706- ● ●
49 BRACKET; LAMP
(C) 		1-82117-177-0 01 1 0706- ● ●
49 BRACKET; LAMP
(D) 		8-98051-437-0 01 1 0706- ● ●
49 BRACKET; LAMP
(D) 		8-98051-438-0 01 1 0706- ● ●
140 NUT
M10 FLANGE 		0-91180-210-0 02 1 0706- ● ●
162 RUBBER; CUSHION UPR 1-82117-086-0 08 1 0706- ● ●
172 NUT; STAY
M8 FLANGE 		0-91180-108-0 02 1 0706- ● ●
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91180-108-0 16 1 0706- ● ●
206 HOLDER; HEADLAMP
(A) 		1-65671-570-6 01 1 0706- ● ●
206 HOLDER; HEADLAMP
(B) 		1-65671-762-3 01 1 0706- ● ●
206 HOLDER; HEADLAMP
(A) 		1-65671-569-5 01 1 0706- ● ●
206 HOLDER; HEADLAMP
(B) 		1-65671-761-3 01 1 0706- ● ●
266 STAY; BRKT,HEADLAMP 1-82117-163-2 01 1 0706- ● ●
273 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 04 1 0706- ● ●
273 BOLT; BRKT
(B) M6X16 FLANGE 		0-28650-616-0 08 1 0706- ● ●
422 BRACKET; HEADLAMP STAY 1-82698-605-0 02 1 0706- ● ●
