◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11330 - CYZ MIDDLE EAST WITH 2STEPS ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#19591) — 13 parça

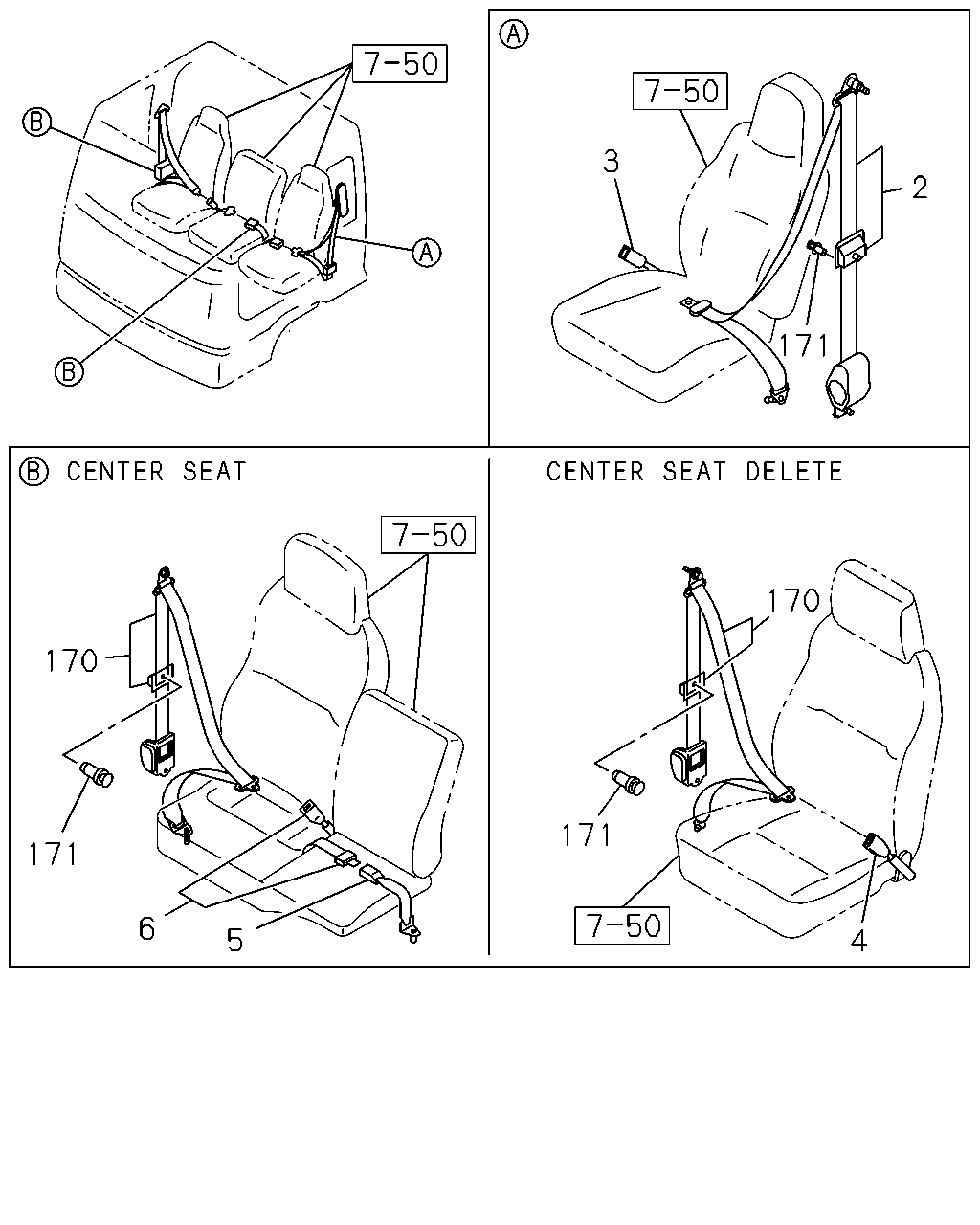

çizim 134486
3 2 171 170 170 171 171 4 6 5
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE 1-75618-909-5 01 1 0706-0708 ● ●
2 BELT; SEAT,TONGUE SIDE 8-97382-647-3 01 1 0709- ● ●
3 BELT; SEAT,BUCKLE SIDE 1-75618-914-0 01 1 0706-0708 ● ●
3 BELT; SEAT,BUCKLE SIDE 1-75617-545-0 01 1 0709- ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE(SP9) 		1-75618-911-1 01 1 0706- ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
EXC. CENTER SEAT DELETE(SP9) 		1-75617-553-1 01 1 0706-0808 ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
CENTER SEAT(SA1) 		1-75617-553-1 01 1 0809- ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
CENTER SEAT(SA1) 		1-75618-915-3 01 1 0706-0708 ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
EXC. CENTER SEAT DELETE(SP9) 		8-97382-652-1 01 1 0709- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE 1-75618-912-5 01 1 0706-0708 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
CENTER SEAT(SA1),CENTER SEAT DELETE(SP9) 		8-97382-650-2 01 1 0709- ● ●
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0706- ● ●

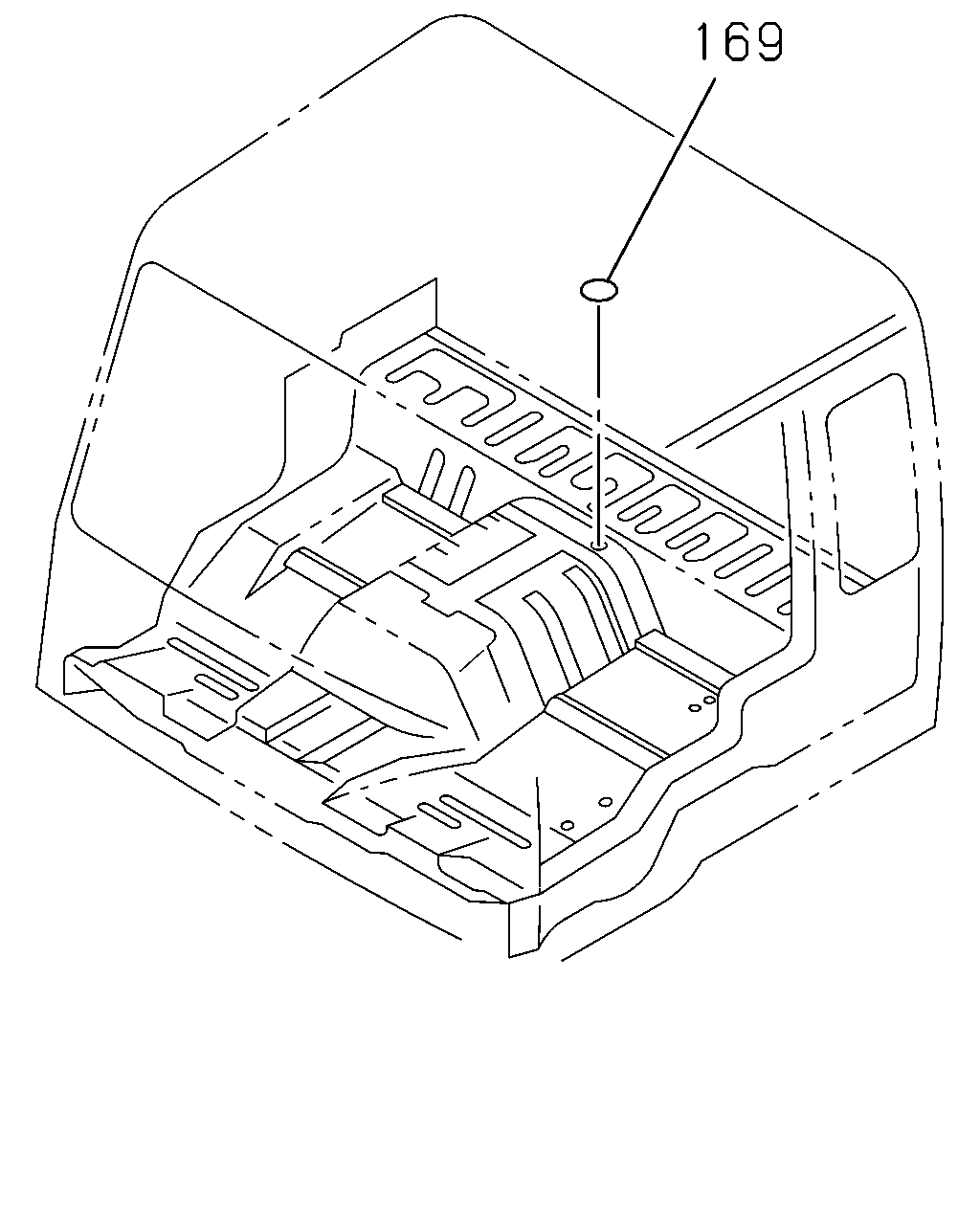

çizim 134489
169
BalonParca AdiParca NoAdetTipApplied Date A B
169 SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 01 1 0706- ● ●
