◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11415 - FRR AUSTRALIA EURO4 EXC.SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#19585) — 85 parça

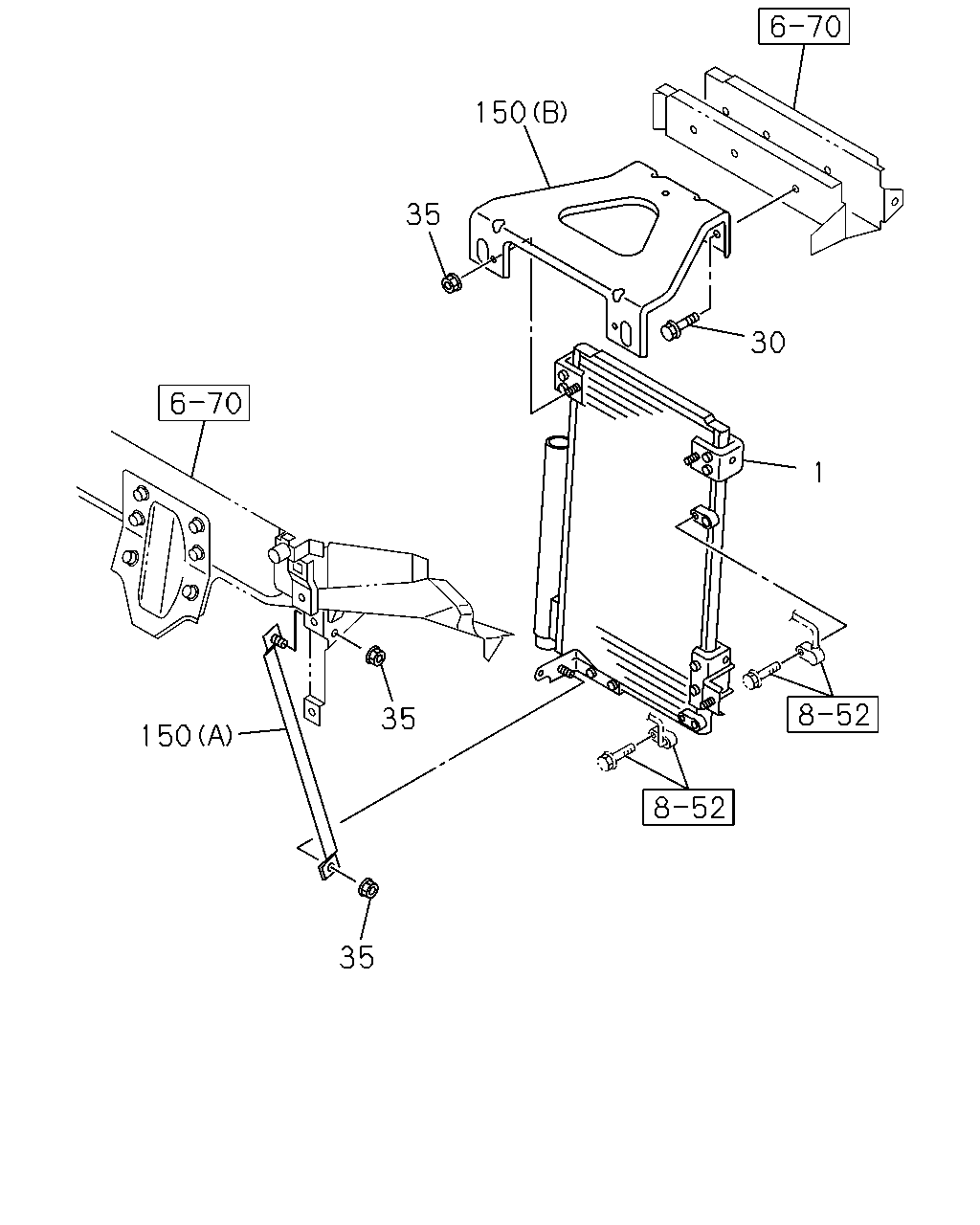

çizim 109255
150 35 30 1 35 150 35
BalonParca AdiParca NoAdetTipApplied Date A B
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98041-320-0 01 1 0710-0711 ●
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98041-320-0 01 1 0712-1301 ●
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98041-320-0 01 1 0712-1301 ●
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98235-911-2 01 1 1302- ●
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98235-911-2 01 1 1302- ●
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X20 FLANGE 		0-28650-820-0 02 1 0712- ●
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE 		0-28650-820-0 02 1 0712- ●
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8 FLANGE 		0-91180-108-0 05 1 0710-0711 ●
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8 FLANGE 		0-91180-108-0 05 1 0712- ●
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE 		0-91180-108-0 05 1 0712- ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98041-321-0 01 1 0710-0711 ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98041-321-0 01 1 0712-1405 ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98041-321-0 01 1 0712-1405 ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98270-947-0 01 1 1406- ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98270-947-0 01 1 1406- ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98041-322-0 01 1 0710-0711 ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98041-322-0 01 1 0712-1409 ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98041-322-0 01 1 0712-1409 ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98242-412-0 01 1 1410- ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98242-412-0 01 1 1410- ●

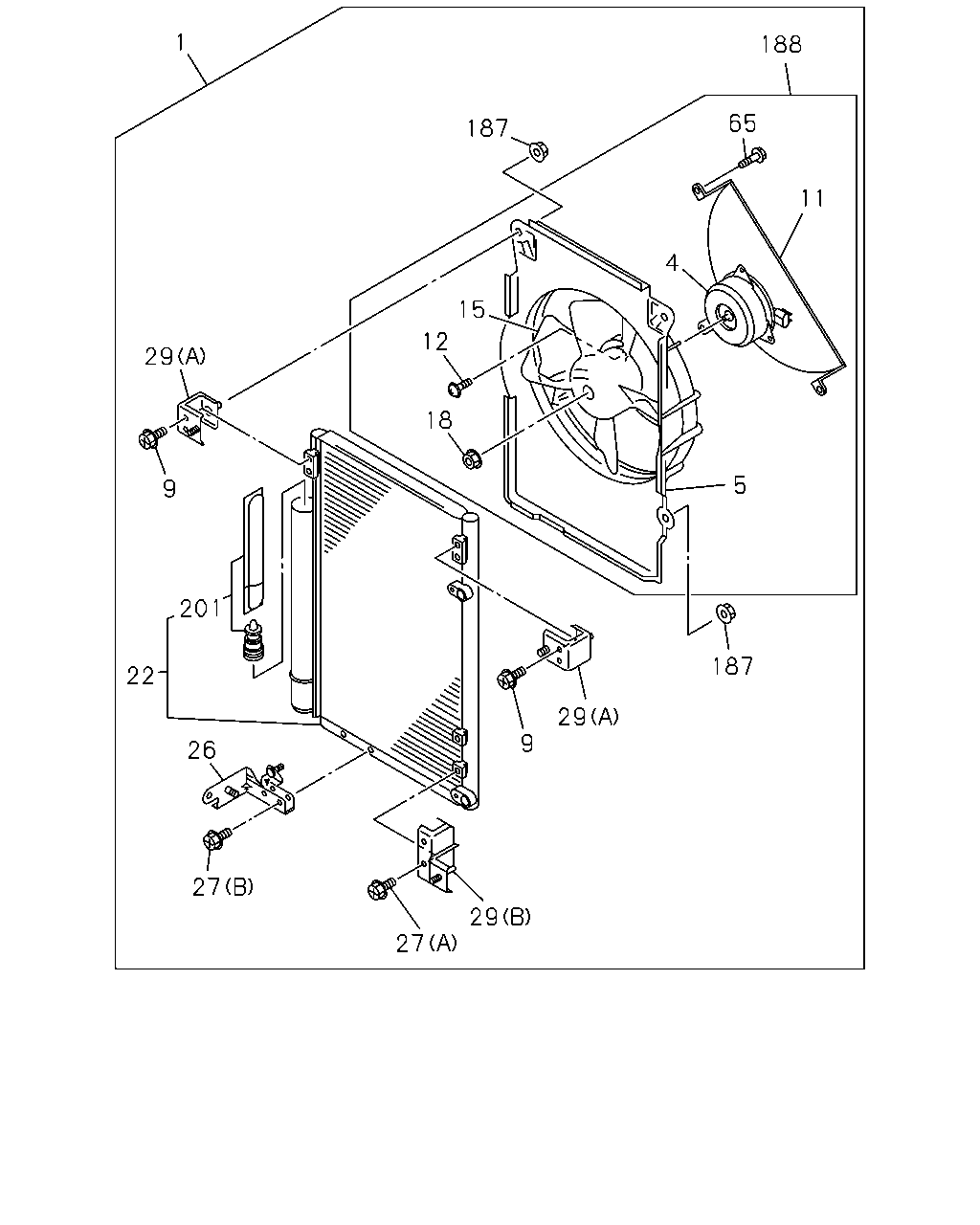

çizim 109257
1 188 65 187 11 4 15 12 29 18 5 9 201 187 22 29 9 26 27 29 27
BalonParca AdiParca NoAdetTipApplied Date A B
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98041-320-0 01 1 0710-0711 ●
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98041-320-0 01 1 0712-1301 ●
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98041-320-0 01 1 0712-1301 ●
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98235-911-2 01 1 1302- ●
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98235-911-2 01 1 1302- ●
4 MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98076-091-0 01 1 0710-0711 ●
4 MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98076-091-0 01 1 0712- ●
4 MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98076-091-0 01 1 0712- ●
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98076-093-0 01 1 0710-0711 ●
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98076-093-0 01 1 0712- ●
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98076-093-0 01 1 0712- ●
9 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X14 		1-83539-382-0 04 1 0710-0711 ●
9 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X14 		1-83539-382-0 04 1 0712- ●
9 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60) M6X14 		1-83539-382-0 04 1 0712- ●
11 COVER; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98068-234-0 01 1 0710-0711 ●
11 COVER; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98068-234-0 01 1 0712-1308 ●
11 COVER; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98068-234-0 01 1 0712-1308 ●
12 BOLT; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97180-269-0 03 1 0710-0711 ●
12 BOLT; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97180-269-0 03 1 0712- ●
12 BOLT; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97180-269-0 03 1 0712- ●
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98076-092-0 01 1 0710-0711 ●
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98076-092-0 01 1 0712-1301 ●
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98076-092-0 01 1 0712-1301 ●
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98152-860-0 01 1 1302- ●
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98152-860-0 01 1 1302- ●
18 NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5 FLANGE 		8-94157-075-0 01 1 0710-0711 ●
18 NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5 FLANGE 		8-94157-075-0 01 1 0712- ●
18 NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONTROL(C60) M5 FLANGE 		8-94157-075-0 01 1 0712- ●
22 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-83534-261-0 01 1 0710-0711 ●
22 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-83534-261-0 01 1 0712-1409 ●
22 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83534-261-0 01 1 0712-1409 ●
22 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98275-189-0 01 1 1410- ●
22 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98275-189-0 01 1 1410- ●
26 BRACKET; LOW
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-83573-281-0 01 1 0710-0711 ●
26 BRACKET; LOW
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-83573-281-0 01 1 0712- ●
26 BRACKET; LOW
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83573-281-0 01 1 0712- ●
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M6X14 		1-83539-382-0 02 1 0710-0711 ●
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M6X14 		1-83539-382-0 02 1 0712- ●
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (A) M6X14 		1-83539-382-0 02 1 0712- ●
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M5X25 		8-97178-770-0 02 1 0710-0711 ●
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M5X25 		8-97178-770-0 02 1 0712- ●
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B) M5X25 		8-97178-770-0 02 1 0712- ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98065-914-0 02 1 0710-0711 ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98065-914-0 02 1 0712- ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98065-914-0 02 1 0712- ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98065-915-0 01 1 0710-0711 ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98065-915-0 01 1 0712- ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-98065-915-0 01 1 0712- ●
65 BOLT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X16 		8-97096-525-0 03 1 0710-0711 ●
65 BOLT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X16 		8-97096-525-0 03 1 0712-1308 ●
65 BOLT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) M6X16 		8-97096-525-0 03 1 0712-1308 ●
187 NUT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 		1-83539-354-0 04 1 0710-0711 ●
187 NUT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 		1-83539-354-0 04 1 0712- ●
187 NUT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) M6 		1-83539-354-0 04 1 0712- ●
188 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98065-913-0 01 1 0710-0711 ●
188 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98065-913-0 01 1 0712-1301 ●
188 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98065-913-0 01 1 0712-1301 ●
188 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98235-916-1 01 1 1302- ●
188 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98235-916-1 01 1 1302- ●
201 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-83535-097-0 01 1 0710-0711 ●
201 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-83535-097-0 01 1 0712-1409 ●
201 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) 		1-83535-097-0 01 1 0712-1409 ●
201 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98282-482-0 01 1 1410- ●
201 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98282-482-0 01 1 1410- ●
