8-71 — COMPRESSOR; AIR CONDITIONING (#19583) — 17 parça

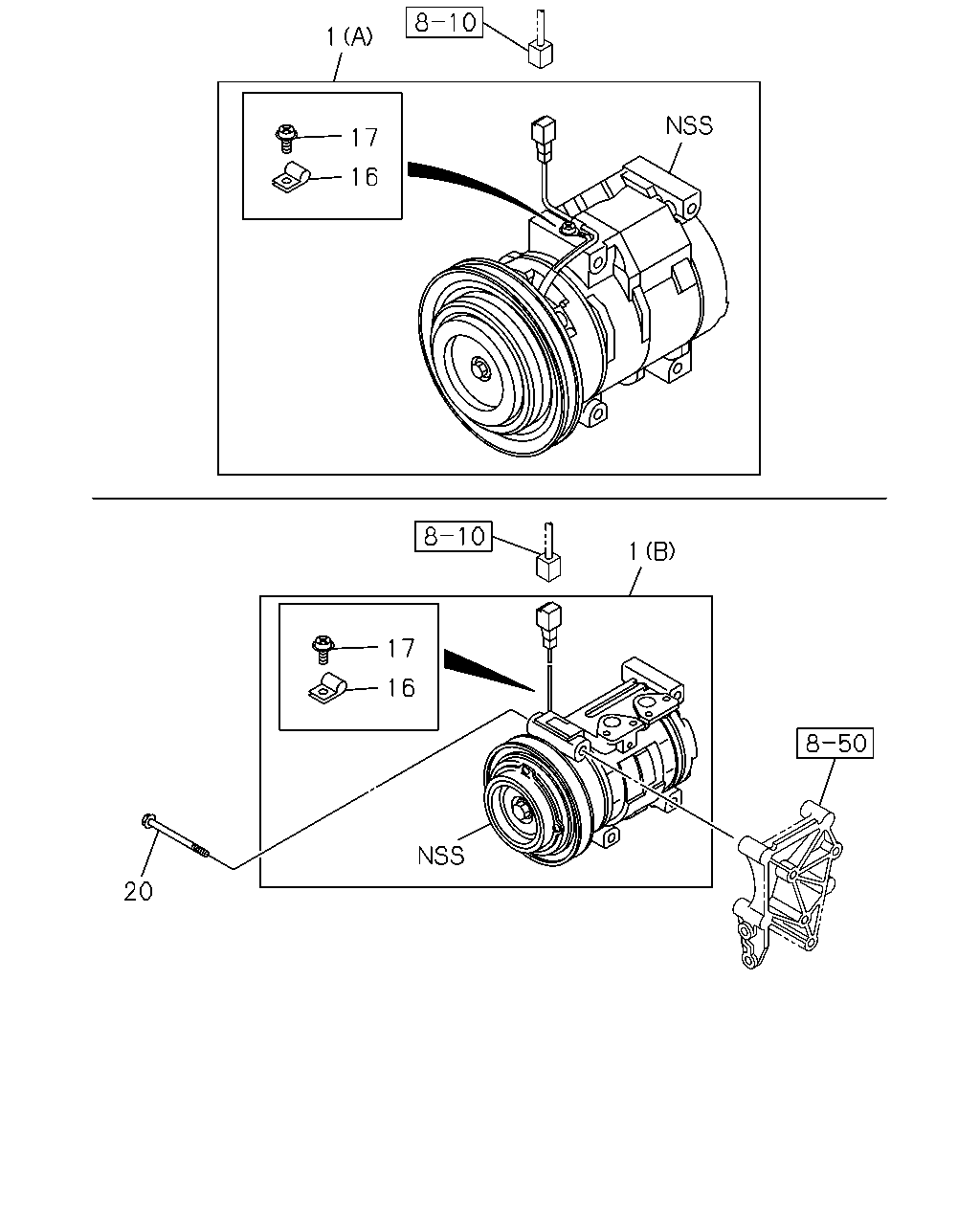

çizim 109262
1 17 16 1 17 16 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		1-83532-328-0 01 1 0710-0711 ●
1 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		1-83532-328-0 01 1 0712- ●
1 COMPRESSOR ASM; A/C
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-83532-328-0 01 1 0712- ●
1 COMPRESSOR ASM; A/C
4HK1-TCS ENG(RJS) (B) 		1-83532-326-1 01 1 0712-1306 ●
1 COMPRESSOR ASM; A/C
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-83532-326-1 01 1 1307- ●
16 CLIP; WIRE,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-83579-893-0 01 1 0710-0711 ●
16 CLIP; WIRE,MAGNET CLU
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-83579-893-0 01 1 0712-1306 ● ●
16 CLIP; WIRE,MAGNET CLU
4HK1-TCS ENG(RJS) 		1-83579-893-0 01 1 0712-1306 ●
16 CLIP; WIRE,MAGNET CLU
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-83579-893-0 01 1 1307- ● ●
16 CLIP; WIRE,MAGNET CLU
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) 		1-83579-893-0 01 1 1307- ●
17 SCREW; WIRE CLIP MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		5-81129-130-0 01 1 0710-0711 ●
17 SCREW; WIRE CLIP MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		5-81129-130-0 01 1 0712- ●
17 SCREW; WIRE CLIP MAGNET CLU
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) 		5-81129-130-0 01 1 0712- ●
17 SCREW; WIRE CLIP MAGNET CLU
4HK1-TCS ENG(RJS) 		5-81129-130-0 02 1 0712-1306 ●
17 SCREW; WIRE CLIP MAGNET CLU
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) 		5-81129-130-0 02 1 1307- ●
20 BOLT; CMPR
4HK1-TCS ENG(RJS) M8X75 FLANGE 		1-09044-073-0 04 1 0712-0808 ●
20 BOLT; CMPR
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) M8X75 FLANGE 		1-09044-073-0 04 1 0809- ●
