Sayfa 8-52 - Isuzu EPC

8-52 — PIPING; AIR CONDITIONING (#19580) — 168 parça

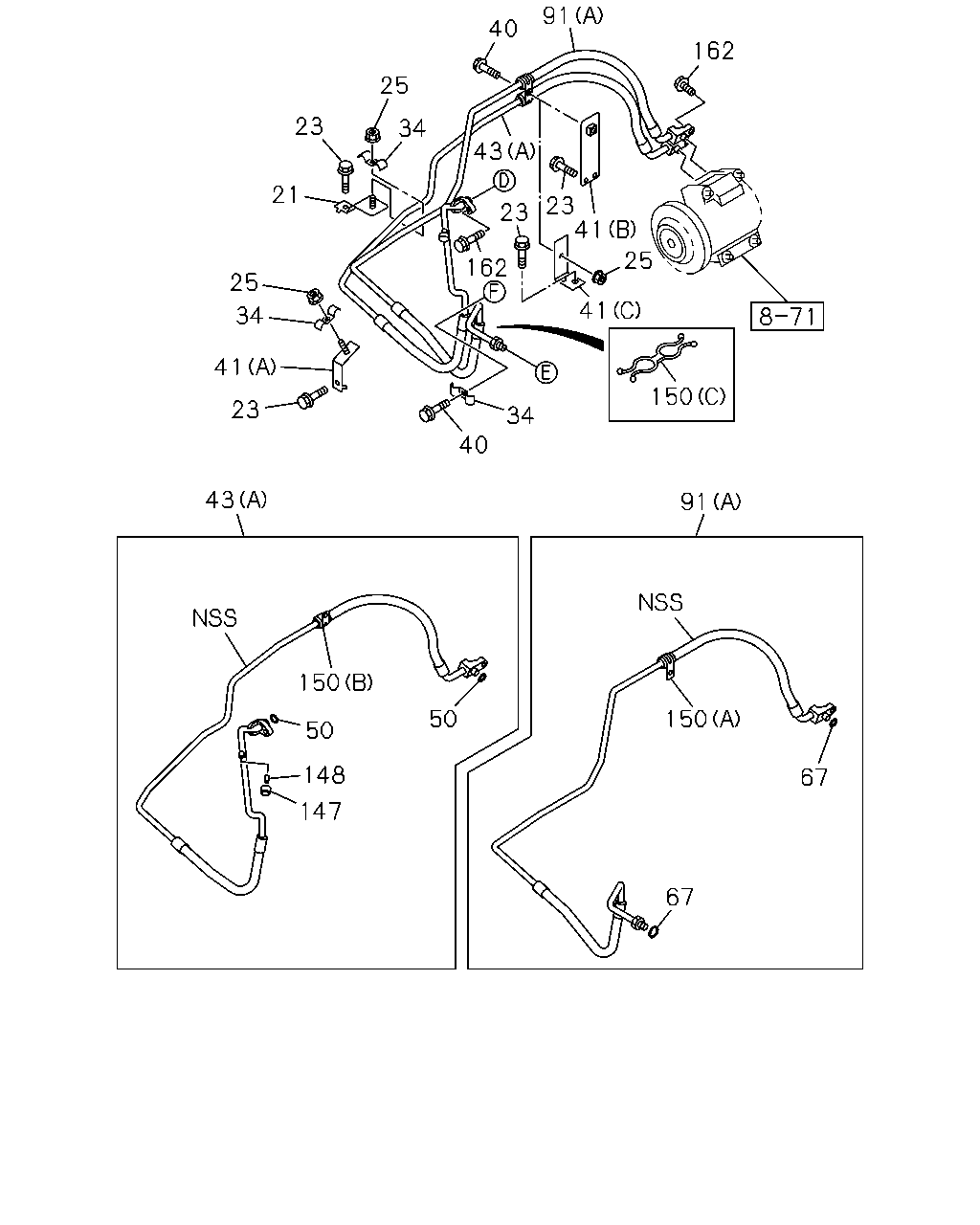

162 91 40 25 23 34 43 41 21 23 162 25 34 41 150 23 34 40 43 91 67 50 150 150 50 148 147 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98010-187-0	01	1	0710-0711	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98010-187-0	01	1	0712-	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-98010-187-0	01	1	0712-		●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X25 FLANGE	0-28650-825-0	01	1	0710-0711	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X25 FLANGE	0-28650-825-0	01	1	0710-0711	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X25 FLANGE	0-28650-825-0	01	1	0712-	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X25 FLANGE	0-28650-825-0	01	1	0712-	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	01	1	0712-		●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	01	1	0712-		●
23	BOLT; BRKT 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	01	1	0712-		●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X25 FLANGE	0-28650-825-0	02	1	0710-0711	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X25 FLANGE	0-28650-825-0	02	1	0712-	●
23	BOLT; BRKT 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	02	1	0712-		●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8 FLANGE	0-91180-108-0	01	1	0710-0711	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8 FLANGE	0-91180-108-0	01	1	0710-0711	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8 FLANGE	0-91180-108-0	01	1	0712-	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8 FLANGE	0-91180-108-0	01	1	0712-	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	0712-		●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	0712-		●
25	NUT; BRKT 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	0712-		●
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98043-673-0	03	1	0710-0711	●
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98043-673-0	03	1	0712-	●
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-98043-673-0	03	1	0712-		●
40	BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X25 FLANGE	0-28650-825-0	02	1	0710-0711	●
40	BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X25 FLANGE	0-28650-825-0	02	1	0712-	●
40	BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	02	1	0712-		●
41	BRACKET; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98010-188-1	01	1	0710-0711	●
41	BRACKET; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98010-188-1	01	1	0712-	●
41	BRACKET; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98010-188-1	01	1	0712-		●
41	BRACKET; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98032-049-0	01	1	0710-0711	●
41	BRACKET; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98032-049-0	01	1	0712-	●
41	BRACKET; PIPE CLIP 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98032-049-0	01	1	0712-		●
41	BRACKET; PIPE CLIP 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-896-0	01	1	0712-1004		●
41	BRACKET; PIPE CLIP 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98151-192-0	01	1	1005-		●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98076-319-0	01	1	0710-0711	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98076-319-0	01	1	0712-	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98076-319-0	01	1	0712-		●
43	HOSE; FLEX,A/C,EVAP TO CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98043-677-2	01	1	0712-		●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=14.5	8-97095-908-0	02	1	0710-0711	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=14.5	8-97095-908-0	02	1	0712-	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=14.5	8-97095-908-0	02	1	0712-		●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=11.7	8-97095-907-0	02	1	0710-0711	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=11.7	8-97095-907-0	02	1	0712-	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=11.7	8-97095-907-0	02	1	0712-		●
91	HOSE; FLEX,CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98076-320-0	01	1	0710-0711	●
91	HOSE; FLEX,CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98076-320-0	01	1	0712-	●
91	HOSE; FLEX,CMPR 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98076-320-0	01	1	0712-		●
91	HOSE; FLEX,CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98043-678-2	01	1	0712-		●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) CAP MARK L	1-83539-331-0	01	1	0710-0711	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) CAP MARK L	1-83539-331-0	01	1	0712-	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	1-83539-331-0	01	1	0712-		●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97095-909-0	01	1	0710-0711	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97095-909-0	01	1	0712-	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97095-909-0	01	1	0712-		●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	1-83574-249-0	01	1	0710-0711	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	1-83574-249-0	01	1	0712-	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83574-249-0	01	1	0712-		●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	1-83574-264-0	01	1	0710-0711	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	1-83574-264-0	01	1	0712-	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-264-0	01	1	0712-		●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C)	8-94423-042-0	01	1	0710-0711	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C)	8-94423-042-0	01	1	0712-	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-94423-042-0	01	1	0712-		●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X25 FLANGE	0-28050-625-0	03	1	0710-0711	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X25 FLANGE	0-28050-625-0	03	1	0712-	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28050-625-0	03	1	0712-		●

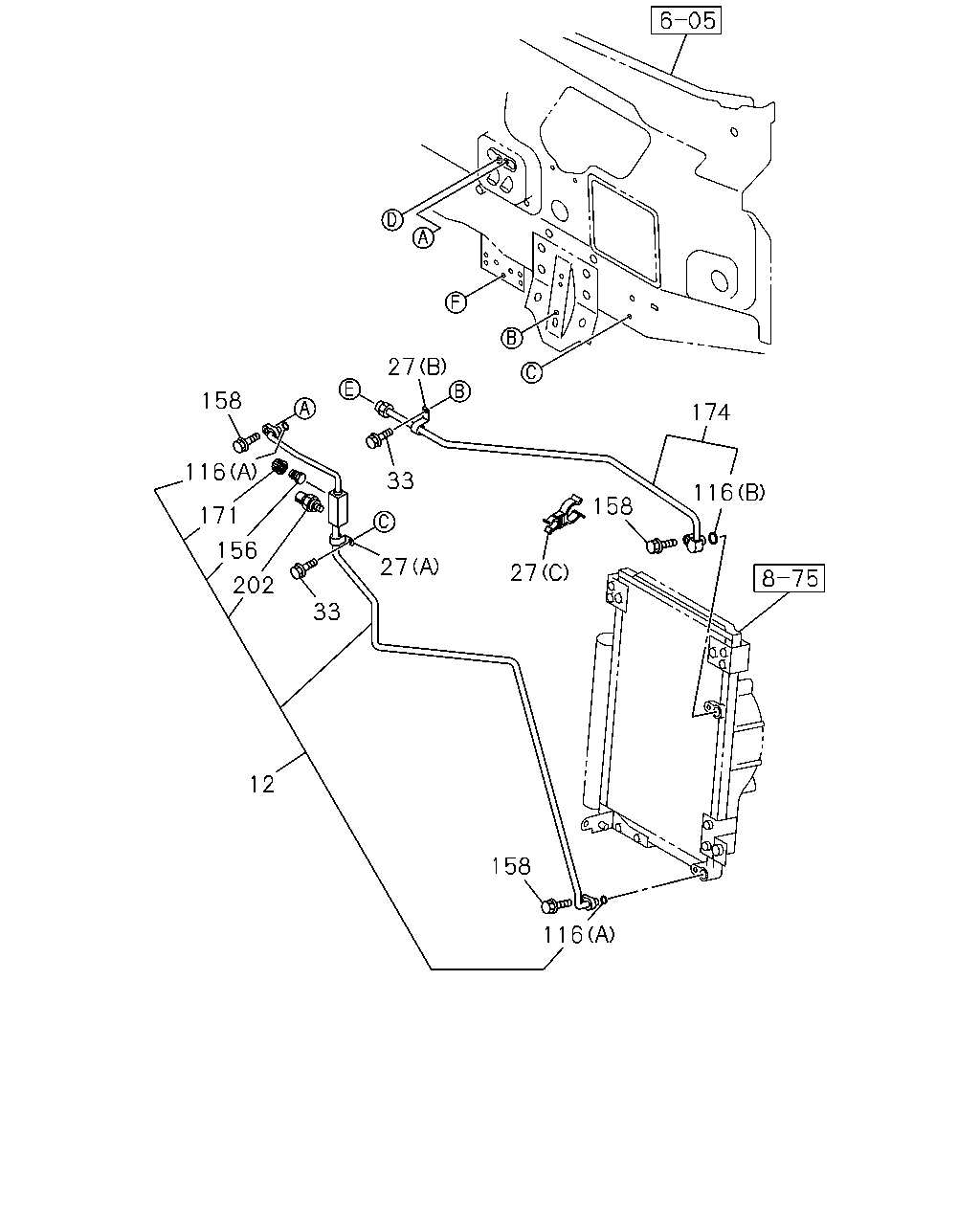

27 158 174 116 33 116 158 171 156 27 27 202 33 12 158 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98041-328-0	01	1	0710-0711	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98041-328-0	01	1	0712-	●
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	8-98041-328-0	01	1	0712-		●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=9 H=20 L=20	0-95207-308-0	01	1	0710-0711	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=9 H=20 L=20	0-95207-308-0	01	1	0712-	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=9 H=20 L=20	0-95207-308-0	01	1	0712-		●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=16 H=24 L=20	0-95207-315-0	01	1	0710-0711	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=16 H=24 L=20	0-95207-315-0	01	1	0712-	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=16 H=24 L=20	0-95207-315-0	01	1	0712-		●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=11.8 & 7.5	1-09709-182-0	01	1	0710-0711	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=11.8 & 7.5	1-09709-182-0	01	1	0712-	●
27	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.8 & 7.5	1-09709-182-0	01	1	0712-		●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X16 FLANGE	0-28650-616-0	02	1	0710-0711	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X16 FLANGE	0-28650-616-0	02	1	0712-	●
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M6X16 FLANGE	0-28650-616-0	02	1	0712-		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=7.4	8-97095-906-0	02	1	0710-0711	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=7.4	8-97095-906-0	02	1	0712-	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4	8-97095-906-0	02	1	0712-		●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=11.7	8-97095-907-0	01	1	0710-0711	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=11.7	8-97095-907-0	01	1	0712-	●
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=11.7	8-97095-907-0	01	1	0712-		●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98151-702-0	01	1	0710-0711	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98151-702-0	01	1	0712-	●
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-98151-702-0	01	1	0712-		●
158	BOLT; PIPE FIX AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X25 FLANGE	0-28050-625-0	03	1	0710-0711	●
158	BOLT; PIPE FIX AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X25 FLANGE	0-28050-625-0	03	1	0712-	●
158	BOLT; PIPE FIX AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28050-625-0	03	1	0712-		●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) CAP MARK H	8-97095-911-0	01	1	0710-0711	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) CAP MARK H	8-97095-911-0	01	1	0712-	●
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H	8-97095-911-0	01	1	0712-		●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98041-330-0	01	1	0710-0711	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98041-330-0	01	1	0712-	●
174	PIPE; COOLER,CONDENSER TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-98041-330-0	01	1	0712-		●
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	1-83564-391-0	01	1	0710-0711	●
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	1-83564-391-0	01	1	0712-	●
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-391-0	01	1	0712-		●

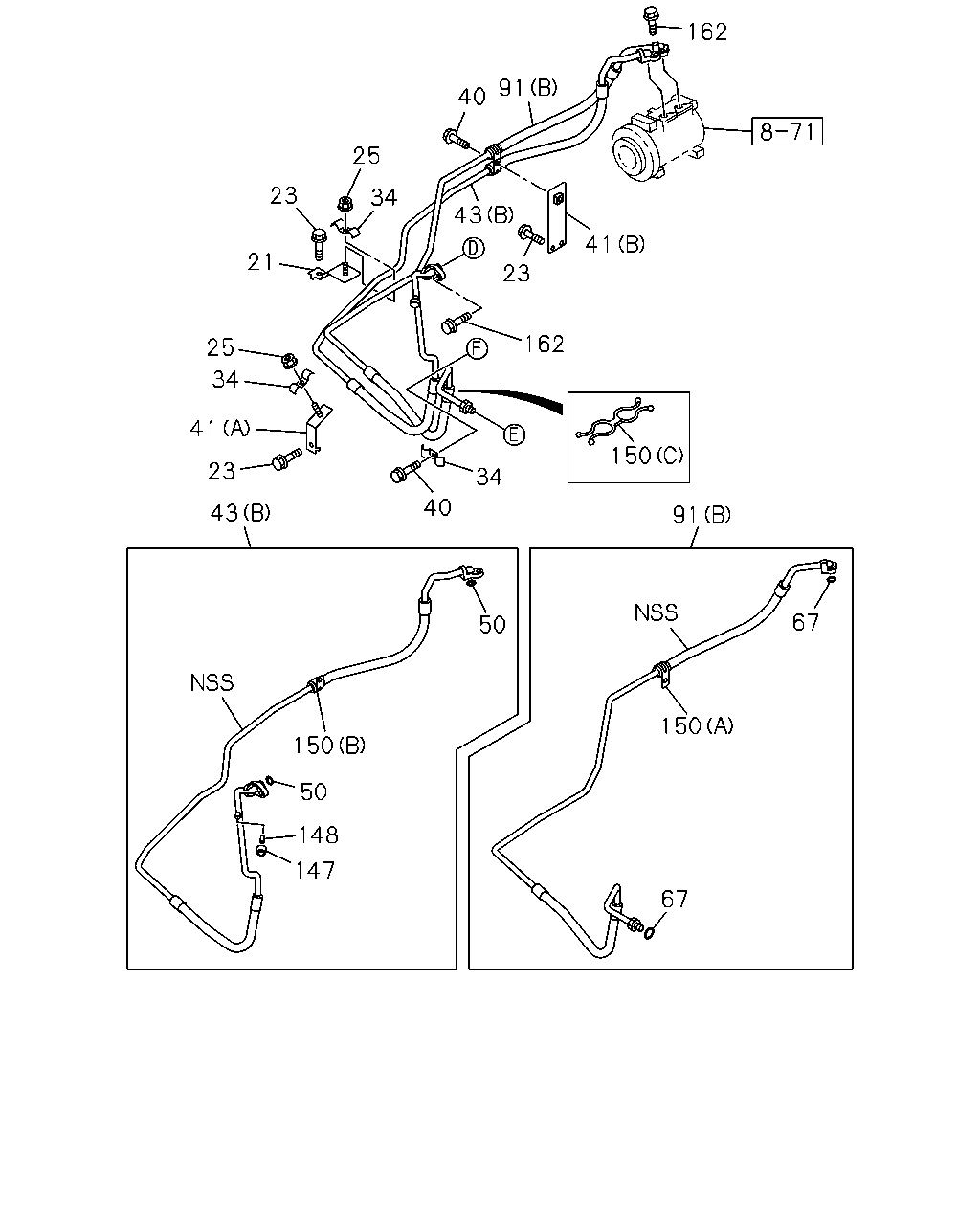

91 40 162 25 23 34 43 21 23 41 23 25 162 25 41 34 41 150 23 34 40 43 91 150 50 150 50 148 67 147 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98010-187-0	01	1	0710-0711	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98010-187-0	01	1	0712-	●
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-98010-187-0	01	1	0712-		●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X25 FLANGE	0-28650-825-0	01	1	0710-0711	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X25 FLANGE	0-28650-825-0	01	1	0710-0711	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X25 FLANGE	0-28650-825-0	01	1	0712-	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X25 FLANGE	0-28650-825-0	01	1	0712-	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	01	1	0712-		●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	01	1	0712-		●
23	BOLT; BRKT 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	01	1	0712-		●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X25 FLANGE	0-28650-825-0	02	1	0710-0711	●
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X25 FLANGE	0-28650-825-0	02	1	0712-	●
23	BOLT; BRKT 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	02	1	0712-		●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8 FLANGE	0-91180-108-0	01	1	0710-0711	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8 FLANGE	0-91180-108-0	01	1	0710-0711	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8 FLANGE	0-91180-108-0	01	1	0712-	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8 FLANGE	0-91180-108-0	01	1	0712-	●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	0712-		●
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	0712-		●
25	NUT; BRKT 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	01	1	0712-		●
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98043-673-0	03	1	0710-0711	●
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98043-673-0	03	1	0712-	●
34	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-98043-673-0	03	1	0712-		●
40	BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X25 FLANGE	0-28650-825-0	02	1	0710-0711	●
40	BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X25 FLANGE	0-28650-825-0	02	1	0712-	●
40	BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X25 FLANGE	0-28650-825-0	02	1	0712-		●
41	BRACKET; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98010-188-1	01	1	0710-0711	●
41	BRACKET; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98010-188-1	01	1	0712-	●
41	BRACKET; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98010-188-1	01	1	0712-		●
41	BRACKET; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98032-049-0	01	1	0710-0711	●
41	BRACKET; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98032-049-0	01	1	0712-	●
41	BRACKET; PIPE CLIP 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98032-049-0	01	1	0712-		●
41	BRACKET; PIPE CLIP 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83571-896-0	01	1	0712-1004		●
41	BRACKET; PIPE CLIP 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98151-192-0	01	1	1005-		●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98076-319-0	01	1	0710-0711	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98076-319-0	01	1	0712-	●
43	HOSE; FLEX,A/C,EVAP TO CMPR 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98076-319-0	01	1	0712-		●
43	HOSE; FLEX,A/C,EVAP TO CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98043-677-2	01	1	0712-		●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=14.5	8-97095-908-0	02	1	0710-0711	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=14.5	8-97095-908-0	02	1	0712-	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONTROL(C60) ID=14.5	8-97095-908-0	02	1	0712-		●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=11.7	8-97095-907-0	02	1	0710-0711	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=11.7	8-97095-907-0	02	1	0712-	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=11.7	8-97095-907-0	02	1	0712-		●
91	HOSE; FLEX,CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98076-320-0	01	1	0710-0711	●
91	HOSE; FLEX,CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98076-320-0	01	1	0712-	●
91	HOSE; FLEX,CMPR 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98076-320-0	01	1	0712-		●
91	HOSE; FLEX,CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98043-678-2	01	1	0712-		●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) CAP MARK L	1-83539-331-0	01	1	0710-0711	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) CAP MARK L	1-83539-331-0	01	1	0712-	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	1-83539-331-0	01	1	0712-		●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97095-909-0	01	1	0710-0711	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97095-909-0	01	1	0712-	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97095-909-0	01	1	0712-		●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	1-83574-249-0	01	1	0710-0711	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	1-83574-249-0	01	1	0712-	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83574-249-0	01	1	0712-		●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	1-83574-264-0	01	1	0710-0711	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	1-83574-264-0	01	1	0712-	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-264-0	01	1	0712-		●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C)	8-94423-042-0	01	1	0710-0711	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C)	8-94423-042-0	01	1	0712-	●
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-94423-042-0	01	1	0712-		●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X25 FLANGE	0-28050-625-0	03	1	0710-0711	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X25 FLANGE	0-28050-625-0	03	1	0712-	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28050-625-0	03	1	0712-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
