Sayfa 8-50 - Isuzu EPC

8-50 — AIR CONDITIONING SYSTEM; FRONT (#19579) — 165 parça

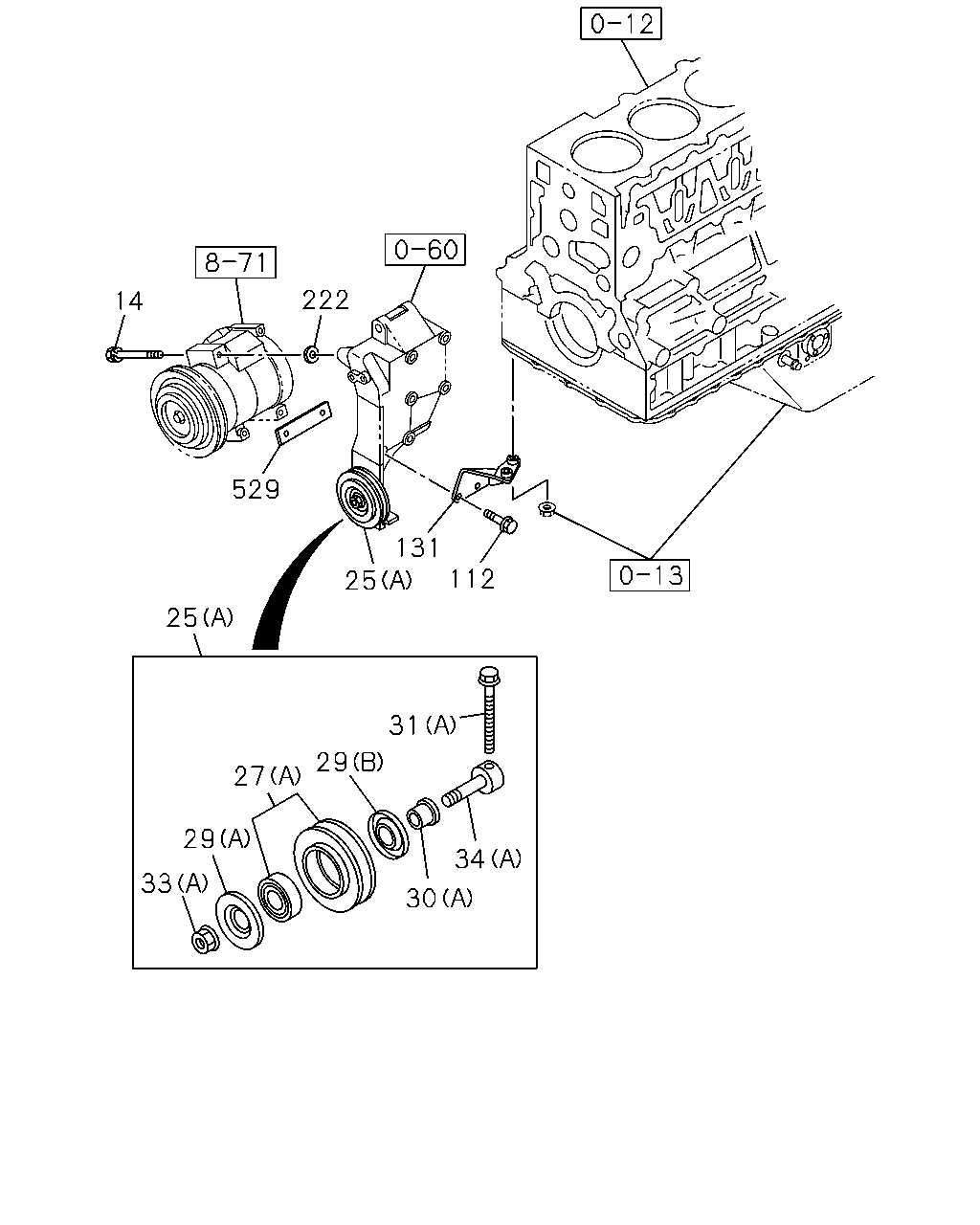

222 14 529 131 112 25 25 31 29 27 29 34 33 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	BOLT; CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X78 W/LK WASHER	5-09000-228-1	04	1	0710-0711	●
14	BOLT; CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X78 W/LK WASHER	5-09000-228-1	04	1	0712-	●
14	BOLT; CMPR 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) M8X78 W/LK WASHER	5-09000-228-1	04	1	0712-		●
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97605-079-0	01	1	0710-0711	●
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97605-079-0	01	1	0712-	●
25	PULLEY ASM; IDLER,CMPR 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-079-0	01	1	0712-		●
25	PULLEY ASM; IDLER,CMPR 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (D) 1-GROOVE	8-94334-696-2	01	1	0712-0803		●
25	PULLEY ASM; IDLER,CMPR 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (B) 1-GROOVE	8-94334-873-0	01	1	0712-0803		●
25	PULLEY ASM; IDLER,CMPR 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (C) 1-GROOVE	8-97161-198-1	01	1	0712-0803		●
25	PULLEY ASM; IDLER,CMPR 4HK1-TCS ENG(RJS) (C) 1-GROOVE	8-97161-198-1	01	1	0804-0808		●
25	PULLEY ASM; IDLER,CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (C) 1-GROOVE	8-97161-198-1	01	1	0809-		●
27	PULLEY; IDLE,A/C AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97605-323-0	01	1	0710-0711	●
27	PULLEY; IDLE,A/C AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97605-323-0	01	1	0712-	●
27	PULLEY; IDLE,A/C 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-323-0	01	1	0712-		●
27	PULLEY; IDLE,A/C 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (C)	9-13663-606-0	01	1	0712-0803		●
27	PULLEY; IDLE,A/C 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (B)	8-97386-869-0	01	1	0712-0803		●
27	PULLEY; IDLE,A/C 4HK1-TCS ENG(RJS) (B)	8-97386-869-0	01	1	0804-0808		●
27	PULLEY; IDLE,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97386-869-0	01	1	0809-		●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97605-329-0	01	1	0710-0711	●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97605-329-0	01	1	0712-	●
29	COVER; DUST,IDLE PULLEY 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-329-0	01	1	0712-		●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-97605-330-0	01	1	0710-0711	●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-97605-330-0	01	1	0712-	●
29	COVER; DUST,IDLE PULLEY 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97605-330-0	01	1	0712-		●
29	COVER; DUST,IDLE PULLEY 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (D)	9-13669-603-0	02	1	0712-0803		●
29	COVER; DUST,IDLE PULLEY 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (E)	8-97384-114-0	01	1	0712-0803		●
29	COVER; DUST,IDLE PULLEY 4HK1-TCS ENG(RJS) (E)	8-97384-114-0	01	1	0804-0808		●
29	COVER; DUST,IDLE PULLEY 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97384-114-0	01	1	0809-		●
29	COVER; DUST,IDLE PULLEY 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (C)	8-97384-115-0	01	1	0712-0803		●
29	COVER; DUST,IDLE PULLEY 4HK1-TCS ENG(RJS) (C)	8-97384-115-0	01	1	0804-0808		●
29	COVER; DUST,IDLE PULLEY 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-97384-115-0	01	1	0809-		●
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97605-328-0	01	1	0710-0711	●
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97605-328-0	01	1	0712-	●
30	COLLAR; IDLE PULLEY 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-328-0	01	1	0712-		●
30	COLLAR; IDLE PULLEY 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (C)	8-94207-192-0	01	1	0712-0803		●
30	COLLAR; IDLE PULLEY 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (B)	8-97384-117-0	01	1	0712-0803		●
30	COLLAR; IDLE PULLEY 4HK1-TCS ENG(RJS) (B)	8-97384-117-0	01	1	0804-0808		●
30	COLLAR; IDLE PULLEY 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97384-117-0	01	1	0809-		●
31	BOLT; ADJ,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97605-325-0	01	1	0710-0711	●
31	BOLT; ADJ,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97605-325-0	01	1	0712-	●
31	BOLT; ADJ,IDLE PULLEY 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-325-0	01	1	0712-		●
31	BOLT; ADJ,IDLE PULLEY 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (B)	8-97384-113-0	01	1	0712-0803		●
31	BOLT; ADJ,IDLE PULLEY 4HK1-TCS ENG(RJS) (B)	8-97384-113-0	01	1	0804-0808		●
31	BOLT; ADJ,IDLE PULLEY 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97384-113-0	01	1	0809-		●
33	NUT; IDLER PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97605-326-0	01	1	0710-0711	●
33	NUT; IDLER PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97605-326-0	01	1	0712-	●
33	NUT; IDLER PULLEY 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-326-0	01	1	0712-		●
33	NUT; IDLER PULLEY 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (B)	8-97384-118-0	01	1	0712-0803		●
33	NUT; IDLER PULLEY 4HK1-TCS ENG(RJS) (B)	8-97384-118-0	01	1	0804-0808		●
33	NUT; IDLER PULLEY 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97384-118-0	01	1	0809-		●
34	SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97605-327-0	01	1	0710-0711	●
34	SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97605-327-0	01	1	0712-	●
34	SHAFT; IDLE PULLEY 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-327-0	01	1	0712-		●
34	SHAFT; IDLE PULLEY 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (C) M10X30	0-28121-030-0	01	1	0712-0803		●
34	SHAFT; IDLE PULLEY 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (B)	8-97384-116-0	01	1	0712-0803		●
34	SHAFT; IDLE PULLEY 4HK1-TCS ENG(RJS) (B)	8-97384-116-0	01	1	0804-0808		●
34	SHAFT; IDLE PULLEY 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97384-116-0	01	1	0809-		●
112	BOLT; STAY M8X16 FLANGE	0-28050-816-0	02	1	0710-0711	●
112	BOLT; STAY M8X16 FLANGE	0-28050-816-0	02	1	0712-	●
112	BOLT; STAY 6HK1-TCN ENG(82L) M8X16 FLANGE	0-28050-816-0	02	1	0712-		●
131	STAY; CMPR BRKT	8-97601-869-0	01	1	0710-0711	●
131	STAY; CMPR BRKT	8-97601-869-1	01	1	0712-	●
131	STAY; CMPR BRKT 6HK1-TCN ENG(82L)	8-97601-869-1	01	1	0712-		●
222	GASKET; CONNECTOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=8.2	8-94312-733-0	02	1	0710-0711	●
222	GASKET; CONNECTOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=8.2	8-94312-733-0	02	1	0712-	●
222	GASKET; CONNECTOR 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2	8-94312-733-0	02	1	0712-		●
529	SPACER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	1-83573-271-0	01	1	0710-0711	●
529	SPACER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	1-83573-271-0	01	1	0712-	●
529	SPACER 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)	1-83573-271-0	01	1	0712-		●

71 378 378

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
71	COVER; EVAP,A/C EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98017-234-1	01	1	0710-0711	●
71	COVER; EVAP,A/C EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98017-234-1	01	1	0712-	●
71	COVER; EVAP,A/C EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98017-234-1	01	1	0712-		●
378	HOSE; DRAIN,EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98041-759-0	01	1	0710-0711	●
378	HOSE; DRAIN,EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98041-759-0	01	1	0712-1111	●
378	HOSE; DRAIN,EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98041-759-0	01	1	0712-1111		●
378	HOSE; DRAIN,EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98204-846-0	01	1	1112-	●
378	HOSE; DRAIN,EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98204-846-0	01	1	1112-		●
378	HOSE; DRAIN,EVAPORATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98041-428-0	01	1	0710-0711	●
378	HOSE; DRAIN,EVAPORATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98041-428-0	01	1	0712-	●
378	HOSE; DRAIN,EVAPORATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98041-428-0	01	1	0712-		●

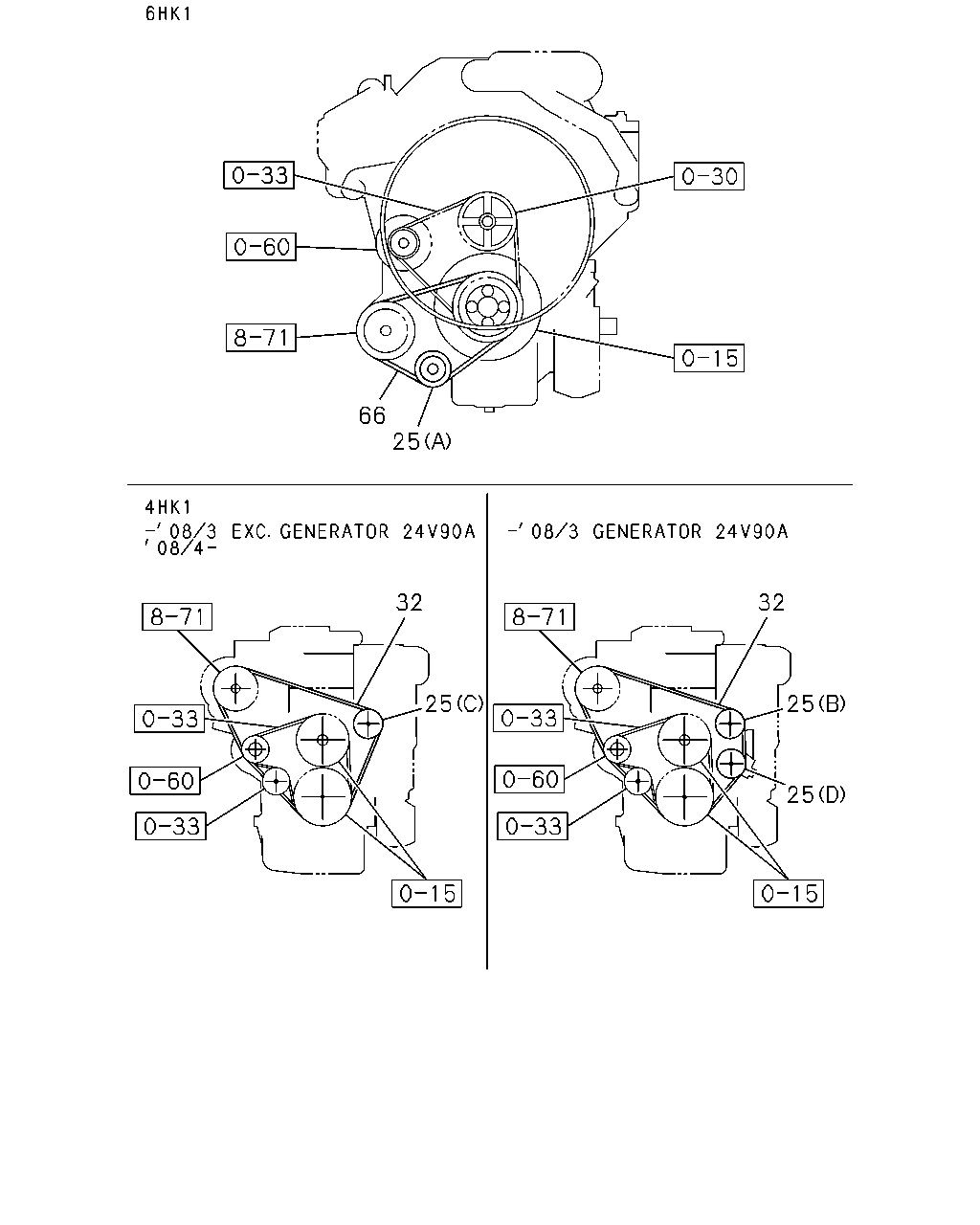

66 25 32 32 25 25 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97605-079-0	01	1	0710-0711	●
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97605-079-0	01	1	0712-	●
25	PULLEY ASM; IDLER,CMPR 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-079-0	01	1	0712-		●
25	PULLEY ASM; IDLER,CMPR 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (D) 1-GROOVE	8-94334-696-2	01	1	0712-0803		●
25	PULLEY ASM; IDLER,CMPR 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (B) 1-GROOVE	8-94334-873-0	01	1	0712-0803		●
25	PULLEY ASM; IDLER,CMPR 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (C) 1-GROOVE	8-97161-198-1	01	1	0712-0803		●
25	PULLEY ASM; IDLER,CMPR 4HK1-TCS ENG(RJS) (C) 1-GROOVE	8-97161-198-1	01	1	0804-0808		●
25	PULLEY ASM; IDLER,CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (C) 1-GROOVE	8-97161-198-1	01	1	0809-		●
32	BELT; A/C CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) BEST VALUE PARTS	1-87610-100-0	01	1	1207-		●
32	BELT; A/C CMPR 4HK1-TCS ENG(RJS) L=1594	8-97383-577-0	01	1	0712-0808		●
32	BELT; A/C CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) L=1594	8-97383-577-1	01	1	0809-		●
66	BELT; A/C CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=1114	8-97605-102-0	01	1	0710-0711	●
66	BELT; A/C CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=1114	8-97605-102-0	01	1	0712-	●
66	BELT; A/C CMPR 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) L=1114	8-97605-102-0	01	1	0712-		●

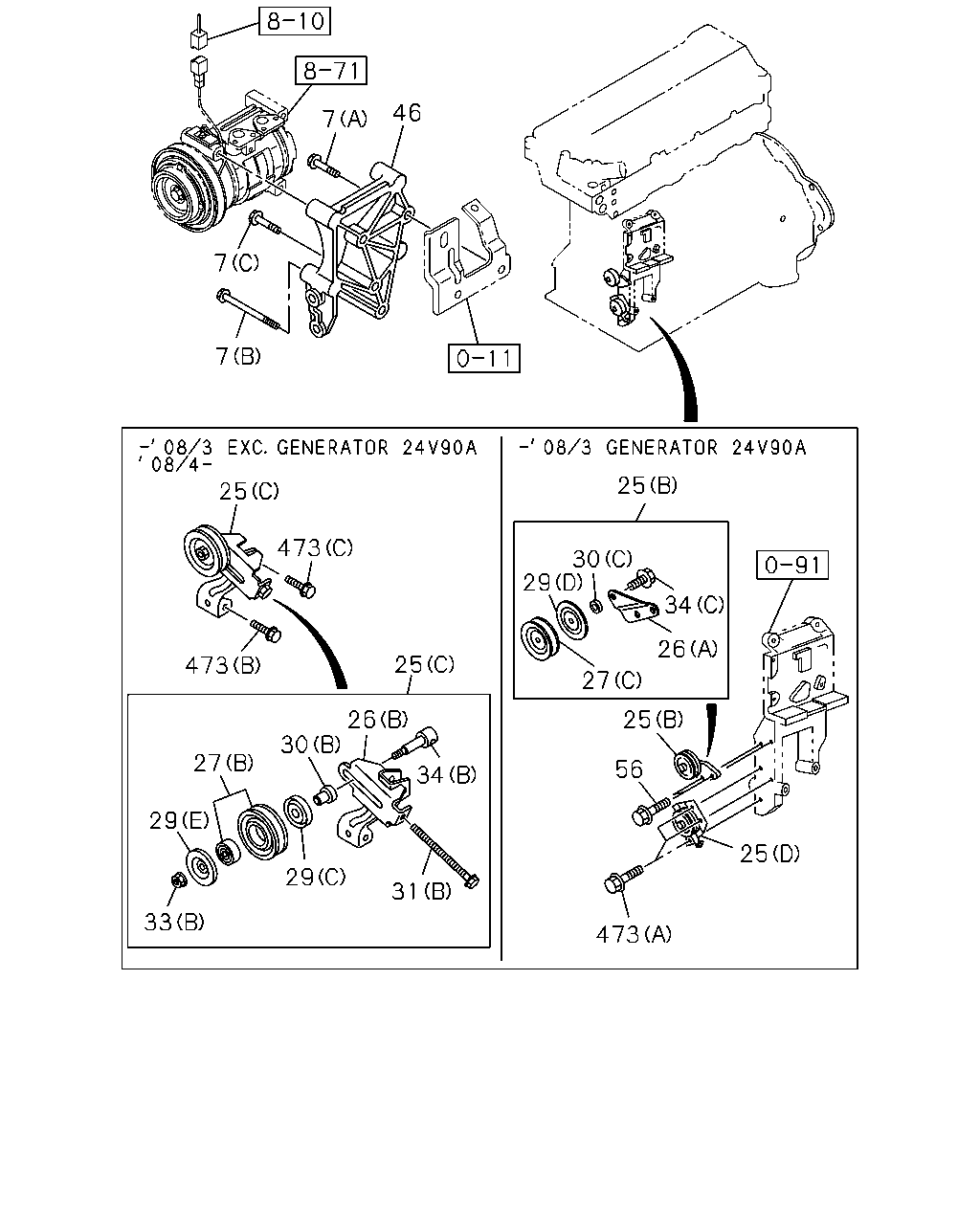

46 7 7 7 25 25 473 30 29 34 26 25 473 27 26 30 25 27 56 34 29 25 29 31 33 473

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M10X45 FLANGE	0-28151-045-0	02	1	0712-		●
7	BOLT; BRKT 4HK1-TCS ENG(RJS) (B) M10X80 FLANGE	0-28151-080-0	02	1	0712-0803		●
7	BOLT; BRKT 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (B) M10X80 FLANGE	0-28151-080-0	01	1	0804-		●
7	BOLT; BRKT 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (C) M10X130 FLANGE	0-28156-013-0	01	1	0712-		●
7	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (B) M10X80 FLANGE	0-28151-080-0	02	1	0804-		●
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97605-079-0	01	1	0710-0711	●
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97605-079-0	01	1	0712-	●
25	PULLEY ASM; IDLER,CMPR 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-079-0	01	1	0712-		●
25	PULLEY ASM; IDLER,CMPR 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (D) 1-GROOVE	8-94334-696-2	01	1	0712-0803		●
25	PULLEY ASM; IDLER,CMPR 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (B) 1-GROOVE	8-94334-873-0	01	1	0712-0803		●
25	PULLEY ASM; IDLER,CMPR 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (C) 1-GROOVE	8-97161-198-1	01	1	0712-0803		●
25	PULLEY ASM; IDLER,CMPR 4HK1-TCS ENG(RJS) (C) 1-GROOVE	8-97161-198-1	01	1	0804-0808		●
25	PULLEY ASM; IDLER,CMPR 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (C) 1-GROOVE	8-97161-198-1	01	1	0809-		●
26	BRACKET; IDLE PULLEY,A/C 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (A)	8-97060-362-0	01	1	0712-0803		●
26	BRACKET; IDLE PULLEY,A/C 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (B)	8-97161-031-1	01	1	0712-0803		●
26	BRACKET; IDLE PULLEY,A/C 4HK1-TCS ENG(RJS) (B)	8-97161-031-1	01	1	0804-0808		●
26	BRACKET; IDLE PULLEY,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97161-031-1	01	1	0809-		●
27	PULLEY; IDLE,A/C AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97605-323-0	01	1	0710-0711	●
27	PULLEY; IDLE,A/C AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97605-323-0	01	1	0712-	●
27	PULLEY; IDLE,A/C 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-323-0	01	1	0712-		●
27	PULLEY; IDLE,A/C 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (C)	9-13663-606-0	01	1	0712-0803		●
27	PULLEY; IDLE,A/C 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (B)	8-97386-869-0	01	1	0712-0803		●
27	PULLEY; IDLE,A/C 4HK1-TCS ENG(RJS) (B)	8-97386-869-0	01	1	0804-0808		●
27	PULLEY; IDLE,A/C 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97386-869-0	01	1	0809-		●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97605-329-0	01	1	0710-0711	●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97605-329-0	01	1	0712-	●
29	COVER; DUST,IDLE PULLEY 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-329-0	01	1	0712-		●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-97605-330-0	01	1	0710-0711	●
29	COVER; DUST,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-97605-330-0	01	1	0712-	●
29	COVER; DUST,IDLE PULLEY 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97605-330-0	01	1	0712-		●
29	COVER; DUST,IDLE PULLEY 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (D)	9-13669-603-0	02	1	0712-0803		●
29	COVER; DUST,IDLE PULLEY 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (E)	8-97384-114-0	01	1	0712-0803		●
29	COVER; DUST,IDLE PULLEY 4HK1-TCS ENG(RJS) (E)	8-97384-114-0	01	1	0804-0808		●
29	COVER; DUST,IDLE PULLEY 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97384-114-0	01	1	0809-		●
29	COVER; DUST,IDLE PULLEY 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (C)	8-97384-115-0	01	1	0712-0803		●
29	COVER; DUST,IDLE PULLEY 4HK1-TCS ENG(RJS) (C)	8-97384-115-0	01	1	0804-0808		●
29	COVER; DUST,IDLE PULLEY 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-97384-115-0	01	1	0809-		●
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97605-328-0	01	1	0710-0711	●
30	COLLAR; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97605-328-0	01	1	0712-	●
30	COLLAR; IDLE PULLEY 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-328-0	01	1	0712-		●
30	COLLAR; IDLE PULLEY 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (C)	8-94207-192-0	01	1	0712-0803		●
30	COLLAR; IDLE PULLEY 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (B)	8-97384-117-0	01	1	0712-0803		●
30	COLLAR; IDLE PULLEY 4HK1-TCS ENG(RJS) (B)	8-97384-117-0	01	1	0804-0808		●
30	COLLAR; IDLE PULLEY 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97384-117-0	01	1	0809-		●
31	BOLT; ADJ,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97605-325-0	01	1	0710-0711	●
31	BOLT; ADJ,IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97605-325-0	01	1	0712-	●
31	BOLT; ADJ,IDLE PULLEY 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-325-0	01	1	0712-		●
31	BOLT; ADJ,IDLE PULLEY 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (B)	8-97384-113-0	01	1	0712-0803		●
31	BOLT; ADJ,IDLE PULLEY 4HK1-TCS ENG(RJS) (B)	8-97384-113-0	01	1	0804-0808		●
31	BOLT; ADJ,IDLE PULLEY 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97384-113-0	01	1	0809-		●
33	NUT; IDLER PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97605-326-0	01	1	0710-0711	●
33	NUT; IDLER PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97605-326-0	01	1	0712-	●
33	NUT; IDLER PULLEY 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-326-0	01	1	0712-		●
33	NUT; IDLER PULLEY 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (B)	8-97384-118-0	01	1	0712-0803		●
33	NUT; IDLER PULLEY 4HK1-TCS ENG(RJS) (B)	8-97384-118-0	01	1	0804-0808		●
33	NUT; IDLER PULLEY 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97384-118-0	01	1	0809-		●
34	SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97605-327-0	01	1	0710-0711	●
34	SHAFT; IDLE PULLEY AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-97605-327-0	01	1	0712-	●
34	SHAFT; IDLE PULLEY 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97605-327-0	01	1	0712-		●
34	SHAFT; IDLE PULLEY 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (C) M10X30	0-28121-030-0	01	1	0712-0803		●
34	SHAFT; IDLE PULLEY 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44) (B)	8-97384-116-0	01	1	0712-0803		●
34	SHAFT; IDLE PULLEY 4HK1-TCS ENG(RJS) (B)	8-97384-116-0	01	1	0804-0808		●
34	SHAFT; IDLE PULLEY 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97384-116-0	01	1	0809-		●
46	BRACKET; CMPR 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44)	8-98101-365-0	01	1	0712-		●
46	BRACKET; CMPR 4HK1-TCS ENG(RJS) EXC. GENERATOR 24V90A(K44)	8-98101-364-0	01	1	0712-		●
56	BOLT; IDLER PULLEY 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) M8X16 FLANGE	0-28050-816-0	02	1	0712-0803		●
473	BOLT; TENSIONER 4HK1-TCS ENG(RJS) (B) M10X65 FLANGE	8-94344-540-1	01	1	0804-0808		●
473	BOLT; TENSIONER 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B) M10X65 FLANGE	8-94344-540-1	01	1	0809-		●
473	BOLT; TENSIONER 4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (A) M8X16 FLANGE	0-28050-816-0	03	1	0712-0803		●
473	BOLT; TENSIONER 4HK1-TCS ENG(RJS) (C) M8X50 FLANGE	0-28050-850-0	01	1	0804-0808		●
473	BOLT; TENSIONER 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X50 FLANGE	0-28050-850-0	01	1	0809-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
