Sayfa 8-45 - Isuzu EPC

8-45 — HEATER PIPING (#19578) — 147 parça

27 56 103 56 56 63 103 56 63 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98010-679-3	01	1	0710-0711	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98010-679-3	01	1	0712-1003	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98010-679-3	01	1	0712-1003		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98163-393-0	01	1	1004-	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98163-393-0	01	1	1004-		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98010-678-3	01	1	0712-		●
56	CLAMP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=22	8-97359-141-0	04	1	0710-0711	●
56	CLAMP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=22	8-97359-141-0	04	1	0712-	●
56	CLAMP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=22	8-97359-141-0	04	1	0712-		●
56	CLAMP; HTR HOSE 4HK1-TCS ENG(RJS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=25	8-94233-115-0	02	1	0712-		●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98117-223-0	01	1	0710-0711	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98117-223-0	01	1	0712-	●
63	HOSE; WATER 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98117-223-0	01	1	0712-		●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98117-224-0	01	1	0710-0711	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98117-224-0	01	1	0712-	●
63	HOSE; WATER 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98117-224-0	01	1	0712-		●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C)	8-98117-225-0	01	1	0710-0711	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C)	8-98117-225-0	01	1	0712-	●
63	HOSE; WATER 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98117-225-0	01	1	0712-		●
63	HOSE; WATER 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-98117-220-0	01	1	0712-		●
63	HOSE; WATER 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-98117-221-0	01	1	0712-		●
63	HOSE; WATER 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (F)	8-98117-222-0	01	1	0712-		●
63	HOSE; WATER 4HK1-TCS ENG(RJS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (G)	8-94134-250-1	01	1	0712-		●
103	CONNECTOR; HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	9-09703-048-0	02	1	0710-0711	●
103	CONNECTOR; HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	9-09703-048-0	02	1	0712-	●
103	CONNECTOR; HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	9-09703-048-0	02	1	0712-		●

27 63 56 56 103 103 56 56 63 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98010-679-3	01	1	0710-0711	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98010-679-3	01	1	0712-1003	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98010-679-3	01	1	0712-1003		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98163-393-0	01	1	1004-	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98163-393-0	01	1	1004-		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98010-678-3	01	1	0712-		●
56	CLAMP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=22	8-97359-141-0	04	1	0710-0711	●
56	CLAMP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=22	8-97359-141-0	04	1	0712-	●
56	CLAMP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=22	8-97359-141-0	04	1	0712-		●
56	CLAMP; HTR HOSE 4HK1-TCS ENG(RJS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=25	8-94233-115-0	02	1	0712-		●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98117-223-0	01	1	0710-0711	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98117-223-0	01	1	0712-	●
63	HOSE; WATER 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98117-223-0	01	1	0712-		●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98117-224-0	01	1	0710-0711	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98117-224-0	01	1	0712-	●
63	HOSE; WATER 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98117-224-0	01	1	0712-		●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C)	8-98117-225-0	01	1	0710-0711	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C)	8-98117-225-0	01	1	0712-	●
63	HOSE; WATER 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98117-225-0	01	1	0712-		●
63	HOSE; WATER 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-98117-220-0	01	1	0712-		●
63	HOSE; WATER 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-98117-221-0	01	1	0712-		●
63	HOSE; WATER 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (F)	8-98117-222-0	01	1	0712-		●
63	HOSE; WATER 4HK1-TCS ENG(RJS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (G)	8-94134-250-1	01	1	0712-		●
103	CONNECTOR; HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	9-09703-048-0	02	1	0710-0711	●
103	CONNECTOR; HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	9-09703-048-0	02	1	0712-	●
103	CONNECTOR; HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	9-09703-048-0	02	1	0712-		●

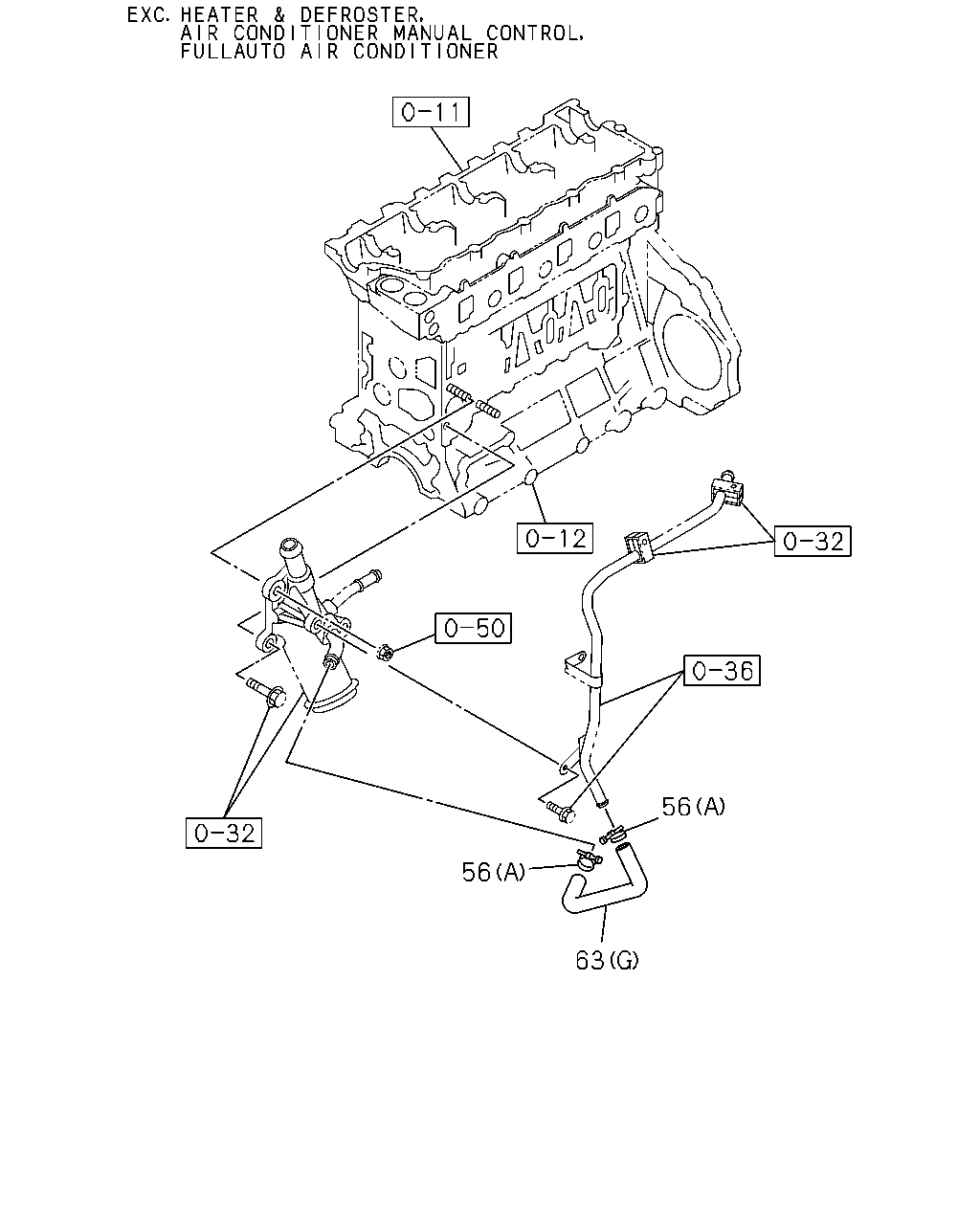

56 56 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
56	CLAMP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=22	8-97359-141-0	04	1	0710-0711	●
56	CLAMP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=22	8-97359-141-0	04	1	0712-	●
56	CLAMP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=22	8-97359-141-0	04	1	0712-		●
56	CLAMP; HTR HOSE 4HK1-TCS ENG(RJS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=25	8-94233-115-0	02	1	0712-		●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98117-223-0	01	1	0710-0711	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98117-223-0	01	1	0712-	●
63	HOSE; WATER 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98117-223-0	01	1	0712-		●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98117-224-0	01	1	0710-0711	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98117-224-0	01	1	0712-	●
63	HOSE; WATER 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98117-224-0	01	1	0712-		●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C)	8-98117-225-0	01	1	0710-0711	●
63	HOSE; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C)	8-98117-225-0	01	1	0712-	●
63	HOSE; WATER 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98117-225-0	01	1	0712-		●
63	HOSE; WATER 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D)	8-98117-220-0	01	1	0712-		●
63	HOSE; WATER 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-98117-221-0	01	1	0712-		●
63	HOSE; WATER 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (F)	8-98117-222-0	01	1	0712-		●
63	HOSE; WATER 4HK1-TCS ENG(RJS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (G)	8-94134-250-1	01	1	0712-		●

27 47 86 48 86 48 48 86 86 142 48 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98010-679-3	01	1	0710-0711	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98010-679-3	01	1	0712-1003	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98010-679-3	01	1	0712-1003		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98163-393-0	01	1	1004-	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98163-393-0	01	1	1004-		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98010-678-3	01	1	0712-		●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=22	8-97359-141-0	04	1	0710-0711	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=22	8-97359-141-0	04	1	0712-	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-97359-141-0	04	1	0712-		●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) M8X16 FLANGE	0-28050-816-0	01	1	0710-0711	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) M8X16 FLANGE	0-28050-816-0	01	1	0712-	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X16 FLANGE	0-28050-816-0	01	1	0712-		●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M8X25 FLANGE	0-28650-825-0	05	1	0710-0711	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M8X25 FLANGE	0-28650-825-0	05	1	0712-	●
48	BOLT; CLIP FIX 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28650-825-0	05	1	0712-		●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	0710-0711	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	0712-	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	0712-		●
48	BOLT; CLIP FIX 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28650-825-0	02	1	0712-		●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=24X2 L=25	1-09700-710-0	03	1	0710-0711	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=24X2 L=25	1-09700-710-0	03	1	0712-	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25	1-09700-710-0	03	1	0712-		●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=24X2 L=25	1-09700-710-0	02	1	0710-0711	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=24X2 L=25	1-09700-710-0	02	1	0712-	●
86	CLIP; HTR HOSE 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25	1-09700-710-0	02	1	0712-		●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-94463-508-0	01	1	0710-0711	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-94463-508-0	01	1	0712-1008	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94463-508-0	01	1	0712-1008		●
86	CLIP; HTR HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-94463-508-0	01	1	1009-	●
86	CLIP; HTR HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94463-508-0	01	1	1009-		●
86	CLIP; HTR HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98029-677-0	01	1	0712-		●
142	CLIP; BAND HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=170	1-83574-139-0	01	1	0710-0711	●
142	CLIP; BAND HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=170	1-83574-139-0	01	1	0712-1205	●
142	CLIP; BAND HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	0712-1205		●
142	CLIP; BAND HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=170	8-98166-021-0	01	1	1206-	●
142	CLIP; BAND HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	8-98166-021-0	01	1	1206-		●

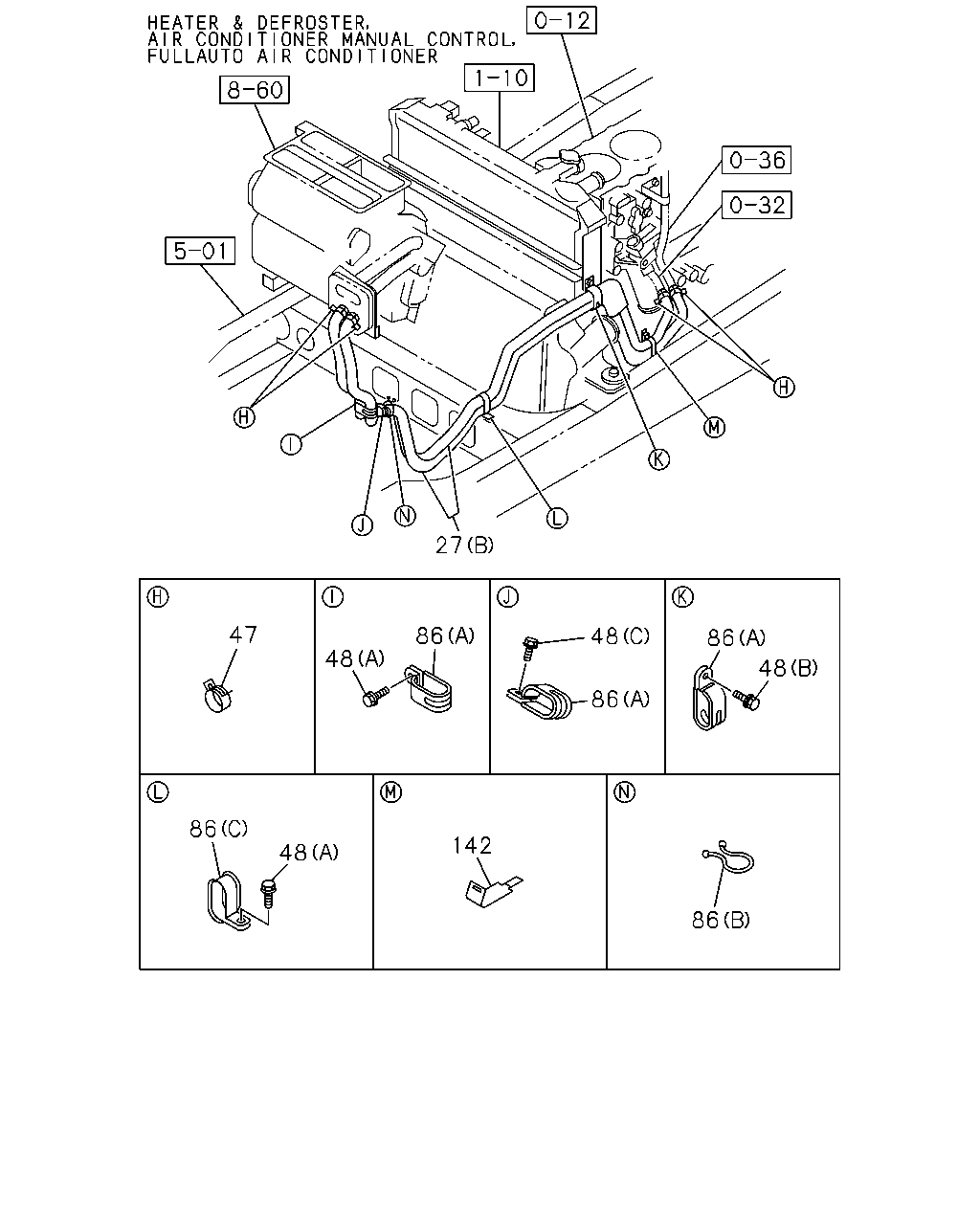

27 47 86 48 86 48 48 86 48 142 86 38 15 86 48 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	BRACKET; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	1-83571-927-1	01	1	0710-0711	●
15	BRACKET; WATER HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	1-83571-927-1	01	1	0712-	●
15	BRACKET; WATER HOSE 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-927-1	01	1	0712-		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98010-679-3	01	1	0710-0711	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98010-679-3	01	1	0712-1003	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98010-679-3	01	1	0712-1003		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98163-393-0	01	1	1004-	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98163-393-0	01	1	1004-		●
27	HOSE; WATER,HTR UNIT TO WATER PIPE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98010-678-3	01	1	0712-		●
38	NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
38	NUT; BRKT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8 FLANGE	0-91180-108-0	02	1	0712-	●
38	NUT; BRKT 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91180-108-0	02	1	0712-		●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=22	8-97359-141-0	04	1	0710-0711	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=22	8-97359-141-0	04	1	0712-	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22	8-97359-141-0	04	1	0712-		●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) M8X16 FLANGE	0-28050-816-0	01	1	0710-0711	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) M8X16 FLANGE	0-28050-816-0	01	1	0712-	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X16 FLANGE	0-28050-816-0	01	1	0712-		●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M8X25 FLANGE	0-28650-825-0	05	1	0710-0711	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M8X25 FLANGE	0-28650-825-0	05	1	0712-	●
48	BOLT; CLIP FIX 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28650-825-0	05	1	0712-		●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	0710-0711	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	0712-	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X16 W/LK&PL WASHER	1-09980-498-0	01	1	0712-		●
48	BOLT; CLIP FIX 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X25 FLANGE	0-28650-825-0	02	1	0712-		●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=24X2 L=25	1-09700-710-0	03	1	0710-0711	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=24X2 L=25	1-09700-710-0	03	1	0712-	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25	1-09700-710-0	03	1	0712-		●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=24X2 L=25	1-09700-710-0	02	1	0710-0711	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=24X2 L=25	1-09700-710-0	02	1	0712-	●
86	CLIP; HTR HOSE 6HK1-TCN ENG(82L) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25	1-09700-710-0	02	1	0712-		●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-94463-508-0	01	1	0710-0711	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-94463-508-0	01	1	0712-1008	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94463-508-0	01	1	0712-1008		●
86	CLIP; HTR HOSE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-94463-508-0	01	1	1009-	●
86	CLIP; HTR HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94463-508-0	01	1	1009-		●
86	CLIP; HTR HOSE 4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)	8-98029-677-0	01	1	0712-		●
142	CLIP; BAND HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=170	1-83574-139-0	01	1	0710-0711	●
142	CLIP; BAND HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=170	1-83574-139-0	01	1	0712-1205	●
142	CLIP; BAND HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	1-83574-139-0	01	1	0712-1205		●
142	CLIP; BAND HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=170	8-98166-021-0	01	1	1206-	●
142	CLIP; BAND HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170	8-98166-021-0	01	1	1206-		●
