◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11415 - FRR AUSTRALIA EURO4 EXC.SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#19576) — 604 parça

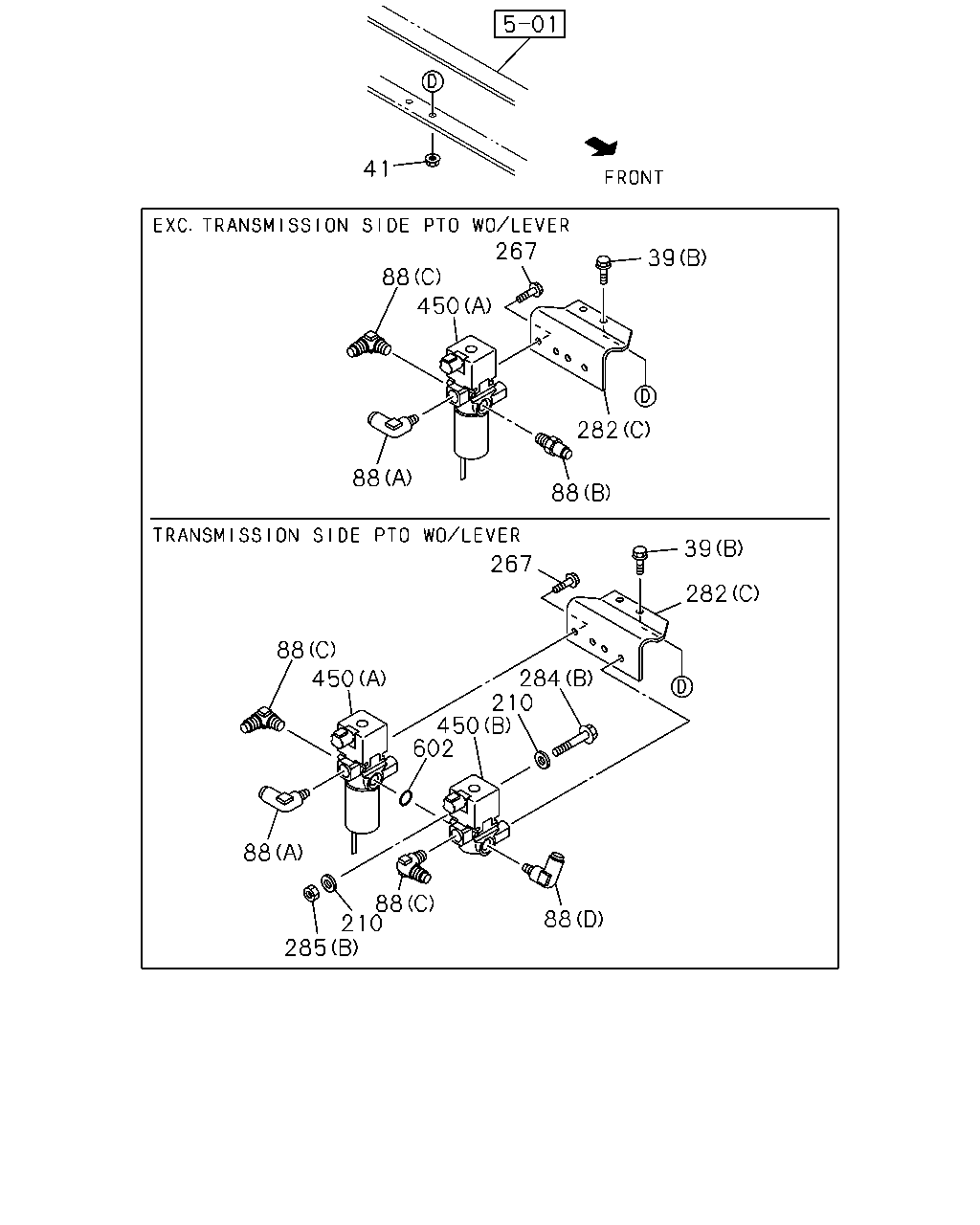

çizim 109226
41 267 39 88 450 282 88 88 39 267 282 88 450 284 210 450 602 88 88 210 285 88
BalonParca AdiParca NoAdetTipApplied Date A B
39 BOLT; BRKT,MAG VLV
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0710- ●
39 BOLT; BRKT,MAG VLV
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0712-0906 ●
39 BOLT; BRKT,MAG VLV
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0907- ●
41 NUT; BRKT,MAG VLV
M10 FLANGE 		0-91180-210-0 02 1 0710-0808 ●
41 NUT; BRKT,MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0712-0906 ●
41 NUT; BRKT,MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0907- ●
88 CONNECTOR; MAG VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0710-0711 ●
88 CONNECTOR; MAG VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0712- ● ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0710-0711 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0712-0803 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0712-0803 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0712-0803 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0804-0805 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0804-0805 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0804-0805 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0806-0906 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0806-0906 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0806-0906 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0907- ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0907- ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0907- ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0710-0711 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0712-0803 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0712-0803 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0712-0803 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0804-0805 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0804-0805 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0804-0805 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0806-0905 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0806-0905 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0806-0905 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0806-0905 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0906-0906 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0906-0906 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) EXC. PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0906-0906 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0906-0906 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0907- ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0907- ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0907- ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0907- ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-0711 ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0803 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0803 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0803 ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0804-0805 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0804-0805 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0804-0805 ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0806-0906 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0806-0906 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0806-0906 ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0907- ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0907- ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0907- ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 0710-0711 ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 0712-0805 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 0712-0805 ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 0806- ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 0806- ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 0806- ●
88 CONNECTOR; MAG VLV
THROTTLE CONTROL SYSTEM(6XH) (E) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0710- ●
210 WASHER; PL,BRKT
PTO CONTROL<SV6> 		1-82569-266-0 02 1 0710-0711 ●
210 WASHER; PL,BRKT
PTO CONTROL<SV6> 		1-82569-266-0 02 1 0712-0803 ●
210 WASHER; PL,BRKT
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> 		1-82569-266-0 02 1 0712-0803 ●
210 WASHER; PL,BRKT
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82569-266-0 02 1 0712-0803 ●
210 WASHER; PL,BRKT
PTO CONTROL<SV6> 		1-82569-266-0 02 1 0804-0805 ●
210 WASHER; PL,BRKT
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82569-266-0 02 1 0804-0805 ●
210 WASHER; PL,BRKT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> 		1-82569-266-0 02 1 0804-0805 ●
210 WASHER; PL,BRKT
PTO CONTROL<SV6> 		1-82569-266-0 02 1 0806-0906 ●
210 WASHER; PL,BRKT
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82569-266-0 02 1 0806-0906 ●
210 WASHER; PL,BRKT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> 		1-82569-266-0 02 1 0806-0906 ●
210 WASHER; PL,BRKT
PTO CONTROL<SV6> 		1-82569-266-0 02 1 0907- ●
210 WASHER; PL,BRKT
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82569-266-0 02 1 0907- ●
210 WASHER; PL,BRKT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> 		1-82569-266-0 02 1 0907- ●
267 BOLT; VLV TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
267 BOLT; VLV TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ●
282 BRACKET; MAG VLV
(A) 		8-98034-702-0 01 1 0710- ●
282 BRACKET; MAG VLV
THROTTLE CONTROL SYSTEM(6XH) (B) 		8-98049-845-1 01 1 0710- ●
282 BRACKET; MAG VLV
4HK1-TCS ENG(RJS) (D) 		1-47479-799-0 01 1 0712-0803 ●
282 BRACKET; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (D) 		1-47479-799-0 01 1 0804-0906 ●
282 BRACKET; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) (D) 		1-47479-799-0 01 1 0907- ●
282 BRACKET; MAG VLV
6HK1-TCN ENG(82L) (C) 		8-98103-026-0 01 1 0712-0805 ●
282 BRACKET; MAG VLV
6HK1-TCN ENG(82L) (C) 		8-98103-026-1 01 1 0806- ●
282 BRACKET; MAG VLV
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (C) 		8-98103-026-1 01 1 0806- ●
284 BOLT; MAG VLV
PTO CONTROL<SV6> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0710-0711 ●
284 BOLT; MAG VLV
PTO CONTROL<SV6> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0712-0803 ●
284 BOLT; MAG VLV
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0712-0803 ●
284 BOLT; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE 		0-28050-650-0 01 1 0712-0803 ●
284 BOLT; MAG VLV
PTO CONTROL<SV6> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0804-0805 ●
284 BOLT; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE 		0-28050-650-0 01 1 0804-0805 ●
284 BOLT; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0804-0805 ●
284 BOLT; MAG VLV
PTO CONTROL<SV6> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0806-0906 ●
284 BOLT; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE 		0-28050-650-0 01 1 0806-0906 ●
284 BOLT; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0806-0906 ●
284 BOLT; MAG VLV
PTO CONTROL<SV6> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0907- ●
284 BOLT; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE 		0-28050-650-0 01 1 0907- ●
284 BOLT; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0907- ●
284 BOLT; MAG VLV
THROTTLE CONTROL SYSTEM(6XH) (A) M8X60 FLANGE 		0-28050-860-0 02 1 0710- ●
285 NUT; MAG VLV
PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 0710-0711 ●
285 NUT; MAG VLV
PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 0712-0803 ●
285 NUT; MAG VLV
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 0712-0803 ●
285 NUT; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6 FLANGE 		0-91180-106-0 01 1 0712-0803 ●
285 NUT; MAG VLV
PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 0804-0805 ●
285 NUT; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6 FLANGE 		0-91180-106-0 01 1 0804-0805 ●
285 NUT; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 0804-0805 ●
285 NUT; MAG VLV
PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 0806-0906 ●
285 NUT; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6 FLANGE 		0-91180-106-0 01 1 0806-0906 ●
285 NUT; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 0806-0906 ●
285 NUT; MAG VLV
PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 0907- ●
285 NUT; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6 FLANGE 		0-91180-106-0 01 1 0907- ●
285 NUT; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 0907- ●
285 NUT; MAG VLV
THROTTLE CONTROL SYSTEM(6XH) (A) M8 FLANGE 		0-91180-108-0 02 1 0710- ●
450 VALVE; MAG
(A) 		8-97376-939-3 01 1 0710-0711 ●
450 VALVE; MAG
(A) 		8-97376-939-3 01 1 0712-0910 ● ●
450 VALVE; MAG
(A) 		8-97633-075-0 01 1 0911- ● ●
450 VALVE; MAG
PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0710-0711 ●
450 VALVE; MAG
PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0712-0803 ●
450 VALVE; MAG
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0712-0803 ●
450 VALVE; MAG
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-82563-871-2 01 1 0712-0803 ●
450 VALVE; MAG
PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0804-0805 ●
450 VALVE; MAG
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-82563-871-2 01 1 0804-0805 ●
450 VALVE; MAG
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0804-0805 ●
450 VALVE; MAG
PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0806-0906 ●
450 VALVE; MAG
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-82563-871-2 01 1 0806-0906 ●
450 VALVE; MAG
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0806-0906 ●
450 VALVE; MAG
PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0907- ●
450 VALVE; MAG
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-82563-871-2 01 1 0907- ●
450 VALVE; MAG
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0907- ●
450 VALVE; MAG
THROTTLE CONTROL SYSTEM(6XH) (C) 		1-82564-278-0 01 1 0710- ●
602 GASKET; MAG VLV
PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 0710-0711 ●
602 GASKET; MAG VLV
PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 0712-0803 ●
602 GASKET; MAG VLV
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 0712-0803 ●
602 GASKET; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8 		9-09565-117-0 01 1 0712-0803 ●
602 GASKET; MAG VLV
PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 0804-0805 ●
602 GASKET; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8 		9-09565-117-0 01 1 0804-0805 ●
602 GASKET; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 0804-0805 ●
602 GASKET; MAG VLV
PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 0806-0906 ●
602 GASKET; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8 		9-09565-117-0 01 1 0806-0906 ●
602 GASKET; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 0806-0906 ●
602 GASKET; MAG VLV
PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 0907- ●
602 GASKET; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8 		9-09565-117-0 01 1 0907- ●
602 GASKET; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 0907- ●

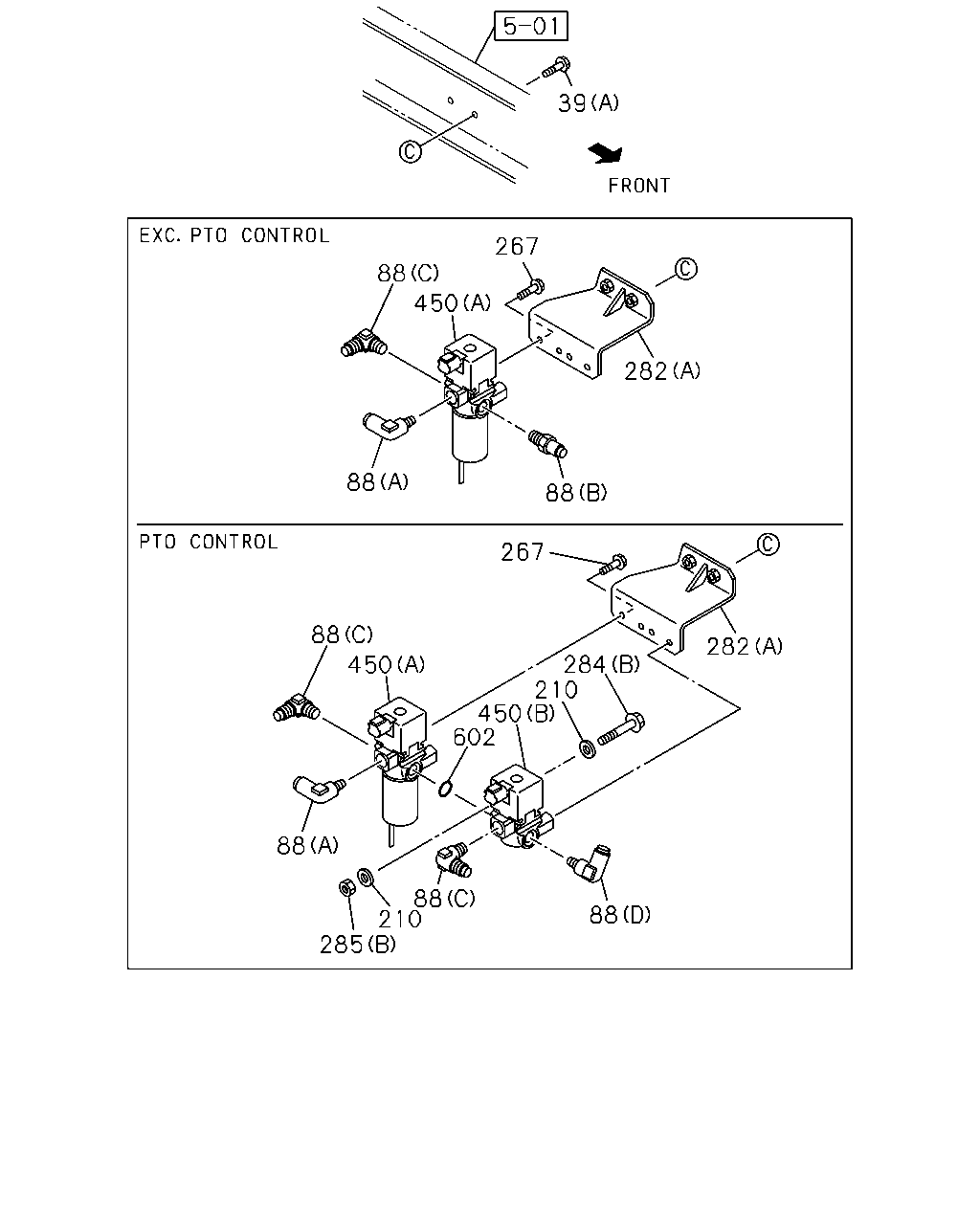

çizim 109227
39 267 88 450 282 88 88 267 88 282 284 210 450 602 450 88 88 210 285 88
BalonParca AdiParca NoAdetTipApplied Date A B
39 BOLT; BRKT,MAG VLV
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0710- ●
39 BOLT; BRKT,MAG VLV
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0712-0906 ●
39 BOLT; BRKT,MAG VLV
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0907- ●
88 CONNECTOR; MAG VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0710-0711 ●
88 CONNECTOR; MAG VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0712- ● ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0710-0711 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0712-0803 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0712-0803 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0712-0803 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0804-0805 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0804-0805 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0804-0805 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0806-0906 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0806-0906 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0806-0906 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0907- ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0907- ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0907- ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0710-0711 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0712-0803 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0712-0803 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0712-0803 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0804-0805 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0804-0805 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0804-0805 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0806-0905 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0806-0905 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0806-0905 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0806-0905 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0906-0906 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0906-0906 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) EXC. PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0906-0906 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0906-0906 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0907- ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0907- ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0907- ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0907- ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-0711 ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0803 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0803 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0803 ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0804-0805 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0804-0805 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0804-0805 ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0806-0906 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0806-0906 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0806-0906 ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0907- ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0907- ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0907- ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 0710-0711 ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 0712-0805 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 0712-0805 ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 0806- ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 0806- ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 0806- ●
88 CONNECTOR; MAG VLV
THROTTLE CONTROL SYSTEM(6XH) (E) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0710- ●
210 WASHER; PL,BRKT
PTO CONTROL<SV6> 		1-82569-266-0 02 1 0710-0711 ●
210 WASHER; PL,BRKT
PTO CONTROL<SV6> 		1-82569-266-0 02 1 0712-0803 ●
210 WASHER; PL,BRKT
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> 		1-82569-266-0 02 1 0712-0803 ●
210 WASHER; PL,BRKT
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82569-266-0 02 1 0712-0803 ●
210 WASHER; PL,BRKT
PTO CONTROL<SV6> 		1-82569-266-0 02 1 0804-0805 ●
210 WASHER; PL,BRKT
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82569-266-0 02 1 0804-0805 ●
210 WASHER; PL,BRKT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> 		1-82569-266-0 02 1 0804-0805 ●
210 WASHER; PL,BRKT
PTO CONTROL<SV6> 		1-82569-266-0 02 1 0806-0906 ●
210 WASHER; PL,BRKT
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82569-266-0 02 1 0806-0906 ●
210 WASHER; PL,BRKT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> 		1-82569-266-0 02 1 0806-0906 ●
210 WASHER; PL,BRKT
PTO CONTROL<SV6> 		1-82569-266-0 02 1 0907- ●
210 WASHER; PL,BRKT
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82569-266-0 02 1 0907- ●
210 WASHER; PL,BRKT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> 		1-82569-266-0 02 1 0907- ●
267 BOLT; VLV TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
267 BOLT; VLV TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ●
282 BRACKET; MAG VLV
(A) 		8-98034-702-0 01 1 0710- ●
282 BRACKET; MAG VLV
THROTTLE CONTROL SYSTEM(6XH) (B) 		8-98049-845-1 01 1 0710- ●
282 BRACKET; MAG VLV
4HK1-TCS ENG(RJS) (D) 		1-47479-799-0 01 1 0712-0803 ●
282 BRACKET; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (D) 		1-47479-799-0 01 1 0804-0906 ●
282 BRACKET; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) (D) 		1-47479-799-0 01 1 0907- ●
282 BRACKET; MAG VLV
6HK1-TCN ENG(82L) (C) 		8-98103-026-0 01 1 0712-0805 ●
282 BRACKET; MAG VLV
6HK1-TCN ENG(82L) (C) 		8-98103-026-1 01 1 0806- ●
282 BRACKET; MAG VLV
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (C) 		8-98103-026-1 01 1 0806- ●
284 BOLT; MAG VLV
PTO CONTROL<SV6> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0710-0711 ●
284 BOLT; MAG VLV
PTO CONTROL<SV6> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0712-0803 ●
284 BOLT; MAG VLV
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0712-0803 ●
284 BOLT; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE 		0-28050-650-0 01 1 0712-0803 ●
284 BOLT; MAG VLV
PTO CONTROL<SV6> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0804-0805 ●
284 BOLT; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE 		0-28050-650-0 01 1 0804-0805 ●
284 BOLT; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0804-0805 ●
284 BOLT; MAG VLV
PTO CONTROL<SV6> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0806-0906 ●
284 BOLT; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE 		0-28050-650-0 01 1 0806-0906 ●
284 BOLT; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0806-0906 ●
284 BOLT; MAG VLV
PTO CONTROL<SV6> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0907- ●
284 BOLT; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE 		0-28050-650-0 01 1 0907- ●
284 BOLT; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0907- ●
284 BOLT; MAG VLV
THROTTLE CONTROL SYSTEM(6XH) (A) M8X60 FLANGE 		0-28050-860-0 02 1 0710- ●
285 NUT; MAG VLV
PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 0710-0711 ●
285 NUT; MAG VLV
PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 0712-0803 ●
285 NUT; MAG VLV
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 0712-0803 ●
285 NUT; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6 FLANGE 		0-91180-106-0 01 1 0712-0803 ●
285 NUT; MAG VLV
PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 0804-0805 ●
285 NUT; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6 FLANGE 		0-91180-106-0 01 1 0804-0805 ●
285 NUT; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 0804-0805 ●
285 NUT; MAG VLV
PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 0806-0906 ●
285 NUT; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6 FLANGE 		0-91180-106-0 01 1 0806-0906 ●
285 NUT; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 0806-0906 ●
285 NUT; MAG VLV
PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 0907- ●
285 NUT; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6 FLANGE 		0-91180-106-0 01 1 0907- ●
285 NUT; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 0907- ●
285 NUT; MAG VLV
THROTTLE CONTROL SYSTEM(6XH) (A) M8 FLANGE 		0-91180-108-0 02 1 0710- ●
450 VALVE; MAG
(A) 		8-97376-939-3 01 1 0710-0711 ●
450 VALVE; MAG
(A) 		8-97376-939-3 01 1 0712-0910 ● ●
450 VALVE; MAG
(A) 		8-97633-075-0 01 1 0911- ● ●
450 VALVE; MAG
PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0710-0711 ●
450 VALVE; MAG
PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0712-0803 ●
450 VALVE; MAG
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0712-0803 ●
450 VALVE; MAG
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-82563-871-2 01 1 0712-0803 ●
450 VALVE; MAG
PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0804-0805 ●
450 VALVE; MAG
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-82563-871-2 01 1 0804-0805 ●
450 VALVE; MAG
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0804-0805 ●
450 VALVE; MAG
PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0806-0906 ●
450 VALVE; MAG
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-82563-871-2 01 1 0806-0906 ●
450 VALVE; MAG
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0806-0906 ●
450 VALVE; MAG
PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0907- ●
450 VALVE; MAG
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-82563-871-2 01 1 0907- ●
450 VALVE; MAG
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0907- ●
450 VALVE; MAG
THROTTLE CONTROL SYSTEM(6XH) (C) 		1-82564-278-0 01 1 0710- ●
602 GASKET; MAG VLV
PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 0710-0711 ●
602 GASKET; MAG VLV
PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 0712-0803 ●
602 GASKET; MAG VLV
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 0712-0803 ●
602 GASKET; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8 		9-09565-117-0 01 1 0712-0803 ●
602 GASKET; MAG VLV
PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 0804-0805 ●
602 GASKET; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8 		9-09565-117-0 01 1 0804-0805 ●
602 GASKET; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 0804-0805 ●
602 GASKET; MAG VLV
PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 0806-0906 ●
602 GASKET; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8 		9-09565-117-0 01 1 0806-0906 ●
602 GASKET; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 0806-0906 ●
602 GASKET; MAG VLV
PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 0907- ●
602 GASKET; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8 		9-09565-117-0 01 1 0907- ●
602 GASKET; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 0907- ●

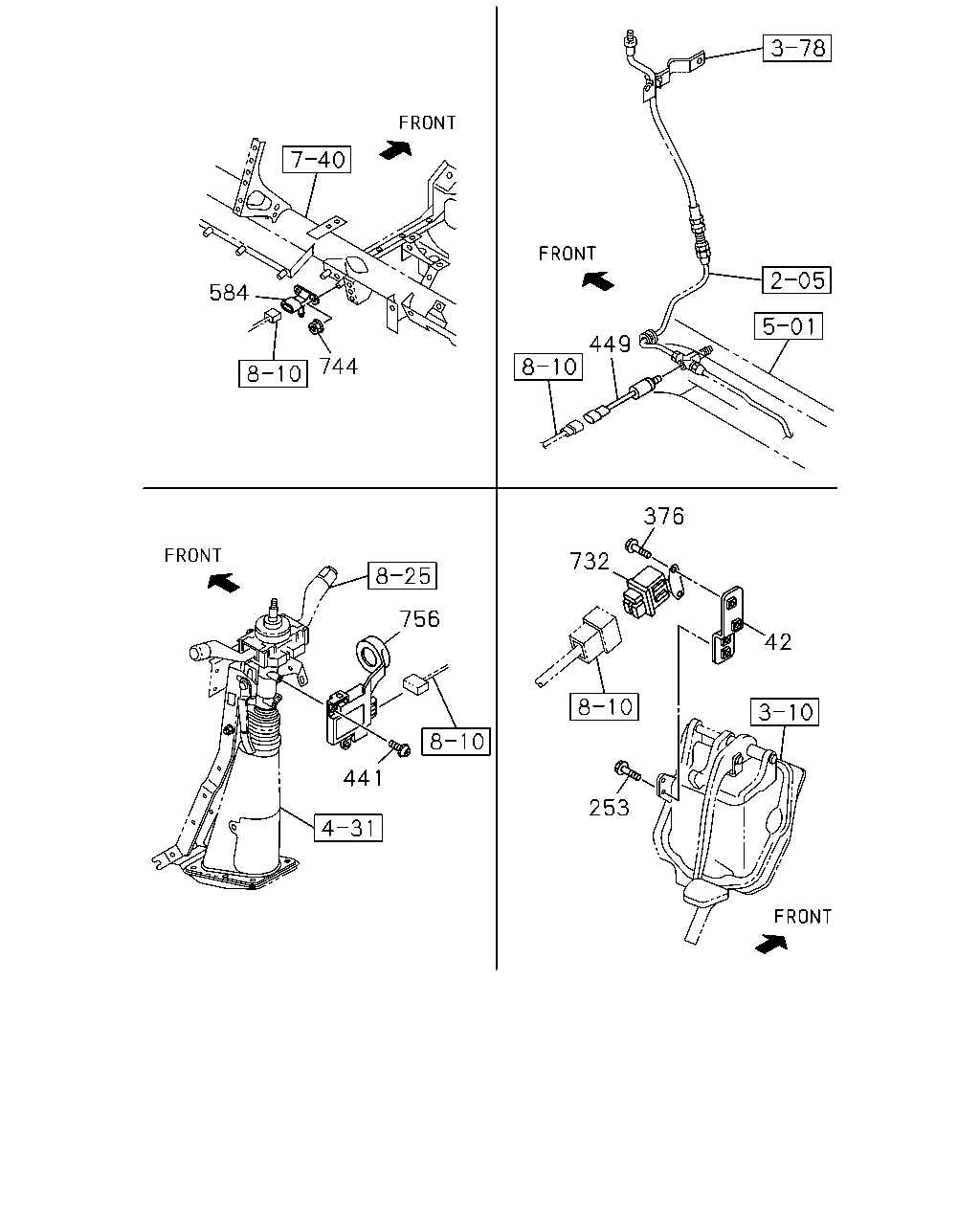

çizim 109229
584 449 744 376 732 756 42 441 253
BalonParca AdiParca NoAdetTipApplied Date A B
42 BRACKET; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98048-051-2 01 1 0710-0711 ●
42 BRACKET; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98048-051-2 01 1 0712- ● ●
253 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0711 ●
253 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X16 FLANGE 		0-28050-816-0 02 1 0712- ● ●
376 BOLT; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 0710-0711 ●
376 BOLT; RELAY
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X19.5 W/LK&PL WASHER 		8-97360-226-0 02 1 0712- ● ●
441 SCREW; CONT UNIT
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 0710-0711 ●
441 SCREW; CONT UNIT
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 0712- ● ●
449 SWITCH; OIL PRESS,CLUTCH
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-82410-143-1 01 1 0710-0711 ●
449 SWITCH; OIL PRESS,CLUTCH
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-82410-143-1 01 1 0712- ● ●
584 SENSOR; PRESSURE 8-98020-514-0 01 1 0710-0711 ●
584 SENSOR; PRESSURE 8-98020-514-0 01 1 0712- ● ●
732 RELAY; EDS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-82550-337-1 01 1 0710-0711 ●
732 RELAY; EDS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-82550-337-1 01 1 0712- ● ●
744 NUT; SENSOR
M6 FLANGE 		0-91180-106-0 02 1 0710-0711 ●
744 NUT; SENSOR
M6 FLANGE 		0-91180-106-0 02 1 0712- ● ●
756 CONTROL UNIT; IMMOBILIZER 8-98073-883-0 01 1 0710-0711 ●
756 CONTROL UNIT; IMMOBILIZER 8-98073-883-0 01 1 0712-0712 ● ●
756 CONTROL UNIT; IMMOBILIZER 8-98097-554-0 01 1 0712-1005 ● ●
756 CONTROL UNIT; IMMOBILIZER 8-98158-127-0 01 1 1006- ● ●
çizim 109230
531
BalonParca AdiParca NoAdetTipApplied Date A B
531 RELAY; MAIN
24V 30A MITUBA 		8-97238-540-0 01 1 0710-0711 ●
531 RELAY; MAIN
24V 30A MITUBA 		8-97238-540-0 01 1 0712-1402 ● ●
531 RELAY; MAIN
24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ● ●

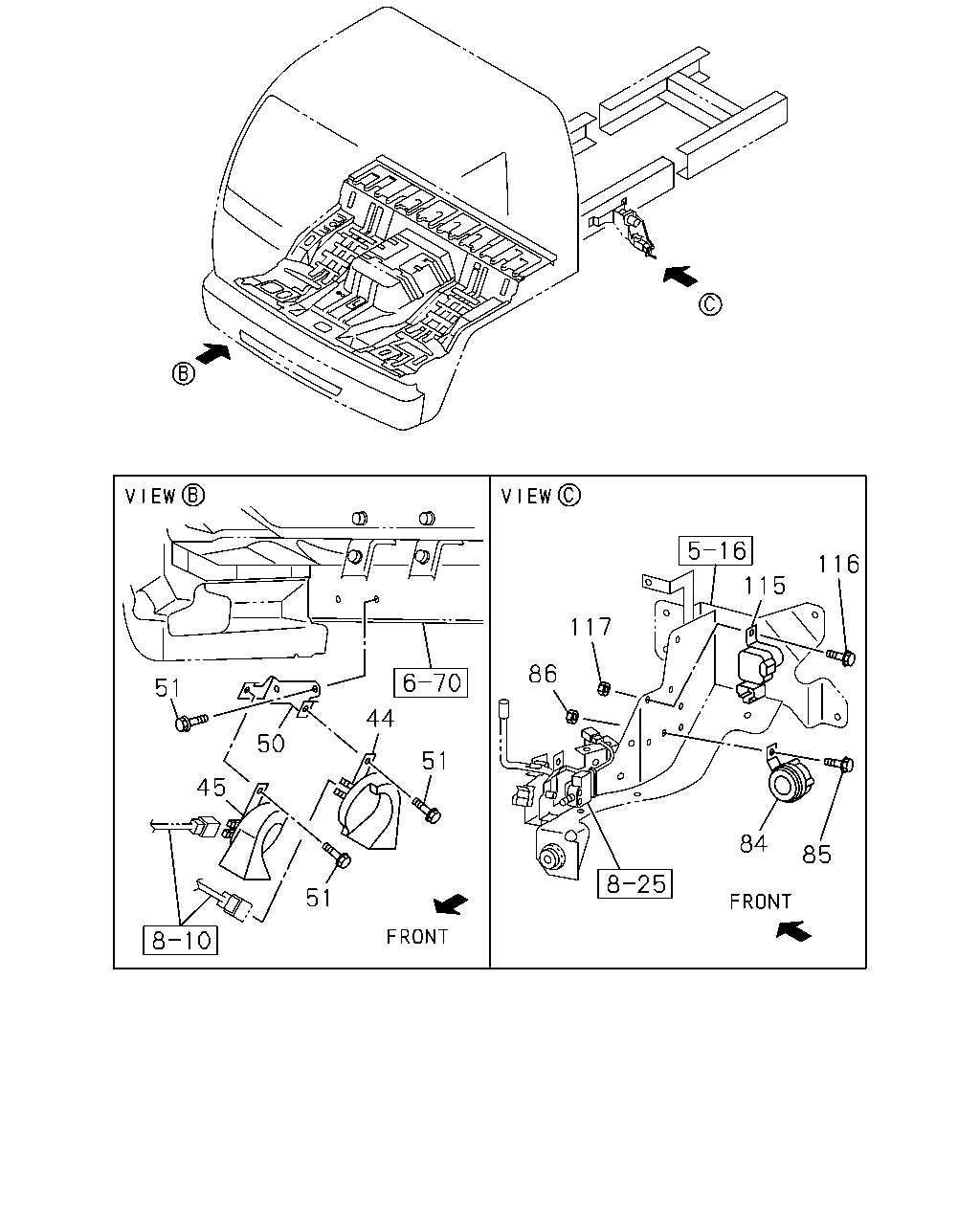

çizim 109231
116 115 117 86 51 44 50 51 45 84 85 51
BalonParca AdiParca NoAdetTipApplied Date A B
44 HORN; HIGH NOTE 8-97611-677-2 01 1 0710-0711 ●
44 HORN; HIGH NOTE 8-97611-677-2 01 1 0712- ● ●
45 HORN; LOW NOTE 8-97611-676-2 01 1 0710-0711 ●
45 HORN; LOW NOTE 8-97611-676-2 01 1 0712- ● ●
50 BRACKET; HORN 8-97613-300-2 01 1 0710-0711 ●
50 BRACKET; HORN 8-97613-300-2 01 1 0712- ● ●
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 04 1 0710-0711 ●
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 04 1 0712-1001 ● ●
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1002- ● ●
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1002- ● ●
84 BUZZER; POWER CAB TILT
METRO DENSO 		8-98069-860-0 01 1 0712- ●
85 BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE 		0-28650-820-0 01 1 0712- ●
86 NUT; BUZZER
M8 FLANGE 		0-91180-108-0 01 1 0712- ●
115 RELAY; POWER CAB TILT UNIT
24V NIKKO 		8-98005-631-1 01 1 0712- ●
116 BOLT; RELAY FIX
M8X20 FLANGE 		0-28650-820-0 02 1 0712- ●
117 NUT; RELAY FIX
M8 FLANGE 		0-91180-108-0 02 1 0712- ●

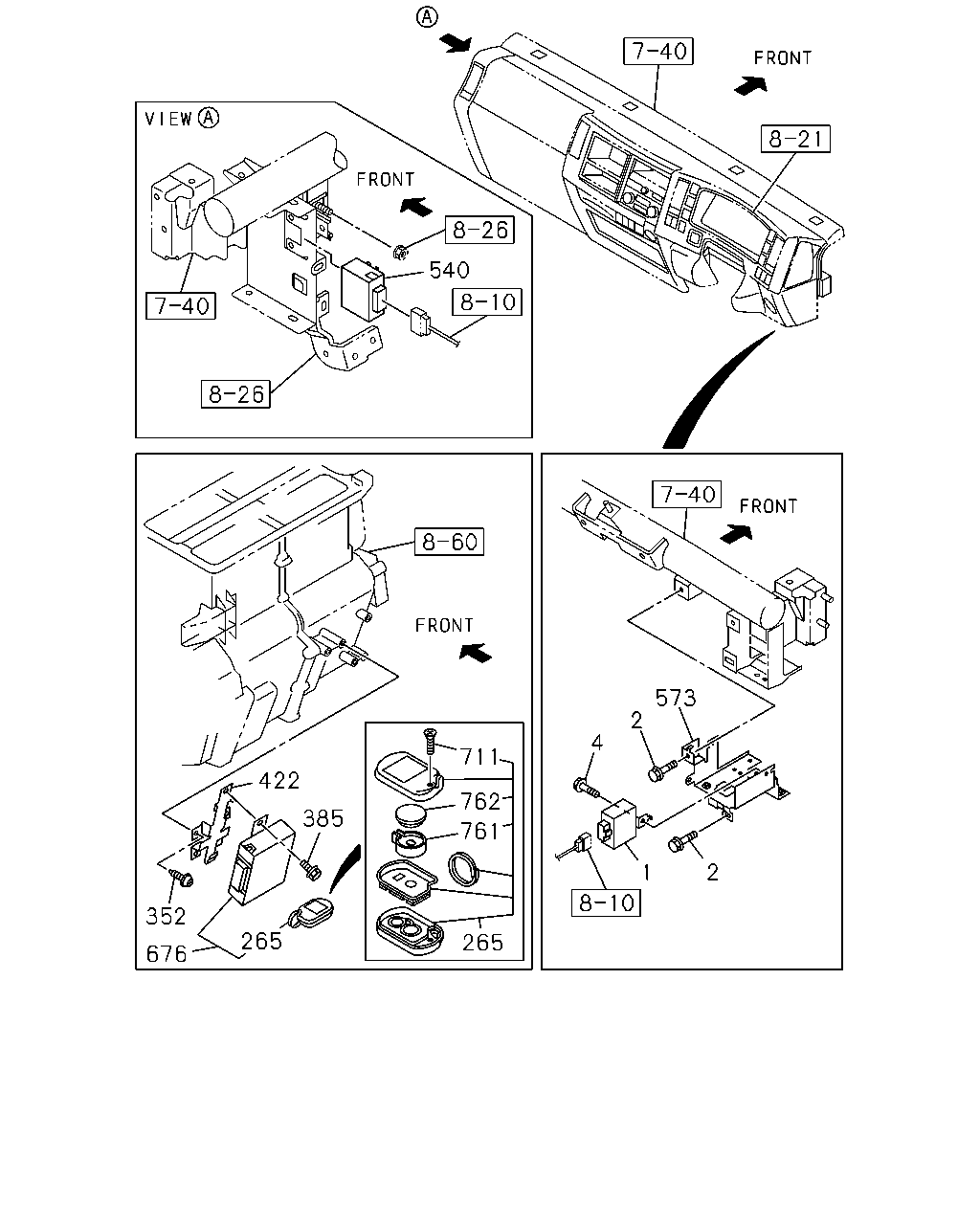

çizim 109233
540 573 2 4 711 422 762 385 761 2 1 352 265 265 676
BalonParca AdiParca NoAdetTipApplied Date A B
1 UNIT; FLASHER 8-98025-533-1 01 1 0710-0711 ●
1 UNIT; FLASHER 8-98025-533-1 01 1 0712- ● ●
2 BOLT; FLASHER UNIT
M6X16 FLANGE 		0-28650-616-0 02 1 0710-0711 ●
2 BOLT; FLASHER UNIT
M6X16 FLANGE 		0-28650-616-0 02 1 0712- ● ●
4 SCREW; FLASHER UNIT
BOLT M6X16 FLANGE 		0-28650-616-0 01 1 0710-0711 ●
4 SCREW; FLASHER UNIT
BOLT M6X16 FLANGE 		0-28650-616-0 01 1 0712- ● ●
265 TRANSMITTER ASM; AUTO DOOR LOCK 8-98048-459-1 02 1 0710-0711 ●
265 TRANSMITTER ASM; AUTO DOOR LOCK 8-98048-459-1 02 1 0712-1012 ● ●
265 TRANSMITTER ASM; AUTO DOOR LOCK 8-98180-751-0 02 1 1101-1205 ● ●
265 TRANSMITTER ASM; AUTO DOOR LOCK 8-98218-236-0 02 1 1206- ● ●
352 SCREW; BRKT
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0710-0711 ●
352 SCREW; BRKT
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0712- ● ●
385 BOLT; CONT UNIT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 0710-0711 ●
385 BOLT; CONT UNIT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 0712- ● ●
422 BRACKET; CONT UNIT 8-98055-281-1 01 1 0710-0711 ●
422 BRACKET; CONT UNIT 8-98055-281-1 01 1 0712- ● ●
540 RELAY; WIPER INTERVAL 8-98060-388-0 01 1 0710-0711 ●
540 RELAY; WIPER INTERVAL 8-98060-388-0 01 1 0712-1308 ● ●
540 RELAY; WIPER INTERVAL 8-98233-976-0 01 1 1309- ● ●
573 BRACKET; FLASHER UNIT 8-97609-984-5 01 1 0710-0711 ●
573 BRACKET; FLASHER UNIT 8-97609-984-5 01 1 0712- ● ●
676 CONTROL UNIT; KEYLESS ENTRY 8-98017-258-1 01 1 0710-0711 ●
676 CONTROL UNIT; KEYLESS ENTRY 8-98017-258-1 01 1 0712-1012 ● ●
676 CONTROL UNIT; KEYLESS ENTRY 8-98181-809-0 01 1 1101-1205 ● ●
676 CONTROL UNIT; KEYLESS ENTRY 8-98218-231-0 01 1 1206- ● ●
711 SCREW; TRANSMITTER
M2X5 		8-98078-067-0 02 1 0710-0711 ●
711 SCREW; TRANSMITTER
M2X5 		8-98078-067-0 02 1 0712-1205 ● ●
711 SCREW; TRANSMITTER
M2X5 		8-98218-239-0 02 1 1206- ● ●
761 HOLDER; BATTERY 8-98078-063-0 02 1 0710-0711 ●
761 HOLDER; BATTERY 8-98078-063-0 02 1 0712-1012 ● ●
762 BATTERY 8-98078-061-0 02 1 0710-0711 ●
762 BATTERY 8-98078-061-0 02 1 0712- ● ●

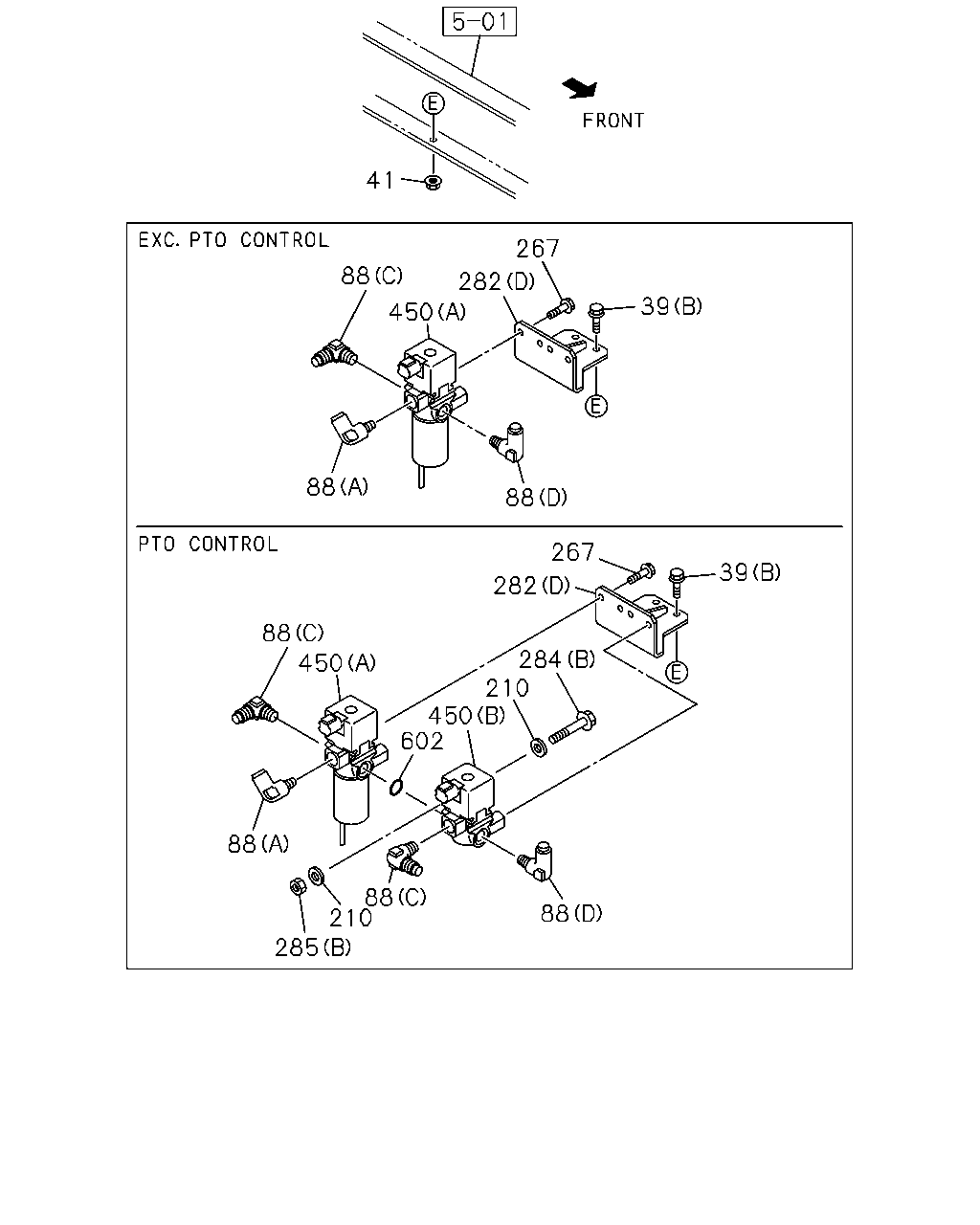

çizim 109234
41 267 88 282 39 450 88 88 267 39 282 88 284 210 450 602 450 88 88 210 285 88
BalonParca AdiParca NoAdetTipApplied Date A B
39 BOLT; BRKT,MAG VLV
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0710- ●
39 BOLT; BRKT,MAG VLV
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0712-0906 ●
39 BOLT; BRKT,MAG VLV
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0907- ●
41 NUT; BRKT,MAG VLV
M10 FLANGE 		0-91180-210-0 02 1 0710-0808 ●
41 NUT; BRKT,MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0712-0906 ●
41 NUT; BRKT,MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0907- ●
88 CONNECTOR; MAG VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0710-0711 ●
88 CONNECTOR; MAG VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0712- ● ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0710-0711 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0712-0803 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0712-0803 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0712-0803 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0804-0805 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0804-0805 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0804-0805 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0806-0906 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0806-0906 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0806-0906 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0907- ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0907- ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0907- ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0710-0711 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0712-0803 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0712-0803 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0712-0803 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0804-0805 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0804-0805 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0804-0805 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0806-0905 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0806-0905 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0806-0905 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0806-0905 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0906-0906 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0906-0906 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) EXC. PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0906-0906 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0906-0906 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0907- ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0907- ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0907- ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0907- ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-0711 ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0803 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0803 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0803 ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0804-0805 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0804-0805 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0804-0805 ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0806-0906 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0806-0906 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0806-0906 ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0907- ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0907- ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0907- ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 0710-0711 ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 0712-0805 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 0712-0805 ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 0806- ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 0806- ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 0806- ●
88 CONNECTOR; MAG VLV
THROTTLE CONTROL SYSTEM(6XH) (E) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0710- ●
210 WASHER; PL,BRKT
PTO CONTROL<SV6> 		1-82569-266-0 02 1 0710-0711 ●
210 WASHER; PL,BRKT
PTO CONTROL<SV6> 		1-82569-266-0 02 1 0712-0803 ●
210 WASHER; PL,BRKT
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> 		1-82569-266-0 02 1 0712-0803 ●
210 WASHER; PL,BRKT
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82569-266-0 02 1 0712-0803 ●
210 WASHER; PL,BRKT
PTO CONTROL<SV6> 		1-82569-266-0 02 1 0804-0805 ●
210 WASHER; PL,BRKT
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82569-266-0 02 1 0804-0805 ●
210 WASHER; PL,BRKT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> 		1-82569-266-0 02 1 0804-0805 ●
210 WASHER; PL,BRKT
PTO CONTROL<SV6> 		1-82569-266-0 02 1 0806-0906 ●
210 WASHER; PL,BRKT
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82569-266-0 02 1 0806-0906 ●
210 WASHER; PL,BRKT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> 		1-82569-266-0 02 1 0806-0906 ●
210 WASHER; PL,BRKT
PTO CONTROL<SV6> 		1-82569-266-0 02 1 0907- ●
210 WASHER; PL,BRKT
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82569-266-0 02 1 0907- ●
210 WASHER; PL,BRKT
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> 		1-82569-266-0 02 1 0907- ●
267 BOLT; VLV TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
267 BOLT; VLV TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ●
282 BRACKET; MAG VLV
(A) 		8-98034-702-0 01 1 0710- ●
282 BRACKET; MAG VLV
THROTTLE CONTROL SYSTEM(6XH) (B) 		8-98049-845-1 01 1 0710- ●
282 BRACKET; MAG VLV
4HK1-TCS ENG(RJS) (D) 		1-47479-799-0 01 1 0712-0803 ●
282 BRACKET; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (D) 		1-47479-799-0 01 1 0804-0906 ●
282 BRACKET; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) (D) 		1-47479-799-0 01 1 0907- ●
282 BRACKET; MAG VLV
6HK1-TCN ENG(82L) (C) 		8-98103-026-0 01 1 0712-0805 ●
282 BRACKET; MAG VLV
6HK1-TCN ENG(82L) (C) 		8-98103-026-1 01 1 0806- ●
282 BRACKET; MAG VLV
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (C) 		8-98103-026-1 01 1 0806- ●
284 BOLT; MAG VLV
PTO CONTROL<SV6> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0710-0711 ●
284 BOLT; MAG VLV
PTO CONTROL<SV6> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0712-0803 ●
284 BOLT; MAG VLV
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0712-0803 ●
284 BOLT; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE 		0-28050-650-0 01 1 0712-0803 ●
284 BOLT; MAG VLV
PTO CONTROL<SV6> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0804-0805 ●
284 BOLT; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE 		0-28050-650-0 01 1 0804-0805 ●
284 BOLT; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0804-0805 ●
284 BOLT; MAG VLV
PTO CONTROL<SV6> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0806-0906 ●
284 BOLT; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE 		0-28050-650-0 01 1 0806-0906 ●
284 BOLT; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0806-0906 ●
284 BOLT; MAG VLV
PTO CONTROL<SV6> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0907- ●
284 BOLT; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE 		0-28050-650-0 01 1 0907- ●
284 BOLT; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0907- ●
284 BOLT; MAG VLV
THROTTLE CONTROL SYSTEM(6XH) (A) M8X60 FLANGE 		0-28050-860-0 02 1 0710- ●
285 NUT; MAG VLV
PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 0710-0711 ●
285 NUT; MAG VLV
PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 0712-0803 ●
285 NUT; MAG VLV
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 0712-0803 ●
285 NUT; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6 FLANGE 		0-91180-106-0 01 1 0712-0803 ●
285 NUT; MAG VLV
PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 0804-0805 ●
285 NUT; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6 FLANGE 		0-91180-106-0 01 1 0804-0805 ●
285 NUT; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 0804-0805 ●
285 NUT; MAG VLV
PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 0806-0906 ●
285 NUT; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6 FLANGE 		0-91180-106-0 01 1 0806-0906 ●
285 NUT; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 0806-0906 ●
285 NUT; MAG VLV
PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 0907- ●
285 NUT; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6 FLANGE 		0-91180-106-0 01 1 0907- ●
285 NUT; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 0907- ●
285 NUT; MAG VLV
THROTTLE CONTROL SYSTEM(6XH) (A) M8 FLANGE 		0-91180-108-0 02 1 0710- ●
450 VALVE; MAG
(A) 		8-97376-939-3 01 1 0710-0711 ●
450 VALVE; MAG
(A) 		8-97376-939-3 01 1 0712-0910 ● ●
450 VALVE; MAG
(A) 		8-97633-075-0 01 1 0911- ● ●
450 VALVE; MAG
PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0710-0711 ●
450 VALVE; MAG
PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0712-0803 ●
450 VALVE; MAG
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0712-0803 ●
450 VALVE; MAG
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-82563-871-2 01 1 0712-0803 ●
450 VALVE; MAG
PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0804-0805 ●
450 VALVE; MAG
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-82563-871-2 01 1 0804-0805 ●
450 VALVE; MAG
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0804-0805 ●
450 VALVE; MAG
PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0806-0906 ●
450 VALVE; MAG
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-82563-871-2 01 1 0806-0906 ●
450 VALVE; MAG
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0806-0906 ●
450 VALVE; MAG
PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0907- ●
450 VALVE; MAG
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-82563-871-2 01 1 0907- ●
450 VALVE; MAG
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0907- ●
450 VALVE; MAG
THROTTLE CONTROL SYSTEM(6XH) (C) 		1-82564-278-0 01 1 0710- ●
602 GASKET; MAG VLV
PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 0710-0711 ●
602 GASKET; MAG VLV
PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 0712-0803 ●
602 GASKET; MAG VLV
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 0712-0803 ●
602 GASKET; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8 		9-09565-117-0 01 1 0712-0803 ●
602 GASKET; MAG VLV
PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 0804-0805 ●
602 GASKET; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8 		9-09565-117-0 01 1 0804-0805 ●
602 GASKET; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 0804-0805 ●
602 GASKET; MAG VLV
PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 0806-0906 ●
602 GASKET; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8 		9-09565-117-0 01 1 0806-0906 ●
602 GASKET; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 0806-0906 ●
602 GASKET; MAG VLV
PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 0907- ●
602 GASKET; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=16.8 		9-09565-117-0 01 1 0907- ●
602 GASKET; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 0907- ●

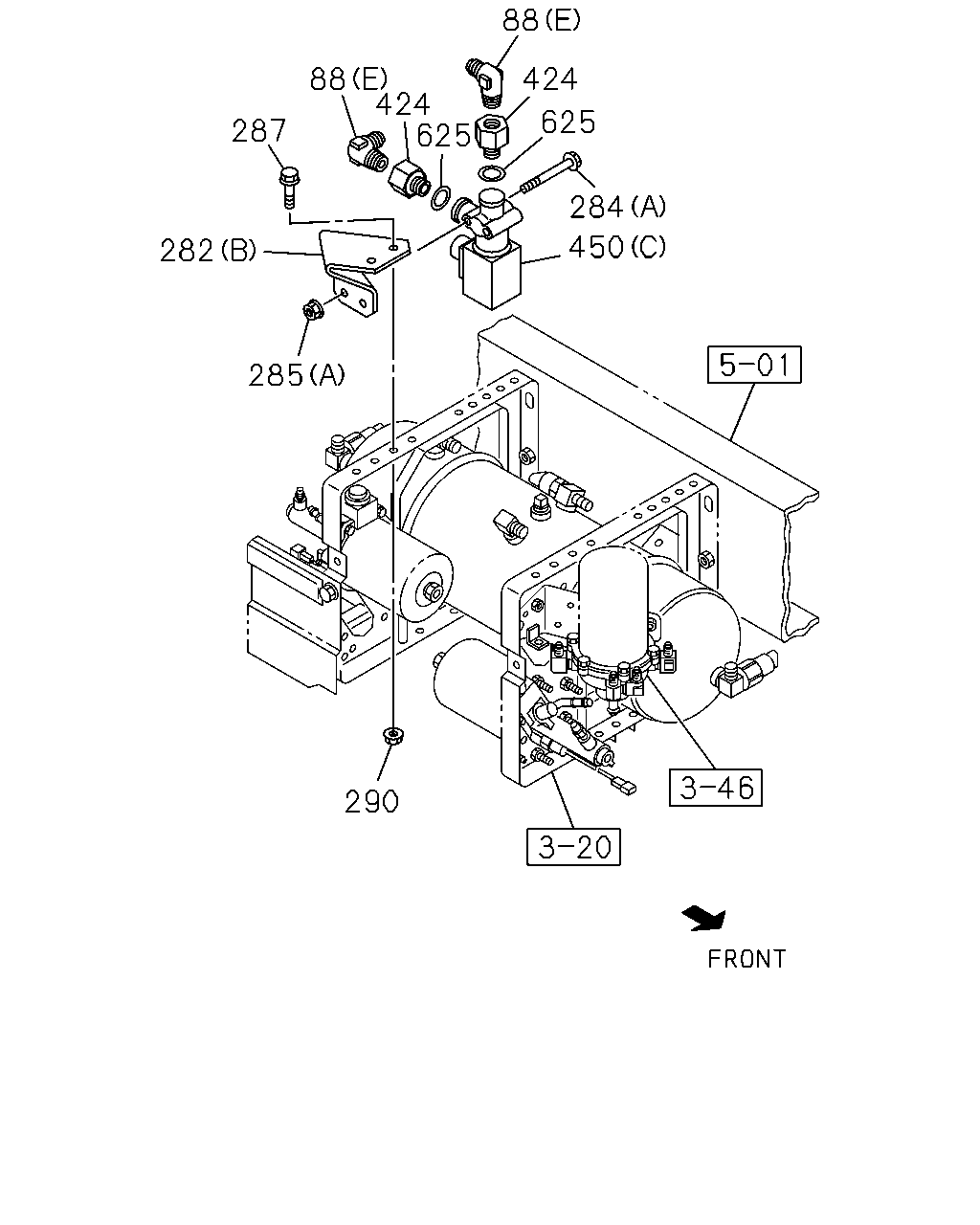

çizim 109235
88 424 88 424 625 625 287 284 450 282 285 290
BalonParca AdiParca NoAdetTipApplied Date A B
88 CONNECTOR; MAG VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0710-0711 ●
88 CONNECTOR; MAG VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0712- ● ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0710-0711 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0712-0803 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0712-0803 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0712-0803 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0804-0805 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0804-0805 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0804-0805 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0806-0906 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0806-0906 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0806-0906 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0907- ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0907- ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0907- ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0710-0711 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0712-0803 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0712-0803 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0712-0803 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0804-0805 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0804-0805 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0804-0805 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0806-0905 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0806-0905 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0806-0905 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0806-0905 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0906-0906 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0906-0906 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) EXC. PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0906-0906 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0906-0906 ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0907- ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0907- ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0907- ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> (D) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0907- ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-0711 ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0803 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0803 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0803 ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0804-0805 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0804-0805 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0804-0805 ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0806-0906 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0806-0906 ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0806-0906 ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0907- ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0907- ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0907- ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 0710-0711 ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 0712-0805 ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 0712-0805 ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 0806- ●
88 CONNECTOR; MAG VLV
6HK1-TCN ENG(82L) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 0806- ●
88 CONNECTOR; MAG VLV
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 0806- ●
88 CONNECTOR; MAG VLV
THROTTLE CONTROL SYSTEM(6XH) (E) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 0710- ●
282 BRACKET; MAG VLV
(A) 		8-98034-702-0 01 1 0710- ●
282 BRACKET; MAG VLV
THROTTLE CONTROL SYSTEM(6XH) (B) 		8-98049-845-1 01 1 0710- ●
282 BRACKET; MAG VLV
4HK1-TCS ENG(RJS) (D) 		1-47479-799-0 01 1 0712-0803 ●
282 BRACKET; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (D) 		1-47479-799-0 01 1 0804-0906 ●
282 BRACKET; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) (D) 		1-47479-799-0 01 1 0907- ●
282 BRACKET; MAG VLV
6HK1-TCN ENG(82L) (C) 		8-98103-026-0 01 1 0712-0805 ●
282 BRACKET; MAG VLV
6HK1-TCN ENG(82L) (C) 		8-98103-026-1 01 1 0806- ●
282 BRACKET; MAG VLV
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) (C) 		8-98103-026-1 01 1 0806- ●
284 BOLT; MAG VLV
PTO CONTROL<SV6> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0710-0711 ●
284 BOLT; MAG VLV
PTO CONTROL<SV6> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0712-0803 ●
284 BOLT; MAG VLV
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0712-0803 ●
284 BOLT; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE 		0-28050-650-0 01 1 0712-0803 ●
284 BOLT; MAG VLV
PTO CONTROL<SV6> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0804-0805 ●
284 BOLT; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE 		0-28050-650-0 01 1 0804-0805 ●
284 BOLT; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0804-0805 ●
284 BOLT; MAG VLV
PTO CONTROL<SV6> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0806-0906 ●
284 BOLT; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE 		0-28050-650-0 01 1 0806-0906 ●
284 BOLT; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0806-0906 ●
284 BOLT; MAG VLV
PTO CONTROL<SV6> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0907- ●
284 BOLT; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6X50 FLANGE 		0-28050-650-0 01 1 0907- ●
284 BOLT; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0907- ●
284 BOLT; MAG VLV
THROTTLE CONTROL SYSTEM(6XH) (A) M8X60 FLANGE 		0-28050-860-0 02 1 0710- ●
285 NUT; MAG VLV
PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 0710-0711 ●
285 NUT; MAG VLV
PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 0712-0803 ●
285 NUT; MAG VLV
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 0712-0803 ●
285 NUT; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6 FLANGE 		0-91180-106-0 01 1 0712-0803 ●
285 NUT; MAG VLV
PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 0804-0805 ●
285 NUT; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6 FLANGE 		0-91180-106-0 01 1 0804-0805 ●
285 NUT; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 0804-0805 ●
285 NUT; MAG VLV
PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 0806-0906 ●
285 NUT; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6 FLANGE 		0-91180-106-0 01 1 0806-0906 ●
285 NUT; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 0806-0906 ●
285 NUT; MAG VLV
PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 0907- ●
285 NUT; MAG VLV
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M6 FLANGE 		0-91180-106-0 01 1 0907- ●
285 NUT; MAG VLV
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) M6 FLANGE 		0-91180-106-0 01 1 0907- ●
285 NUT; MAG VLV
THROTTLE CONTROL SYSTEM(6XH) (A) M8 FLANGE 		0-91180-108-0 02 1 0710- ●
287 BOLT; BRKT FIX
THROTTLE CONTROL SYSTEM(6XH) M8X25 FLANGE 		0-28650-825-0 02 1 0710- ●
290 NUT
THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE 		0-91180-108-0 02 1 0710- ●
424 ADAPTER
THROTTLE CONTROL SYSTEM(6XH) 		1-09661-044-0 02 1 0710- ●
450 VALVE; MAG
(A) 		8-97376-939-3 01 1 0710-0711 ●
450 VALVE; MAG
(A) 		8-97376-939-3 01 1 0712-0910 ● ●
450 VALVE; MAG
(A) 		8-97633-075-0 01 1 0911- ● ●
450 VALVE; MAG
PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0710-0711 ●
450 VALVE; MAG
PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0712-0803 ●
450 VALVE; MAG
4HK1-TCS ENG(RJS) PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0712-0803 ●
450 VALVE; MAG
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-82563-871-2 01 1 0712-0803 ●
450 VALVE; MAG
PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0804-0805 ●
450 VALVE; MAG
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-82563-871-2 01 1 0804-0805 ●
450 VALVE; MAG
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0804-0805 ●
450 VALVE; MAG
PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0806-0906 ●
450 VALVE; MAG
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-82563-871-2 01 1 0806-0906 ●
450 VALVE; MAG
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0806-0906 ●
450 VALVE; MAG
PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0907- ●
450 VALVE; MAG
6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-82563-871-2 01 1 0907- ●
450 VALVE; MAG
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ),MLD6Q M/T(X5J) PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0907- ●
450 VALVE; MAG
THROTTLE CONTROL SYSTEM(6XH) (C) 		1-82564-278-0 01 1 0710- ●
625 GASKET; CONNECTOR
THROTTLE CONTROL SYSTEM(6XH) ID=16.2 OD=24 		9-09571-416-0 02 1 0710- ●
çizim 109239
22
BalonParca AdiParca NoAdetTipApplied Date A B
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0710-0711 ●
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0712- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
