◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11415 - FRR AUSTRALIA EURO4 EXC.SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#19574) — 165 parça

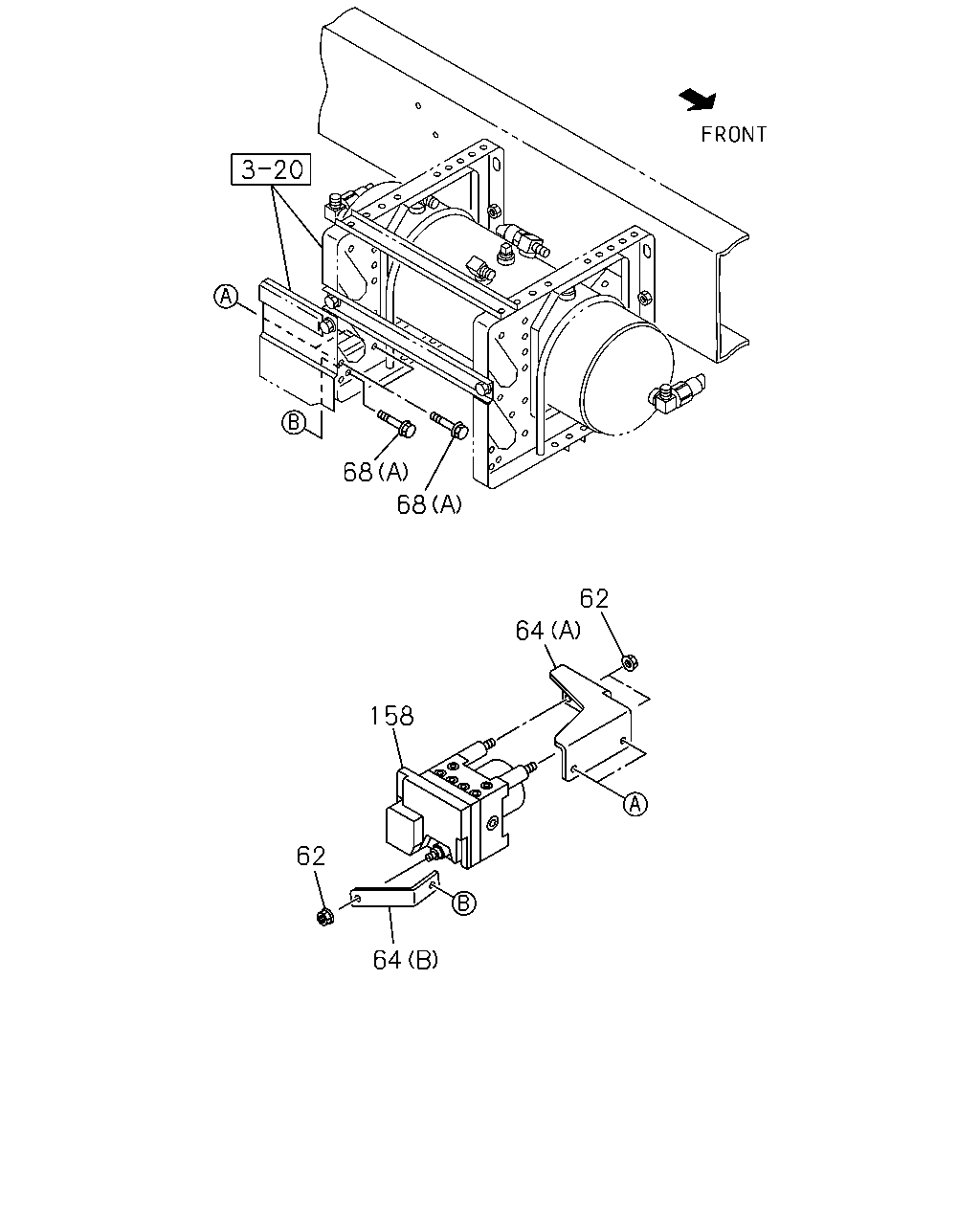

çizim 109214
68 68 62 64 158 62 64
BalonParca AdiParca NoAdetTipApplied Date A B
62 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0710-0711 ●
62 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0712- ● ●
64 BRACKET; CONTROLLER
(A) 		8-98044-238-2 01 1 0710-0711 ●
64 BRACKET; CONTROLLER
(A) 		8-98044-238-2 01 1 0712- ● ●
64 BRACKET; CONTROLLER
(B) 		8-98044-239-1 01 1 0710-0711 ●
64 BRACKET; CONTROLLER
(B) 		8-98044-239-1 01 1 0712- ● ●
68 BOLT; BRKT
(C) M6X16 FLANGE 		0-28650-616-0 01 1 0710-0711 ●
68 BOLT; BRKT
(C) M6X16 FLANGE 		0-28650-616-0 01 1 0712- ● ●
68 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 0710-0711 ●
68 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 0712- ● ●
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0710-0711 ●
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0712- ● ●
158 CONTROLLER; ABS
THROTTLE CONTROL SYSTEM(6XH) 		8-98048-310-2 01 1 0710-0912 ●
158 CONTROLLER; ABS
TIRE 235/75R17.5-132/130M EXP RIB(5J9) THROTTLE CONTROL SYSTEM(6XH) 		8-98048-310-2 01 1 1001-1001 ●
158 CONTROLLER; ABS
TIRE 235/75R17.5-132/130M EXP RIB(5J9),TIRE 235/75R17.5-132/130M EXP RIB BS BRAND(5P0) THROTTLE CONTROL SYSTEM(6XH) 		8-98048-310-2 01 1 1002-1006 ●
158 CONTROLLER; ABS
TIRE 235/75R17.5-132/130M EXP RIB(5J9),TIRE 235/75R17.5-132/130M EXP RIB BS BRAND(5P0) THROTTLE CONTROL SYSTEM(6XH) 		8-98157-998-1 01 1 1007- ●
158 CONTROLLER; ABS
EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98048-306-2 01 1 0710-0711 ●
158 CONTROLLER; ABS
EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98048-306-2 01 1 0712-0912 ●
158 CONTROLLER; ABS
TIRE 235/75R17.5-132/130M EXP RIB(5J9) 		8-98048-306-2 01 1 0712-0912 ●
158 CONTROLLER; ABS
TIRE 235/75R17.5-132/130M EXP RIB(5J9) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98048-306-2 01 1 1001-1001 ●
158 CONTROLLER; ABS
TIRE 235/75R17.5-132/130M EXP RIB(5J9) 		8-98048-306-2 01 1 1001-1001 ●
158 CONTROLLER; ABS
TIRE 235/75R17.5-132/130M EXP RIB(5J9),TIRE 235/75R17.5-132/130M EXP RIB BS BRAND(5P0) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98048-306-2 01 1 1002-1006 ●
158 CONTROLLER; ABS
TIRE 235/75R17.5-132/130M EXP RIB(5J9),TIRE 235/75R17.5-132/130M EXP RIB BS BRAND(5P0) 		8-98048-306-2 01 1 1002-1006 ●
158 CONTROLLER; ABS
TIRE 235/75R17.5-132/130M EXP RIB(5J9),TIRE 235/75R17.5-132/130M EXP RIB BS BRAND(5P0) EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98157-992-1 01 1 1007- ●
158 CONTROLLER; ABS
TIRE 235/75R17.5-132/130M EXP RIB(5J9),TIRE 235/75R17.5-132/130M EXP RIB BS BRAND(5P0) 		8-98157-992-1 01 1 1007- ●
158 CONTROLLER; ABS
TIRE 9.5R 17.5-129/127(83N) 		8-98048-307-2 01 1 0712-1006 ●
158 CONTROLLER; ABS
TIRE 9.5R 17.5-129/127(83N) 		8-98157-993-1 01 1 1007- ●

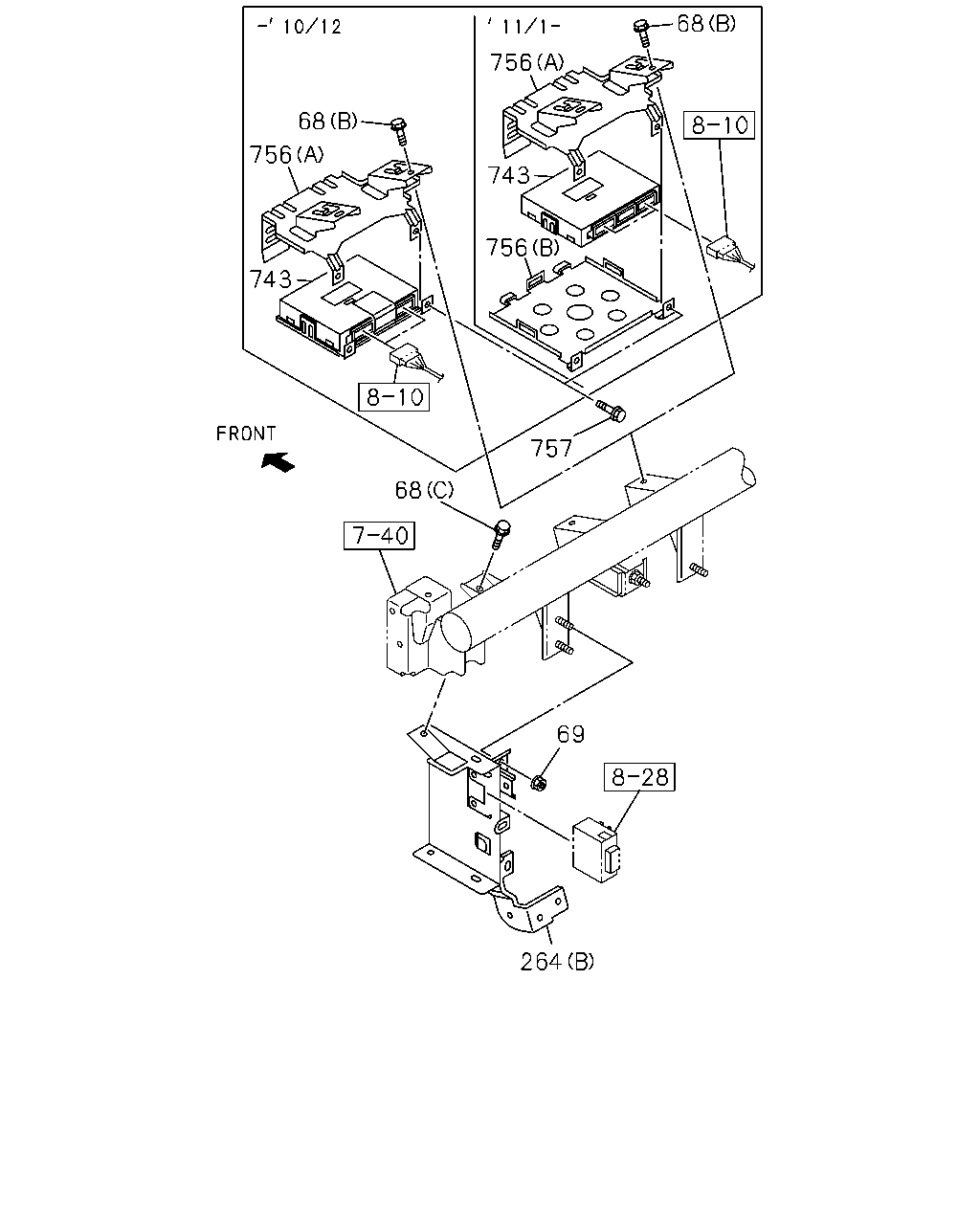

çizim 109217
68 756 68 756 743 756 743 757 68 69 264
BalonParca AdiParca NoAdetTipApplied Date A B
68 BOLT; BRKT
(C) M6X16 FLANGE 		0-28650-616-0 01 1 0710-0711 ●
68 BOLT; BRKT
(C) M6X16 FLANGE 		0-28650-616-0 01 1 0712- ● ●
68 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 0710-0711 ●
68 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 03 1 0712- ● ●
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0710-0711 ●
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0712- ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0710-0711 ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0712- ● ●
264 BRACKET; CONT UNIT
(B) 		8-97609-985-9 01 1 0710-0711 ●
264 BRACKET; CONT UNIT
(B) 		8-97609-985-9 01 1 0712- ● ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 0710-0711 ●
264 BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 0710-0711 ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 0712- ● ●
264 BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 0712- ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98089-297-0 01 1 0710-0711 ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98089-297-0 01 1 0712-0802 ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98102-484-0 01 1 0803-0901 ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98125-904-0 01 1 0902-1005 ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98155-169-1 01 1 1006-1007 ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98176-213-0 01 1 1008-1012 ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98182-026-2 01 1 1101- ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (A) 		8-98056-411-3 01 1 0710-0711 ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (A) 		8-98056-411-3 01 1 0712- ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (B) 		8-98111-836-1 01 1 1101- ● ●
757 BOLT; BRKT,BCM
MULTI INFORMATION DISPLAY<7NY> M6X16 FLANGE 		0-28650-616-0 02 1 0710-0711 ●
757 BOLT; BRKT,BCM
MULTI INFORMATION DISPLAY<7NY> M6X16 FLANGE 		0-28650-616-0 02 1 0712- ● ●

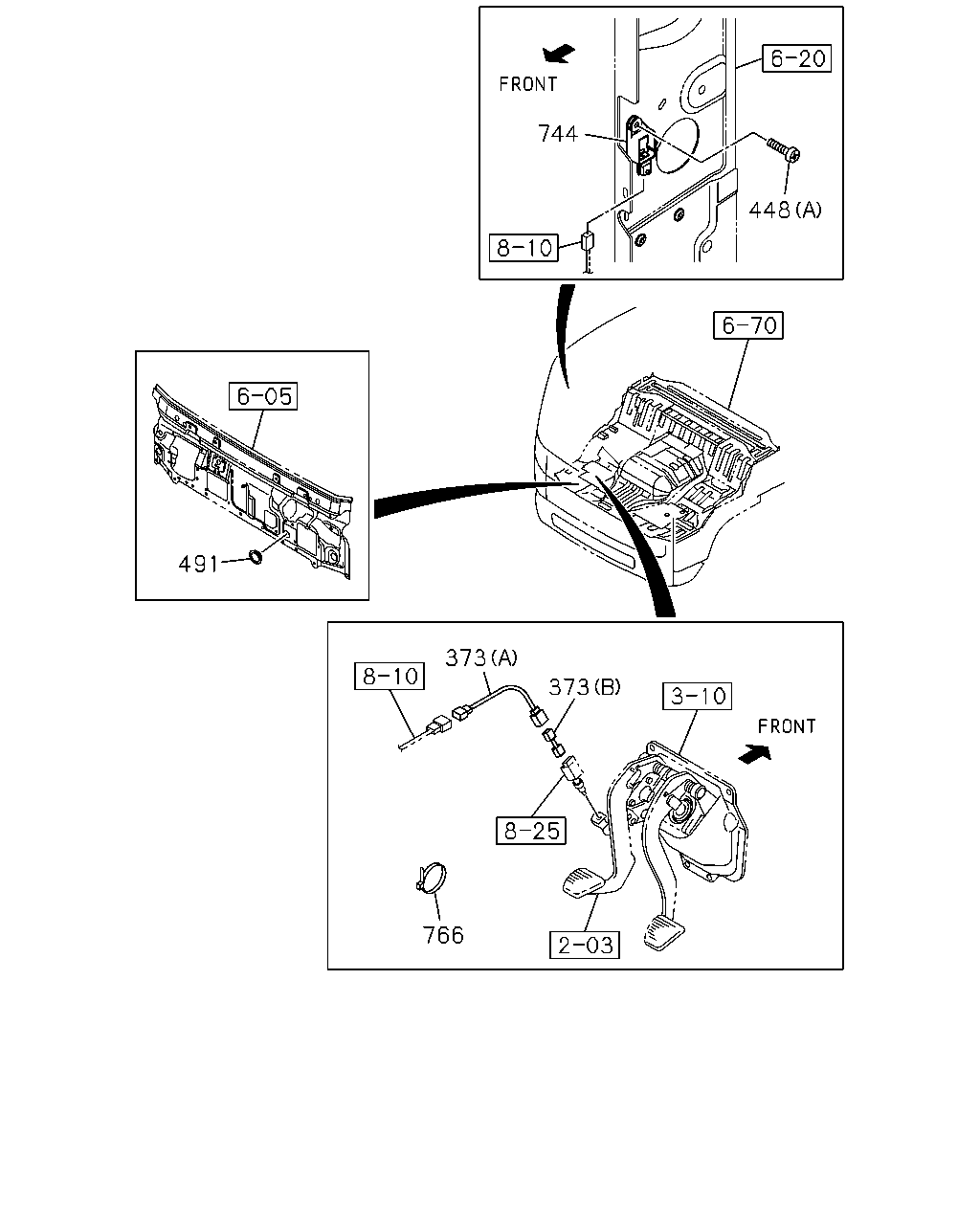

çizim 109218
744 448 491 373 373 766
BalonParca AdiParca NoAdetTipApplied Date A B
373 HARNESS; CLU SWITCH
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98059-419-1 01 1 0710-0711 ●
373 HARNESS; CLU SWITCH
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98059-419-2 01 1 0712- ● ●
373 HARNESS; CLU SWITCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98105-661-0 01 1 0712-0809 ● ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 0710-0711 ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 0712- ● ●
448 BOLT; SENSOR
4HK1-TCS ENG(RJS) (B) M6X16 FLANGE 		0-28050-616-0 01 1 0712- ●
491 PLUG; HOLE,CONT UNIT 8-98054-651-0 01 1 0710-0711 ●
491 PLUG; HOLE,CONT UNIT 8-98054-651-0 01 1 0712- ● ●
744 SENSOR; AIR BAG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-97386-841-2 01 1 0710-0711 ●
744 SENSOR; AIR BAG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-97386-841-2 01 1 0712- ● ●
766 BAND; CLIP
EXC. H.S.A SYSTEM<6EP> L=140 		5-09707-031-1 01 1 0711-0711 ●
766 BAND; CLIP
EXC. H.S.A SYSTEM<6EP> L=140 		5-09707-031-1 01 1 0712-0805 ● ●
766 BAND; CLIP
EXC. H.S.A SYSTEM<6EP> L=140 		5-09707-031-1 01 1 0806- ●
766 BAND; CLIP
MANUAL TRANSMISSION<X9C> EXC. H.S.A SYSTEM<6EP> L=140 		5-09707-031-1 01 1 0806- ●

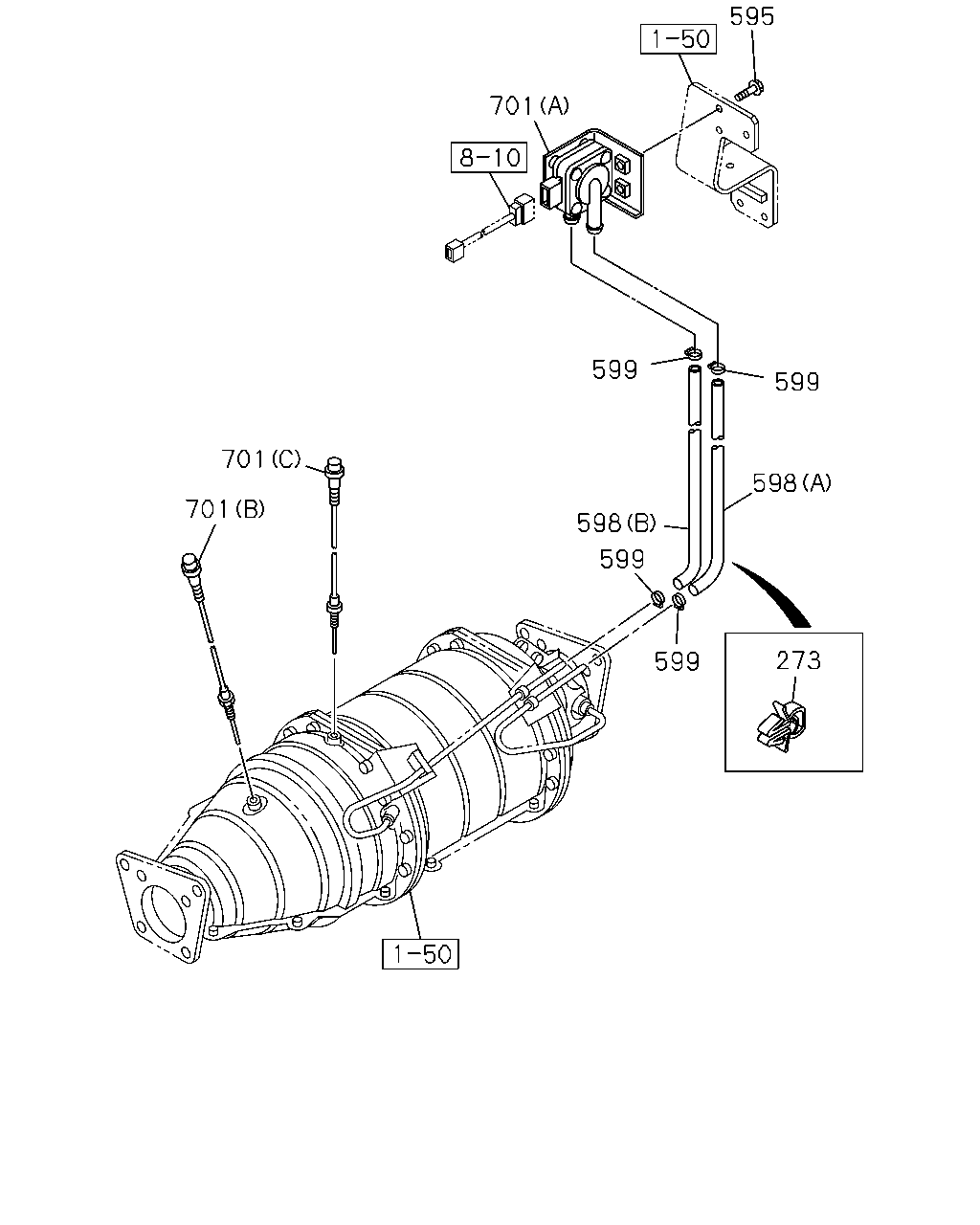

çizim 109220
595 701 599 599 701 598 701 598 599 273 599
BalonParca AdiParca NoAdetTipApplied Date A B
273 CLIP; HARNESS 8-94225-098-0 01 1 0710-0711 ●
273 CLIP; HARNESS 8-94225-098-0 01 1 0712-0802 ● ●
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ●
598 HOSE; RUBBER,SENSOR
(B) 		8-98060-178-1 01 1 0710-0711 ●
598 HOSE; RUBBER,SENSOR
(B) 		8-98060-178-1 01 1 0712- ●
598 HOSE; RUBBER,SENSOR
6HK1-TCN ENG(82L) (B) 		8-98060-178-1 01 1 0712- ●
598 HOSE; RUBBER,SENSOR
(A) 		8-98080-054-0 01 1 0710-0711 ●
598 HOSE; RUBBER,SENSOR
(A) 		8-98080-054-0 01 1 0712- ●
598 HOSE; RUBBER,SENSOR
6HK1-TCN ENG(82L) (A) 		8-98080-054-0 01 1 0712- ●
598 HOSE; RUBBER,SENSOR
4HK1-TCS ENG(RJS) (B) 		8-98060-174-1 01 1 0712- ●
598 HOSE; RUBBER,SENSOR
4HK1-TCS ENG(RJS) (A) 		8-98077-342-0 01 1 0712- ●
599 CLIP; HOSE
ID=13 		8-97329-627-0 04 1 0710-0711 ●
599 CLIP; HOSE
ID=13 		8-97329-627-0 04 1 0712- ● ●
701 SENSOR; DPD
(B) 		8-97359-987-5 01 1 0710-0711 ●
701 SENSOR; DPD
(B) 		8-97359-987-5 01 1 0712- ● ●
701 SENSOR; DPD
(C) 		8-97359-989-5 01 1 0710-0711 ●
701 SENSOR; DPD
(C) 		8-97359-989-5 01 1 0712- ● ●
701 SENSOR; DPD
(A) 		8-97360-368-2 01 1 0710-0711 ●
701 SENSOR; DPD
(A) 		8-97360-368-2 01 1 0712- ● ●

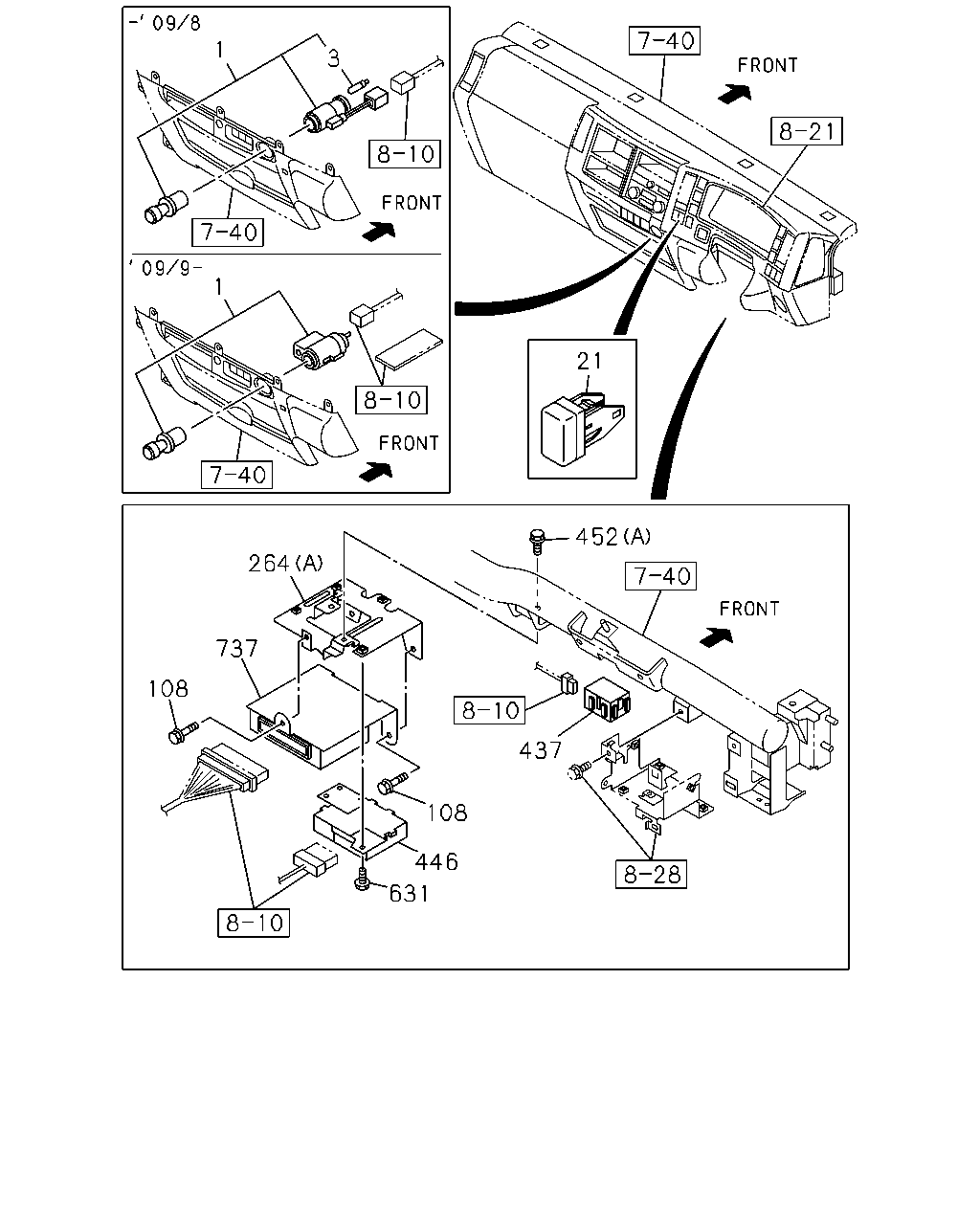

çizim 109221
1 3 1 21 452 264 737 108 437 108 446 631
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-98076-255-0 01 1 0710-0711 ●
1 LIGHTER; CIGAR 8-98076-255-0 01 1 0712-0908 ● ●
1 LIGHTER; CIGAR 8-98142-962-0 01 1 0909- ● ●
3 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0710-0711 ●
3 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0712-0908 ● ●
21 COVER; HOLE 8-98025-954-1 01 1 0710-0711 ●
21 COVER; HOLE 8-98025-954-1 01 1 0712- ● ●
108 BOLT; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 03 1 0710-0711 ●
108 BOLT; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 03 1 0712-0901 ● ●
108 BOLT; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0902-0906 ● ●
108 BOLT; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 03 1 0907- ● ●
264 BRACKET; CONT UNIT
(B) 		8-97609-985-9 01 1 0710-0711 ●
264 BRACKET; CONT UNIT
(B) 		8-97609-985-9 01 1 0712- ● ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 0710-0711 ●
264 BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 0710-0711 ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 0712- ● ●
264 BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 0712- ● ●
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 0710-0711 ●
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 0712- ● ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-80111-116-1 01 1 0710-0711 ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-80111-116-1 01 1 0712-0812 ● ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98136-318-1 01 1 0901- ● ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0710-0711 ●
452 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0710-0711 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0712- ● ●
452 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0712- ● ●
452 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0712- ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 0710-0711 ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 0712-0812 ● ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0901-0906 ● ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 0907- ● ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98096-824-0 01 1 0710-0904 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-015-0 01 1 0905-0906 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-015-0 01 1 0907-1008 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98164-519-0 01 1 1009-1212 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98230-117-0 01 1 1301-1404 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98269-476-0 01 1 1405- ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98096-825-0 01 1 0710-0711 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98096-825-0 01 1 0712-0904 ● ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-016-0 01 1 0905-0906 ● ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-016-0 01 1 0907-1008 ● ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98164-520-0 01 1 1009-1212 ● ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98230-118-0 01 1 1301-1404 ● ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98269-477-0 01 1 1405- ● ●
737 CONTROL UNIT; TRANSMISSION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98096-823-0 01 1 0712-0906 ●
737 CONTROL UNIT; TRANSMISSION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98096-823-0 01 1 0907-1008 ●
737 CONTROL UNIT; TRANSMISSION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98164-518-0 01 1 1009-1212 ●
737 CONTROL UNIT; TRANSMISSION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98230-116-0 01 1 1301-1404 ●
737 CONTROL UNIT; TRANSMISSION
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98269-475-0 01 1 1405- ●

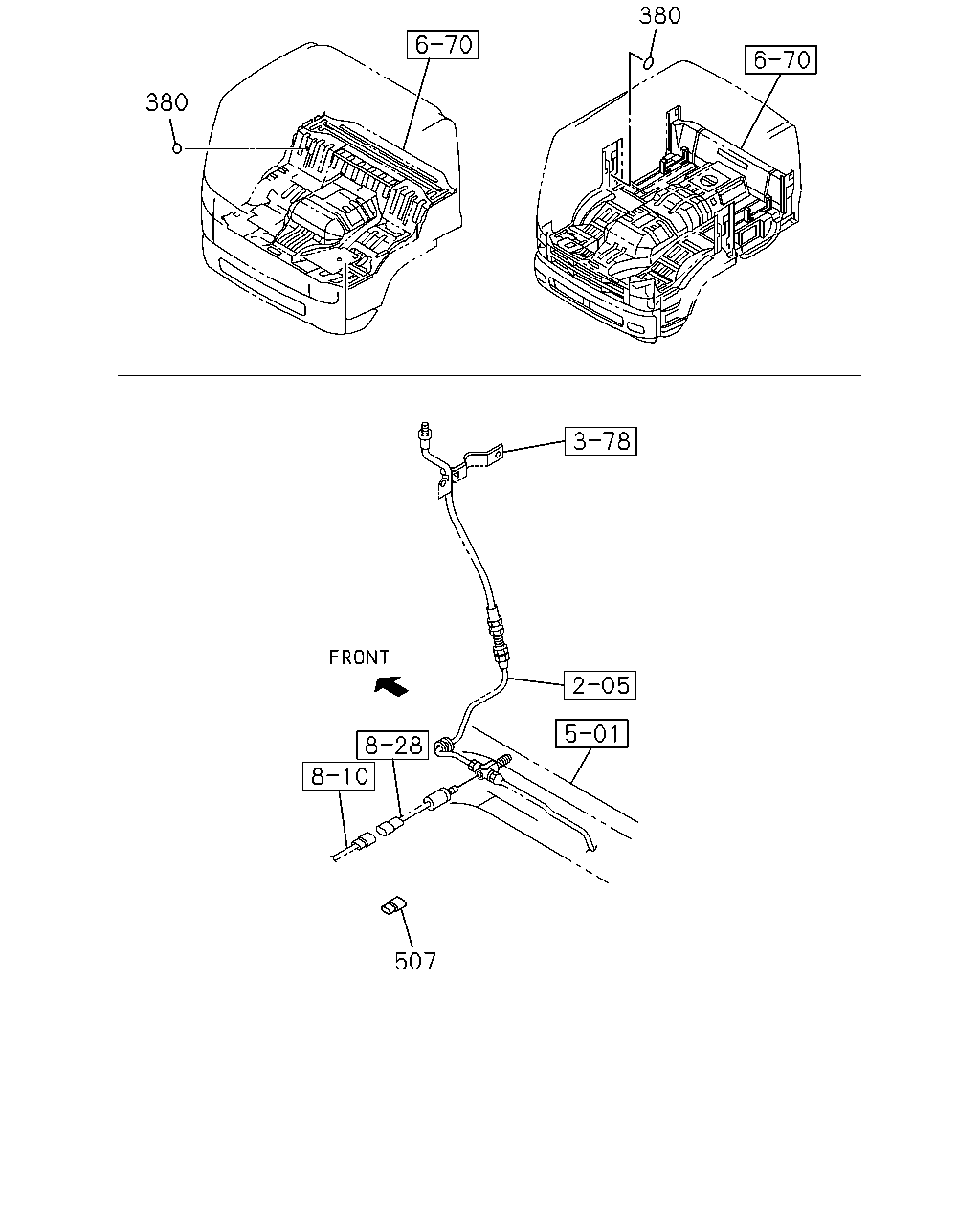

çizim 109222
380 380 507
BalonParca AdiParca NoAdetTipApplied Date A B
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 0710-0711 ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 0712- ● ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 02 1 0712-0712 ●
380 SEAL
BODY COLOR FT ORANGE(609),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORTRANS BLUE(999) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0801-0905 ●
380 SEAL
BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944) ,BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0906-0906 ●
380 SEAL
BODY COLOR AL GRAY(517),BODY COLOR FT ORANGE(609), BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLORHIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0906- ●
380 SEAL
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0801-0905 ●
380 SEAL
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0906- ●
507 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1011- ● ●

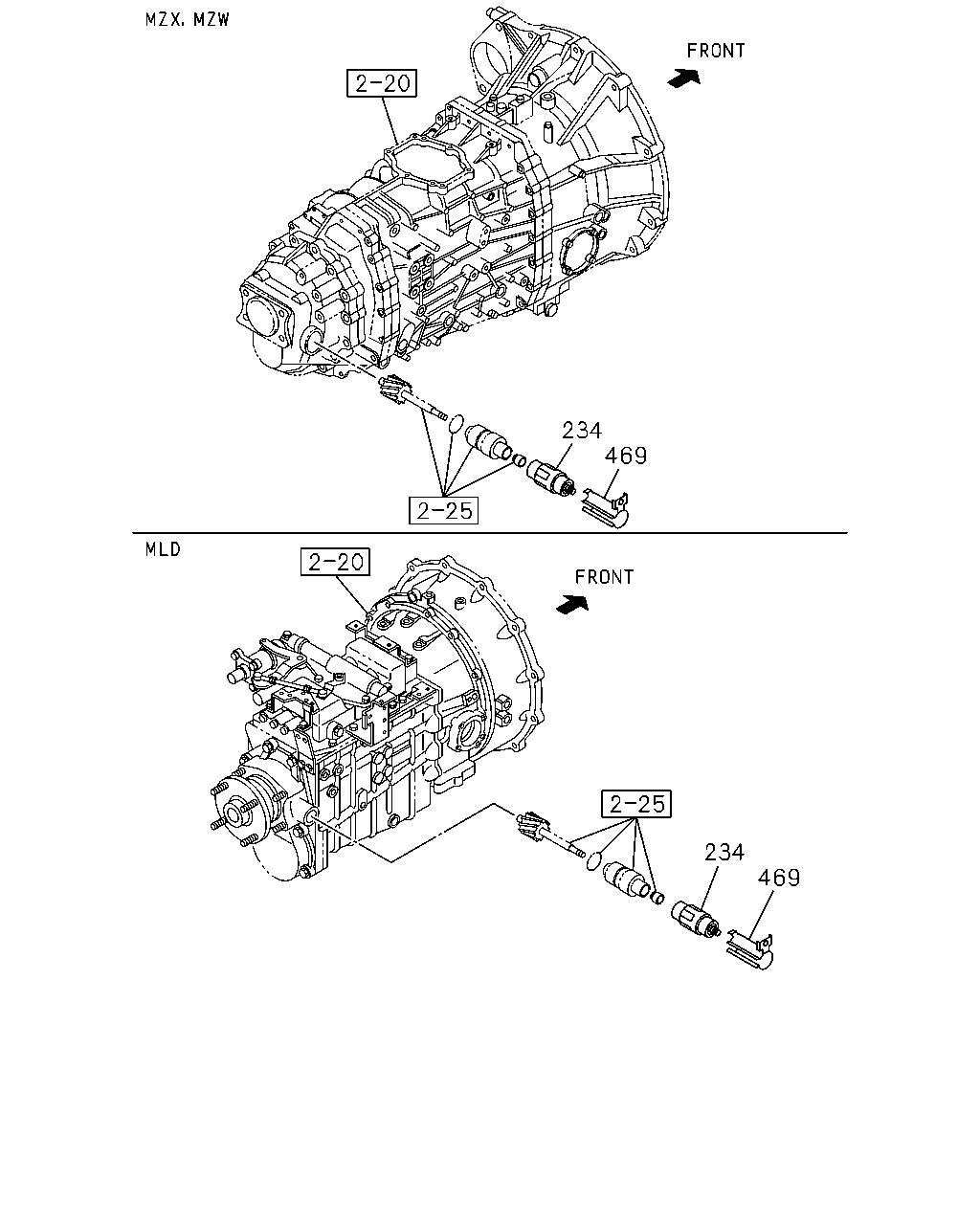

çizim 109223
234 469 234 469
BalonParca AdiParca NoAdetTipApplied Date A B
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-0 01 1 0710-0711 ●
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 0712- ● ●
469 PROTECTOR; SPEED SENSOR 8-97168-308-0 01 1 0710-0711 ●
469 PROTECTOR; SPEED SENSOR 8-97168-308-0 01 1 0712-0808 ● ●
469 PROTECTOR; SPEED SENSOR 8-98119-901-0 01 1 0809- ● ●

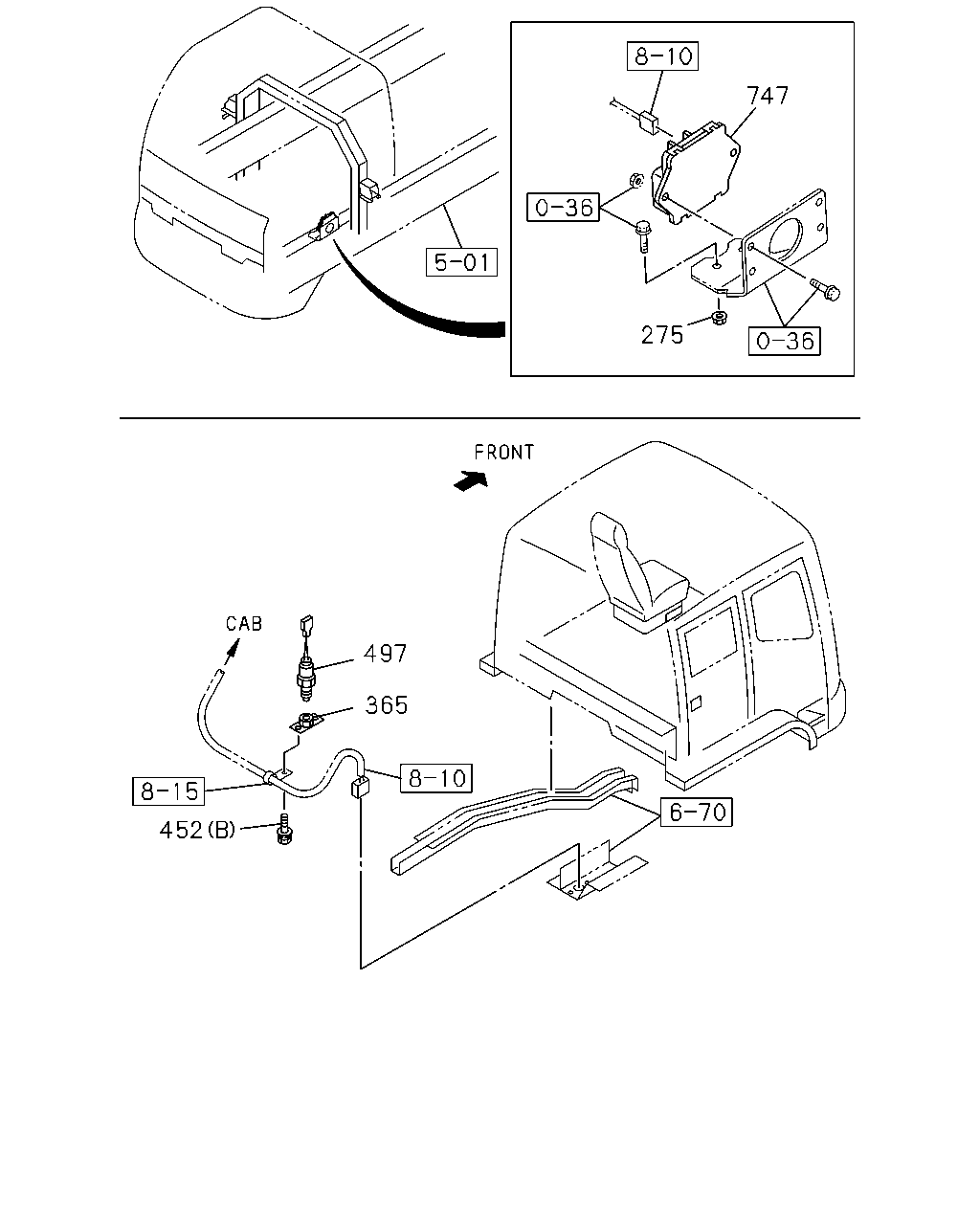

çizim 109225
747 275 497 365 452
BalonParca AdiParca NoAdetTipApplied Date A B
275 NUT; BRKT
4HK1-TCS ENG(RJS) M8 FLANGE 		0-91180-108-0 02 1 0712- ●
365 PLATE ASM; SW,CAB TILT 1-71998-393-1 01 1 0712- ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0710-0711 ●
452 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0710-0711 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0712- ● ●
452 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0712- ● ●
452 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0712- ●
497 SWITCH; CAB TILT
STAMP NC 		1-82380-125-1 01 1 0712- ●
747 CONTROL UNIT; TURBOCHARGER
4HK1-TCS ENG(RJS) 		8-98077-118-2 01 1 0712-1103 ●
747 CONTROL UNIT; TURBOCHARGER
4HK1-TCS ENG(RJS) 		8-98162-807-0 01 1 1104- ●
çizim 109228
553 648 448
BalonParca AdiParca NoAdetTipApplied Date A B
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 0710-0711 ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (A) M6X18 W/PL WASHER 		8-97105-796-1 02 1 0712- ● ●
448 BOLT; SENSOR
4HK1-TCS ENG(RJS) (B) M6X16 FLANGE 		0-28050-616-0 01 1 0712- ●
553 GASKET
4HK1-TCS ENG(RJS) ID=14.2 OD=18.8 		8-97369-404-0 01 1 0712- ●
648 SENSOR; CRANK ANGLE
4HK1-TCS ENG(RJS) 		8-97606-943-0 01 1 0712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
