◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11415 - FRR AUSTRALIA EURO4 EXC.SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#19571) — 18 parça

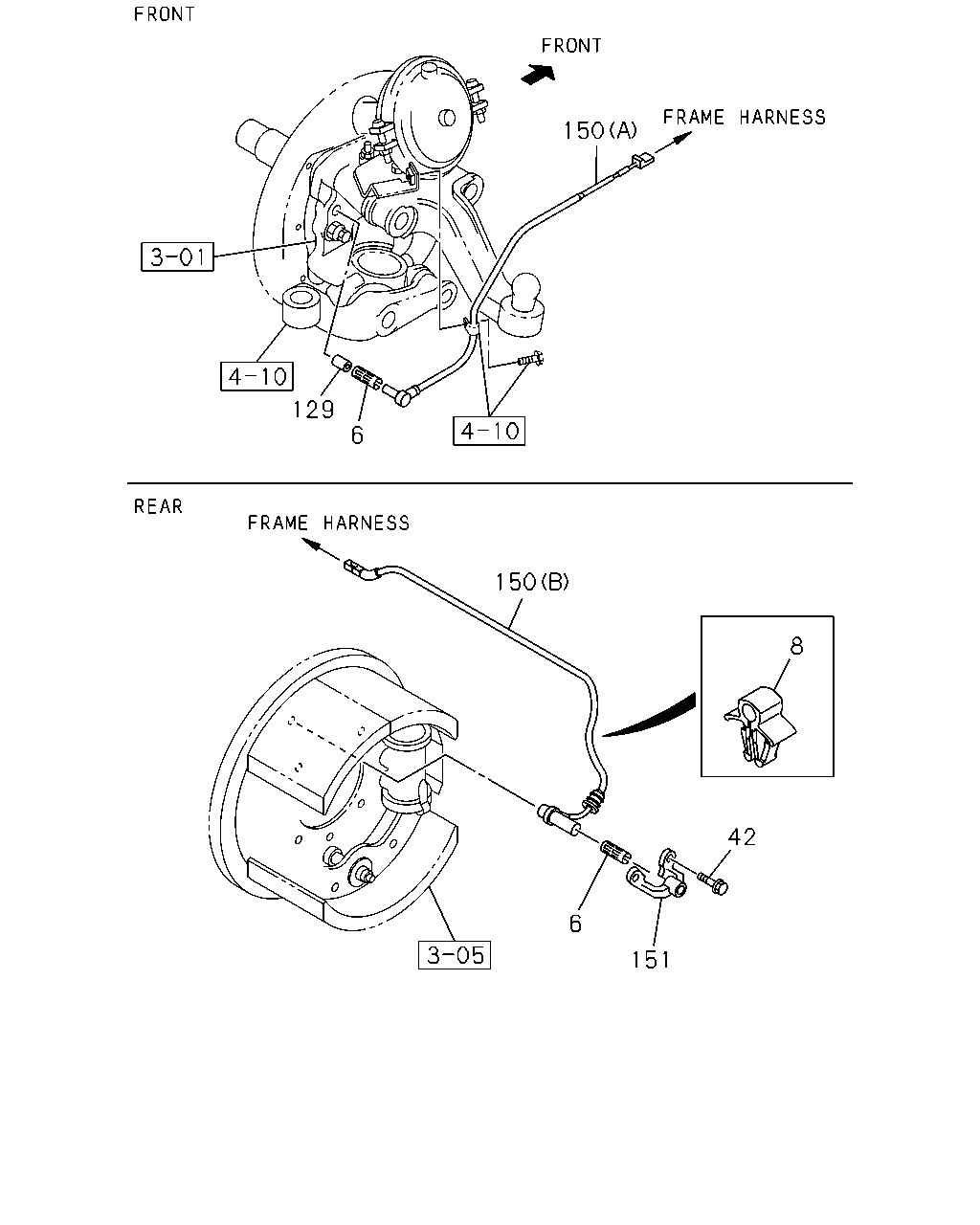

çizim 109210
150 129 6 150 8 42 6 151
BalonParca AdiParca NoAdetTipApplied Date A B
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 0710-0711 ●
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 0710-0711 ●
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 0712- ● ●
6 HOLDER; SPD SENSOR 1-83129-260-1 02 1 0712- ● ●
8 CLIP; HARNESS
ID=4.8 		1-09701-218-0 02 1 0710-0711 ●
8 CLIP; HARNESS
ID=4.8 		1-09701-218-0 02 1 0712- ● ●
42 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0710-0711 ●
42 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0712- ● ●
129 COLLAR 1-83129-471-0 02 1 0710-0711 ●
129 COLLAR 1-83129-471-0 02 1 0712- ● ●
150 SENSOR; SPEED,ABS
(A) 		1-83227-019-1 02 1 0710-0711 ●
150 SENSOR; SPEED,ABS
(A) 		1-83227-019-1 02 1 0712- ● ●
150 SENSOR; SPEED,ABS
(B) 		8-98012-782-4 02 1 0710-0711 ●
150 SENSOR; SPEED,ABS
(B) 		8-98012-782-4 02 1 0712- ● ●
151 BRACKET; SPD SENSOR 8-98064-696-0 01 1 0710-0711 ●
151 BRACKET; SPD SENSOR 8-98064-696-0 01 1 0712- ● ●
151 BRACKET; SPD SENSOR 8-98064-697-0 01 1 0710-0711 ●
151 BRACKET; SPD SENSOR 8-98064-697-0 01 1 0712- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
