◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11415 - FRR AUSTRALIA EURO4 EXC.SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#19570) — 1106 parça
çizim 109198
84 139 524 24 219 294 525 219 294 524 184
BalonParca AdiParca NoAdetTipApplied Date A B
24 NUT; HARNESS
4HK1-TCS ENG(RJS) M8 FLANGE 		0-91180-108-0 02 1 0712-0807 ●
84 WASHER; LK BRKT,HARNESS
ID=14.2 		0-91510-814-0 02 1 0710-0711 ●
84 WASHER; LK BRKT,HARNESS
ID=14.2 		0-91510-814-0 02 1 0712- ● ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 0710-0711 ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 0712- ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0710-0711 ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0712 ●
139 BOLT; BRKT
6HK1-TCN ENG(82L) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0712 ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0802 ●
139 BOLT; BRKT
6HK1-TCN ENG(82L) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0802 ●
139 BOLT; BRKT
6HK1-TCN ENG(82L) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0802 ●
139 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0803-0901 ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0803-0901 ●
139 BOLT; BRKT
6HK1-TCN ENG(82L) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0803-0901 ●
139 BOLT; BRKT
6HK1-TCN ENG(82L) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0803-0901 ●
139 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0902- ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0902- ●
139 BOLT; BRKT
6HK1-TCN ENG(82L) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0902- ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0710-0711 ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0712- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0710-0711 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0712-0812 ●
139 BOLT; BRKT
6HK1-TCN ENG(82L) (B) M8X30 FLANGE 		0-28650-830-0 02 1 0712-0812 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0901- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0901- ●
139 BOLT; BRKT
6HK1-TCN ENG(82L) (B) M8X30 FLANGE 		0-28650-830-0 02 1 0901- ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0710-0711 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0712-0812 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0710-0711 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0712- ● ●
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 0710-0711 ●
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 0712- ● ●
139 BOLT; BRKT
(G) M10X30 FLANGE 		0-28651-030-0 02 1 0710-0711 ●
139 BOLT; BRKT
(G) M10X30 FLANGE 		0-28651-030-0 02 1 0712- ● ●
139 BOLT; BRKT
(D) M8X25 FLANGE 		0-28050-825-0 02 1 0710-0711 ●
139 BOLT; BRKT
(D) M8X25 FLANGE 		0-28050-825-0 02 1 0712- ● ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (F) T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0710-0711 ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (F) T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0712- ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (F) T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0712- ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0806- ● ●
219 NUT
(B) M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ●
219 NUT
(B) M8 FLANGE 		0-91180-108-0 01 1 0712- ● ●
219 NUT
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M10 FLANGE 		0-91180-210-0 01 1 0806- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0712-0803 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0804-0807 ● ●
294 NUT
4HK1-TCS ENG(RJS) (A) M8 FLANGE 		0-91180-108-0 02 1 0804-0807 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0808-0812 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0901-0901 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0901-0901 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0902-0906 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0902-0906 ● ●
294 NUT
6HK1-TCN ENG(82L) (A) M8 FLANGE 		0-91180-108-0 01 1 0902-0906 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0907- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0907- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0907- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 06 1 0710-0711 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 06 1 0712-1107 ●
294 NUT
6HK1-TCN ENG(82L) (A) M8 FLANGE 		0-91180-108-0 06 1 0712-1107 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 05 1 1108- ●
294 NUT
6HK1-TCN ENG(82L) (A) M8 FLANGE 		0-91180-108-0 05 1 1108- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0712-0712 ● ●
294 NUT
4HK1-TCS ENG(RJS) (A) M8 FLANGE 		0-91180-108-0 01 1 0712-0712 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0712-0803 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0712-0803 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0804-0807 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0808-0901 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0808-0901 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0902-1007 ● ●
294 NUT
4HK1-TCS ENG(RJS) (A) M8 FLANGE 		0-91180-108-0 02 1 0902-1007 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1008- ● ●
294 NUT
4HK1-TCS ENG(RJS) (A) M8 FLANGE 		0-91180-108-0 02 1 1008- ●
294 NUT
4HK1-TCS ENG(RJS) (A) M8 FLANGE 		0-91180-108-0 02 1 1008- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0710-0711 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0712-0803 ● ●
294 NUT
4HK1-TCS ENG(RJS) (A) M8 FLANGE 		0-91180-108-0 03 1 0712-0803 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0804-0807 ● ●
294 NUT
4HK1-TCS ENG(RJS) (A) M8 FLANGE 		0-91180-108-0 01 1 0804-0807 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0804-0807 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0808-0812 ● ●
294 NUT
4HK1-TCS ENG(RJS) (A) M8 FLANGE 		0-91180-108-0 03 1 0808-0812 ●
294 NUT
4HK1-TCS ENG(RJS) (A) M8 FLANGE 		0-91180-108-0 03 1 0901-1007 ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 0710-0711 ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 0712-0811 ●
294 NUT
6HK1-TCN ENG(82L) (B) M10 FLANGE 		0-91180-210-0 01 1 0712-0811 ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 0812- ● ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 01 1 0812- ●
294 NUT
6HK1-TCN ENG(82L) (B) M10 FLANGE 		0-91180-210-0 01 1 0812- ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 03 1 0710-0711 ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 03 1 0712-0811 ● ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 0812- ● ●
524 NUT; HARNESS
(A) M6 FLANGE 		0-91180-106-0 04 1 0710-0711 ●
524 NUT; HARNESS
(A) M6 FLANGE 		0-91180-106-0 04 1 0712- ● ●
524 NUT; HARNESS
4HK1-TCS ENG(RJS) (B) M10 FLANGE 		0-91180-110-0 01 1 0809- ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 02 1 0712-0807 ●
525 NUT; CLIP
6HK1-TCN ENG(82L) T=8.0 M8 FLANGE 		0-91180-108-0 02 1 0712-0807 ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 02 1 0808- ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 0712-0803 ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 0712-0803 ●
525 NUT; CLIP
4HK1-TCS ENG(RJS) T=8.0 M8 FLANGE 		0-91180-108-0 01 1 0712-0803 ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 0804- ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 0804- ●
525 NUT; CLIP
T=8.5 M8 FLANGE 		5-09440-010-0 01 1 0710-0711 ●
525 NUT; CLIP
T=8.5 M8 FLANGE 		5-09440-010-0 01 1 0712- ●
525 NUT; CLIP
6HK1-TCN ENG(82L) T=8.5 M8 FLANGE 		5-09440-010-0 01 1 0712- ●

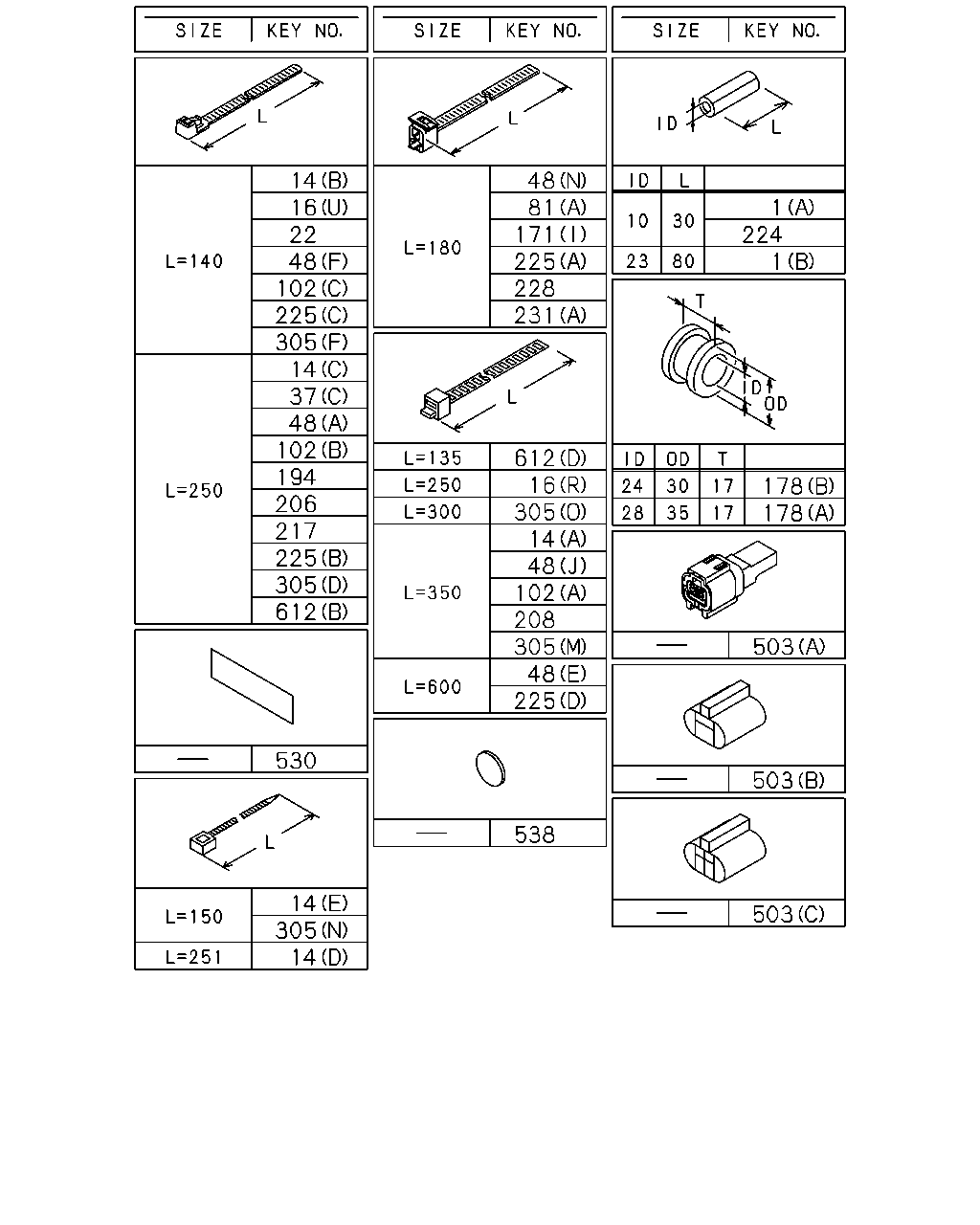

çizim 109199
14 16 22 48 102 225 305 14 37 48 102 194 206 217 225 305 612 48 81 171 225 228 231 1 224 1 612 16 305 14 48 102 208 305 48 225 178 178 503 530 503 538 14 305 14 503
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 0710-0711 ●
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 0712- ●
1 SLEEVE; RUBBER
6HK1-TCN ENG(82L) (B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 0712- ●
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 0710-0711 ●
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 0712- ●
1 SLEEVE; RUBBER
6HK1-TCN ENG(82L) (A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 0712- ●
14 CLIP; BAND,HARNESS
(A) L=350 		1-09707-183-0 01 1 0710-0711 ●
14 CLIP; BAND,HARNESS
(A) L=350 		1-09707-183-0 01 1 0712- ●
14 CLIP; BAND,HARNESS
6HK1-TCN ENG(82L) (A) L=350 		1-09707-183-0 01 1 0712- ●
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 13 1 0710-0711 ●
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 13 1 0712-0712 ●
14 CLIP; BAND,HARNESS
6HK1-TCN ENG(82L) (C) L=250 		5-09707-030-1 13 1 0712-0712 ●
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 14 1 0801-0906 ●
14 CLIP; BAND,HARNESS
6HK1-TCN ENG(82L) (C) L=250 		5-09707-030-1 14 1 0801-0906 ●
14 CLIP; BAND,HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C) L=250 		5-09707-030-1 14 1 0907-0909 ● ●
14 CLIP; BAND,HARNESS
(C) L=250 		5-09707-030-1 13 1 0910-1205 ●
14 CLIP; BAND,HARNESS
6HK1-TCN ENG(82L) (C) L=250 		5-09707-030-1 13 1 0910-1205 ●
14 CLIP; BAND,HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C) L=250 		8-98216-430-0 13 1 1206- ● ●
14 CLIP; BAND,HARNESS
4HK1-TCS ENG(RJS) (C) L=250 		5-09707-030-1 02 1 0712- ●
14 CLIP; BAND,HARNESS
4HK1-TCS ENG(RJS) (B) L=140 		5-09707-031-1 03 1 0712-0803 ●
14 CLIP; BAND,HARNESS
4HK1-TCS ENG(RJS) (B) L=140 		5-09707-031-1 04 1 0804- ●
14 CLIP; BAND,HARNESS
4HK1-TCS ENG(RJS) (E) L=150 		8-97355-273-0 01 1 0712- ●
14 CLIP; BAND,HARNESS
4HK1-TCS ENG(RJS) (D) L=251 		8-97619-917-0 01 1 0712-0909 ●
14 CLIP; BAND,HARNESS
(D) L=251 		8-97619-917-0 01 1 0910- ● ●
14 CLIP; BAND,HARNESS
4HK1-TCS ENG(RJS) (B) L=140 		5-09707-031-1 02 1 0803-0808 ●
14 CLIP; BAND,HARNESS
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 02 1 0809-1107 ●
14 CLIP; BAND,HARNESS
4HK1-TCS ENG(RJS) (B) L=140 		5-09707-031-1 02 1 1108- ●
16 CLIP; HARNESS
(I) ID=11 L=16 		0-95235-025-0 02 1 0710-0711 ●
16 CLIP; HARNESS
(I) ID=11 L=16 		0-95235-025-0 02 1 0712- ● ●
16 CLIP; HARNESS
(M) ID=11 L=60 		0-95235-096-0 01 1 0710-0711 ●
16 CLIP; HARNESS
(M) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ● ●
16 CLIP; HARNESS
(G) ID=22 L=32 		1-09700-126-1 01 1 0710-0711 ●
16 CLIP; HARNESS
(G) ID=22 L=32 		1-09700-126-1 01 1 0712-0712 ●
16 CLIP; HARNESS
6HK1-TCN ENG(82L) (G) ID=22 L=32 		1-09700-126-1 01 1 0712-0712 ●
16 CLIP; HARNESS
(J) ID=11X2 L=16 		1-09700-734-0 01 1 0710-0711 ●
16 CLIP; HARNESS
(J) ID=11X2 L=16 		1-09700-734-0 01 1 0712- ● ●
16 CLIP; HARNESS
(H) ID=10 & 10 		1-09709-277-1 03 1 0710-0711 ●
16 CLIP; HARNESS
(H) ID=10 & 10 		1-09709-277-1 03 1 0712-0911 ● ●
16 CLIP; HARNESS
(H) ID=10 & 10 		1-09709-277-1 04 1 0912- ●
16 CLIP; HARNESS
6HK1-TCN ENG(82L) (H) ID=10 & 10 		1-09709-277-1 04 1 0912- ●
16 CLIP; HARNESS
(F) ID=5-12 L=14.5 		1-09987-221-0 03 1 0710-0711 ●
16 CLIP; HARNESS
(F) ID=5-12 L=14.5 		1-09987-221-0 03 1 0712- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0710-0711 ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0712- ● ●
16 CLIP; HARNESS
(D) L=60 		8-94449-165-0 02 1 0710-0711 ●
16 CLIP; HARNESS
(D) L=60 		8-94449-165-0 02 1 0712-0802 ● ●
16 CLIP; HARNESS
(D) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(X) L=40.6 		8-97229-357-0 02 1 0803- ● ●
16 CLIP; HARNESS
(X) L=40.6 		8-97229-357-0 02 1 0803- ●
16 CLIP; HARNESS
(E) L=36.5 		8-97019-892-0 02 1 0710-0711 ●
16 CLIP; HARNESS
(E) L=36.5 		8-97019-892-0 02 1 0712-0802 ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0710-0711 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0712- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0710-0711 ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0712- ● ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (L) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0710-0711 ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (L) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0712- ● ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (K) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710-0711 ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (K) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712- ● ●
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (Y) OD=9 H=6 		1-09709-178-0 01 1 0804- ● ●
16 CLIP; HARNESS
(V) ID=13-18 L=18 		1-09709-291-0 01 1 0712-0901 ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (V) ID=13-18 L=18 		1-09709-291-0 01 1 0902- ●
16 CLIP; HARNESS
(W) L=60 		8-97063-335-0 02 1 0712- ●
16 CLIP; HARNESS
(X) L=40.6 		8-97229-357-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(D) L=60 		8-94449-165-0 02 1 0803- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (O) ID=28 L=78 		1-09700-858-0 01 1 0712- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (N) ID=35 L=33 		1-09700-945-0 01 1 0712- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (P) ID=19 L=39 H=21 		1-09700-972-1 01 1 0712-0807 ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (Q) ID=24 L=24 		1-09701-001-1 02 1 0712- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (R) L=250 		1-09707-126-0 01 1 0712-0806 ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (R) L=250 		1-09707-126-0 02 1 0807- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (T) ID=19 H=21 L=24 		5-09700-360-0 01 1 0712- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (U) L=140 		5-09707-031-1 02 1 0712-0712 ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (S) ID=5-12 L=18 		1-09709-287-0 02 1 0712- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (H) ID=10 & 10 		1-09709-277-1 03 1 0912- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (Z) ID=10 & 12 		1-09709-278-1 02 1 0912- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (U) L=140 		5-09707-031-1 01 1 0712-0712 ●
22 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) L=140 		5-09707-031-1 03 1 0712-0803 ●
22 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) L=140 		5-09707-031-1 02 1 0804- ●
37 CLIP; HARNESS,POWER TILT
(A) ID=16 L=28 		0-95235-556-0 01 1 0712- ●
37 CLIP; HARNESS,POWER TILT
(B) ID=13-18 L=18 		1-09709-291-0 02 1 0712- ●
37 CLIP; HARNESS,POWER TILT
(C) L=250 		5-09707-030-1 01 1 0712- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (O) ID=13-18 L=18 		1-09709-291-0 01 1 0805- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5100MM(51W) (O) ID=13-18 L=18 		1-09709-291-0 01 1 0805- ●
48 CLIP; FRAME HARNESS
(E) L=600 		1-09707-107-1 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(E) L=600 		1-09707-107-1 01 1 0712-0901 ● ●
48 CLIP; FRAME HARNESS
(E) L=600 		1-09707-107-1 01 1 0902- ●
48 CLIP; FRAME HARNESS
(J) L=350 		1-09707-183-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(J) L=350 		1-09707-183-0 01 1 0712- ● ●
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 0712- ● ●
48 CLIP; FRAME HARNESS
(G) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(G) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712-0901 ● ●
48 CLIP; FRAME HARNESS
(G) ID=5-12 L=14.5 		1-09987-221-0 02 1 0902- ●
48 CLIP; FRAME HARNESS
(H) ID=17.5X2 L=42 		5-09700-358-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(H) ID=17.5X2 L=42 		5-09700-358-0 01 1 0712- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 04 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 04 1 0712-0805 ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 04 1 0806-0809 ● ●
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=250 		5-09707-030-1 04 1 0806-0809 ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 04 1 0810-0901 ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 04 1 0902- ●
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 0712-0901 ● ●
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 0902- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0712-0901 ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0902- ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 0712-1201 ● ●
48 CLIP; FRAME HARNESS
(L) ID=14 L=44 		9-09917-427-0 02 1 1202- ● ●
48 CLIP; FRAME HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) ID=32 L=50 		1-09701-055-1 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) ID=32 L=50 		1-09701-055-1 01 1 0712- ● ●
48 CLIP; FRAME HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (K) ID=35 L=50 		1-09701-214-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (K) ID=35 L=50 		1-09701-214-0 01 1 0712- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4300MM(43W) (D) ID=20 L=50 		9-09917-430-0 14 1 0710-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4300MM(43W) (D) ID=20 L=50 		9-09917-430-0 13 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4300MM(43W) (L) ID=14 L=44 		9-09917-427-0 13 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5100MM(51W) (D) ID=20 L=50 		9-09917-430-0 19 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5100MM(51W) (D) ID=20 L=50 		9-09917-430-0 19 1 0712-0804 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5100MM(51W) (D) ID=20 L=50 		9-09917-430-0 18 1 0805-0902 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5100MM(51W) (D) ID=20 L=50 		9-09917-430-0 16 1 0903-1007 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5100MM(51W) (L) ID=14 L=44 		9-09917-427-0 16 1 1008- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (D) ID=20 L=50 		9-09917-430-0 22 1 0710-0804 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (D) ID=20 L=50 		9-09917-430-0 21 1 0805-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (D) ID=20 L=50 		9-09917-430-0 19 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (L) ID=14 L=44 		9-09917-427-0 19 1 1008- ●
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (N) L=180 		1-09707-162-1 01 1 0806-0809 ●
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=250 		5-09707-030-1 02 1 0810- ●
48 CLIP; FRAME HARNESS
6HK1-TCN ENG(82L) (M) ID=19 L=28 		0-95235-856-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
6HK1-TCN ENG(82L) (M) ID=16 L=28 		0-95235-556-0 01 1 0803- ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=180 		1-09707-162-1 01 1 0712-0901 ● ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6 		1-09709-178-0 01 1 0803-1010 ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6 		1-09709-178-0 01 1 1011- ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0 		1-09709-274-1 02 1 0712- ● ●
102 CLIP; BAND
(A) L=350 		1-09707-183-0 01 1 0710-0711 ●
102 CLIP; BAND
(A) L=350 		1-09707-183-0 01 1 0712-0911 ● ●
102 CLIP; BAND
(B) L=250 		5-09707-030-1 02 1 0712-0901 ●
102 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 0712-0811 ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (H) 		8-97375-754-0 01 1 0806-0809 ●
171 CLIP; STARTER HARNESS
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (H) 		8-97375-754-0 01 1 0806-0809 ●
171 CLIP; STARTER HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28 		0-95235-055-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28 		0-95235-055-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) ID=16 L=28 		0-95235-556-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) ID=16 L=28 		0-95235-556-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=9 H=6 		1-09709-178-0 02 1 0806- ●
171 CLIP; STARTER HARNESS
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=9 H=6 		1-09709-178-0 02 1 0806- ●
171 CLIP; STARTER HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=13-18 L=14.5 		1-09709-290-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=13-18 L=14.5 		1-09709-290-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=5-12 L=14.5 		1-09987-221-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=5-12 L=14.5 		1-09987-221-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (I) L=180 		1-09707-162-1 01 1 0806- ●
171 CLIP; STARTER HARNESS
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=9 H=6 		1-09709-178-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (J) L=36 		8-94224-891-1 01 1 0806- ●
171 CLIP; STARTER HARNESS
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 0712-0803 ●
171 CLIP; STARTER HARNESS
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 0804-0906 ●
171 CLIP; STARTER HARNESS
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 0907- ●
171 CLIP; STARTER HARNESS
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97101-436-0 01 1 0712-0803 ●
171 CLIP; STARTER HARNESS
4HK1-TCS ENG(RJS) (A) 		8-97101-436-0 01 1 0804- ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 0710-0711 ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 0710-0711 ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 0712- ● ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 0712- ●
178 GROMMET; HARNESS
6HK1-TCN ENG(82L) (B) ID=24 OD=30 T=17 		9-09956-092-1 01 1 0712- ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 04 1 0710-0711 ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 04 1 0712-0804 ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0805-0806 ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 04 1 0807-0811 ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0812- ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0812- ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 03 1 0805-0806 ● ●
178 GROMMET; HARNESS
4HK1-TCS ENG(RJS) (B) ID=24 OD=30 T=17 		9-09956-092-1 02 1 0712- ●
194 CLIP; BAND
L=250 		5-09707-030-1 01 1 0710-0711 ●
194 CLIP; BAND
L=250 		5-09707-030-1 01 1 0712- ●
194 CLIP; BAND
6HK1-TCN ENG(82L) L=250 		5-09707-030-1 01 1 0712- ●
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 01 1 0710-0711 ●
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 01 1 0712-0901 ● ●
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 03 1 0902- ● ●
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 02 1 0710-0711 ●
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 02 1 0712-0901 ● ●
208 CLIP; HARNESS,MAG VLV
L=350 		1-09707-183-0 01 1 0710-0711 ●
208 CLIP; HARNESS,MAG VLV
L=350 		1-09707-183-0 01 1 0712- ● ●
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 0710-0711 ●
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 0712- ● ●
224 SLEEVE; RUBBER,HARNESS
ID=10 OD=14 L=30 		9-09956-682-0 01 1 0710-0711 ●
224 SLEEVE; RUBBER,HARNESS
ID=10 OD=14 L=30 		9-09956-682-0 01 1 0712-0803 ● ●
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 01 1 0710-0711 ●
225 CLIP; AIR TANK HARNESS
(A) L=180 		1-09707-162-1 01 1 0712- ● ●
225 CLIP; AIR TANK HARNESS
(B) L=250 		5-09707-030-1 01 1 0710-1011 ●
225 CLIP; AIR TANK HARNESS
(D) L=600 		1-09707-107-1 02 1 0712-0901 ●
225 CLIP; AIR TANK HARNESS
4HK1-TCS ENG(RJS) (D) L=600 		1-09707-107-1 02 1 0902- ●
225 CLIP; AIR TANK HARNESS
4HK1-TCS ENG(RJS) (C) L=140 		5-09707-031-1 01 1 0712- ●
228 CLIP; COOLER HARNESS
L=180 		1-09707-162-1 01 1 0712-0803 ●
228 CLIP; COOLER HARNESS
L=180 		1-09707-162-1 01 1 0804-0807 ●
228 CLIP; COOLER HARNESS
6HK1-TCN ENG(82L) L=180 		1-09707-162-1 01 1 0804-0807 ●
231 CLIP; BAND,OIL PRESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=180 		1-09707-162-1 01 1 0710-0711 ●
231 CLIP; BAND,OIL PRESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=180 		1-09707-162-1 01 1 0712-0712 ● ●
231 CLIP; BAND,OIL PRESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0 		1-09709-274-1 02 1 0710-0711 ●
231 CLIP; BAND,OIL PRESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0 		1-09709-274-1 02 1 0712-0712 ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5 		8-94178-108-0 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5 		8-94178-108-0 01 1 0712- ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5 		8-94178-108-0 01 1 0712- ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0710-0711 ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0712- ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) (J) ID=16 L=28 		0-95235-556-0 02 1 0712- ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 0712- ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) (K) ID=16 L=40 		0-95235-576-0 01 1 0712- ●
305 CLIP; ENG HARNESS
(C) ID=24 L=32 		1-09700-766-1 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(C) ID=24 L=32 		1-09700-766-1 01 1 0712- ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) (C) ID=24 L=32 		1-09700-766-1 01 1 0712- ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0712- ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) (A) ID=25 L=60 		1-09701-041-1 01 1 0712- ●
305 CLIP; ENG HARNESS
(L) ID=19 H=33 L=45 		1-09701-045-0 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(L) ID=19 H=33 L=45 		1-09701-045-0 01 1 0712- ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) (L) ID=19 H=33 L=45 		1-09701-045-0 01 1 0712- ●
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 0712- ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) (I) OD=9 H=6 		1-09709-178-0 01 1 0712- ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-94225-185-0 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-94225-185-0 01 1 0712-0801 ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) (B) ID=18 L=44 		8-94225-185-0 01 1 0712-0801 ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0802- ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) (B) ID=18 L=44 		8-97367-985-1 01 1 0802- ●
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 0712- ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) (H) ID=11 L=45 		8-94296-897-1 01 1 0712- ●
305 CLIP; ENG HARNESS
(E) L=100 		8-94443-021-1 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(E) L=100 		8-94443-021-1 01 1 0712- ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) (E) L=100 		8-94443-021-1 01 1 0712- ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (D) L=250 		5-09707-030-1 01 1 0712-0803 ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (F) L=140 		5-09707-031-1 01 1 0804-0905 ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (F) L=140 		5-09707-031-1 02 1 0906- ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (M) L=350 		8-94152-256-1 01 1 0712-0905 ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (O) L=300 		1-09707-001-1 01 1 0906- ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (N) L=150 		8-97355-273-0 01 1 0712-0905 ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (F) L=140 		5-09707-031-1 01 1 0712-0803 ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (D) L=250 		5-09707-030-1 01 1 0804-0906 ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) (D) L=250 		5-09707-030-1 01 1 0907- ●
503 CONNECTOR
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		1-82690-668-0 01 1 0710-0711 ●
503 CONNECTOR
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		1-82690-668-0 01 1 0712- ● ●
503 CONNECTOR
EXC. H.S.A SYSTEM<6EP> (A) 		1-82691-191-0 01 1 0804- ● ●
503 CONNECTOR
EXC. AIR DRYER<PS7> (C) 		1-82690-666-0 01 1 0809- ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 23 1 1306- ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 14 1 0710-0711 ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 14 1 0712-1305 ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 1306- ● ●
530 SEAL; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) 180X40 		1-72498-019-1 01 1 1306- ● ●
530 SEAL; HARNESS
100X40 		1-72498-022-1 06 1 0710-0711 ●
530 SEAL; HARNESS
100X40 		1-72498-022-1 06 1 0712-1305 ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1306- ●
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 0710-0711 ●
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 0712- ● ●
612 CLIP; HARNESS DPD
(A) ID=11 L=41 		1-09700-403-0 01 1 0710-0711 ●
612 CLIP; HARNESS DPD
(A) ID=11 L=41 		1-09700-403-0 01 1 0712- ● ●
612 CLIP; HARNESS DPD
(D) L=135 		1-09987-143-1 01 1 0710-0711 ●
612 CLIP; HARNESS DPD
(D) L=135 		1-09987-143-1 01 1 0712- ● ●
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 0710-0711 ●
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 0712- ● ●
612 CLIP; HARNESS DPD
(C) T=9 & 10.5 		8-97371-949-0 03 1 0710-0711 ●
612 CLIP; HARNESS DPD
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C) T=9 & 10.5 		8-97371-949-0 03 1 0712-0804 ●
612 CLIP; HARNESS DPD
4HK1-TCS ENG(RJS) (C) T=9 & 10.5 		8-97371-949-0 03 1 0712-0804 ●
612 CLIP; HARNESS DPD
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (C) T=9 & 10.5 		8-97371-949-0 03 1 0712-0804 ●
612 CLIP; HARNESS DPD
(E) ID=4.76 & 10.0 		1-09709-305-0 03 1 0803- ● ●

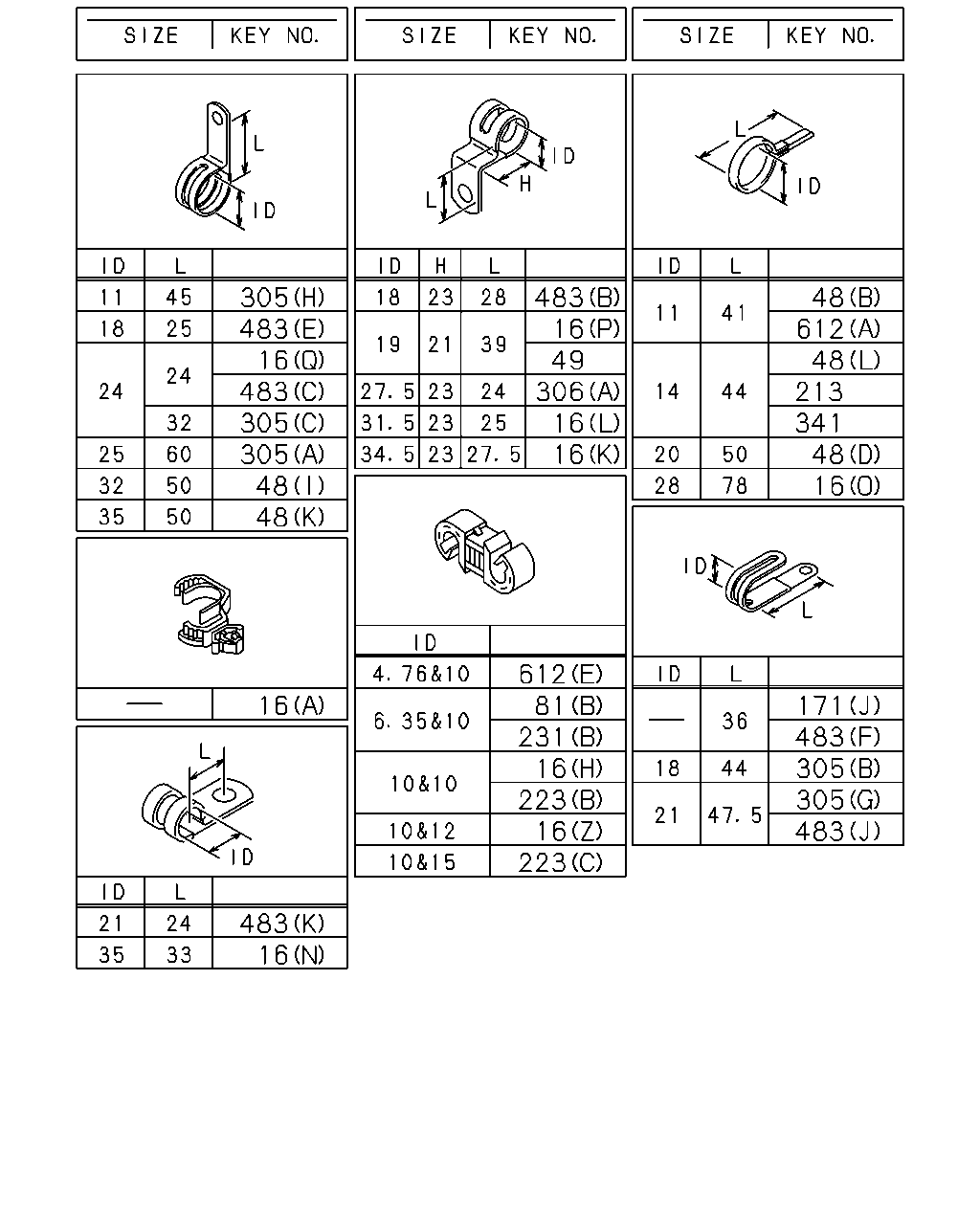

çizim 109200
305 483 16 483 305 305 48 48 483 16 49 306 16 16 48 612 48 213 341 48 16 612 81 231 16 223 16 223 16 171 483 305 305 483 483 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(I) ID=11 L=16 		0-95235-025-0 02 1 0710-0711 ●
16 CLIP; HARNESS
(I) ID=11 L=16 		0-95235-025-0 02 1 0712- ● ●
16 CLIP; HARNESS
(M) ID=11 L=60 		0-95235-096-0 01 1 0710-0711 ●
16 CLIP; HARNESS
(M) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ● ●
16 CLIP; HARNESS
(G) ID=22 L=32 		1-09700-126-1 01 1 0710-0711 ●
16 CLIP; HARNESS
(G) ID=22 L=32 		1-09700-126-1 01 1 0712-0712 ●
16 CLIP; HARNESS
6HK1-TCN ENG(82L) (G) ID=22 L=32 		1-09700-126-1 01 1 0712-0712 ●
16 CLIP; HARNESS
(J) ID=11X2 L=16 		1-09700-734-0 01 1 0710-0711 ●
16 CLIP; HARNESS
(J) ID=11X2 L=16 		1-09700-734-0 01 1 0712- ● ●
16 CLIP; HARNESS
(H) ID=10 & 10 		1-09709-277-1 03 1 0710-0711 ●
16 CLIP; HARNESS
(H) ID=10 & 10 		1-09709-277-1 03 1 0712-0911 ● ●
16 CLIP; HARNESS
(H) ID=10 & 10 		1-09709-277-1 04 1 0912- ●
16 CLIP; HARNESS
6HK1-TCN ENG(82L) (H) ID=10 & 10 		1-09709-277-1 04 1 0912- ●
16 CLIP; HARNESS
(F) ID=5-12 L=14.5 		1-09987-221-0 03 1 0710-0711 ●
16 CLIP; HARNESS
(F) ID=5-12 L=14.5 		1-09987-221-0 03 1 0712- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0710-0711 ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0712- ● ●
16 CLIP; HARNESS
(D) L=60 		8-94449-165-0 02 1 0710-0711 ●
16 CLIP; HARNESS
(D) L=60 		8-94449-165-0 02 1 0712-0802 ● ●
16 CLIP; HARNESS
(D) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(X) L=40.6 		8-97229-357-0 02 1 0803- ● ●
16 CLIP; HARNESS
(X) L=40.6 		8-97229-357-0 02 1 0803- ●
16 CLIP; HARNESS
(E) L=36.5 		8-97019-892-0 02 1 0710-0711 ●
16 CLIP; HARNESS
(E) L=36.5 		8-97019-892-0 02 1 0712-0802 ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0710-0711 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0712- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0710-0711 ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0712- ● ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (L) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0710-0711 ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (L) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0712- ● ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (K) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710-0711 ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (K) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712- ● ●
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (Y) OD=9 H=6 		1-09709-178-0 01 1 0804- ● ●
16 CLIP; HARNESS
(V) ID=13-18 L=18 		1-09709-291-0 01 1 0712-0901 ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (V) ID=13-18 L=18 		1-09709-291-0 01 1 0902- ●
16 CLIP; HARNESS
(W) L=60 		8-97063-335-0 02 1 0712- ●
16 CLIP; HARNESS
(X) L=40.6 		8-97229-357-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(D) L=60 		8-94449-165-0 02 1 0803- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (O) ID=28 L=78 		1-09700-858-0 01 1 0712- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (N) ID=35 L=33 		1-09700-945-0 01 1 0712- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (P) ID=19 L=39 H=21 		1-09700-972-1 01 1 0712-0807 ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (Q) ID=24 L=24 		1-09701-001-1 02 1 0712- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (R) L=250 		1-09707-126-0 01 1 0712-0806 ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (R) L=250 		1-09707-126-0 02 1 0807- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (T) ID=19 H=21 L=24 		5-09700-360-0 01 1 0712- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (U) L=140 		5-09707-031-1 02 1 0712-0712 ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (S) ID=5-12 L=18 		1-09709-287-0 02 1 0712- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (H) ID=10 & 10 		1-09709-277-1 03 1 0912- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (Z) ID=10 & 12 		1-09709-278-1 02 1 0912- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (U) L=140 		5-09707-031-1 01 1 0712-0712 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (O) ID=13-18 L=18 		1-09709-291-0 01 1 0805- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5100MM(51W) (O) ID=13-18 L=18 		1-09709-291-0 01 1 0805- ●
48 CLIP; FRAME HARNESS
(E) L=600 		1-09707-107-1 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(E) L=600 		1-09707-107-1 01 1 0712-0901 ● ●
48 CLIP; FRAME HARNESS
(E) L=600 		1-09707-107-1 01 1 0902- ●
48 CLIP; FRAME HARNESS
(J) L=350 		1-09707-183-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(J) L=350 		1-09707-183-0 01 1 0712- ● ●
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 0712- ● ●
48 CLIP; FRAME HARNESS
(G) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(G) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712-0901 ● ●
48 CLIP; FRAME HARNESS
(G) ID=5-12 L=14.5 		1-09987-221-0 02 1 0902- ●
48 CLIP; FRAME HARNESS
(H) ID=17.5X2 L=42 		5-09700-358-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(H) ID=17.5X2 L=42 		5-09700-358-0 01 1 0712- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 04 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 04 1 0712-0805 ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 04 1 0806-0809 ● ●
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=250 		5-09707-030-1 04 1 0806-0809 ●

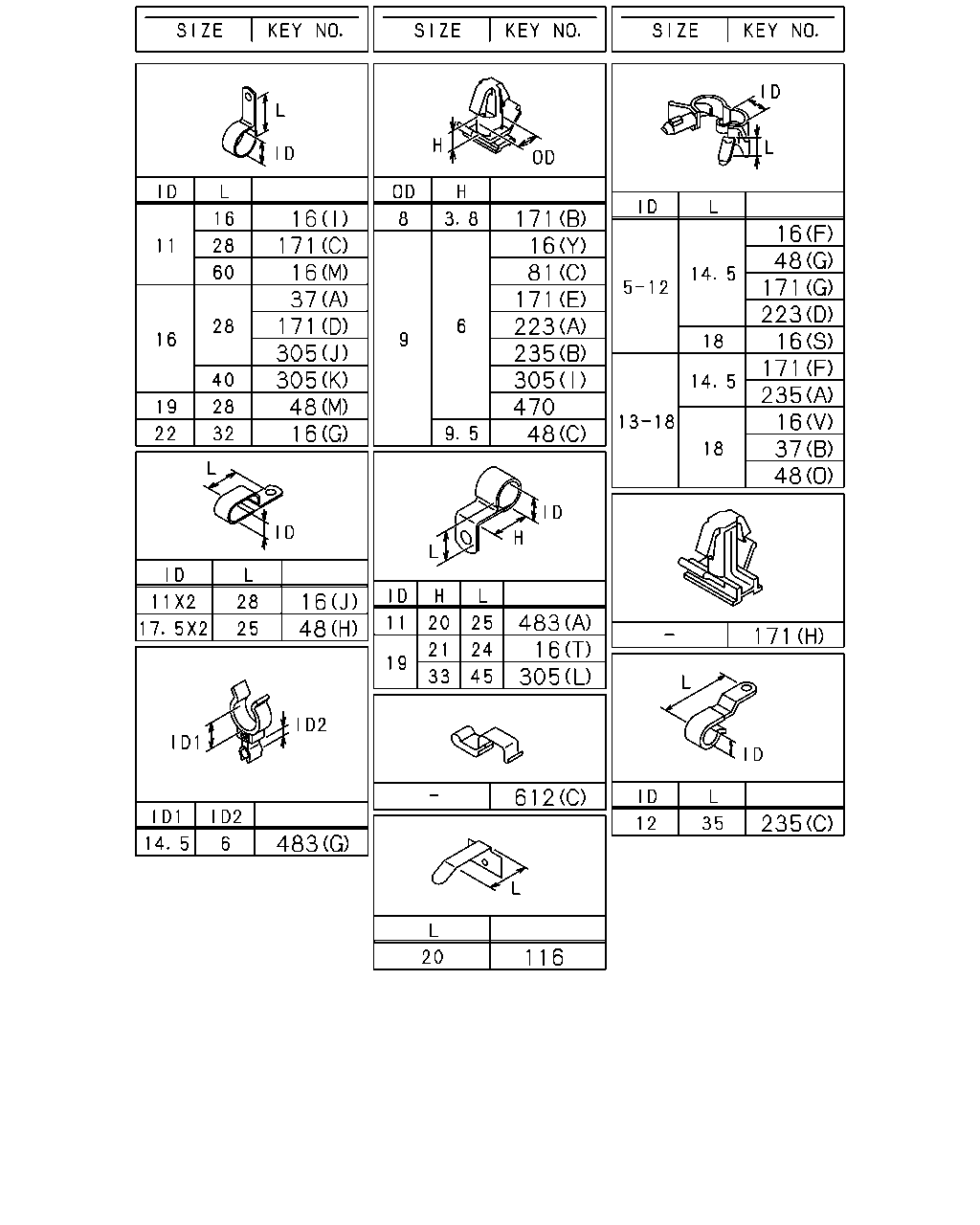

48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 04 1 0810-0901 ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 04 1 0902- ●
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 0712-0901 ● ●
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 0902- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0712-0901 ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0902- ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 0712-1201 ● ●
48 CLIP; FRAME HARNESS
(L) ID=14 L=44 		9-09917-427-0 02 1 1202- ● ●
48 CLIP; FRAME HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) ID=32 L=50 		1-09701-055-1 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) ID=32 L=50 		1-09701-055-1 01 1 0712- ● ●
48 CLIP; FRAME HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (K) ID=35 L=50 		1-09701-214-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (K) ID=35 L=50 		1-09701-214-0 01 1 0712- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4300MM(43W) (D) ID=20 L=50 		9-09917-430-0 14 1 0710-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4300MM(43W) (D) ID=20 L=50 		9-09917-430-0 13 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4300MM(43W) (L) ID=14 L=44 		9-09917-427-0 13 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5100MM(51W) (D) ID=20 L=50 		9-09917-430-0 19 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5100MM(51W) (D) ID=20 L=50 		9-09917-430-0 19 1 0712-0804 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5100MM(51W) (D) ID=20 L=50 		9-09917-430-0 18 1 0805-0902 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5100MM(51W) (D) ID=20 L=50 		9-09917-430-0 16 1 0903-1007 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5100MM(51W) (L) ID=14 L=44 		9-09917-427-0 16 1 1008- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (D) ID=20 L=50 		9-09917-430-0 22 1 0710-0804 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (D) ID=20 L=50 		9-09917-430-0 21 1 0805-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (D) ID=20 L=50 		9-09917-430-0 19 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (L) ID=14 L=44 		9-09917-427-0 19 1 1008- ●
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (N) L=180 		1-09707-162-1 01 1 0806-0809 ●
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=250 		5-09707-030-1 02 1 0810- ●
48 CLIP; FRAME HARNESS
6HK1-TCN ENG(82L) (M) ID=19 L=28 		0-95235-856-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
6HK1-TCN ENG(82L) (M) ID=16 L=28 		0-95235-556-0 01 1 0803- ●
49 CLIP; GEN HARNESS
4HK1-TCS ENG(RJS) ID=19 L=39 H=21 		1-09700-972-1 01 1 0808- ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=180 		1-09707-162-1 01 1 0712-0901 ● ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6 		1-09709-178-0 01 1 0803-1010 ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6 		1-09709-178-0 01 1 1011- ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0 		1-09709-274-1 02 1 0712- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (H) 		8-97375-754-0 01 1 0806-0809 ●
171 CLIP; STARTER HARNESS
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (H) 		8-97375-754-0 01 1 0806-0809 ●
171 CLIP; STARTER HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28 		0-95235-055-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28 		0-95235-055-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) ID=16 L=28 		0-95235-556-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) ID=16 L=28 		0-95235-556-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=9 H=6 		1-09709-178-0 02 1 0806- ●
171 CLIP; STARTER HARNESS
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=9 H=6 		1-09709-178-0 02 1 0806- ●
171 CLIP; STARTER HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=13-18 L=14.5 		1-09709-290-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=13-18 L=14.5 		1-09709-290-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=5-12 L=14.5 		1-09987-221-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=5-12 L=14.5 		1-09987-221-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (I) L=180 		1-09707-162-1 01 1 0806- ●
171 CLIP; STARTER HARNESS
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=9 H=6 		1-09709-178-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (J) L=36 		8-94224-891-1 01 1 0806- ●
171 CLIP; STARTER HARNESS
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 0712-0803 ●
171 CLIP; STARTER HARNESS
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 0804-0906 ●
171 CLIP; STARTER HARNESS
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 0907- ●
171 CLIP; STARTER HARNESS
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97101-436-0 01 1 0712-0803 ●
171 CLIP; STARTER HARNESS
4HK1-TCS ENG(RJS) (A) 		8-97101-436-0 01 1 0804- ●
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 0710-0711 ●
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 0712- ● ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 03 1 0710-0711 ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 03 1 0712- ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=10 & 10 		1-09709-277-1 02 1 0804-0905 ●
223 CLIP; AIR TANK HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 04 1 1002- ●
223 CLIP; AIR TANK HARNESS
(B) ID=10 & 10 		1-09709-277-1 03 1 0712- ●
223 CLIP; AIR TANK HARNESS
(C) ID=10 & 15 		1-09709-279-1 01 1 0712- ●
223 CLIP; AIR TANK HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0712-0906 ●
223 CLIP; AIR TANK HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0907- ●
231 CLIP; BAND,OIL PRESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=180 		1-09707-162-1 01 1 0710-0711 ●
231 CLIP; BAND,OIL PRESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=180 		1-09707-162-1 01 1 0712-0712 ● ●
231 CLIP; BAND,OIL PRESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0 		1-09709-274-1 02 1 0710-0711 ●
231 CLIP; BAND,OIL PRESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0 		1-09709-274-1 02 1 0712-0712 ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5 		8-94178-108-0 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5 		8-94178-108-0 01 1 0712- ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5 		8-94178-108-0 01 1 0712- ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0710-0711 ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0712- ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) (J) ID=16 L=28 		0-95235-556-0 02 1 0712- ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 0712- ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) (K) ID=16 L=40 		0-95235-576-0 01 1 0712- ●
305 CLIP; ENG HARNESS
(C) ID=24 L=32 		1-09700-766-1 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(C) ID=24 L=32 		1-09700-766-1 01 1 0712- ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) (C) ID=24 L=32 		1-09700-766-1 01 1 0712- ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0712- ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) (A) ID=25 L=60 		1-09701-041-1 01 1 0712- ●
305 CLIP; ENG HARNESS
(L) ID=19 H=33 L=45 		1-09701-045-0 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(L) ID=19 H=33 L=45 		1-09701-045-0 01 1 0712- ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) (L) ID=19 H=33 L=45 		1-09701-045-0 01 1 0712- ●
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 0712- ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) (I) OD=9 H=6 		1-09709-178-0 01 1 0712- ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-94225-185-0 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-94225-185-0 01 1 0712-0801 ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) (B) ID=18 L=44 		8-94225-185-0 01 1 0712-0801 ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0802- ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) (B) ID=18 L=44 		8-97367-985-1 01 1 0802- ●
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 0712- ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) (H) ID=11 L=45 		8-94296-897-1 01 1 0712- ●
305 CLIP; ENG HARNESS
(E) L=100 		8-94443-021-1 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(E) L=100 		8-94443-021-1 01 1 0712- ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) (E) L=100 		8-94443-021-1 01 1 0712- ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (D) L=250 		5-09707-030-1 01 1 0712-0803 ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (F) L=140 		5-09707-031-1 01 1 0804-0905 ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (F) L=140 		5-09707-031-1 02 1 0906- ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (M) L=350 		8-94152-256-1 01 1 0712-0905 ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (O) L=300 		1-09707-001-1 01 1 0906- ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (N) L=150 		8-97355-273-0 01 1 0712-0905 ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (F) L=140 		5-09707-031-1 01 1 0712-0803 ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (D) L=250 		5-09707-030-1 01 1 0804-0906 ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) (D) L=250 		5-09707-030-1 01 1 0907- ●

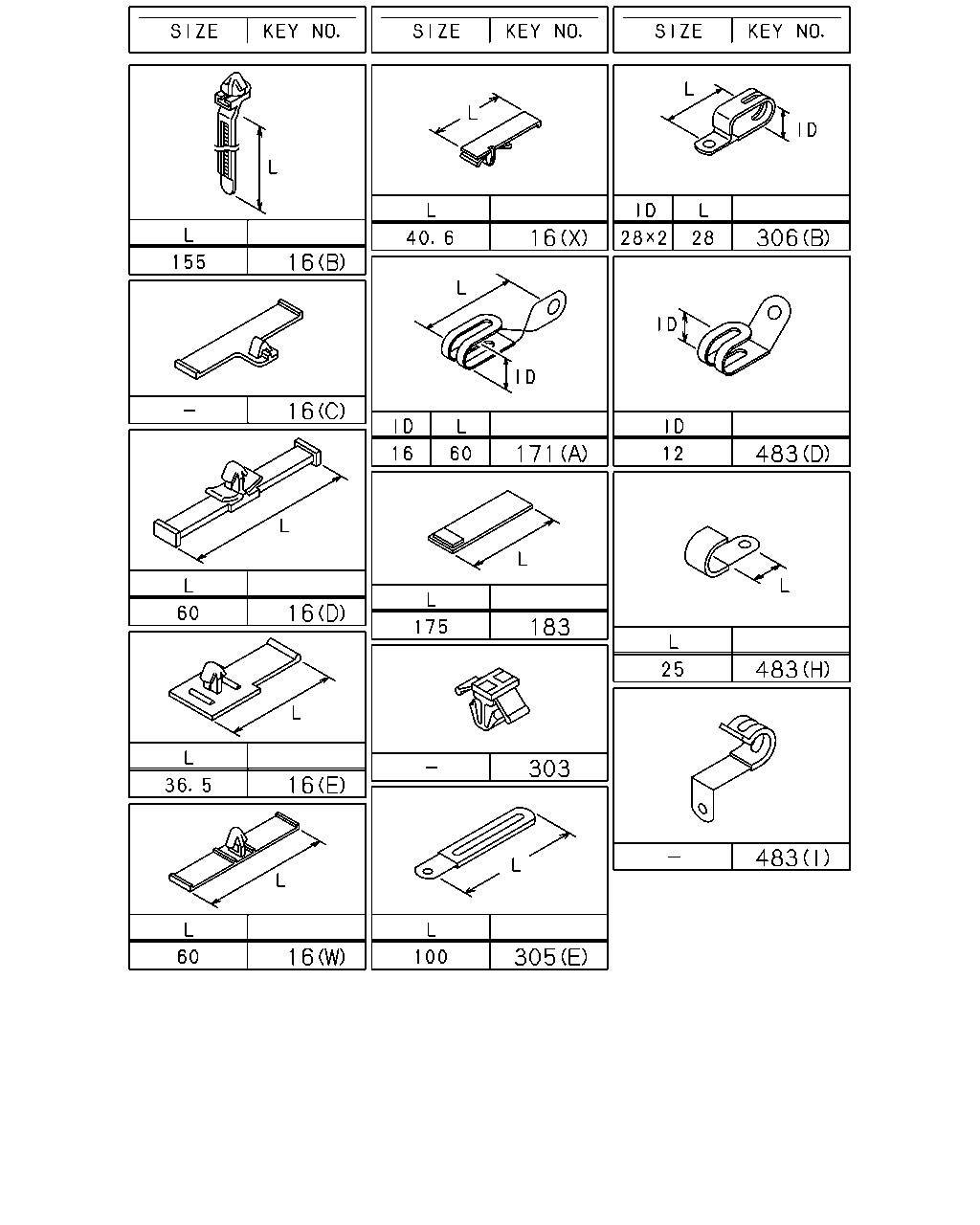

306 CLIP; HARNESS,ELEC GOV
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-0711 ●
306 CLIP; HARNESS,ELEC GOV
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0712- ●
306 CLIP; HARNESS,ELEC GOV
6HK1-TCN ENG(82L) (A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0712- ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 0710-0711 ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 0712- ●
306 CLIP; HARNESS,ELEC GOV
6HK1-TCN ENG(82L) (B) ID=28X2 L=28 		1-09701-302-0 02 1 0712- ●
341 CLIP; BAND,STARTER RELAY
ID=14 L=44 		9-09917-427-0 01 1 0710-0711 ●
341 CLIP; BAND,STARTER RELAY
ID=14 L=44 		9-09917-427-0 01 1 0712-0802 ●
341 CLIP; BAND,STARTER RELAY
6HK1-TCN ENG(82L) ID=14 L=44 		9-09917-427-0 01 1 0712-0802 ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (A) ID=11 H=20 L=25 		1-09700-848-0 01 1 0712-0803 ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (B) ID=18 H=23 L=28 		1-09700-860-0 01 1 0712- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (C) ID=24 L=24 		1-09701-001-1 01 1 0712- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (H) 		1-09701-124-0 01 1 0712-0803 ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (I) 		1-09987-281-0 01 1 0712- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (D) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0712- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (E) ID=18 L=25 		8-94121-004-1 01 1 0712- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (J) ID=21 L=47.5 		8-94178-108-0 01 1 0712- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (F) L=36 		8-94224-891-1 01 1 0712- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (G) ID=14.5 & 6 		8-94312-791-0 01 1 0712-0803 ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (K) ID=21 L=24 		1-09701-201-0 01 1 1005- ●
612 CLIP; HARNESS DPD
(A) ID=11 L=41 		1-09700-403-0 01 1 0710-0711 ●
612 CLIP; HARNESS DPD
(A) ID=11 L=41 		1-09700-403-0 01 1 0712- ● ●
612 CLIP; HARNESS DPD
(D) L=135 		1-09987-143-1 01 1 0710-0711 ●
612 CLIP; HARNESS DPD
(D) L=135 		1-09987-143-1 01 1 0712- ● ●
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 0710-0711 ●
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 0712- ● ●
612 CLIP; HARNESS DPD
(C) T=9 & 10.5 		8-97371-949-0 03 1 0710-0711 ●
612 CLIP; HARNESS DPD
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C) T=9 & 10.5 		8-97371-949-0 03 1 0712-0804 ●
612 CLIP; HARNESS DPD
4HK1-TCS ENG(RJS) (C) T=9 & 10.5 		8-97371-949-0 03 1 0712-0804 ●
612 CLIP; HARNESS DPD
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (C) T=9 & 10.5 		8-97371-949-0 03 1 0712-0804 ●
612 CLIP; HARNESS DPD
(E) ID=4.76 & 10.0 		1-09709-305-0 03 1 0803- ● ●
çizim 109201
308 308 308 308 335 324 312 312 428 428
BalonParca AdiParca NoAdetTipApplied Date A B
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 03 1 0710-0711 ●
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 03 1 0712-0906 ●
308 BRACKET; CLIP,ENG HARNESS
6HK1-TCN ENG(82L) (A) 		8-97601-310-0 03 1 0712-0906 ●
308 BRACKET; CLIP,ENG HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (A) 		8-97601-310-0 03 1 0907-1010 ● ●
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1011- ●
308 BRACKET; CLIP,ENG HARNESS
6HK1-TCN ENG(82L) (A) 		8-97601-310-0 02 1 1011- ●
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97614-078-0 01 1 0710-0711 ●
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97614-078-0 01 1 0712- ●
308 BRACKET; CLIP,ENG HARNESS
6HK1-TCN ENG(82L) (B) 		8-97614-078-0 01 1 0712- ●
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 0710-0711 ●
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 0712- ●
308 BRACKET; CLIP,ENG HARNESS
6HK1-TCN ENG(82L) (C) 		8-98021-291-2 01 1 0712- ●
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98021-692-1 01 1 0710-0711 ●
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98021-692-1 01 1 0712- ●
308 BRACKET; CLIP,ENG HARNESS
6HK1-TCN ENG(82L) (D) 		8-98021-692-1 01 1 0712- ●
312 BRACKET; CLIP HARNESS
(B) L=55 		1-47475-304-0 01 1 0710-0711 ●
312 BRACKET; CLIP HARNESS
(B) L=55 		1-47475-304-0 01 1 0712- ● ●
312 BRACKET; CLIP HARNESS
4HK1-TCS ENG(RJS) (A) 		8-98094-804-0 01 1 0712- ●
324 BRACKET; CLIP 8-98061-654-2 01 1 0710-0711 ●
324 BRACKET; CLIP 8-98061-654-2 01 1 0712- ● ●
324 BRACKET; CLIP 8-98061-653-2 01 1 0710-0711 ●
324 BRACKET; CLIP 8-98061-653-2 01 1 0712- ● ●
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 0710-0711 ●
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 0712- ● ●
428 BRACKET
(B) 		8-98090-952-0 01 1 0710-0711 ●
428 BRACKET
(B) 		8-98090-952-0 01 1 0712- ●
428 BRACKET
6HK1-TCN ENG(82L) (B) 		8-98090-952-0 01 1 0712- ●
428 BRACKET
4HK1-TCS ENG(RJS) (A) 		8-98090-951-0 01 1 0712-0806 ●
428 BRACKET
4HK1-TCS ENG(RJS) (A) 		8-98116-461-0 01 1 0807- ●
çizim 109203
16 306 16 16 171 483 16 183 483 303 16 483 16 305
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(I) ID=11 L=16 		0-95235-025-0 02 1 0710-0711 ●
16 CLIP; HARNESS
(I) ID=11 L=16 		0-95235-025-0 02 1 0712- ● ●
16 CLIP; HARNESS
(M) ID=11 L=60 		0-95235-096-0 01 1 0710-0711 ●
16 CLIP; HARNESS
(M) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ● ●
16 CLIP; HARNESS
(G) ID=22 L=32 		1-09700-126-1 01 1 0710-0711 ●
16 CLIP; HARNESS
(G) ID=22 L=32 		1-09700-126-1 01 1 0712-0712 ●
16 CLIP; HARNESS
6HK1-TCN ENG(82L) (G) ID=22 L=32 		1-09700-126-1 01 1 0712-0712 ●
16 CLIP; HARNESS
(J) ID=11X2 L=16 		1-09700-734-0 01 1 0710-0711 ●
16 CLIP; HARNESS
(J) ID=11X2 L=16 		1-09700-734-0 01 1 0712- ● ●
16 CLIP; HARNESS
(H) ID=10 & 10 		1-09709-277-1 03 1 0710-0711 ●
16 CLIP; HARNESS
(H) ID=10 & 10 		1-09709-277-1 03 1 0712-0911 ● ●
16 CLIP; HARNESS
(H) ID=10 & 10 		1-09709-277-1 04 1 0912- ●
16 CLIP; HARNESS
6HK1-TCN ENG(82L) (H) ID=10 & 10 		1-09709-277-1 04 1 0912- ●
16 CLIP; HARNESS
(F) ID=5-12 L=14.5 		1-09987-221-0 03 1 0710-0711 ●
16 CLIP; HARNESS
(F) ID=5-12 L=14.5 		1-09987-221-0 03 1 0712- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0710-0711 ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0712- ● ●
16 CLIP; HARNESS
(D) L=60 		8-94449-165-0 02 1 0710-0711 ●
16 CLIP; HARNESS
(D) L=60 		8-94449-165-0 02 1 0712-0802 ● ●
16 CLIP; HARNESS
(D) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(X) L=40.6 		8-97229-357-0 02 1 0803- ● ●
16 CLIP; HARNESS
(X) L=40.6 		8-97229-357-0 02 1 0803- ●
16 CLIP; HARNESS
(E) L=36.5 		8-97019-892-0 02 1 0710-0711 ●
16 CLIP; HARNESS
(E) L=36.5 		8-97019-892-0 02 1 0712-0802 ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0710-0711 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0712- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0710-0711 ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0712- ● ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (L) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0710-0711 ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (L) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0712- ● ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (K) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710-0711 ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (K) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712- ● ●
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (Y) OD=9 H=6 		1-09709-178-0 01 1 0804- ● ●
16 CLIP; HARNESS
(V) ID=13-18 L=18 		1-09709-291-0 01 1 0712-0901 ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (V) ID=13-18 L=18 		1-09709-291-0 01 1 0902- ●
16 CLIP; HARNESS
(W) L=60 		8-97063-335-0 02 1 0712- ●
16 CLIP; HARNESS
(X) L=40.6 		8-97229-357-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(D) L=60 		8-94449-165-0 02 1 0803- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (O) ID=28 L=78 		1-09700-858-0 01 1 0712- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (N) ID=35 L=33 		1-09700-945-0 01 1 0712- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (P) ID=19 L=39 H=21 		1-09700-972-1 01 1 0712-0807 ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (Q) ID=24 L=24 		1-09701-001-1 02 1 0712- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (R) L=250 		1-09707-126-0 01 1 0712-0806 ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (R) L=250 		1-09707-126-0 02 1 0807- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (T) ID=19 H=21 L=24 		5-09700-360-0 01 1 0712- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (U) L=140 		5-09707-031-1 02 1 0712-0712 ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (S) ID=5-12 L=18 		1-09709-287-0 02 1 0712- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (H) ID=10 & 10 		1-09709-277-1 03 1 0912- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (Z) ID=10 & 12 		1-09709-278-1 02 1 0912- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (U) L=140 		5-09707-031-1 01 1 0712-0712 ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (H) 		8-97375-754-0 01 1 0806-0809 ●
171 CLIP; STARTER HARNESS
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (H) 		8-97375-754-0 01 1 0806-0809 ●
171 CLIP; STARTER HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28 		0-95235-055-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28 		0-95235-055-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) ID=16 L=28 		0-95235-556-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) ID=16 L=28 		0-95235-556-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=9 H=6 		1-09709-178-0 02 1 0806- ●
171 CLIP; STARTER HARNESS
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=9 H=6 		1-09709-178-0 02 1 0806- ●
171 CLIP; STARTER HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=13-18 L=14.5 		1-09709-290-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=13-18 L=14.5 		1-09709-290-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=5-12 L=14.5 		1-09987-221-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=5-12 L=14.5 		1-09987-221-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (I) L=180 		1-09707-162-1 01 1 0806- ●
171 CLIP; STARTER HARNESS
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=9 H=6 		1-09709-178-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (J) L=36 		8-94224-891-1 01 1 0806- ●
171 CLIP; STARTER HARNESS
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 0712-0803 ●
171 CLIP; STARTER HARNESS
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 0804-0906 ●
171 CLIP; STARTER HARNESS
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 0907- ●
171 CLIP; STARTER HARNESS
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97101-436-0 01 1 0712-0803 ●
171 CLIP; STARTER HARNESS
4HK1-TCS ENG(RJS) (A) 		8-97101-436-0 01 1 0804- ●
183 CLIP; CONNECTOR
L=175 		1-09707-178-0 01 1 0712-0803 ●
303 CLIP; HARNESS POWER TILT RELAY 8-97375-754-0 01 1 0712- ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5 		8-94178-108-0 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5 		8-94178-108-0 01 1 0712- ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5 		8-94178-108-0 01 1 0712- ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0710-0711 ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0712- ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) (J) ID=16 L=28 		0-95235-556-0 02 1 0712- ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 0712- ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) (K) ID=16 L=40 		0-95235-576-0 01 1 0712- ●
305 CLIP; ENG HARNESS
(C) ID=24 L=32 		1-09700-766-1 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(C) ID=24 L=32 		1-09700-766-1 01 1 0712- ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) (C) ID=24 L=32 		1-09700-766-1 01 1 0712- ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0712- ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) (A) ID=25 L=60 		1-09701-041-1 01 1 0712- ●
305 CLIP; ENG HARNESS
(L) ID=19 H=33 L=45 		1-09701-045-0 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(L) ID=19 H=33 L=45 		1-09701-045-0 01 1 0712- ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) (L) ID=19 H=33 L=45 		1-09701-045-0 01 1 0712- ●
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 0712- ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) (I) OD=9 H=6 		1-09709-178-0 01 1 0712- ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-94225-185-0 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-94225-185-0 01 1 0712-0801 ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) (B) ID=18 L=44 		8-94225-185-0 01 1 0712-0801 ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0802- ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) (B) ID=18 L=44 		8-97367-985-1 01 1 0802- ●
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 0712- ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) (H) ID=11 L=45 		8-94296-897-1 01 1 0712- ●
305 CLIP; ENG HARNESS
(E) L=100 		8-94443-021-1 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(E) L=100 		8-94443-021-1 01 1 0712- ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) (E) L=100 		8-94443-021-1 01 1 0712- ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (D) L=250 		5-09707-030-1 01 1 0712-0803 ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (F) L=140 		5-09707-031-1 01 1 0804-0905 ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (F) L=140 		5-09707-031-1 02 1 0906- ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (M) L=350 		8-94152-256-1 01 1 0712-0905 ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (O) L=300 		1-09707-001-1 01 1 0906- ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (N) L=150 		8-97355-273-0 01 1 0712-0905 ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (F) L=140 		5-09707-031-1 01 1 0712-0803 ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (D) L=250 		5-09707-030-1 01 1 0804-0906 ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) (D) L=250 		5-09707-030-1 01 1 0907- ●
306 CLIP; HARNESS,ELEC GOV
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-0711 ●
306 CLIP; HARNESS,ELEC GOV
(A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0712- ●
306 CLIP; HARNESS,ELEC GOV
6HK1-TCN ENG(82L) (A) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0712- ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 0710-0711 ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 0712- ●
306 CLIP; HARNESS,ELEC GOV
6HK1-TCN ENG(82L) (B) ID=28X2 L=28 		1-09701-302-0 02 1 0712- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (A) ID=11 H=20 L=25 		1-09700-848-0 01 1 0712-0803 ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (B) ID=18 H=23 L=28 		1-09700-860-0 01 1 0712- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (C) ID=24 L=24 		1-09701-001-1 01 1 0712- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (H) 		1-09701-124-0 01 1 0712-0803 ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (I) 		1-09987-281-0 01 1 0712- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (D) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0712- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (E) ID=18 L=25 		8-94121-004-1 01 1 0712- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (J) ID=21 L=47.5 		8-94178-108-0 01 1 0712- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (F) L=36 		8-94224-891-1 01 1 0712- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (G) ID=14.5 & 6 		8-94312-791-0 01 1 0712-0803 ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (K) ID=21 L=24 		1-09701-201-0 01 1 1005- ●
çizim 109207
16 171 16 37 171 305 305 48 16 171 16 81 171 223 235 305 470 48 16 48 171 223 16 171 235 16 37 48 16 48 483 16 305 171 612 235 483 116
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(I) ID=11 L=16 		0-95235-025-0 02 1 0710-0711 ●
16 CLIP; HARNESS
(I) ID=11 L=16 		0-95235-025-0 02 1 0712- ● ●
16 CLIP; HARNESS
(M) ID=11 L=60 		0-95235-096-0 01 1 0710-0711 ●
16 CLIP; HARNESS
(M) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ● ●
16 CLIP; HARNESS
(G) ID=22 L=32 		1-09700-126-1 01 1 0710-0711 ●
16 CLIP; HARNESS
(G) ID=22 L=32 		1-09700-126-1 01 1 0712-0712 ●
16 CLIP; HARNESS
6HK1-TCN ENG(82L) (G) ID=22 L=32 		1-09700-126-1 01 1 0712-0712 ●
16 CLIP; HARNESS
(J) ID=11X2 L=16 		1-09700-734-0 01 1 0710-0711 ●
16 CLIP; HARNESS
(J) ID=11X2 L=16 		1-09700-734-0 01 1 0712- ● ●
16 CLIP; HARNESS
(H) ID=10 & 10 		1-09709-277-1 03 1 0710-0711 ●
16 CLIP; HARNESS
(H) ID=10 & 10 		1-09709-277-1 03 1 0712-0911 ● ●
16 CLIP; HARNESS
(H) ID=10 & 10 		1-09709-277-1 04 1 0912- ●
16 CLIP; HARNESS
6HK1-TCN ENG(82L) (H) ID=10 & 10 		1-09709-277-1 04 1 0912- ●
16 CLIP; HARNESS
(F) ID=5-12 L=14.5 		1-09987-221-0 03 1 0710-0711 ●
16 CLIP; HARNESS
(F) ID=5-12 L=14.5 		1-09987-221-0 03 1 0712- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0710-0711 ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0712- ● ●
16 CLIP; HARNESS
(D) L=60 		8-94449-165-0 02 1 0710-0711 ●
16 CLIP; HARNESS
(D) L=60 		8-94449-165-0 02 1 0712-0802 ● ●
16 CLIP; HARNESS
(D) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(X) L=40.6 		8-97229-357-0 02 1 0803- ● ●
16 CLIP; HARNESS
(X) L=40.6 		8-97229-357-0 02 1 0803- ●
16 CLIP; HARNESS
(E) L=36.5 		8-97019-892-0 02 1 0710-0711 ●
16 CLIP; HARNESS
(E) L=36.5 		8-97019-892-0 02 1 0712-0802 ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0710-0711 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0712- ● ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0710-0711 ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0712- ● ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (L) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0710-0711 ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (L) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0712- ● ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (K) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710-0711 ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (K) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712- ● ●
16 CLIP; HARNESS
EXC. H.S.A SYSTEM<6EP> (Y) OD=9 H=6 		1-09709-178-0 01 1 0804- ● ●
16 CLIP; HARNESS
(V) ID=13-18 L=18 		1-09709-291-0 01 1 0712-0901 ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (V) ID=13-18 L=18 		1-09709-291-0 01 1 0902- ●
16 CLIP; HARNESS
(W) L=60 		8-97063-335-0 02 1 0712- ●
16 CLIP; HARNESS
(X) L=40.6 		8-97229-357-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(D) L=60 		8-94449-165-0 02 1 0803- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (O) ID=28 L=78 		1-09700-858-0 01 1 0712- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (N) ID=35 L=33 		1-09700-945-0 01 1 0712- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (P) ID=19 L=39 H=21 		1-09700-972-1 01 1 0712-0807 ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (Q) ID=24 L=24 		1-09701-001-1 02 1 0712- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (R) L=250 		1-09707-126-0 01 1 0712-0806 ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (R) L=250 		1-09707-126-0 02 1 0807- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (T) ID=19 H=21 L=24 		5-09700-360-0 01 1 0712- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (U) L=140 		5-09707-031-1 02 1 0712-0712 ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (S) ID=5-12 L=18 		1-09709-287-0 02 1 0712- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (H) ID=10 & 10 		1-09709-277-1 03 1 0912- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) (Z) ID=10 & 12 		1-09709-278-1 02 1 0912- ●
16 CLIP; HARNESS
4HK1-TCS ENG(RJS) GENERATOR 24V90A(K44) (U) L=140 		5-09707-031-1 01 1 0712-0712 ●
37 CLIP; HARNESS,POWER TILT
(A) ID=16 L=28 		0-95235-556-0 01 1 0712- ●
37 CLIP; HARNESS,POWER TILT
(B) ID=13-18 L=18 		1-09709-291-0 02 1 0712- ●
37 CLIP; HARNESS,POWER TILT
(C) L=250 		5-09707-030-1 01 1 0712- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5100MM(51W),WHEEL BASE 5500MM(55W) (O) ID=13-18 L=18 		1-09709-291-0 01 1 0805- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5100MM(51W) (O) ID=13-18 L=18 		1-09709-291-0 01 1 0805- ●
48 CLIP; FRAME HARNESS
(E) L=600 		1-09707-107-1 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(E) L=600 		1-09707-107-1 01 1 0712-0901 ● ●
48 CLIP; FRAME HARNESS
(E) L=600 		1-09707-107-1 01 1 0902- ●
48 CLIP; FRAME HARNESS
(J) L=350 		1-09707-183-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(J) L=350 		1-09707-183-0 01 1 0712- ● ●
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(C) OD=9 H=9.5 		1-09709-179-0 01 1 0712- ● ●
48 CLIP; FRAME HARNESS
(G) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(G) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712-0901 ● ●
48 CLIP; FRAME HARNESS
(G) ID=5-12 L=14.5 		1-09987-221-0 02 1 0902- ●
48 CLIP; FRAME HARNESS
(H) ID=17.5X2 L=42 		5-09700-358-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(H) ID=17.5X2 L=42 		5-09700-358-0 01 1 0712- ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 04 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 04 1 0712-0805 ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 04 1 0806-0809 ● ●
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=250 		5-09707-030-1 04 1 0806-0809 ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 04 1 0810-0901 ● ●
48 CLIP; FRAME HARNESS
(A) L=250 		5-09707-030-1 04 1 0902- ●
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 0712-0901 ● ●
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 0902- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0712-0901 ● ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0902- ● ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(D) ID=20 L=50 		9-09917-430-0 02 1 0712-1201 ● ●
48 CLIP; FRAME HARNESS
(L) ID=14 L=44 		9-09917-427-0 02 1 1202- ● ●
48 CLIP; FRAME HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) ID=32 L=50 		1-09701-055-1 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) ID=32 L=50 		1-09701-055-1 01 1 0712- ● ●
48 CLIP; FRAME HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (K) ID=35 L=50 		1-09701-214-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (K) ID=35 L=50 		1-09701-214-0 01 1 0712- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4300MM(43W) (D) ID=20 L=50 		9-09917-430-0 14 1 0710-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4300MM(43W) (D) ID=20 L=50 		9-09917-430-0 13 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4300MM(43W) (L) ID=14 L=44 		9-09917-427-0 13 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5100MM(51W) (D) ID=20 L=50 		9-09917-430-0 19 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5100MM(51W) (D) ID=20 L=50 		9-09917-430-0 19 1 0712-0804 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5100MM(51W) (D) ID=20 L=50 		9-09917-430-0 18 1 0805-0902 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5100MM(51W) (D) ID=20 L=50 		9-09917-430-0 16 1 0903-1007 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5100MM(51W) (L) ID=14 L=44 		9-09917-427-0 16 1 1008- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (D) ID=20 L=50 		9-09917-430-0 22 1 0710-0804 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (D) ID=20 L=50 		9-09917-430-0 21 1 0805-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (D) ID=20 L=50 		9-09917-430-0 19 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (L) ID=14 L=44 		9-09917-427-0 19 1 1008- ●
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (N) L=180 		1-09707-162-1 01 1 0806-0809 ●
48 CLIP; FRAME HARNESS
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=250 		5-09707-030-1 02 1 0810- ●
48 CLIP; FRAME HARNESS
6HK1-TCN ENG(82L) (M) ID=19 L=28 		0-95235-856-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
6HK1-TCN ENG(82L) (M) ID=16 L=28 		0-95235-556-0 01 1 0803- ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=180 		1-09707-162-1 01 1 0712-0901 ● ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6 		1-09709-178-0 01 1 0803-1010 ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6 		1-09709-178-0 01 1 1011- ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0 		1-09709-274-1 02 1 0712- ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 02 1 1202- ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 04 1 0710-0711 ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 04 1 0712- ● ●
171 CLIP; STARTER HARNESS
MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (H) 		8-97375-754-0 01 1 0806-0809 ●
171 CLIP; STARTER HARNESS
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (H) 		8-97375-754-0 01 1 0806-0809 ●
171 CLIP; STARTER HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28 		0-95235-055-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=11 L=28 		0-95235-055-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) ID=16 L=28 		0-95235-556-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) ID=16 L=28 		0-95235-556-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=9 H=6 		1-09709-178-0 02 1 0806- ●
171 CLIP; STARTER HARNESS
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=9 H=6 		1-09709-178-0 02 1 0806- ●
171 CLIP; STARTER HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=13-18 L=14.5 		1-09709-290-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) ID=13-18 L=14.5 		1-09709-290-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=5-12 L=14.5 		1-09987-221-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=5-12 L=14.5 		1-09987-221-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (I) L=180 		1-09707-162-1 01 1 0806- ●
171 CLIP; STARTER HARNESS
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) OD=9 H=6 		1-09709-178-0 01 1 0806- ●
171 CLIP; STARTER HARNESS
4HK1-TCS ENG(RJS) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (J) L=36 		8-94224-891-1 01 1 0806- ●
171 CLIP; STARTER HARNESS
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 0712-0803 ●
171 CLIP; STARTER HARNESS
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 0804-0906 ●
171 CLIP; STARTER HARNESS
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) OD=8 H=3.8 		1-09709-309-0 01 1 0907- ●
171 CLIP; STARTER HARNESS
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-97101-436-0 01 1 0712-0803 ●
171 CLIP; STARTER HARNESS
4HK1-TCS ENG(RJS) (A) 		8-97101-436-0 01 1 0804- ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 03 1 0710-0711 ●
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 03 1 0712- ● ●
223 CLIP; AIR TANK HARNESS
(B) ID=10 & 10 		1-09709-277-1 02 1 0804-0905 ●
223 CLIP; AIR TANK HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 04 1 1002- ●
223 CLIP; AIR TANK HARNESS
(B) ID=10 & 10 		1-09709-277-1 03 1 0712- ●
223 CLIP; AIR TANK HARNESS
(C) ID=10 & 15 		1-09709-279-1 01 1 0712- ●
223 CLIP; AIR TANK HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0712-0906 ●
223 CLIP; AIR TANK HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0907- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) OD=9 H=6 		1-09709-178-0 01 1 0710-0711 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) OD=9 H=6 		1-09709-178-0 01 1 0712- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
6HK1-TCN ENG(82L) (B) OD=9 H=6 		1-09709-178-0 01 1 0712- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=13-18 L=14.5 		1-09709-290-0 01 1 0710-0711 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=13-18 L=14.5 		1-09709-290-0 01 1 0712- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=12 L=35 		5-09700-206-0 01 1 0806- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=12 L=35 		5-09700-206-0 01 1 0806- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
4HK1-TCS ENG(RJS) (B) OD=9 H=6 		1-09709-178-0 02 1 0712- ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5 		8-94178-108-0 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5 		8-94178-108-0 01 1 0712- ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5 		8-94178-108-0 01 1 0712- ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0710-0711 ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0712- ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) (J) ID=16 L=28 		0-95235-556-0 02 1 0712- ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 0712- ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) (K) ID=16 L=40 		0-95235-576-0 01 1 0712- ●
305 CLIP; ENG HARNESS
(C) ID=24 L=32 		1-09700-766-1 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(C) ID=24 L=32 		1-09700-766-1 01 1 0712- ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) (C) ID=24 L=32 		1-09700-766-1 01 1 0712- ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0712- ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) (A) ID=25 L=60 		1-09701-041-1 01 1 0712- ●
305 CLIP; ENG HARNESS
(L) ID=19 H=33 L=45 		1-09701-045-0 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(L) ID=19 H=33 L=45 		1-09701-045-0 01 1 0712- ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) (L) ID=19 H=33 L=45 		1-09701-045-0 01 1 0712- ●
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 0712- ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) (I) OD=9 H=6 		1-09709-178-0 01 1 0712- ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-94225-185-0 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-94225-185-0 01 1 0712-0801 ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) (B) ID=18 L=44 		8-94225-185-0 01 1 0712-0801 ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0802- ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) (B) ID=18 L=44 		8-97367-985-1 01 1 0802- ●
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 0712- ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) (H) ID=11 L=45 		8-94296-897-1 01 1 0712- ●
305 CLIP; ENG HARNESS
(E) L=100 		8-94443-021-1 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(E) L=100 		8-94443-021-1 01 1 0712- ●
305 CLIP; ENG HARNESS
6HK1-TCN ENG(82L) (E) L=100 		8-94443-021-1 01 1 0712- ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (D) L=250 		5-09707-030-1 01 1 0712-0803 ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (F) L=140 		5-09707-031-1 01 1 0804-0905 ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (F) L=140 		5-09707-031-1 02 1 0906- ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (M) L=350 		8-94152-256-1 01 1 0712-0905 ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (O) L=300 		1-09707-001-1 01 1 0906- ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (N) L=150 		8-97355-273-0 01 1 0712-0905 ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (F) L=140 		5-09707-031-1 01 1 0712-0803 ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) MZX6P M/T(RSW) (D) L=250 		5-09707-030-1 01 1 0804-0906 ●
305 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) (D) L=250 		5-09707-030-1 01 1 0907- ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0710-0711 ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0712-1205 ● ●
470 CLIP; HARNESS,LICENSE LAMP
COUNTRY NEW ZEALAND(CX6) OD=9 H=6 		1-09709-178-0 01 1 1206- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (A) ID=11 H=20 L=25 		1-09700-848-0 01 1 0712-0803 ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (B) ID=18 H=23 L=28 		1-09700-860-0 01 1 0712- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (C) ID=24 L=24 		1-09701-001-1 01 1 0712- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (H) 		1-09701-124-0 01 1 0712-0803 ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (I) 		1-09987-281-0 01 1 0712- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (D) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0712- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (E) ID=18 L=25 		8-94121-004-1 01 1 0712- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (J) ID=21 L=47.5 		8-94178-108-0 01 1 0712- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (F) L=36 		8-94224-891-1 01 1 0712- ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (G) ID=14.5 & 6 		8-94312-791-0 01 1 0712-0803 ●
483 CLIP; ENG HARNESS
4HK1-TCS ENG(RJS) (K) ID=21 L=24 		1-09701-201-0 01 1 1005- ●
612 CLIP; HARNESS DPD
(A) ID=11 L=41 		1-09700-403-0 01 1 0710-0711 ●
612 CLIP; HARNESS DPD
(A) ID=11 L=41 		1-09700-403-0 01 1 0712- ● ●
612 CLIP; HARNESS DPD
(D) L=135 		1-09987-143-1 01 1 0710-0711 ●
612 CLIP; HARNESS DPD
(D) L=135 		1-09987-143-1 01 1 0712- ● ●
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 0710-0711 ●
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 0712- ● ●
612 CLIP; HARNESS DPD
(C) T=9 & 10.5 		8-97371-949-0 03 1 0710-0711 ●
612 CLIP; HARNESS DPD
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (C) T=9 & 10.5 		8-97371-949-0 03 1 0712-0804 ●
612 CLIP; HARNESS DPD
4HK1-TCS ENG(RJS) (C) T=9 & 10.5 		8-97371-949-0 03 1 0712-0804 ●
612 CLIP; HARNESS DPD
6HK1-TCN ENG(82L) WHEEL BASE 5100MM(51W) (C) T=9 & 10.5 		8-97371-949-0 03 1 0712-0804 ●
612 CLIP; HARNESS DPD
(E) ID=4.76 & 10.0 		1-09709-305-0 03 1 0803- ● ●
çizim 109208
7 53 53 59 59 59 59 59 69 59 59 69 137 69 137 137 137 137 137 137 137
BalonParca AdiParca NoAdetTipApplied Date A B
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 0710-0711 ●
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 0712- ● ●
53 BRACKET; HARNESS
(B) 		8-98052-458-0 01 1 0710-0711 ●
53 BRACKET; HARNESS
(B) 		8-98052-458-0 01 1 0712- ● ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98084-590-0 01 1 0710-0711 ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98084-590-0 01 1 0712- ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98084-590-0 01 1 0712- ●
59 BRACKET; FRAME HARNESS
(C) 		8-97609-264-2 01 1 0710-0711 ●
59 BRACKET; FRAME HARNESS
(C) 		8-97609-264-2 01 1 0712-0802 ● ●
59 BRACKET; FRAME HARNESS
(C) 		8-97609-264-2 01 1 0803-0803 ●
59 BRACKET; FRAME HARNESS
6HK1-TCN ENG(82L) (C) 		8-97609-264-2 01 1 0803-0803 ●
59 BRACKET; FRAME HARNESS
MZX6P M/T(RSW) (C) 		8-97609-264-2 01 1 0804-0906 ●
59 BRACKET; FRAME HARNESS
6HK1-TCN ENG(82L) MZX6P M/T(RSW) (C) 		8-97609-264-2 01 1 0804-0906 ●
59 BRACKET; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) (C) 		8-97609-264-2 01 1 0907- ●
59 BRACKET; FRAME HARNESS
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) (C) 		8-97609-264-2 01 1 0907- ●
59 BRACKET; FRAME HARNESS
(E) 		8-97619-533-0 01 1 0710-0711 ●
59 BRACKET; FRAME HARNESS
(E) 		8-97619-533-0 01 1 0712- ● ●
59 BRACKET; FRAME HARNESS
(A) L=85 		8-98044-743-0 01 1 0710-0711 ●
59 BRACKET; FRAME HARNESS
(A) L=85 		8-98044-743-0 01 1 0712-0802 ●
59 BRACKET; FRAME HARNESS
6HK1-TCN ENG(82L) (A) L=85 		8-98044-743-0 01 1 0712-0802 ●
59 BRACKET; FRAME HARNESS
(A) L=85 		8-98044-743-0 01 1 0803- ●
59 BRACKET; FRAME HARNESS
(D) 		8-97616-305-0 01 1 0710-0711 ●
59 BRACKET; FRAME HARNESS
(D) 		8-97616-305-0 01 1 0712- ● ●
59 BRACKET; FRAME HARNESS
(B) 		8-97619-534-0 01 1 0710-0711 ●
59 BRACKET; FRAME HARNESS
(B) 		8-97619-534-0 01 1 0712- ●
59 BRACKET; FRAME HARNESS
6HK1-TCN ENG(82L) (B) 		8-97619-534-0 01 1 0712- ●
59 BRACKET; FRAME HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97627-325-0 01 1 0806- ●
59 BRACKET; FRAME HARNESS
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-97627-325-0 01 1 0806- ●
59 BRACKET; FRAME HARNESS
4HK1-TCS ENG(RJS) (F) 		8-97619-535-0 01 1 0712- ●
59 BRACKET; FRAME HARNESS
4HK1-TCS ENG(RJS) (C) 		8-98099-963-0 01 1 0803- ●
59 BRACKET; FRAME HARNESS
6HK1-TCN ENG(82L) (G) L=75 		1-47478-323-0 01 1 0712- ●
69 BRACKET; CLIP
(B) 		8-97616-357-3 01 1 0710-0711 ●
69 BRACKET; CLIP
(B) 		8-97616-357-3 01 1 0712- ●
69 BRACKET; CLIP
6HK1-TCN ENG(82L) (B) 		8-97616-357-3 01 1 0712- ●
69 BRACKET; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=55 		1-47475-304-0 01 1 0803-0803 ● ●
69 BRACKET; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		1-82698-167-0 01 1 0804- ● ●
137 BRACKET; HARNESS CLAMP
4HK1-TCS ENG(RJS) (F) 		8-98058-354-1 01 1 0712- ●
137 BRACKET; HARNESS CLAMP
(E) 		8-97614-728-1 01 1 0710-0711 ●
137 BRACKET; HARNESS CLAMP
(E) 		8-97614-728-1 01 1 0712- ●
137 BRACKET; HARNESS CLAMP
6HK1-TCN ENG(82L) (E) 		8-97614-728-1 01 1 0712- ●
137 BRACKET; HARNESS CLAMP
(C) 		8-97618-098-2 01 1 0710-0711 ●
137 BRACKET; HARNESS CLAMP
(C) 		8-97618-098-2 01 1 0712- ● ●
137 BRACKET; HARNESS CLAMP
(B) 		8-97622-657-0 01 1 0710-0710 ●
137 BRACKET; HARNESS CLAMP
(H) 		8-97624-013-0 01 1 0711-0711 ●
137 BRACKET; HARNESS CLAMP
(H) 		8-97624-013-0 01 1 0712- ●
137 BRACKET; HARNESS CLAMP
6HK1-TCN ENG(82L) (H) 		8-97624-013-0 01 1 0712- ●
137 BRACKET; HARNESS CLAMP
(A) 		8-98065-904-0 01 1 0710-0711 ●
137 BRACKET; HARNESS CLAMP
(A) 		8-98065-904-0 01 1 0712- ● ●
137 BRACKET; HARNESS CLAMP
(D) 		8-98059-231-1 01 1 0710-0711 ●
137 BRACKET; HARNESS CLAMP
(D) 		8-98059-231-1 01 1 0712- ●
137 BRACKET; HARNESS CLAMP
6HK1-TCN ENG(82L) (D) 		8-98059-231-1 01 1 0712- ●
137 BRACKET; HARNESS CLAMP
4HK1-TCS ENG(RJS) (G) 		8-98085-819-0 01 1 0712- ●
çizim 109213
150 38 38 38 139 139 150 313 304 38 139 38 139 313 150 304 150 304 139 150 304 150 38 150 304 516 304 139 38 38 386 516 358 377 386
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 03 1 0710-0711 ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 03 1 0712- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0712- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0712- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0712- ●
38 BOLT; CLIP,HARNESS
6HK1-TCN ENG(82L) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0712- ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 03 1 0710-0711 ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 03 1 0712- ●
38 BOLT; CLIP,HARNESS
6HK1-TCN ENG(82L) (B) M8X25 FLANGE 		0-28650-825-0 03 1 0712- ●
38 BOLT; CLIP,HARNESS
(E) M10X30 FLANGE 		0-28651-030-0 01 1 0710-0711 ●
38 BOLT; CLIP,HARNESS
(E) M10X30 FLANGE 		0-28651-030-0 01 1 0712- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0710-0711 ●
38 BOLT; CLIP,HARNESS
(D) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0712-1201 ● ●
38 BOLT; CLIP,HARNESS
(H) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202- ● ●
38 BOLT; CLIP,HARNESS
(F) M8X16 FLANGE 		8-98076-109-0 01 1 0710-0710 ●
38 BOLT; CLIP,HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G) M10X20 FLANGE 		0-28751-020-0 01 1 0806- ●
38 BOLT; CLIP,HARNESS
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G) M10X20 FLANGE 		0-28751-020-0 01 1 0806- ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0712- ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 0710-0711 ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 0712- ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0710-0711 ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0712 ●
139 BOLT; BRKT
6HK1-TCN ENG(82L) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0712 ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0802 ●
139 BOLT; BRKT
6HK1-TCN ENG(82L) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0802 ●
139 BOLT; BRKT
6HK1-TCN ENG(82L) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0802 ●
139 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0803-0901 ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0803-0901 ●
139 BOLT; BRKT
6HK1-TCN ENG(82L) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0803-0901 ●
139 BOLT; BRKT
6HK1-TCN ENG(82L) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0803-0901 ●
139 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0902- ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0902- ●
139 BOLT; BRKT
6HK1-TCN ENG(82L) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0902- ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0710-0711 ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0712- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0710-0711 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0712-0812 ●
139 BOLT; BRKT
6HK1-TCN ENG(82L) (B) M8X30 FLANGE 		0-28650-830-0 02 1 0712-0812 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0901- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0901- ●
139 BOLT; BRKT
6HK1-TCN ENG(82L) (B) M8X30 FLANGE 		0-28650-830-0 02 1 0901- ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0710-0711 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0712-0812 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0710-0711 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0712- ● ●
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 0710-0711 ●
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 0712- ● ●
139 BOLT; BRKT
(G) M10X30 FLANGE 		0-28651-030-0 02 1 0710-0711 ●
139 BOLT; BRKT
(G) M10X30 FLANGE 		0-28651-030-0 02 1 0712- ● ●
139 BOLT; BRKT
(D) M8X25 FLANGE 		0-28050-825-0 02 1 0710-0711 ●
139 BOLT; BRKT
(D) M8X25 FLANGE 		0-28050-825-0 02 1 0712- ● ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (F) T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0710-0711 ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (F) T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0712- ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (F) T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0712- ●
150 BOLT; CLIP
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0710-0711 ●
150 BOLT; CLIP
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0712- ● ●
150 BOLT; CLIP
4HK1-TCS ENG(RJS) (B) M6X10 FLANGE 		0-28050-610-0 01 1 0712-0803 ●
150 BOLT; CLIP
4HK1-TCS ENG(RJS) (C) M6X20 FLANGE 		0-28050-620-0 01 1 0712-1004 ●
150 BOLT; CLIP
4HK1-TCS ENG(RJS) (C) M6X20 FLANGE 		0-28050-620-0 02 1 1005- ●
150 BOLT; CLIP
4HK1-TCS ENG(RJS) (D) M8X12 FLANGE 		0-28050-812-0 01 1 0712- ●
150 BOLT; CLIP
4HK1-TCS ENG(RJS) (E) M8X16 FLANGE 		0-28050-816-0 01 1 0712- ●
150 BOLT; CLIP
4HK1-TCS ENG(RJS) (F) M8X14 FLANGE 		0-28080-814-0 01 1 0712-0803 ●
150 BOLT; CLIP
4HK1-TCS ENG(RJS) (G) M6X16 FLANGE 		0-28650-616-0 01 1 0712- ●
304 BOLT; ENG HARNESS CLIP
(E) M6X12 FLANGE 		0-28050-612-0 01 1 0710-0711 ●
304 BOLT; ENG HARNESS CLIP
(E) M6X12 FLANGE 		0-28050-612-0 01 1 0712- ●
304 BOLT; ENG HARNESS CLIP
6HK1-TCN ENG(82L) (E) M6X12 FLANGE 		0-28050-612-0 01 1 0712- ●
304 BOLT; ENG HARNESS CLIP
(D) M8X10 FLANGE 		0-28050-810-0 01 1 0710-0711 ●
304 BOLT; ENG HARNESS CLIP
(D) M8X10 FLANGE 		0-28050-810-0 01 1 0712-0906 ●
304 BOLT; ENG HARNESS CLIP
6HK1-TCN ENG(82L) (D) M8X10 FLANGE 		0-28050-810-0 01 1 0712-0906 ●
304 BOLT; ENG HARNESS CLIP
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) (D) M8X10 FLANGE 		0-28050-810-0 01 1 0907-1010 ● ●
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 03 1 0710-0711 ●
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 03 1 0712- ●
304 BOLT; ENG HARNESS CLIP
6HK1-TCN ENG(82L) (B) M8X12 FLANGE 		0-28050-812-0 03 1 0712- ●
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0711 ●
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE 		0-28050-816-0 02 1 0712- ●
304 BOLT; ENG HARNESS CLIP
6HK1-TCN ENG(82L) (C) M8X16 FLANGE 		0-28050-816-0 02 1 0712- ●
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 01 1 0710-0711 ●
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 01 1 0712- ●
304 BOLT; ENG HARNESS CLIP
6HK1-TCN ENG(82L) (A) M8X20 FLANGE 		0-28050-820-0 01 1 0712- ●
304 BOLT; ENG HARNESS CLIP
4HK1-TCS ENG(RJS) (C) M8X16 FLANGE 		0-28050-816-0 01 1 0712-0803 ●
304 BOLT; ENG HARNESS CLIP
4HK1-TCS ENG(RJS) (F) M10X16 FLANGE 		0-28151-016-0 01 1 0712-0803 ●
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0710-0711 ●
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0712- ● ●
313 BOLT; BRKT
4HK1-TCS ENG(RJS) (B) M8X30 FLANGE 		0-28650-830-0 01 1 0712- ●
313 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 01 1 0710-0711 ●
313 BOLT; BRKT
(A) M10X30 FLANGE 		0-28651-030-0 01 1 0712- ●
313 BOLT; BRKT
6HK1-TCN ENG(82L) (A) M10X30 FLANGE 		0-28651-030-0 01 1 0712- ●
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0712- ●
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 0710-0711 ●
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 0712- ● ●
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0710-0711 ●
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0712-1202 ● ●
386 BOLT; GRAND HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1203- ● ●
516 BOLT; HARNESS
(B) M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 0710-0711 ●
516 BOLT; HARNESS
(B) M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 0712- ●
516 BOLT; HARNESS
6HK1-TCN ENG(82L) (B) M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 0712- ●
516 BOLT; HARNESS
6HK1-TCC ENG(81L),6HK1-TCN ENG(82L) MLD6Q M/T(X5J),MLD6W M/T(Y2C) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X16 FLANGE 		0-28050-816-0 02 1 0806- ●
516 BOLT; HARNESS
6HK1-TCN ENG(82L) MLD6Q M/T(X5J) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X16 FLANGE 		0-28050-816-0 02 1 0806- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
