8-03 — LAMP; REAR AND REAR SIDE (#19567) — 111 parça

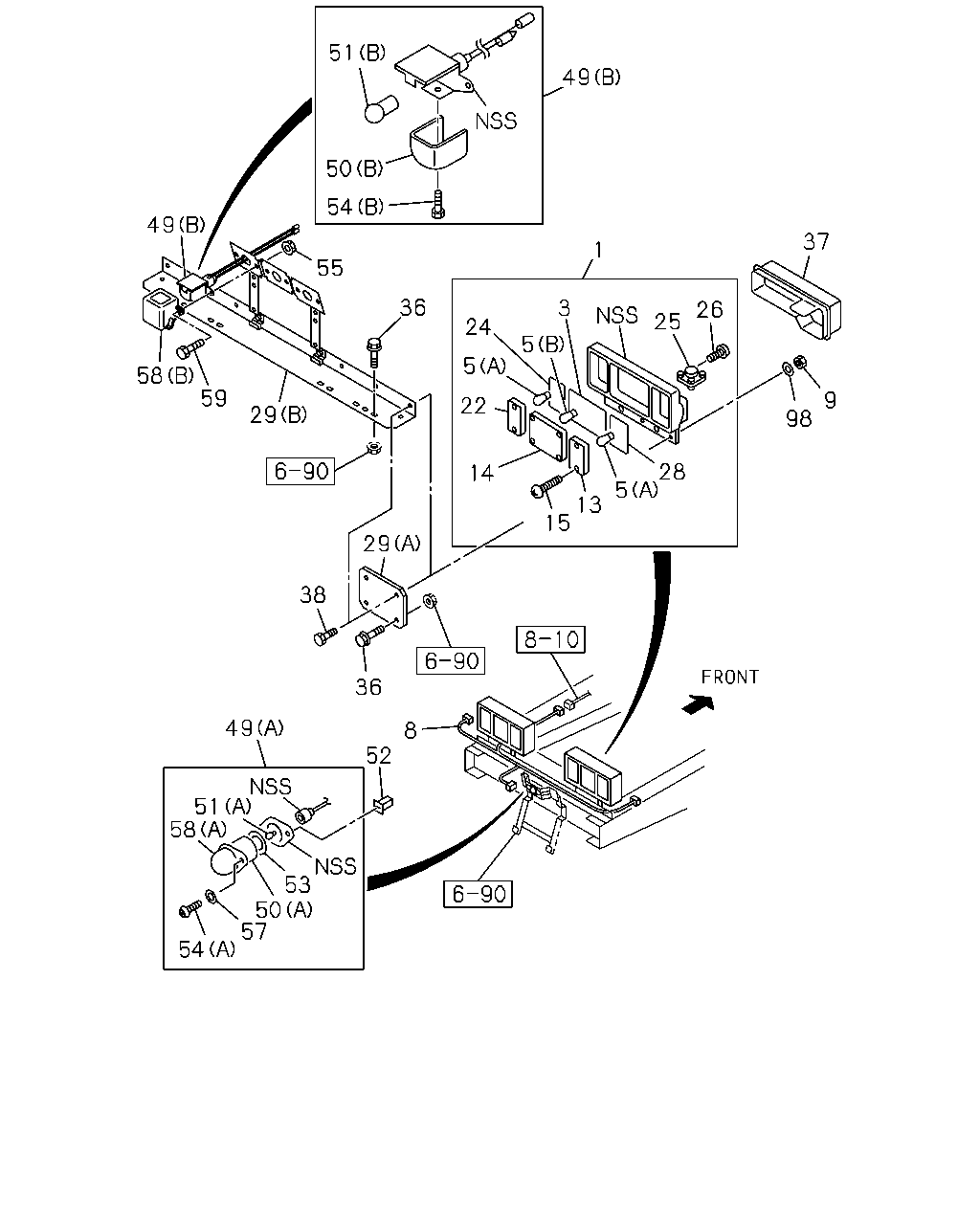

çizim 109186
37 9 98 26 25 1 3 5 24 5 22 14 28 5 13 15 8 36 52 29 38 49 51 50 54 55 49 58 29 59 49 51 58 53 50 57 54 36
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; RR COMB 8-98034-325-0 01 1 0710-0711 ●
1 LAMP ASM; RR COMB 8-98034-325-0 01 1 0712- ● ●
1 LAMP ASM; RR COMB
REVERSING WARNING BUZZER<YM9> 		8-98034-328-0 01 1 0710-0711 ●
1 LAMP ASM; RR COMB
REVERSING WARNING BUZZER<YM9> 		8-98034-328-0 01 1 0712- ● ●
1 LAMP ASM; RR COMB
EXC. REVERSING WARNING BUZZER<YM9> 		8-98034-324-0 01 1 0710-0711 ●
1 LAMP ASM; RR COMB
EXC. REVERSING WARNING BUZZER<YM9> 		8-98034-324-0 01 1 0712- ● ●
3 GASKET; RR COMB LAMP 8-94257-505-0 01 1 0710-0711 ●
3 GASKET; RR COMB LAMP 8-94257-505-0 01 1 0710-0711 ●
3 GASKET; RR COMB LAMP 8-94257-505-0 01 1 0712- ● ●
3 GASKET; RR COMB LAMP 8-94257-505-0 01 1 0712- ● ●
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-108-0 02 1 0710-0711 ●
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-108-0 02 1 0710-0711 ●
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-108-0 02 1 0712- ● ●
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-108-0 02 1 0712- ● ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-109-0 01 1 0710-0711 ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-109-0 01 1 0710-0711 ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-109-0 01 1 0712- ● ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-109-0 01 1 0712- ● ●
8 HARNESS; RR COMB LAMP 8-98064-342-3 01 1 0710-0711 ●
8 HARNESS; RR COMB LAMP 8-98064-342-3 01 1 0712-1201 ● ●
8 HARNESS; RR COMB LAMP 8-98203-887-0 01 1 1202- ● ●
9 NUT; LAMP,RR COMB
M6 		0-91110-506-0 04 1 0710-0711 ●
9 NUT; LAMP,RR COMB
M6 		0-91110-506-0 04 1 0712- ● ●
13 LENS; TURN SIGNAL 8-94174-639-0 01 1 0710-0711 ●
13 LENS; TURN SIGNAL 8-94174-639-0 01 1 0712- ● ●
13 LENS; TURN SIGNAL 8-94174-638-0 01 1 0710-0711 ●
13 LENS; TURN SIGNAL 8-94174-638-0 01 1 0712- ● ●
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-625-0 01 1 0710-0711 ●
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-625-0 01 1 0712- ● ●
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-624-0 01 1 0710-0711 ●
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-624-0 01 1 0712- ● ●
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0710-0711 ●
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0710-0711 ●
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0712- ● ●
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0712- ● ●
22 LENS; BACKUP,RR COMB LAMP 8-94257-512-1 01 1 0710-0711 ●
22 LENS; BACKUP,RR COMB LAMP 8-94257-512-1 01 1 0710-0711 ●
22 LENS; BACKUP,RR COMB LAMP 8-94257-512-1 01 1 0712- ● ●
22 LENS; BACKUP,RR COMB LAMP 8-94257-512-1 01 1 0712- ● ●
24 GASKET; BACK,LAMP 8-94257-506-0 01 1 0710-0711 ●
24 GASKET; BACK,LAMP 8-94257-506-0 01 1 0710-0711 ●
24 GASKET; BACK,LAMP 8-94257-506-0 01 1 0712- ● ●
24 GASKET; BACK,LAMP 8-94257-506-0 01 1 0712- ● ●
25 HORN ASM; BACK
REVERSING WARNING BUZZER<YM9> 		8-94257-518-0 01 1 0710-0711 ●
25 HORN ASM; BACK
REVERSING WARNING BUZZER<YM9> 		8-94257-518-0 01 1 0712- ● ●
26 SCREW; BACK HORN
M4X14 TAPPING 		9-07076-414-0 01 1 0710-0711 ●
26 SCREW; BACK HORN
M4X14 TAPPING 		9-07076-414-0 01 1 0712- ● ●
26 SCREW; BACK HORN
REVERSING WARNING BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 02 1 0710-0711 ●
26 SCREW; BACK HORN
REVERSING WARNING BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 02 1 0712- ● ●
26 SCREW; BACK HORN
EXC. REVERSING WARNING BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 01 1 0710-0711 ●
26 SCREW; BACK HORN
EXC. REVERSING WARNING BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 01 1 0712- ● ●
28 GASKET; TURN,LAMP 8-94257-507-0 01 1 0710-0711 ●
28 GASKET; TURN,LAMP 8-94257-507-0 01 1 0710-0711 ●
28 GASKET; TURN,LAMP 8-94257-507-0 01 1 0712- ● ●
28 GASKET; TURN,LAMP 8-94257-507-0 01 1 0712- ● ●
29 BRACKET; LAMP,RR COMB
EXC. COUNTRY NEW ZEALAND(CX6) (B) 		8-98029-390-3 01 1 1206- ●
29 BRACKET; LAMP,RR COMB
(B) 		8-98029-390-3 01 1 1206- ●
29 BRACKET; LAMP,RR COMB
(A) 		1-82237-050-1 02 1 0710-0711 ●
29 BRACKET; LAMP,RR COMB
(A) 		1-82237-050-1 02 1 0712-1205 ● ●
29 BRACKET; LAMP,RR COMB
COUNTRY NEW ZEALAND(CX6) (A) 		1-82237-050-1 02 1 1206- ●
36 BOLT; BRKT,RR COMB
EXC. COUNTRY NEW ZEALAND(CX6) M8X40 FLANGE 		0-28650-840-0 02 1 1206- ●
36 BOLT; BRKT,RR COMB
M8X40 FLANGE 		0-28650-840-0 02 1 1206- ●
36 BOLT; BRKT,RR COMB
M8X25 FLANGE 		0-28650-825-0 02 1 0710-0711 ●
36 BOLT; BRKT,RR COMB
M8X25 FLANGE 		0-28650-825-0 02 1 0712-1205 ● ●
36 BOLT; BRKT,RR COMB
COUNTRY NEW ZEALAND(CX6) M8X25 FLANGE 		0-28650-825-0 02 1 1206- ●
37 COVER; RR COMB LAMP 8-94129-274-4 01 1 0710-0711 ●
37 COVER; RR COMB LAMP 8-94129-274-4 01 1 0712- ● ●
37 COVER; RR COMB LAMP 8-94128-858-4 01 1 0710-0711 ●
37 COVER; RR COMB LAMP 8-94128-858-4 01 1 0712- ● ●
38 BOLT; LAMP,RR COMB
M6X30 W/LK&PL WASHER 		0-50640-630-0 04 1 0710-0711 ●
38 BOLT; LAMP,RR COMB
M6X30 W/LK&PL WASHER 		0-50640-630-0 04 1 0712- ● ●
49 LAMP; LICENSE PLATE
EXC. COUNTRY NEW ZEALAND(CX6) (B) 24V 5W 		8-97105-380-0 02 1 1206- ●
49 LAMP; LICENSE PLATE
(B) 24V 5W 		8-97105-380-0 02 1 1206- ●
49 LAMP; LICENSE PLATE
(A) 24V 10W 		1-82120-024-1 01 1 0710-0711 ●
49 LAMP; LICENSE PLATE
(A) 24V 10W 		1-82120-024-1 01 1 0712-1205 ● ●
49 LAMP; LICENSE PLATE
COUNTRY NEW ZEALAND(CX6) (A) 24V 10W 		1-82120-024-1 01 1 1206- ●
50 LENS; LICENSE PLATE LAMP
EXC. COUNTRY NEW ZEALAND(CX6) (B) 		8-97108-212-0 02 1 1206- ●
50 LENS; LICENSE PLATE LAMP
(B) 		8-97108-212-0 02 1 1206- ●
50 LENS; LICENSE PLATE LAMP
(A) 		1-82235-006-0 01 1 0710-0711 ●
50 LENS; LICENSE PLATE LAMP
(A) 		1-82235-006-0 01 1 0712-1205 ● ●
50 LENS; LICENSE PLATE LAMP
COUNTRY NEW ZEALAND(CX6) (A) 		1-82235-006-0 01 1 1206- ●
51 BULB; LICENSE PLATE LAMP
EXC. COUNTRY NEW ZEALAND(CX6) (B) 24V 5W 		1-82194-039-0 02 1 1206- ●
51 BULB; LICENSE PLATE LAMP
(B) 24V 5W 		1-82194-039-0 02 1 1206- ●
51 BULB; LICENSE PLATE LAMP
(A) 24V 10W 		1-82194-037-0 01 1 0710-0711 ●
51 BULB; LICENSE PLATE LAMP
(A) 24V 10W 		1-82194-037-0 01 1 0712-1205 ● ●
51 BULB; LICENSE PLATE LAMP
COUNTRY NEW ZEALAND(CX6) (A) 24V 10W 		1-82194-037-0 01 1 1206- ●
52 GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 0710-0711 ●
52 GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 0712-1205 ● ●
52 GROMMET; SCREW,LICENSE PLATE LAMP
COUNTRY NEW ZEALAND(CX6) D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 1206- ●
53 GASKET; LICENSE LAMP 1-82126-005-0 01 1 0710-0711 ●
53 GASKET; LICENSE LAMP 1-82126-005-0 01 1 0712-1205 ● ●
53 GASKET; LICENSE LAMP
COUNTRY NEW ZEALAND(CX6) 		1-82126-005-0 01 1 1206- ●
54 SCREW; LICENSE PLATE LAMP
EXC. COUNTRY NEW ZEALAND(CX6) (B) M4X8 		8-94419-312-0 02 1 1206- ●
54 SCREW; LICENSE PLATE LAMP
(B) M4X8 		8-94419-312-0 02 1 1206- ●
54 SCREW; LICENSE PLATE LAMP
(A) M5X20 		1-82129-007-0 02 1 0710-0711 ●
54 SCREW; LICENSE PLATE LAMP
(A) M5X20 		1-82129-007-0 02 1 0712-1205 ● ●
54 SCREW; LICENSE PLATE LAMP
COUNTRY NEW ZEALAND(CX6) (A) M5X20 		1-82129-007-0 02 1 1206- ●
55 NUT; LICENSE PLATE LAMP
EXC. COUNTRY NEW ZEALAND(CX6) M5 FLANGE 		1-09984-170-0 04 1 1206- ●
55 NUT; LICENSE PLATE LAMP
M5 FLANGE 		1-09984-170-0 04 1 1206- ●
57 WASHER; PL,LICENSE PLATE LAMP 1-82129-008-0 02 1 0710-0711 ●
57 WASHER; PL,LICENSE PLATE LAMP 1-82129-008-0 02 1 0712-1205 ● ●
57 WASHER; PL,LICENSE PLATE LAMP
COUNTRY NEW ZEALAND(CX6) 		1-82129-008-0 02 1 1206- ●
58 COVER; LICENSE PLATE LAMP
EXC. COUNTRY NEW ZEALAND(CX6) (B) 		8-97076-590-1 02 1 1206- ●
58 COVER; LICENSE PLATE LAMP
(B) 		8-97076-590-1 02 1 1206- ●
58 COVER; LICENSE PLATE LAMP
(A) 		1-82129-005-0 01 1 0710-0711 ●
58 COVER; LICENSE PLATE LAMP
(A) 		1-82129-005-0 01 1 0712-1205 ● ●
58 COVER; LICENSE PLATE LAMP
COUNTRY NEW ZEALAND(CX6) (A) 		1-82129-005-0 01 1 1206- ●
59 SCREW; TAP,LICENSE LAMP BODY
EXC. COUNTRY NEW ZEALAND(CX6) M5X20 		9-93490-520-0 04 1 1206- ●
59 SCREW; TAP,LICENSE LAMP BODY
M5X20 		9-93490-520-0 04 1 1206- ●
98 WASHER
ID=6.4 OD=18 		0-91610-706-0 04 1 0710-0711 ●
98 WASHER
ID=6.4 OD=18 		0-91610-706-0 04 1 0712- ● ●
