◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11415 - FRR AUSTRALIA EURO4 EXC.SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#19566) — 192 parça
çizim 108936
331 431 357 399 355 432 32 49 44 47 15 448 421 36
BalonParca AdiParca NoAdetTipApplied Date A B
15 BULB; FOG LAMP
FOG LAMP<T96> 24V 70W 		1-82194-106-0 02 1 0710-0711 ●
15 BULB; FOG LAMP
FOG LAMP<T96> 24V 70W 		1-82194-106-0 02 1 0712- ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97378-909-1 01 1 0710-0711 ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97378-909-1 01 1 0712-0906 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-144-1 01 1 0907-1301 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-059-0 01 1 1302- ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97378-908-1 01 1 0710-0711 ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97378-908-1 01 1 0712-0906 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-143-1 01 1 0907-1301 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-058-0 01 1 1302- ● ●
36 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-016-0 01 1 0710-0711 ●
36 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-016-0 01 1 0712- ● ●
36 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-015-0 01 1 0710-0711 ●
36 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-015-0 01 1 0712- ● ●
44 NUT; FOG LAMP
FOG LAMP<T96> M6 		8-98217-430-0 02 1 1205- ● ●
47 WASHER; PL,FOG LAMP
FOG LAMP<T96> 		8-98217-429-0 02 1 1205- ● ●
47 WASHER; PL,FOG LAMP
FOG LAMP<T96> ID=6.4 		0-91610-606-0 04 1 0710-0711 ●
47 WASHER; PL,FOG LAMP
FOG LAMP<T96> ID=6.4 		0-91610-606-0 04 1 0712-0802 ● ●
49 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-435-0 01 1 0710-0711 ●
49 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-435-0 01 1 0712- ● ●
49 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-436-0 01 1 0710-0711 ●
49 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-436-0 01 1 0712- ● ●
331 LAMP; TURN SIGNAL 8-97585-173-2 01 1 0710-0711 ●
331 LAMP; TURN SIGNAL 8-97585-173-2 01 1 0712-0911 ● ●
331 LAMP; TURN SIGNAL 8-98155-459-0 01 1 0912- ● ●
331 LAMP; TURN SIGNAL 8-97585-172-2 01 1 0710-0711 ●
331 LAMP; TURN SIGNAL 8-97585-172-2 01 1 0712-0911 ● ●
331 LAMP; TURN SIGNAL 8-98155-458-0 01 1 0912- ● ●
355 SCREW; TURN SIGNAL 8-98051-428-0 04 1 0710-0711 ●
355 SCREW; TURN SIGNAL 8-98051-428-0 04 1 0712- ● ●
357 BULB; TURN SIGNAL
24V 21W AMBER 		8-97323-806-0 02 1 0710-0711 ●
357 BULB; TURN SIGNAL
24V 21W AMBER 		8-97323-806-0 02 1 0712- ● ●
399 SOCKET; TURN SIGNAL 8-98051-387-0 02 1 0710-0711 ●
399 SOCKET; TURN SIGNAL 8-98051-387-0 02 1 0712- ● ●
421 TUBE; BREATHER,FOG LAMP
FOG LAMP<T96> 		8-97025-128-0 02 1 0710-0711 ●
421 TUBE; BREATHER,FOG LAMP
FOG LAMP<T96> 		8-97025-128-0 02 1 0712-0906 ● ●
431 CAP; TURN SIGNAL,LAMP 8-97378-874-0 02 1 0710-0711 ●
431 CAP; TURN SIGNAL,LAMP 8-97378-874-0 02 1 0712- ● ●
432 FASTENER; TURN SIGNAL,LAMP 8-98051-431-0 04 1 0710-0711 ●
432 FASTENER; TURN SIGNAL,LAMP 8-98051-431-0 04 1 0712- ● ●
448 CAP ASM; LAMP
FOG LAMP<T96> 		8-97378-874-0 02 1 0907- ● ●
çizim 108945
1 4 338 420 23 457 382 5 20 5 408 339
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-97585-163-3 01 1 0710-0710 ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98095-401-0 01 1 0710-0710 ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-478-1 01 1 0711-0711 ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-478-1 01 1 0712-1208 ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-592-0 01 1 1209-1301 ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-635-0 01 1 1302-1305 ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-320-0 01 1 1306- ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-97585-162-3 01 1 0710-0710 ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98095-400-0 01 1 0710-0710 ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-477-1 01 1 0711-0711 ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-477-1 01 1 0712-1208 ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-591-0 01 1 1209-1301 ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-634-0 01 1 1302-1305 ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-319-0 01 1 1306- ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-97585-165-3 01 1 0710-0710 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98095-403-0 01 1 0710-0710 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-480-1 01 1 0711-0711 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-480-1 01 1 0712-1208 ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-600-0 01 1 1209-1301 ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-641-0 01 1 1302-1305 ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-326-0 01 1 1306- ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-97585-164-3 01 1 0710-0710 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98095-402-0 01 1 0710-0710 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-479-1 01 1 0711-0711 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-479-1 01 1 0712-1208 ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-599-0 01 1 1209-1301 ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-640-0 01 1 1302-1305 ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-325-0 01 1 1306- ● ●
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-399-0 01 1 0710-0711 ●
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-399-0 01 1 0712-1301 ● ●
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98226-181-0 01 1 1302- ● ●
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-398-0 01 1 0710-0711 ●
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-398-0 01 1 0712-1301 ● ●
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98226-180-0 01 1 1302- ● ●
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-401-0 01 1 0710-0711 ●
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-401-0 01 1 0712-1301 ● ●
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98226-183-0 01 1 1302- ● ●
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-400-0 01 1 0710-0711 ●
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-400-0 01 1 0712-1301 ● ●
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98226-182-0 01 1 1302- ● ●
5 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 0710-0711 ●
5 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 0712- ● ●
5 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 0710-0711 ●
5 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 0712- ● ●
20 SCREW; HEADLAMP 8-97378-871-0 06 1 0710-0711 ●
20 SCREW; HEADLAMP 8-97378-871-0 06 1 0712- ● ●
23 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 0710-0711 ●
23 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 0712- ● ●
338 LEVELING; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98010-256-0 02 1 1209- ● ●
339 GASKET; LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		1-86830-158-0 02 1 1209- ● ●
382 PLUG; SOCKET,HEADLAMP 8-98069-364-0 02 1 0710-0711 ●
382 PLUG; SOCKET,HEADLAMP 8-98069-364-0 02 1 0712-1208 ● ●
382 PLUG; SOCKET,HEADLAMP 8-98225-685-0 02 1 1209- ● ●
408 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 0710-0711 ●
408 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 0712- ● ●
420 SPRING; BULB,HEADLAMP 8-97378-875-0 02 1 0710-0711 ●
420 SPRING; BULB,HEADLAMP 8-97378-875-0 02 1 0712-1301 ● ●
420 SPRING; BULB,HEADLAMP 8-98218-601-0 02 1 1302- ● ●
457 GRIP; HEADLAMP 8-98241-354-0 02 1 1306- ● ●
çizim 109182
427 355 1 28 28 139 331 43 47 248 32 43
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-97585-163-3 01 1 0710-0710 ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98095-401-0 01 1 0710-0710 ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-478-1 01 1 0711-0711 ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-478-1 01 1 0712-1208 ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-592-0 01 1 1209-1301 ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-635-0 01 1 1302-1305 ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-320-0 01 1 1306- ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-97585-162-3 01 1 0710-0710 ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98095-400-0 01 1 0710-0710 ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-477-1 01 1 0711-0711 ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-477-1 01 1 0712-1208 ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-591-0 01 1 1209-1301 ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-634-0 01 1 1302-1305 ● ●
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-319-0 01 1 1306- ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-97585-165-3 01 1 0710-0710 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98095-403-0 01 1 0710-0710 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-480-1 01 1 0711-0711 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-480-1 01 1 0712-1208 ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-600-0 01 1 1209-1301 ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-641-0 01 1 1302-1305 ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-326-0 01 1 1306- ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-97585-164-3 01 1 0710-0710 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98095-402-0 01 1 0710-0710 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-479-1 01 1 0711-0711 ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-479-1 01 1 0712-1208 ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-599-0 01 1 1209-1301 ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-640-0 01 1 1302-1305 ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-325-0 01 1 1306- ● ●
28 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 0710-0711 ●
28 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 0712-1005 ● ●
28 BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1006- ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97378-909-1 01 1 0710-0711 ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97378-909-1 01 1 0712-0906 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-144-1 01 1 0907-1301 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-059-0 01 1 1302- ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97378-908-1 01 1 0710-0711 ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97378-908-1 01 1 0712-0906 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-143-1 01 1 0907-1301 ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-058-0 01 1 1302- ● ●
43 BOLT; FOG LAMP
FOG LAMP<T96> M6X20 W/LK&PL WASHER 		0-50640-620-0 06 1 0710-0711 ●
43 BOLT; FOG LAMP
FOG LAMP<T96> M6X20 W/LK&PL WASHER 		0-50640-620-0 06 1 0712-0802 ● ●
43 BOLT; FOG LAMP
FOG LAMP<T96> M6X19.5 W/LK&PL WASHER 		8-97360-226-0 06 1 0803- ● ●
47 WASHER; PL,FOG LAMP
FOG LAMP<T96> 		8-98217-429-0 02 1 1205- ● ●
47 WASHER; PL,FOG LAMP
FOG LAMP<T96> ID=6.4 		0-91610-606-0 04 1 0710-0711 ●
47 WASHER; PL,FOG LAMP
FOG LAMP<T96> ID=6.4 		0-91610-606-0 04 1 0712-0802 ● ●
139 COVER; HEADLAMP 8-98054-342-0 02 1 0710-0711 ●
139 COVER; HEADLAMP 8-98054-342-0 02 1 0712- ● ●
248 CLIP; HARNESS
EXC. FOG LAMP<T96> L=140 		5-09707-031-1 02 1 0801- ● ●
331 LAMP; TURN SIGNAL 8-97585-173-2 01 1 0710-0711 ●
331 LAMP; TURN SIGNAL 8-97585-173-2 01 1 0712-0911 ● ●
331 LAMP; TURN SIGNAL 8-98155-459-0 01 1 0912- ● ●
331 LAMP; TURN SIGNAL 8-97585-172-2 01 1 0710-0711 ●
331 LAMP; TURN SIGNAL 8-97585-172-2 01 1 0712-0911 ● ●
331 LAMP; TURN SIGNAL 8-98155-458-0 01 1 0912- ● ●
355 SCREW; TURN SIGNAL 8-98051-428-0 04 1 0710-0711 ●
355 SCREW; TURN SIGNAL 8-98051-428-0 04 1 0712- ● ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 0710-0711 ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 0712-0807 ● ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 0808- ● ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 0808- ● ●

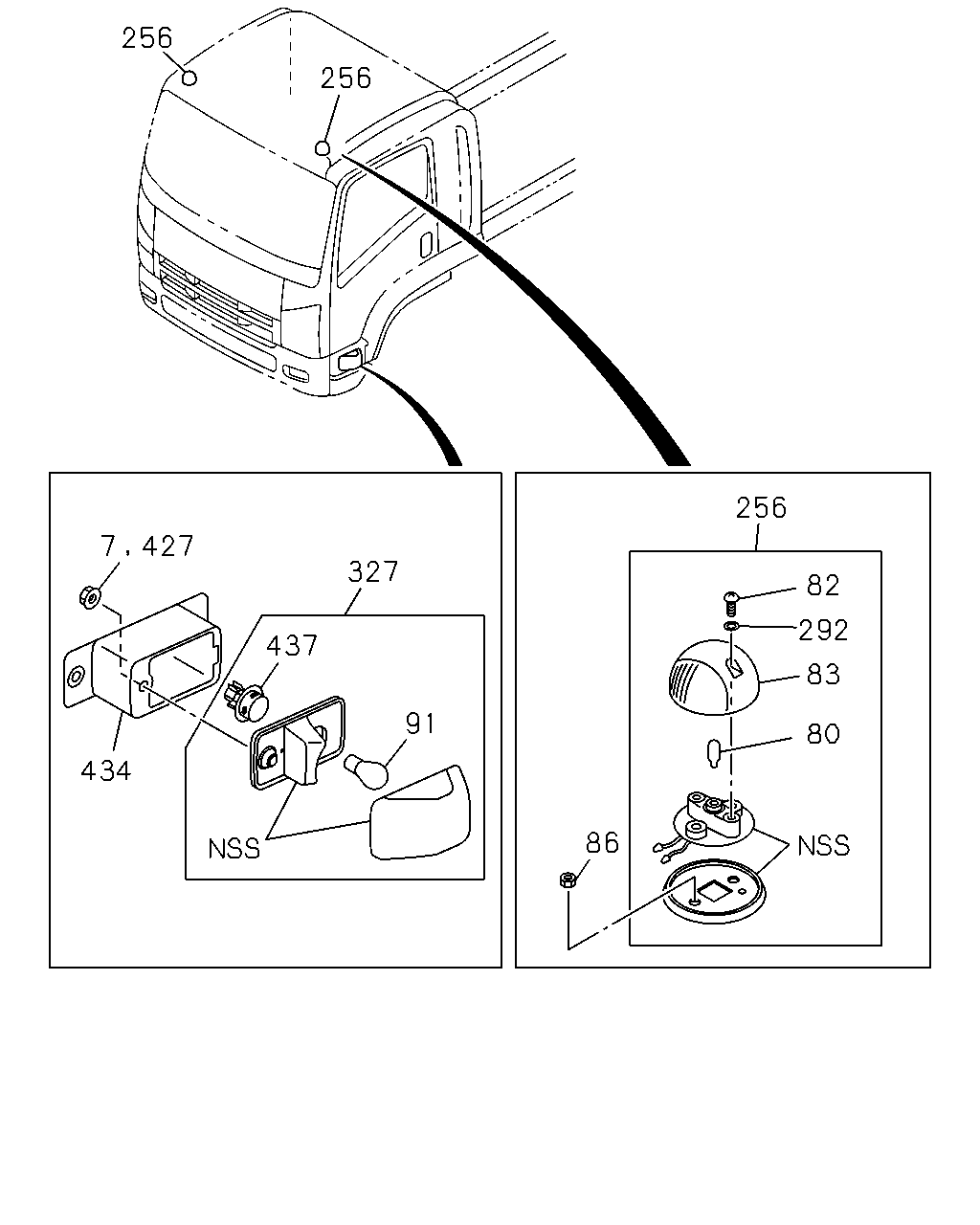

çizim 109183
256 256 256 327 82 292 437 83 91 80 434 86 7 427
BalonParca AdiParca NoAdetTipApplied Date A B
7 NUT; FRT COMB LAMP
M6 FLANGE 		0-91180-106-0 02 1 0710-0711 ●
7 NUT; FRT COMB LAMP
M6 FLANGE 		0-91180-106-0 02 1 0712-0807 ● ●
80 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 02 1 0710-0711 ●
80 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 02 1 0712- ● ●
82 SCREW; MARKER LAMP 1-82219-011-0 04 1 0710-0711 ●
82 SCREW; MARKER LAMP 1-82219-011-0 04 1 0712- ● ●
83 LENS; MARKER LAMP 8-98057-958-0 02 1 0710-0711 ●
83 LENS; MARKER LAMP 8-98057-958-0 02 1 0712- ● ●
86 NUT; MARKER LAMP
M6 FLANGE 		0-91180-106-0 04 1 0710-0711 ●
86 NUT; MARKER LAMP
M6 FLANGE 		0-91180-106-0 04 1 0712- ● ●
91 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 0710-0711 ●
91 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 0712- ● ●
256 LAMP; MARKER 8-98097-467-3 01 1 0710-0711 ●
256 LAMP; MARKER 8-98097-467-3 01 1 0712- ● ●
256 LAMP; MARKER 8-98097-466-3 01 1 0710-0711 ●
256 LAMP; MARKER 8-98097-466-3 01 1 0712- ● ●
292 WASHER; MARKER LAMP 1-82219-012-0 04 1 0710-0711 ●
292 WASHER; MARKER LAMP 1-82219-012-0 04 1 0712- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-2 01 1 0710-0711 ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 0712- ● ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-2 01 1 0710-0711 ●
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 0712- ● ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 0710-0711 ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 0712-0807 ● ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 0808- ● ●
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 0808- ● ●
434 BASE; LAMP,SIDE TURN SIGNAL 8-98063-727-1 01 1 0710-0711 ●
434 BASE; LAMP,SIDE TURN SIGNAL 8-98063-727-1 01 1 0712- ● ●
434 BASE; LAMP,SIDE TURN SIGNAL 8-98063-726-1 01 1 0710-0711 ●
434 BASE; LAMP,SIDE TURN SIGNAL 8-98063-726-1 01 1 0712- ● ●
437 SOCKET; SIDE,TURN 8-98051-390-0 02 1 0710-0711 ●
437 SOCKET; SIDE,TURN 8-98051-390-0 02 1 0712- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
