◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11415 - FRR AUSTRALIA EURO4 EXC.SPACECAB ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#19558) — 308 parça
çizim 108922
689 564 564 336
BalonParca AdiParca NoAdetTipApplied Date A B
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 0710-0711 ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 0712- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 0710-0711 ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 0712-1012 ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-0 01 1 1101- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 0710-0711 ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 0712- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 0710-0711 ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 0712- ● ●
564 COVER; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B) 		8-97043-732-1 02 1 0710-0711 ●
564 COVER; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B) 		8-97043-732-1 02 1 0712- ● ●
564 COVER; SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B) 		8-97043-732-1 06 1 0710-0710 ●
564 COVER; SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		1-82359-069-2 06 1 0710-0711 ●
564 COVER; SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		1-82359-069-2 06 1 0712- ● ●
689 SEAL; INST
OD=25 BLACK 		1-76798-019-0 01 1 0710-0710 ●

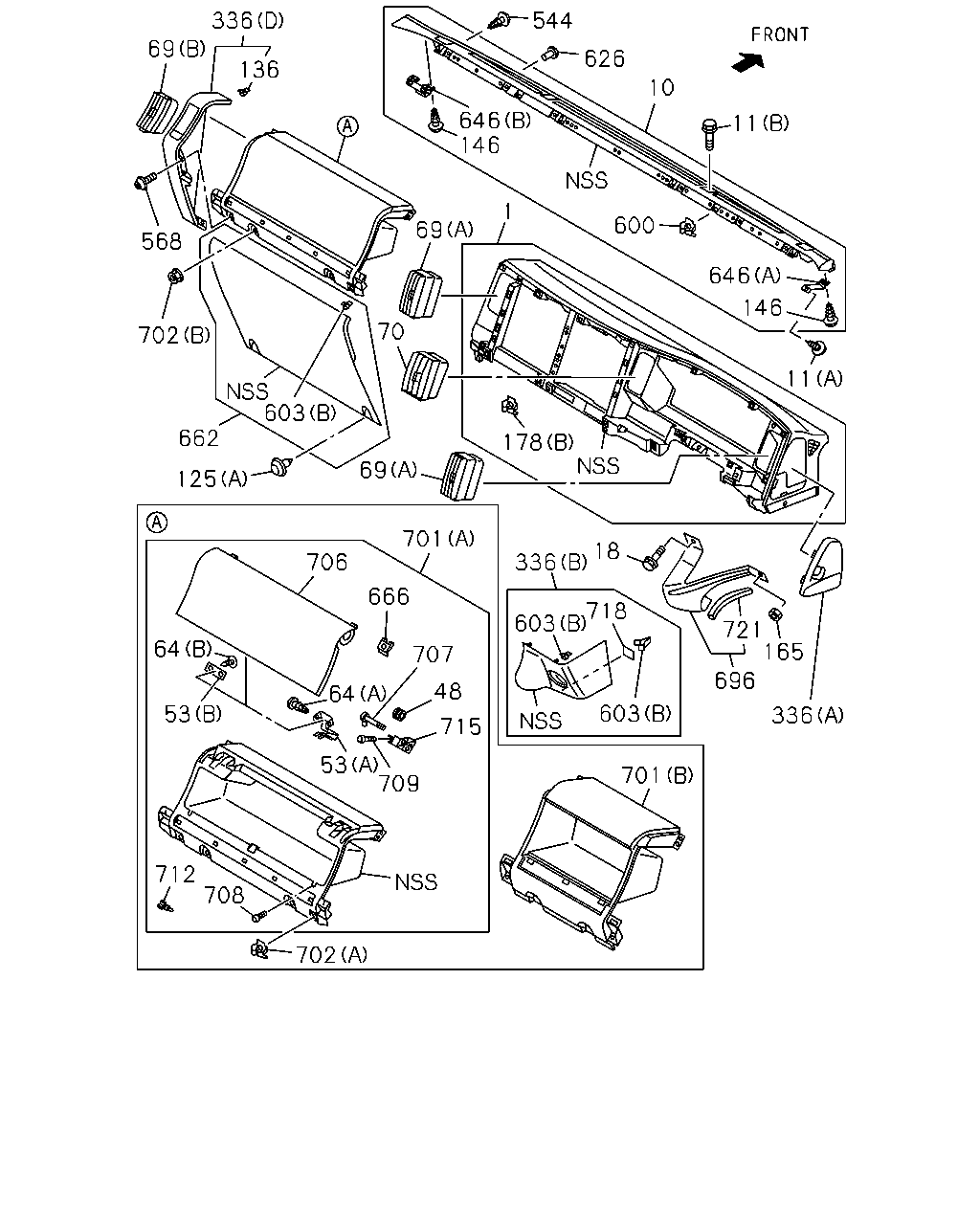

çizim 108924
336 69 544 136 626 646 10 146 600 11 646 11 146 1 69 70 603 125 662 69 702 568 178 701 666 706 707 48 715 709 53 702 708 712 53 64 64 701 336 696 603 603 336 18 721 165 718
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 0710-0711 ●
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 0712- ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97407-424-9 01 1 0710-0710 ●
10 PANEL ASM; GARNISH
GRAY 		8-97414-685-0 01 1 0710-0711 ●
10 PANEL ASM; GARNISH
GRAY 		8-97414-685-0 01 1 0712-1008 ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97422-095-0 01 1 1009- ● ●
11 BOLT; INST PNL
(A) SCREW T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0710-0711 ●
11 BOLT; INST PNL
(A) SCREW T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0712- ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0710-0711 ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0712- ● ●
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 0710-0711 ●
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 0712- ● ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-986-0 01 1 0710-0711 ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-986-0 01 1 0712-1005 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-986-0 01 1 1006-1311 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-410-0 01 1 1312-1405 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-763-0 01 1 1406- ● ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-987-0 01 1 0710-0711 ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-987-0 01 1 0712-1005 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-987-0 01 1 1006-1311 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-411-0 01 1 1312-1405 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-764-0 01 1 1406- ● ●
53 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-913-0 01 1 0805-1005 ● ●
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-913-0 01 1 1006-1405 ● ●
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98270-765-0 01 1 1406- ● ●
64 SCREW; STRIKER
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-915-0 01 1 0805-1005 ● ●
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-915-0 01 1 1006-1405 ● ●
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) M4X85 		8-97926-404-0 02 1 1406- ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 0710-0711 ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 0712- ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0710-0711 ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0712- ● ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 0710-0711 ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 0712- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0710-0711 ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0712-1007 ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0710-0711 ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0712- ● ●
136 CLIP; INST COVER 8-98076-254-0 02 1 0710-0711 ●
136 CLIP; INST COVER 8-98076-254-0 02 1 0712- ● ●
146 SCREW; TAP
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0710-0711 ●
146 SCREW; TAP
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0712- ● ●
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 0710-0711 ●
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 0712- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0710-0711 ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0712- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0710-0711 ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0712- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 0710-0711 ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 0712- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 0710-0711 ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 0712-1012 ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-0 01 1 1101- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 0710-0711 ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 0712- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 0710-0711 ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 0712- ● ●
544 SCREW; TRAY
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0710-0711 ●
544 SCREW; TRAY
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0712- ● ●
568 BOLT; COVER
SCREW T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0710-0711 ●
568 BOLT; COVER
SCREW T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0712- ● ●
600 NUT; PANEL 8-98037-629-0 02 1 0710-0711 ●
600 NUT; PANEL 8-98037-629-0 02 1 0712-1008 ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0710-0711 ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0712- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 0710-0711 ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 0712- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0710-0711 ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0712- ● ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 0710-0711 ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 0712- ● ●
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 0710-0711 ●
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 0712- ● ●
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 0710-0711 ●
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 0712- ● ●
662 COVER; LWR,INST PANEL
GRAY 		8-97407-428-2 01 1 0710-0711 ●
662 COVER; LWR,INST PANEL
GRAY 		8-97407-428-2 01 1 0712- ● ●
666 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98038-450-0 04 1 0710-0711 ●
666 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98038-450-0 04 1 0712-1005 ● ●
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98038-450-0 04 1 1006-1311 ● ●
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) M5 		8-97926-400-0 04 1 1312- ● ●
696 BRACKET; KNEE 8-98066-085-1 01 1 0710-0711 ●
696 BRACKET; KNEE 8-98066-085-1 01 1 0712- ● ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) (B) GRAY 		8-97412-914-2 01 1 0710-0711 ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) (B) GRAY 		8-97412-914-2 01 1 0712-0905 ● ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) (B) GRAY 		8-97417-196-1 01 1 0906-1005 ● ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) EXC. COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) GRAY 		8-97417-196-1 01 1 1006- ● ●
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97412-913-0 01 1 0710-0711 ●
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97412-913-0 01 1 0712-0804 ● ●
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97415-540-4 01 1 0805-1005 ● ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97415-540-6 01 1 1006-1405 ● ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97429-703-0 01 1 1406- ● ●
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 0710-0711 ●
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 0712- ● ●
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 0710-0711 ●
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 0712- ● ●
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97405-372-2 01 1 0710-0711 ●
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97405-372-2 01 1 0712-0804 ● ●
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97415-541-0 01 1 0805-1005 ● ●
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97415-541-0 01 1 1006-1405 ● ●
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97429-992-0 01 1 1406- ● ●
707 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98035-730-1 02 1 0710-0711 ●
707 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98035-730-1 02 1 0712-1005 ● ●
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98035-730-1 02 1 1006-1311 ● ●
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-393-0 02 1 1312- ● ●
708 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98010-867-1 02 1 0710-0711 ●
708 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98010-867-1 02 1 0712-1005 ● ●
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98010-867-1 02 1 1006- ● ●
709 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING 		0-71040-516-0 04 1 0710-0711 ●
709 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING 		0-71040-516-0 04 1 0712-1005 ● ●
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING 		0-71040-516-0 04 1 1006- ● ●
712 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98031-846-0 01 1 0710-0711 ●
712 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98031-846-0 01 1 0712-1005 ● ●
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98031-846-0 01 1 1006- ● ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-928-0 01 1 0710-0711 ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-928-0 01 1 0712-1005 ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-928-0 01 1 1006-1311 ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-396-0 01 1 1312- ● ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-929-0 01 1 0710-0711 ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-929-0 01 1 0712-1005 ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-929-0 01 1 1006-1311 ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-397-0 01 1 1312- ● ●
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 0710-0711 ●
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 0712- ● ●
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 0710-0711 ●
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 0712- ● ●

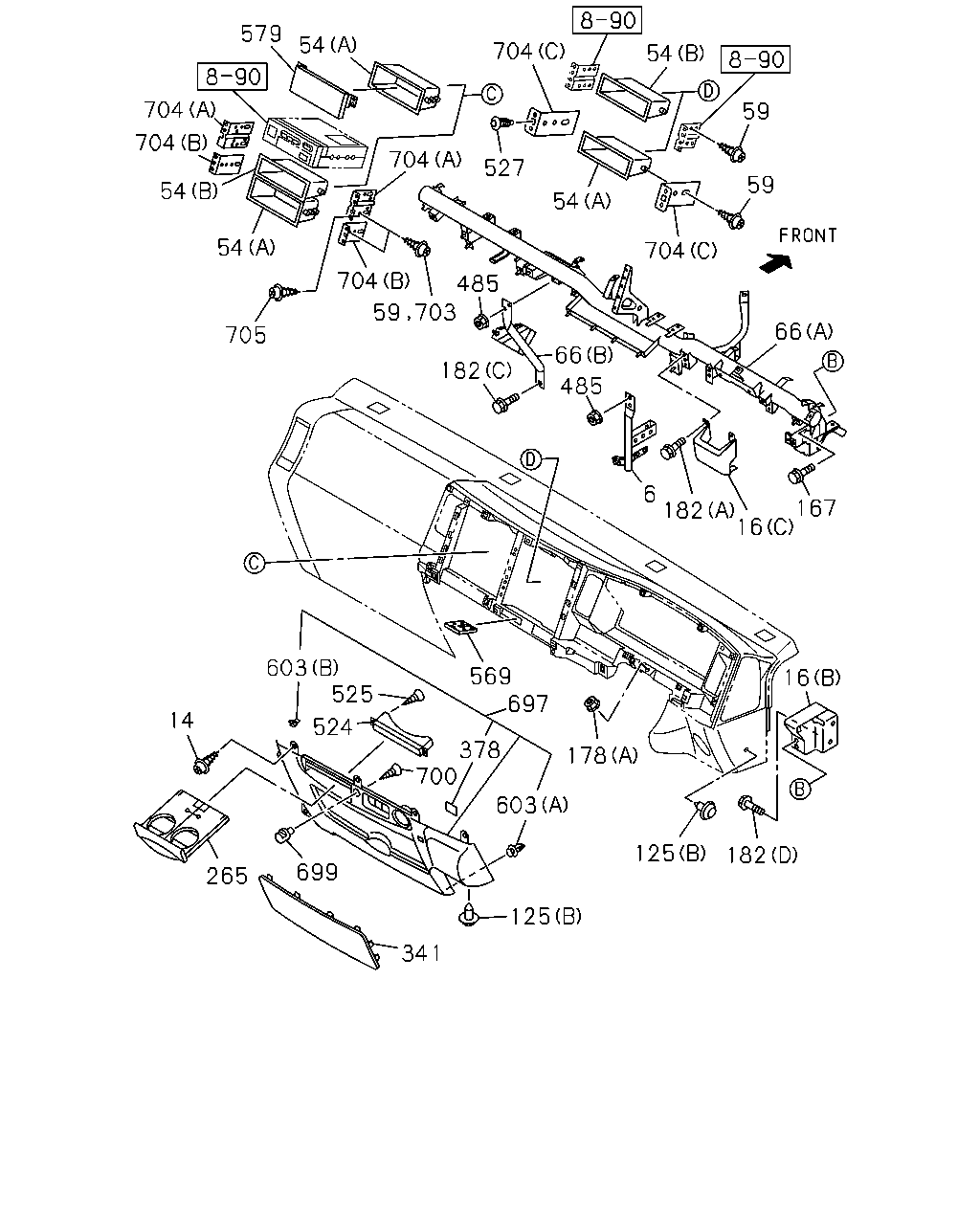

çizim 108930
54 59 59 704 66 167 16 182 6 485 66 182 485 54 527 704 704 704 705 54 54 704 704 16 182 125 125 341 603 178 697 569 525 603 524 699 265 14 378 700 54 579 59 703
BalonParca AdiParca NoAdetTipApplied Date A B
6 SUPPORT; INST PANEL 8-98088-312-0 01 1 0710-0711 ●
6 SUPPORT; INST PANEL 8-98088-312-0 01 1 0712-1109 ● ●
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1110- ● ●
14 SCREW; INST PNL
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0710-0711 ●
14 SCREW; INST PNL
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0712- ● ●
16 BRACKET; INST PNL
(D) 		8-98010-154-0 01 1 0710-0711 ●
16 BRACKET; INST PNL
(D) 		8-98010-154-0 01 1 0712-0712 ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) 		8-98010-154-0 01 1 0801- ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-98010-154-0 01 1 0801- ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0710-0711 ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0712- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0710-0711 ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0712- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0710-0711 ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0712- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 0710-0711 ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 0712- ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97585-612-2 01 1 0712- ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-2 01 1 0710-0711 ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-2 01 1 0710-0711 ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-2 01 1 0712- ● ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-2 01 1 0712- ●
54 POCKET; CENTER CLUSTER
(A) H=69.8 BLACK 		8-97408-865-2 01 1 0710-0711 ●
54 POCKET; CENTER CLUSTER
(A) H=69.8 BLACK 		8-97408-865-2 01 1 0712-0712 ● ●
54 POCKET; CENTER CLUSTER
(A) H=69.8 BLACK 		8-97408-865-2 01 1 0801- ● ●
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) H=69.8 BLACK 		8-97408-865-2 01 1 0801- ●
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) H=69.8 BLACK 		8-97408-865-2 01 1 0801- ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0710-0711 ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0710-0711 ●
59 SCREW; CLUSTER POCKET
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0710-0711 ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0712-0712 ● ●
59 SCREW; CLUSTER POCKET
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0712-0712 ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0712-0712 ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0801-0801 ● ●
59 SCREW; CLUSTER POCKET
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0801-0801 ● ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0801-0801 ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0801-0801 ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0801-0801 ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0801- ● ●
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0801- ● ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0801- ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0801- ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0801- ●
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-580-2 01 1 0710-0711 ●
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-580-2 01 1 0712-0909 ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-97585-580-2 01 1 0910- ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-97585-566-9 01 1 0710-0711 ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-97585-566-9 01 1 0712-1111 ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98170-399-0 01 1 1112-1406 ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98240-604-0 01 1 1407- ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98009-970-9 01 1 0710-0711 ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98009-970-9 01 1 0712-1111 ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98170-401-0 01 1 1112-1406 ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98240-605-0 01 1 1407- ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98151-167-0 01 1 0910- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0710-0711 ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0712-1007 ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0710-0711 ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0712- ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 0710-0711 ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 0712- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0710-0711 ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0712- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0710-0711 ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0712- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0710-0711 ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0712- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0710-0711 ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0712-1111 ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112- ● ●
182 BOLT; BRKT,INST PANEL
(B) T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0710-0711 ●
182 BOLT; BRKT,INST PANEL
(B) T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0712-0712 ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801- ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801- ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0710-0711 ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0712- ● ●
265 HOLDER; CUP
GRAY 		8-97407-897-2 01 1 0710-0711 ●
265 HOLDER; CUP
GRAY 		8-97407-897-2 01 1 0712-0909 ● ●
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 0910- ● ●
341 LID; FUSE BOX
GRAY 		8-97407-419-3 01 1 0710-0711 ●
341 LID; FUSE BOX
GRAY 		8-97407-419-3 01 1 0712-1010 ● ●
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1011- ● ●
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1011- ● ●
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 0710-0711 ●
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 0712- ● ●
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 0710-0711 ●
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 0712- ● ●
525 SCREW; CUP STAND
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0710-0711 ●
525 SCREW; CUP STAND
T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0712- ● ●
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) DARK GRAY 		8-97098-326-0 01 1 0710-0711 ●
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) DARK GRAY 		8-97098-326-0 01 1 0712- ●
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) DARK GRAY 		8-97098-326-0 01 1 0712- ●
569 HOLDER; CARD 8-97410-276-0 01 1 0710-0711 ●
569 HOLDER; CARD 8-97410-276-0 01 1 0712- ● ●
579 COVER; INST PNL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) BLACK 		8-97408-909-0 01 1 0710-0711 ●
579 COVER; INST PNL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) BLACK 		8-97408-909-0 01 1 0712-0712 ●
579 COVER; INST PNL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) BLACK 		8-97408-909-0 01 1 0712-0712 ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0710-0711 ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0712- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 0710-0711 ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 0712- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0710-0711 ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0712- ● ●
697 PANEL; INST CENTER
GRAY 		8-97413-127-0 01 1 0710-0711 ●
697 PANEL; INST CENTER
GRAY 		8-97413-127-0 01 1 0712-1010 ● ●
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1011- ● ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0710-0711 ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0712- ● ●
700 BOLT; HOOK
SCREW T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0710-0711 ●
700 BOLT; HOOK
SCREW T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0712- ● ●
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0710-0711 ●
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0712-0712 ● ●
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0801- ● ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0710-0711 ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0712- ● ●
704 BRACKET; CENTER POCKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-97585-616-2 02 1 0710-0711 ●
704 BRACKET; CENTER POCKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-97585-616-2 02 1 0712-0712 ●
704 BRACKET; CENTER POCKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97585-616-2 02 1 0712-0712 ●
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0801- ● ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-97585-616-2 01 1 0710-0711 ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-97585-616-2 01 1 0712-0712 ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97585-616-2 01 1 0712-0712 ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) 		8-98073-822-0 02 1 0710-0711 ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) 		8-98073-822-0 02 1 0712-0712 ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-98073-822-0 02 1 0712-0712 ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) 		8-98107-549-0 02 1 0801- ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-98107-549-0 02 1 0801- ●
705 SCREW; BRACKET CENTER POCKET
T25 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 0710-0711 ●
705 SCREW; BRACKET CENTER POCKET
T25 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 0712- ● ●
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) T25 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0710-0711 ●
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) T25 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0712- ●
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) T25 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0712- ●

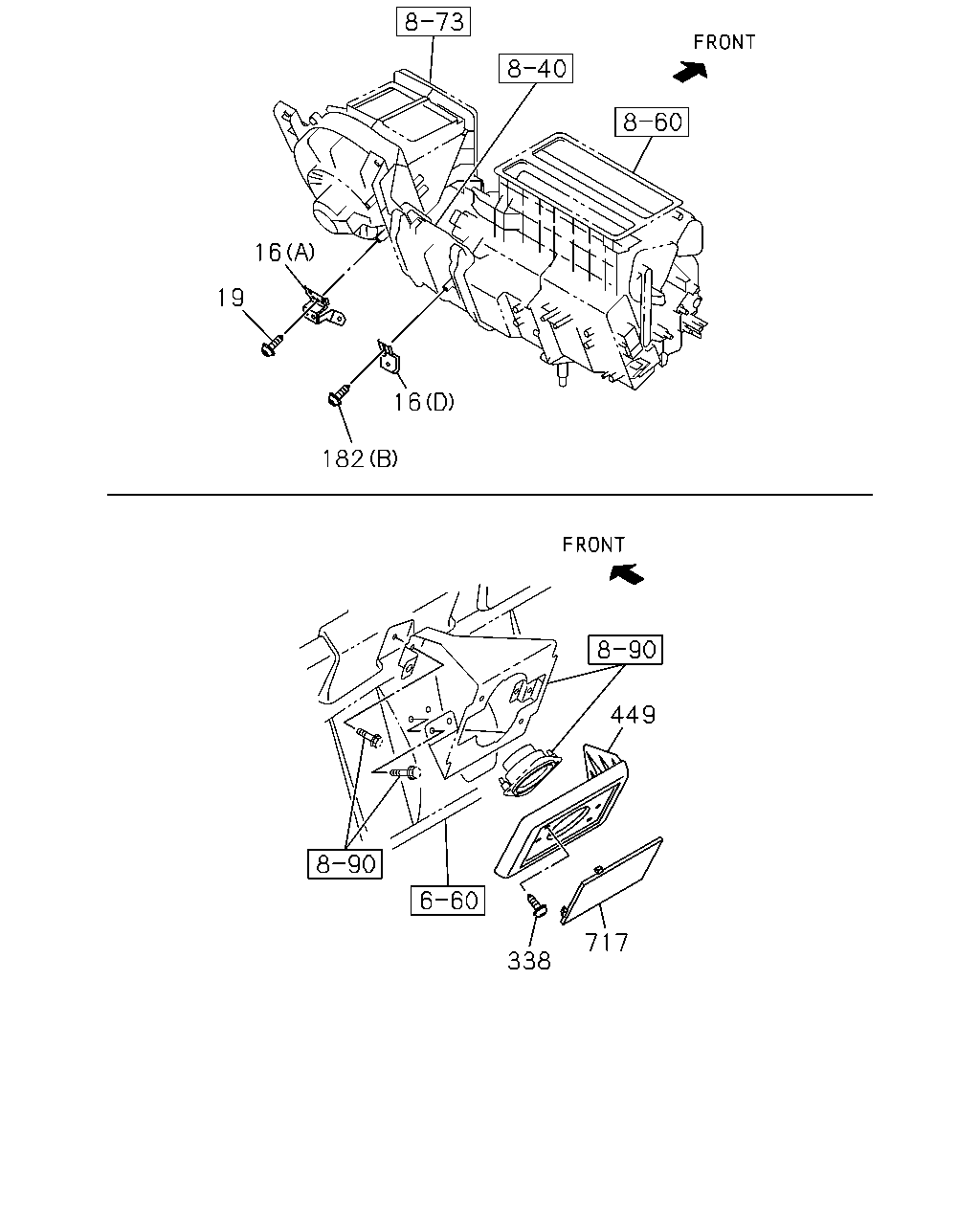

çizim 108935
16 19 16 182 449 717 338
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; INST PNL
(D) 		8-98010-154-0 01 1 0710-0711 ●
16 BRACKET; INST PNL
(D) 		8-98010-154-0 01 1 0712-0712 ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) 		8-98010-154-0 01 1 0801- ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-98010-154-0 01 1 0801- ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0710-0711 ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0712- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0710-0711 ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0712- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0710-0711 ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0712- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 0710-0711 ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 0712- ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97585-612-2 01 1 0712- ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0710-0711 ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0712- ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0712- ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0710-0711 ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0712- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0710-0711 ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0712-1111 ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112- ● ●
182 BOLT; BRKT,INST PANEL
(B) T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0710-0711 ●
182 BOLT; BRKT,INST PANEL
(B) T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0712-0712 ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801- ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801- ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0710-0711 ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0712- ● ●
338 SCREW; COVER
3-SPEAKER SYSTEM FRT<NNR> M6X16 TAPPING 		1-09981-524-0 02 1 0710-0711 ●
338 SCREW; COVER
3-SPEAKER SYSTEM FRT<NNR> M6X16 TAPPING 		1-09981-524-0 02 1 0712- ● ●
449 COVER; SPEAKER
3-SPEAKER SYSTEM FRT<NNR> 		8-97613-978-2 01 1 0710-0711 ●
449 COVER; SPEAKER
3-SPEAKER SYSTEM FRT<NNR> 		8-97613-978-2 01 1 0712- ● ●
717 GRILLE; SPEAKER
3-SPEAKER SYSTEM FRT<NNR> 		8-97613-979-1 01 1 0710-0711 ●
717 GRILLE; SPEAKER
3-SPEAKER SYSTEM FRT<NNR> 		8-97613-979-1 01 1 0712- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
