0-36 — TURBOCHARGER SYSTEM (#19556) — 64 parça

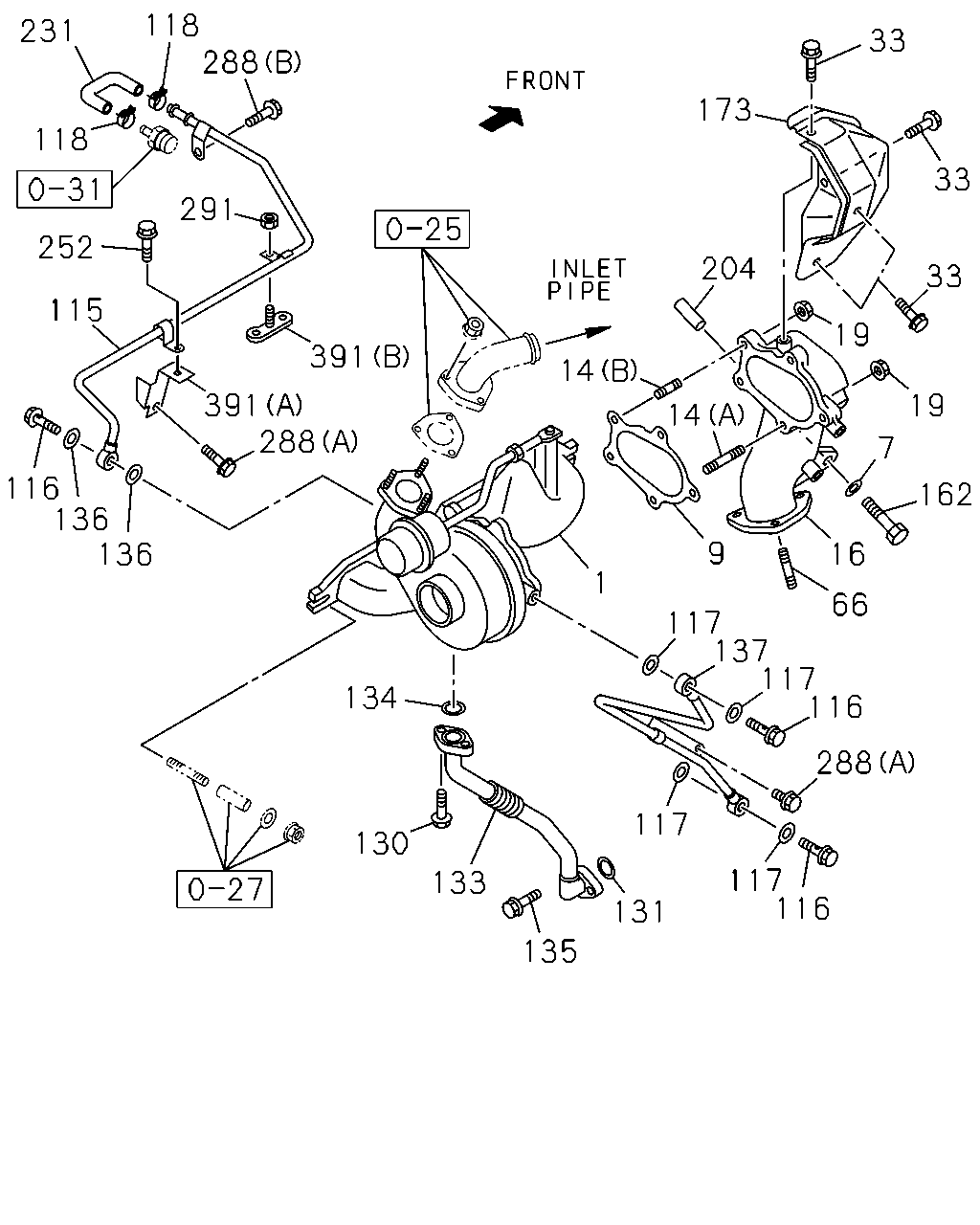

118 288 231 33 173 118 33 291 252 204 33 115 19 391 14 391 288 19 14 7 116 136 136 162 9 16 1 66 117 137 117 116 134 288 117 130 117 116 133 131 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-0	01	1	0309-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97192-331-2	01	1	0309-		●
7	WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0309-	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97039-777-1	01	1	0309-	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-97139-726-0	01	1	0309-		●
14	STUD; TURBOCHARGER TO EXH PIPE M8X41 L=52	8-97188-452-0	04	1	0309-0406		●
14	STUD; TURBOCHARGER TO EXH PIPE M8X41 L=52	8-97188-452-0	02	1	0407-0408		●
14	STUD; TURBOCHARGER TO EXH PIPE M8X43 L=54	8-97104-507-1	02	1	0407-		●
14	STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0309-	●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0309-	●
14	STUD; TURBOCHARGER TO EXH PIPE (C) M8X126 L=137	8-97200-763-0	02	1	0309-0408		●
14	STUD; TURBOCHARGER TO EXH PIPE M8X126 L=137	8-97378-069-0	02	1	0409-		●
16	ADAPTER; EXH PIPE	8-97178-488-1	01	1	0309-	●
16	ADAPTER; EXH PIPE	8-97192-332-0	01	1	0309-		●
19	NUT; EXH PIPE,TURBOCHARGER M8 FLANGE	8-94170-486-0	05	1	0309-	●
33	BOLT; HEAT PROTECTOR M6X12 FLANGE	8-97108-669-0	04	1	0309-	●
66	STUD; EXH PIPE M10X25 L=40	9-04411-025-0	03	1	0309-	●
66	STUD; EXH PIPE M10X45 L=60 PLATING THA	5-09302-008-1	02	1	0309-		●
115	PIPE; WATER,TURBOCHARGER OUT	8-97210-077-2	01	1	0309-	●
116	BOLT; WATER PIPE M14X30 EYE-BOLT	8-94455-144-0	03	1	0309-	●
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	04	1	0309-	●
118	CLIP; WATER HOSE ID=15.5 THA	8-94221-519-0	02	1	0309-	●
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN M6X20 W/LK WASHER	0-50040-620-0	02	1	0309-	●
131	GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09566-228-0	01	1	0309-	●
133	PIPE; OIL DRAIN,TURBOCHARGER	8-97178-508-1	01	1	0309-	●
134	GASKET; OIL PIPE,TURBOCHARGER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0309-	●
135	BOLT; OIL PIPE TO C/BL M8X20 FLANGE	0-28080-820-0	02	1	0309-	●
136	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	02	1	0309-	●
137	PIPE; WATER,TURBOCHARGER IN	8-97229-036-0	01	1	0309-	●
162	BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0309-	●
173	PROTECTOR; HEAT,FUEL PIPE	8-97178-497-2	01	1	0309-	●
204	COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0309-	●
231	HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0309-	●
231	HOSE; RUBBER,TURBOCHARGER OUT	8-97212-155-0	01	1	0309-		●
252	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	01	1	0309-	●
288	BOLT; WATER PIPE CLIP (A) M8X12 FLANGE	0-28080-812-0	03	1	0309-	●
288	BOLT; WATER PIPE CLIP (B) M10X16 FLANGE	0-28181-016-0	01	1	0309-	●
291	NUT; PIPE TO BRKT M8 FLANGE	0-91150-108-0	01	1	0309-	●
391	BRACKET; WATER PIPE (B)	8-97210-078-0	01	1	0309-	●
391	BRACKET; WATER PIPE (A)	8-97221-061-0	01	1	0309-	●

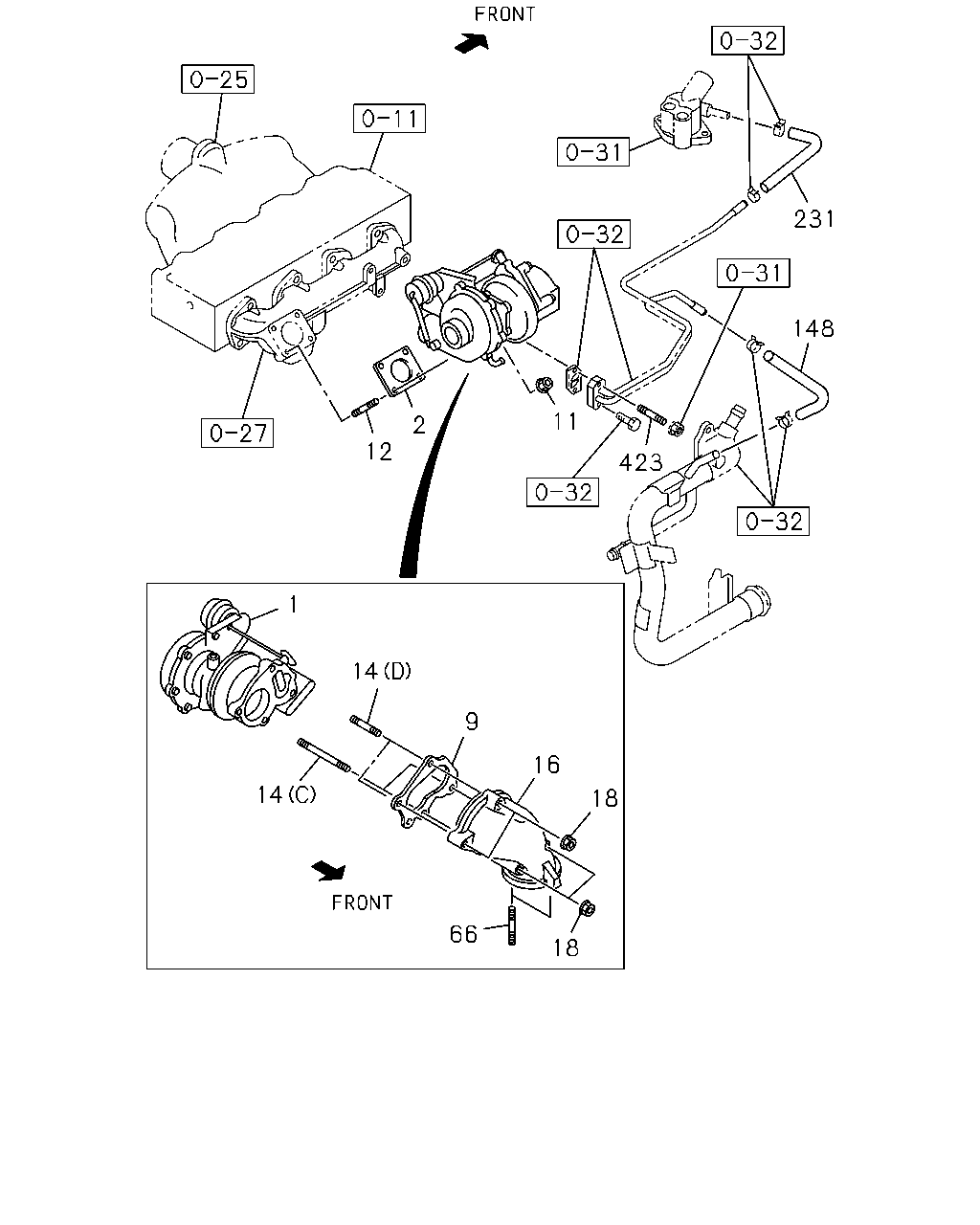

231 148 11 2 12 423 1 14 9 16 14 18 66 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97326-752-0	01	1	0309-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97192-331-2	01	1	0309-		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97315-266-0	01	1	0309-		●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97039-777-1	01	1	0309-	●
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) THA	8-97139-726-0	01	1	0309-		●
11	NUT; TURBOCHARGER M8 FLANGE	8-97161-607-0	04	1	0309-		●
12	STUD; TURBOCHARGER M8X20 L=31	8-97104-508-1	04	1	0309-0408		●
12	STUD; TURBOCHARGER M8X20 L=31	8-97378-060-0	04	1	0409-		●
14	STUD; TURBOCHARGER TO EXH PIPE M8X41 L=52	8-97188-452-0	04	1	0309-0406		●
14	STUD; TURBOCHARGER TO EXH PIPE M8X41 L=52	8-97188-452-0	02	1	0407-0408		●
14	STUD; TURBOCHARGER TO EXH PIPE M8X43 L=54	8-97104-507-1	02	1	0407-		●
14	STUD; TURBOCHARGER TO EXH PIPE (A) M8X94 L=108	8-97019-477-0	02	1	0309-	●
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0309-	●
14	STUD; TURBOCHARGER TO EXH PIPE (C) M8X126 L=137	8-97200-763-0	02	1	0309-0408		●
14	STUD; TURBOCHARGER TO EXH PIPE M8X126 L=137	8-97378-069-0	02	1	0409-		●
16	ADAPTER; EXH PIPE	8-97178-488-1	01	1	0309-	●
16	ADAPTER; EXH PIPE	8-97192-332-0	01	1	0309-		●
18	NUT; EXH PIPE M8 FLANGE	8-97161-607-0	04	1	0309-		●
66	STUD; EXH PIPE M10X25 L=40	9-04411-025-0	03	1	0309-	●
66	STUD; EXH PIPE M10X45 L=60 PLATING THA	5-09302-008-1	02	1	0309-		●
148	HOSE; TURBOCHARGER,INL L=180 SERVICED BY L=3000	0-03559-300-0	01	1	0309-		●
231	HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0309-	●
231	HOSE; RUBBER,TURBOCHARGER OUT	8-97212-155-0	01	1	0309-		●
423	STUD; WATER PIPE M6X20 L=29	9-04110-620-0	01	1	0309-		●
