0-30 — WATER PUMP AND CORROSION RESISTOR (#19551) — 10 parça

40 36 2 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	PUMP ASM; WATER	8-97333-361-0	01	1	0309-	●
36	BOLT; WATER PUMP TO C/BL M8X40 FLANGE	0-28680-840-0	06	1	0309-	●
36	BOLT; WATER PUMP TO C/BL M8X55 W/LK WASHER	5-09000-084-1	05	1	0309-		●
40	NUT; WATER PUMP M8 FLANGE	0-91150-108-0	02	1	0309-	●	●

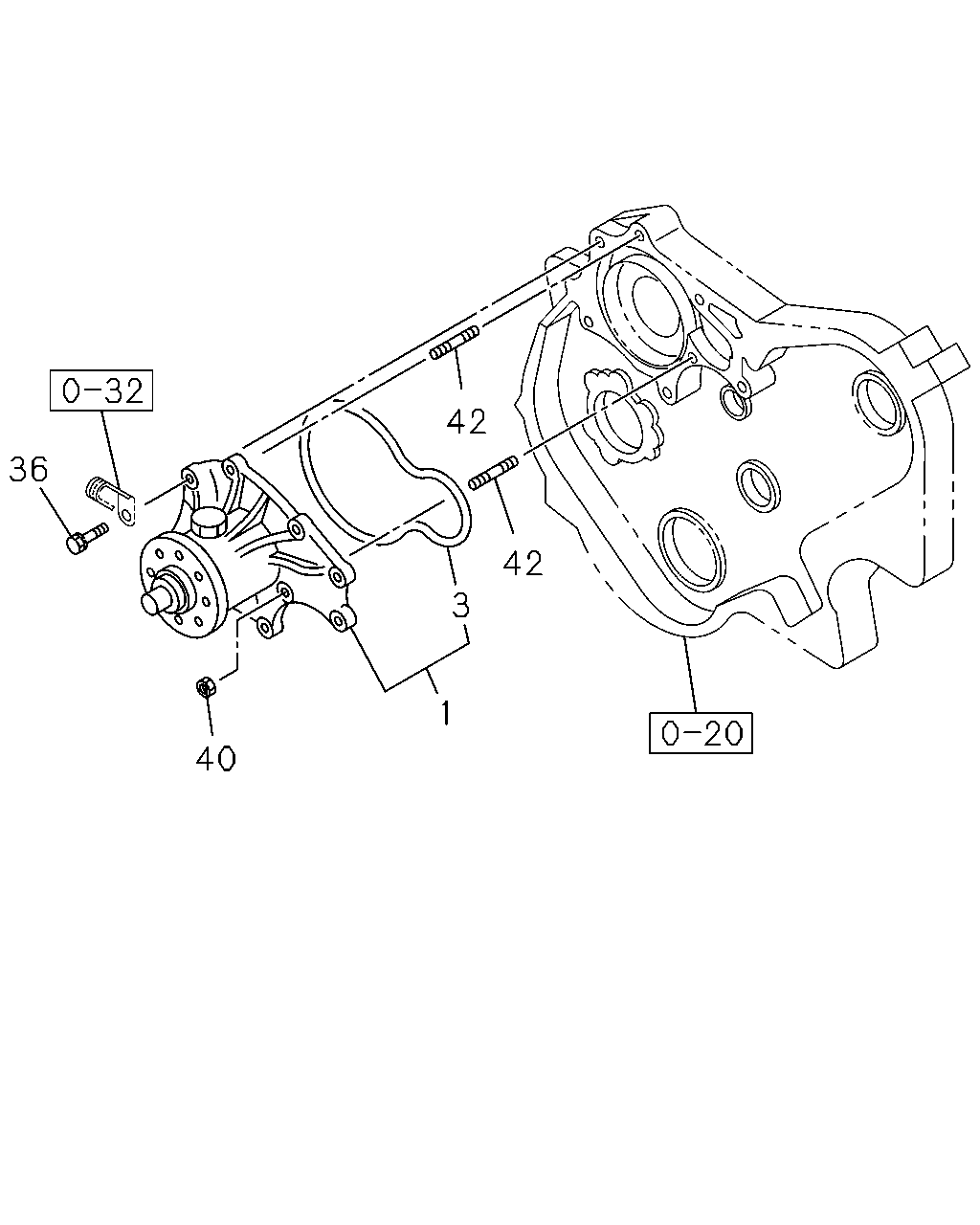

42 36 42 3 1 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; WATER,W/GASKET THA	8-97105-012-3	01	1	0309-		●
3	GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). THA	8-94178-081-0	01	1	0309-0402		●
36	BOLT; WATER PUMP TO C/BL M8X40 FLANGE	0-28680-840-0	06	1	0309-	●
36	BOLT; WATER PUMP TO C/BL M8X55 W/LK WASHER	5-09000-084-1	05	1	0309-		●
40	NUT; WATER PUMP M8 FLANGE	0-91150-108-0	02	1	0309-	●	●
42	STUD; WATER PUMP M8X22 L=34	9-04110-822-0	02	1	0309-		●
