0-22 — ENGINE MOUNTING (#19547) — 69 parça

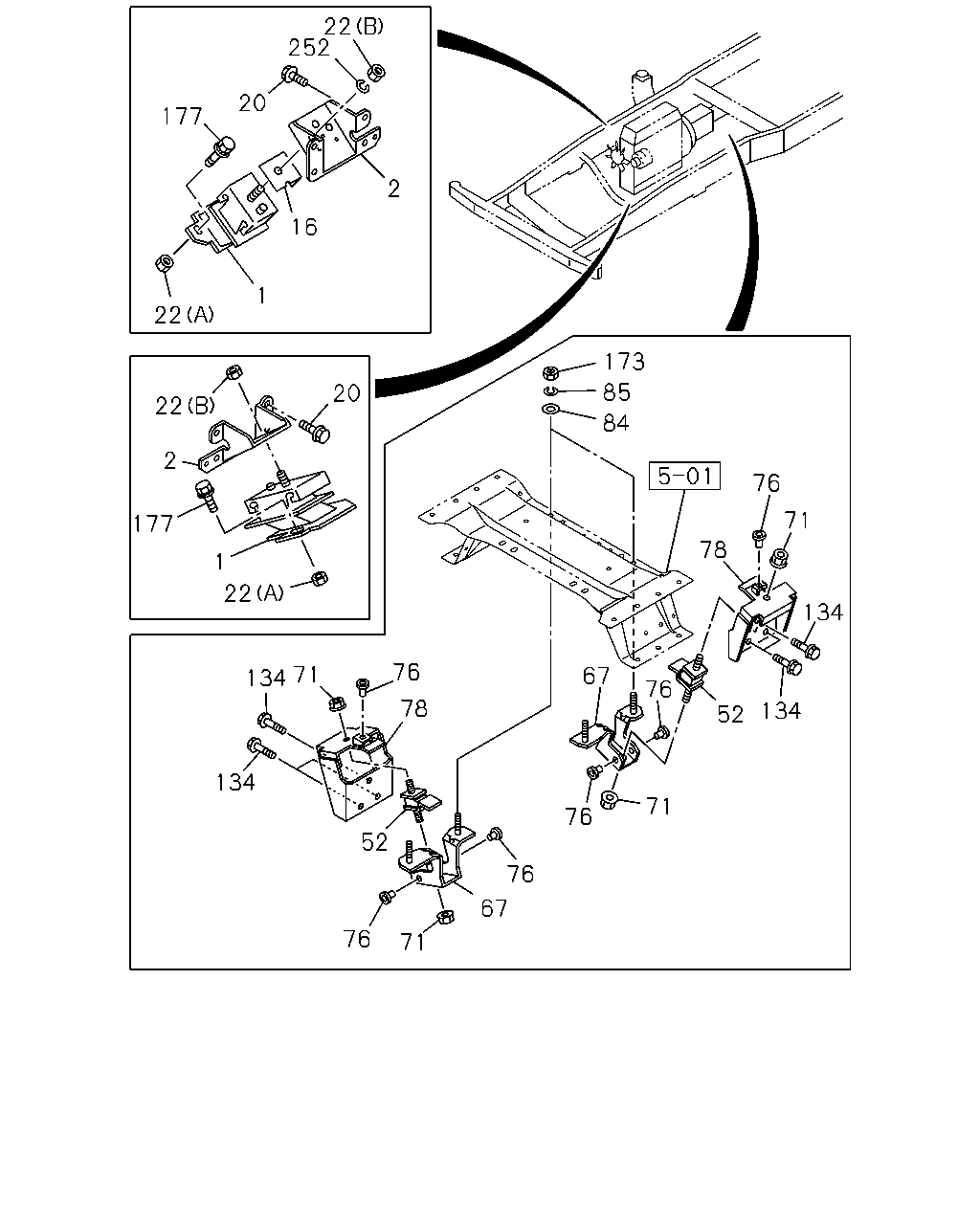

çizim 13346
22 252 20 177 2 16 1 22 173 85 20 22 84 2 76 71 177 78 1 22 134 67 76 76 134 71 78 134 52 134 71 76 52 76 67 76 71
BalonParca AdiParca NoAdetTipApplied Date A B
1 RUBBER; ENG FOOT,FRT 8-97122-895-1 01 1 0309- ●
1 RUBBER; ENG FOOT,FRT 8-97122-893-1 01 1 0309- ●
1 RUBBER; ENG FOOT,FRT 8-97080-621-0 01 1 0309- ●
1 RUBBER; ENG FOOT,FRT 8-97080-620-0 01 1 0309- ●
2 FOOT; ENG 8-97228-669-2 02 1 0309- ●
2 FOOT; ENG 8-97300-156-0 01 1 0309- ●
2 FOOT; ENG 8-97287-639-2 01 1 0309- ●
16 PROTECTOR; HEAT,ENG MTG,FRT 8-94365-486-0 01 1 0309- ●
20 BOLT; ENG FOOT
M10X20 FLANGE 		0-28191-020-0 08 1 0309- ●
20 BOLT; ENG FOOT
M10X22 W/LK WASHER 		0-50041-022-0 06 1 0309-0409 ●
20 BOLT; ENG FOOT
M10X22 W/LK WASHER 		0-50041-022-0 05 1 0410- ●
20 BOLT; ENG FOOT
M14X25 W/LK WASHER 		0-50041-425-0 01 1 0309- ●
20 BOLT; ENG FOOT
M10X28 		8-94329-952-1 01 1 0309-0409 ●
20 BOLT; ENG FOOT
M10X28 		8-94329-952-1 02 1 0410- ●
22 NUT; CUSHION RUBBER TO BRKT
(B) M12 		9-99110-412-0 02 1 0309- ●
22 NUT; CUSHION RUBBER TO BRKT
(A) M10 FLANGE 		0-91150-210-0 04 1 0309- ● ●
52 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-1 02 1 0309- ● ●
67 BRACKET; SUPPORT,ENG MTG,RR 8-97371-918-0 01 1 0309- ●
67 BRACKET; SUPPORT,ENG MTG,RR 8-97325-567-0 01 1 0309- ●
67 BRACKET; SUPPORT,ENG MTG,RR 8-94111-908-2 01 1 0309- ●
67 BRACKET; SUPPORT,ENG MTG,RR 8-94111-909-2 01 1 0309- ●
71 NUT; SUPPORT RUBBER TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 0309- ● ●
76 STOPPER; ENG MTG RUBBER 8-94111-904-0 06 1 0309- ●
76 STOPPER; ENG MTG RUBBER 8-94111-904-0 02 1 0309- ●
78 BRACKET; ENG MTG,RR 8-97325-560-0 01 1 0309- ●
78 BRACKET; ENG MTG,RR 8-97325-561-0 01 1 0309- ●
78 BRACKET; ENG MTG,RR 8-94133-393-2 01 1 0309- ●
84 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		9-09164-810-0 04 1 0309- ● ●
85 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2 		9-09150-610-0 04 1 0309- ● ●
134 BOLT; SUPPORT BRKT
M12X25 		0-28781-225-0 06 1 0309- ●
173 NUT; ENG MTG RR TO FRAME
M10 		9-09110-410-0 04 1 0309- ● ●
177 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 0309- ● ●
252 WASHER; LK,SUPPORT RUBBER
ID=12.2 		9-09150-612-0 02 1 0309- ● ●

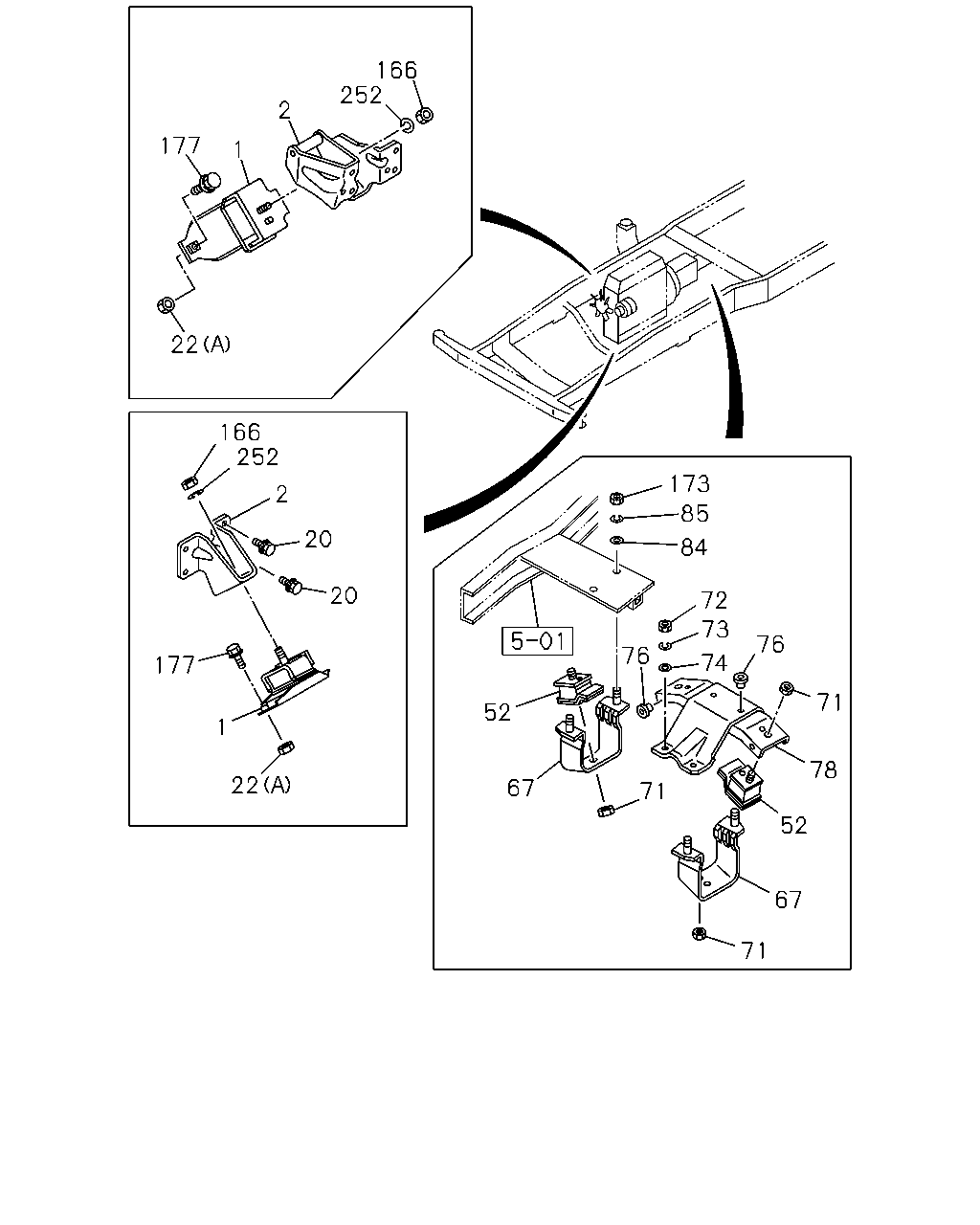

çizim 53964
166 252 2 177 1 22 166 252 173 2 85 20 84 20 72 73 76 76 74 177 71 52 1 78 22 67 71 52 67 71
BalonParca AdiParca NoAdetTipApplied Date A B
1 RUBBER; ENG FOOT,FRT 8-97122-895-1 01 1 0309- ●
1 RUBBER; ENG FOOT,FRT 8-97122-893-1 01 1 0309- ●
1 RUBBER; ENG FOOT,FRT 8-97080-621-0 01 1 0309- ●
1 RUBBER; ENG FOOT,FRT 8-97080-620-0 01 1 0309- ●
2 FOOT; ENG 8-97228-669-2 02 1 0309- ●
2 FOOT; ENG 8-97300-156-0 01 1 0309- ●
2 FOOT; ENG 8-97287-639-2 01 1 0309- ●
20 BOLT; ENG FOOT
M10X20 FLANGE 		0-28191-020-0 08 1 0309- ●
20 BOLT; ENG FOOT
M10X22 W/LK WASHER 		0-50041-022-0 06 1 0309-0409 ●
20 BOLT; ENG FOOT
M10X22 W/LK WASHER 		0-50041-022-0 05 1 0410- ●
20 BOLT; ENG FOOT
M14X25 W/LK WASHER 		0-50041-425-0 01 1 0309- ●
20 BOLT; ENG FOOT
M10X28 		8-94329-952-1 01 1 0309-0409 ●
20 BOLT; ENG FOOT
M10X28 		8-94329-952-1 02 1 0410- ●
22 NUT; CUSHION RUBBER TO BRKT
(B) M12 		9-99110-412-0 02 1 0309- ●
22 NUT; CUSHION RUBBER TO BRKT
(A) M10 FLANGE 		0-91150-210-0 04 1 0309- ● ●
52 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-1 02 1 0309- ● ●
67 BRACKET; SUPPORT,ENG MTG,RR 8-97371-918-0 01 1 0309- ●
67 BRACKET; SUPPORT,ENG MTG,RR 8-97325-567-0 01 1 0309- ●
67 BRACKET; SUPPORT,ENG MTG,RR 8-94111-908-2 01 1 0309- ●
67 BRACKET; SUPPORT,ENG MTG,RR 8-94111-909-2 01 1 0309- ●
71 NUT; SUPPORT RUBBER TO BRKT
M10 FLANGE 		0-91150-110-0 04 1 0309- ● ●
72 NUT; SUPPORT RUBBER TO TRANS
M10 		9-09110-410-0 04 1 0309- ●
73 WASHER; LK,CUSHION RUBBER TO FRAME
ID=10.2 		9-09150-610-0 04 1 0309- ●
74 WASHER; PL,SUPPORT RUBBER TO TRANS
ID=10.5 OD=22 		9-09164-610-0 02 1 0309- ●
76 STOPPER; ENG MTG RUBBER 8-94111-904-0 06 1 0309- ●
76 STOPPER; ENG MTG RUBBER 8-94111-904-0 02 1 0309- ●
78 BRACKET; ENG MTG,RR 8-97325-560-0 01 1 0309- ●
78 BRACKET; ENG MTG,RR 8-97325-561-0 01 1 0309- ●
78 BRACKET; ENG MTG,RR 8-94133-393-2 01 1 0309- ●
84 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		9-09164-810-0 04 1 0309- ● ●
85 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2 		9-09150-610-0 04 1 0309- ● ●
166 NUT; SUPPORT RUBBER
M12 		9-99110-512-0 02 1 0309-0512 ●
166 NUT; SUPPORT RUBBER
M12 		0-91110-512-0 02 1 0601- ●
173 NUT; ENG MTG RR TO FRAME
M10 		9-09110-410-0 04 1 0309- ● ●
177 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 0309- ● ●
252 WASHER; LK,SUPPORT RUBBER
ID=12.2 		9-09150-612-0 02 1 0309- ● ●
