0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#19545) — 121 parça

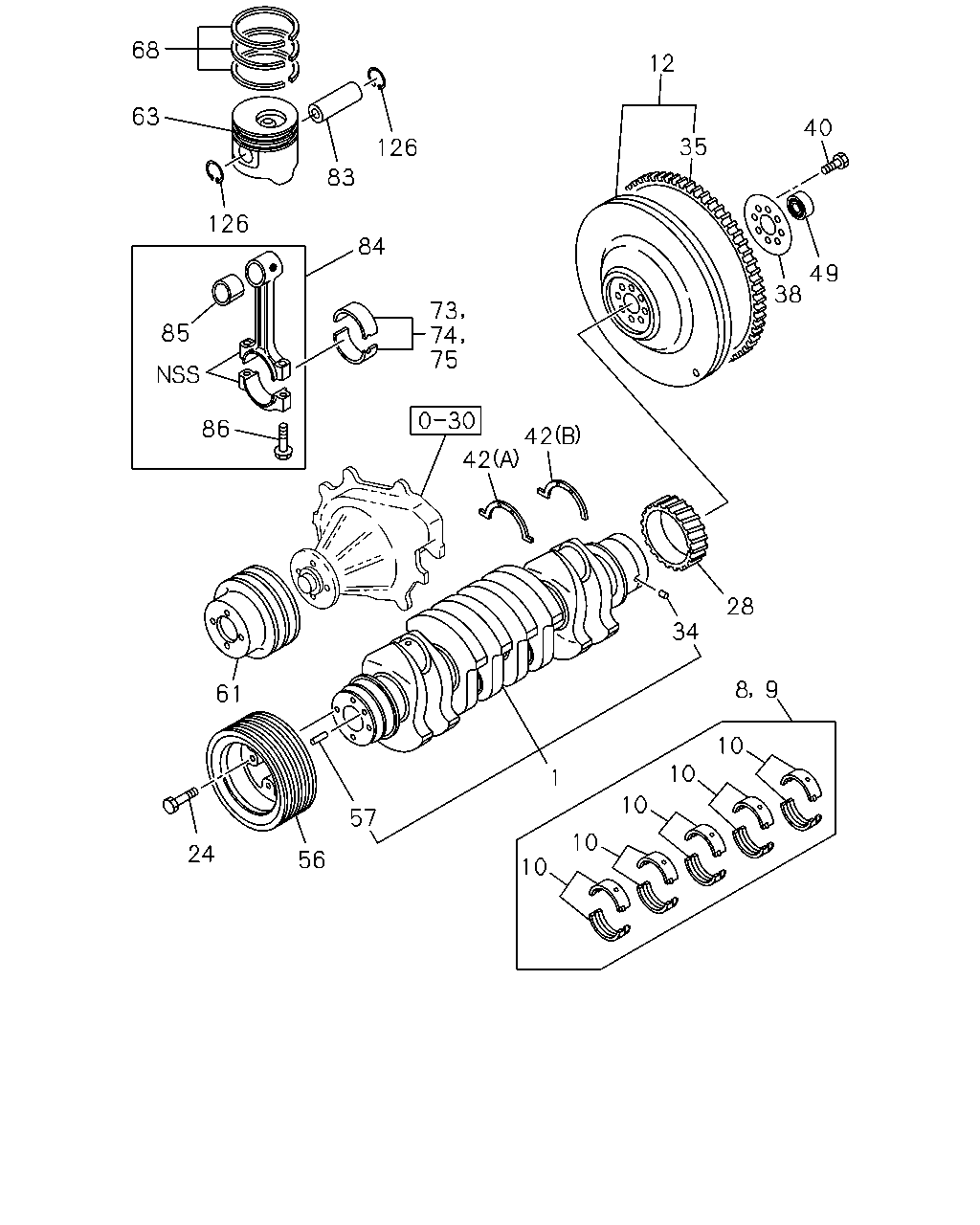

68 12 63 40 35 126 83 126 84 49 38 73 74 75 85 86 42 42 28 34 8 9 61 10 10 1 10 57 10 24 56 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CRANKSHAFT	8-97112-981-3	01	1	0309-	●
1	CRANKSHAFT	8-97331-853-0	01	1	0309-		●
8	METAL KIT; CRANKSHAFT,U/S=0.25	5-87310-546-0	01	1	0309-	●
9	METAL KIT; CRANKSHAFT,U/S=0.50	5-87310-547-0	01	1	0309-	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-0	05	1	0309-	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-0	05	1	0309-	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-0	05	1	0309-	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97202-878-0	05	1	0309-0411		●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	05	1	0412-		●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97202-879-0	05	1	0309-0411		●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	05	1	0412-		●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97202-880-0	05	1	0309-0411		●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	05	1	0412-		●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97202-881-0	05	1	0309-0411		●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97387-967-0	05	1	0412-		●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97202-882-0	05	1	0309-0411		●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97387-968-0	05	1	0412-		●
12	FLYWHEEL	8-97330-892-0	01	1	0309-	●
12	FLYWHEEL	8-97034-430-2	01	1	0309-		●
24	BOLT; DAMPER M16X42	8-97028-733-0	04	1	0309-	●
28	GEAR; CR/SHF Z=42	8-97109-626-1	01	1	0309-	●
28	GEAR; CR/SHF Z=21	8-97229-593-1	01	1	0309-		●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0309-	●
35	GEAR; RING Z=138	8-97046-366-0	01	1	0309-	●
35	GEAR; RING Z=108 THA	8-94419-602-1	01	1	0309-		●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0309-	●
38	WASHER; FLYWHEEL THA	8-94133-970-0	01	1	0309-		●
40	BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	0309-	●
40	BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	0309-		●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0309-	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0309-	●
42	WASHER; THRUST,CR/SHF (C)	8-94453-520-0	02	1	0309-0411		●
42	WASHER; THRUST,CR/SHF	8-97383-740-0	02	1	0412-		●
49	BEARING; PILOT	8-97258-239-0	01	1	0309-	●
56	PULLEY; CR/SHF DAMPER 4-GROOVE	8-97222-031-3	01	1	0309-	●
56	PULLEY; CR/SHF DAMPER 3-GROOVE YAMATO PRESS THA	8-94419-457-2	01	1	0309-		●
56	PULLEY; CR/SHF DAMPER 3-GROOVE FUKOKU THA	8-97229-900-0	01	1	0309-0309		●
56	PULLEY; CR/SHF DAMPER 3-GROOVE FUKOKU	8-94442-166-6	01	1	0310-		●
57	PIN; PULLEY OD=8 L=20	9-08150-820-0	02	1	0309-	●
61	PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-3	01	1	0309-	●
61	PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-4	01	1	0309-		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97219-032-0	04	1	0309-	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-610-0	04	1	0309-		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-611-0	04	1	0309-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97219-054-0	04	1	0309-	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. THA	8-94247-867-1	04	1	0309-		●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	0309-	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	0309-	●
73	METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	0309-		●
74	METAL SET; CONN ROD,U/S=0.25	8-97175-127-0	04	1	0309-	●
75	METAL SET; CONN ROD,U/S=0.50	8-97175-128-0	04	1	0309-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	0309-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET. THA	8-94457-008-1	04	1	0309-		●
84	ROD ASM; CONN	8-97135-032-1	04	1	0309-	●
84	ROD ASM; CONN	8-97062-300-1	04	1	0309-0504		●
84	ROD ASM; CONN	8-98013-290-0	04	1	0505-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	04	1	0309-	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	0309-		●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	0309-	●
86	BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0309-		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	08	1	0309-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. THA	8-94460-687-0	08	1	0309-		●

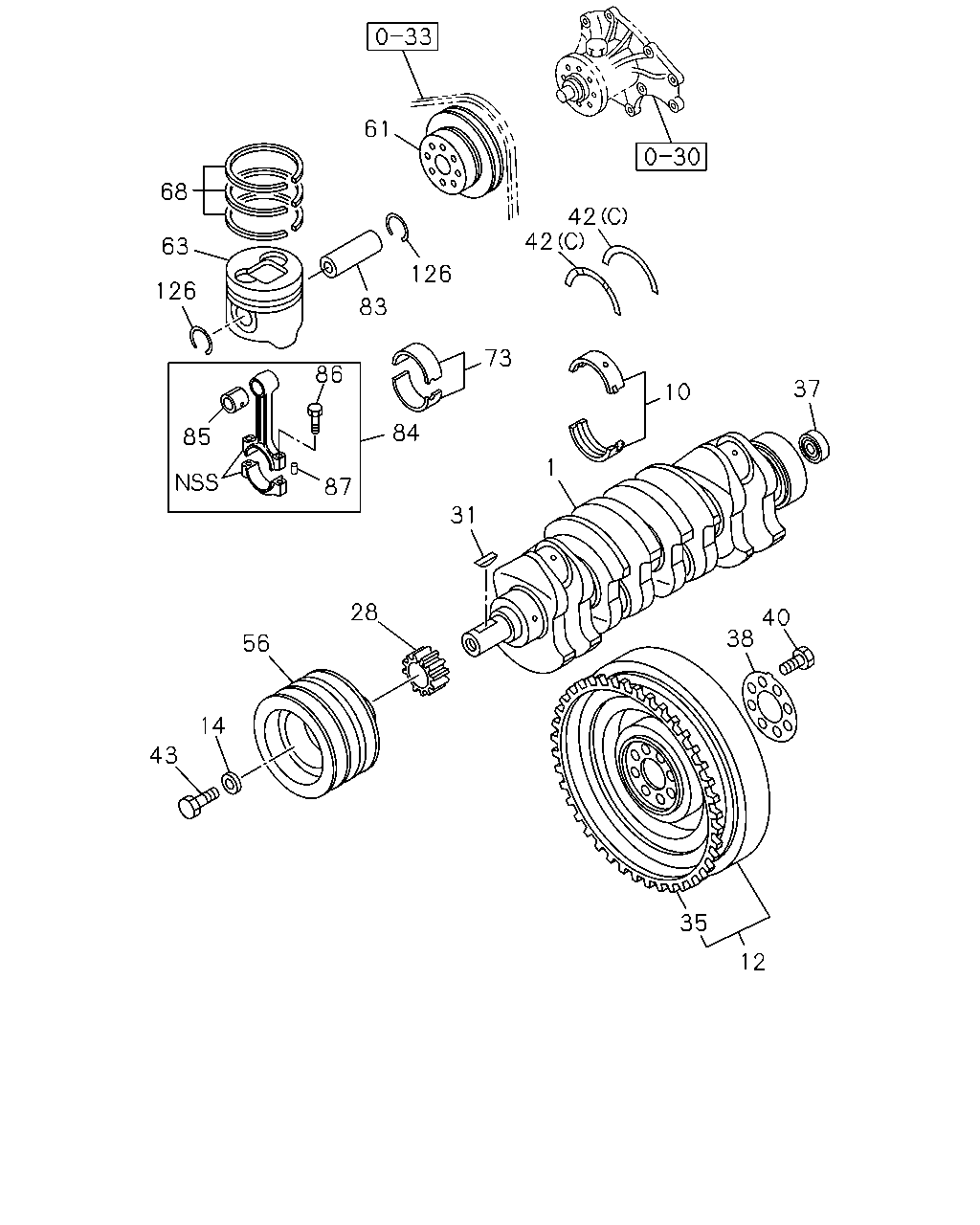

61 68 42 42 63 126 126 83 73 86 37 10 84 85 1 87 31 28 40 38 56 14 43 35 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CRANKSHAFT	8-97112-981-3	01	1	0309-	●
1	CRANKSHAFT	8-97331-853-0	01	1	0309-		●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-0	05	1	0309-	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-0	05	1	0309-	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-0	05	1	0309-	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97202-878-0	05	1	0309-0411		●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	05	1	0412-		●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97202-879-0	05	1	0309-0411		●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	05	1	0412-		●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97202-880-0	05	1	0309-0411		●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	05	1	0412-		●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97202-881-0	05	1	0309-0411		●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97387-967-0	05	1	0412-		●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97202-882-0	05	1	0309-0411		●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97387-968-0	05	1	0412-		●
12	FLYWHEEL	8-97330-892-0	01	1	0309-	●
12	FLYWHEEL	8-97034-430-2	01	1	0309-		●
14	WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-0	01	1	0309-		●
28	GEAR; CR/SHF Z=42	8-97109-626-1	01	1	0309-	●
28	GEAR; CR/SHF Z=21	8-97229-593-1	01	1	0309-		●
31	KEY; FEATHER,CR/SHF	8-94201-641-0	01	1	0309-		●
35	GEAR; RING Z=138	8-97046-366-0	01	1	0309-	●
35	GEAR; RING Z=108 THA	8-94419-602-1	01	1	0309-		●
37	BEARING; PILOT,TOP GEAR SHAFT	9-00090-679-0	01	1	0309-		●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0309-	●
38	WASHER; FLYWHEEL THA	8-94133-970-0	01	1	0309-		●
40	BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	0309-	●
40	BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	0309-		●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0309-	●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0309-	●
42	WASHER; THRUST,CR/SHF (C)	8-94453-520-0	02	1	0309-0411		●
42	WASHER; THRUST,CR/SHF	8-97383-740-0	02	1	0412-		●
43	BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	0309-		●
56	PULLEY; CR/SHF DAMPER 4-GROOVE	8-97222-031-3	01	1	0309-	●
56	PULLEY; CR/SHF DAMPER 3-GROOVE YAMATO PRESS THA	8-94419-457-2	01	1	0309-		●
56	PULLEY; CR/SHF DAMPER 3-GROOVE FUKOKU THA	8-97229-900-0	01	1	0309-0309		●
56	PULLEY; CR/SHF DAMPER 3-GROOVE FUKOKU	8-94442-166-6	01	1	0310-		●
61	PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-3	01	1	0309-	●
61	PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-4	01	1	0309-		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97219-032-0	04	1	0309-	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-610-0	04	1	0309-		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-611-0	04	1	0309-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97219-054-0	04	1	0309-	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET. THA	8-94247-867-1	04	1	0309-		●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	0309-	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	0309-	●
73	METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	0309-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	0309-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET. THA	8-94457-008-1	04	1	0309-		●
84	ROD ASM; CONN	8-97135-032-1	04	1	0309-	●
84	ROD ASM; CONN	8-97062-300-1	04	1	0309-0504		●
84	ROD ASM; CONN	8-98013-290-0	04	1	0505-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	04	1	0309-	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	0309-		●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	0309-	●
86	BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0309-		●
87	PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	0309-		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	08	1	0309-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. THA	8-94460-687-0	08	1	0309-		●
